Entry time:
Sat Jul 22 09:19:59 2023
Author
*
:
Subject
*
:

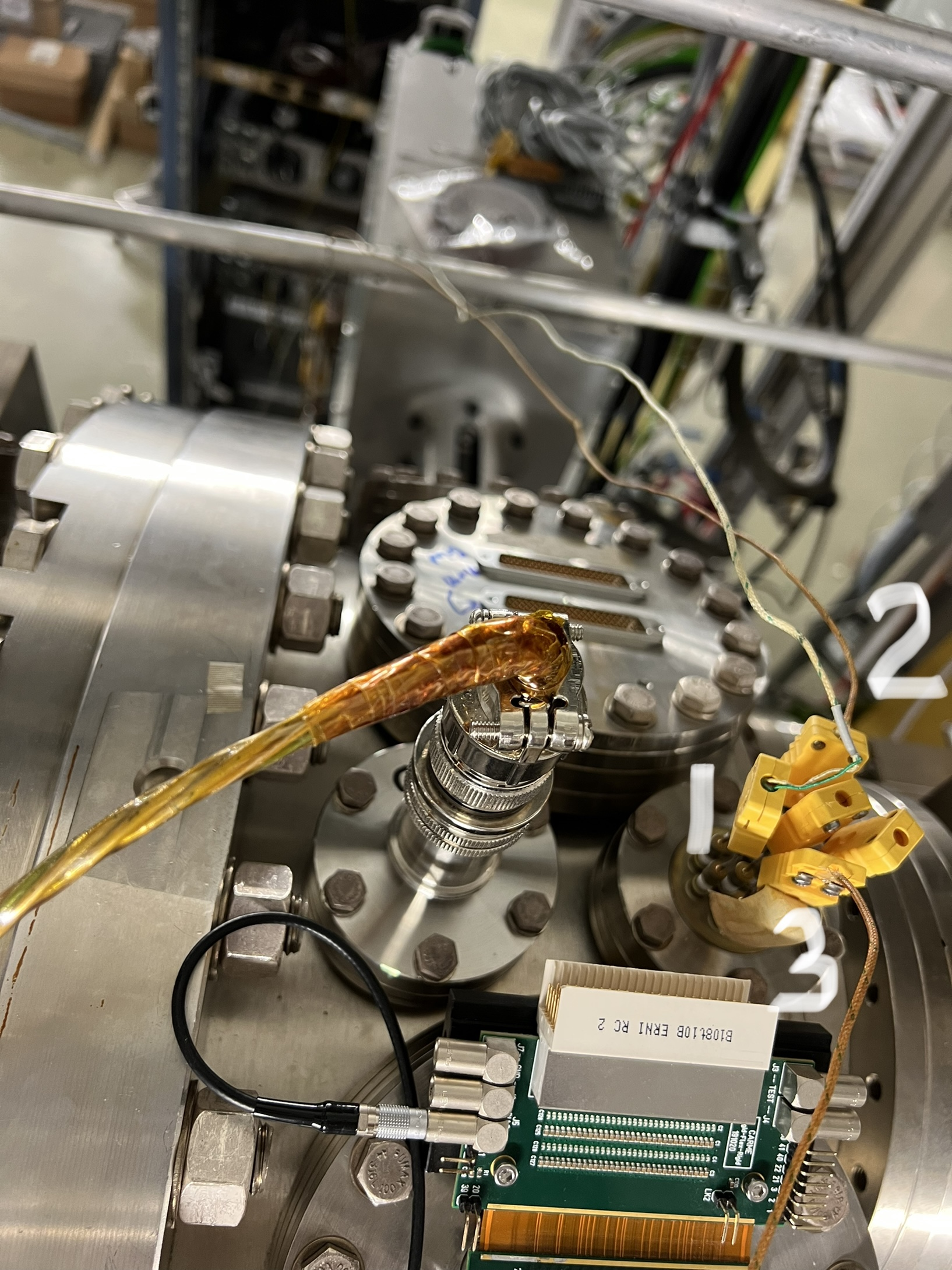

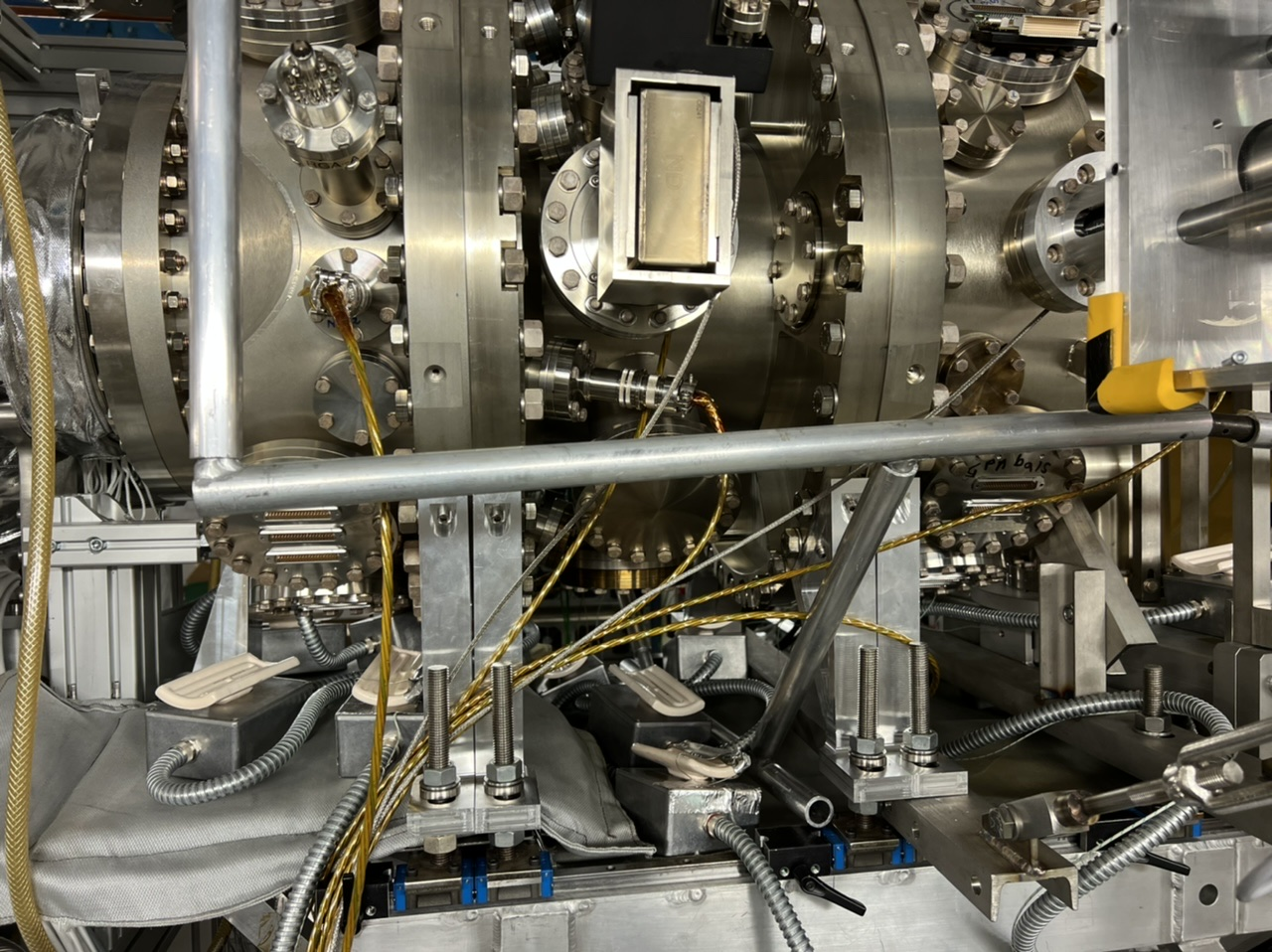

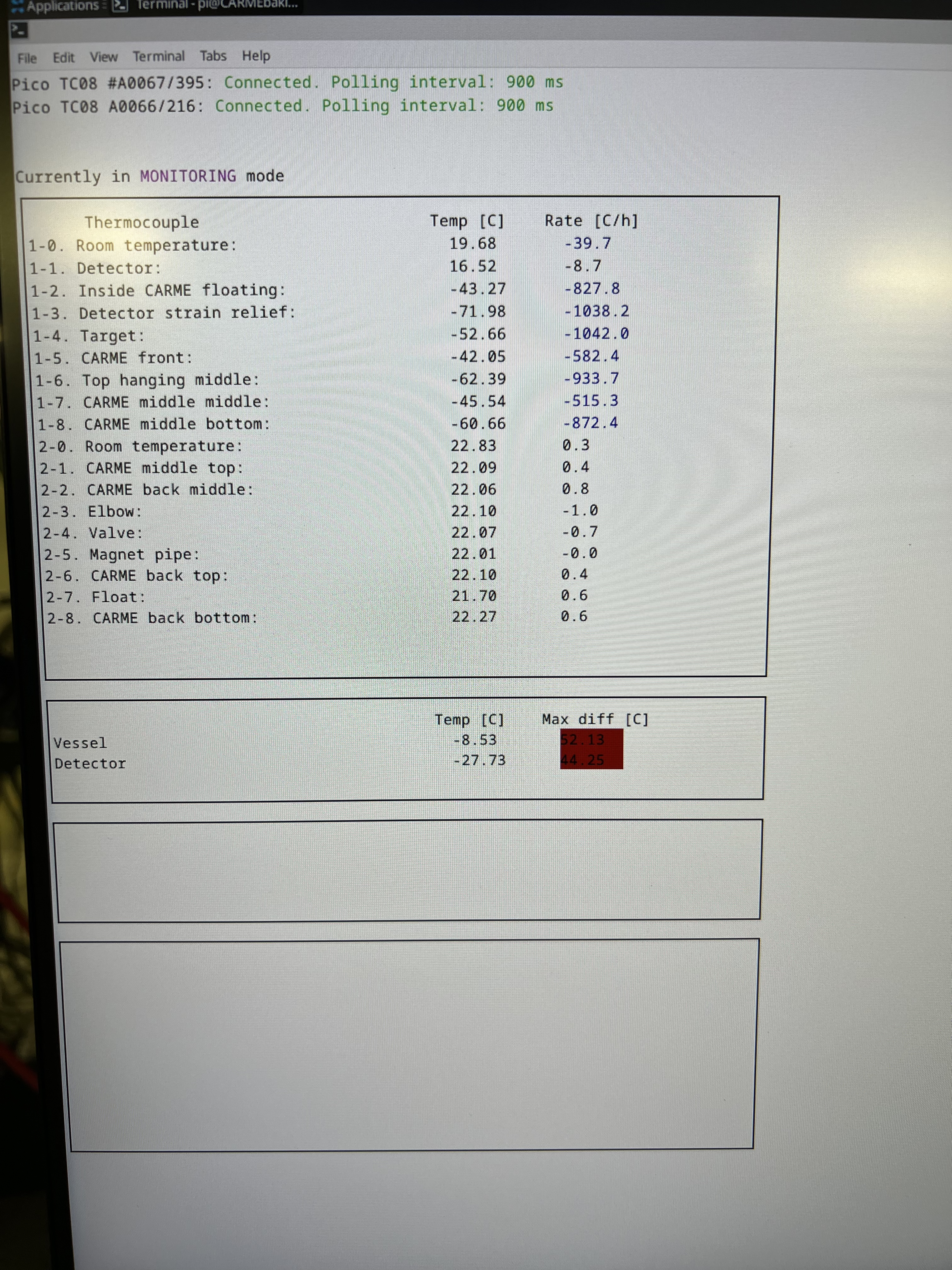

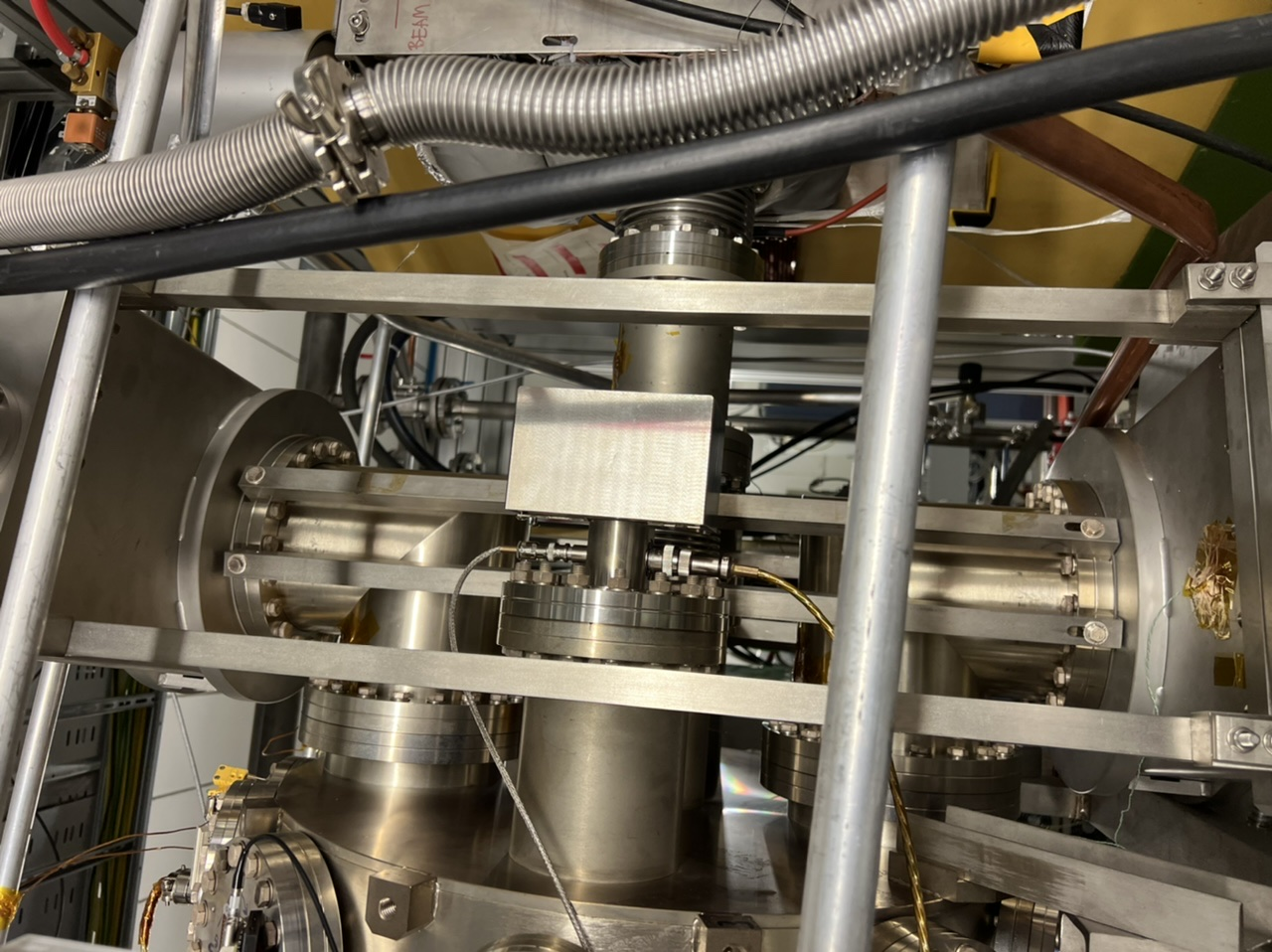

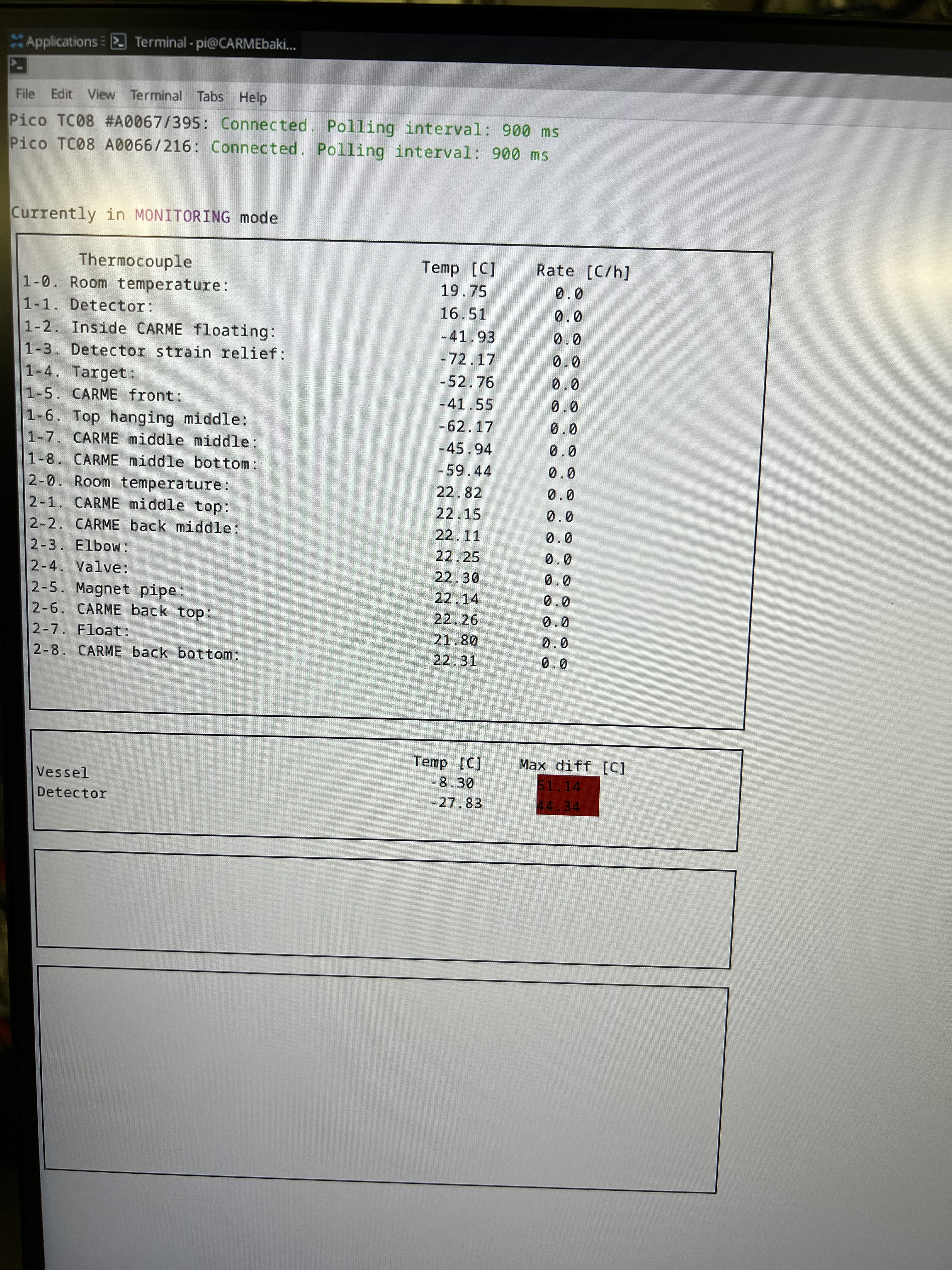

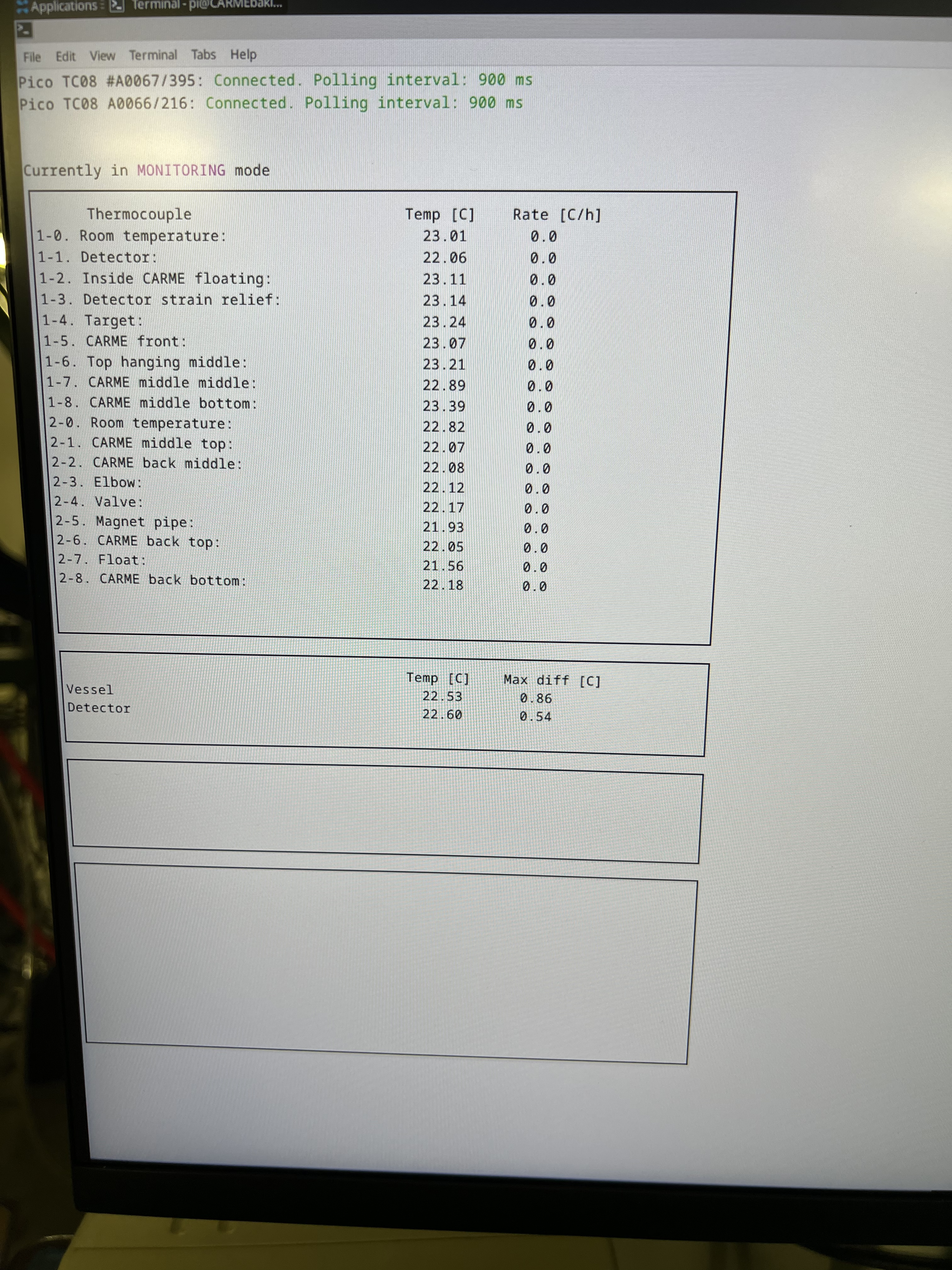

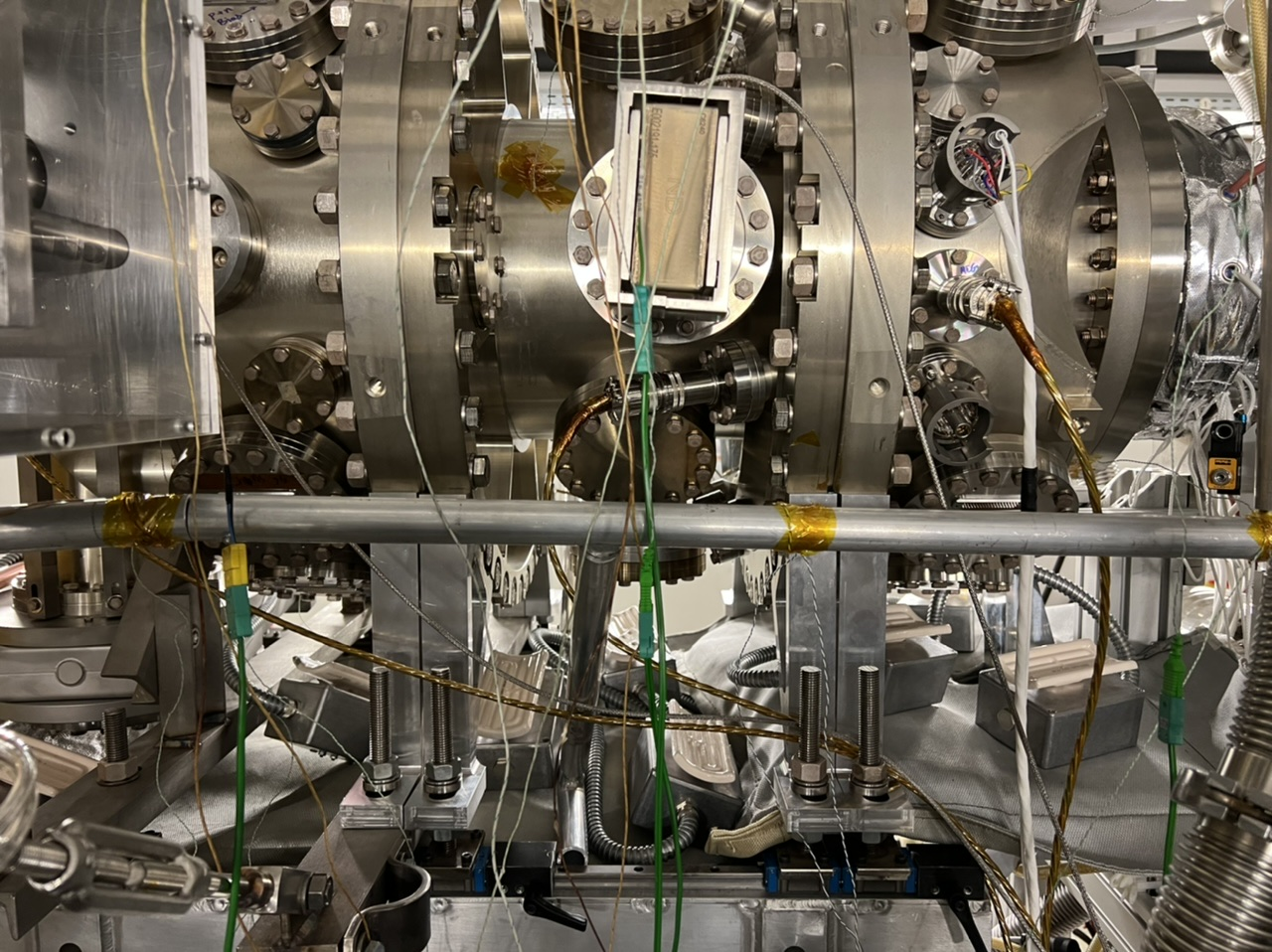

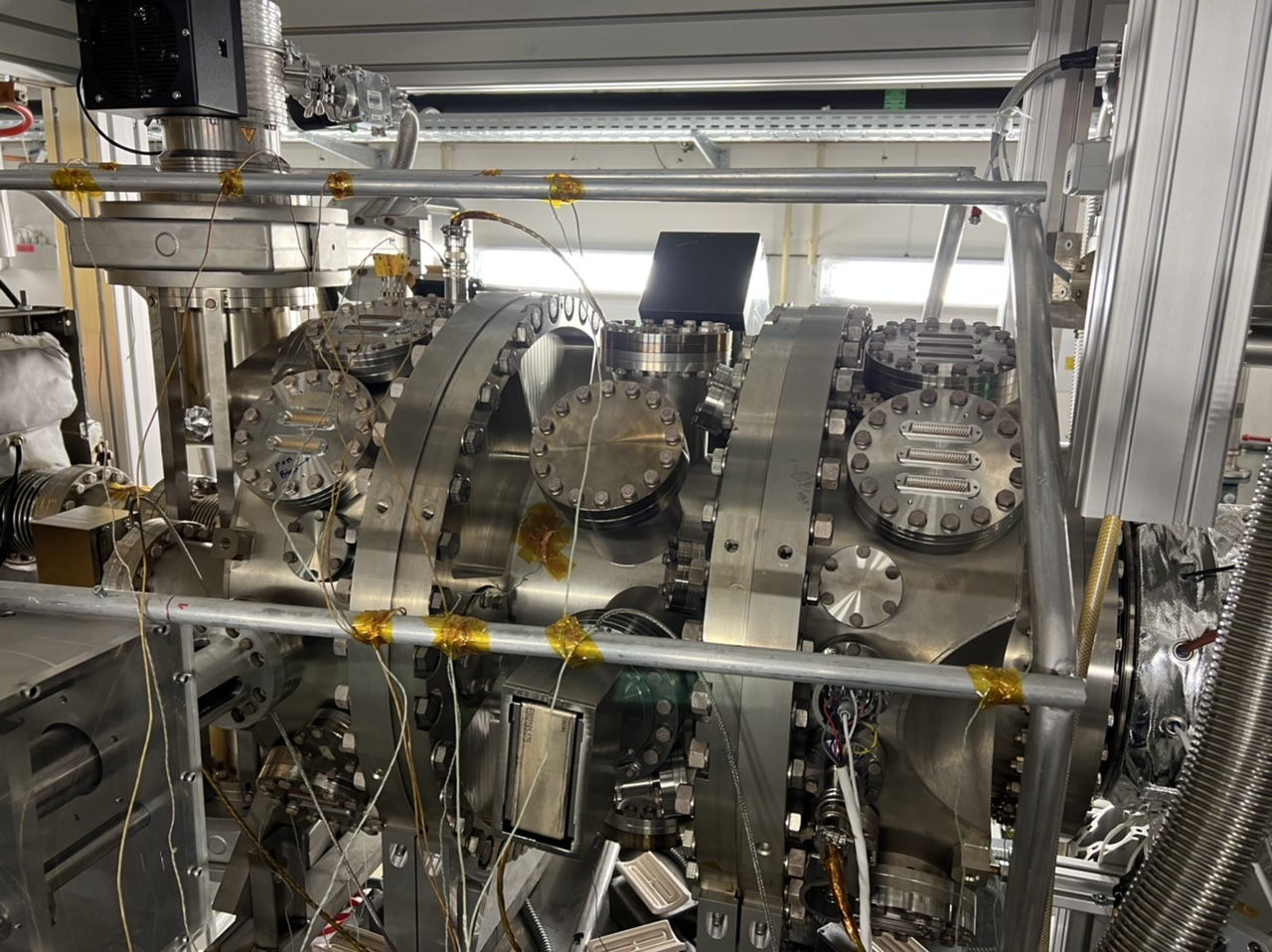

10.20 Pirani 1e-03mbar IE514 3.26e-08mbar 12.53 CARME Leybold IE514 gauge OFF Top right DSSSD bias -20V leakage current -10.51uA Three internal ThermoCouples (TCs) -labeled 1, 2, and 3 in attachment 1 - were attached and tested on the TC-08 boards. Only 2 showed the ambient temperature, see attachment 3. 1 and 3 showed some strange numbers, see attachments 2 and 4 respectively. 15.28 CARME Leybold IE514 gauge OFF. Top right DSSSD bias -20V leakage current -10.44A All the TCs are attached to TC-08 modules. See attachments 5-7. Once all TCs were plugged into TC-08 modules, they were fine. TC-08 A0067 1. Internal TC 1 2. Internal TC 2 3. Internal TC 3 4. CARME front top 5. CARME front bottom 6. Top hanging middle 7. CARME middle middle 8. CARME middle bottom TC-08 A0066 1. CARME middle top 2. CARME back middle 3. Elbow 4. Valve 5. Magnet pipe 6. CARME back top 7. CARME back float 8. CARME back bottom Heating Jackets placed beneath the heaters. See attachments 8-10.
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 1634x2180
Attachment 2:
Original size: 4032x3024
Attachment 3:
Original size: 4032x3024
Attachment 4:
Original size: 4032x3024
Attachment 5:
Original size: 1280x958
Attachment 6:
Original size: 1280x958
Attachment 7:
Original size: 1280x958
Attachment 8:
Original size: 1280x958
Attachment 9:
Original size: 1280x958
Attachment 10:
Original size: 1280x958
