CARME

Fields marked with * are required

Entry time:

Sun Jan 14 12:31:32 2024

Author*:

Subject*:

*Updated following FEE changes. Correct as of 31/01/24

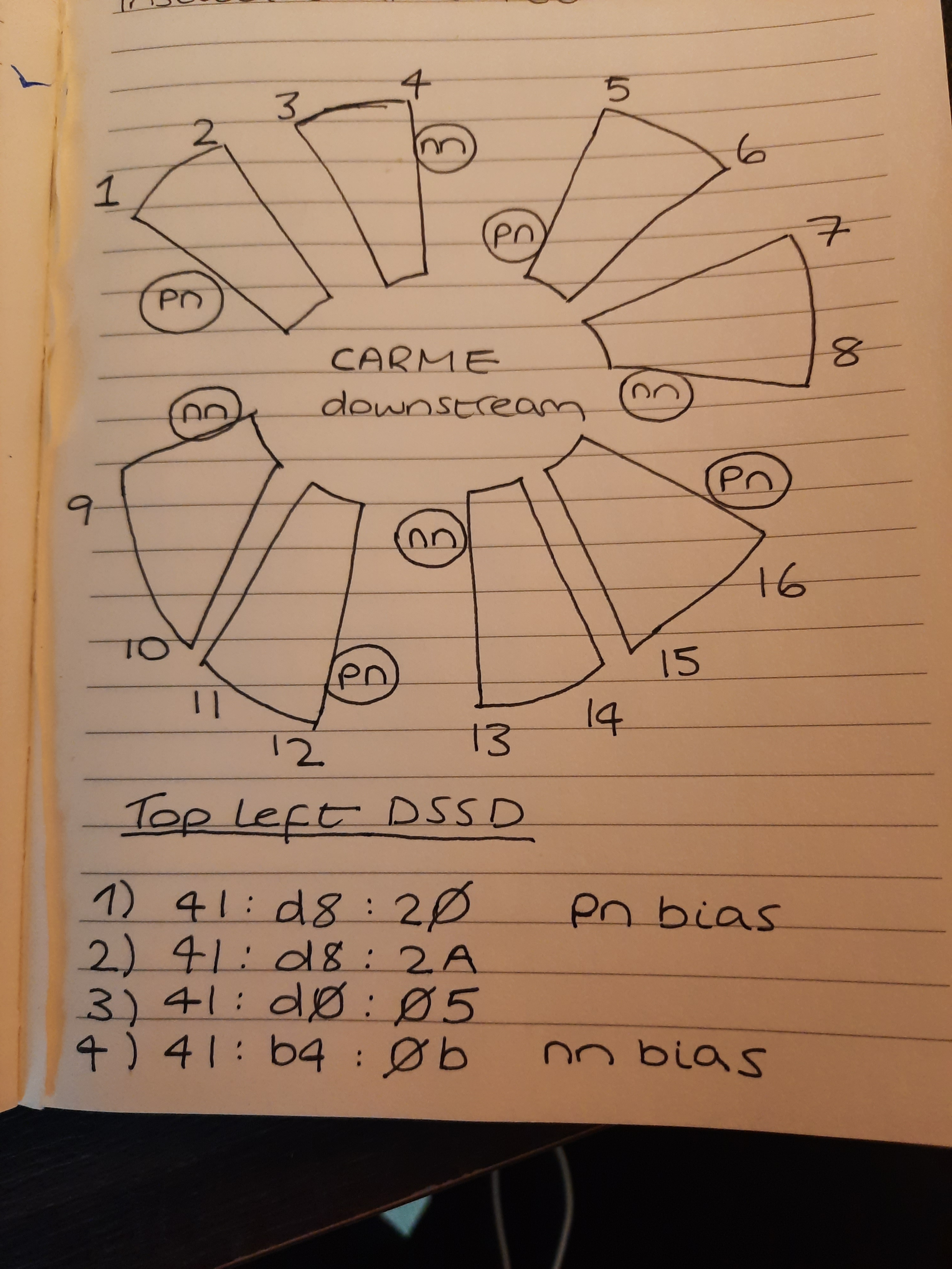

FEE modules are labelled according to the diagram in attachment. Note attachment is looking downstream. Each FEE module is also labelled with its assigned number and whether it is a bias connection on the FEE holders. MAC addresses and FEE descriptions are as follows;

1 -&nbsp; 41:d8:20&nbsp; - top left detector -&nbsp; pn bias

2 -&nbsp; 41:d8:2a&nbsp; - top left detector -&nbsp;

3 -&nbsp; 41:d0:05&nbsp; - top left detector -&nbsp;

4 -&nbsp; 41:b4:0b&nbsp; - top left detector -&nbsp; nn bias

5 -&nbsp; 42:0d:0c&nbsp; - top right detector -&nbsp; pn bias

6 -&nbsp; 41:0d:16&nbsp; - top rightdetector -&nbsp;

7 -&nbsp; 41:b4:16&nbsp; - top right detector -&nbsp;

8 -&nbsp; 41:ba:2b&nbsp; - top right detector -&nbsp; nn bias

9 -&nbsp; 41:d0:0e&nbsp; - bottom left detector -&nbsp; nn bias

10 -&nbsp; 41:d8:2b&nbsp; - bottom left detector -&nbsp;

11 -&nbsp; 41:d7:cc&nbsp; - bottom left detector -&nbsp;

12 -&nbsp; 41:d7:c2&nbsp; - bottom left detector -&nbsp; pn bias
