Entry time:
Mon Jan 22 16:29:31 2024
Author
*
:
Subject
*
:

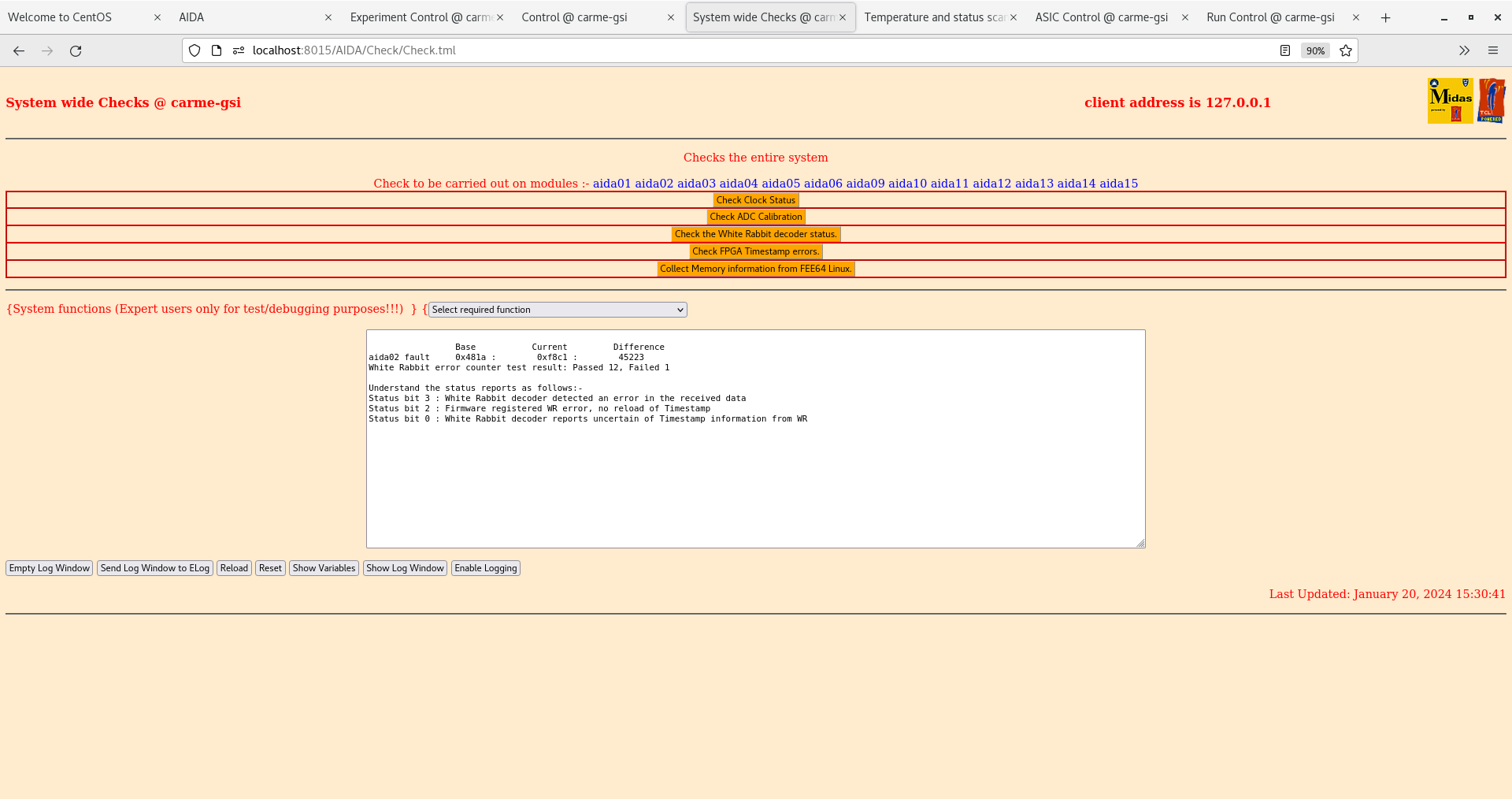

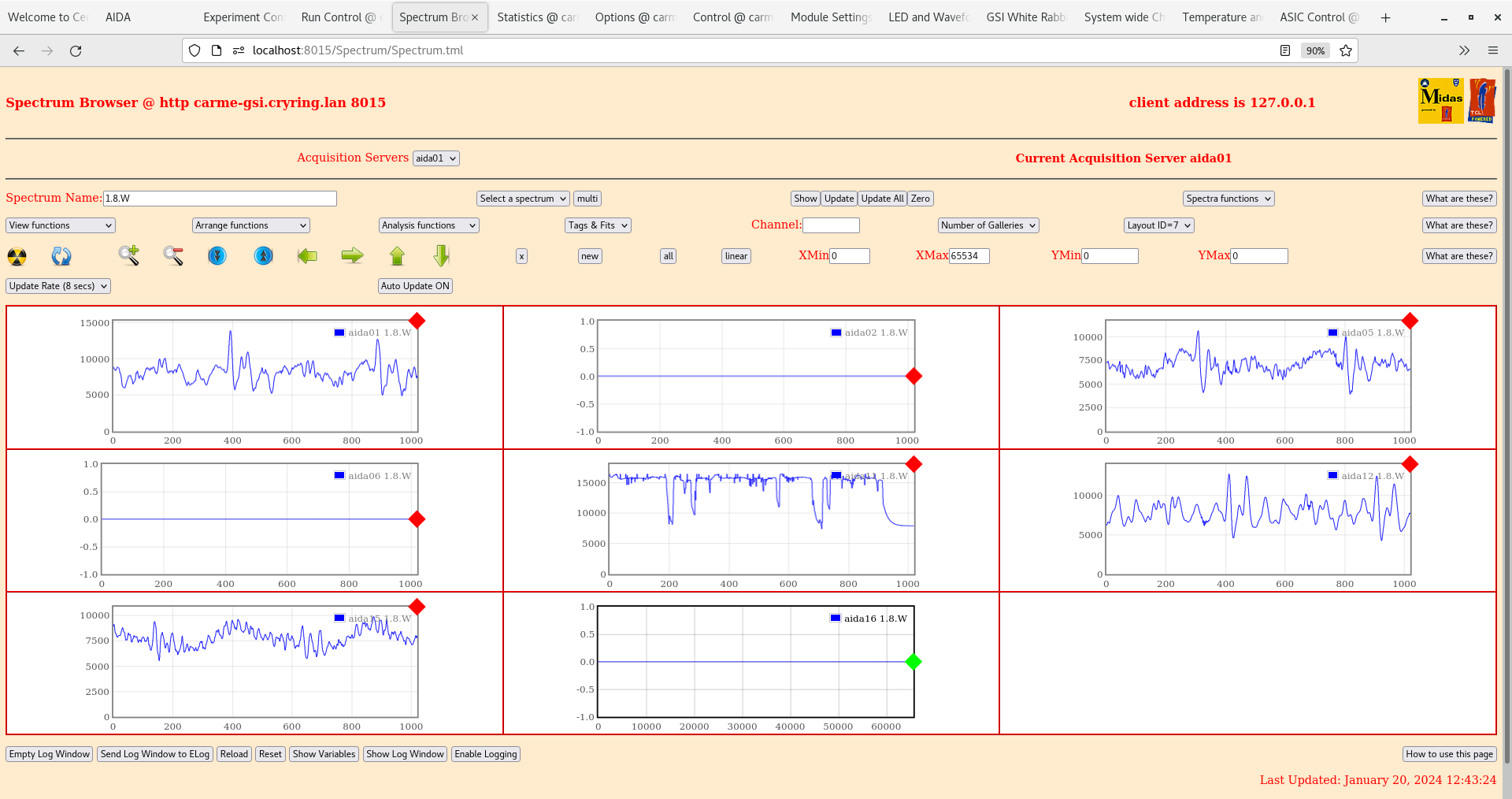

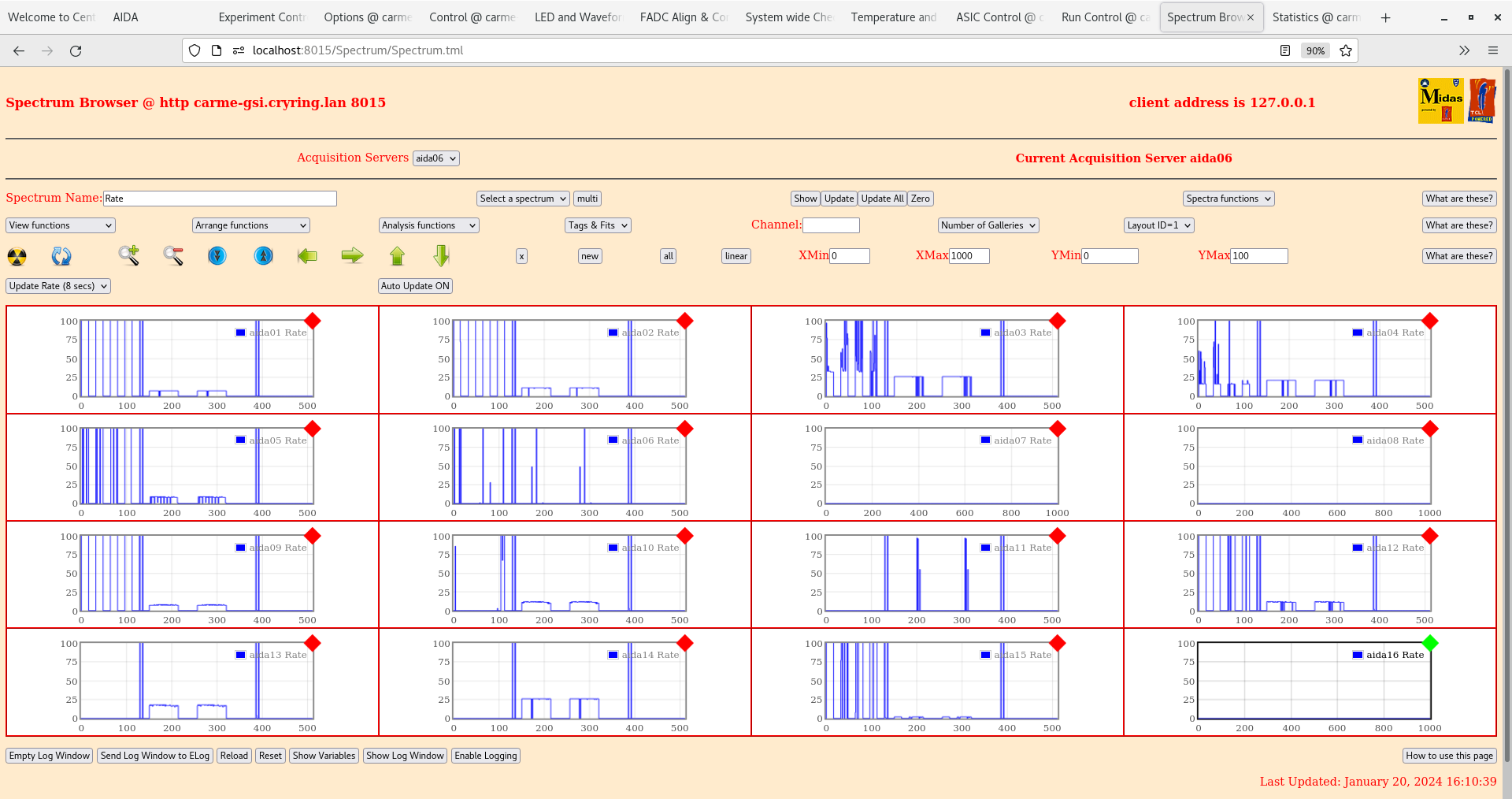

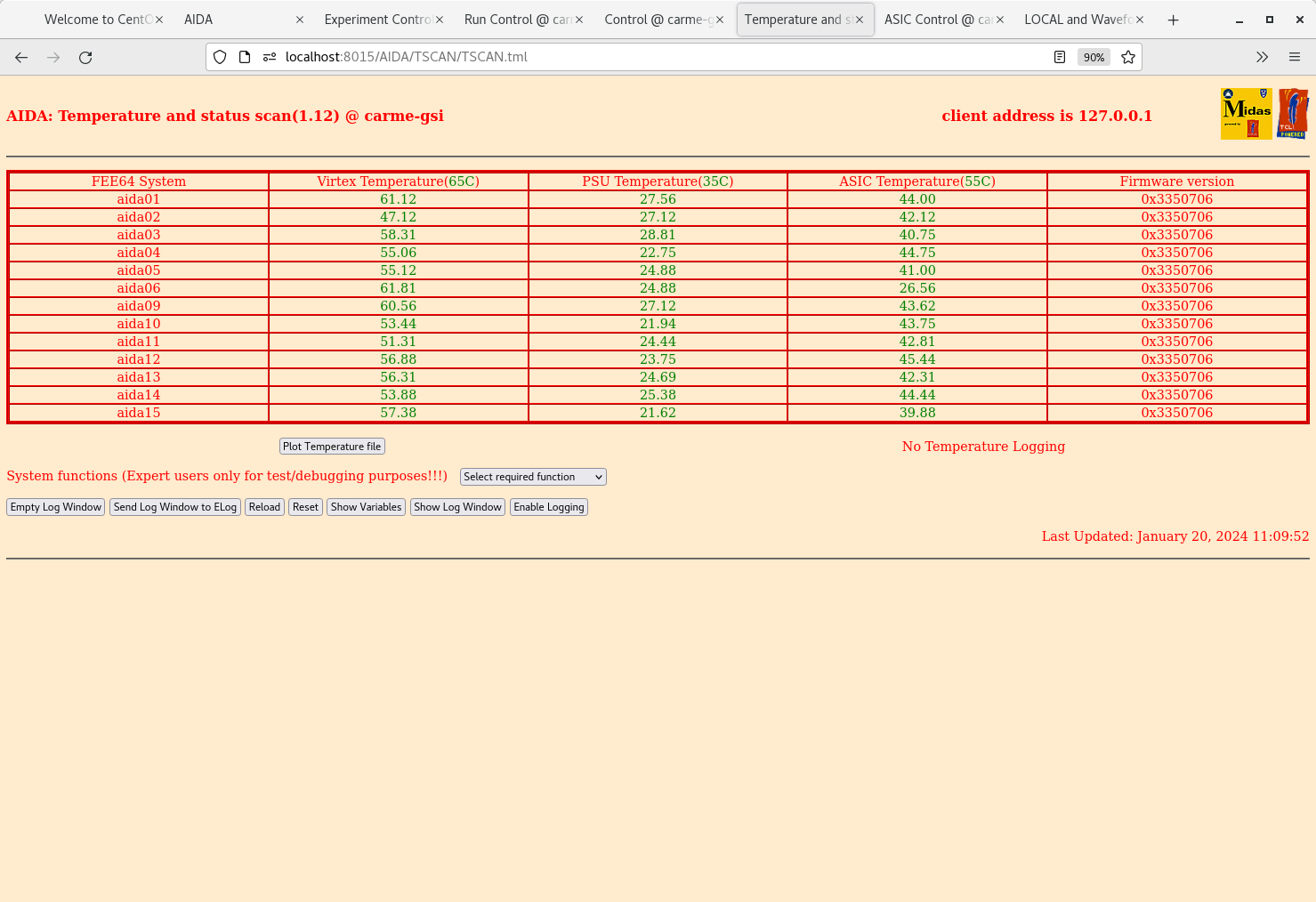

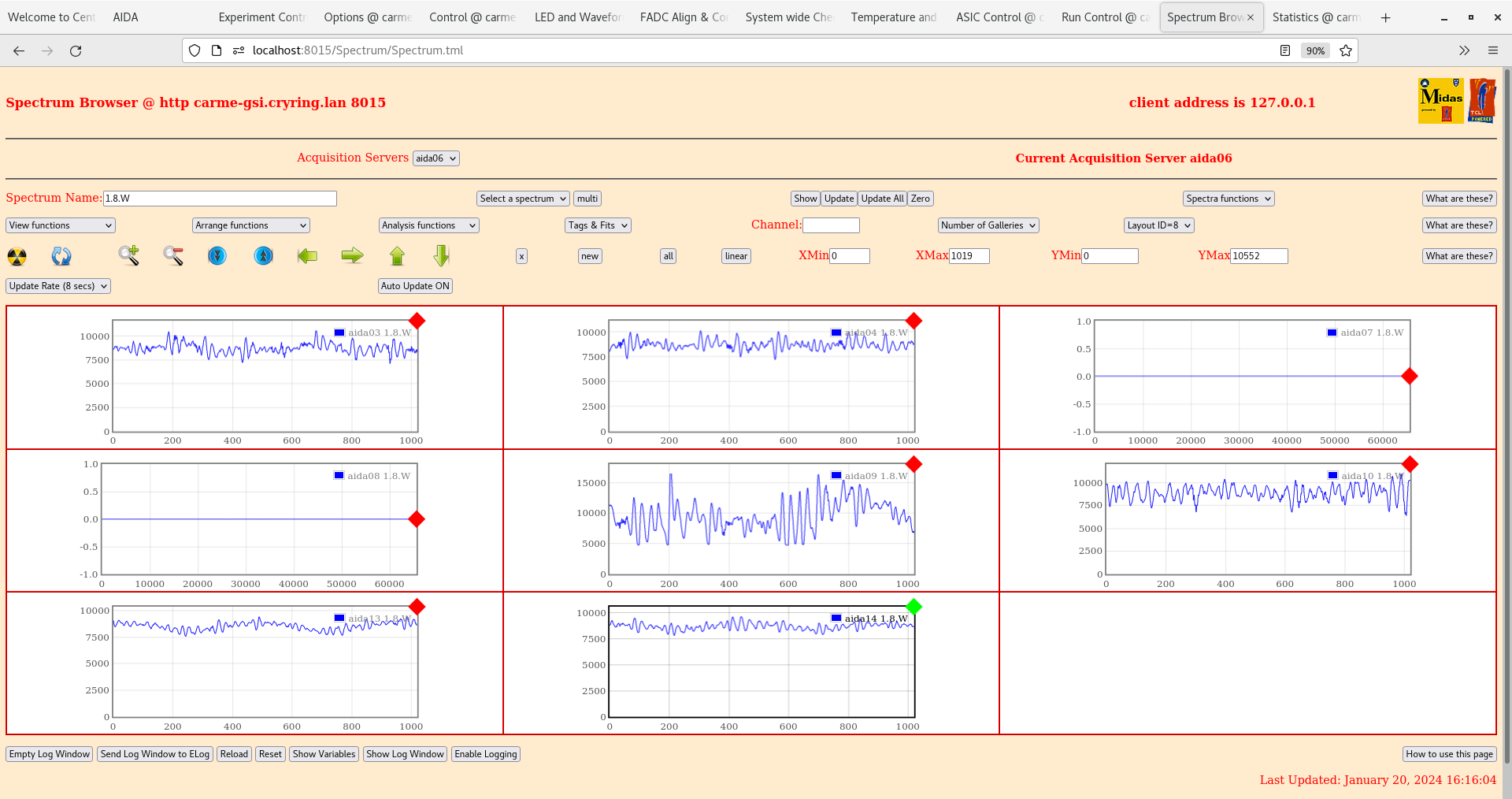

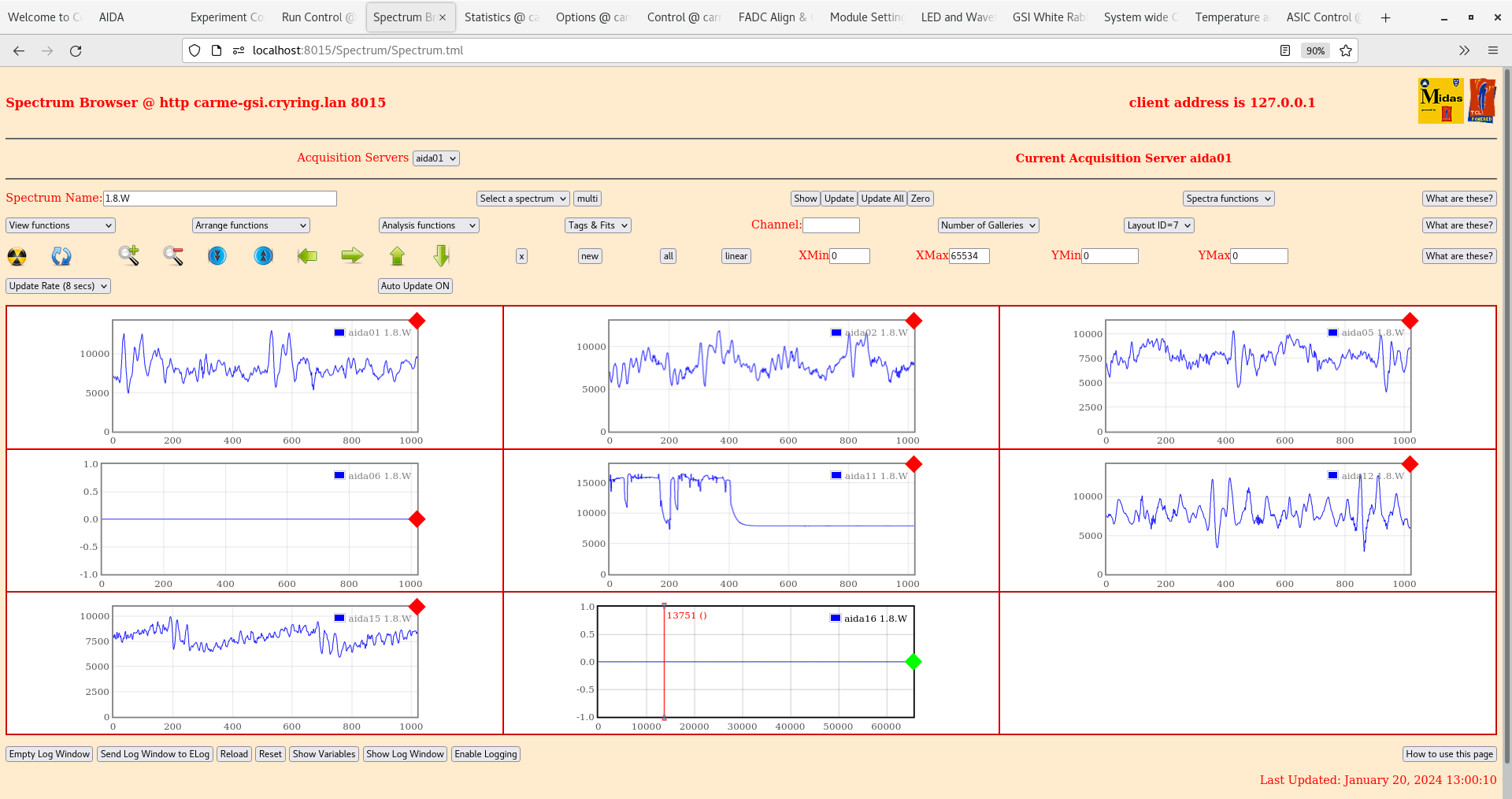

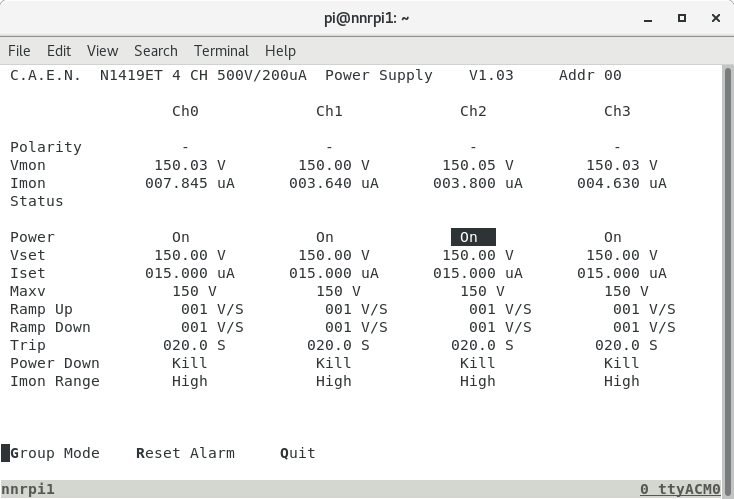

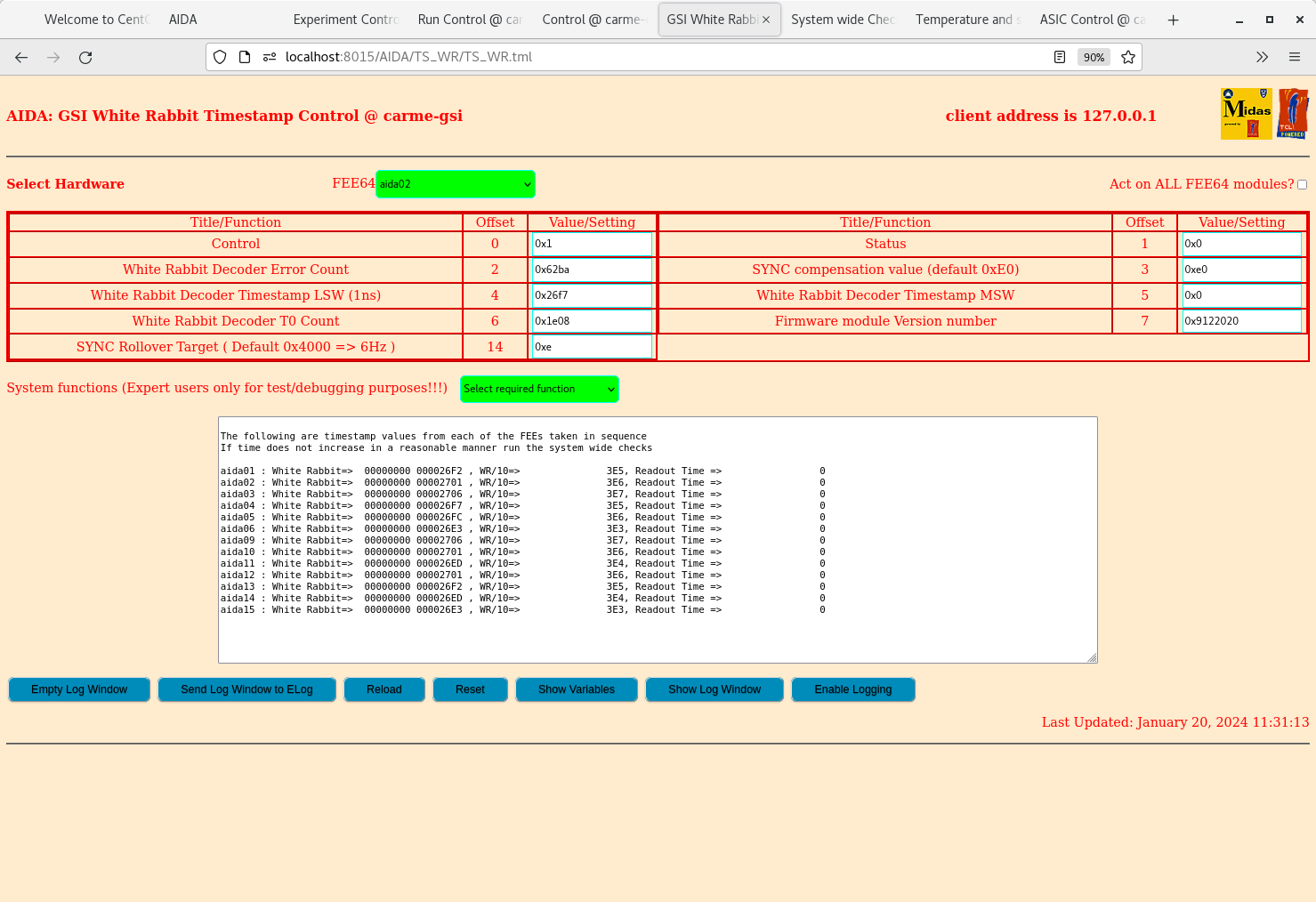

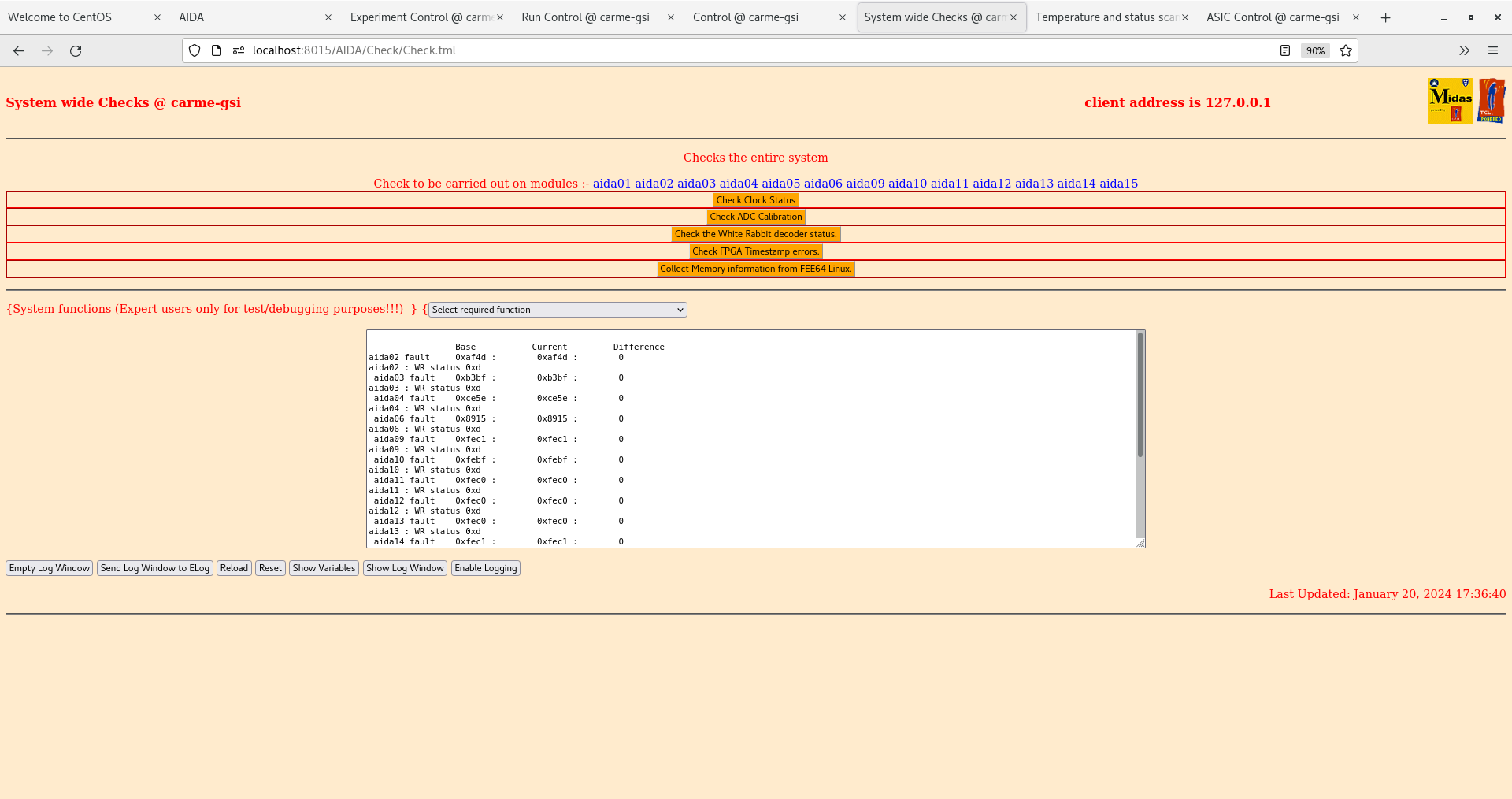

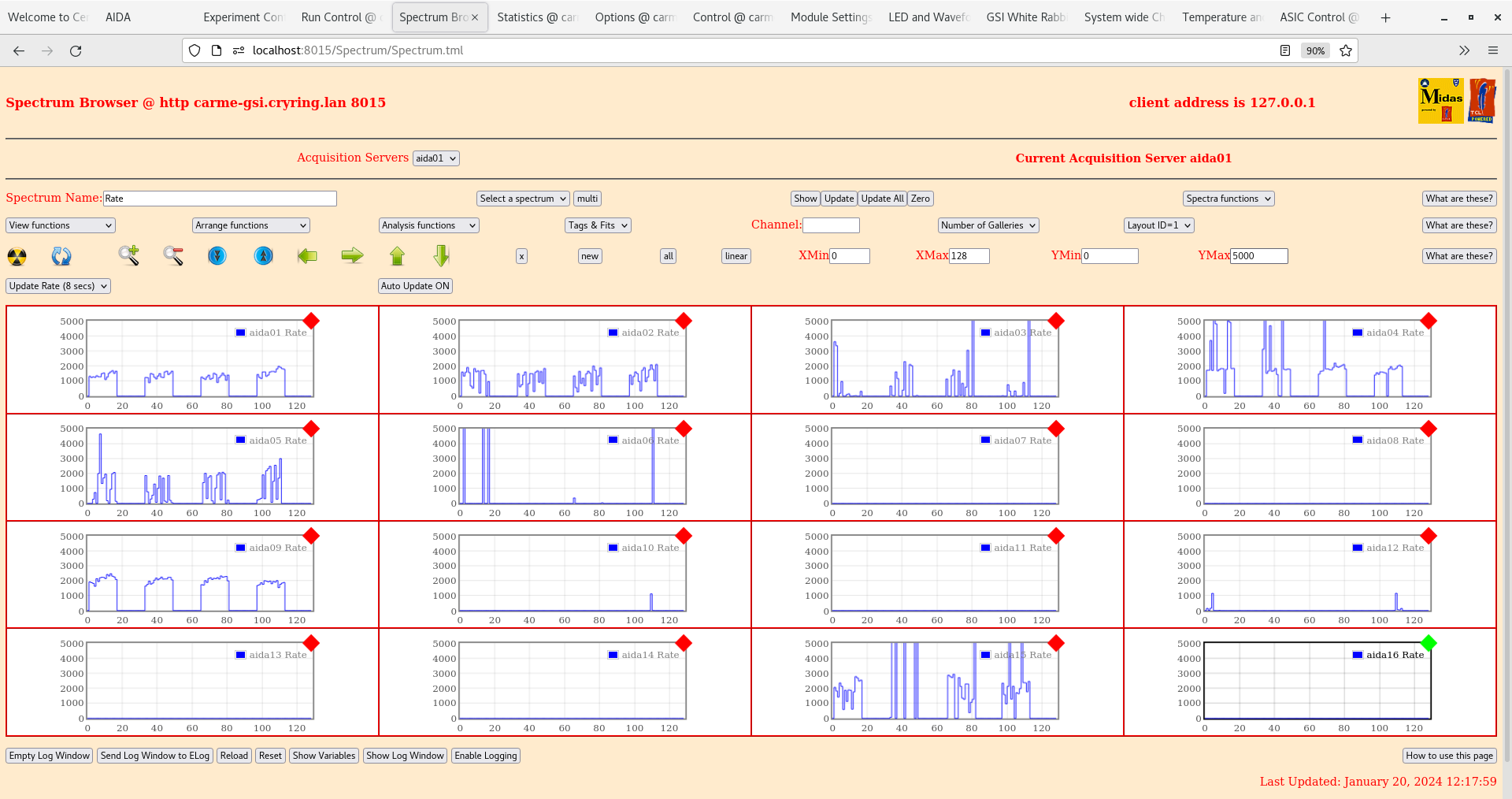

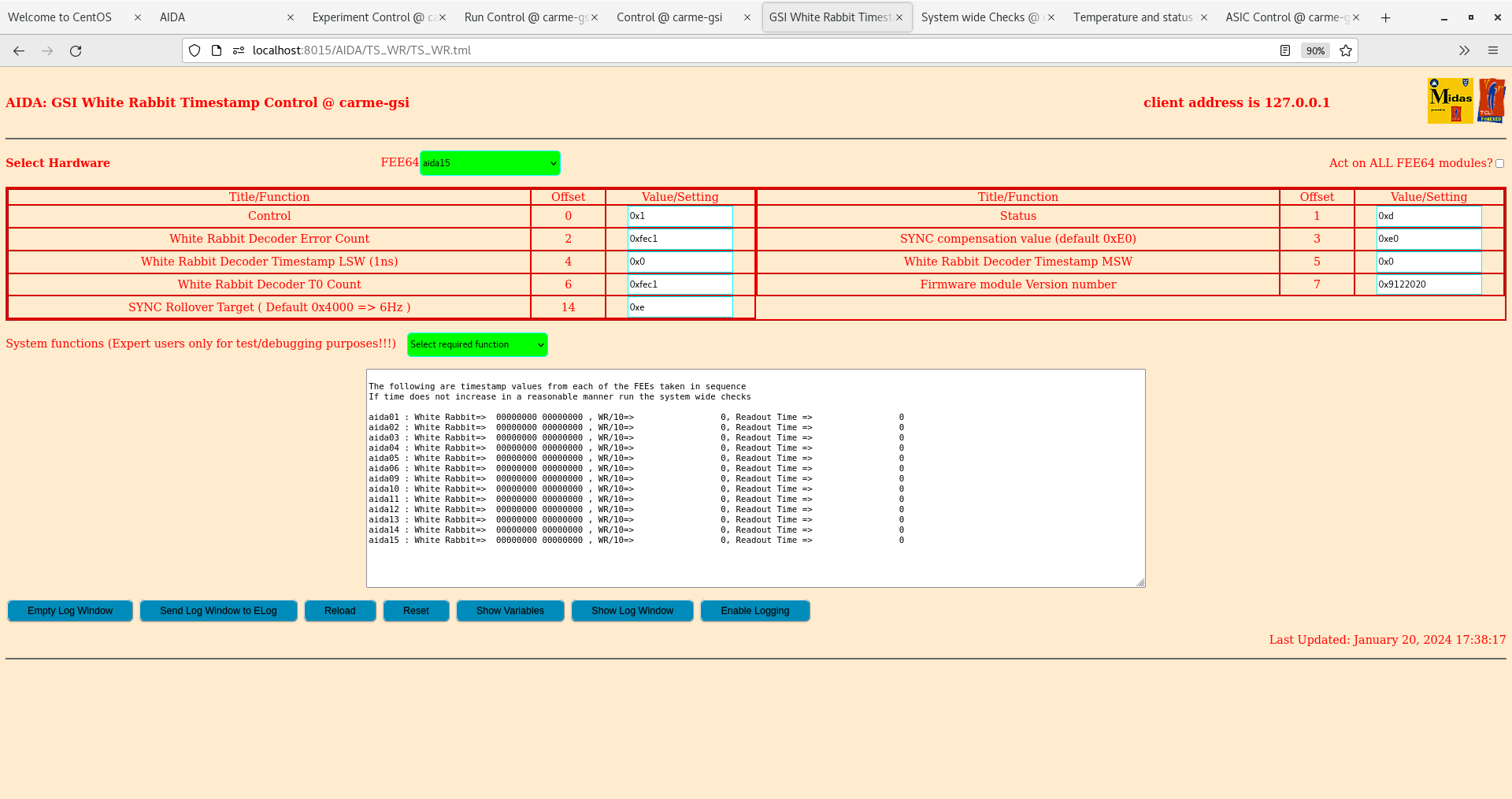

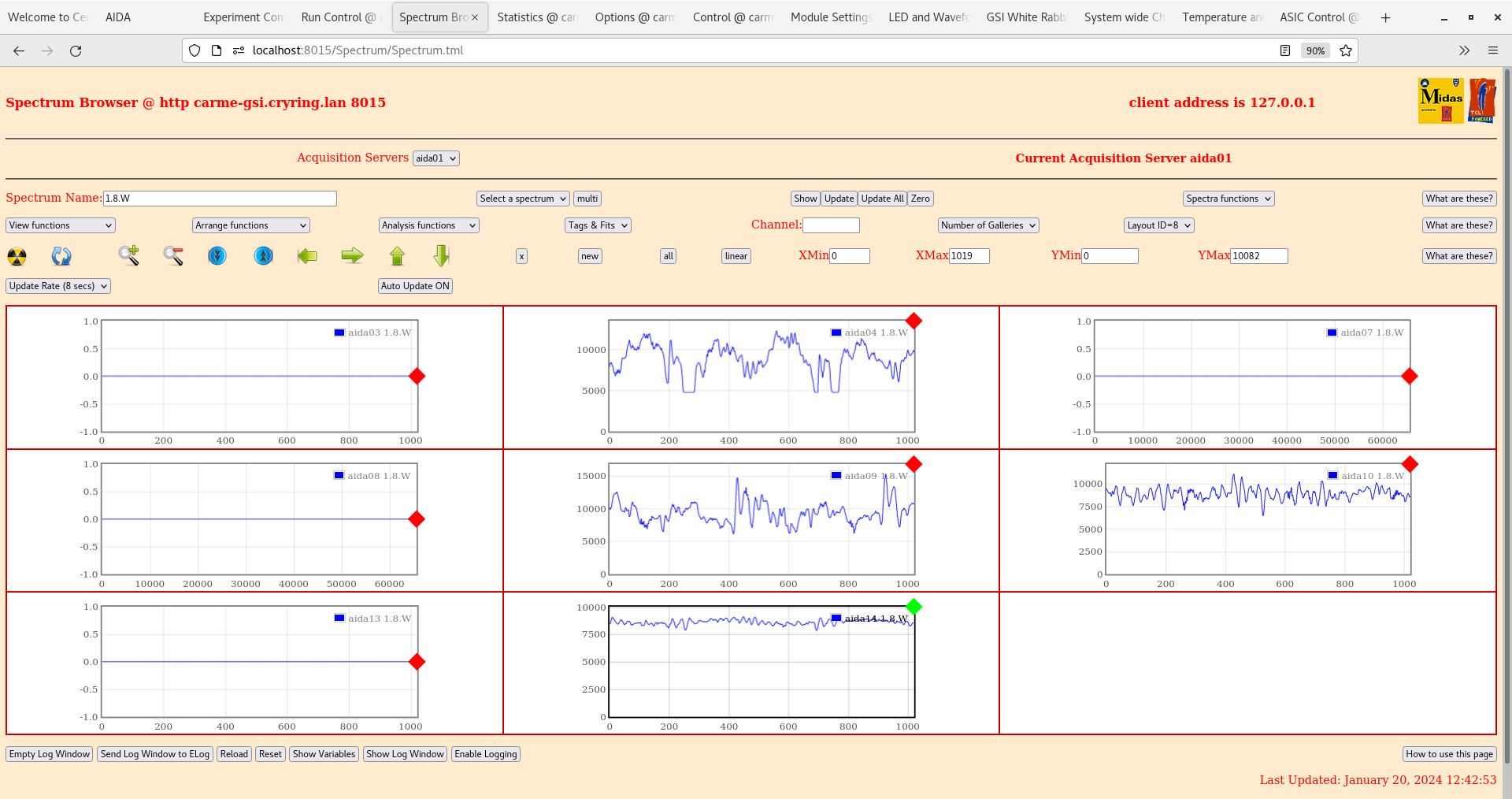

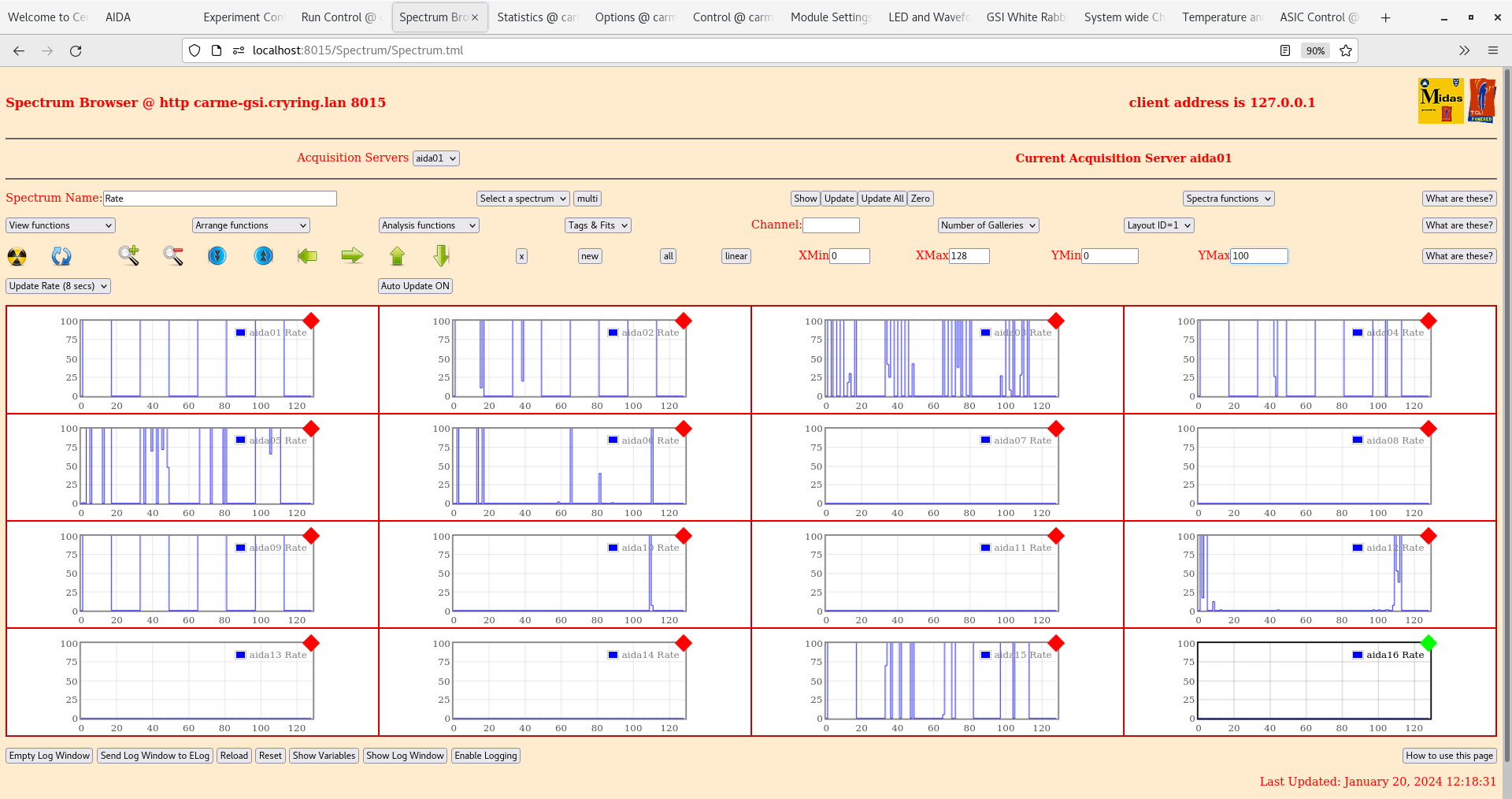

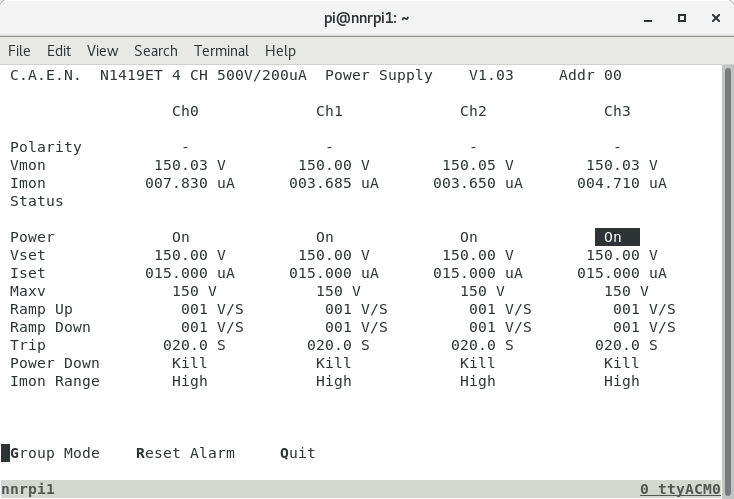

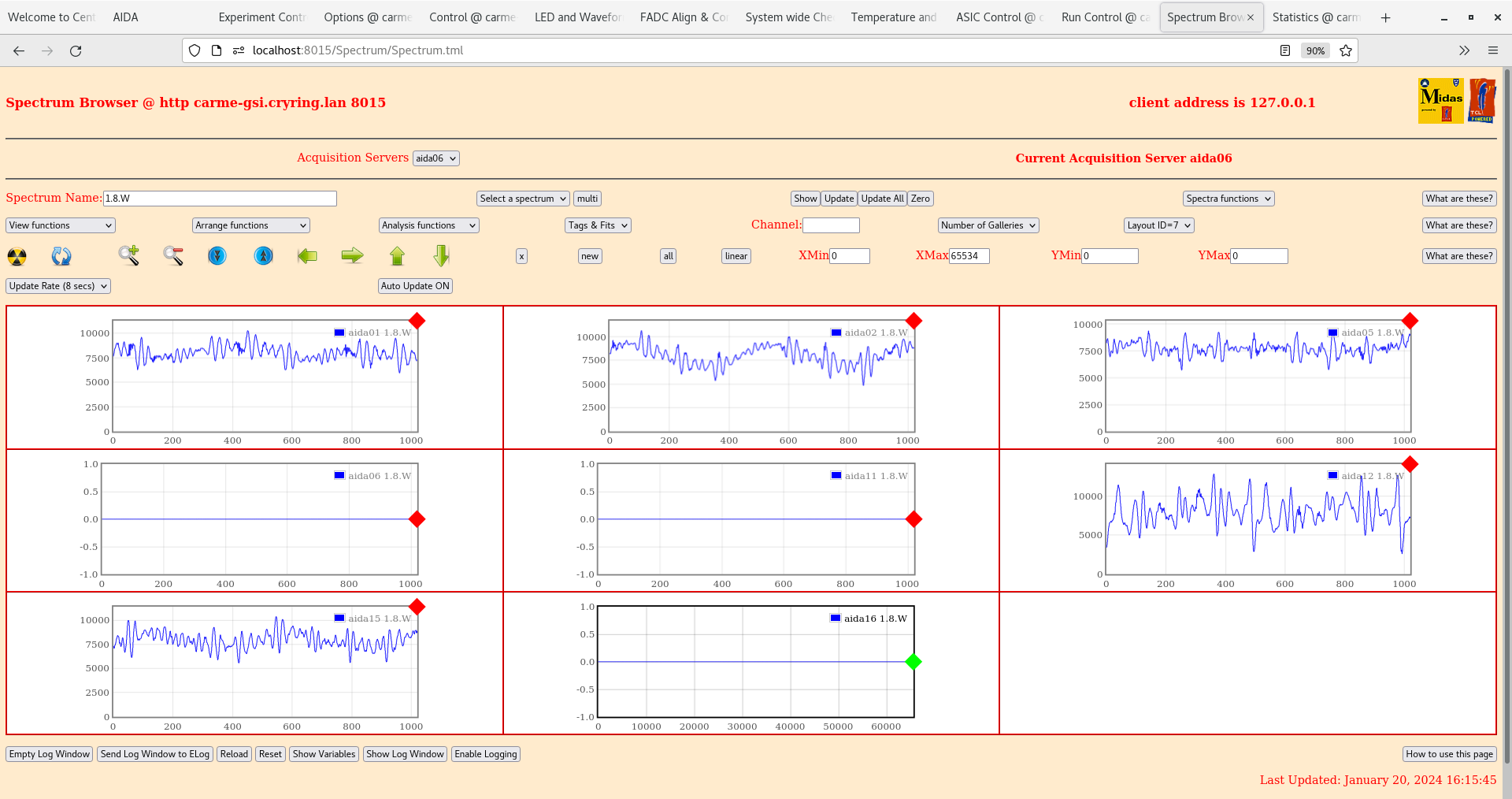

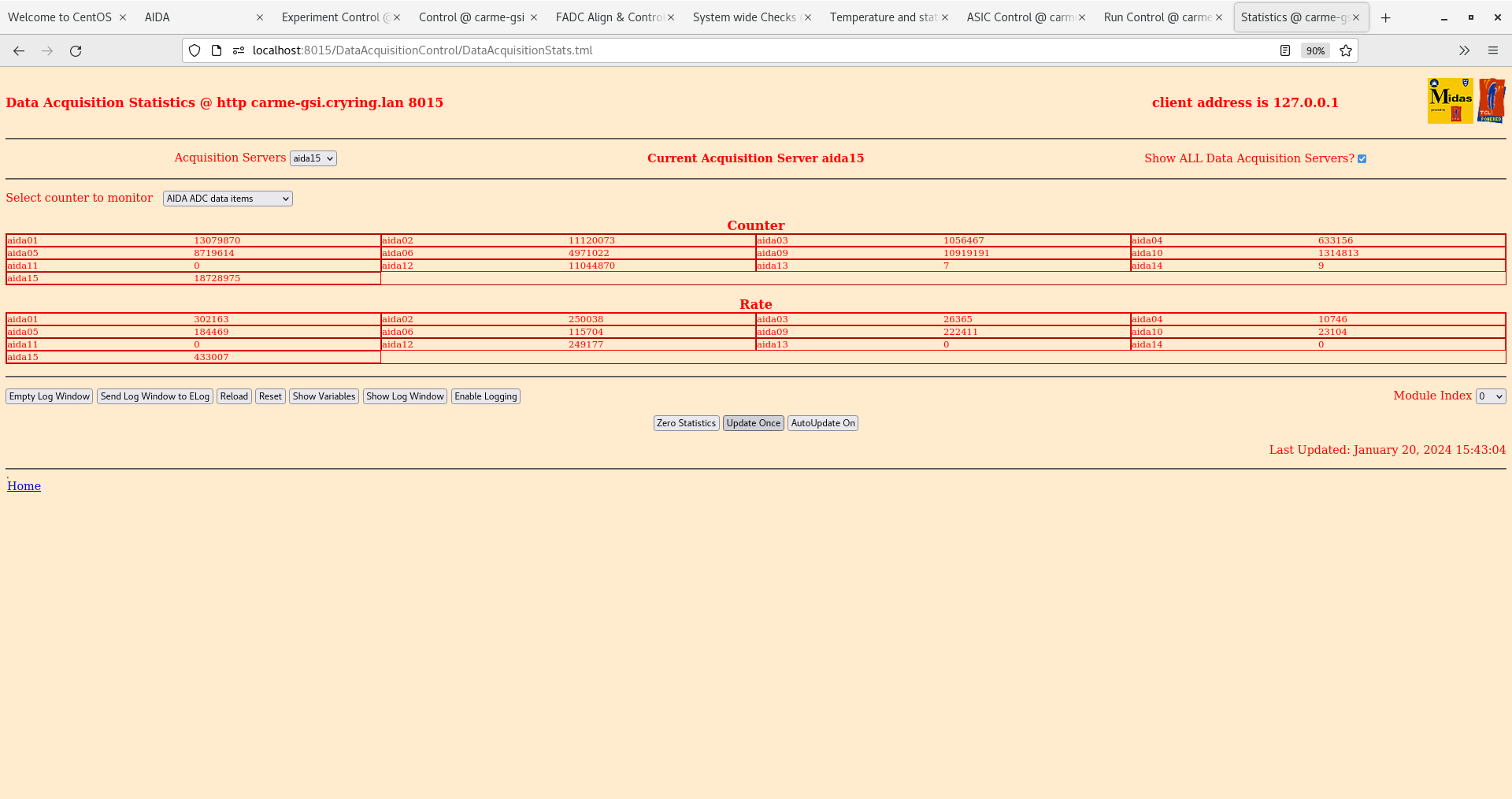

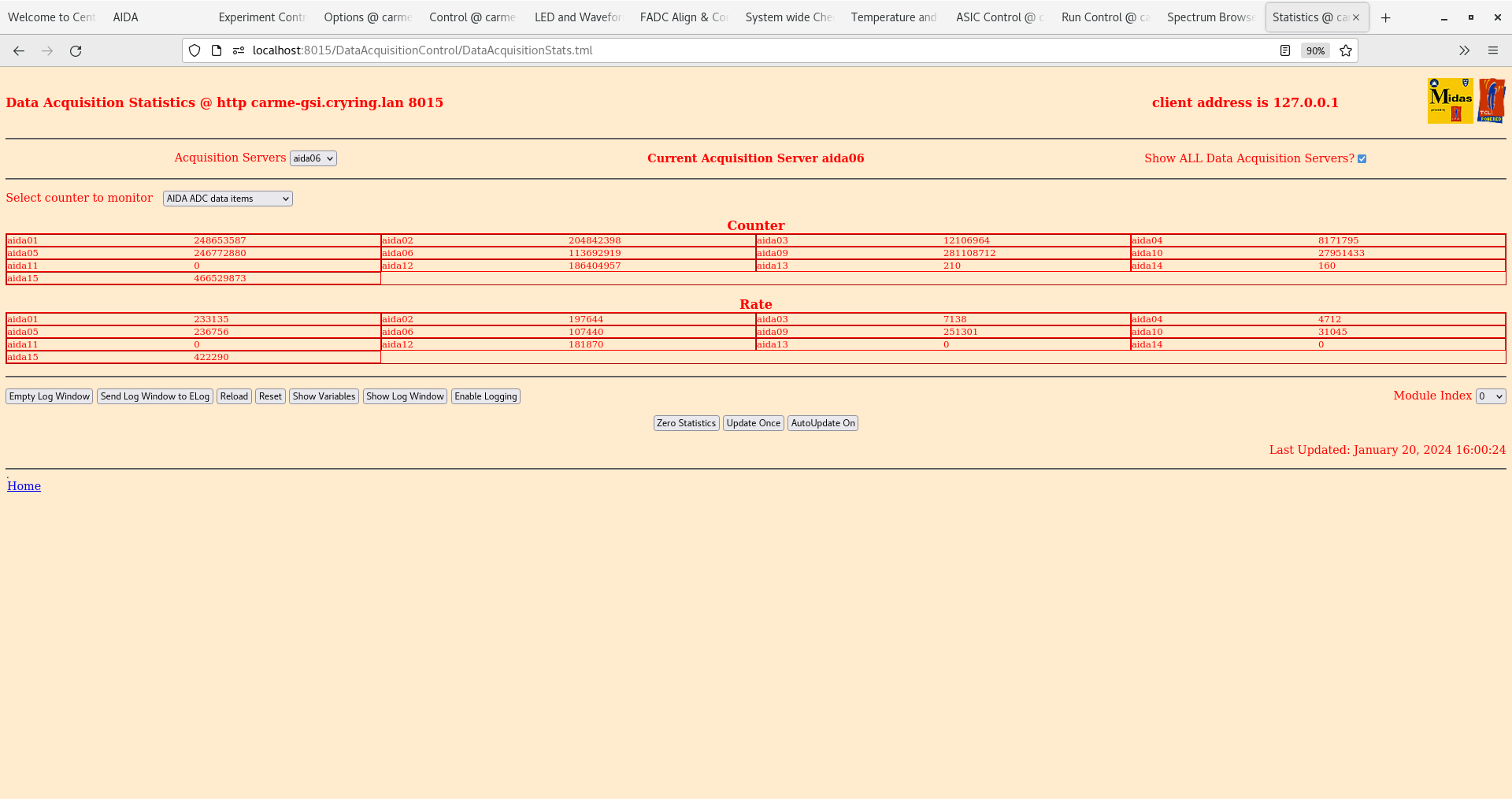

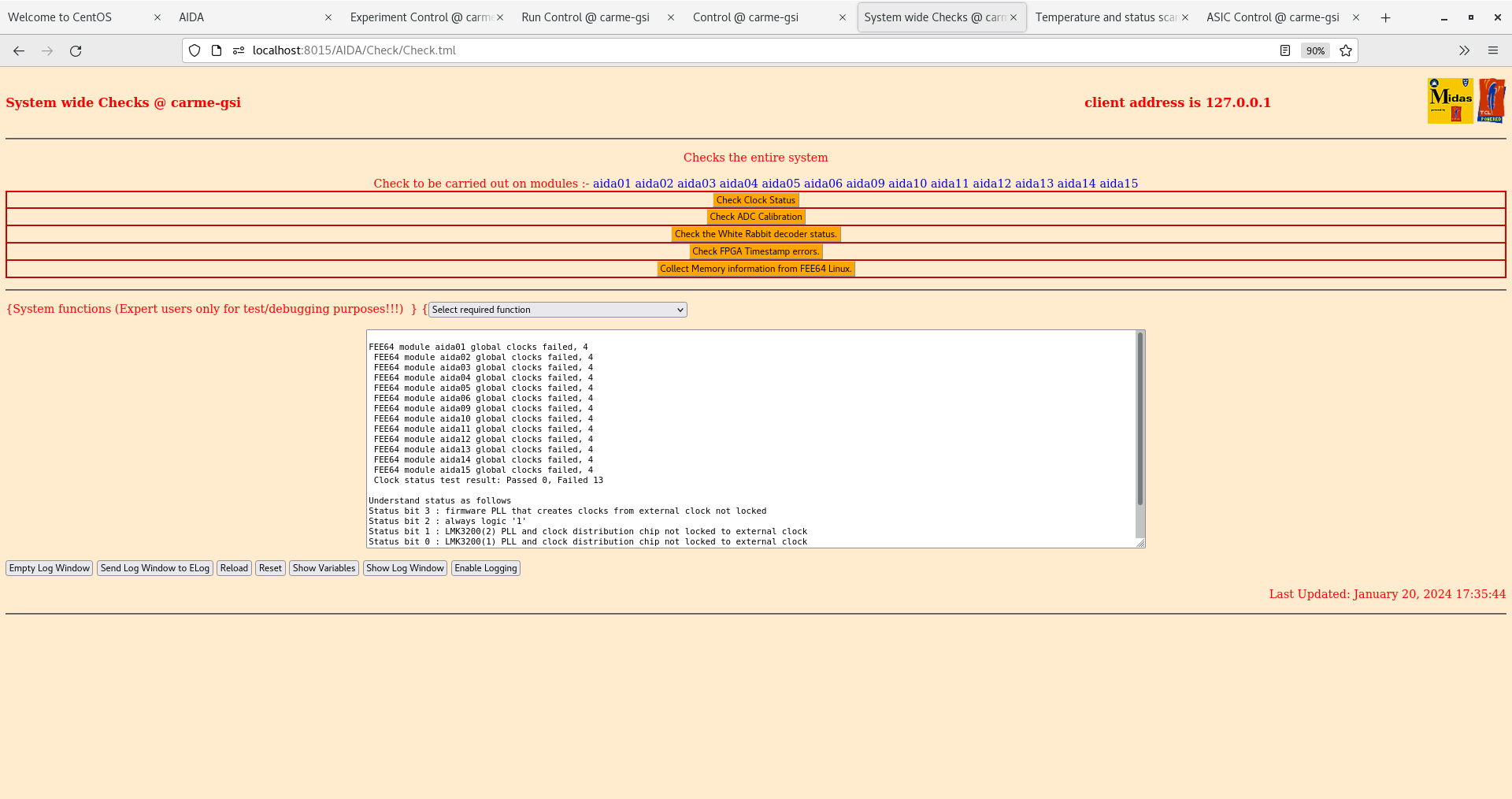

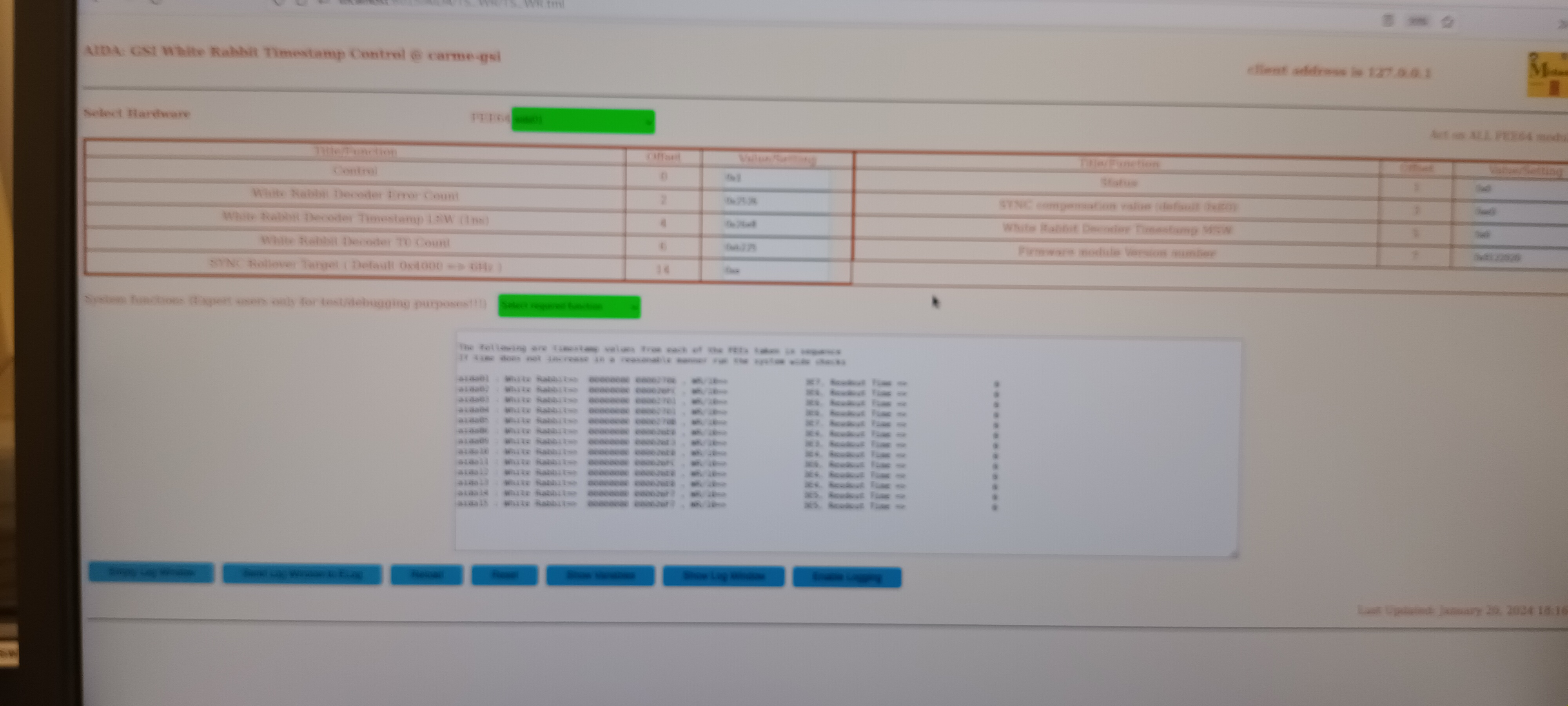

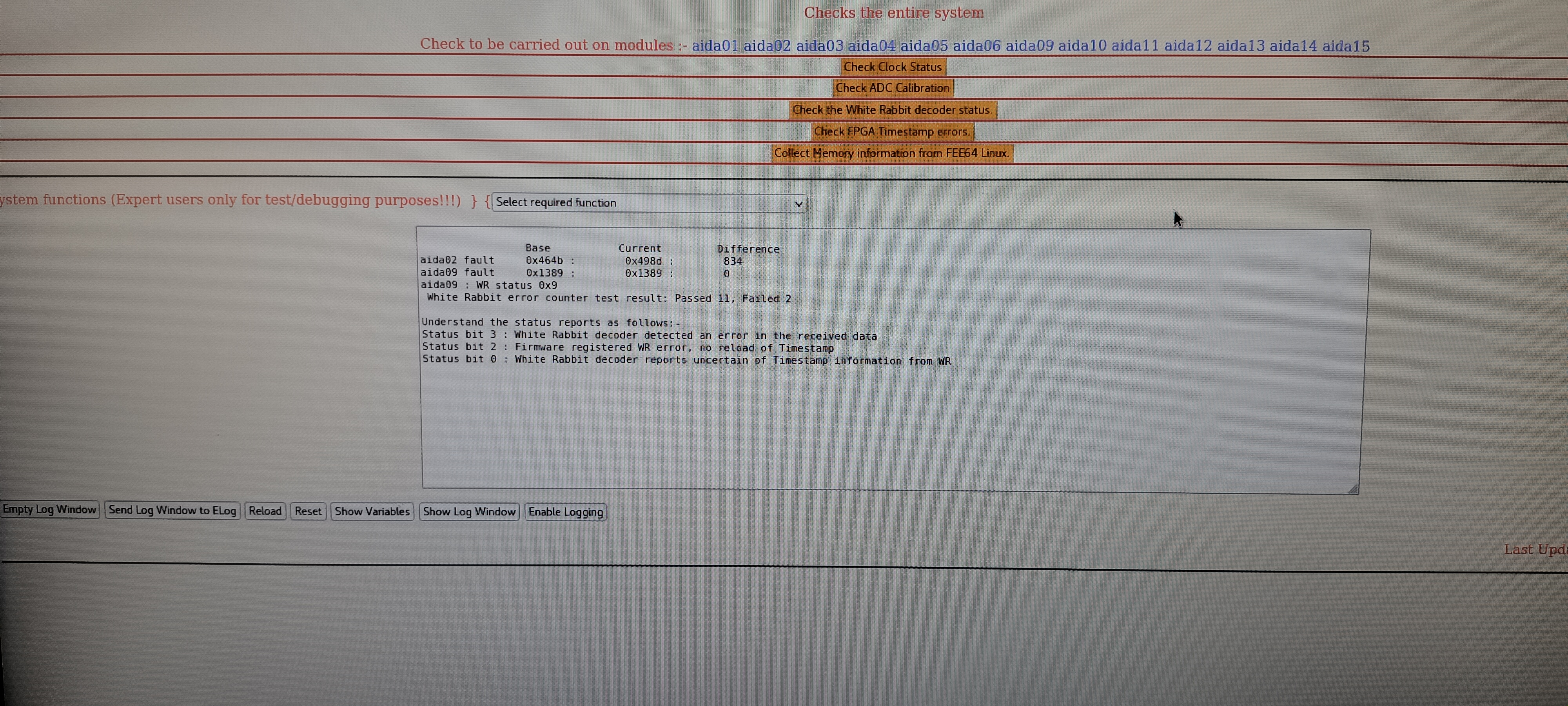

11.00 No WLAN/WiFi came-gsi private LAN appears to be OK AIDA FEE64 power ON 11.09 FEE64 temps - attachment 1 aida06 low, otherwise OK 11:10 CARME IE514 4.0e-11 mbar, temp unknown IE514 OFF 11.22 Detector bias ON - attachment 2 found ch 2 up ramp set to 63V/s! changed to 1V/s 11.30 system wide checks OK except aida02 & aida06 fail WR decoder status WR ts control - attachments 3-4 12.02 ASIC settings updated for aida09-aida16 ASIC settings DB key 2024Jan20-12:02:08 Unable to save DB key to Options - use ASIC settings restore as workaround 12.30 Layouts for 16x FEE64s created - directory ~/LayOut/16xFEE64 Note layouts include spectra from aida07, aida08 and aida16 so an error message will be generated but it can be ignored 12.40 per FEE64 Rate spectra - attachments 5-6 per FEE64 p+n & nn 1.8.W spectra - attachments 7-8 12.57 per FEE64 p+n & n+n 1.8.W spectra 20us FSR - attachments 9-10 Test signals EG&G Ortec 448 Pulser Amplitude 90,000 attenuation x10 Normalise 5.00 t_r 100ns tau_d 50us Frequency 50Hz ( relay line freq ) Polarity + test + direct from 448, test - from Cooknell SA1 Sum & Invert Test + daisy chain -> aida01 - aida02 - aida05 - aida06 - 50 Ohm Test - daisy chain -> aida03 - aida04 - aida07 - aida08 - 50 Ohm aida08 ( DSSSD #2 n+n Ohmic bias ) LK2 removed, LK1 added aida04 ( DSSSD #1 n+n Ohmic bias ) no LK2 fitted, LK1 added DSSSD#1 SHV - 2x Lemo 00.250 cable replaced by standard SHV - BNC/BNC Lemo-00.250 coaxial cable Adaptor PCB ground daisy chain aida01 - aida02 - aida03 - aida04 DSSSD#2 - DSSSD#4 HV cabling unchanged 15.30 Power ON System wide checks OK except aida02 fail WR decoder status - attachment 11 FEE64 temperatures - attachment 12 aida06 ASIC temp low DSSSD bias - attachment 13 ADC data item stats - attachment 14 slow comparator 0x64 per FEE64 Rate and 1.8.W 20us FSR spectra - attachments 15-17 16.00 per FEE64 rate spectra - attachment 18 16.15 per FEE64 Rate and 1.8.W 20us FSR spectra - attachments 19-21 17.36 Switch from VETAR2 ( all MACB modules mode 0x3 ) to NIM WR emulator ( root MACB module 0xd, all others 0x3 ) All FEE64s fail Global clock and WR decoder - attachments 22-24 WR timetsamp control - attachment 25 18.10 Noted MACB #4 mode actually set to 0x2 *not* 0x3 - changed to 0x3 Re-test with VETAR2 WR - same behaviour as observed this morning - see attachments 26-30 Summary n+n sides appear to be OK but noisy no data observed from aida06 & aida11 aida11 known to be disconnected from adaptor PCB aida15 asic #2 may be faulty aida01, aida05, aida12 - data suggest FEE64/adaptor PCB alignment issue ? aida02, aida03, aida09, aida14 - data suggest adaptor PCB damaged pins ? aida07 - network config issue ? aida08 - not completing boot need to attach sys console to aida07 & aida08 to diagnose problem.
