Mon Jan 29 15:32:08 2024
Author
*
:
Subject
*
:

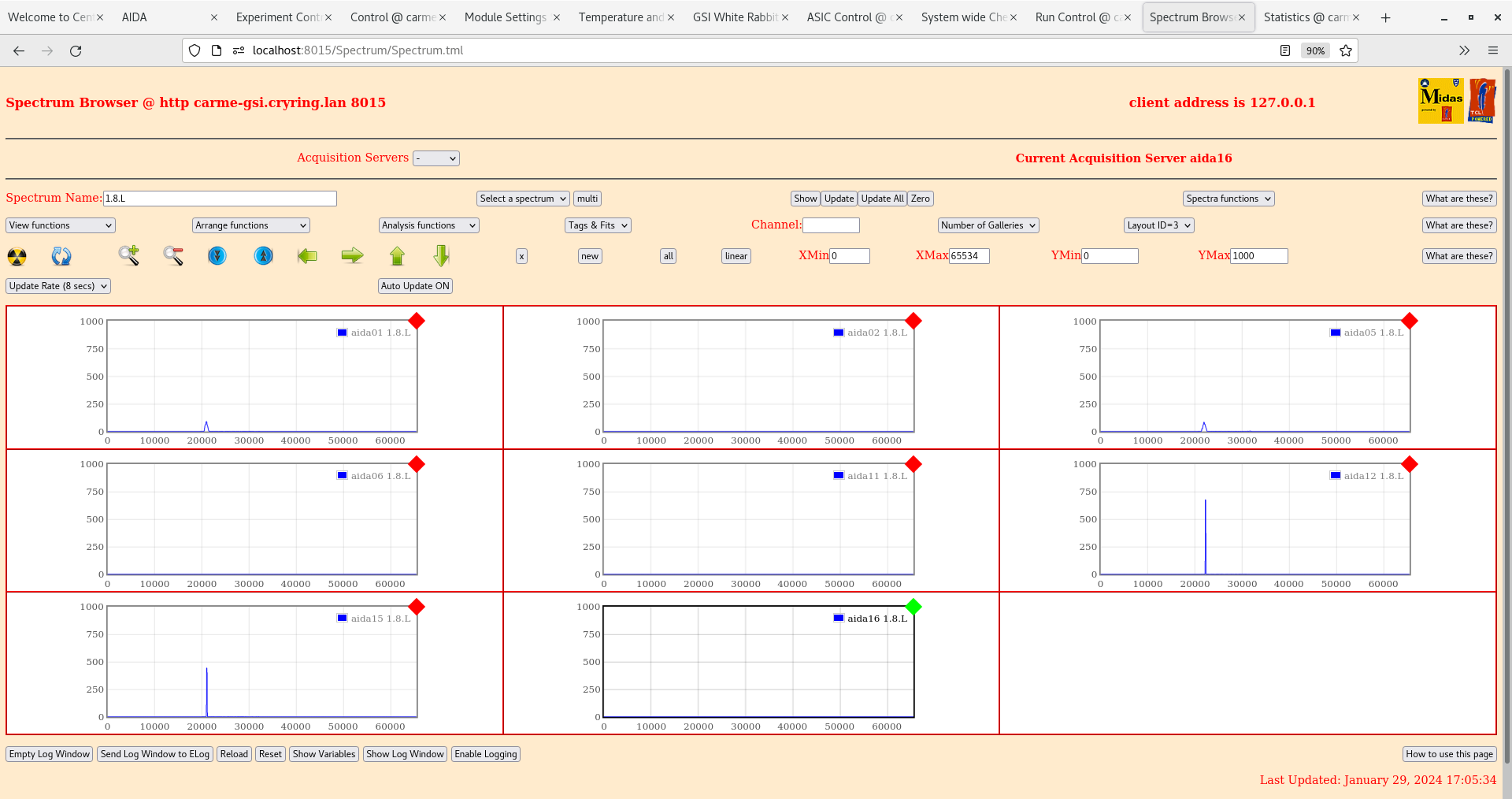

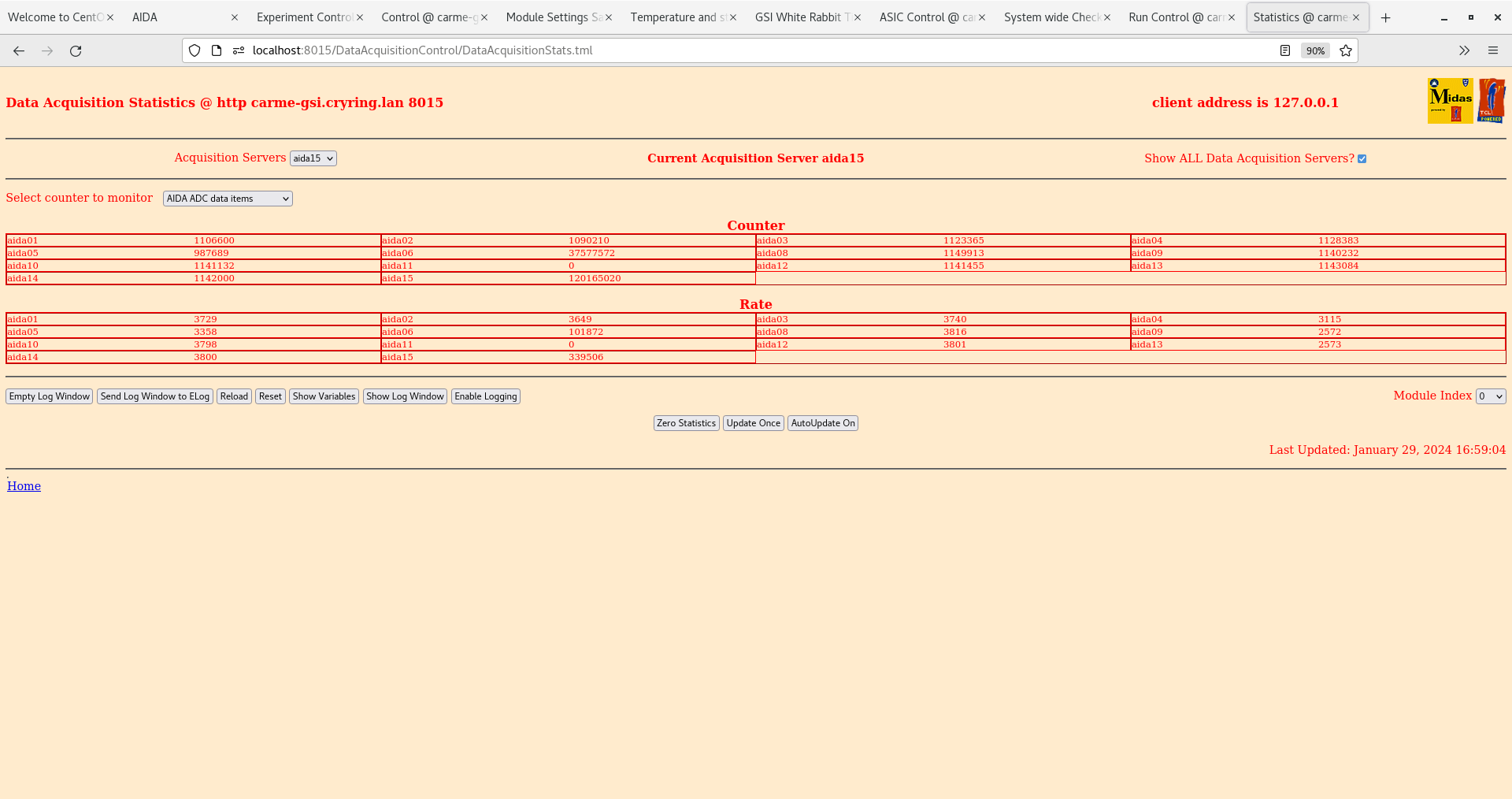

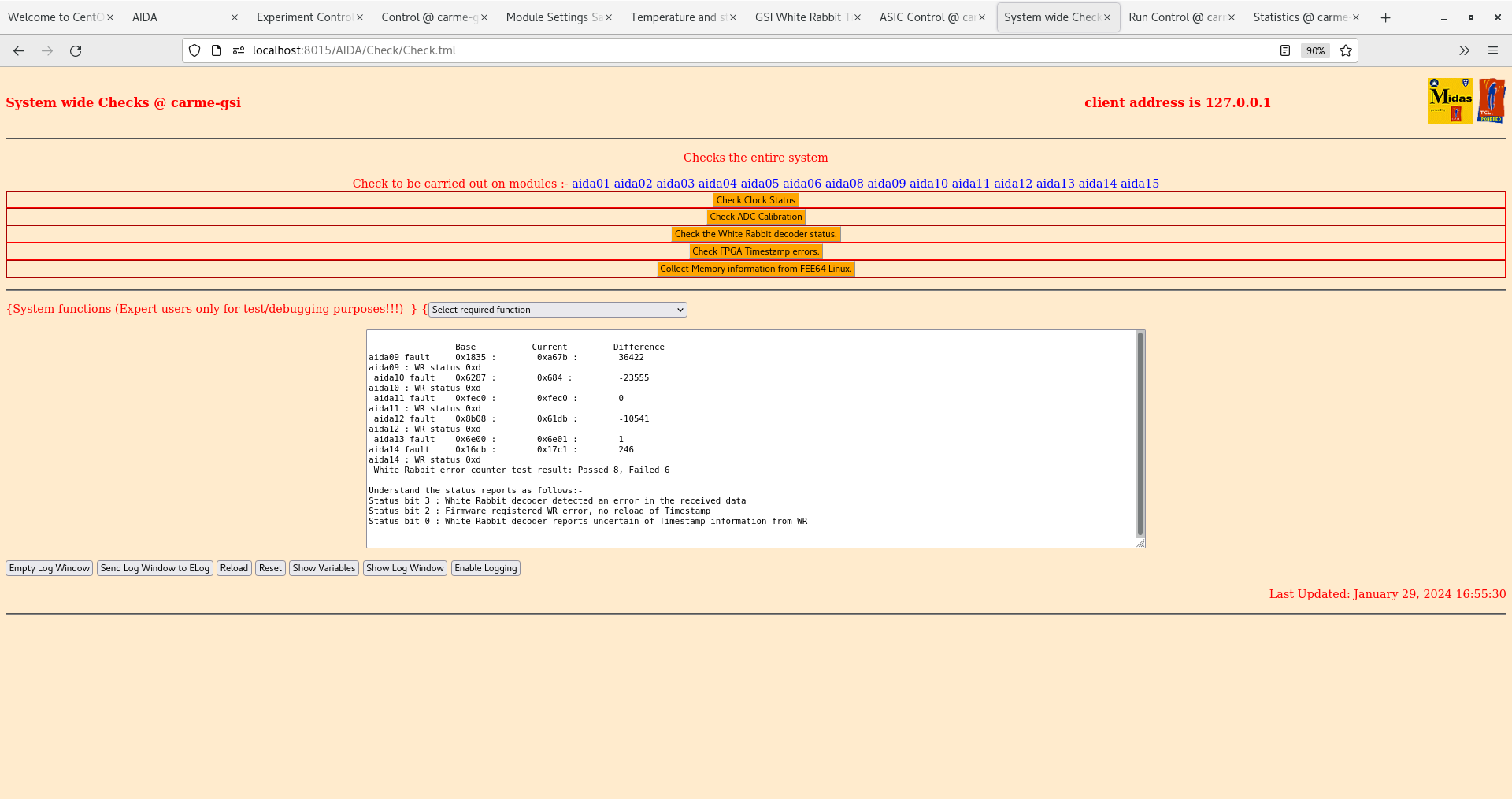

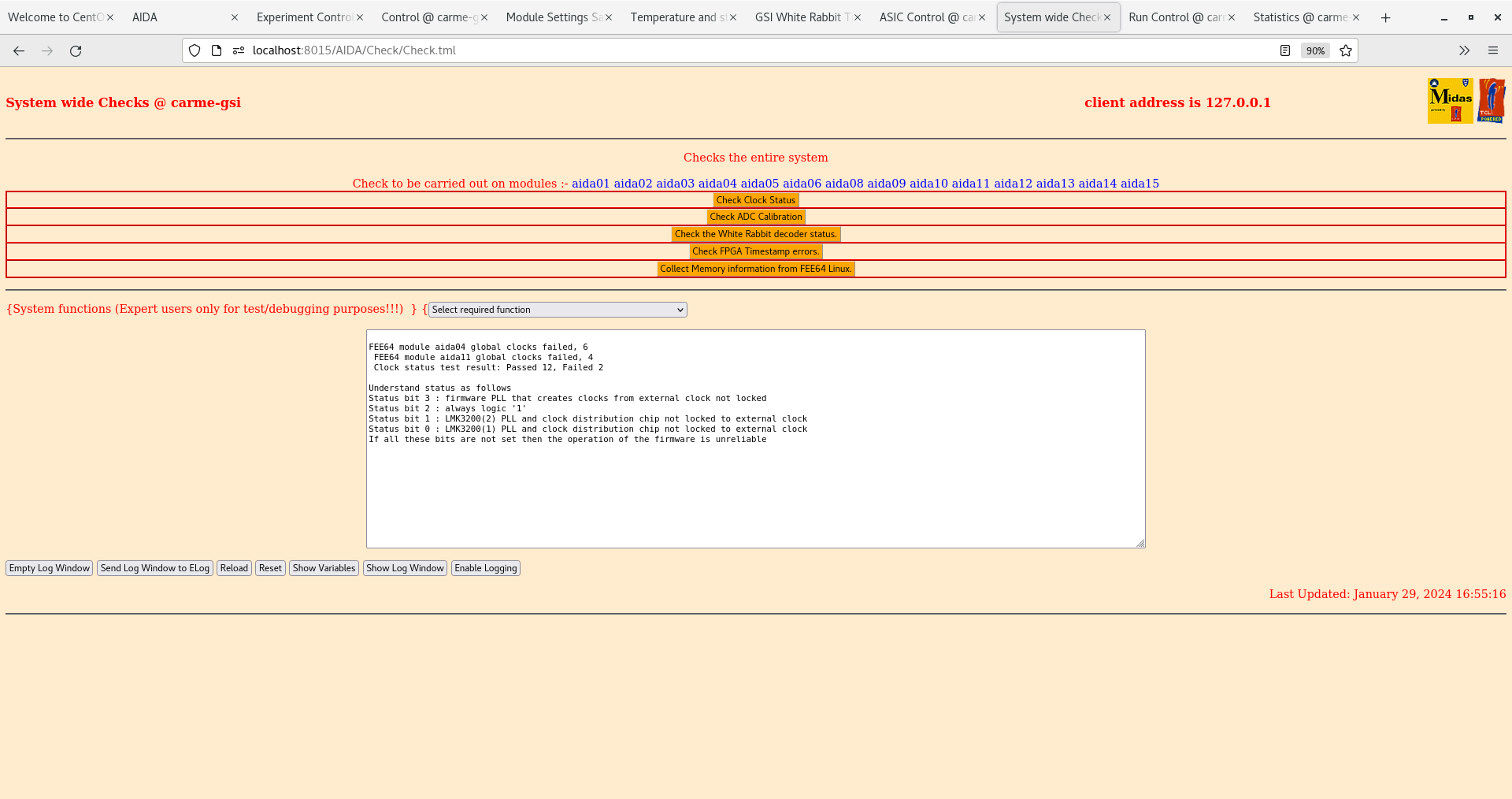

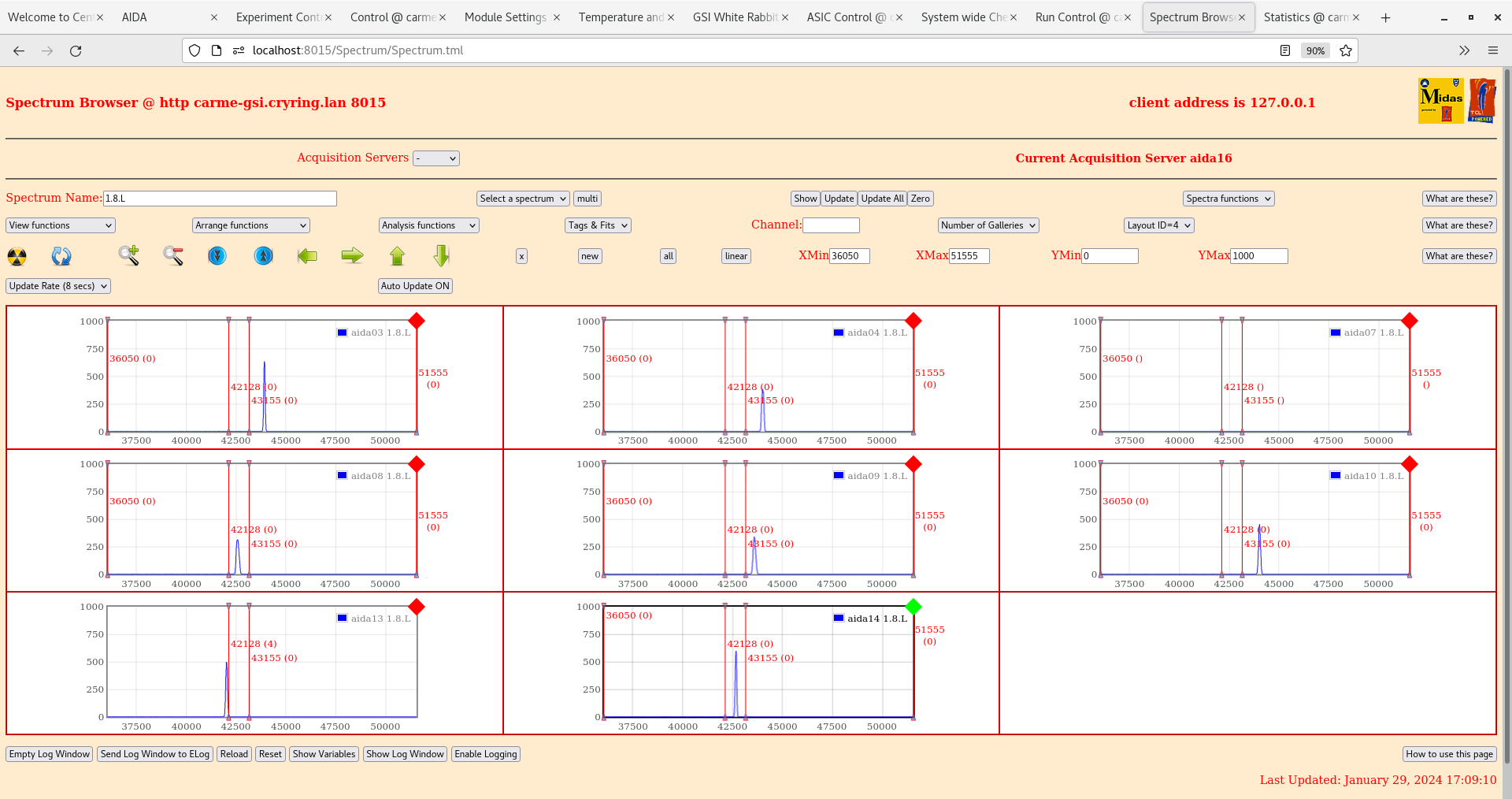

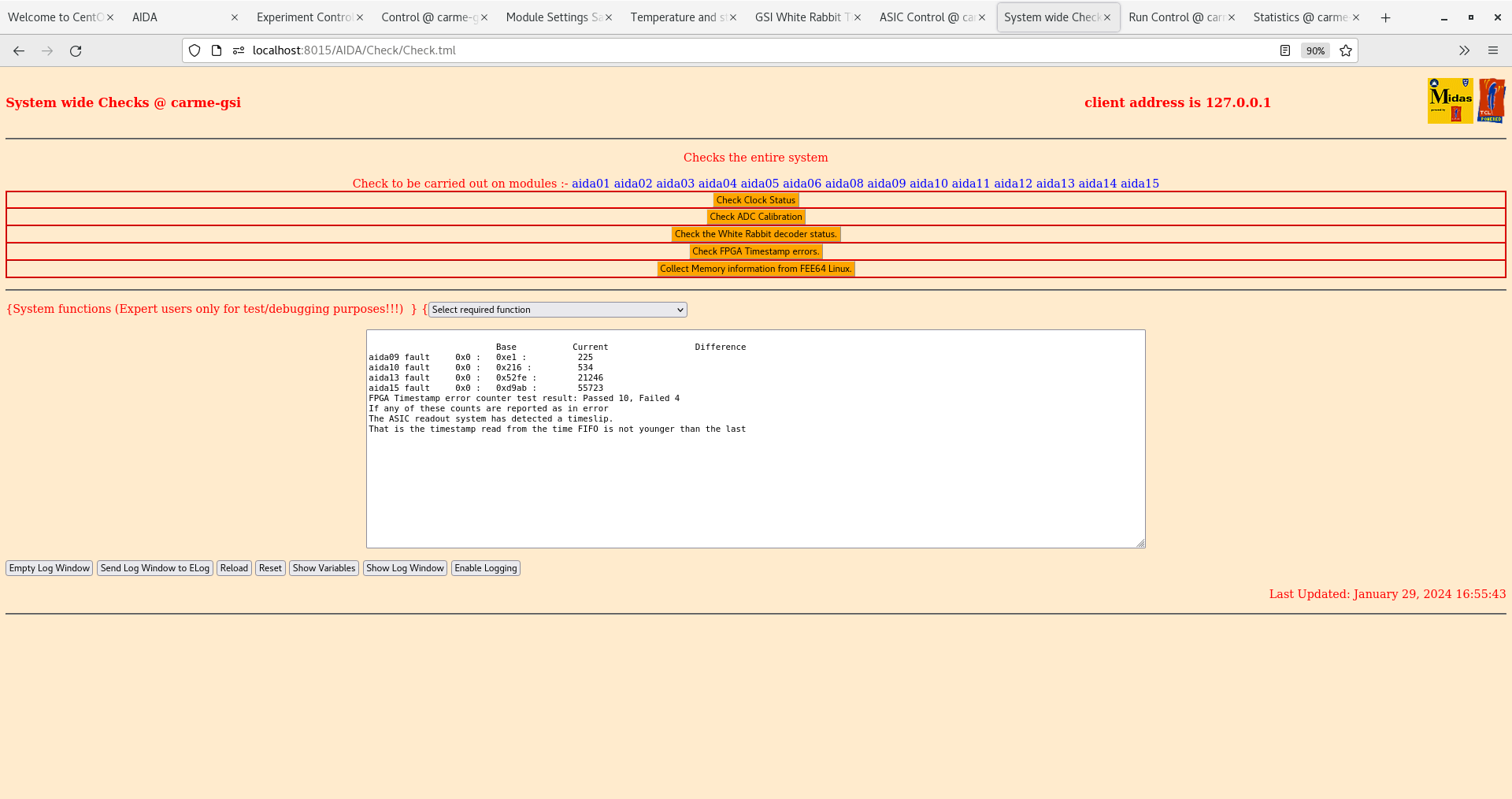

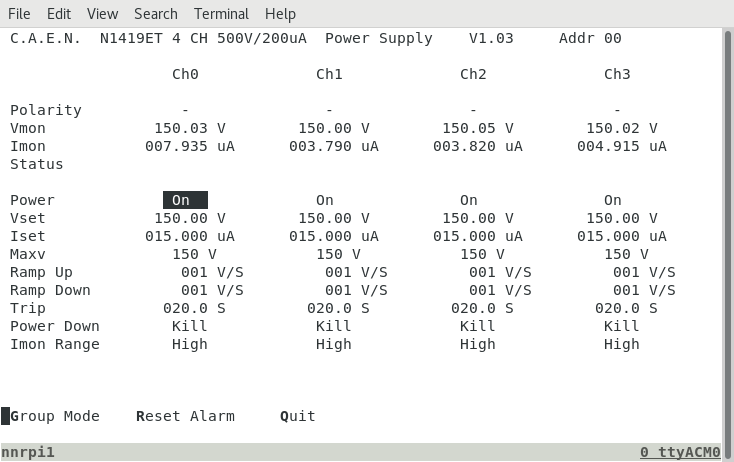

Test + and test - daisy chain cabling extended from DSSSD #1 to #2 to DSSSD #1 to DSSSD #4 terminated by 50 Ohm at end of daisy chain Grounding cabling extended from DSSSD #1 ( only ) to DSSSD #1 to DSSSD #4 grounding cables daisy-chained between 4x adaptor PCBs of each DSSSD - no inter-DSSSD grounding cables DSSSD#1 bias cable SHV-Lemo 00.250 ( to p+n bias adaptor PCB ) DSSSD#2 - DSSSD #4 bias cables SHV - 2x Lemo 00.250 ( to p+n/n+n bias adaptor PCBs ) LK1 fitted for DSSSD #1 & #2 n+n Ohmic side bias adaptor PCBs LK2 not fitted on any adaptor PCBs? to be checked CAEN N1419ET internal jumper fitted ( non-floating outputs )? to be checked 16.54 DSSSD bias OK - see attachment 1 FEE64 temperatures - attachment 2 aida06 ASIC temp low System wide checks and WR - attachments 3-6 global clock status aid04 0x6, aida06 0x4 multiple FPGA timestamp and WR decoder errors for MACBs 4 and 5 ( of 5 ) WR timestamps OK for aida01-aida08 ( w/ MACB firmware version 04/20 ) ADC data item stats - attachment 7 all rates consistent with 50Hz pulser *except* aida11 global clock fail aida07 no boot aida16 no power aida06 ? aida15 faulty asic #2 per FEE64 Rate spectra - attachment 8 per p+n and n+n FEE64 1.8.L spectra - attachments 9-12 Pulser peak width p+n side 52 ch FWHM ( aida12 ), n+n side 70 ch FWHM ( aida14 ) per p+n and n+n 1.8.W spectra - 20us FSR - attachments 13-16
