Entry time:
Wed Jan 31 09:49:38 2024
Author
*
:
Subject
*
:

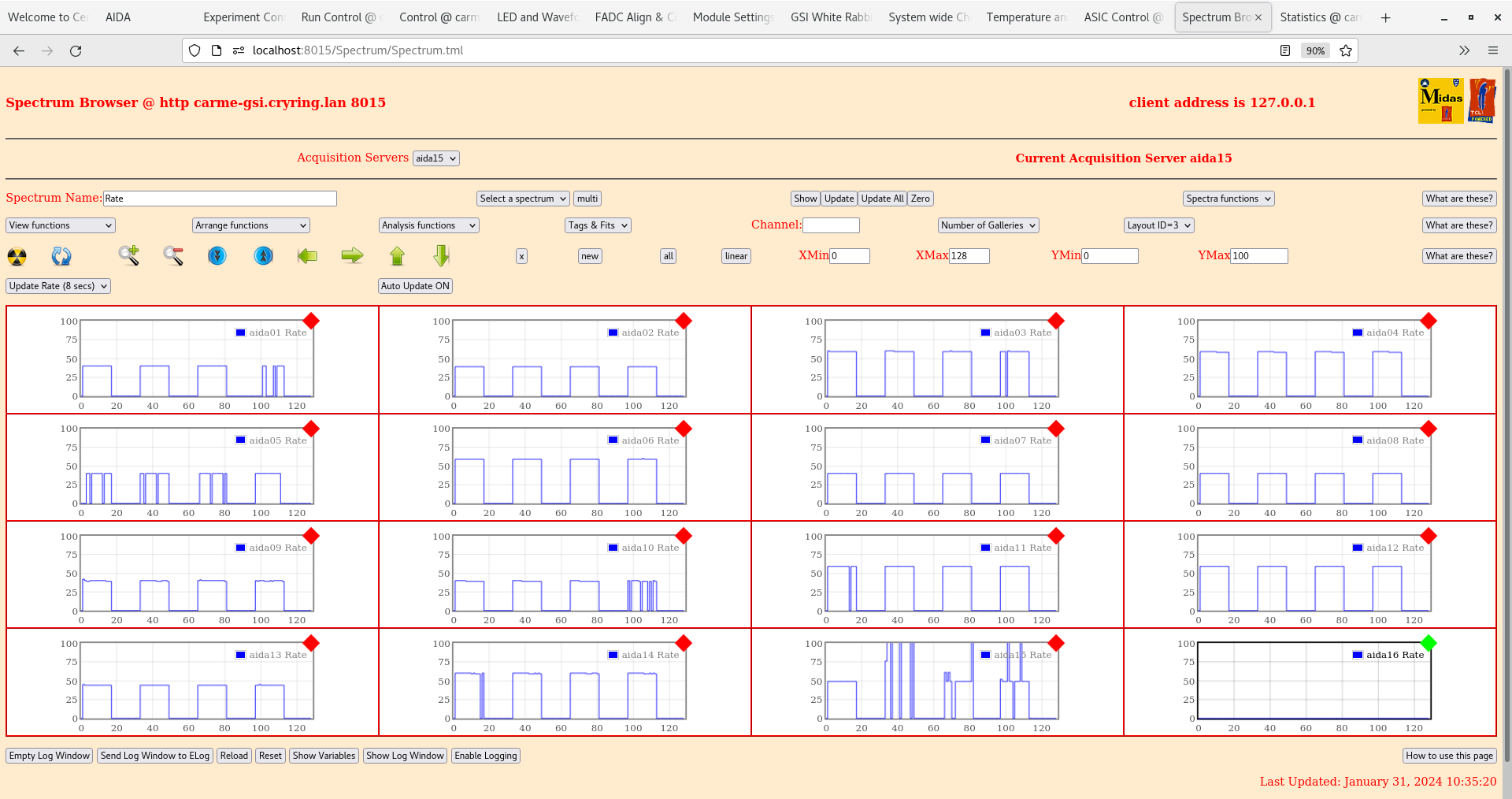

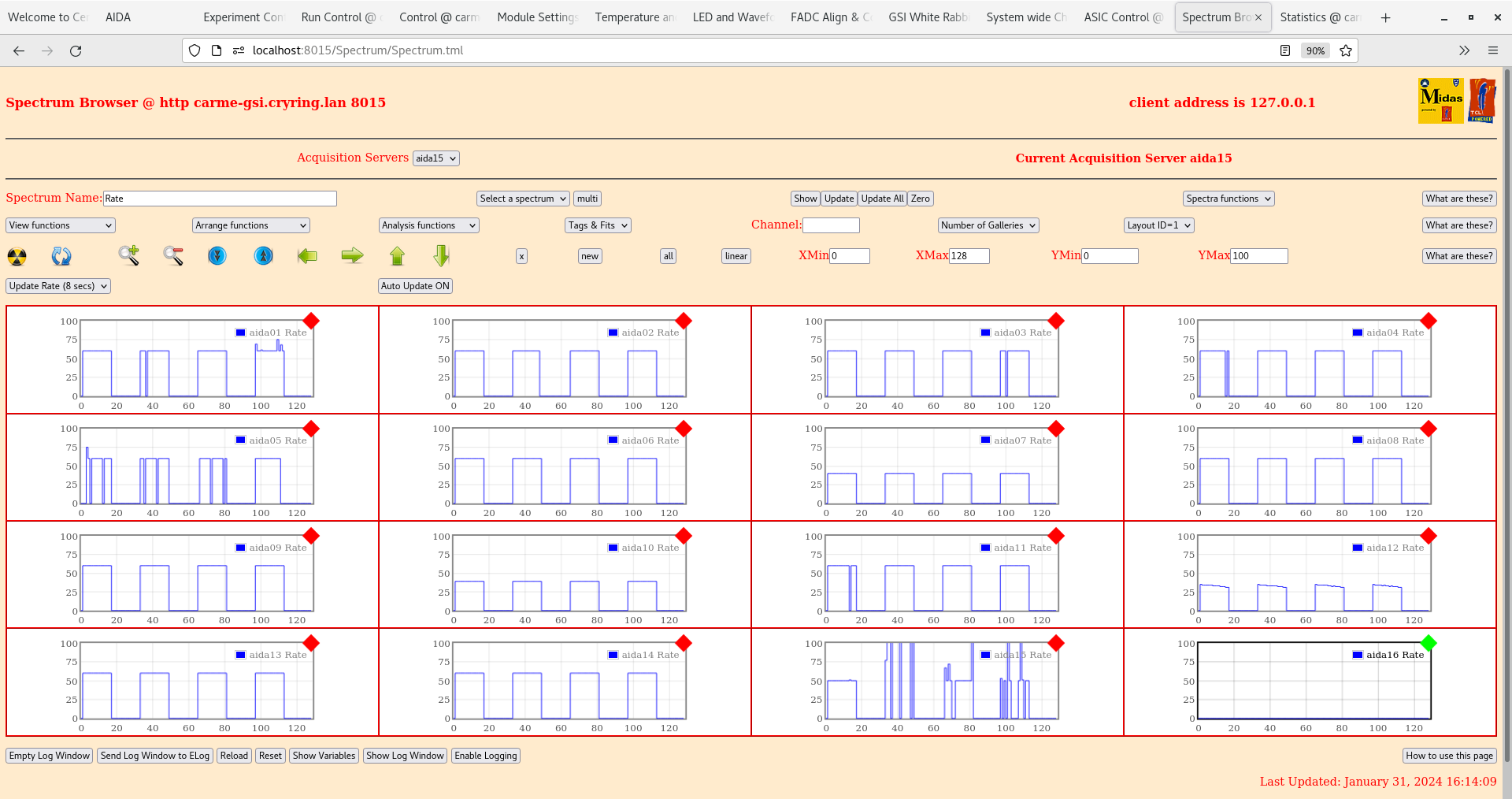

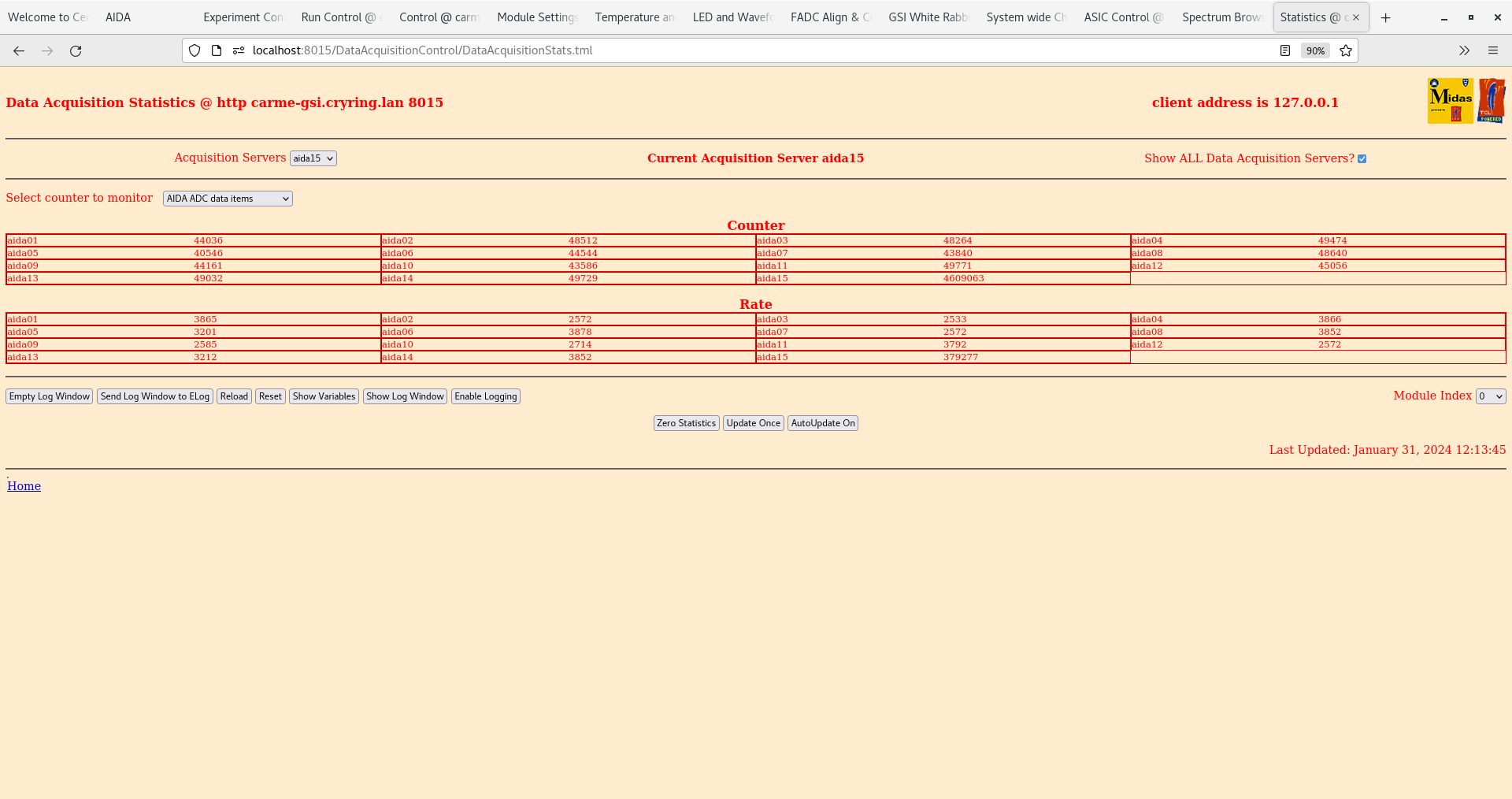

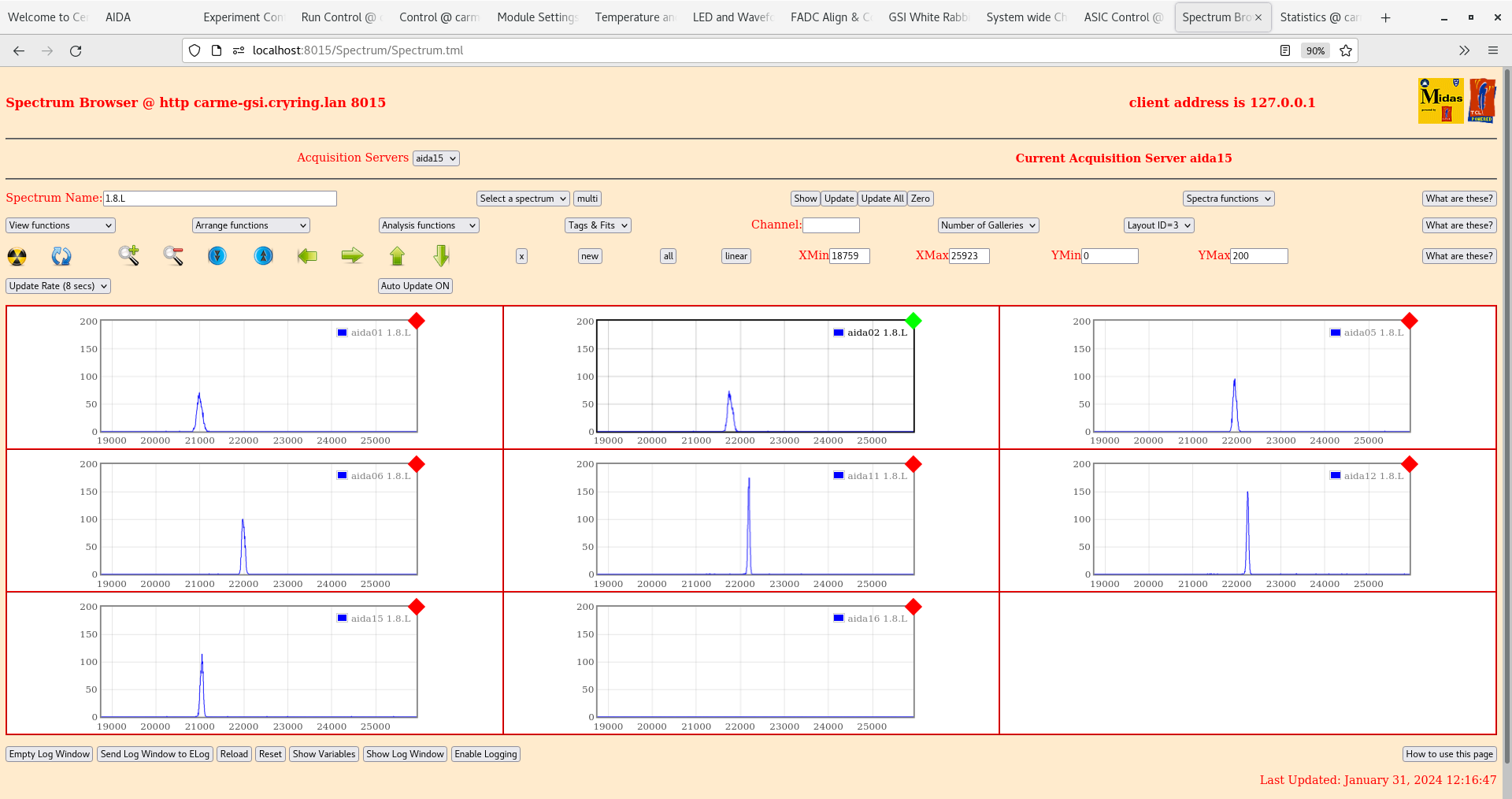

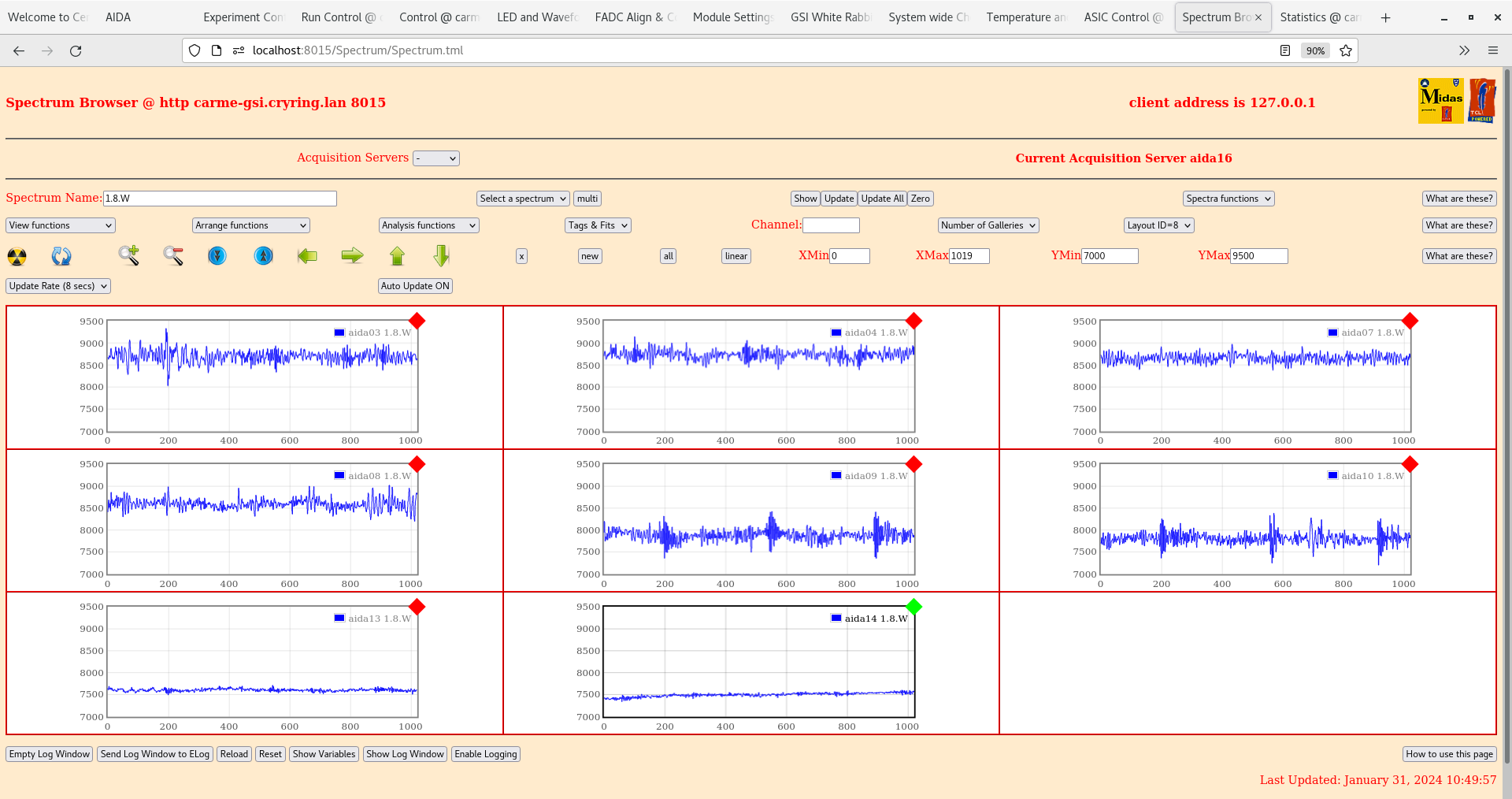

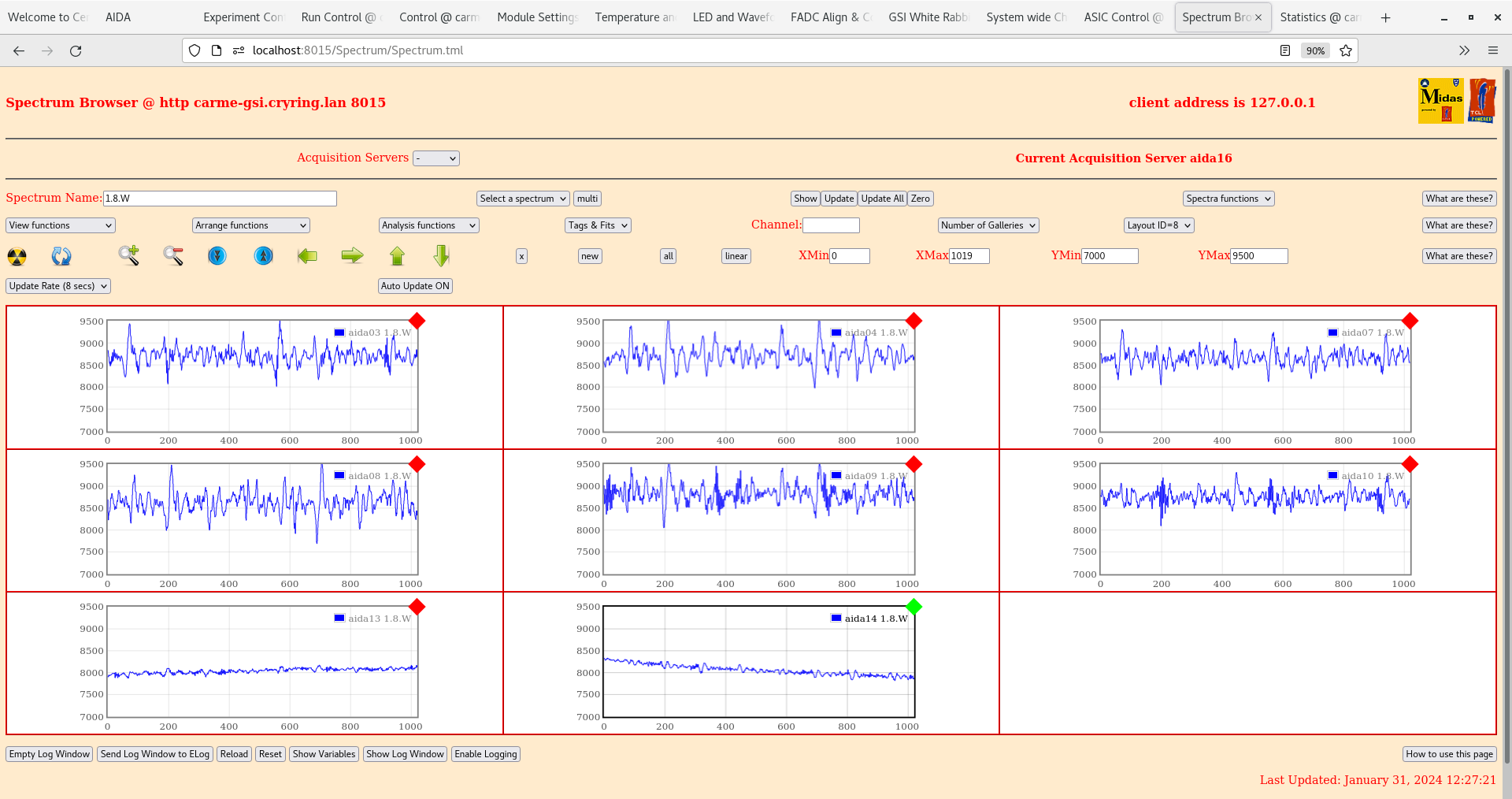

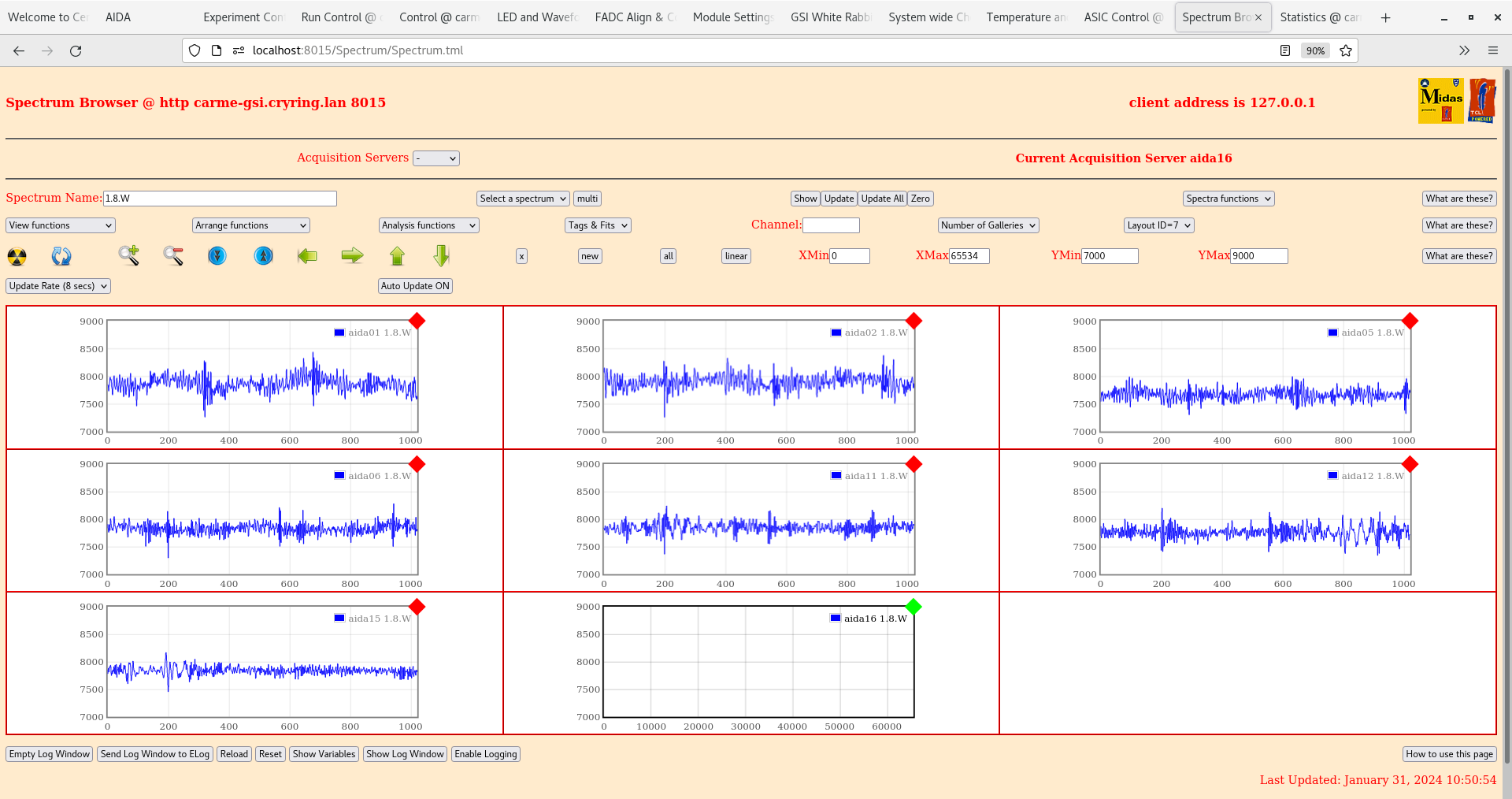

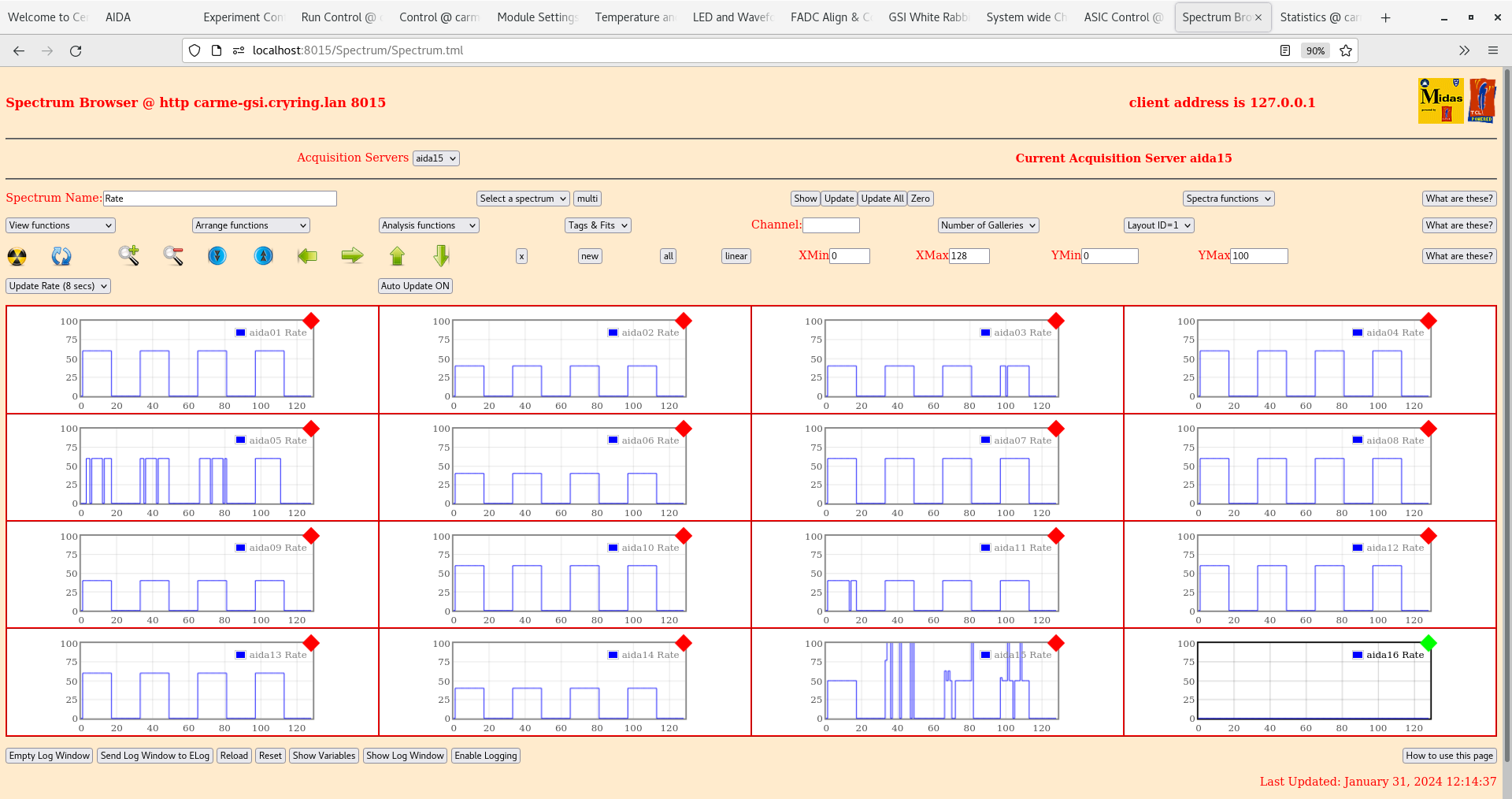

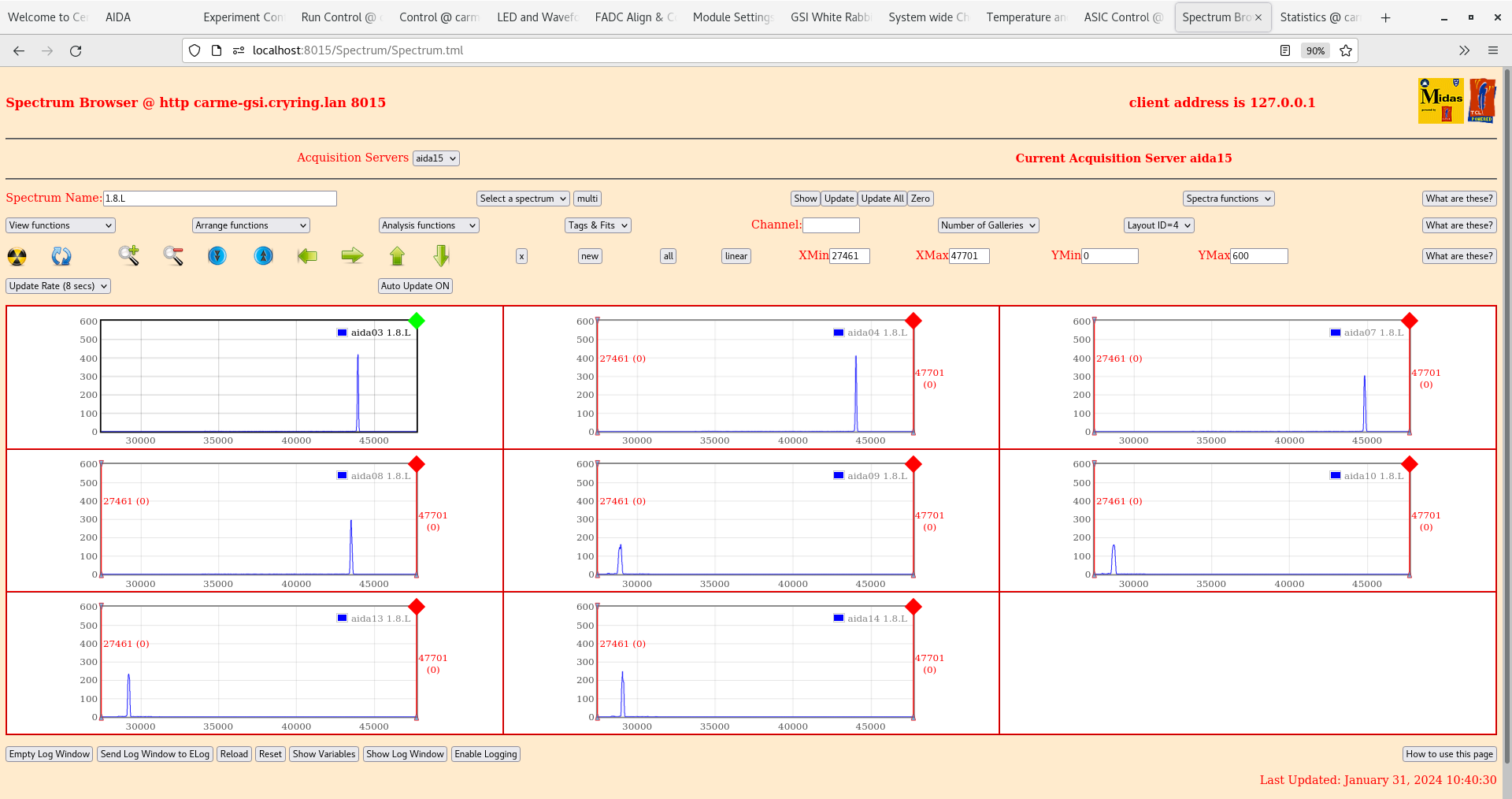

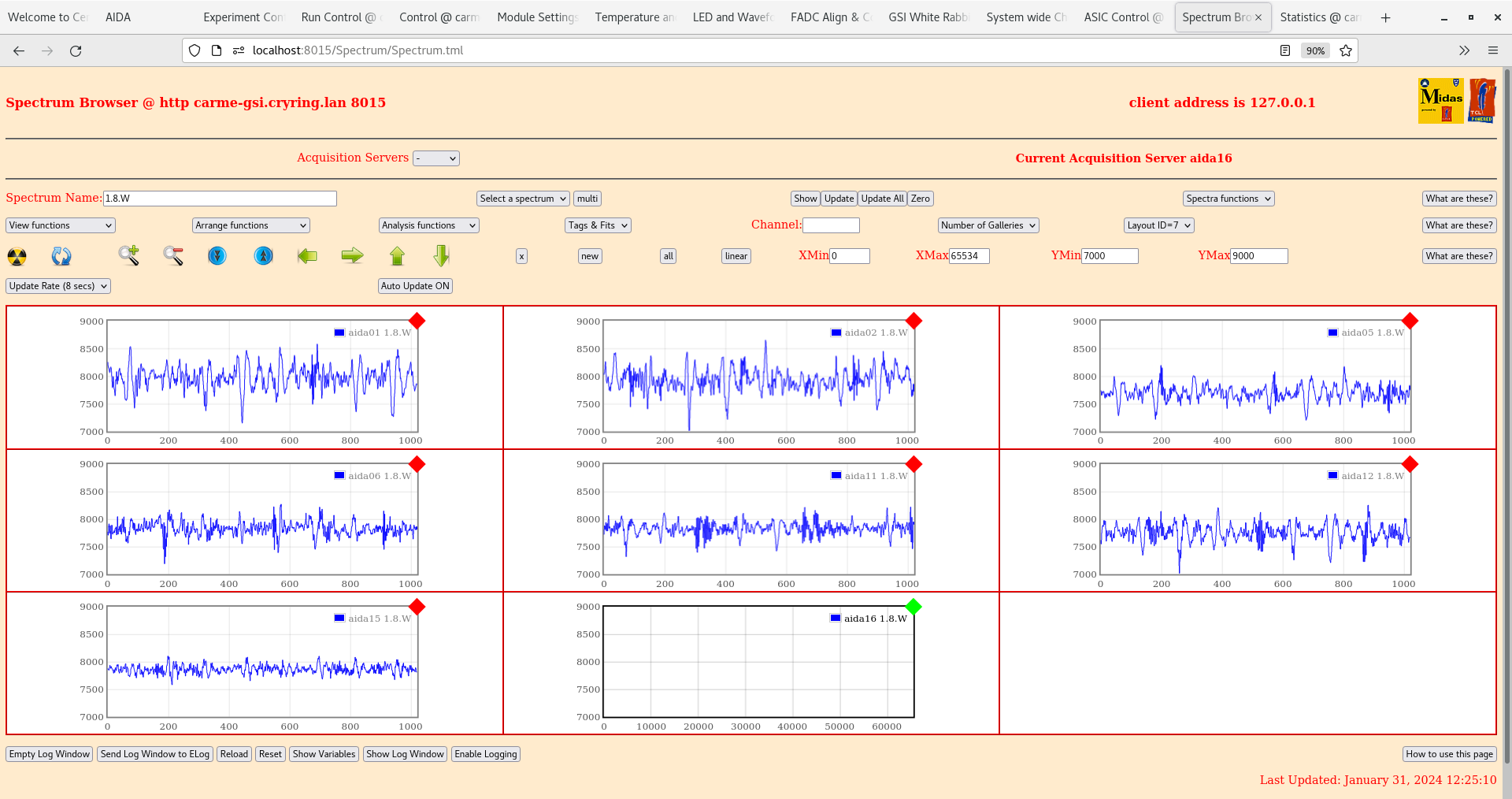

<p>Removed ground from DSSD #1 to the chamber and set MACBs so that timestamp is from the NIM WR emulator not the VME VETAR2.</p> <p>Root MACB mode 0x3 -> 0xd - all other MACB modes 0x3 ( unchanged ).</p> <p>No timestamps observed from the emulator. Re-set to take timestamps from the VETAR" unit -> all timestamps observed.</p> <p>10:30</p> <p>No pulser observed in nn FEE modules 9, 10, 13, 14.</p> <p>ADC data items check OK - all ~3k - attachment 2</p> <p>Rates - all OK - attachment 3</p> <p>1.8L spectra. - attachment 4,5</p> <p>1.8W waveforms - attachment 6,7</p> <p>11:00</p> <p>Checked daisy chain which goes from 8->14->13->10->9. Replaced the lemo cable from 8->14 and pulsers re-appear. Rates all OK except aida10 which has now disappeared, tried asic check and reset and startup again no change in aida10.</p> <p>Now majority of pulsers are observable the widths will be noted in a spreadsheet</p> <p>After replacing lemo for nn pulser chain, all nn pulser widths decreased slightly ~10% for all nn FEEs, little change in pn pulser widths but n pulser for DSSD#1,2 appears more gaussian</p> <p>11:44</p> <p>FEE64s power cycled. aida10 now prioducing data.</p> <p>Removed internal jumper from CAEN N1419ET </p> <p>ADC data items check OK - all ~3k - attachment 8</p> <p>Rates - all OK - attachment 9</p> <p>1.8L spectra - attachment 10,11 little change in pn pulser widths but nn pulser widths are slightly broader.</p> <p>1.8W waveforms - attachment 12,13</p> <p>15:50 Jumper re-mounted onto caen bias module</p> <p>ADC data items check OK - all ~3k - attachment 14</p> <p>Rates - all OK - attachment 15</p> <p>1.8L spectra - attachment 16,17</p> <p>1.8W waveforms - attachment 18,19</p> <p>16:45 Ground cables attached from water pipe (chamber ground) to lemo cable on aida08 (nn), aida13 (nn), aida09 (nn), aida01 (pn) so that all DSSDs are connected to chamber ground.</p> <p>ADC data items check OK - all ~3k - attachment 20</p> <p>Rates - all OK - attachment 21</p> <p>1.8L spectra - attachment 22,23</p> <p>1.8W waveforms - attachment 24,25</p> <p> </p>
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry

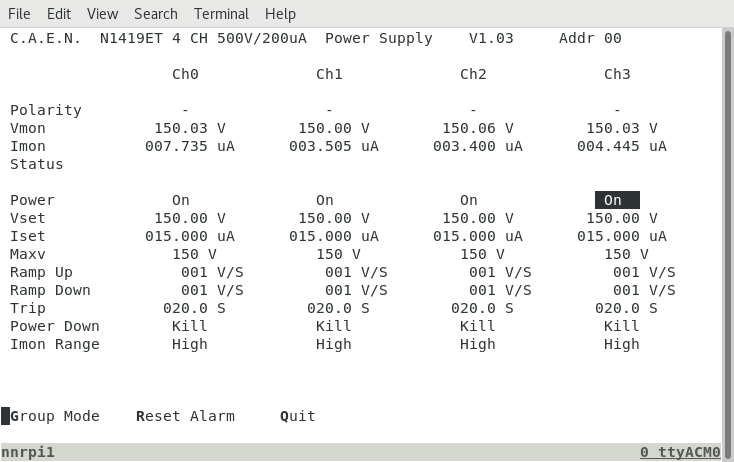

Attachment 1:
