Entry time:
Thu Feb 1 10:04:11 2024
Author
*
:
Subject
*
:

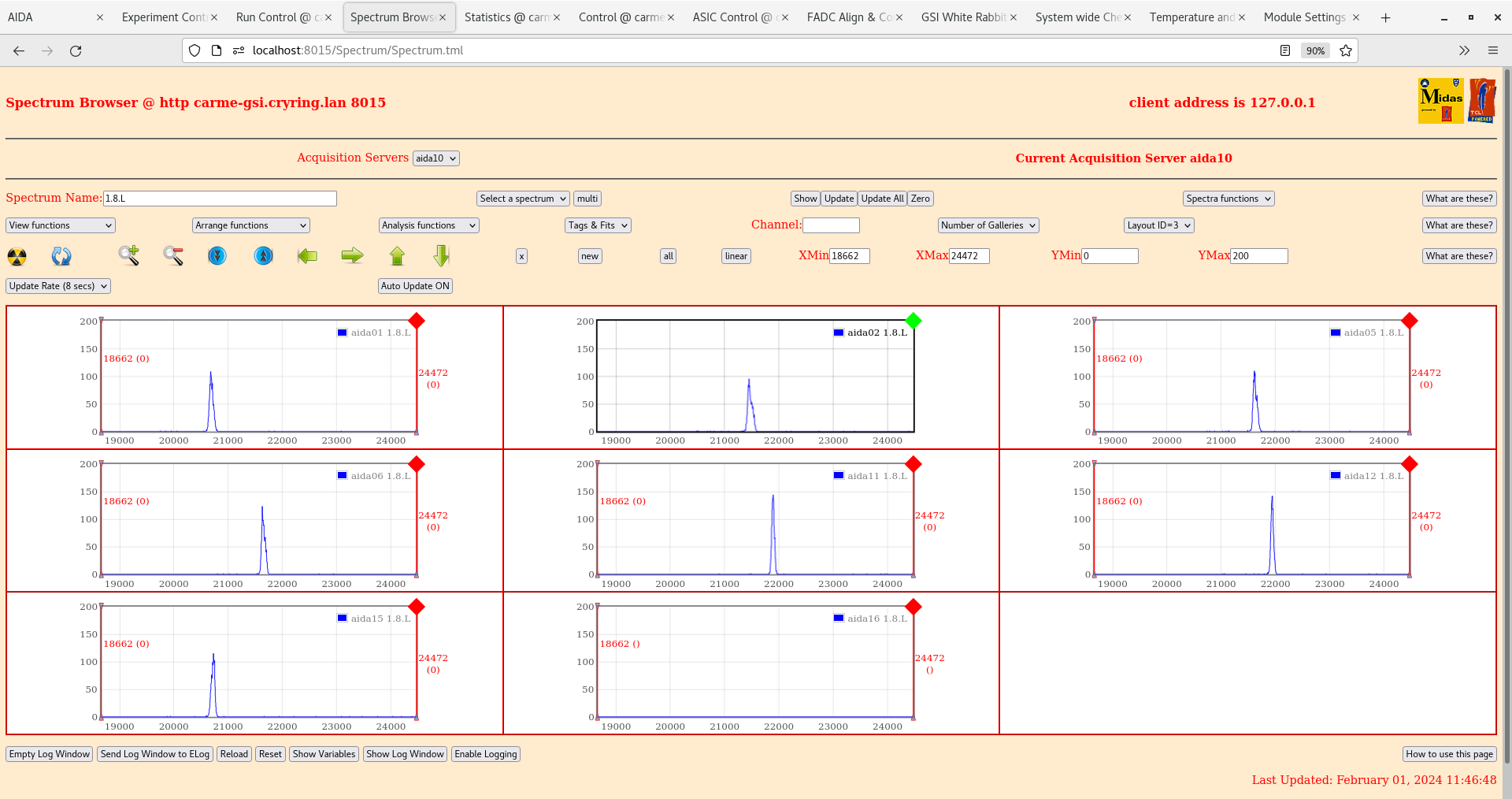

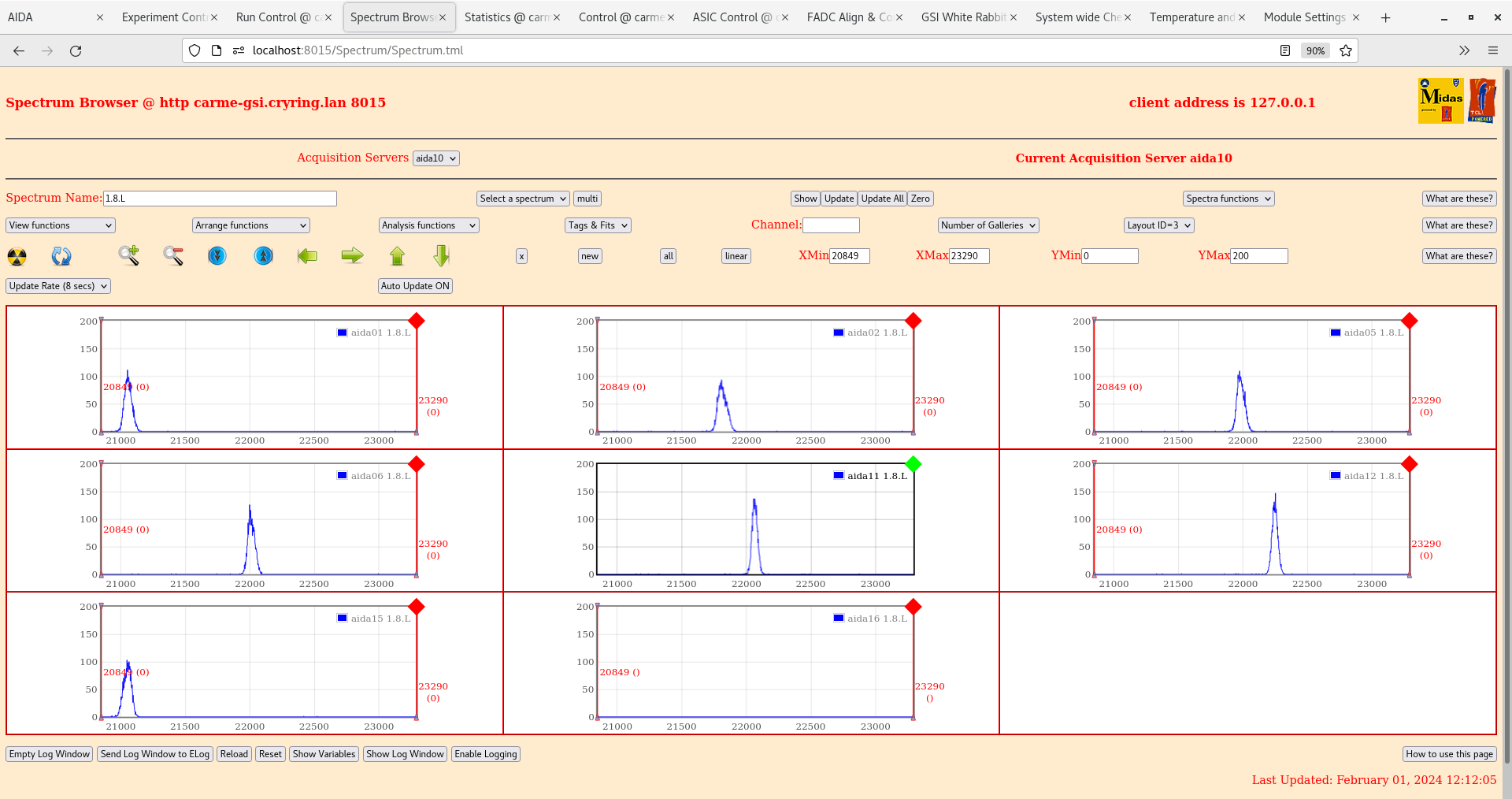

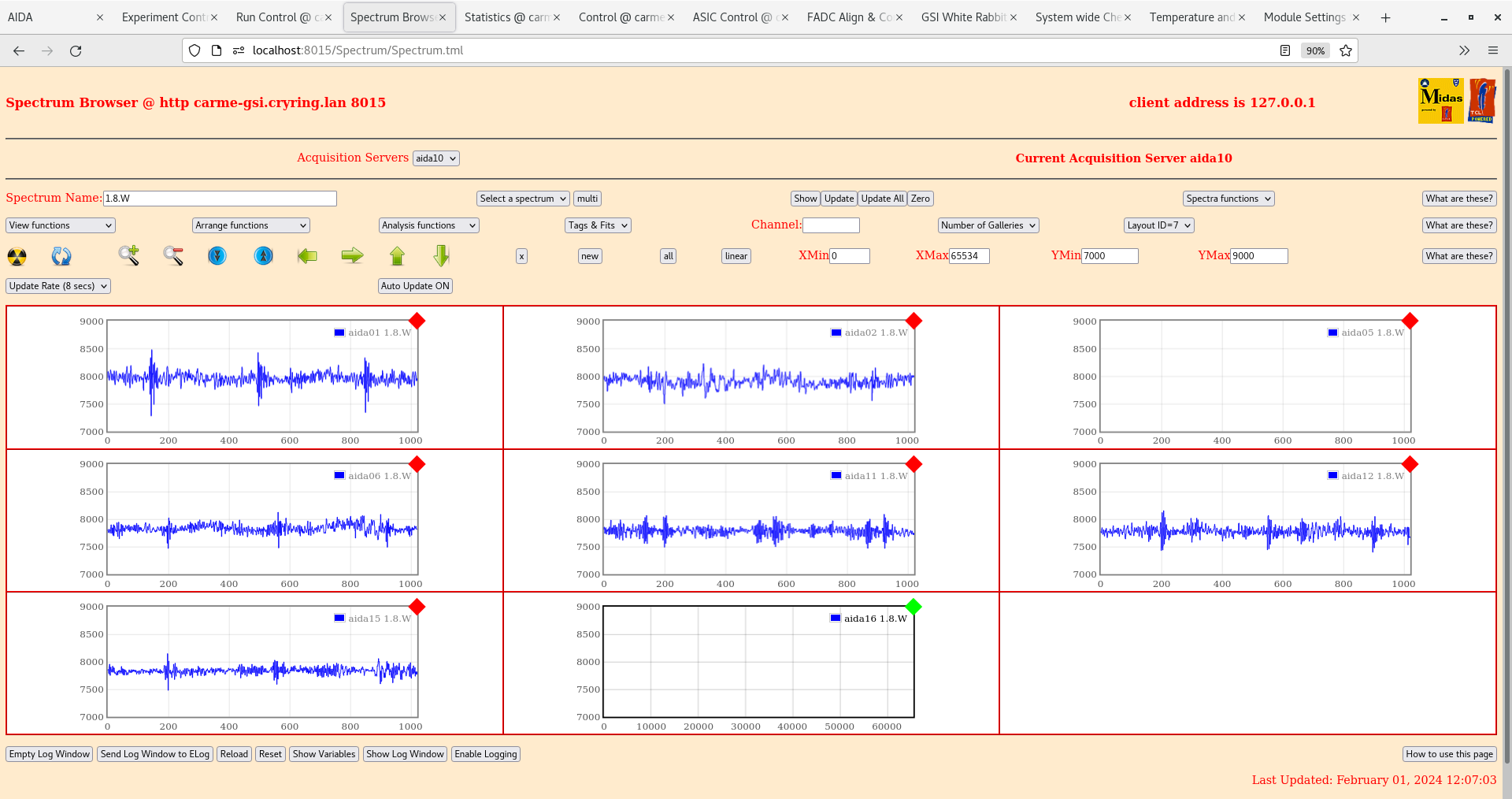

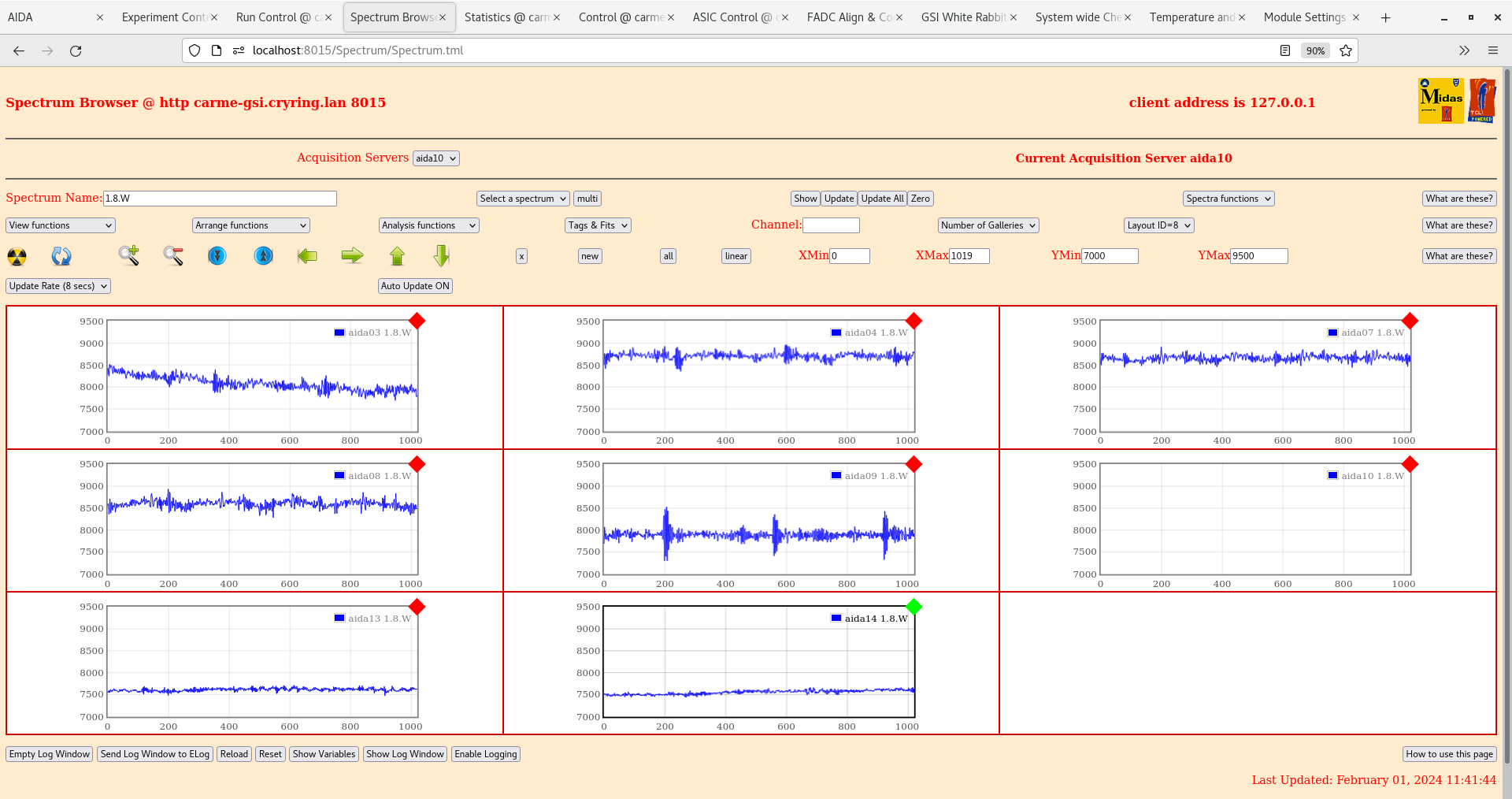

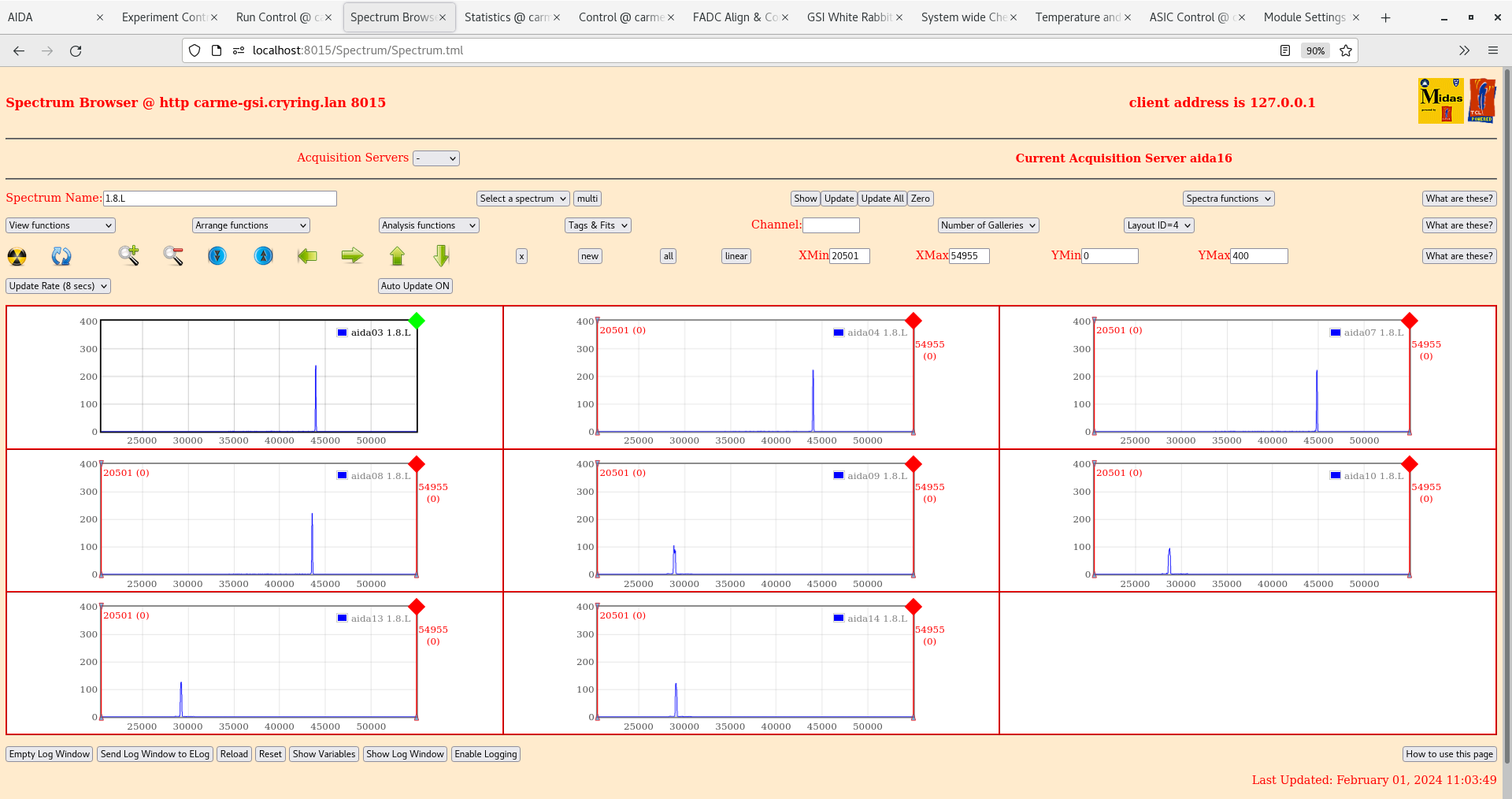

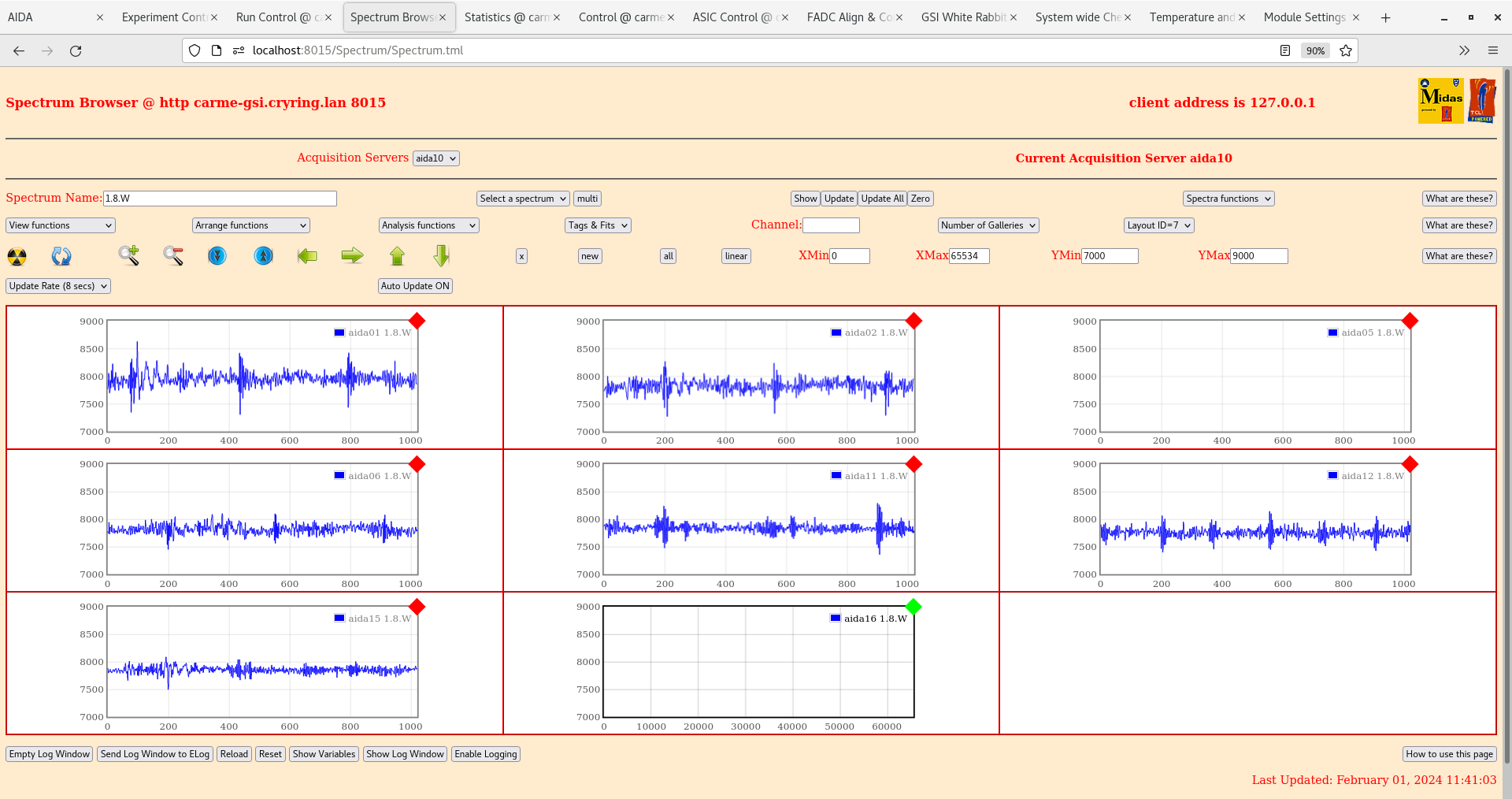

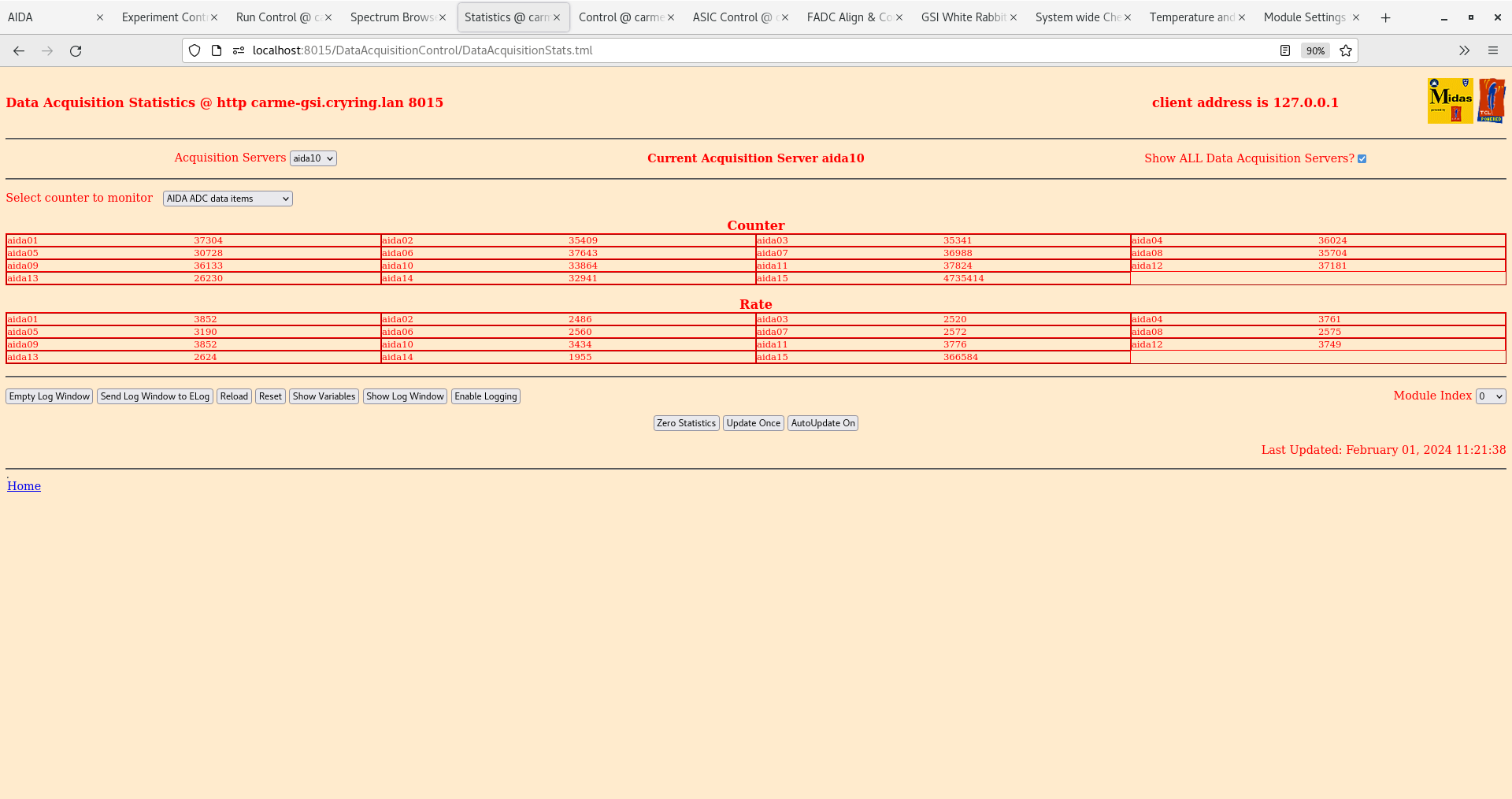

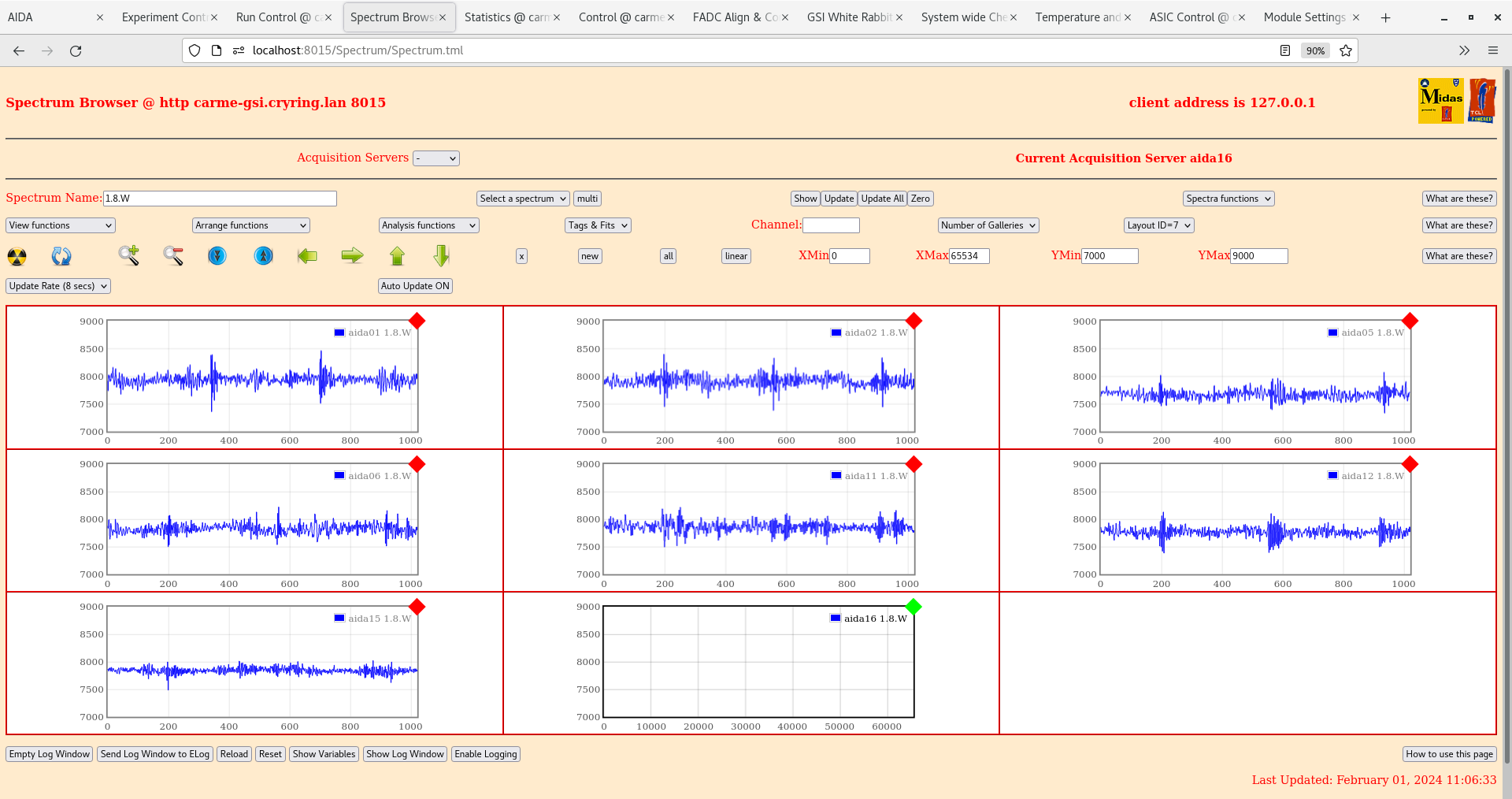

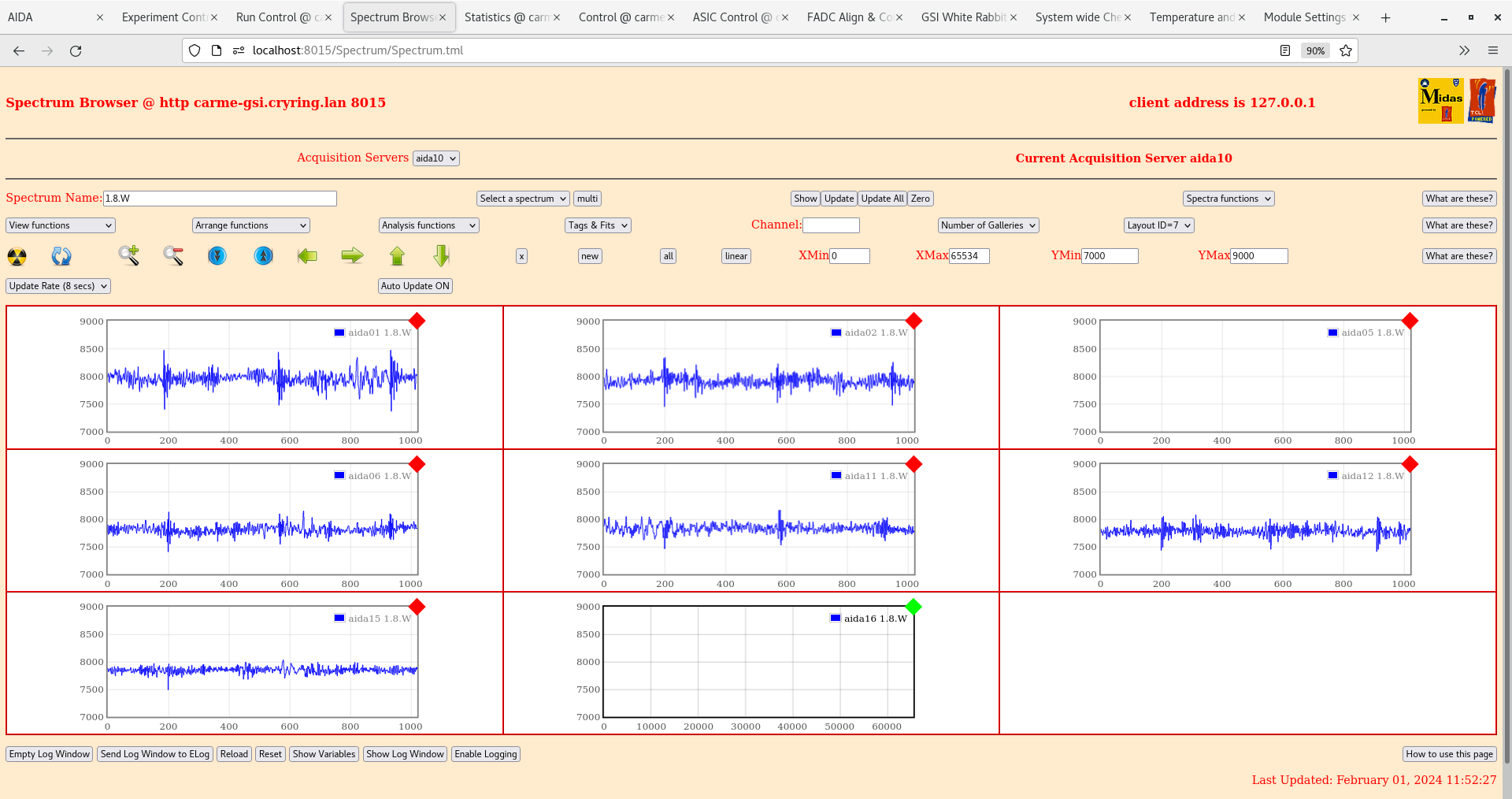

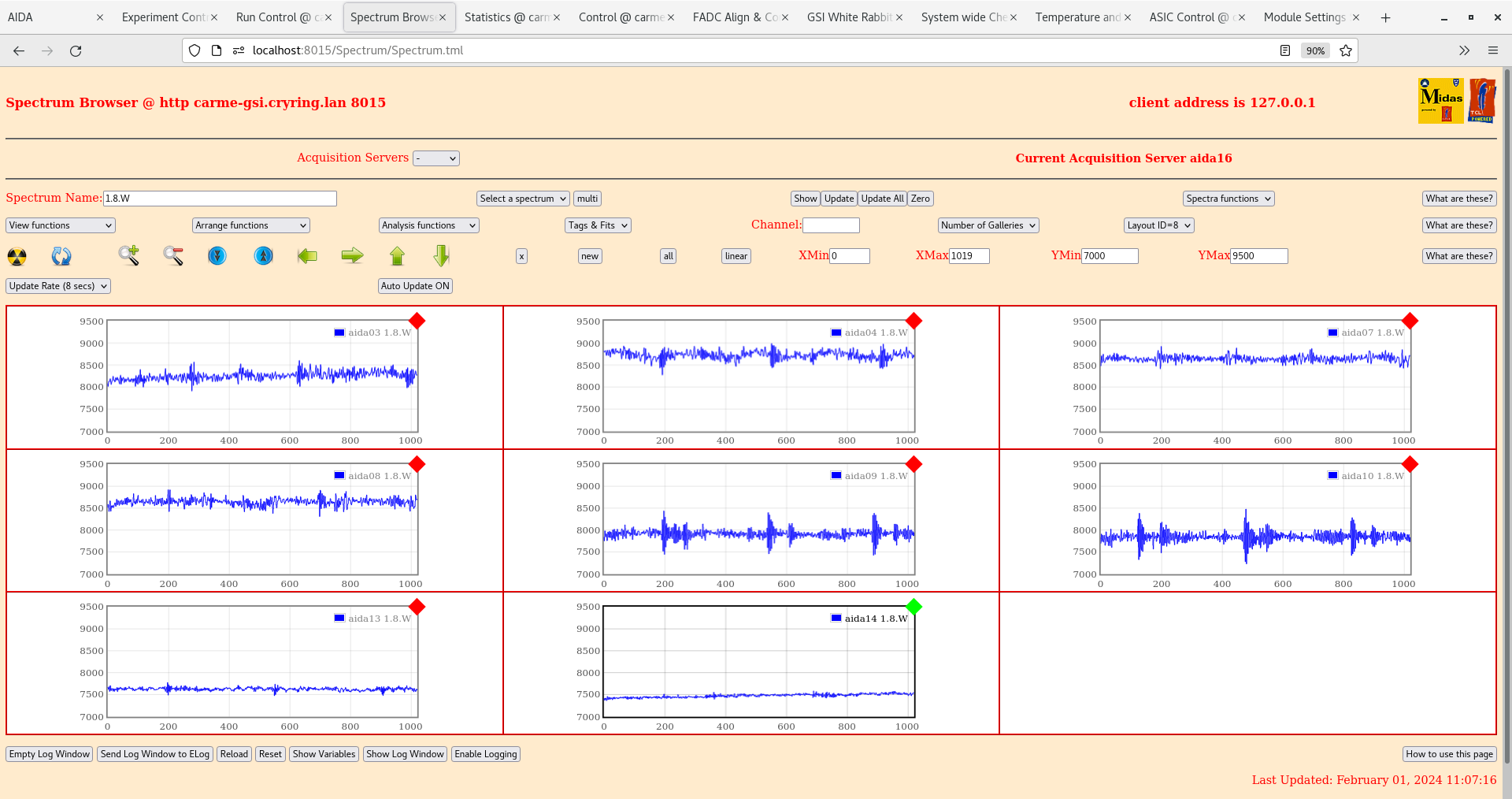

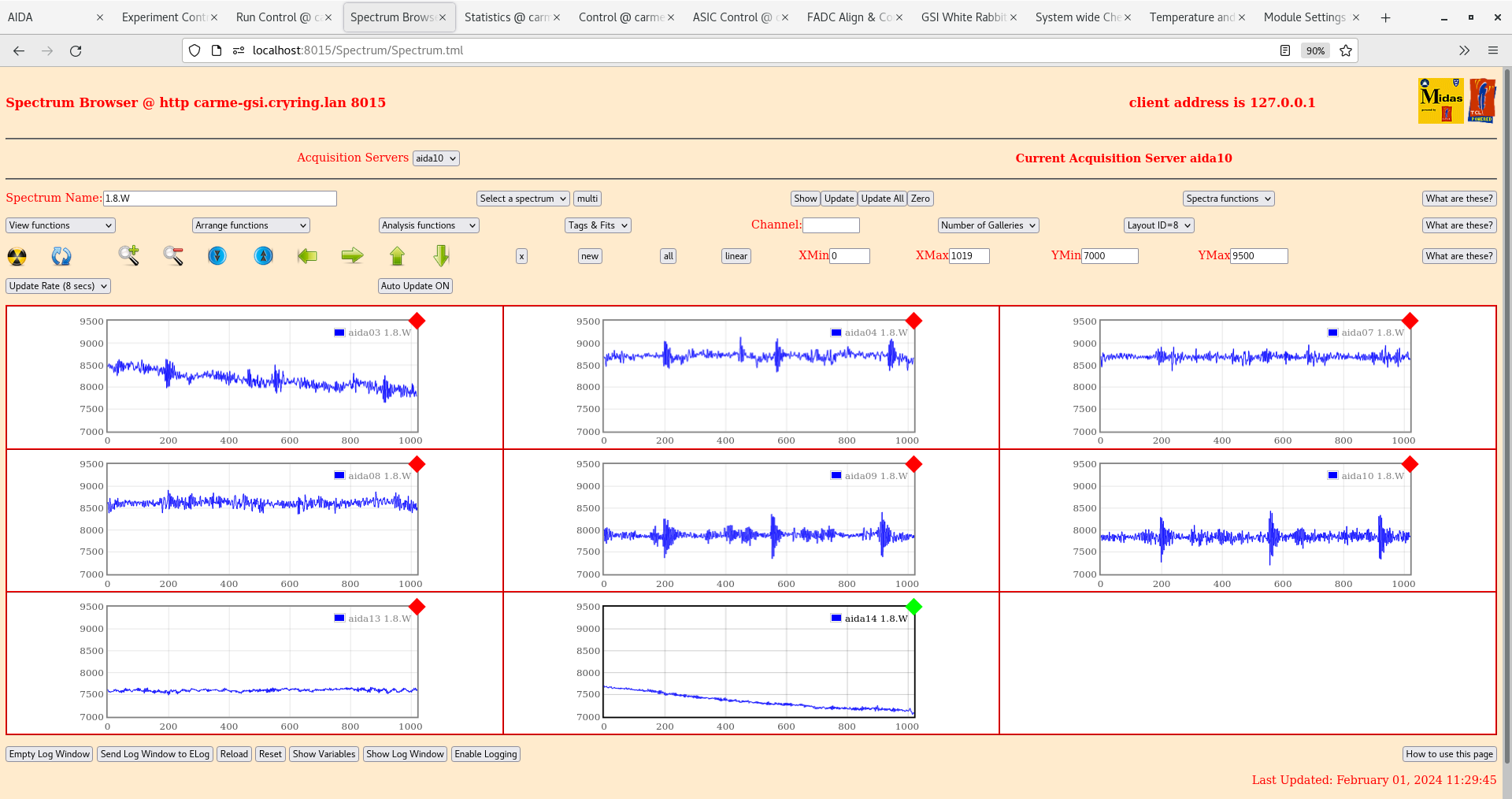

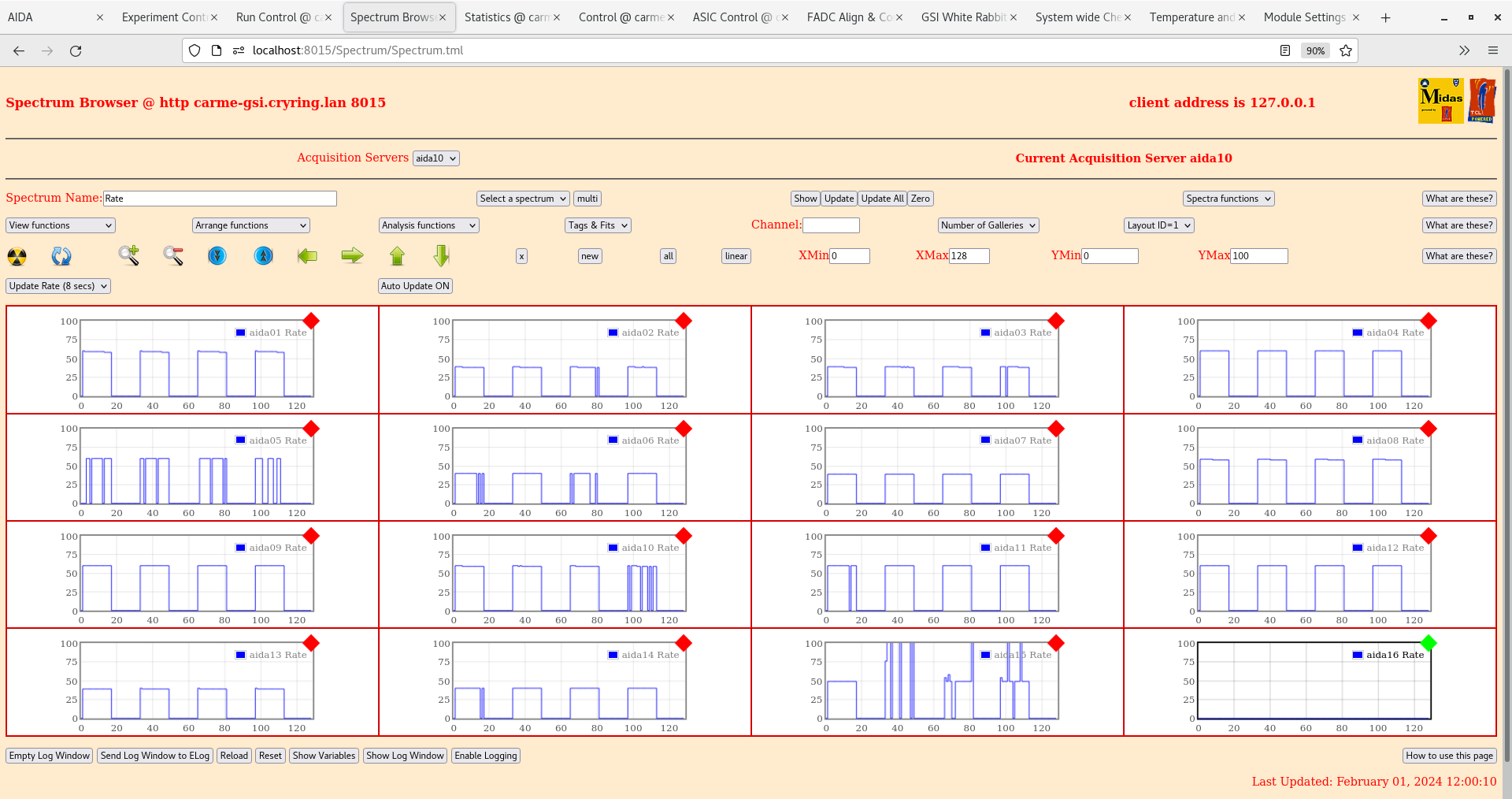

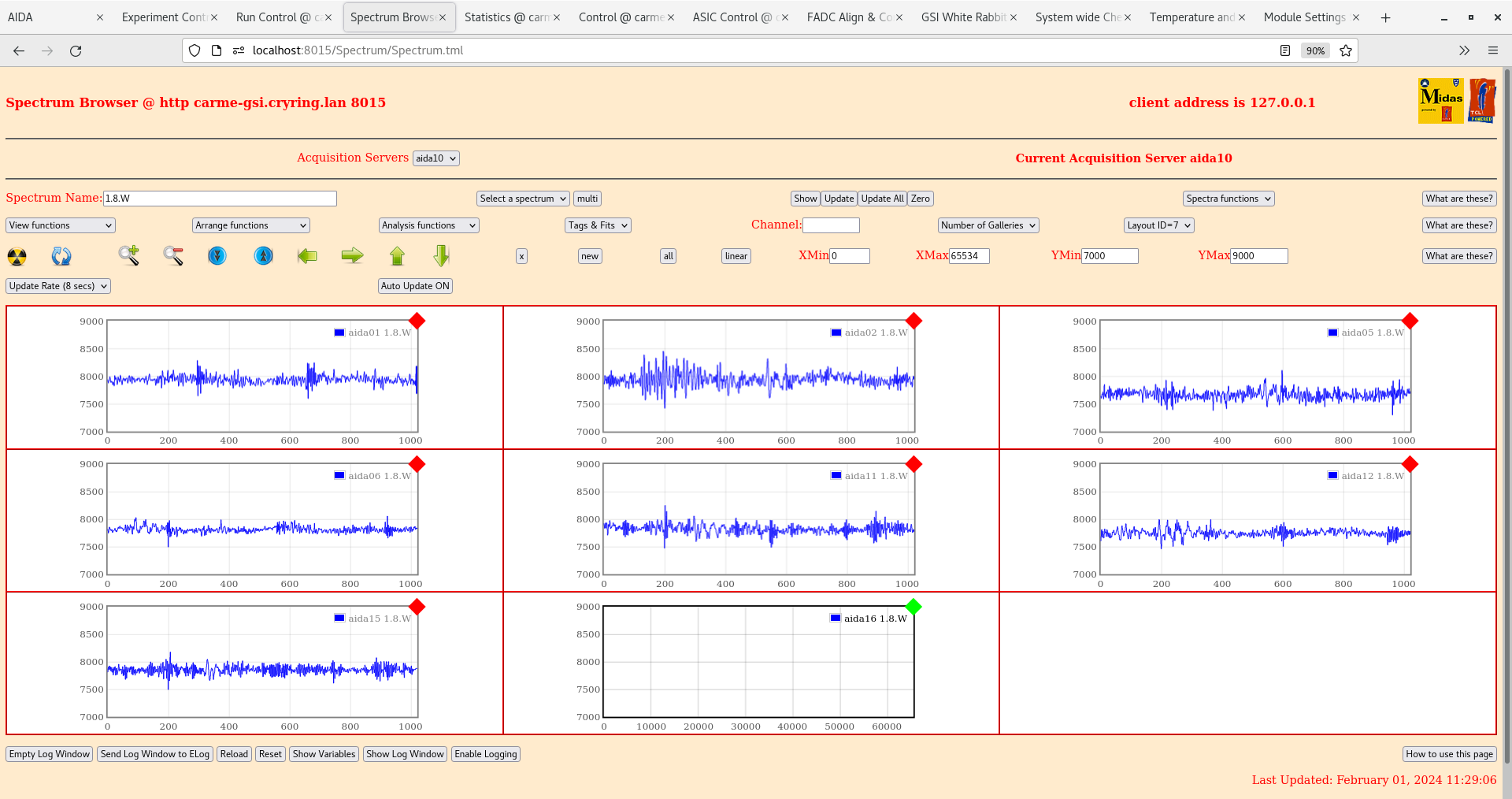

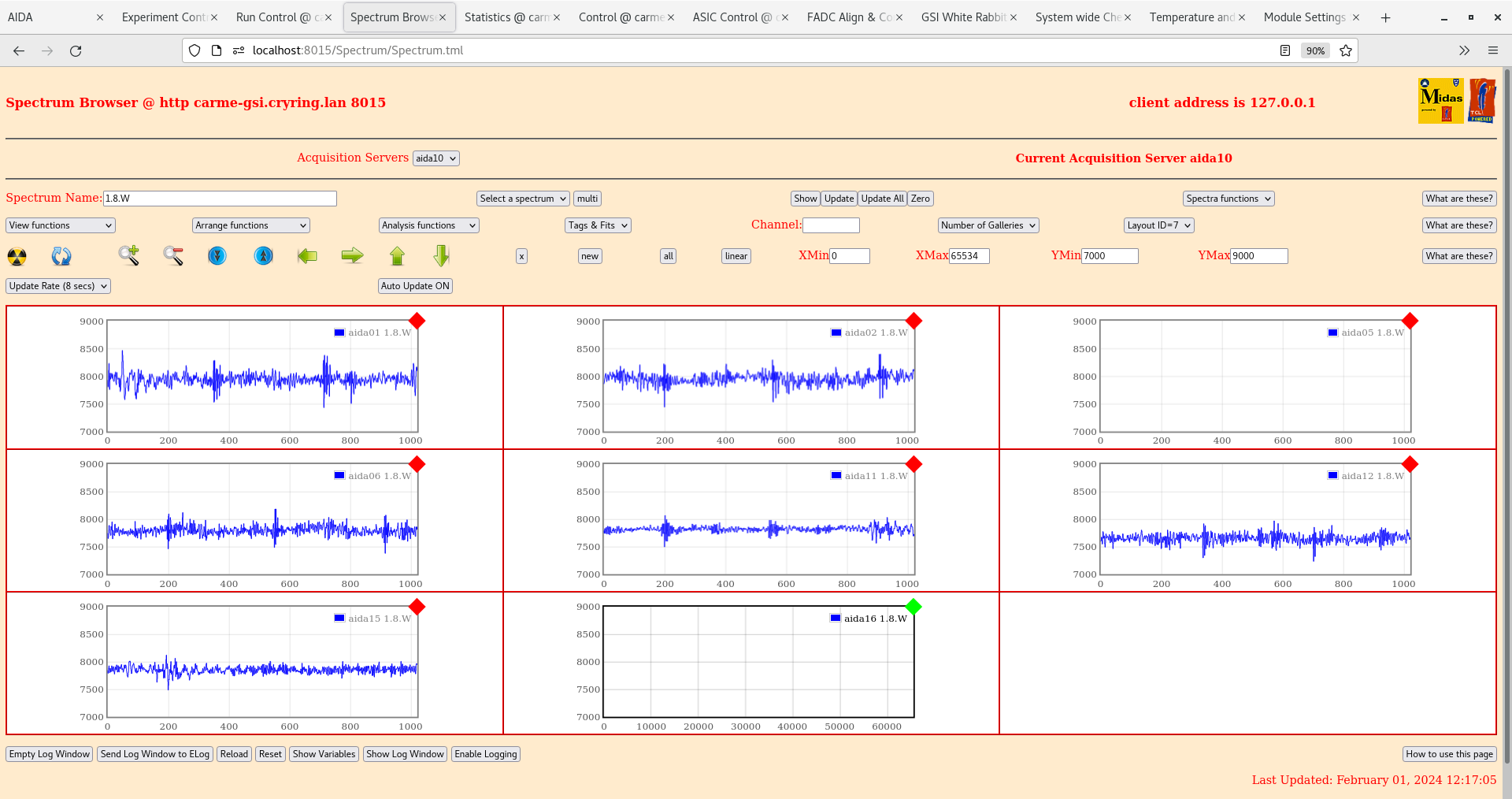

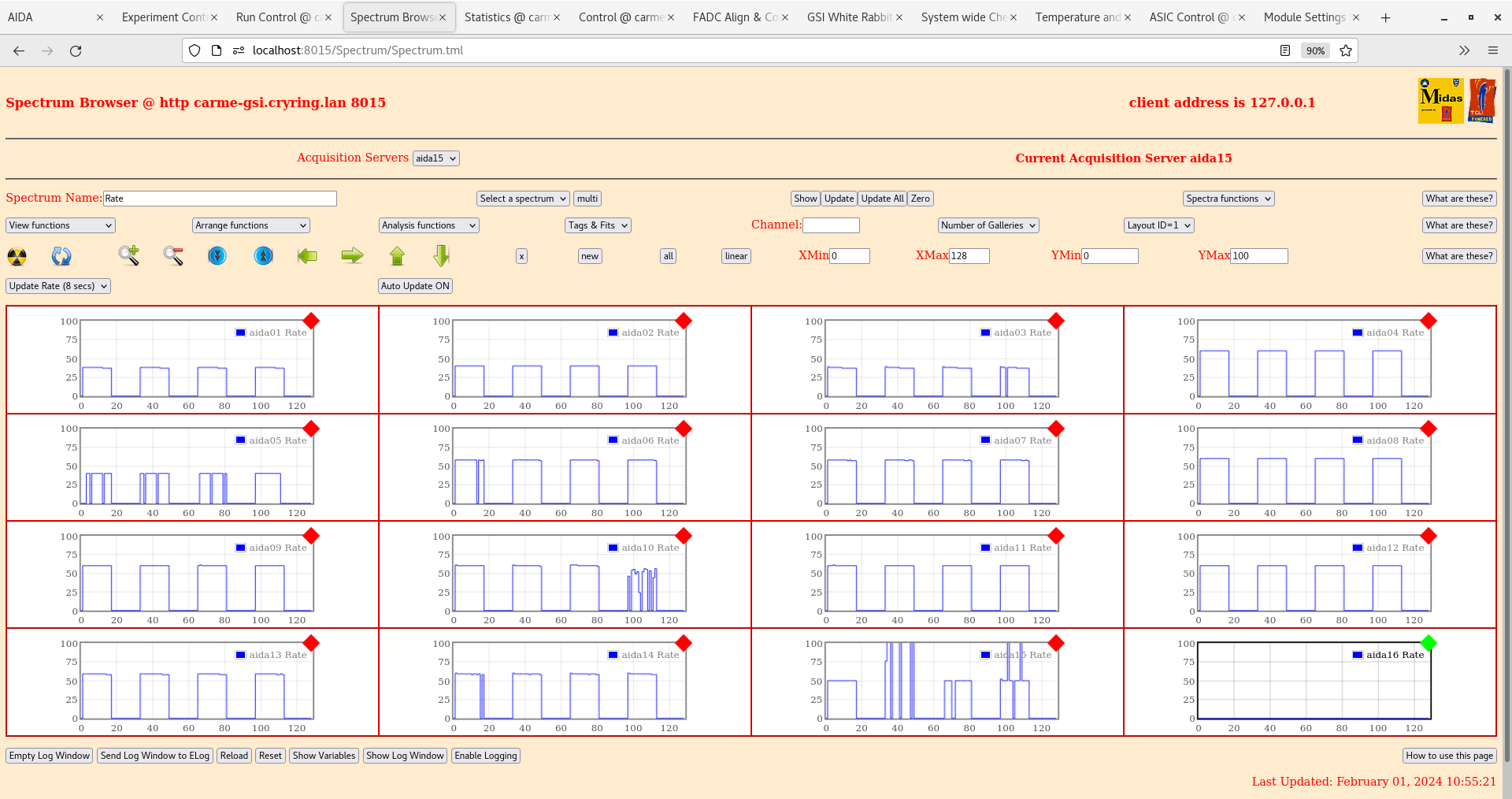

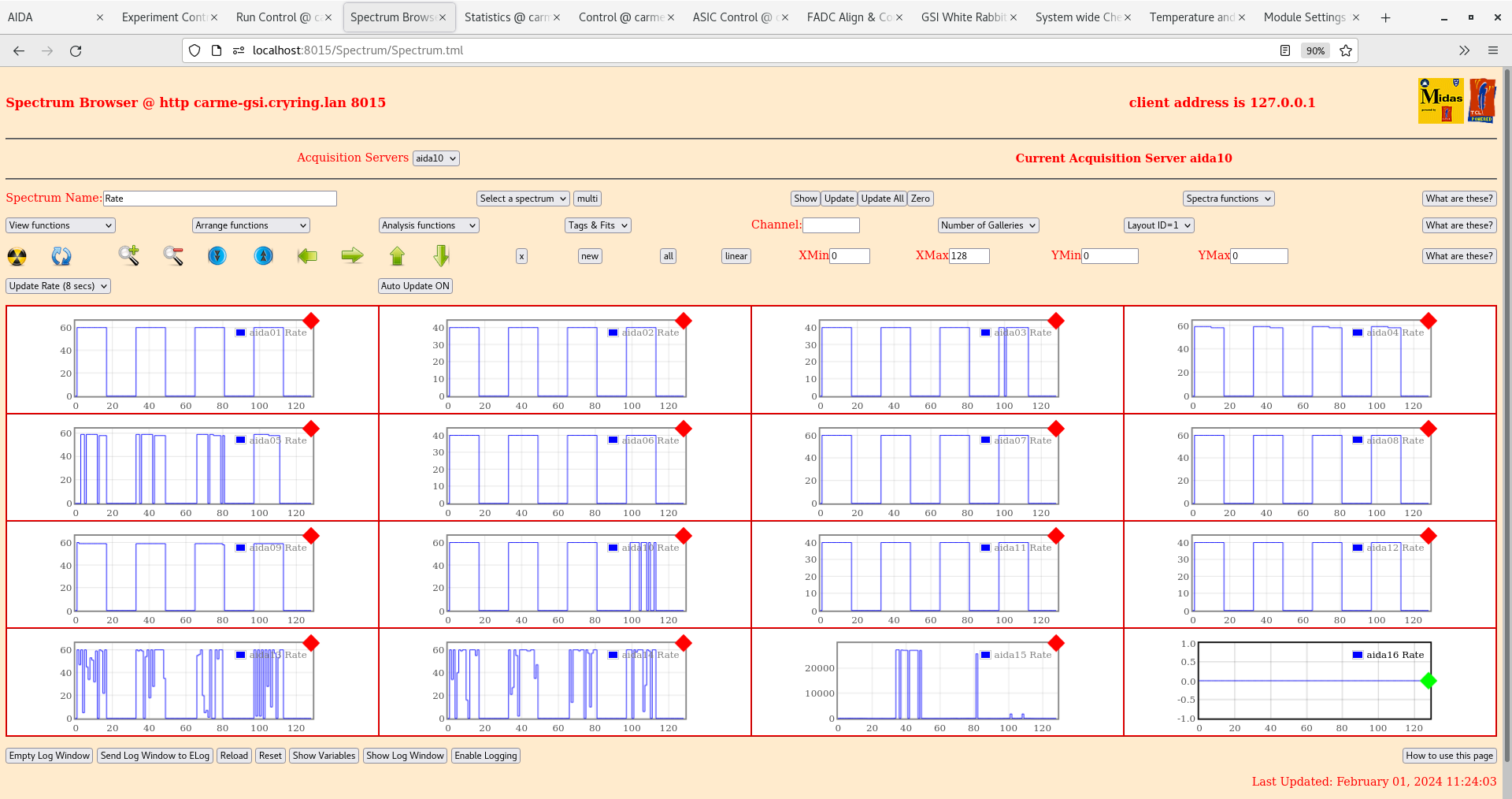

<p>Arrived at the control room to find we had lost connection to the power relay. We rebooted the nnrpi1 and re-connected according to the steps laid out in elog 471 -> all okay</p> <p>11:00 Restarted daq with no changes to the system from yesterday. Bias consistent with previous days. All pulser peaks are slightly improved (even more for the pn pulser, one goes from 91 chn to 78). No pulser observed in nn FEE modules 9, 10, 13, 14 again.</p> <p>ADC data items check OK - all ~3k</p> <p>Rates - all OK - attachment 1</p> <p>1.8L spectra. - attachment 2,3</p> <p>1.8W waveforms - attachment 4,5</p> <p>11:20 Changed shaping time from 0xf to 0x3 (2us)</p> <p>ADC data items check OK - all ~3k attachment 6</p> <p>Rates - all OK - attachment 7</p> <p>1.8L pn spectra. - attachment 8</p> <p>1.8W waveforms - attachment 9,10</p> <p>11:35 Changed shaping time from 0x3 to 0x7 (4us)</p> <p>ADC data items check OK - all ~3k attachment 11</p> <p>Rates - all OK - attachment 12</p> <p>1.8L pn spectra. - attachment 13</p> <p>1.8W waveforms - attachment 14,15</p> <p>11:45 Changed shaping time from 0x7 to 0xb (6us)</p> <p>ADC data items check OK - all ~3k - attachment 16</p> <p>Rates - all OK - attachment 17</p> <p>1.8L spectra. - attachment 18,19</p> <p>1.8W waveforms - attachment 20,21</p> <p>11:59 Changed shaping time from 0xb to 0xd (7us)</p> <p>ADC data items check OK - all ~3k - attchment 22</p> <p>Rates - all OK - attachment 23</p> <p>1.8L pn spectra. - attachment 24</p> <p>1.8W waveforms - attachment 25, 26</p> <p>12:09 Changed shaping time back to 0xf (8us)</p> <p>ADC data items check OK - all ~3k - attchment 27</p> <p>Rates - all OK - attachment 28</p> <p>1.8L pn spectra. - attachment 29</p> <p>1.8W waveforms - attachment 30,31</p> <p>13:10 Power cycled FEE modules. nn pulser for FEEs 9,10,13,14 are now active again (no changes made in the cave) Pulser widths for nn and pn both consistent with before lunch</p> <p> </p>
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 1920x1014
Attachment 2:
Original size: 1920x1014
Attachment 3:
Original size: 1920x1014
Attachment 4:
Original size: 1920x1014
Attachment 5:
Original size: 1920x1014
Attachment 6:
Original size: 1920x1014
Attachment 7:
Original size: 1920x1014
Attachment 8:
Original size: 1920x1014
Attachment 9:
Original size: 1920x1014
Attachment 10:
Original size: 1920x1014
Attachment 11:
Original size: 1920x1014
Attachment 12:
Original size: 1920x1014
Attachment 13:
Original size: 1920x1014
Attachment 14:
Original size: 1920x1014
Attachment 15:
Original size: 1920x1014
Attachment 16:
Original size: 1920x1014
Attachment 17:
Original size: 1920x1014
Attachment 18:
Original size: 1920x1014
Attachment 19:
Original size: 1920x1014
Attachment 20:
Original size: 1920x1014
Attachment 21:
Original size: 1920x1014
Attachment 22:
Original size: 1920x1014
Attachment 23:
Original size: 1920x1014
Attachment 24:
Original size: 1920x1014
Attachment 25:
Original size: 1920x1014
Attachment 26:
Original size: 1920x1014
Attachment 27:
Original size: 1920x1014
Attachment 28:
Original size: 1920x1014
Attachment 29:
Original size: 1920x1014
Attachment 30:
Original size: 1920x1014
Attachment 31:
Original size: 1920x1014
