01.07 DAQ continues file G22-88/R1_46
      background alpha

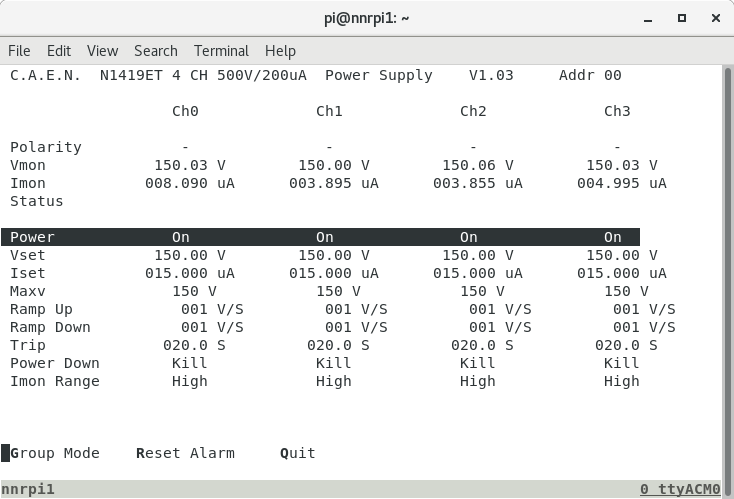

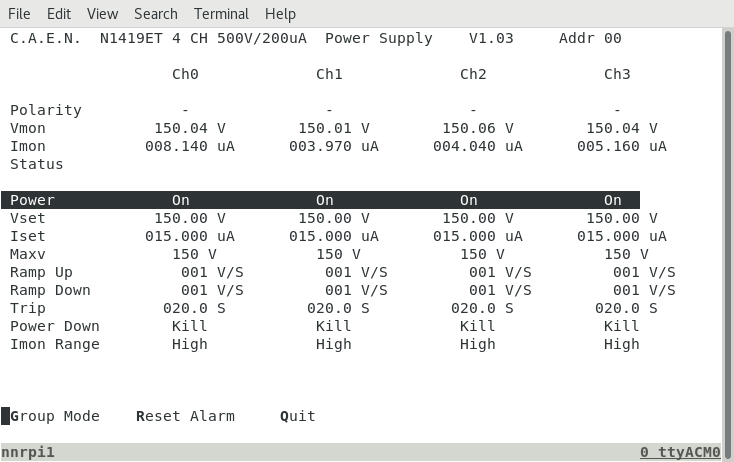

DSSSD bias OK - attachment 1

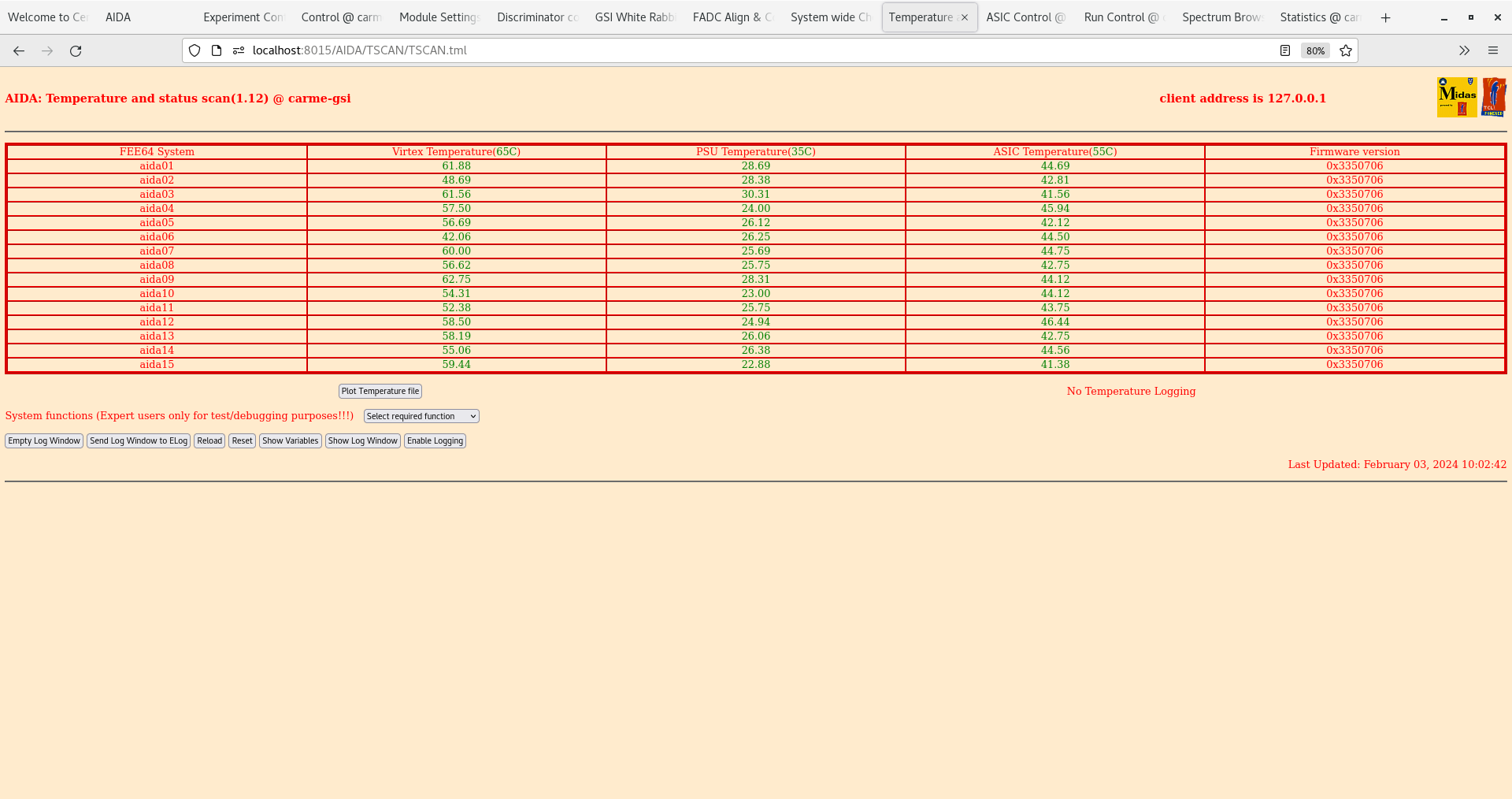

      FEE64 temps OK - attachment 2
      ADC data item stats - attachment 3
       aida15 asic #2 u/s - rate c. 266k

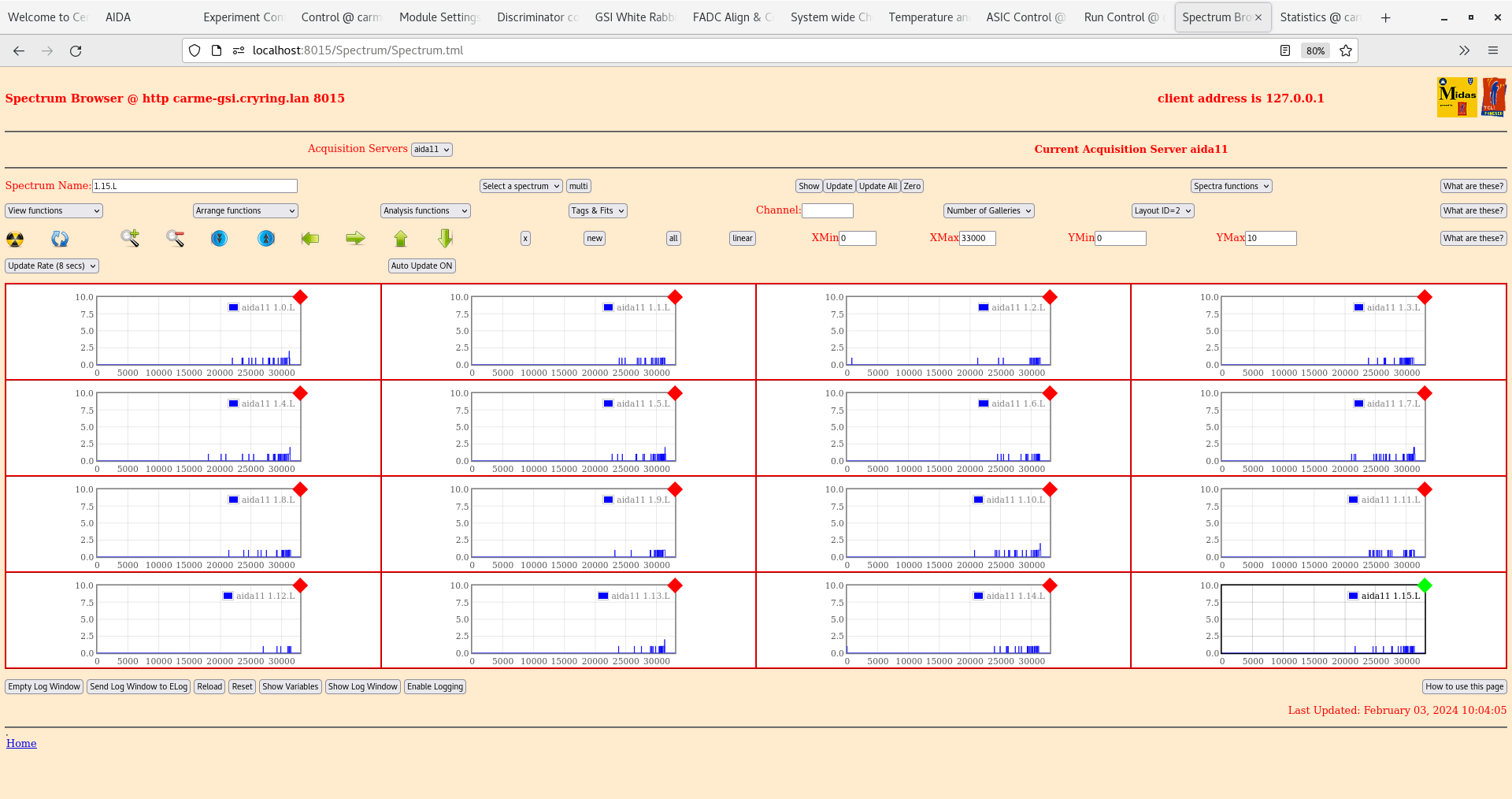

aida11 1*L spectra - attachment 4

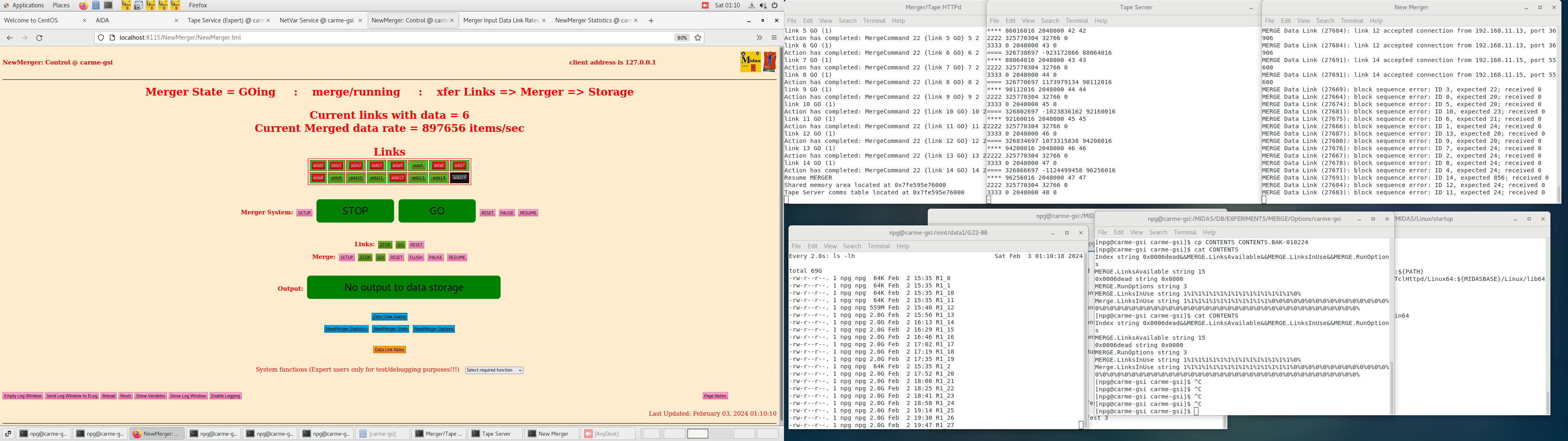

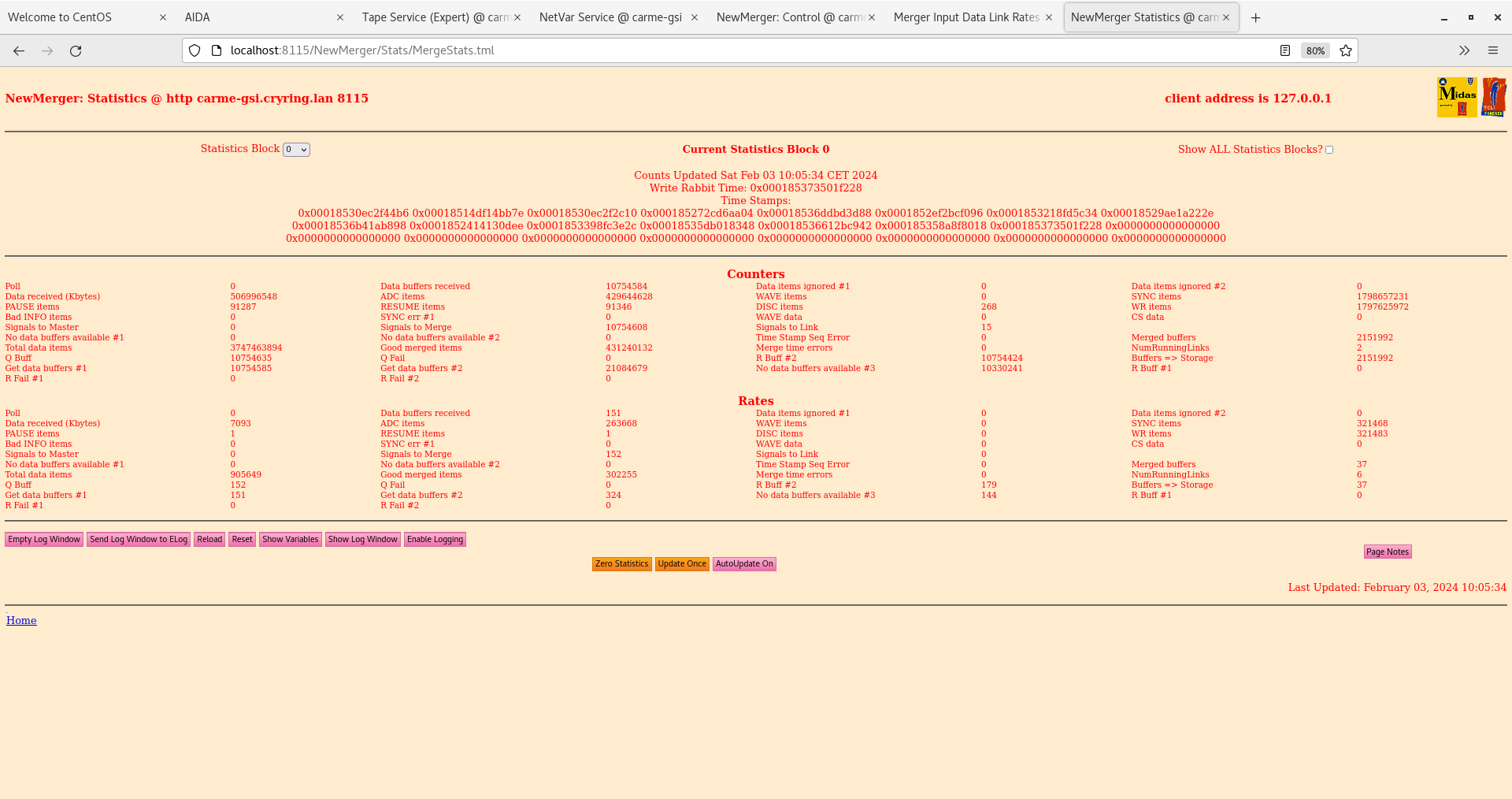

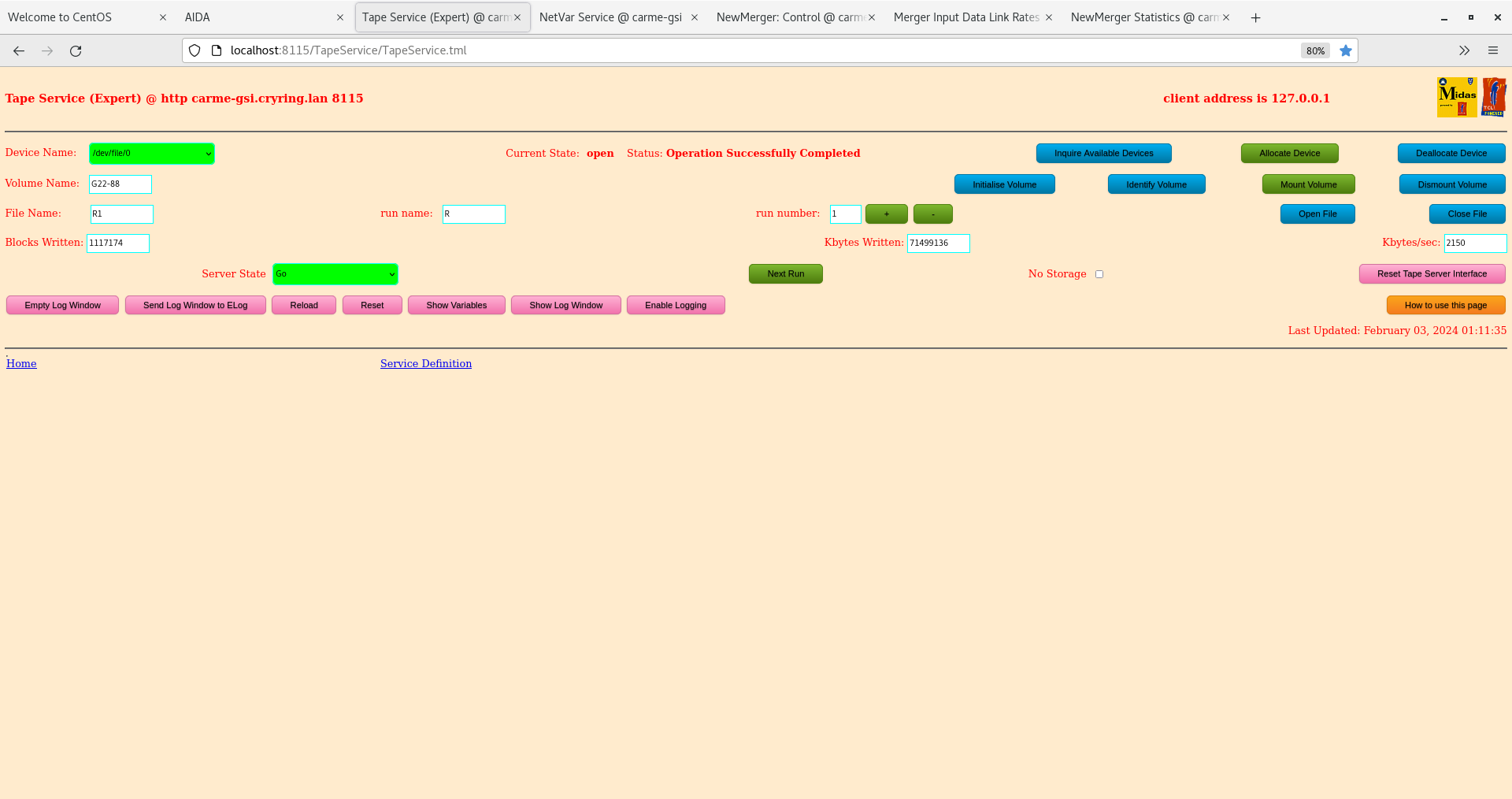

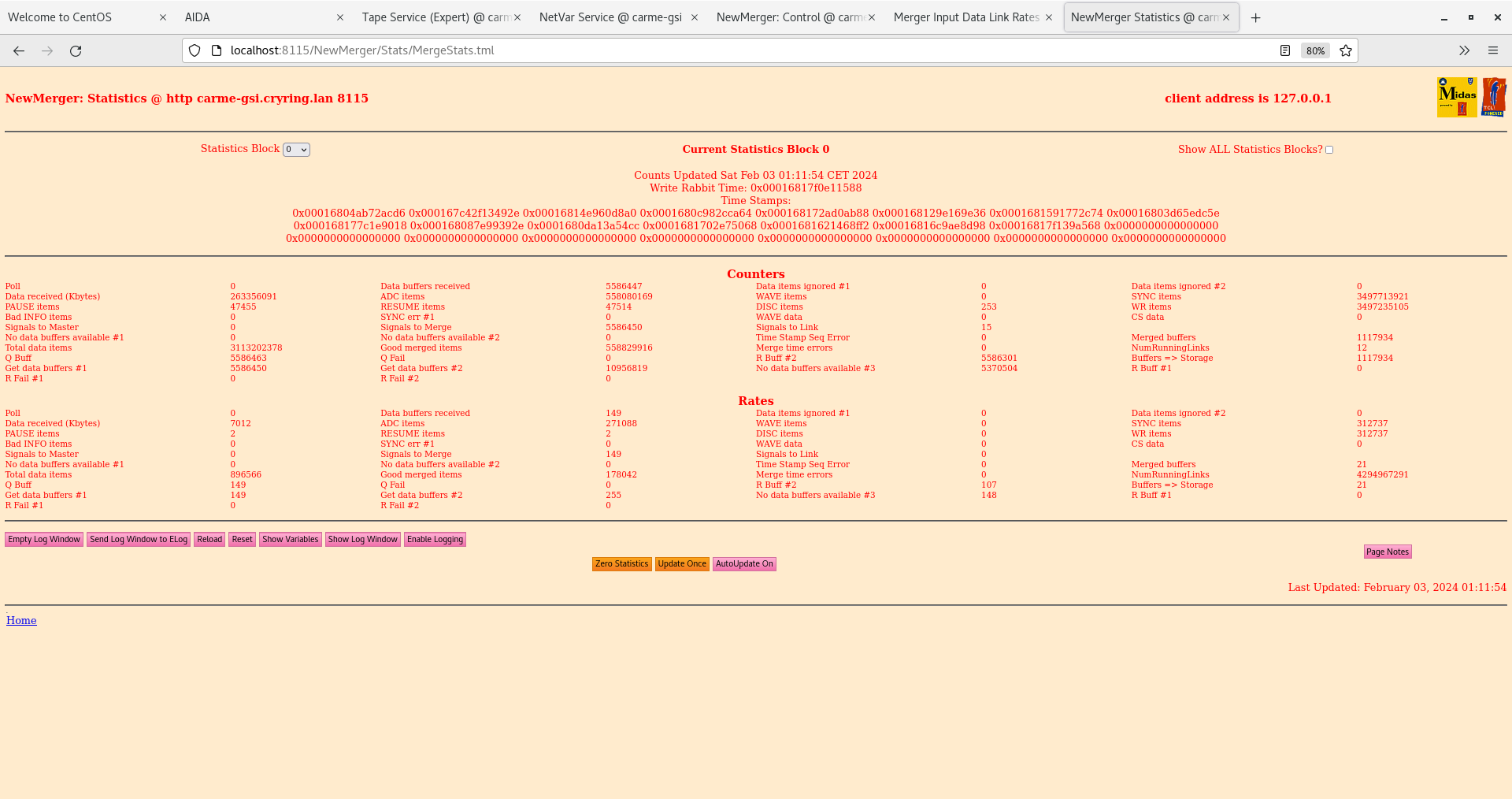

ADC data items/s Merger, Tape Server & Merger stats - attachments 5-7
       data rate to disk c. 2Mb/s dominated by aida15 asic 2

10.05 DAQ continues file G22-88/R1_79
      background alpha

DSSSD bias OK - attachment 8
       ambient temperature 16.8 deg C
      FEE64 temps OK - attachment 9

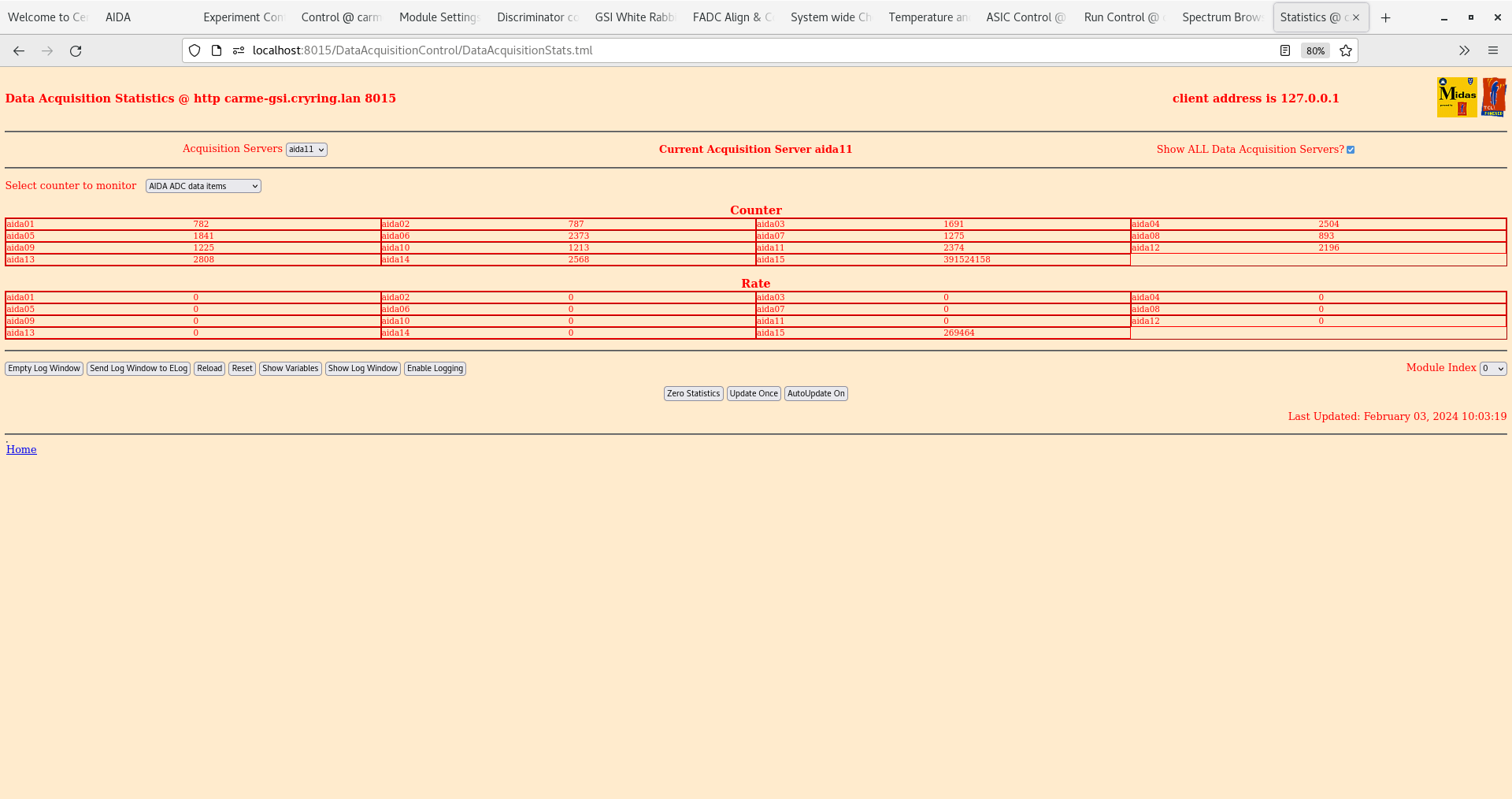

      ADC data item stats - attachment 10
       aida15 asic #2 u/s - rate c. 266k

aida11 1*L spectra - attachment 11

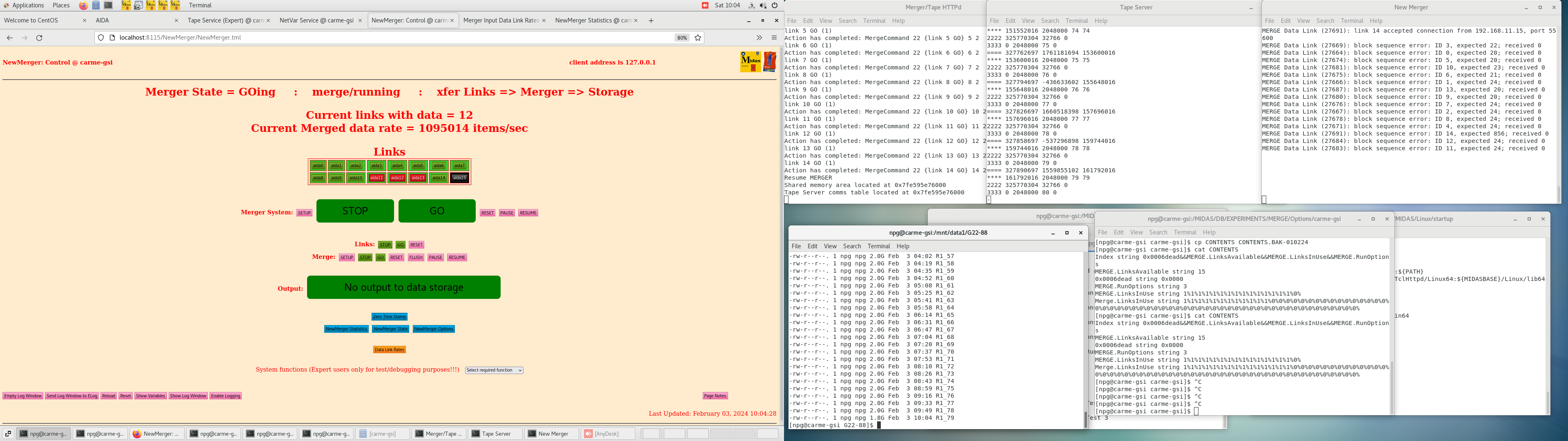

ADC data items/s Merger, Tape Server & Merger stats - attachments 12-14
       data rate to disk c. 2Mb/s dominated by aida15 asic 2

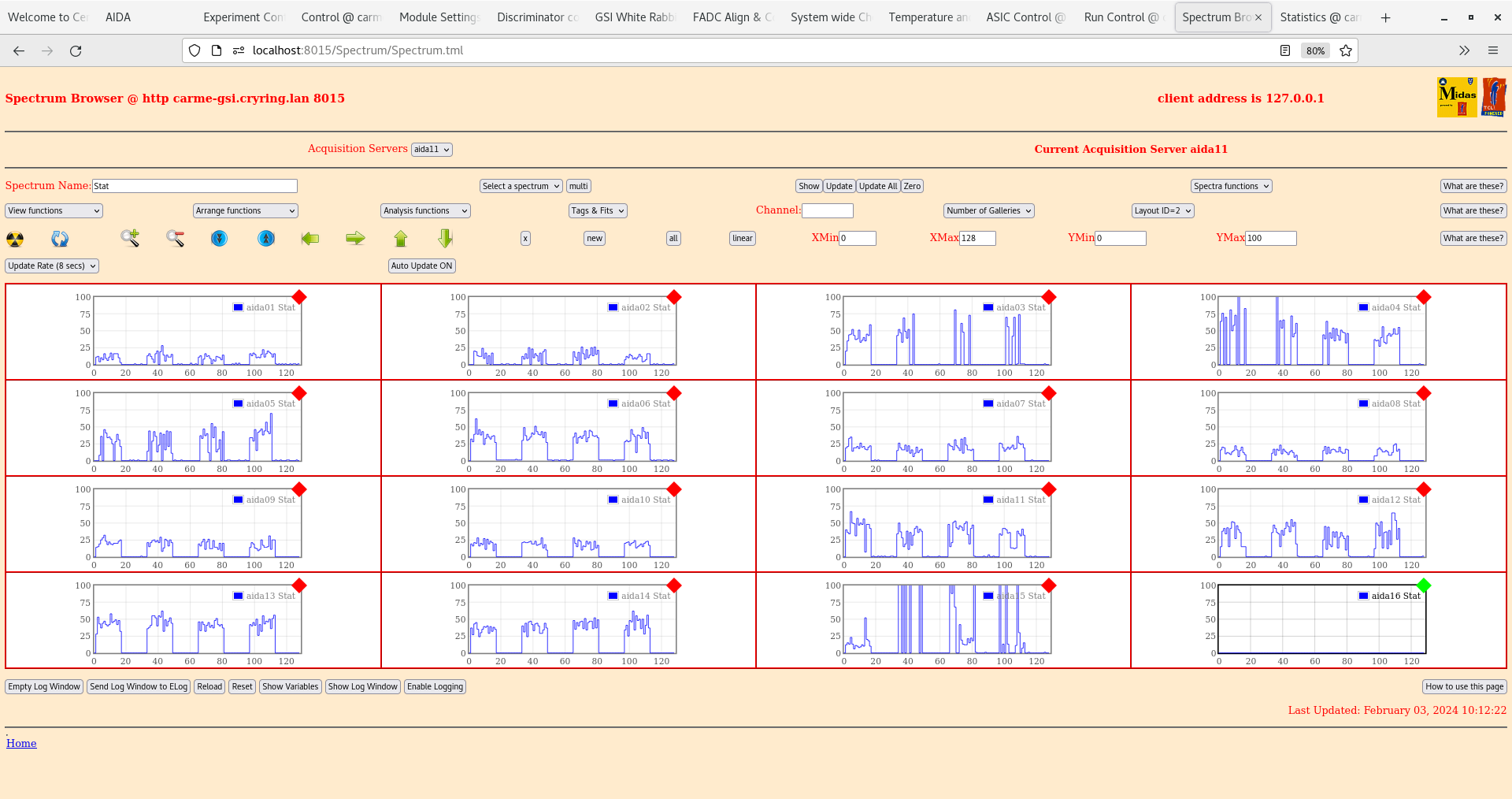

10.12 per FEE64 Stat spectra - attachment 15
      missing channels aida03, aida04, aida05 & aida15
      Check ASIC load aida03, aida04, aida05 & aida15

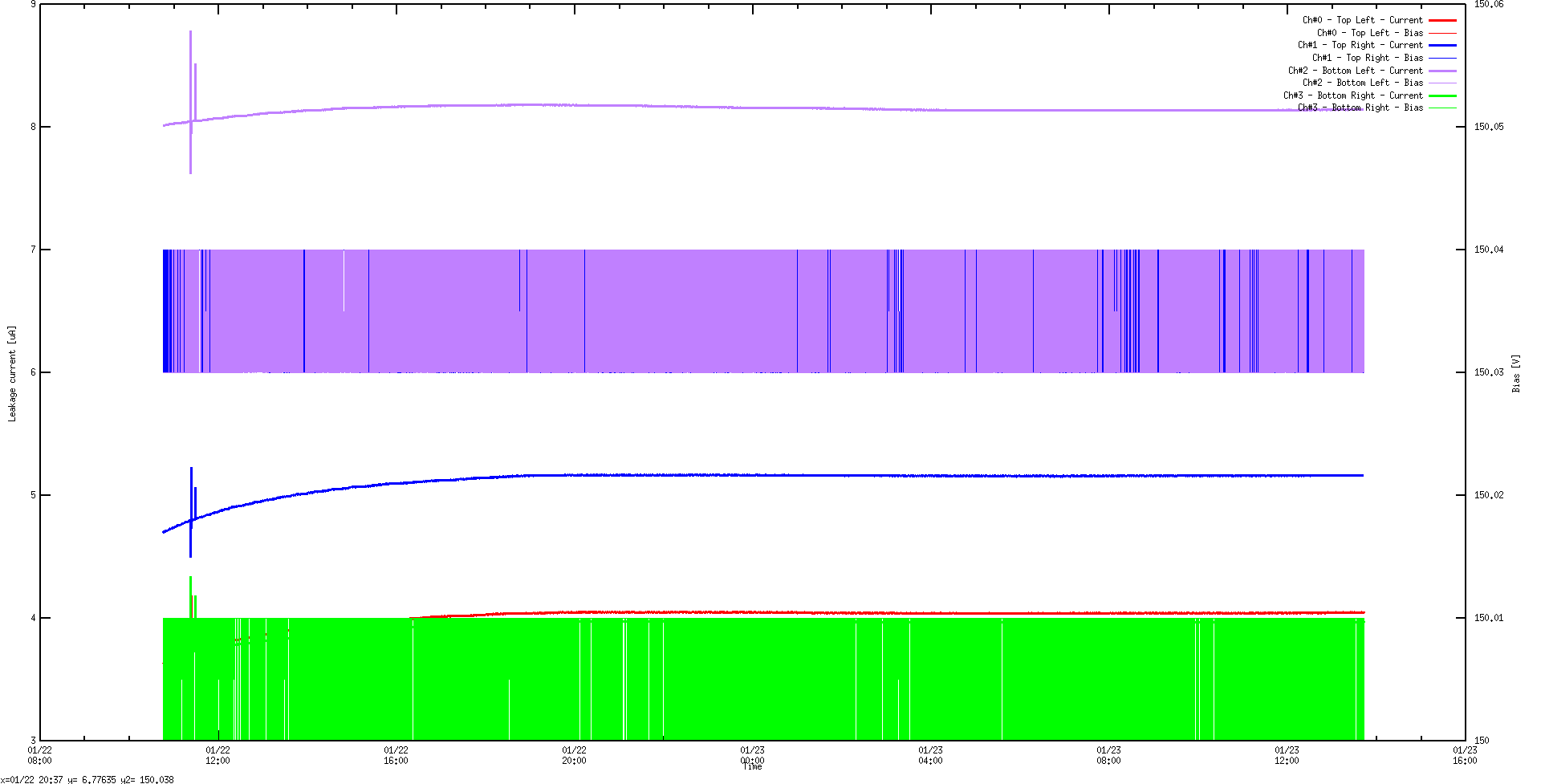

13:25 Overnight leakage current plot - att 16

13.38 DAQ continues file G22-88/R1_92
      background alpha

DSSSD bias OK - attachment 17
       ambient temperature 16.8 deg C

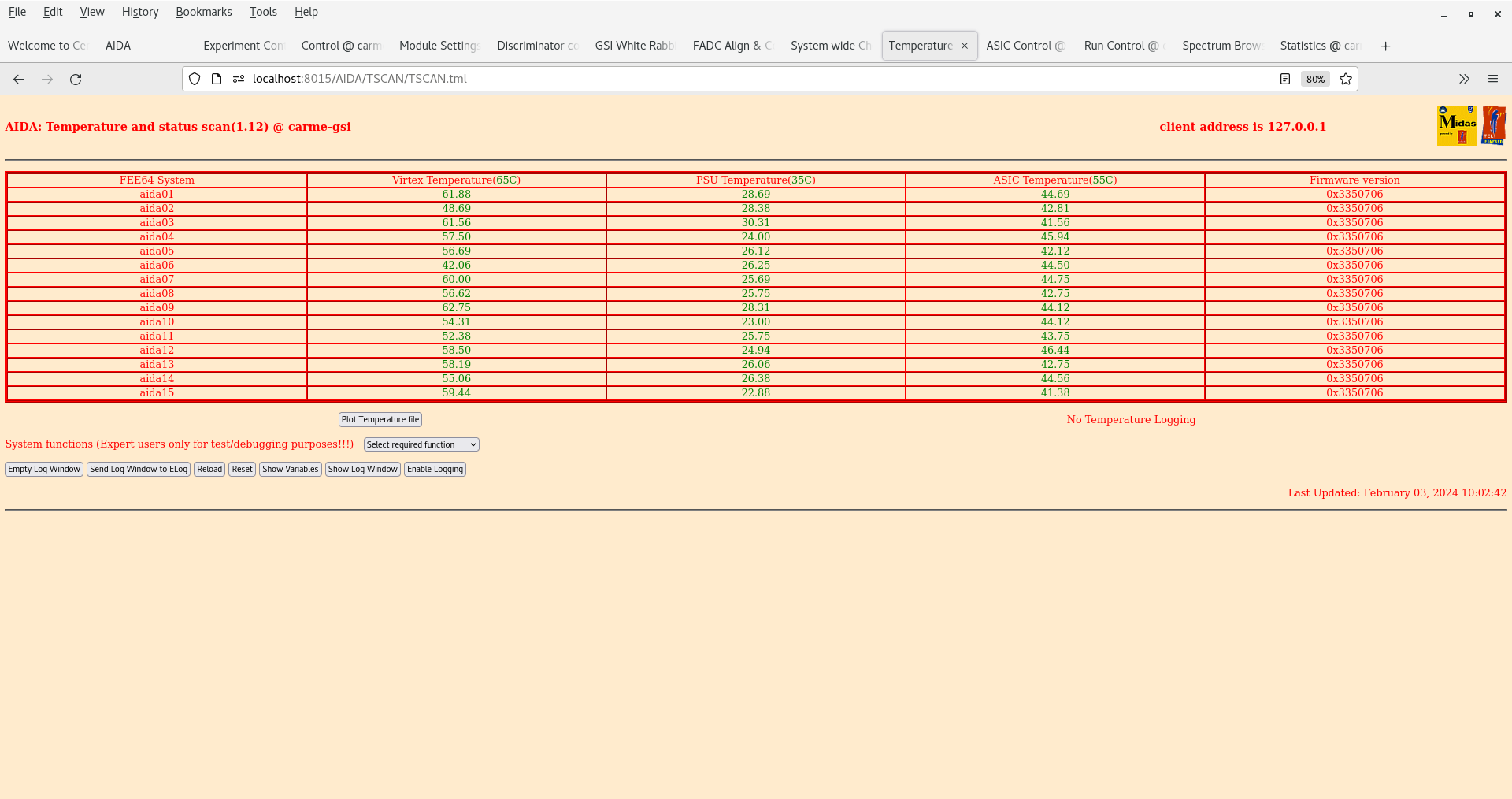

      FEE64 temps OK - attachment 18
      ADC data item stats - attachment 19
       aida15 asic #2 u/s - rate c. 266k

aida11 1*L spectra - attachment 20
       ASIC check load at 10.12 should result in 1-2 hits per channel in the Stat spectra aida03, aida04, aida05 and aida15
       Channels which continue to show zero counts likely indicate a FEE64-adaptor PCB connection issue
       Channels which now show 1, or more, counts cf. attachment 15 likely correspond to channels now working following the check ASIC load

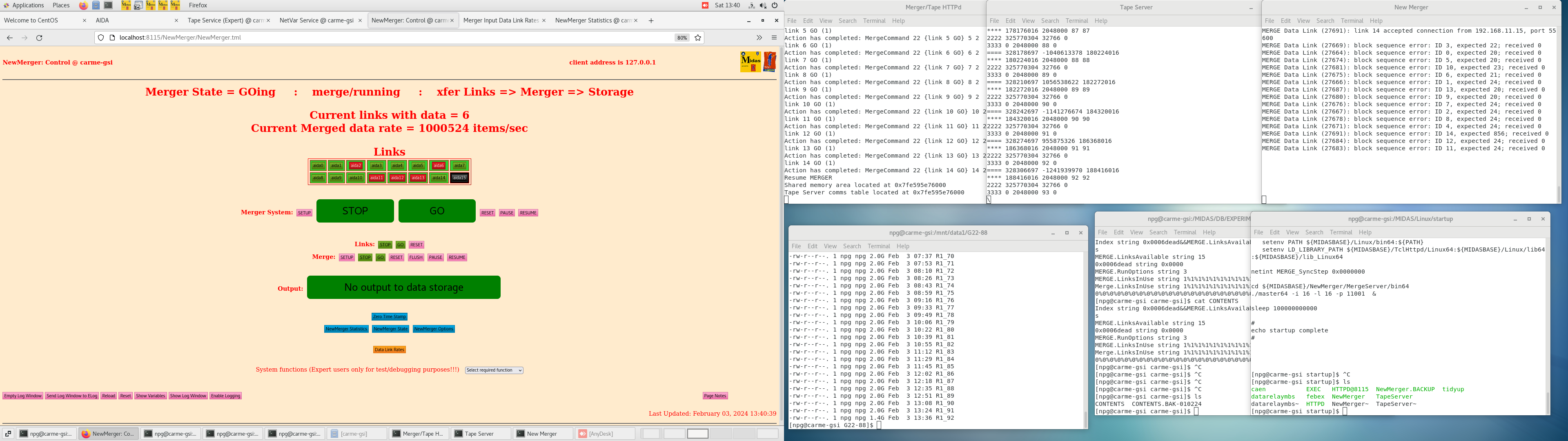

ADC data items/s Merger, Tape Server & Merger stats - attachments 21-23
       data rate to disk c. 2Mb/s dominated by aida15 asic 2

13.48 Stopped DAQ file G22-88/R1_93

DSSSD bias OFF
      FEE64 power OFF

16.00 Installed FEE64 power cable to aida16
      Replaced aida15 with new FEE64 MAC 41:f6:5a

Update dhcpd.conf
      Update MIDAS config to include aida16

FEE64 power ON

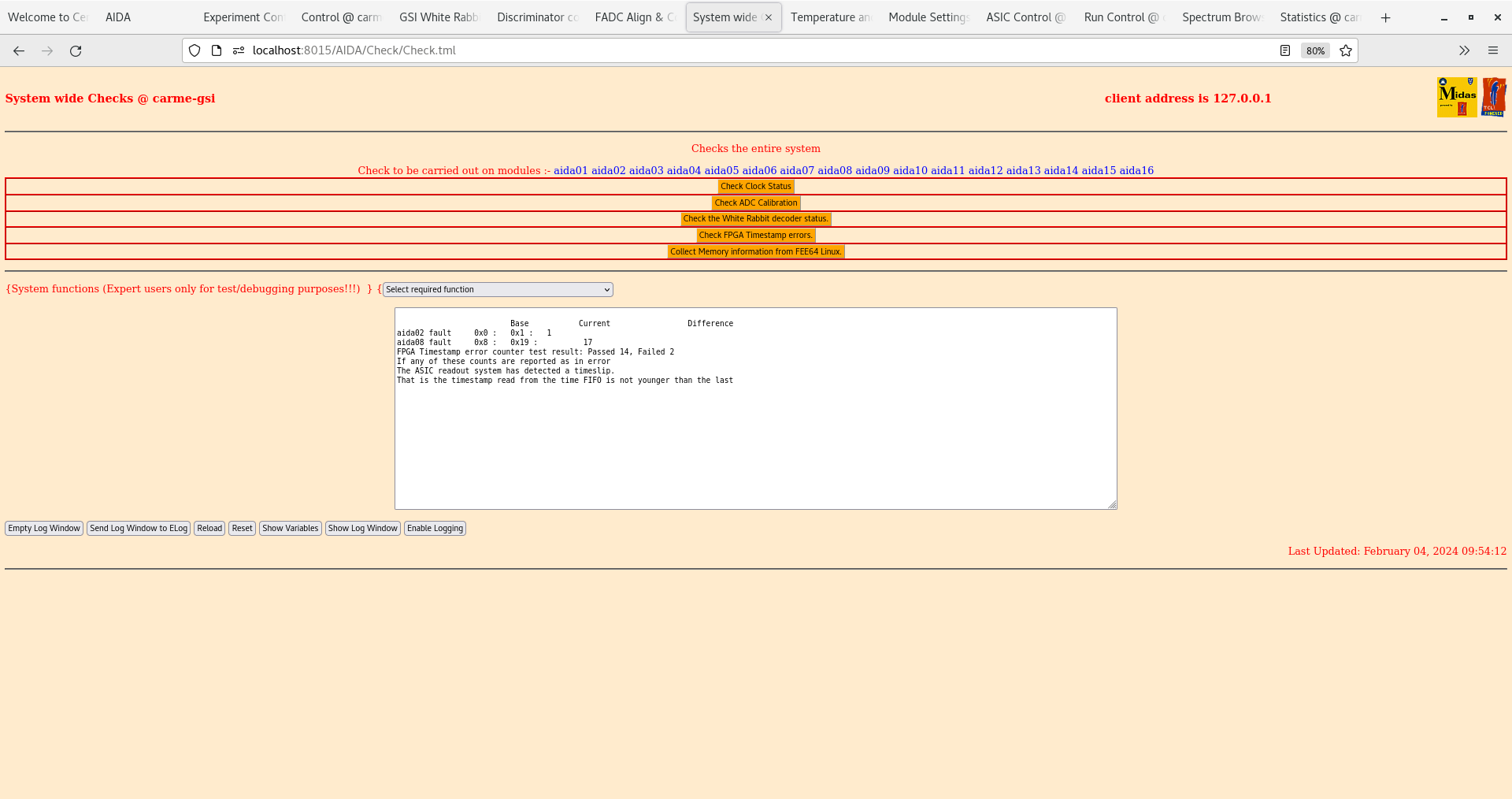

      All system wide checks OK

DSSSD bias OK - attachment 24

FEE64 temperatures OK - attachment 25

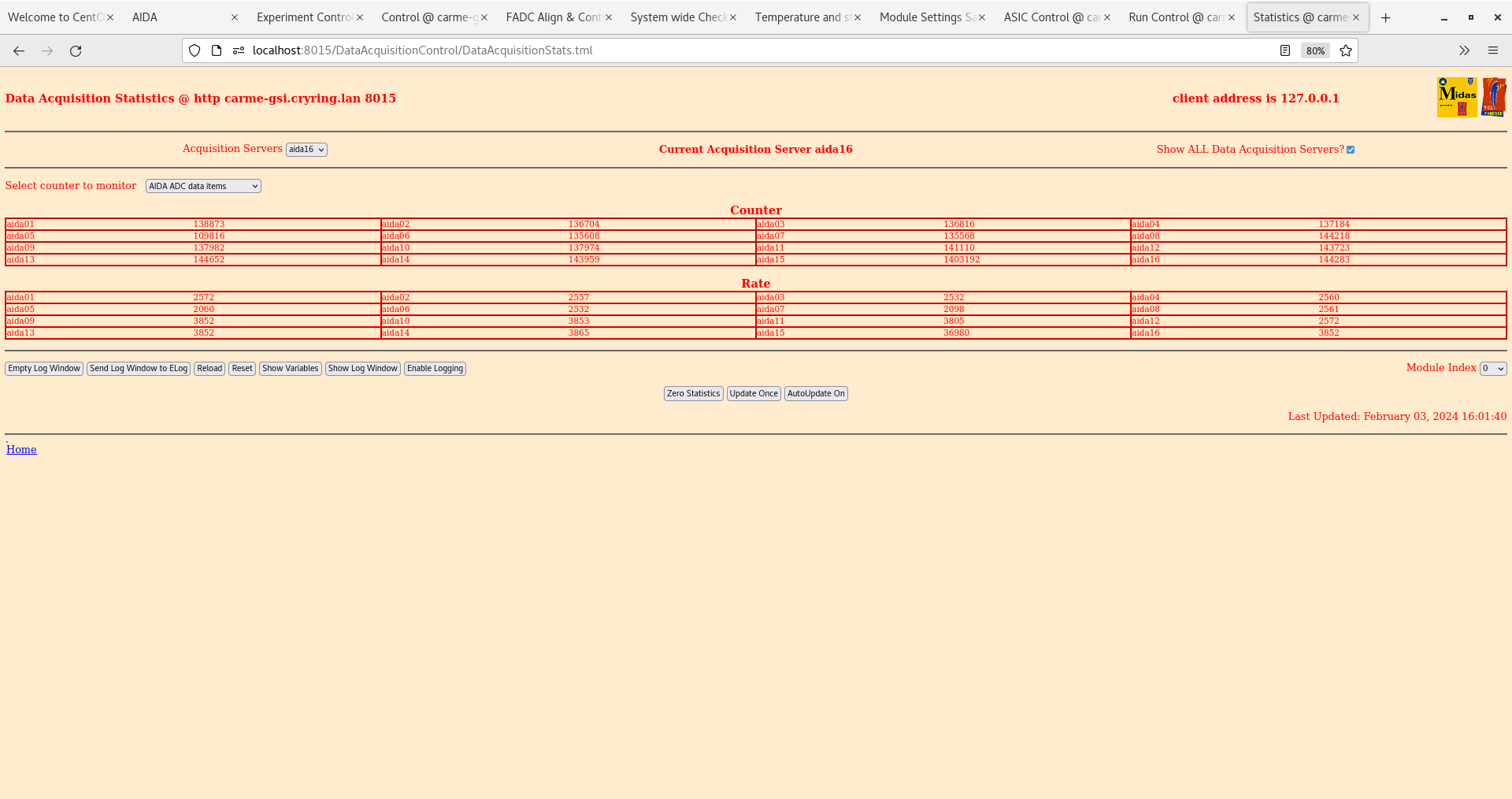

ADC data item stats - attachment 26
       aida15 rate changes from c. 260k to c. 25k ( 2x 'hot' channels, 1x channel missing, all other channels OK )

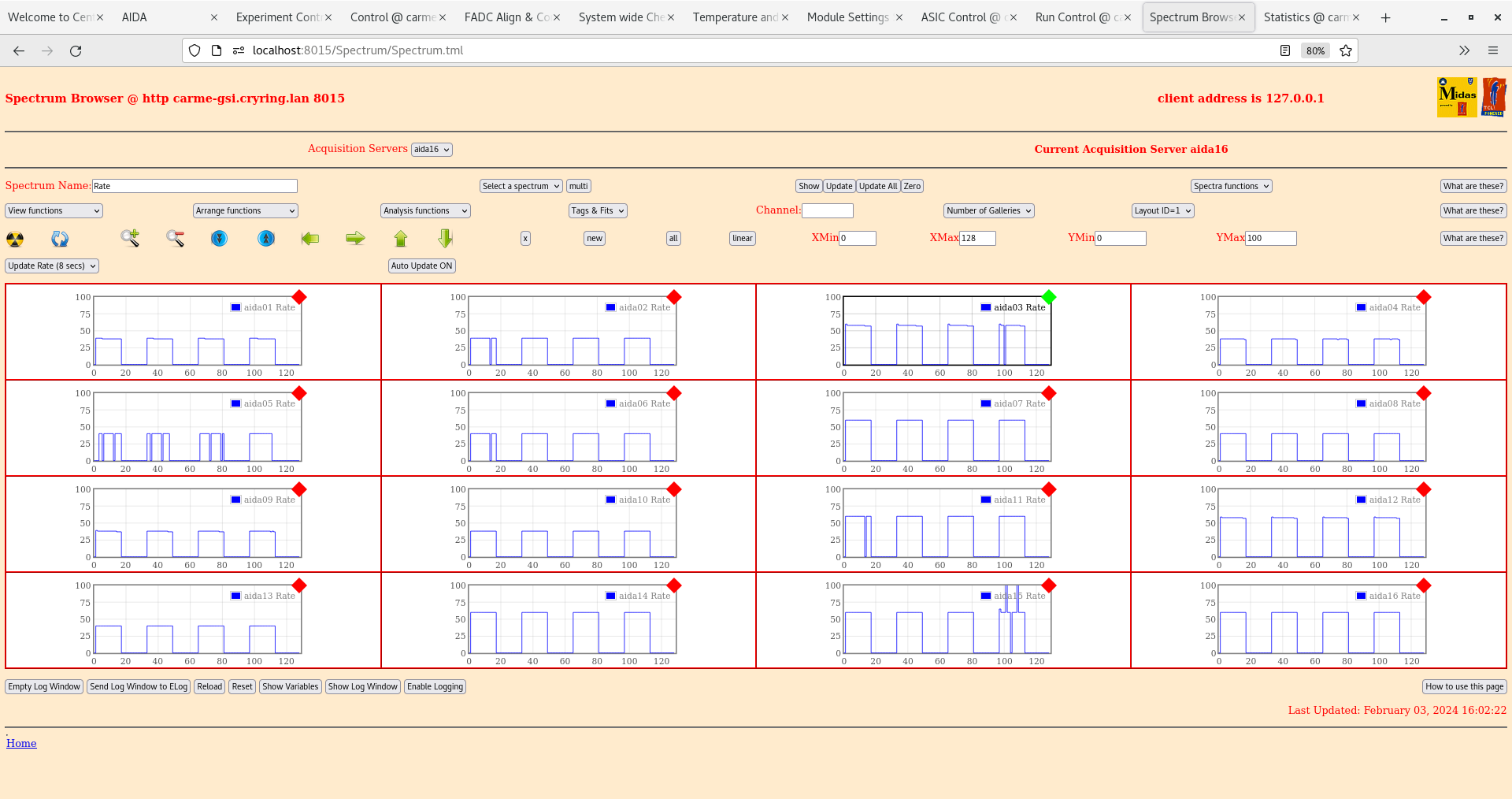

per FEE64 Rate spectra - attachment 27

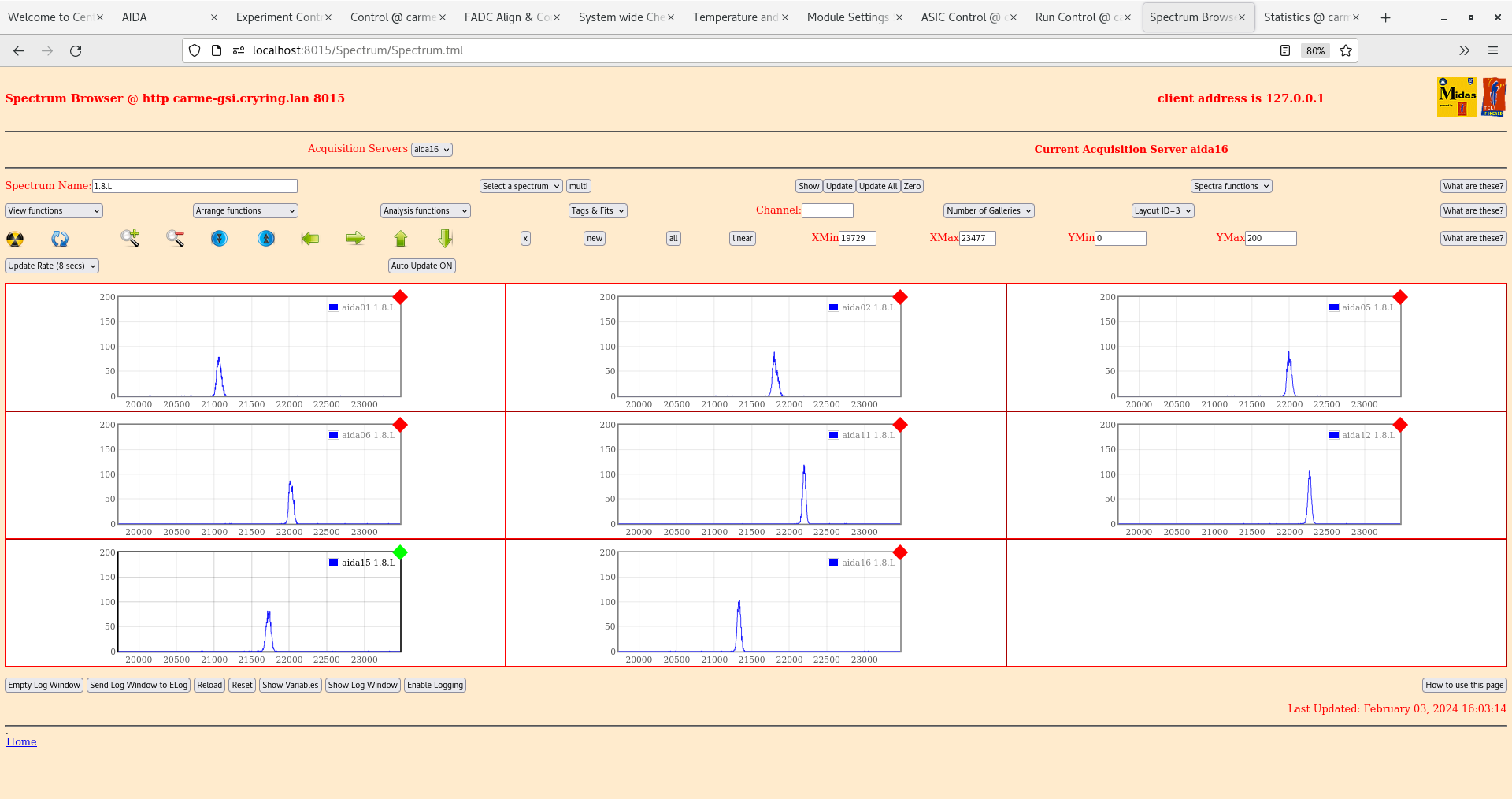

per FEE64 1.8.L spectra - attachments 28-29
       pulser peak width aida11 44 ch FWHM, aida14 57 ch FWHM

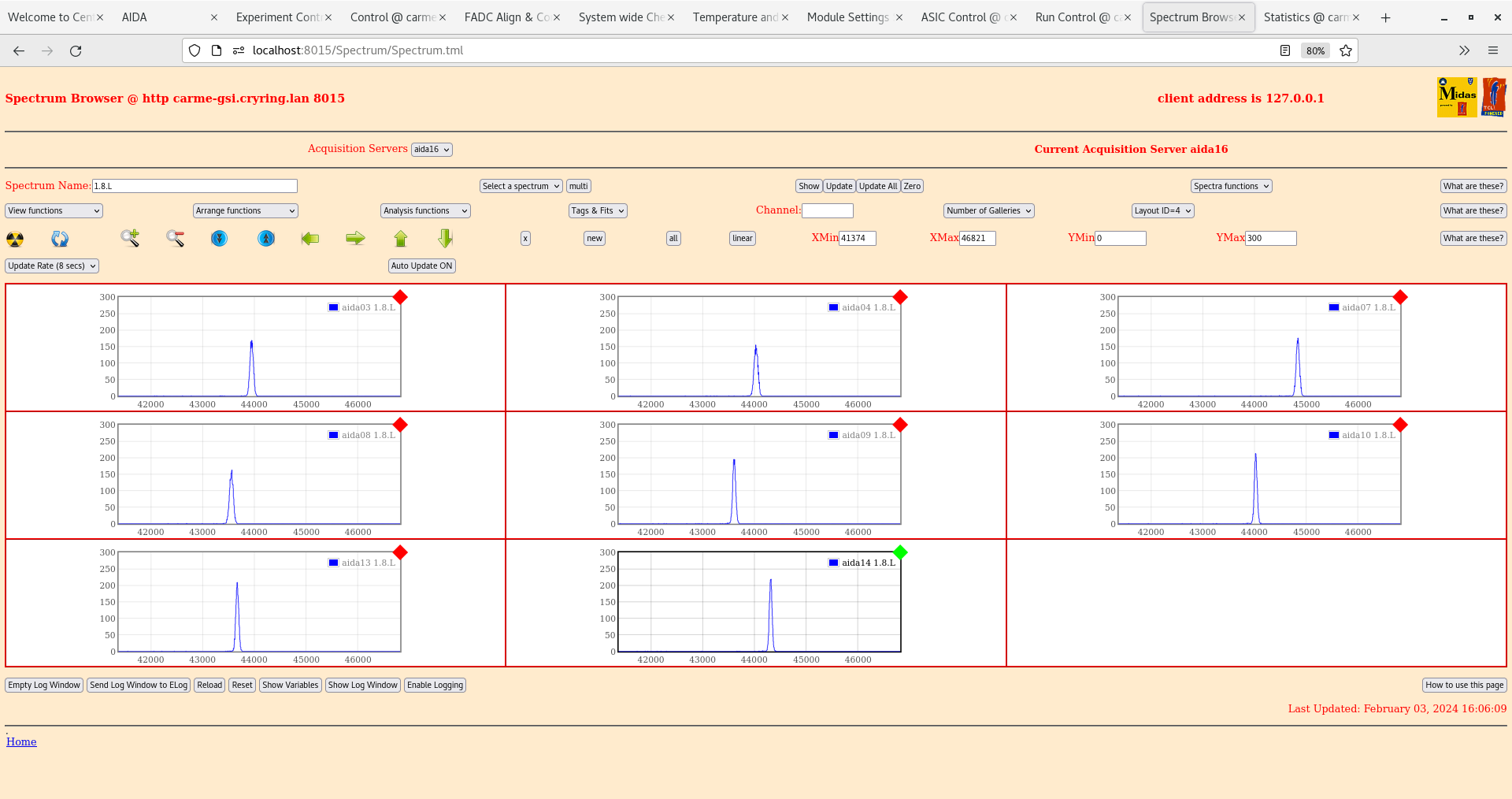

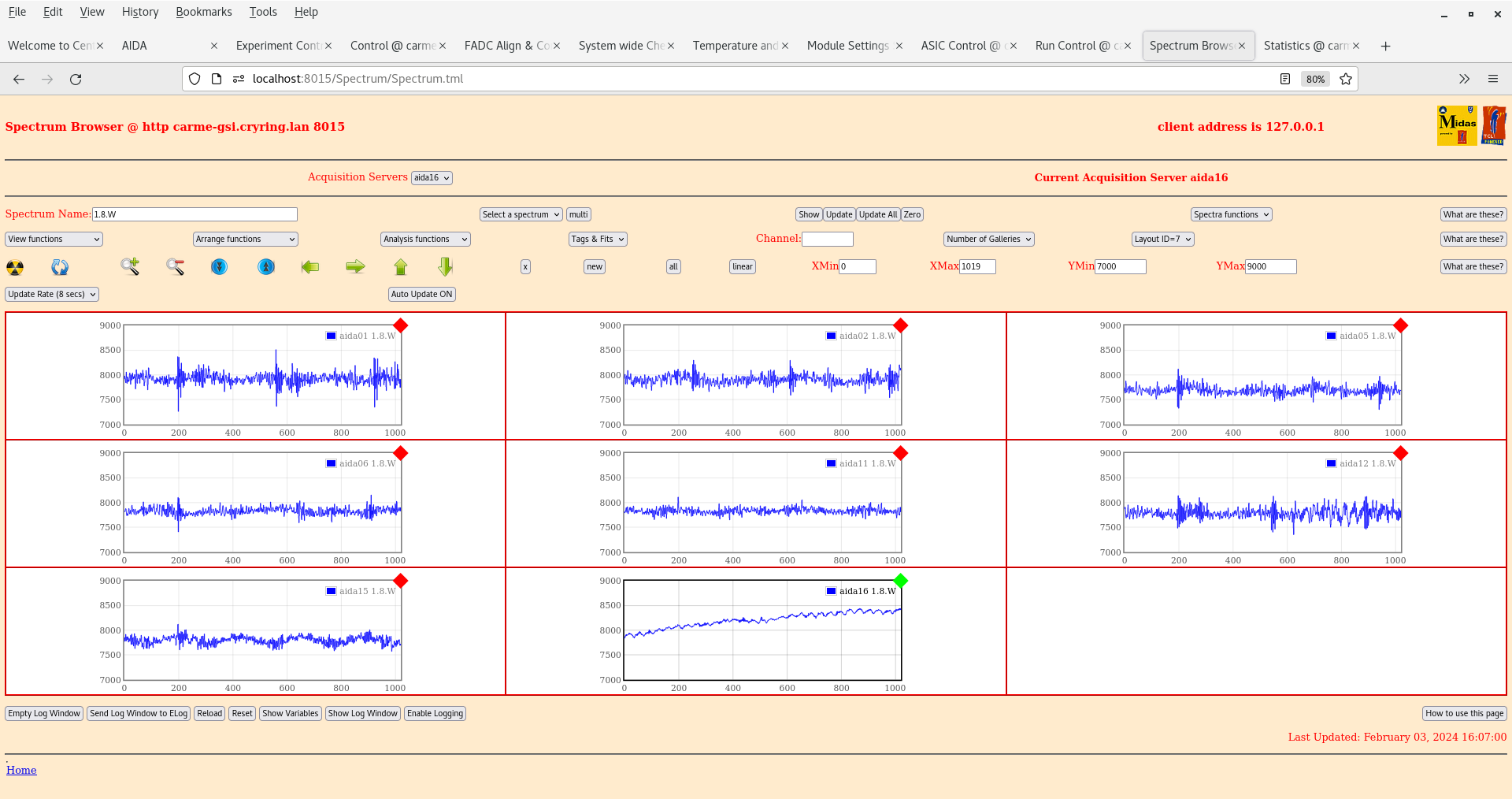

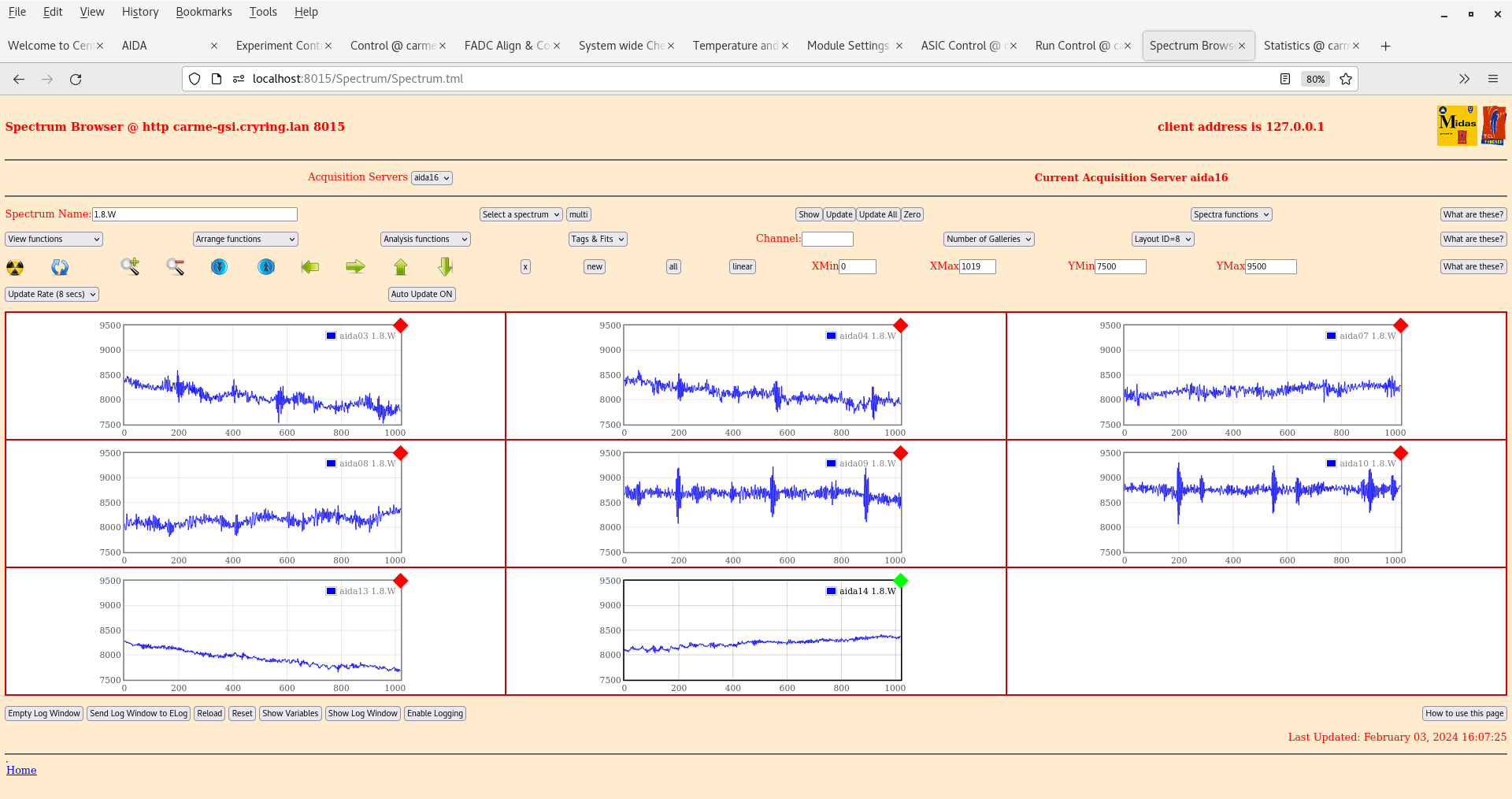

per FEE64 1.8.W spectra - 20us FSR - attachments 30-31

Update NewMerger startup script and Options for 16x FEE64s - see attachments 32-33

16.20 file G22-88/R2
      Pulser 50Hz

16.28 DAQ stop

Pulser OFF

All histograms zero'd

16.33 DAQ starts file G22-88/R3
      alpha background

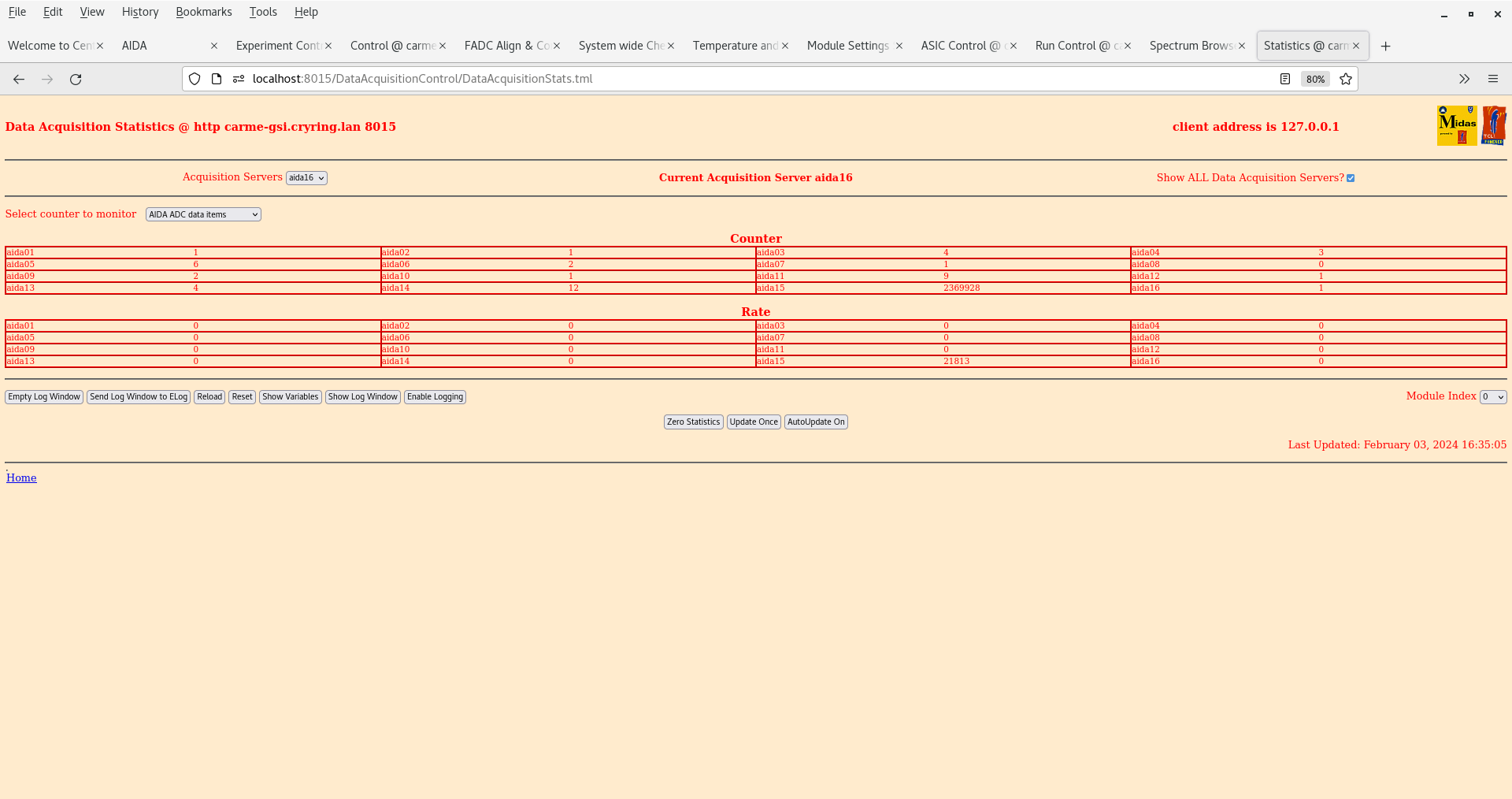

ADC data item stats OK - attachment 34

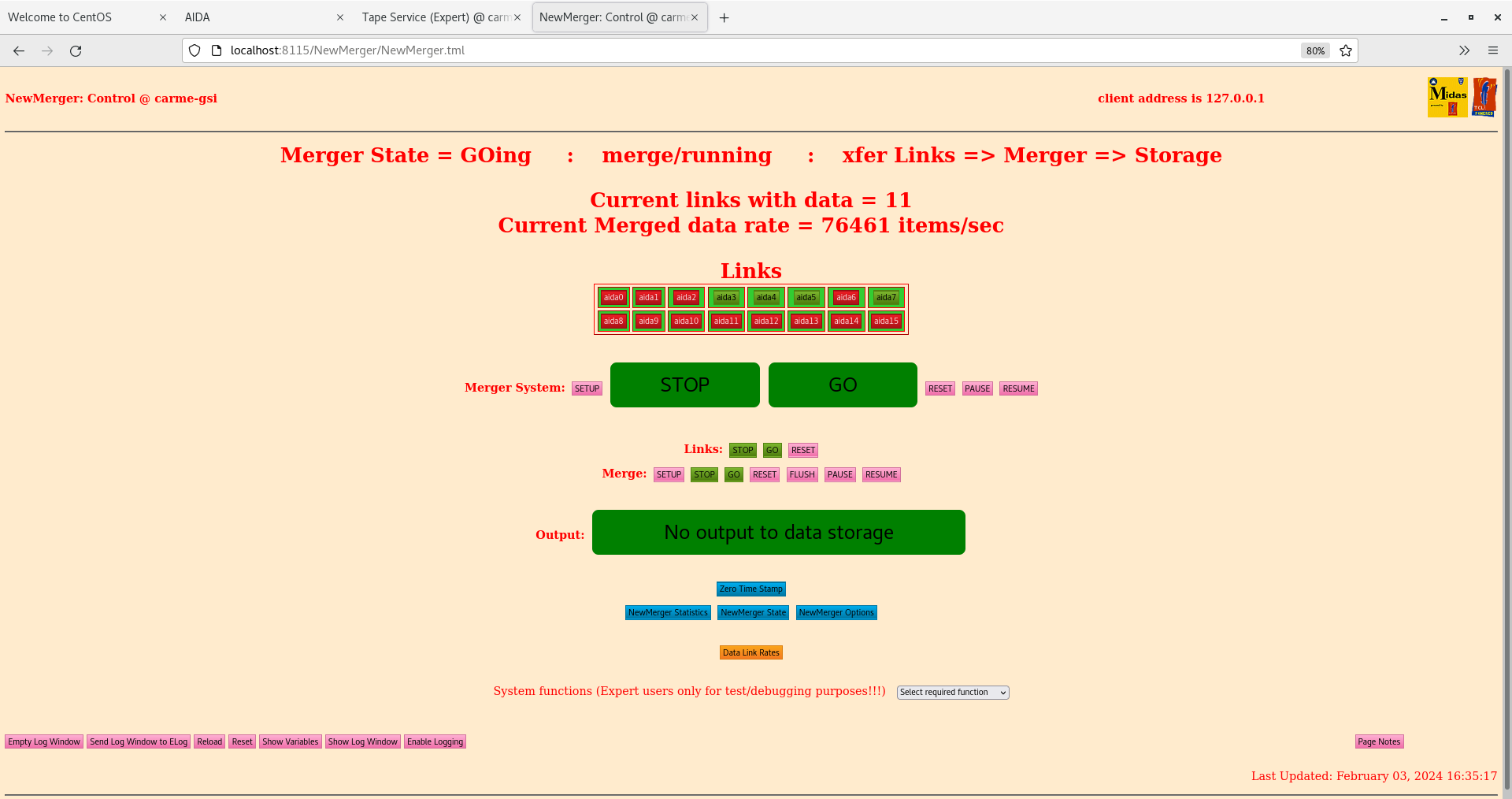

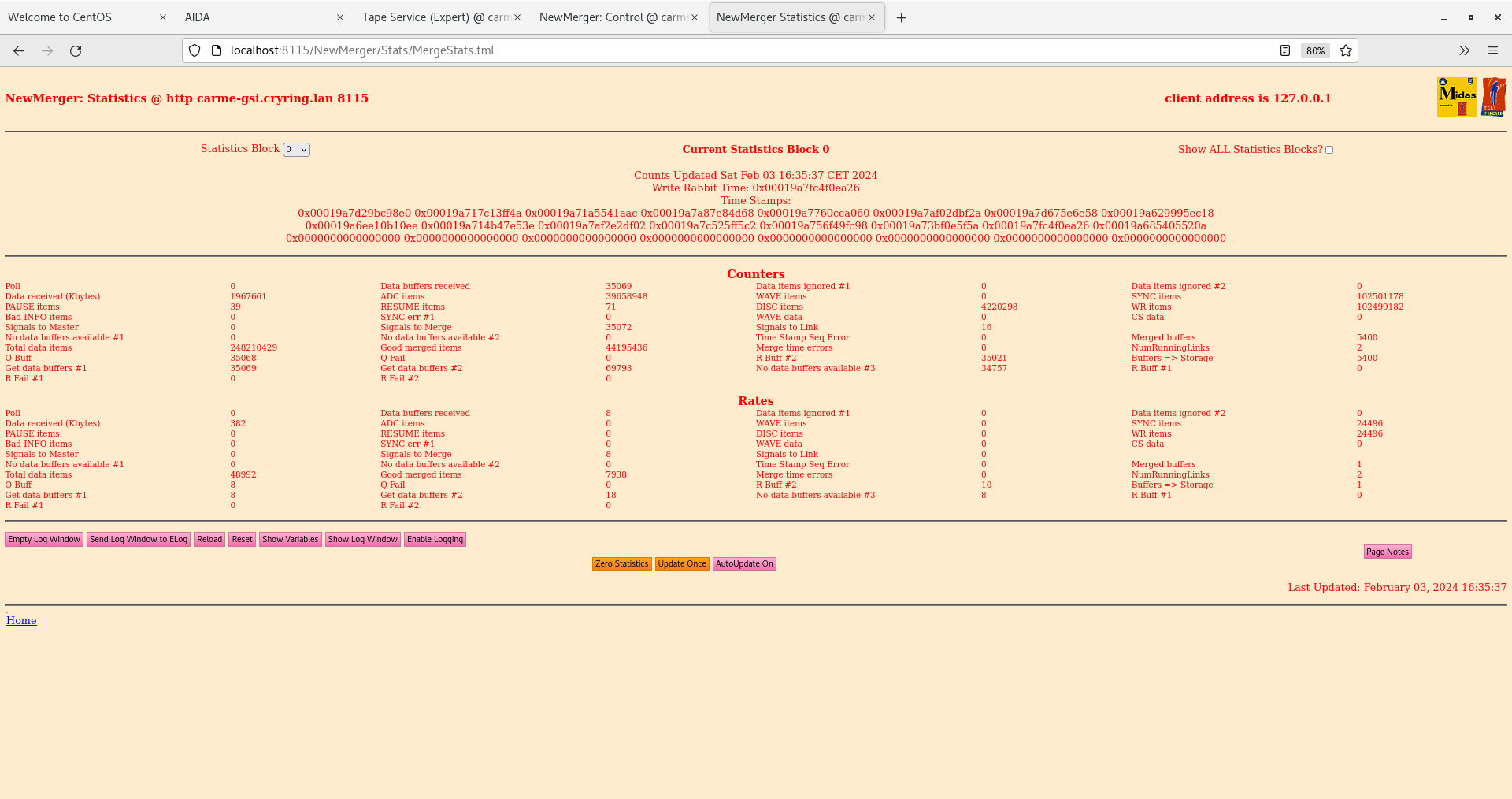

NewMerger, TapeServer and Merger stats - attachments 35-38

16.50 Pulser peak width spreadsheet for file R2 - attachment 39

20.32 DAQ continues file G22-88/R3_9

DSSSD bias OK - attachment 40

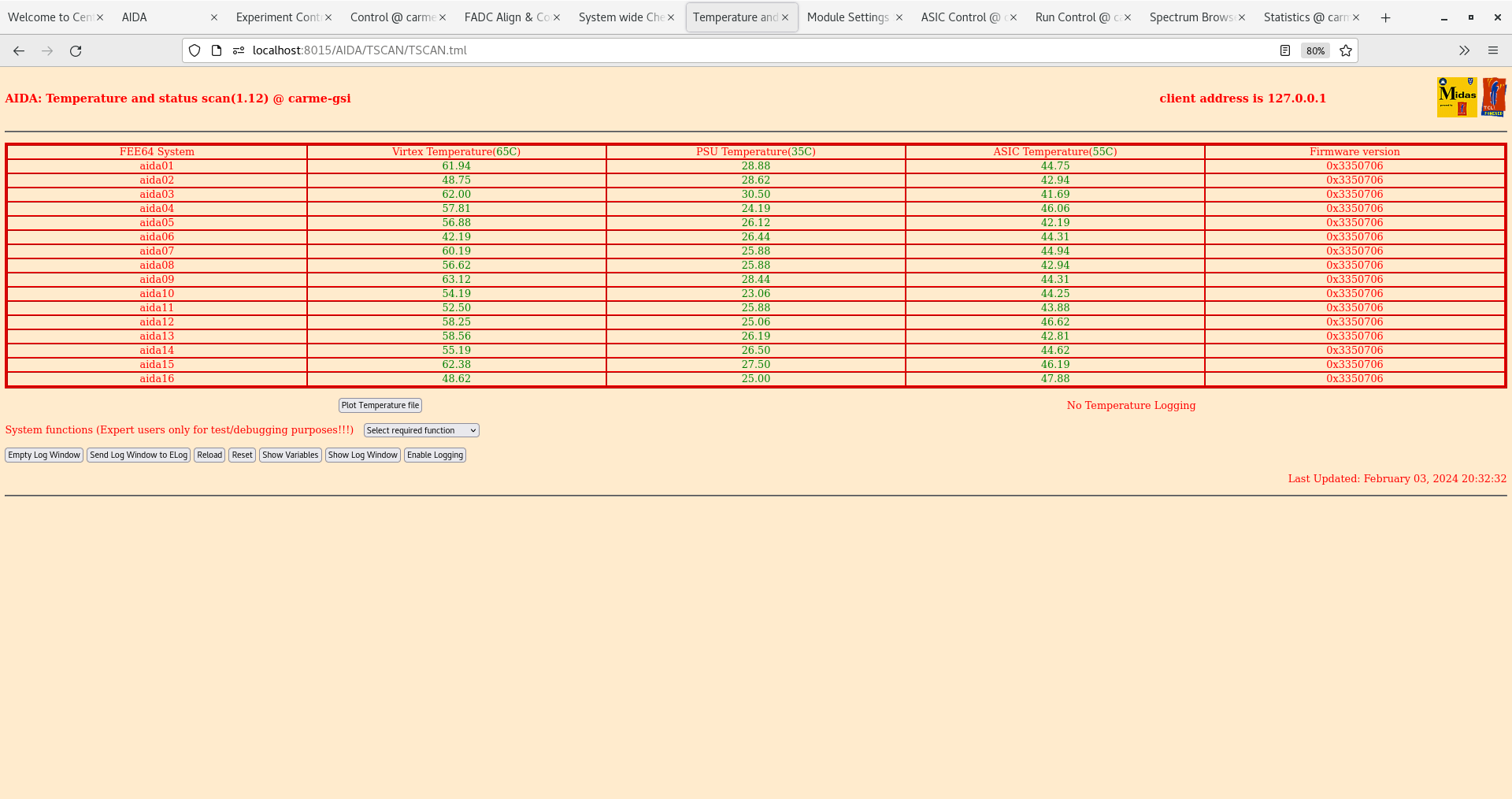

FEE64 temperatures OK - attachment 41

ADC data item stats - attachment 42
       aida15 rate c. 25k ( 2x 'hot' channels, 1x channel missing, all other channels OK )

per FEE64 Stat spectra - attachment 43

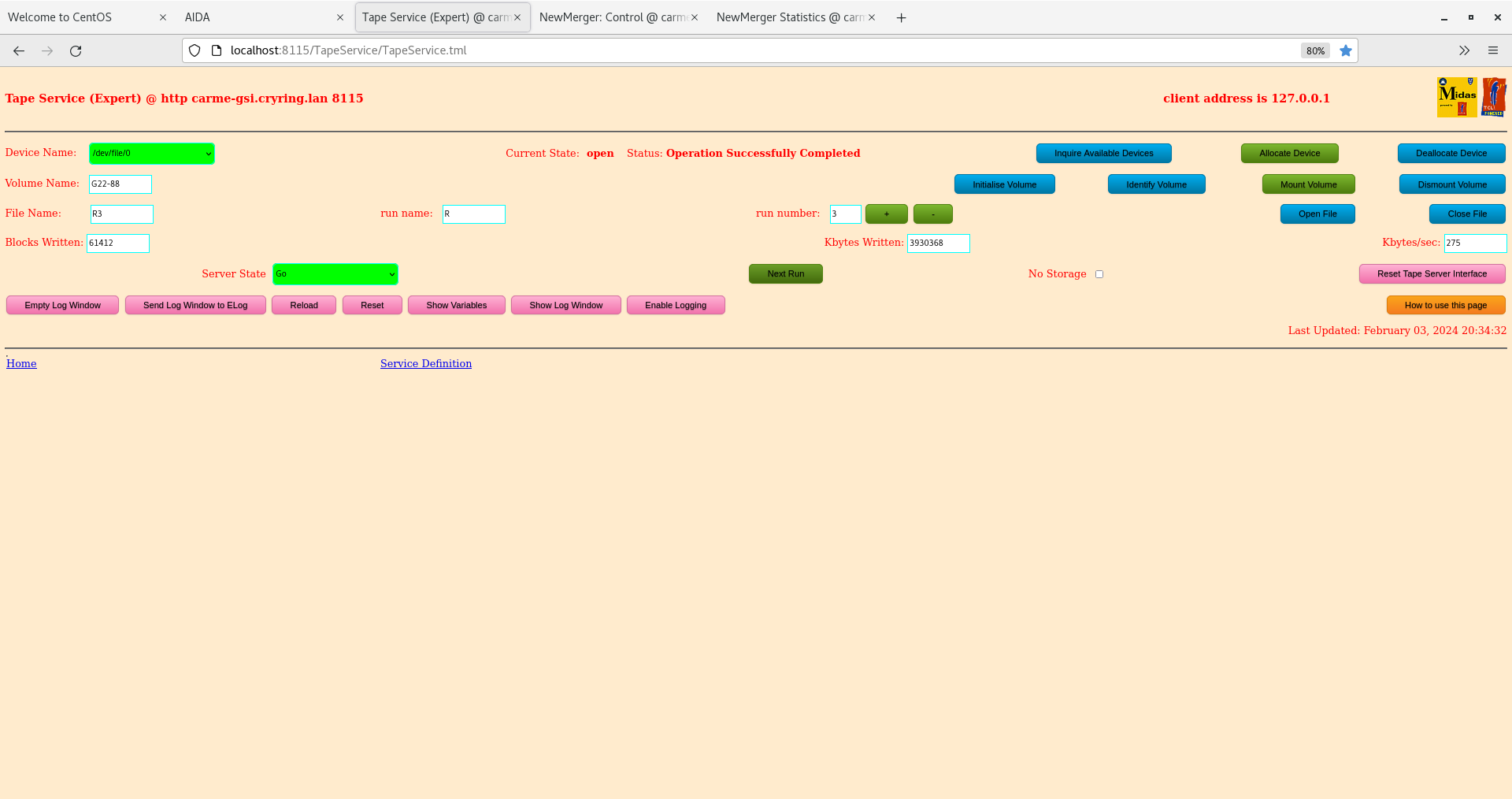

Merger, Merger stats and TapServer - attachments 44-46

Disc data items - attachment 47
       aida15 disc rate c. 8k

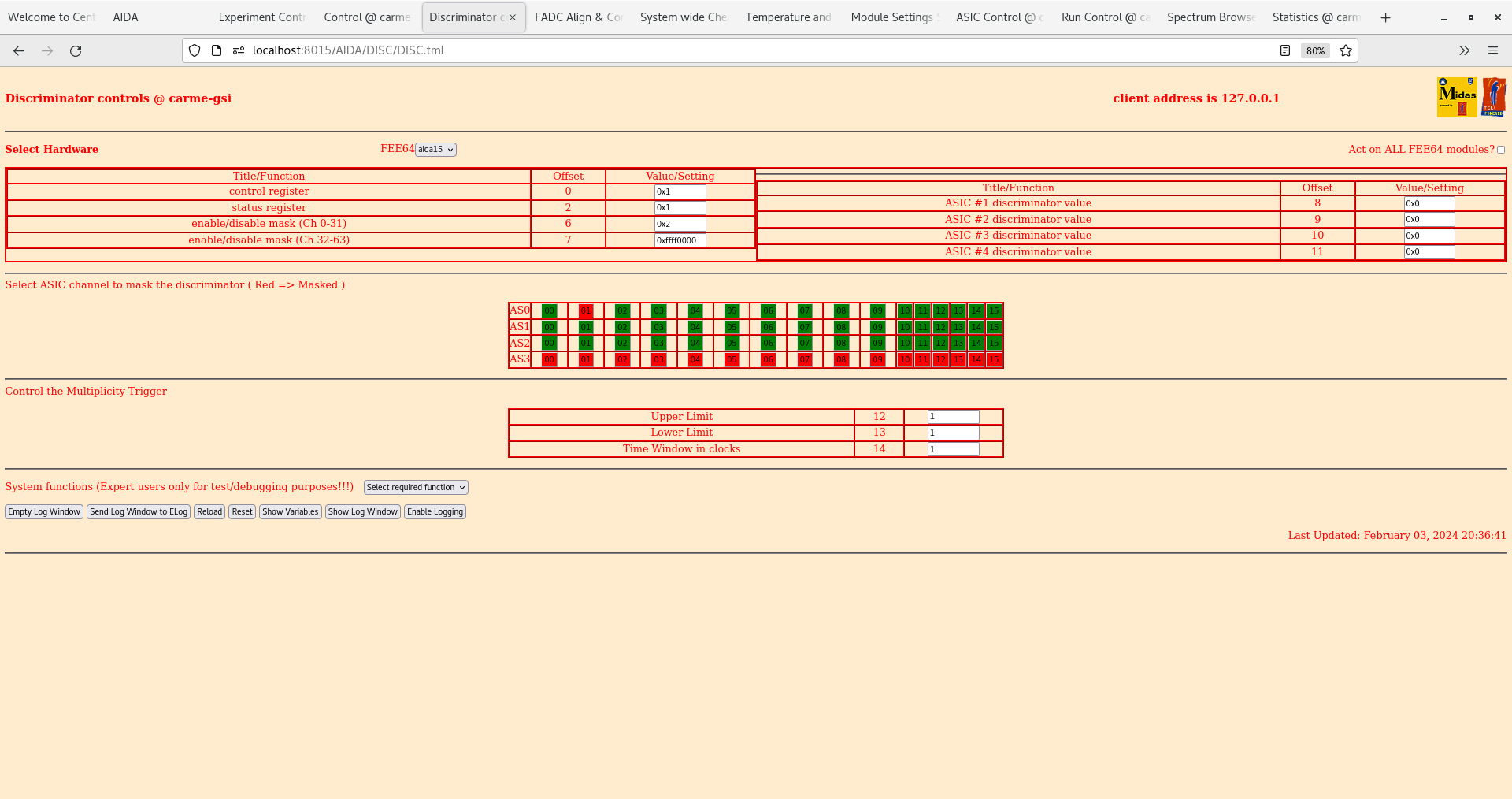

      Disable aida15 disc ( fast comparator ) outputs for asic#3 - attachment 48

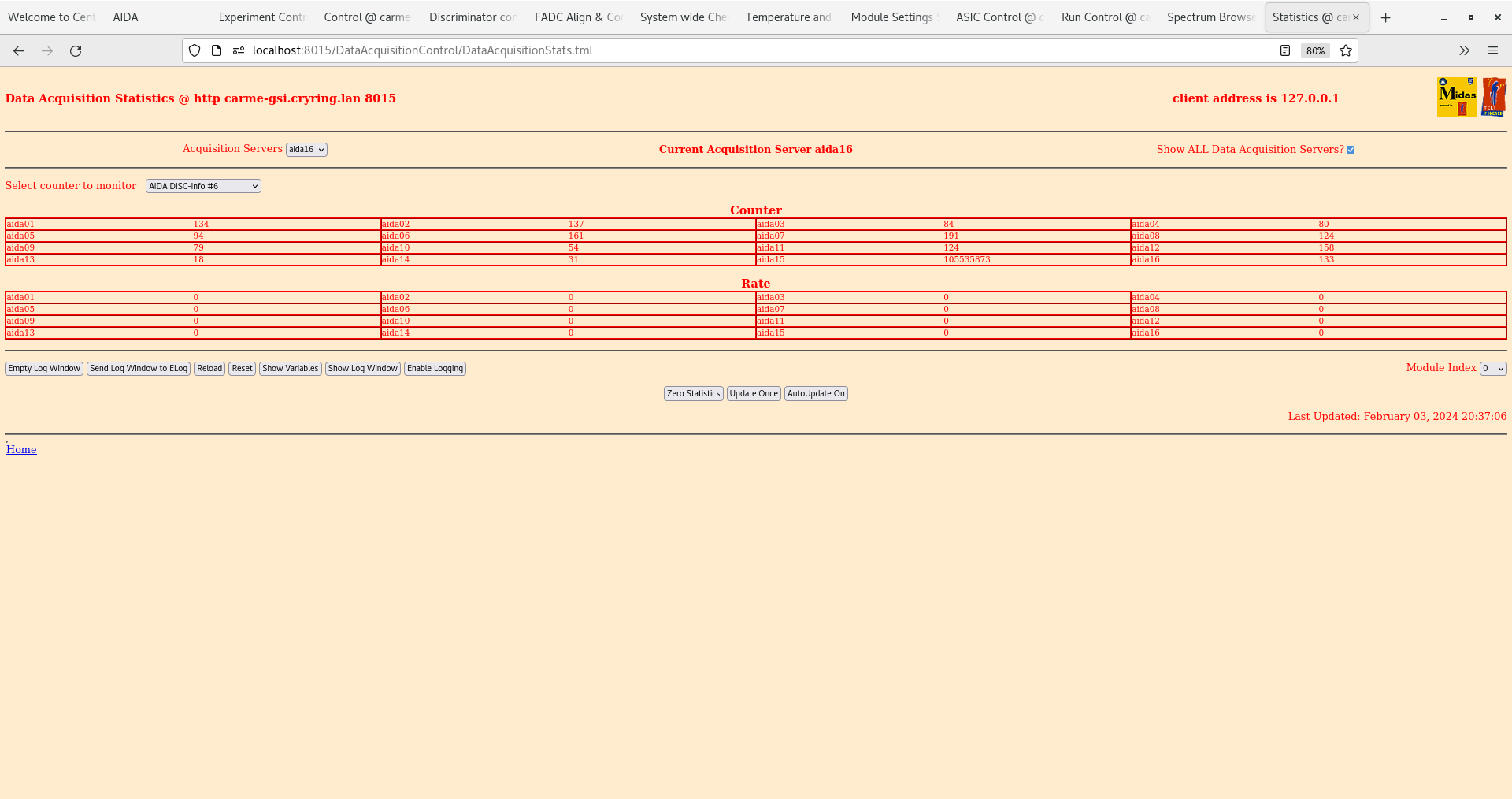

      Disc data items- attachment 49
       all FEE64s rate << 1Hz

     Update NewMerger startup script and Options for 16x FEE64s - see attachments 32-33

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

Screenshot_from_2024-02-03_01-07-28.png Original size: 734x462

Attachment 2:

Screenshot_from_2024-02-03_01-08-15.png Original size: 1920x1014

Attachment 3:

Screenshot_from_2024-02-03_01-09-00.png Original size: 1920x1014

Attachment 4:

Screenshot_from_2024-02-03_01-09-39.png Original size: 1920x1014

Attachment 5:

Screenshot_from_2024-02-03_01-10-20.png Original size: 3840x1080

Attachment 6:

Screenshot_from_2024-02-03_01-11-45.png Original size: 1920x1014

Attachment 7:

Screenshot_from_2024-02-03_01-12-23.png Original size: 1920x1014

Attachment 8:

Screenshot_from_2024-02-03_10-02-22.png Original size: 734x462

Attachment 9:

Screenshot_from_2024-02-03_10-02-50.png Original size: 1920x1014

Attachment 10:

Screenshot_from_2024-02-03_10-03-29.png Original size: 1920x1014

Attachment 11:

Screenshot_from_2024-02-03_10-04-15.png Original size: 1920x1014

Attachment 12:

Screenshot_from_2024-02-03_10-04-46.png Original size: 3840x1080

Attachment 13:

Screenshot_from_2024-02-03_10-05-09.png Original size: 1920x1014

Attachment 14:

Screenshot_from_2024-02-03_10-05-48.png Original size: 1920x1014

Attachment 15:

Screenshot_from_2024-02-03_10-12-32.png Original size: 1920x1014

Attachment 16:

Screenshot_from_2024-02-03_13-24-46.png Original size: 1920x977

Attachment 17:

Screenshot_from_2024-02-03_13-38-40.png Original size: 734x499

Attachment 18:

Screenshot_from_2024-02-03_13-38-47.png Original size: 1920x1014

Attachment 19:

Screenshot_from_2024-02-03_13-39-04.png Original size: 1920x1014

Attachment 20:

Screenshot_from_2024-02-03_13-40-06.png Original size: 1920x1014

Attachment 21:

Screenshot_from_2024-02-03_13-40-43.png Original size: 3840x1080

Attachment 22:

Screenshot_from_2024-02-03_13-41-00.png Original size: 1920x1014

Attachment 23:

Screenshot_from_2024-02-03_13-41-06.png Original size: 1920x1014

Attachment 24:

Screenshot_from_2024-02-03_16-01-18.png Original size: 734x499

Attachment 25:

Screenshot_from_2024-02-03_16-01-33.png Original size: 1920x1014

Attachment 26:

Screenshot_from_2024-02-03_16-01-42.png Original size: 1920x1014

Attachment 27:

Screenshot_from_2024-02-03_16-02-27.png Original size: 1920x1014

Attachment 28:

Screenshot_from_2024-02-03_16-03-16.png Original size: 1920x1014

Attachment 29:

Screenshot_from_2024-02-03_16-06-11.png Original size: 1920x1014

Attachment 30:

Screenshot_from_2024-02-03_16-07-05.png Original size: 1920x1014

Attachment 31:

Screenshot_from_2024-02-03_16-07-35.png Original size: 1920x1014

Attachment 32:

CONTENTS

0x0006dead string 0x0000
MERGE.LinksAvailable string 16
Index string MERGE.LinksAvailable&&0x0006dead&&MERGE.RunOptions&&MERGE.LinksInUse
Merge.LinksInUse string 1%1%1%1%1%1%1%1%1%1%1%1%1%1%1%1%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%0%
MERGE.LinksInUse string 1%1%1%1%1%1%1%1%1%1%1%1%1%1%1%1%
MERGE.RunOptions string 3

Attachment 33:

NewMerger

#!/bin/csh -f

echo "Tidy up"

killall -s9 MERGE
killall -s9 merge64.AD

killall -s9 master64
killall -s9 link64
killall -s9 merge64
killall -s9 statrate64

echo "Starting New Merger"

/bin/echo -e "\033];New Merger\007"

  if (! $?MIDASBASE) setenv MIDASBASE /MIDAS

#
#

   setenv PATH ${MIDASBASE}/Linux/bin64:${PATH}
   setenv LD_LIBRARY_PATH ${MIDASBASE}/TclHttpd/Linux64:${MIDASBASE}/Linux/lib64:${MIDASBASE}/lib_Linux64

netint MERGE_SyncStep 0x0000000

cd ${MIDASBASE}/NewMerger/MergeServer/bin64
./master64 -i 16 -l 16 -p 11001  &

sleep 100000000000

#
echo startup complete
#

Attachment 34:

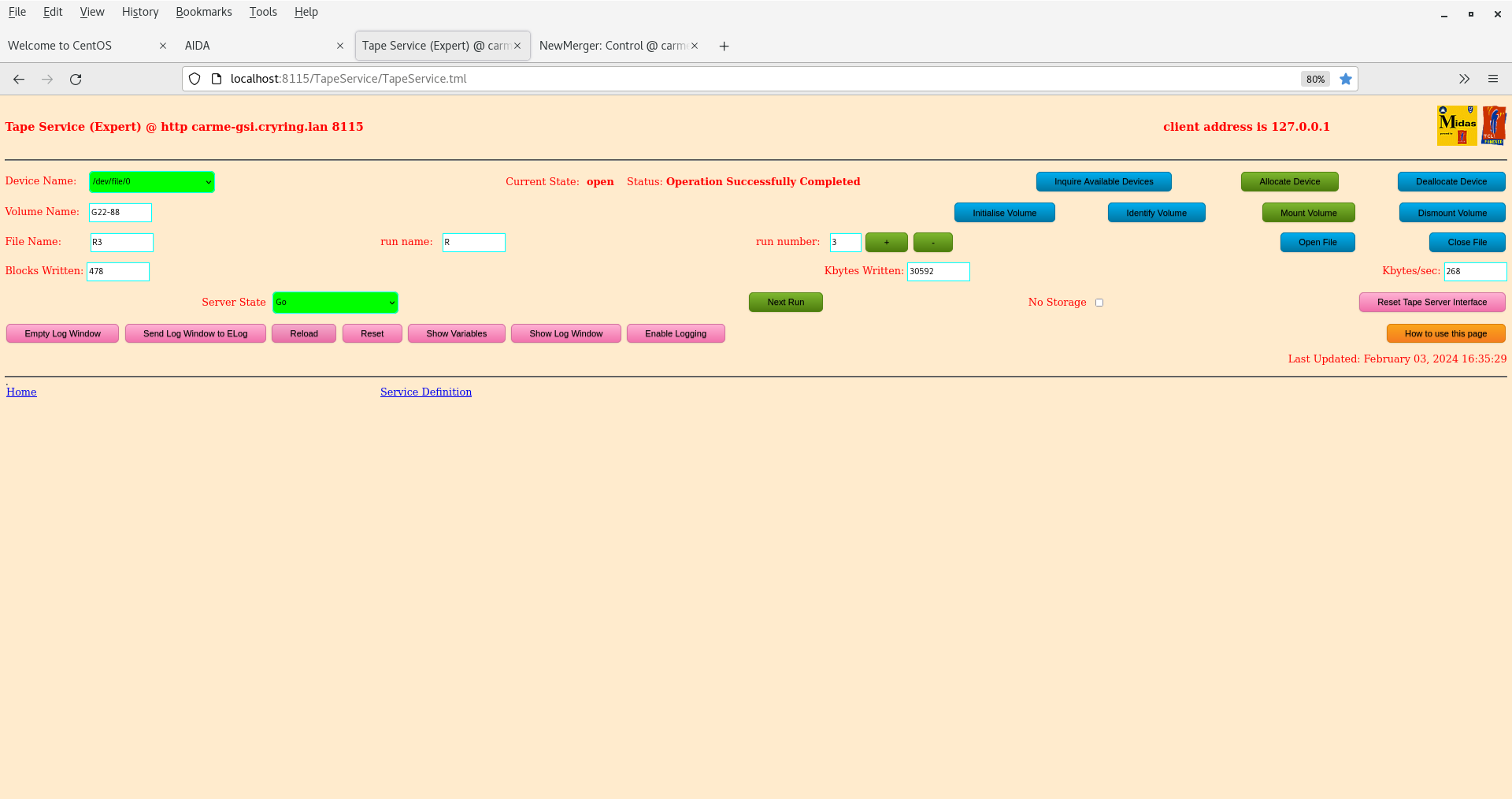

Screenshot_from_2024-02-03_16-35-07.png Original size: 1920x1014
