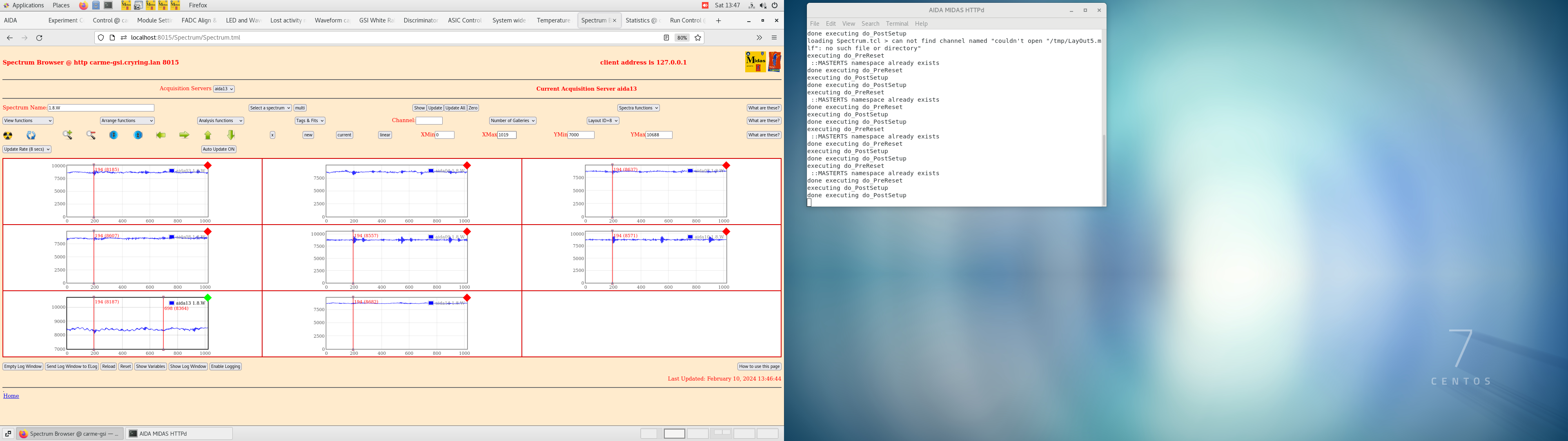

Attatchment 1: Rates ok

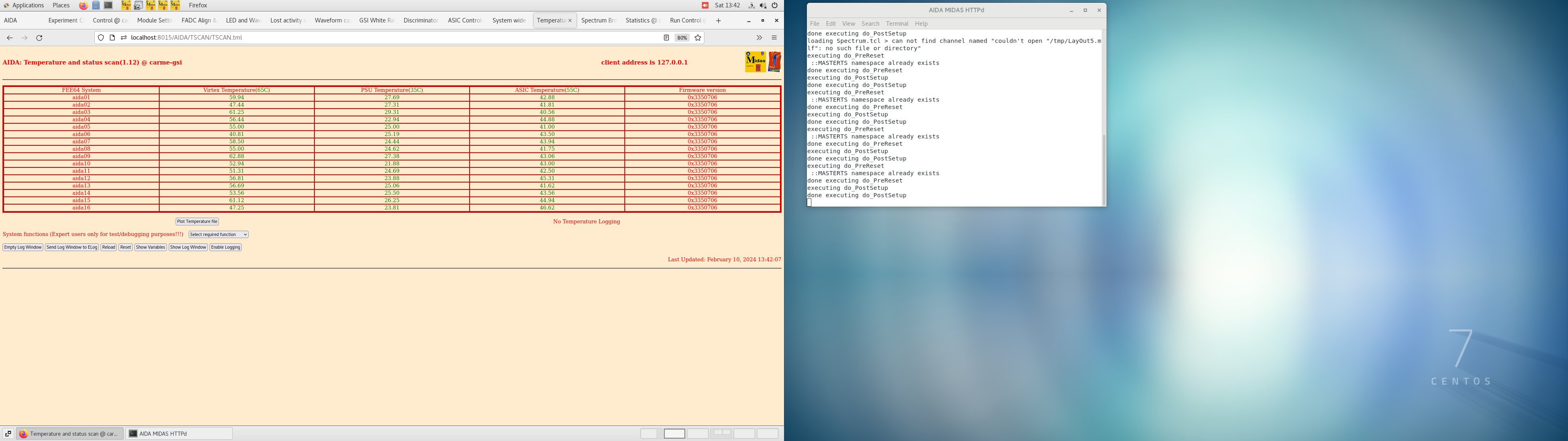

Attatchment 2: Temperatures ok

Attatchment 3: Waveform layout 7

Attatchment 4: Waveform layout 8

Attatchment 5: Waveform layout 1

Attatchment 6: Waveform layout 2

Attatchment 7: Leakage current ok

&nbsp;

Moved pneumatic / servo for right / left arms in /out

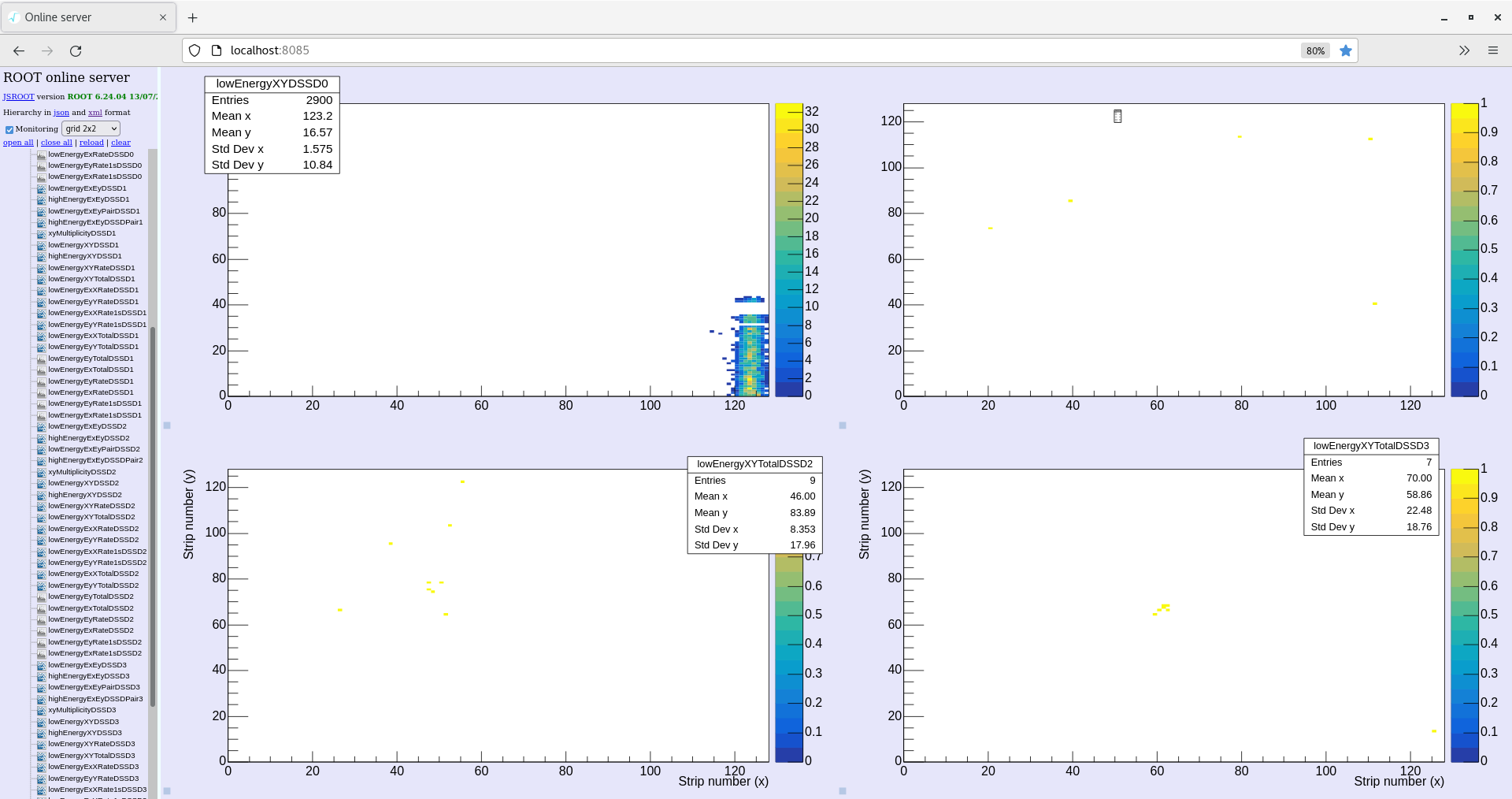

Attachment 8: left servo fully in

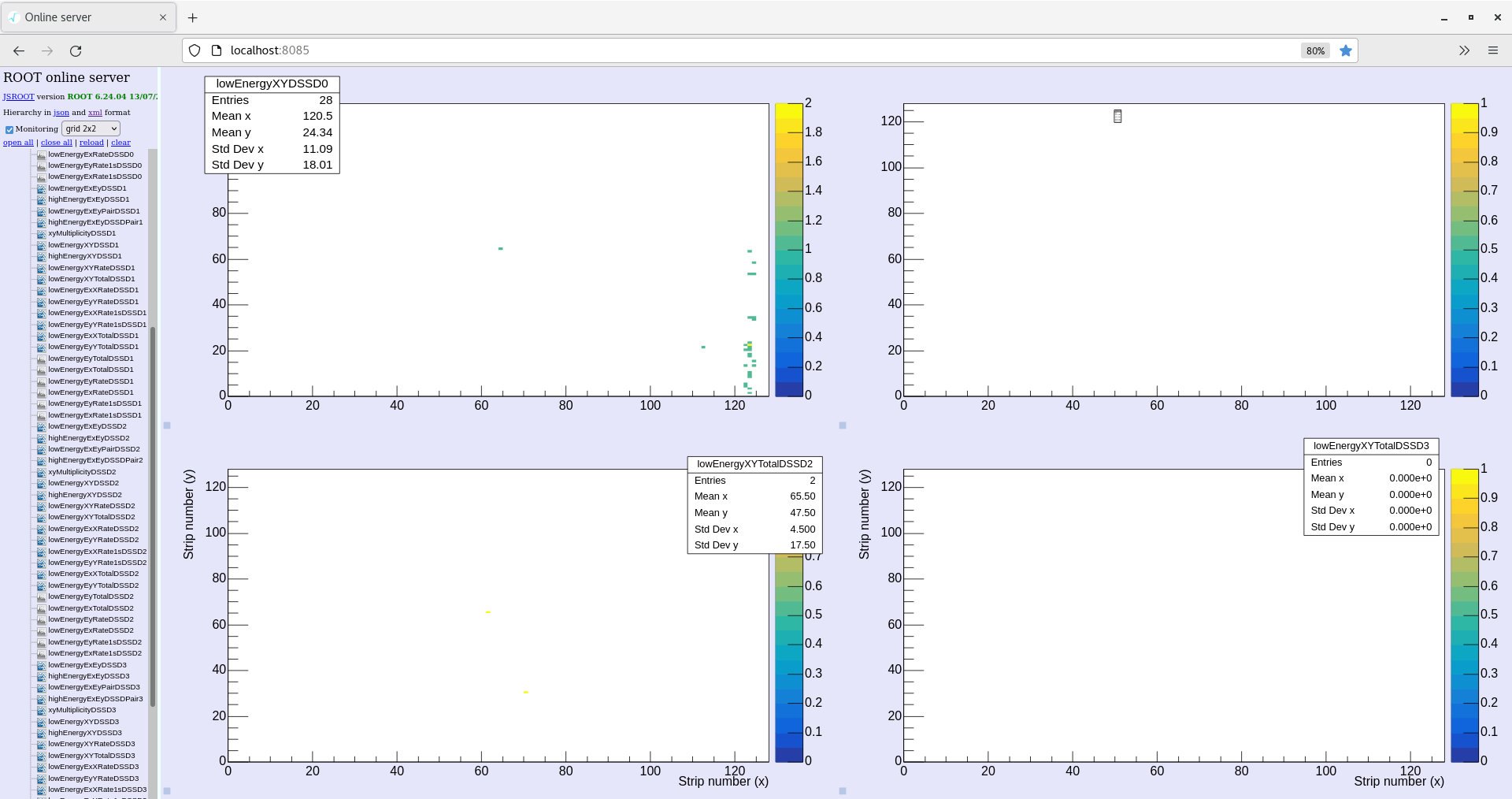

9: left pneumatic in (beam is clipped)

10: left pneumatic &amp; servo in (beam is clipped)

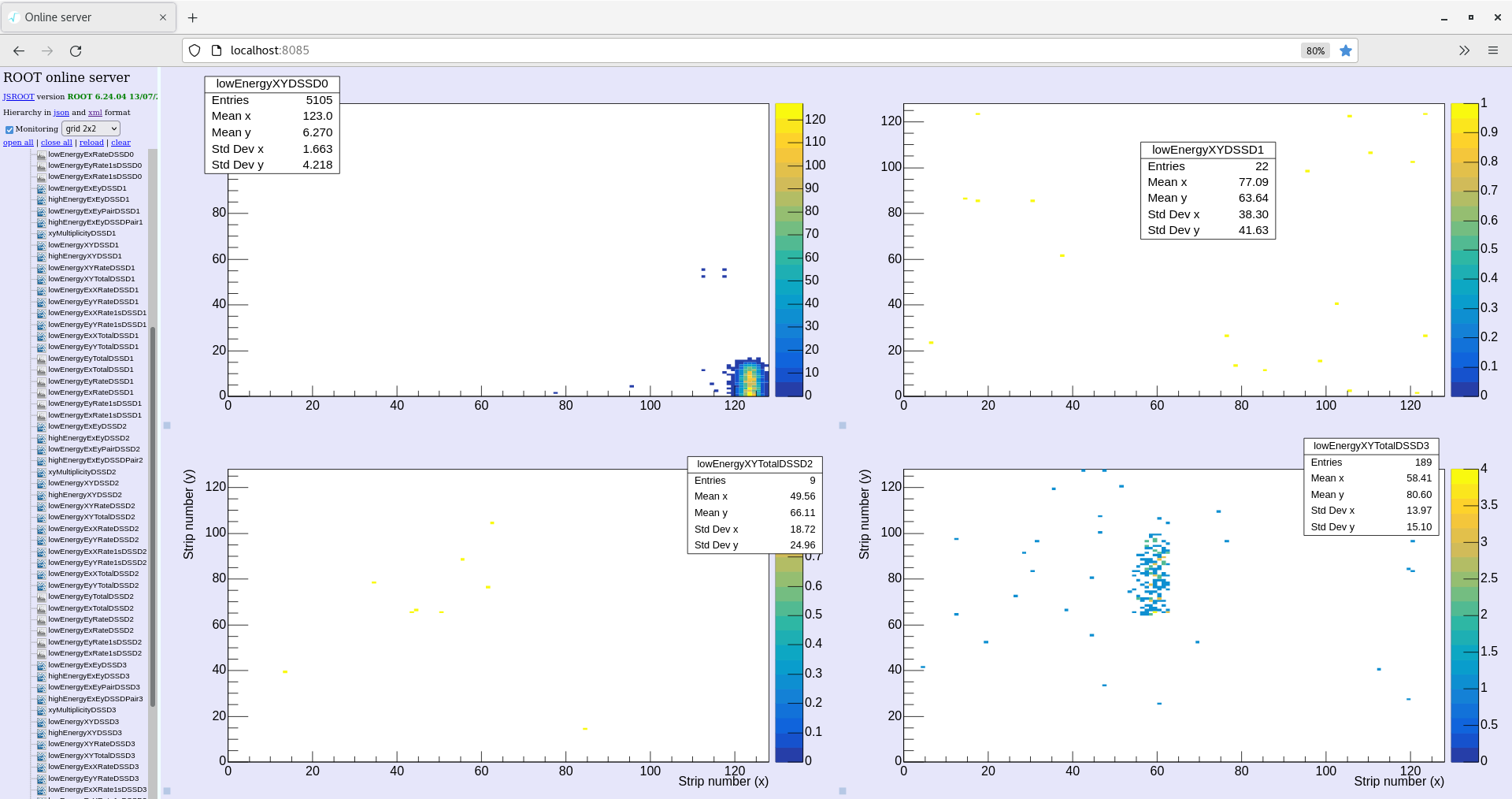

11: right servo in

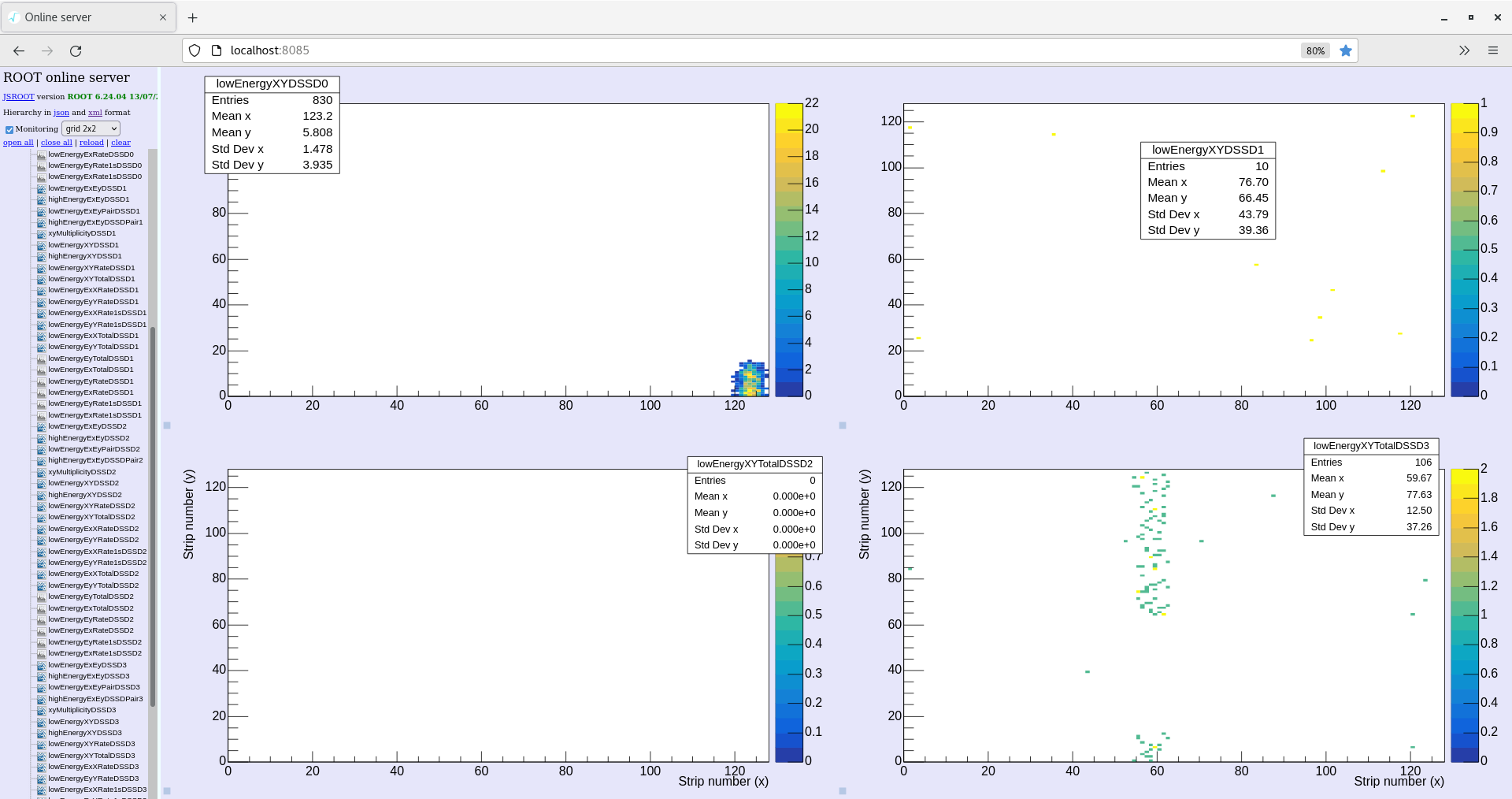

12: right pneumatic in

13: right pneumatic &amp; serve in

&nbsp;

Some clear issues with strip mapping persist.

&nbsp;

Strip map

#map strip: 01:00 left/top side, 02:00 right/bottom side (from beam view)&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;
stripMap&nbsp;&nbsp; &nbsp;1&nbsp;&nbsp; &nbsp;2&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;
stripMap&nbsp;&nbsp; &nbsp;2&nbsp;&nbsp; &nbsp;1&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;
stripMap&nbsp;&nbsp; &nbsp;3&nbsp;&nbsp; &nbsp;2&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;
stripMap&nbsp;&nbsp; &nbsp;4&nbsp;&nbsp; &nbsp;1&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;
stripMap&nbsp;&nbsp; &nbsp;5&nbsp;&nbsp; &nbsp;2
stripMap&nbsp;&nbsp; &nbsp;6&nbsp;&nbsp; &nbsp;1
stripMap&nbsp;&nbsp; &nbsp;7&nbsp;&nbsp; &nbsp;2
stripMap&nbsp;&nbsp; &nbsp;8&nbsp;&nbsp; &nbsp;1
stripMap&nbsp;&nbsp; &nbsp;9&nbsp;&nbsp; &nbsp;1
stripMap&nbsp;&nbsp; &nbsp;10&nbsp;&nbsp; &nbsp;2
stripMap&nbsp;&nbsp; &nbsp;11&nbsp;&nbsp; &nbsp;1
stripMap&nbsp;&nbsp; &nbsp;12&nbsp;&nbsp; &nbsp;2
stripMap&nbsp;&nbsp; &nbsp;13&nbsp;&nbsp; &nbsp;1
stripMap&nbsp;&nbsp; &nbsp;14&nbsp;&nbsp; &nbsp;2
stripMap&nbsp;&nbsp; &nbsp;15&nbsp;&nbsp; &nbsp;1
stripMap&nbsp;&nbsp; &nbsp;16&nbsp;&nbsp; &nbsp;2&nbsp;&nbsp;

&nbsp;

/////// UPDATE /////////

&nbsp;

System checks: all ok - except waveform for AIDA 15 in layout 2, it has a low rate compared to others

Attatchment 14: Rates ok

Attatchment 15: Temperatures ok

Attatchment 16: Waveform layout 7

Attatchment 17: Waveform layout 8

Attatchment 18: Waveform layout 2

Attatchment 19: Waveform layout 1

Attatchment 20: Leakage current ok

/////// UPDATE //////

After beam stiring - layout of xy histograms are updated

DSSD0 and DSSD3 have the correct orientation,

DSSD1 needs to be flipped mirrored on the yaxis (i.e. right needs to be left, and left needs to be right but up and down are correct)

DSSD2 needs to be flipped on the xaxis (i.e. up needs to be down and down needs to be up but left and right are correct)

Horizontal offset in YR3 target = 9mm

Horizontal offset in YR7&nbsp;target = 9mm

Horizontan offset in YR9 target = -9mm

Vertial offset in YR9 target = -8mm

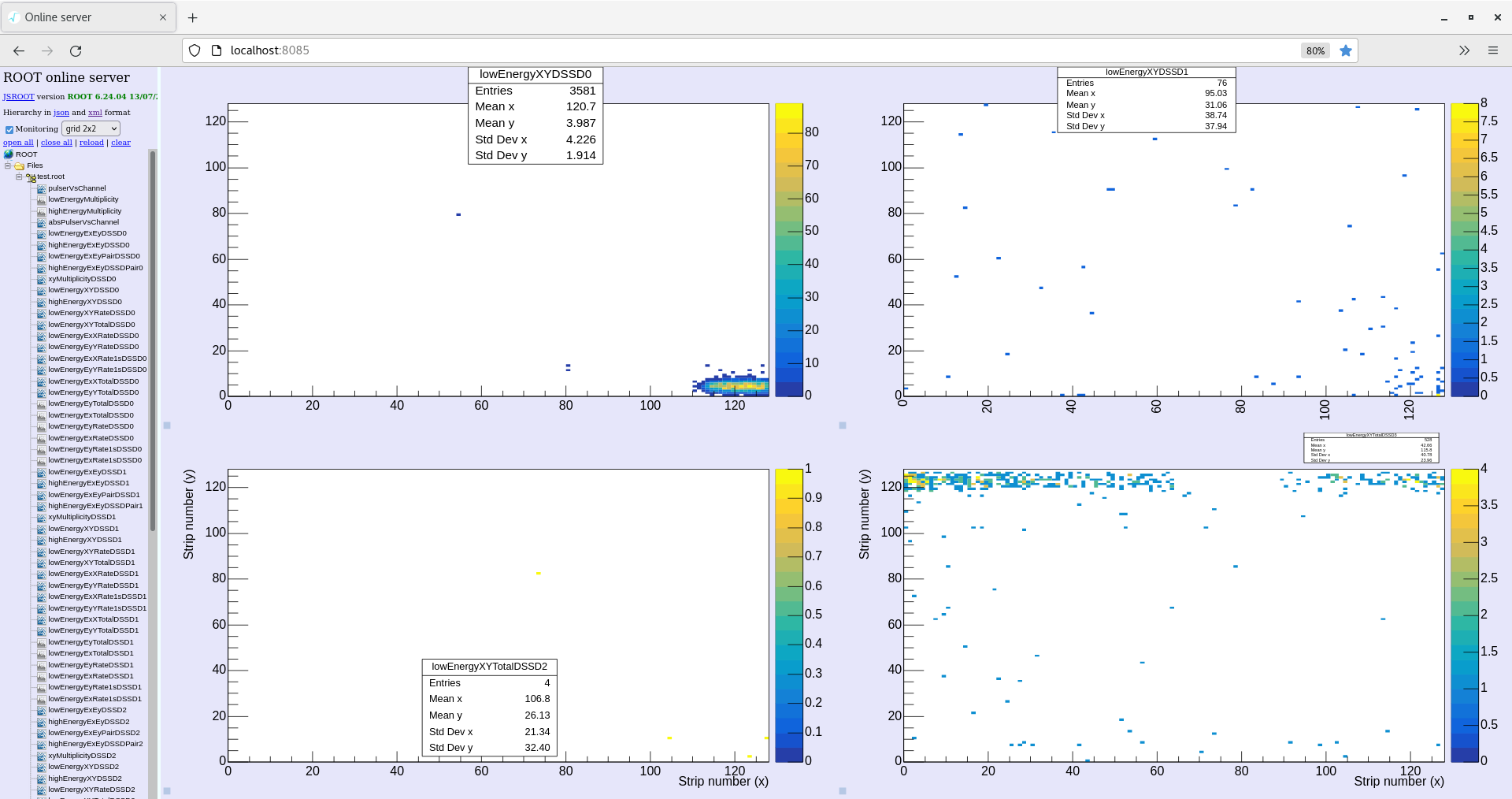

Attatchment 21: Beam profile before stiring

Attatchment 22: Beam profile after stiritng - much better, hitting detectors less.

&nbsp;

/// UPDATE ///

Mapping for the sort code has been fixed so that detectors are orientated correctly as if looking at the detectors downstream.We was missing dssdPNisX command which lets the sort code know if the PN FEEs correspond to X or Y. Correct mapping is now;

&nbsp;&nbsp; &nbsp;&nbsp;&nbsp;&nbsp;
stripMap&nbsp;&nbsp; &nbsp;1&nbsp;&nbsp; &nbsp;1&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;
stripMap&nbsp;&nbsp; &nbsp;2&nbsp;&nbsp; &nbsp;2&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;
stripMap&nbsp;&nbsp; &nbsp;3&nbsp;&nbsp; &nbsp;1&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;
stripMap&nbsp;&nbsp; &nbsp;4&nbsp;&nbsp; &nbsp;2&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;
stripMap&nbsp;&nbsp; &nbsp;5&nbsp;&nbsp; &nbsp;1
stripMap&nbsp;&nbsp; &nbsp;6&nbsp;&nbsp; &nbsp;2
stripMap&nbsp;&nbsp; &nbsp;7&nbsp;&nbsp; &nbsp;2
stripMap&nbsp;&nbsp; &nbsp;8&nbsp;&nbsp; &nbsp;1
stripMap&nbsp;&nbsp; &nbsp;9&nbsp;&nbsp; &nbsp;2
stripMap&nbsp;&nbsp; &nbsp;10&nbsp;&nbsp; &nbsp;1
stripMap&nbsp;&nbsp; &nbsp;11&nbsp;&nbsp; &nbsp;1
stripMap&nbsp;&nbsp; &nbsp;12&nbsp;&nbsp; &nbsp;2
stripMap&nbsp;&nbsp; &nbsp;13&nbsp;&nbsp; &nbsp;1
stripMap&nbsp;&nbsp; &nbsp;14&nbsp;&nbsp; &nbsp;2
stripMap&nbsp;&nbsp; &nbsp;15&nbsp;&nbsp; &nbsp;1
stripMap&nbsp;&nbsp; &nbsp;16&nbsp;&nbsp; &nbsp;2&nbsp;&nbsp;&nbsp;
