<p>08:57 Doing morning check. Checked the leakage currents, all ok. Attachment 1</p>

<p>Tempritures of, attchment 2</p>

<p>System wide check, all correct.</p>

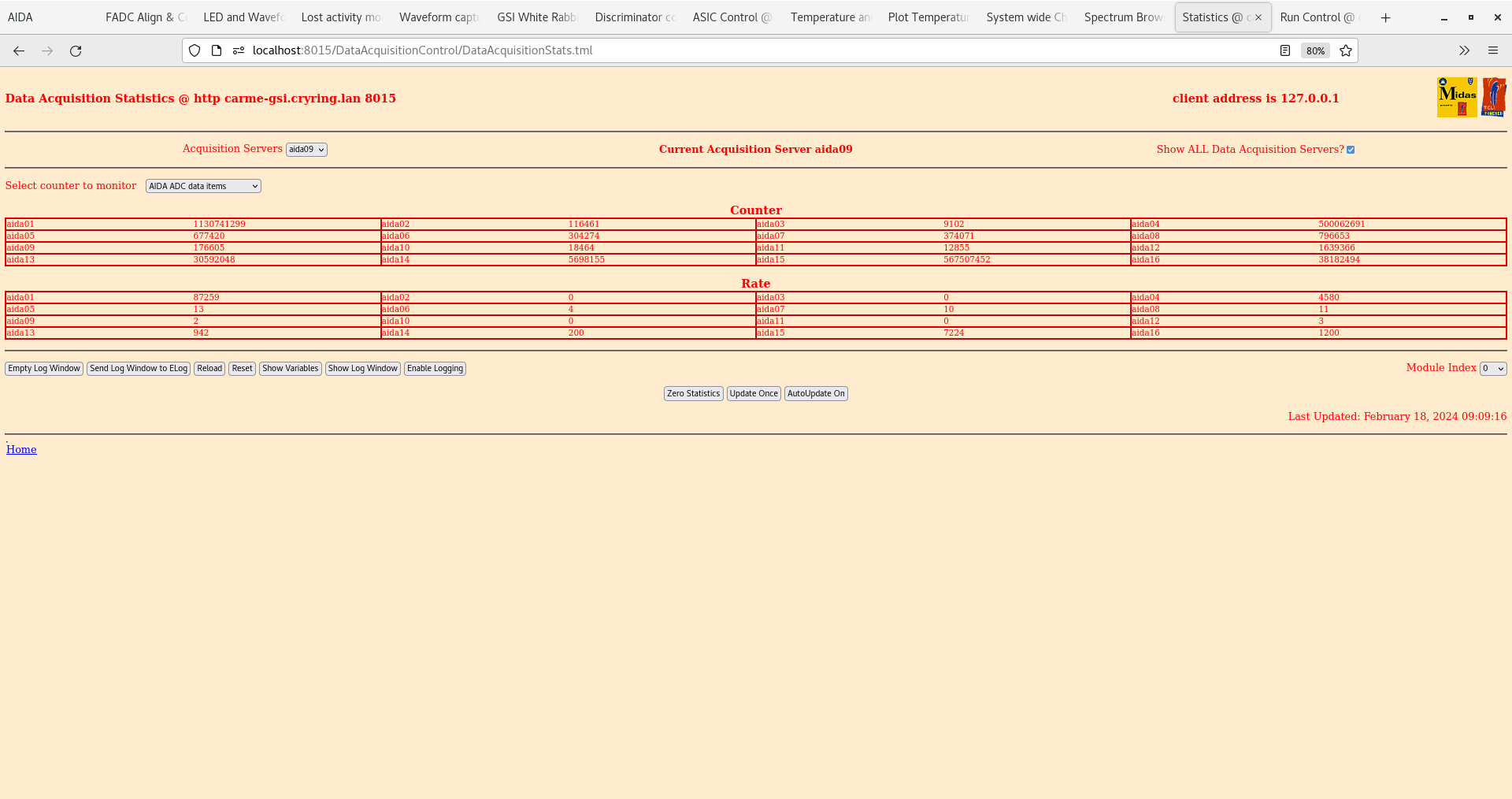

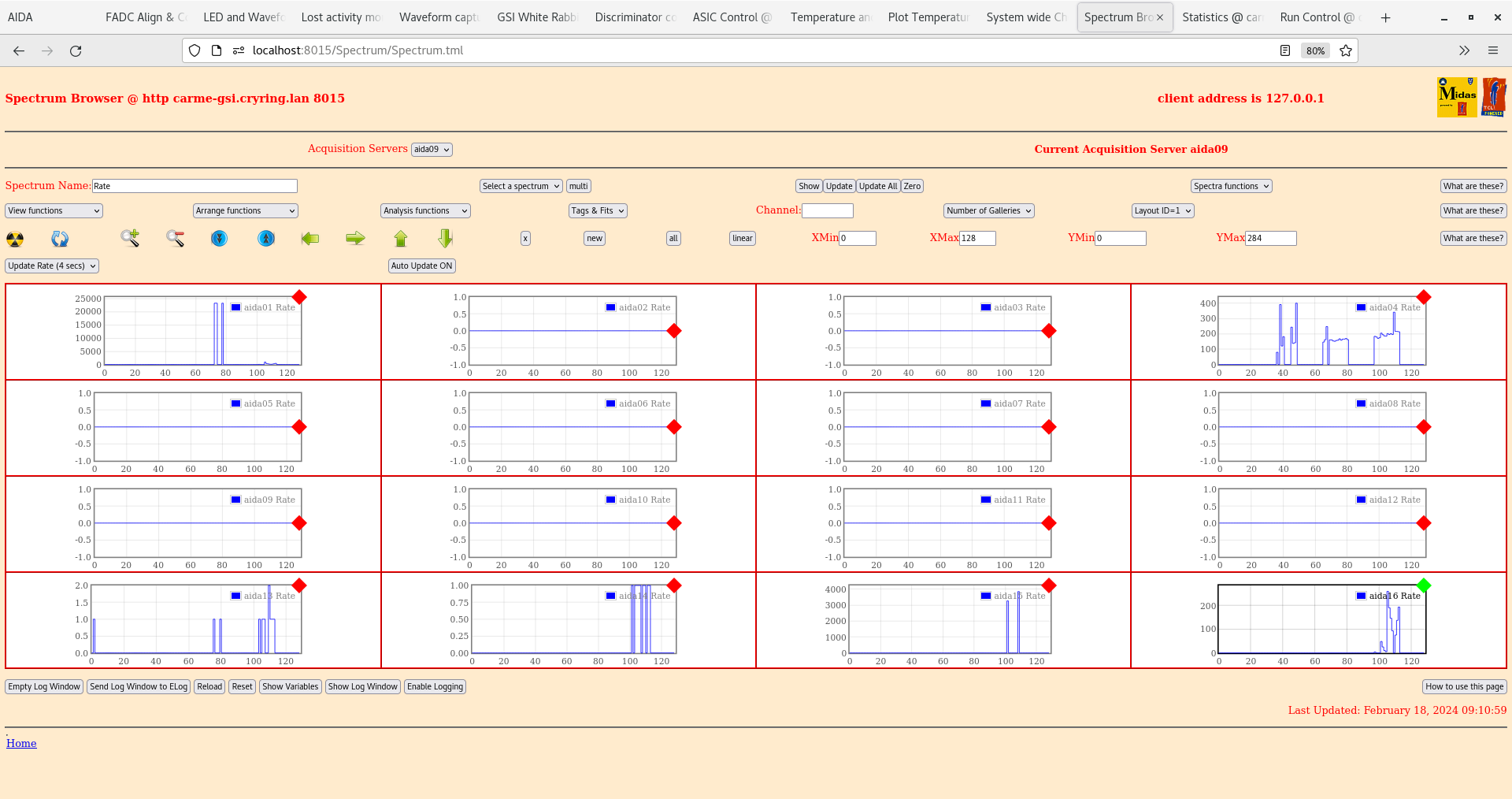

<p>Statistics ok, aida 4 was a little high, carlo oked it attachment 3 and 4 (hist)</p>

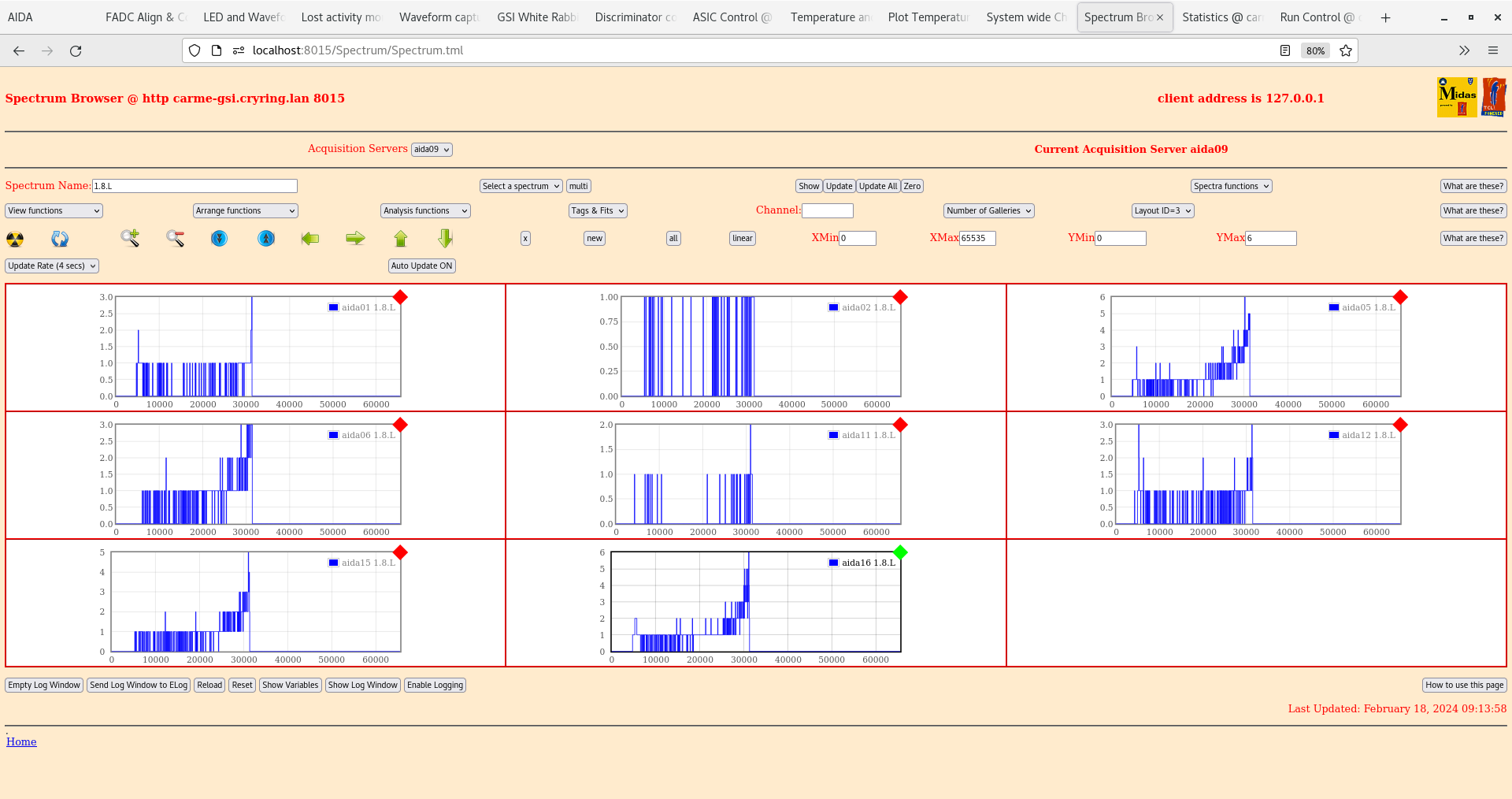

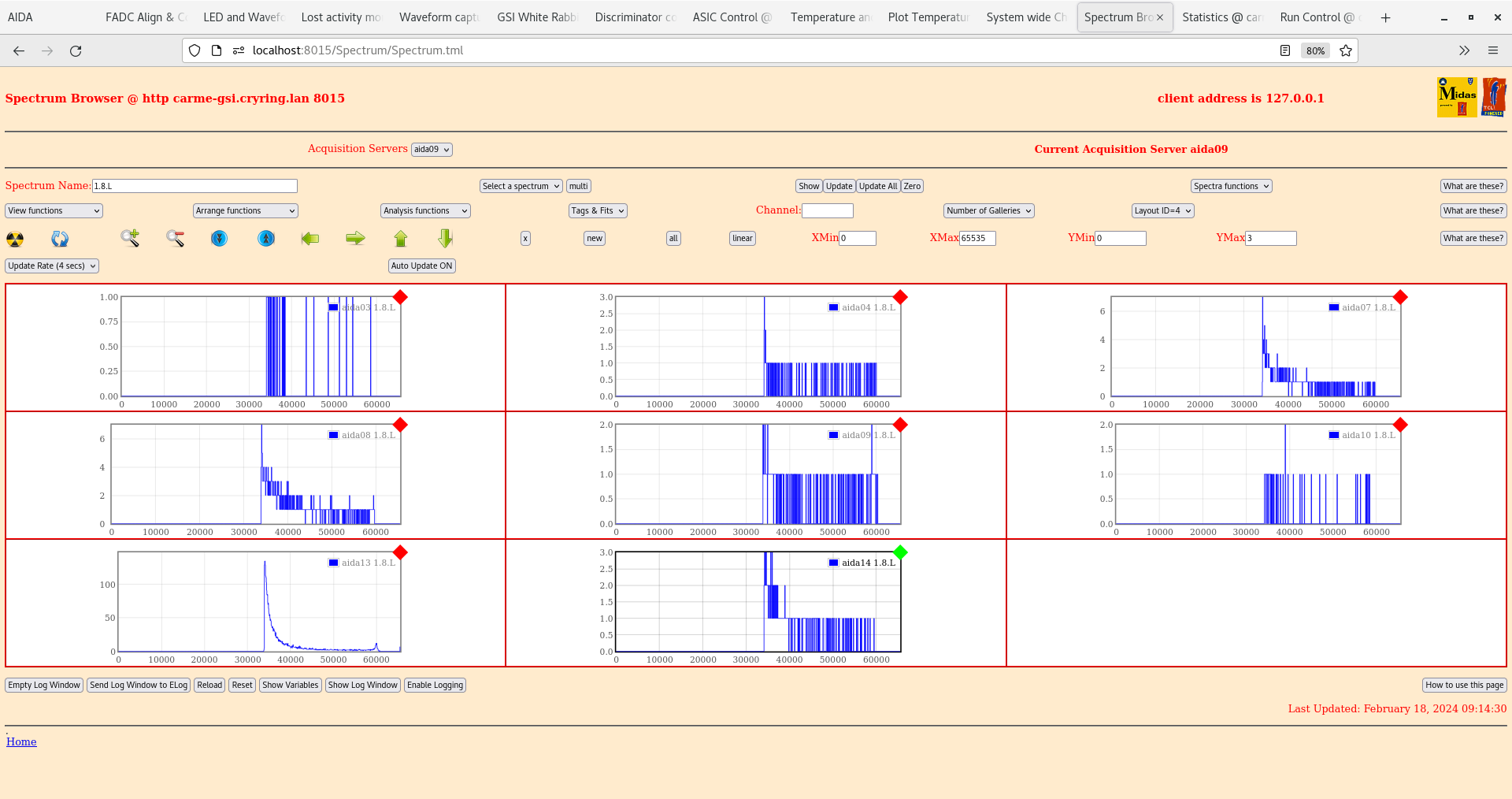

<p>Spectrum brozer, ok, attachment 5 and 6</p>

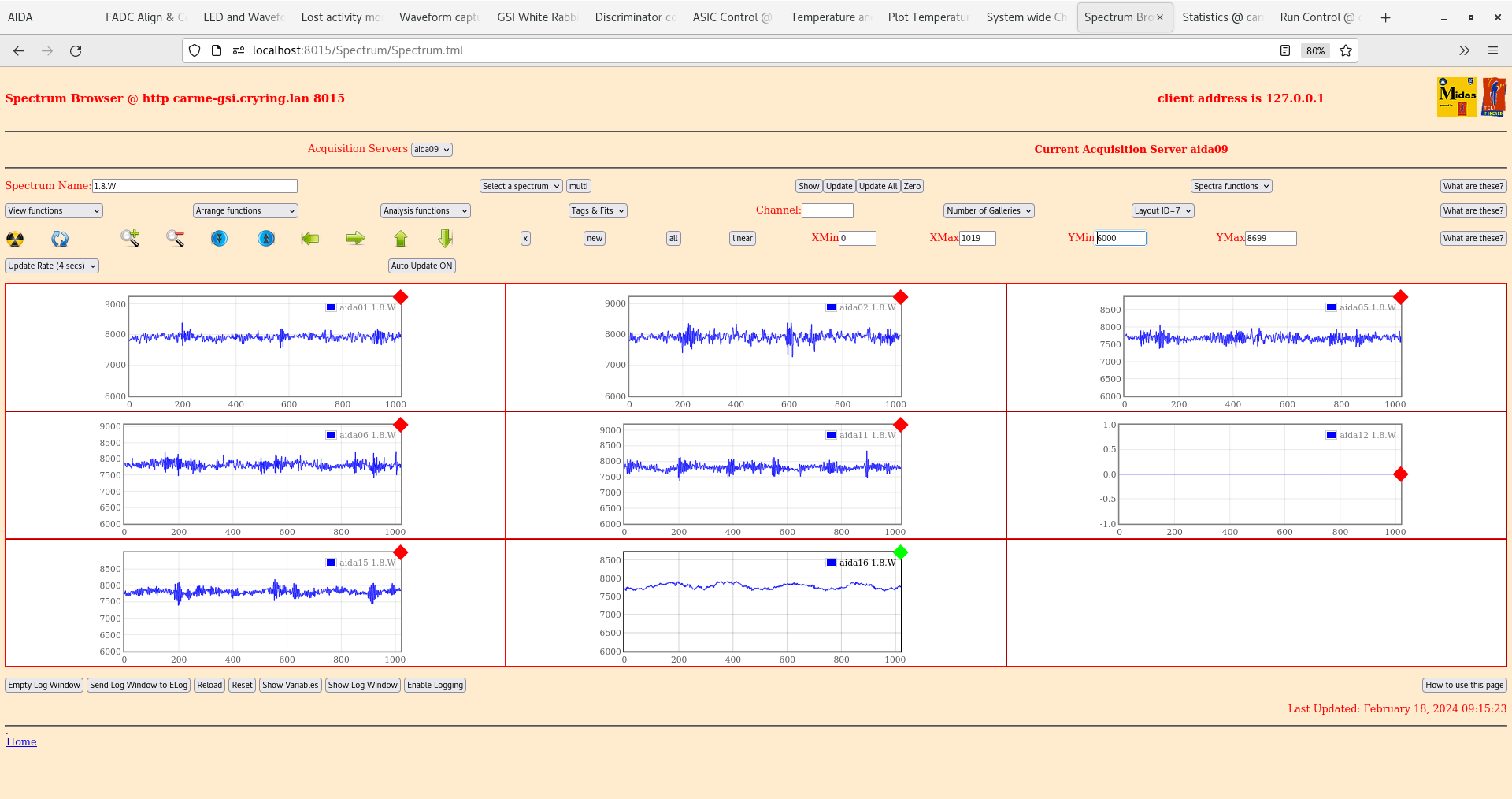

<p>Waveforem atachment 7 and 8</p>

<p>Checked merger, spinner spinning...</p>

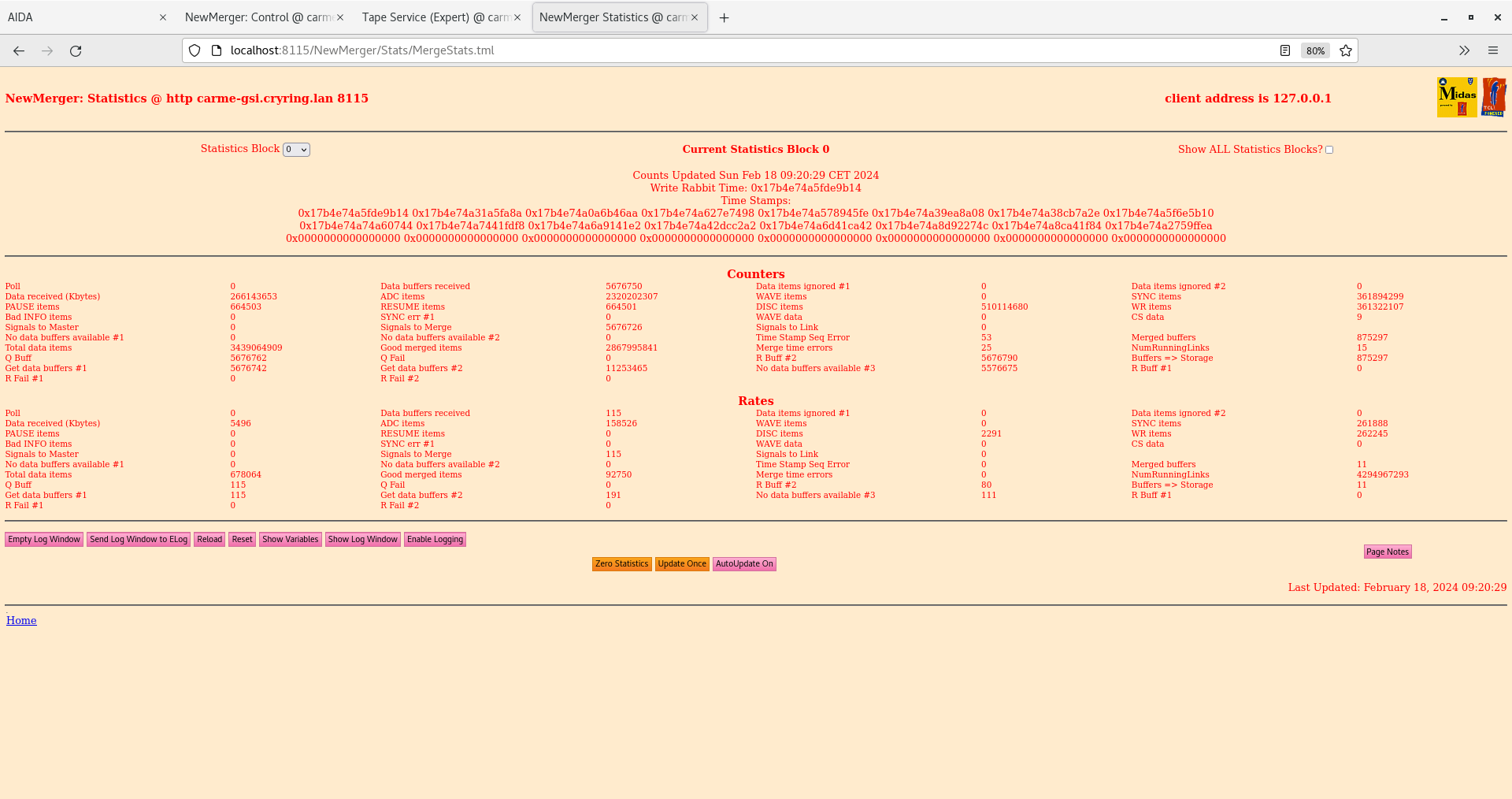

<p>Attached screenshot of merger&nbsp; 9</p>

<p>&nbsp;</p>

<p>11:15 Beam current is around 2.5E7 and the target dencity is 5.3E11 cm2, there was small isntability (dips) from the beam, reason unknown, all detectors stable.</p>

<p>Check leakage current, is stable,&nbsp; attachment 1</p>

<p>Tempreture ok, attachment 2</p>

<p>System wide check, all pass</p>

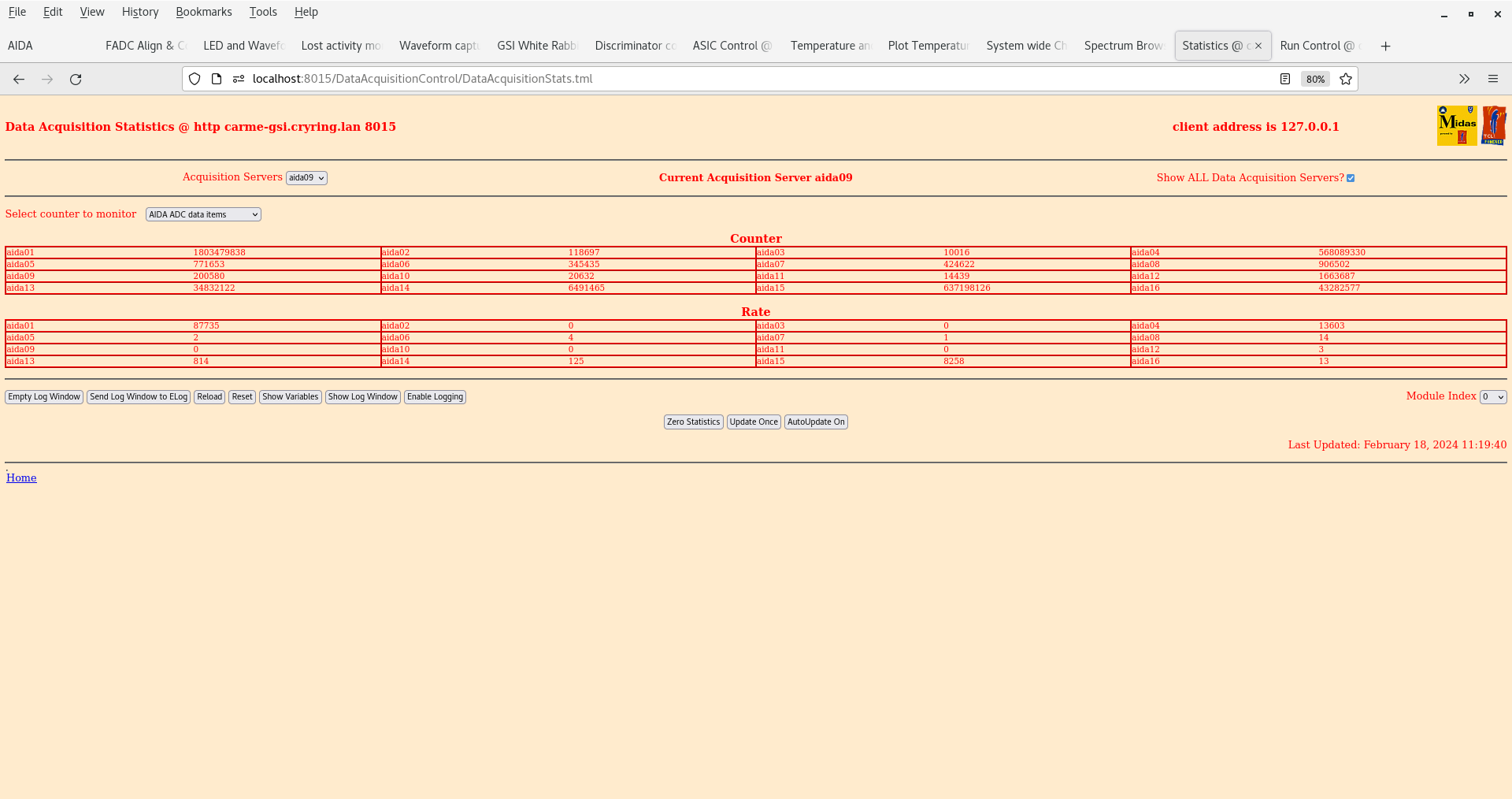

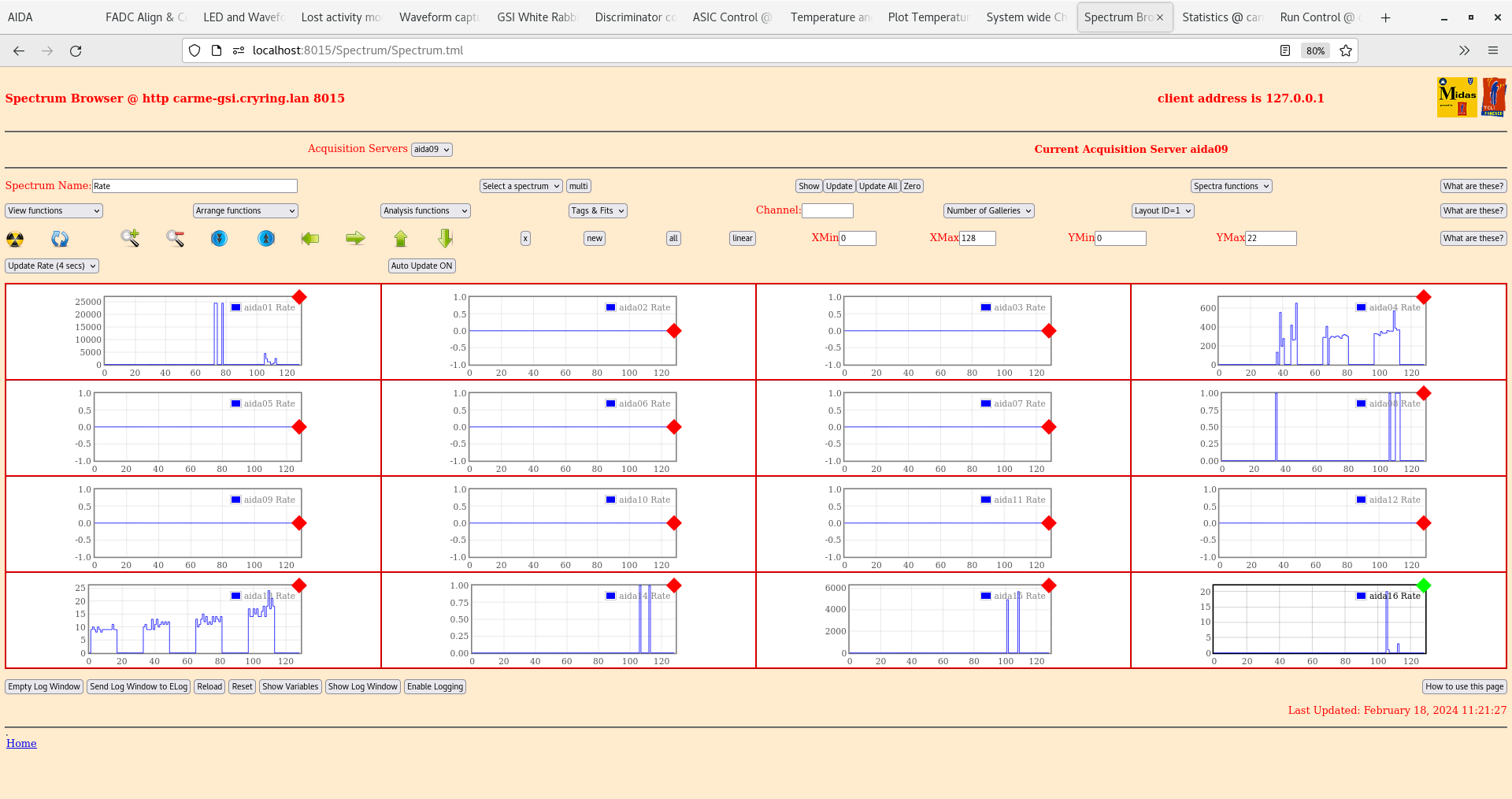

<p>Statistics checked, attachment 3, aida 4 is still high, histograms attachment 4</p>

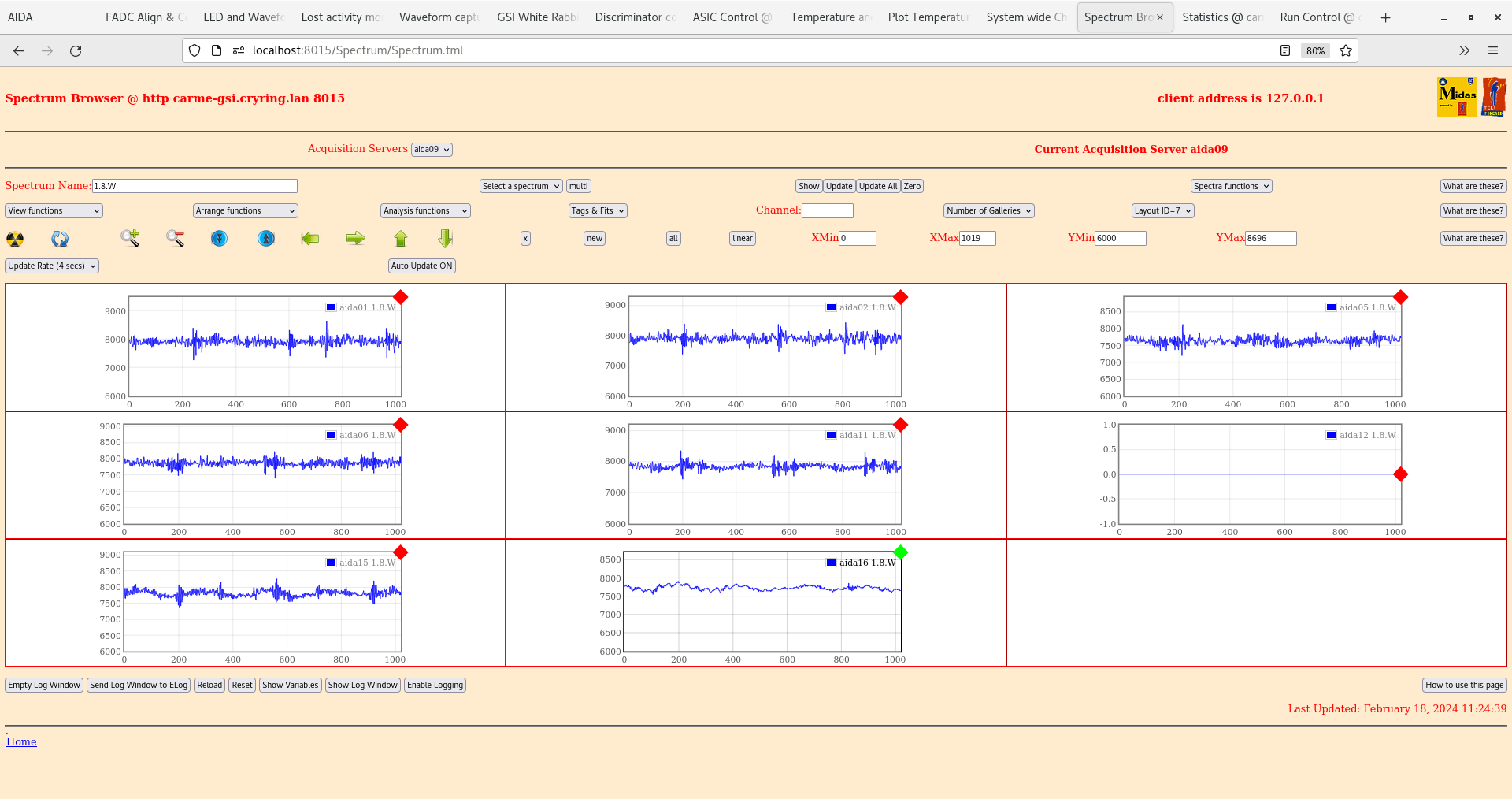

<p>Spectrum browser ok, attachment 5 and 6</p>

<p>Waveforms attachment 7 and 8</p>

<p>Checked merger, ok, spinner is spinning,</p>

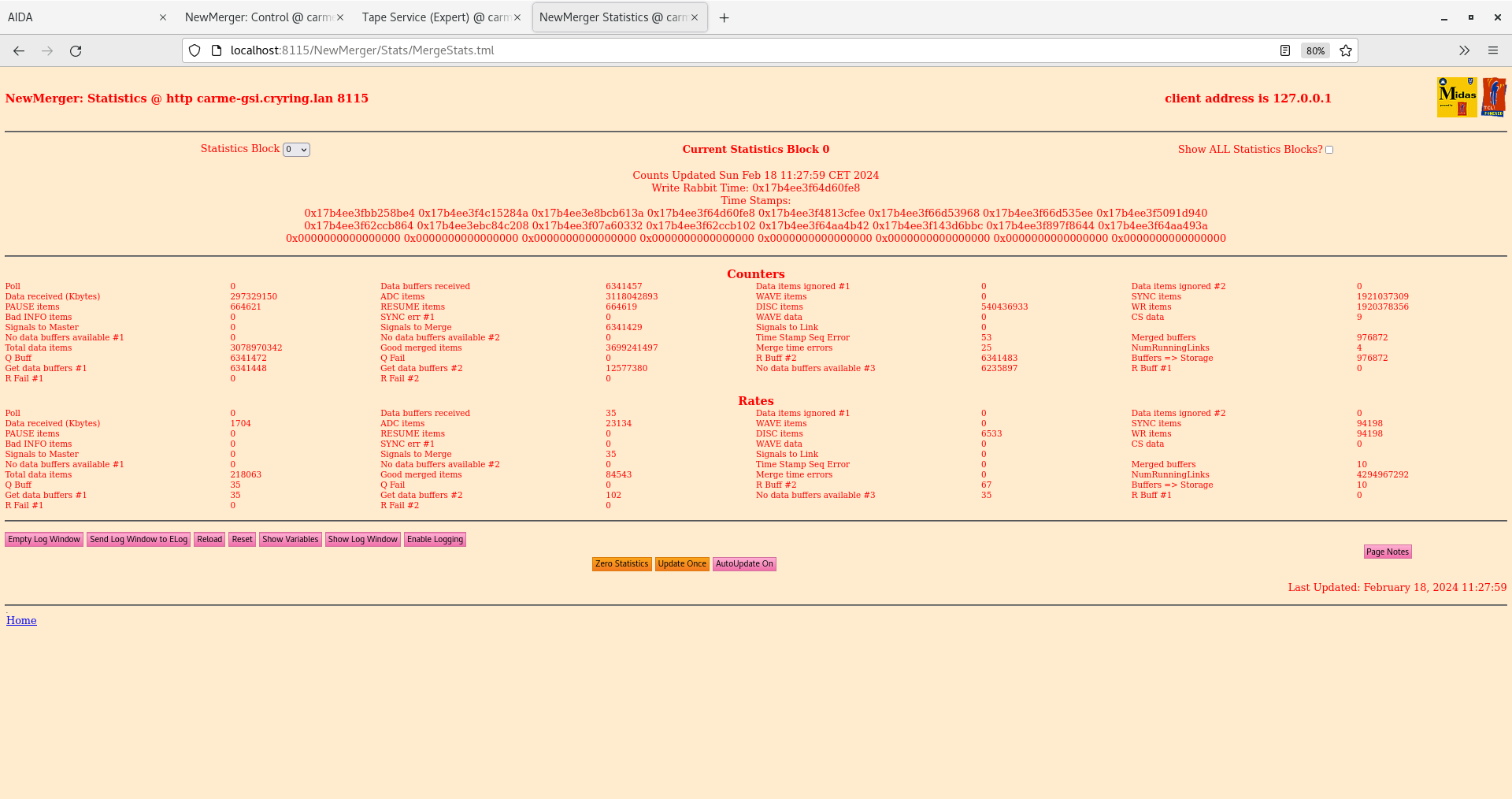

<p>Attachment 9 is the merger info</p>

<p>12:21 Targer intencity started dropping quite dramatically. The beam position X value was adjusted to -11000, we got back above 4E11 /cm2</p>

<p>13:08 Beam current is around 2.5E7 pretty stable, target is working, 61E11 /cm2, stable</p>

<p>Checked leakage current, stable, attachment 1</p>

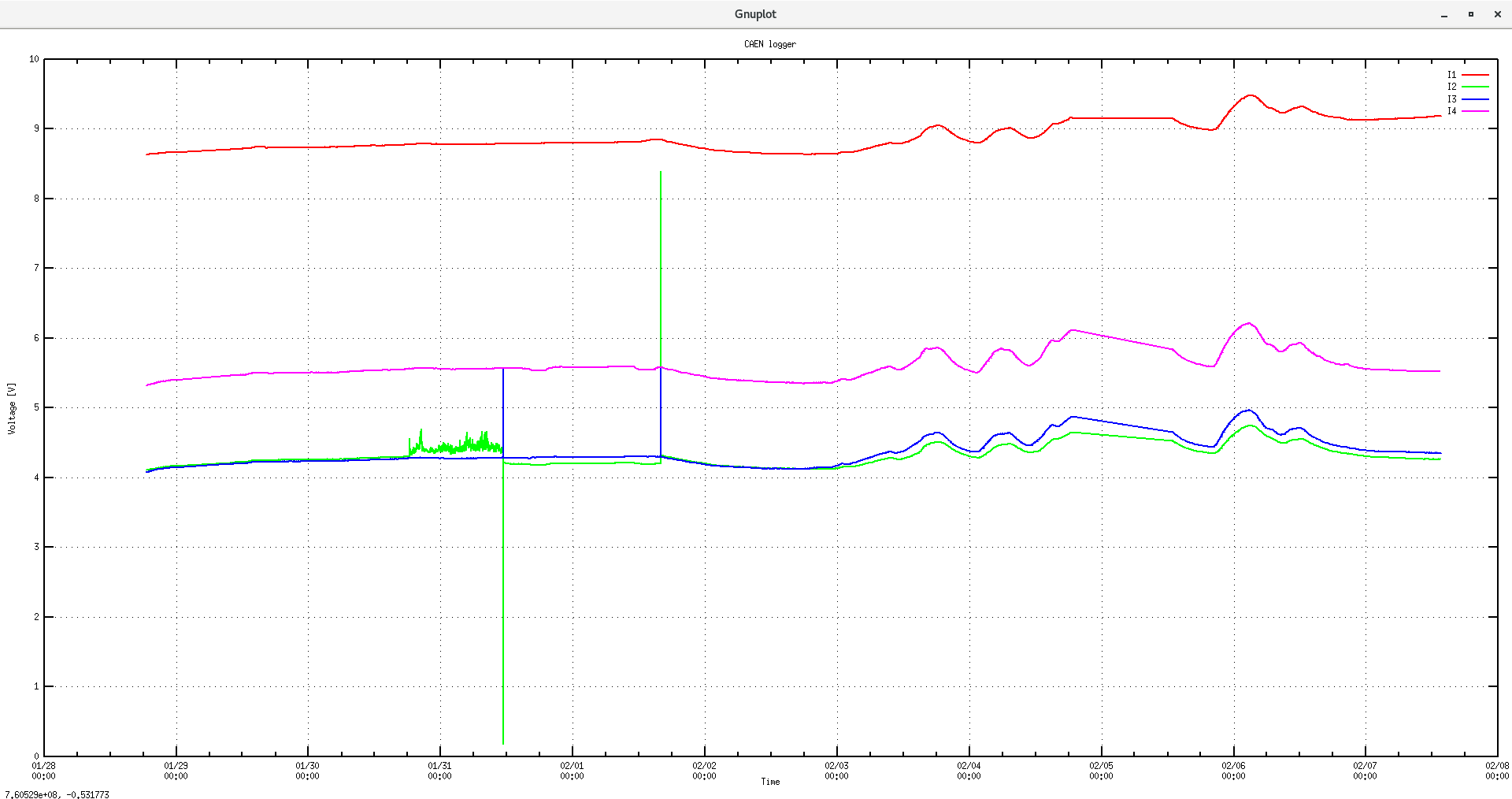

<p>Temp. stable, atatchment 2</p>

<p>System wide chack, all pass</p>

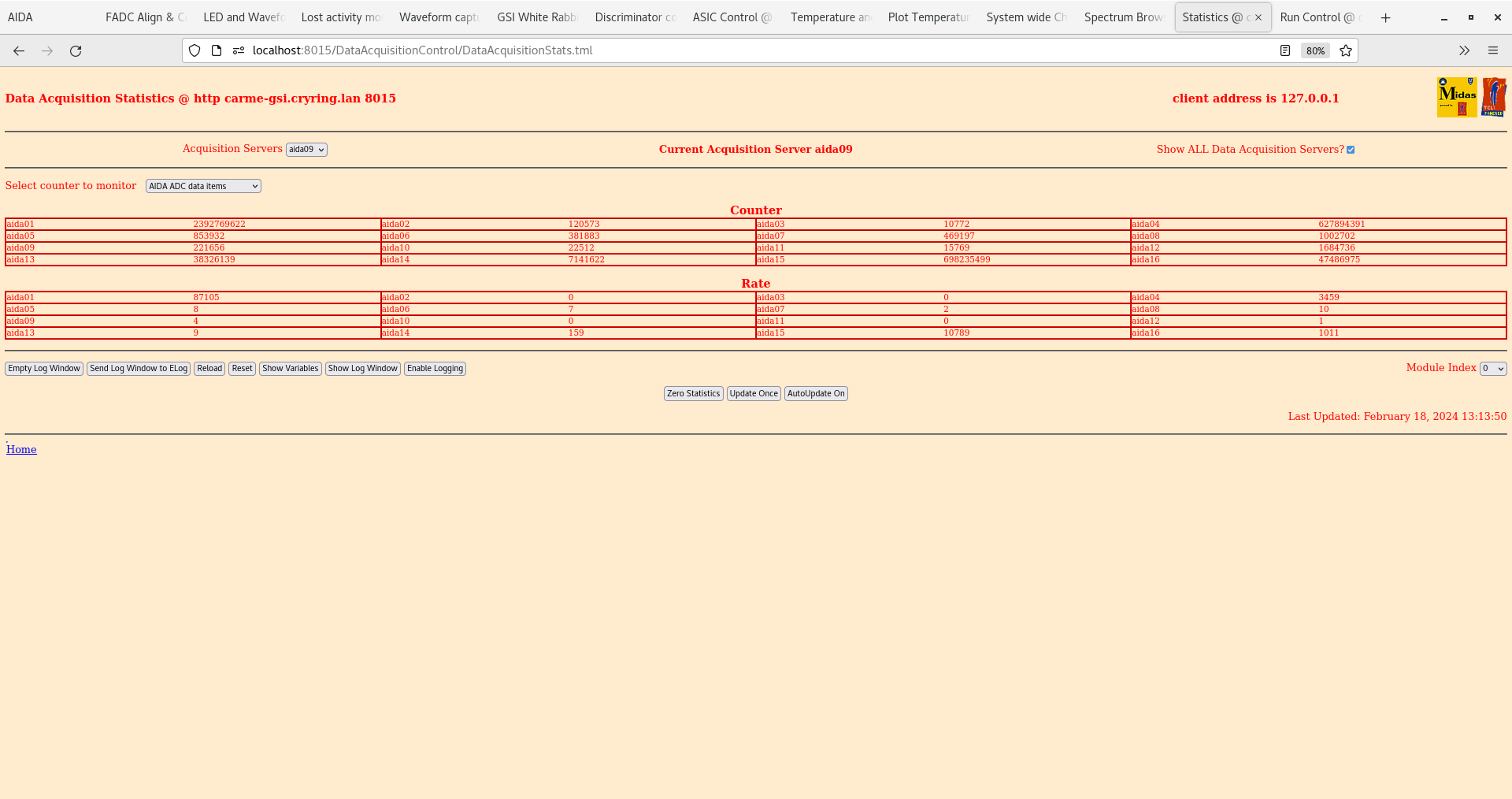

<p>Statistics checked, attachemnt 3, aida 4 should be checked, histogram of rates 4 attached</p>

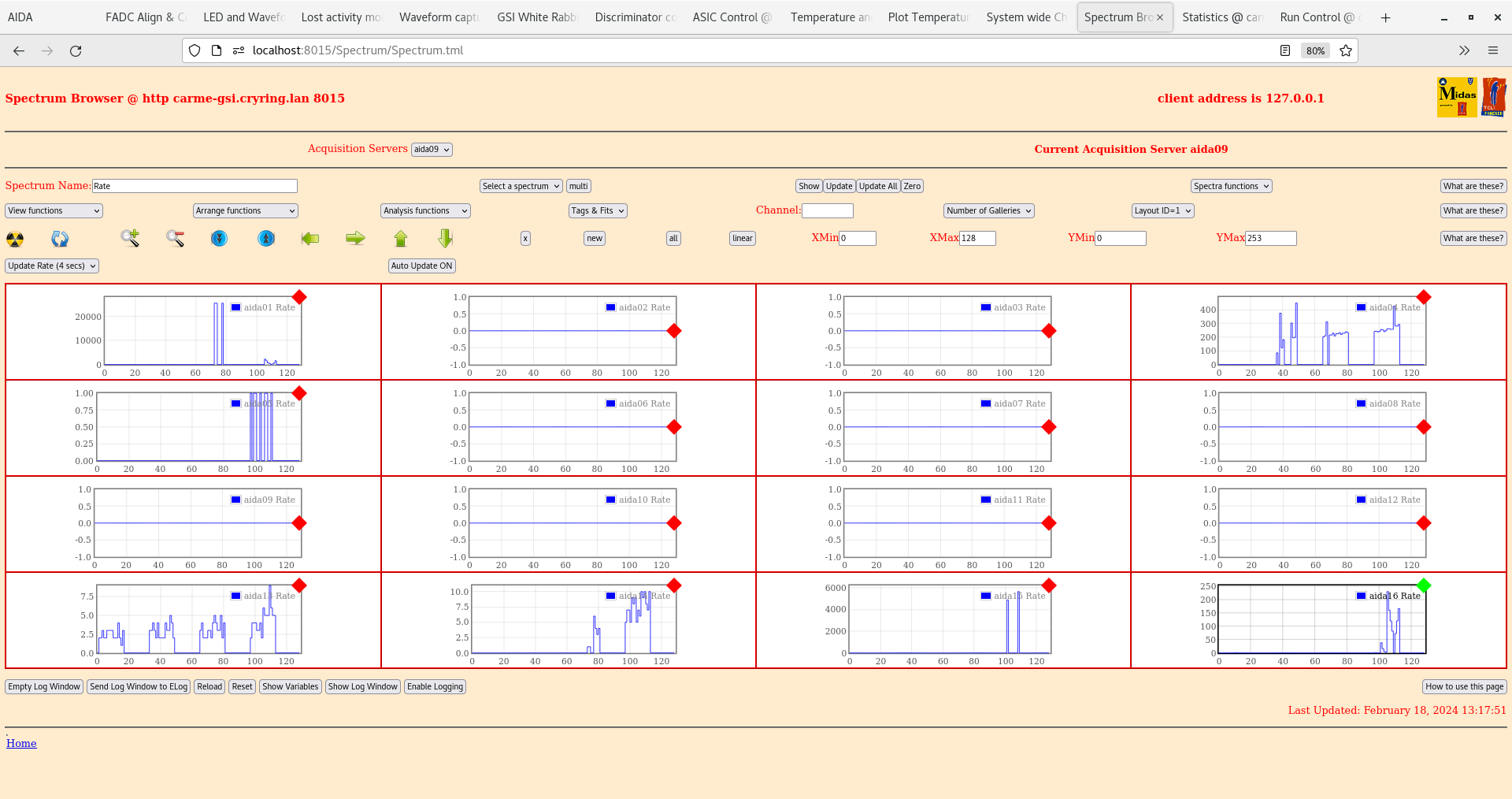

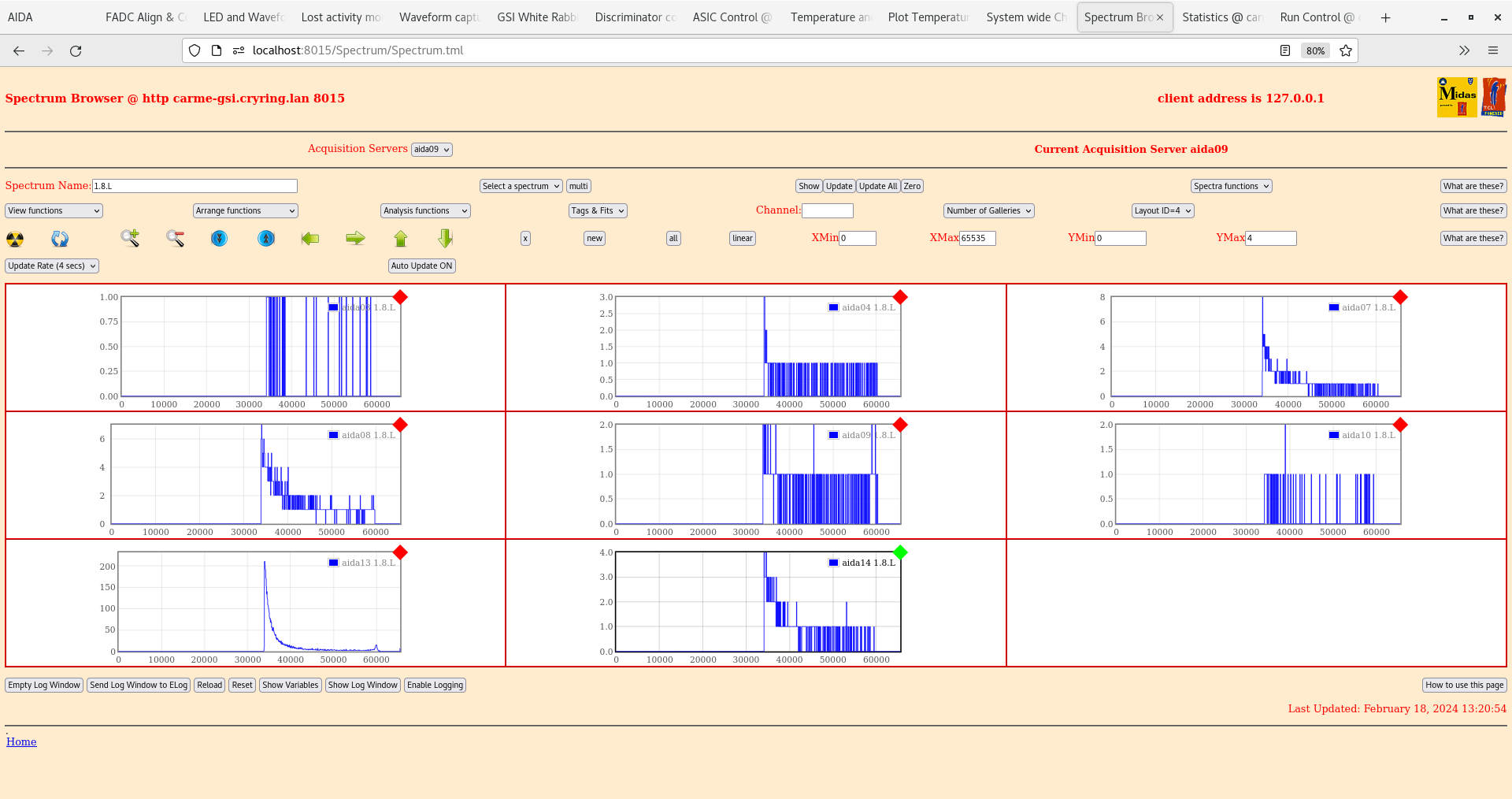

<p>Spectrum browser, attached 5 and 6</p>

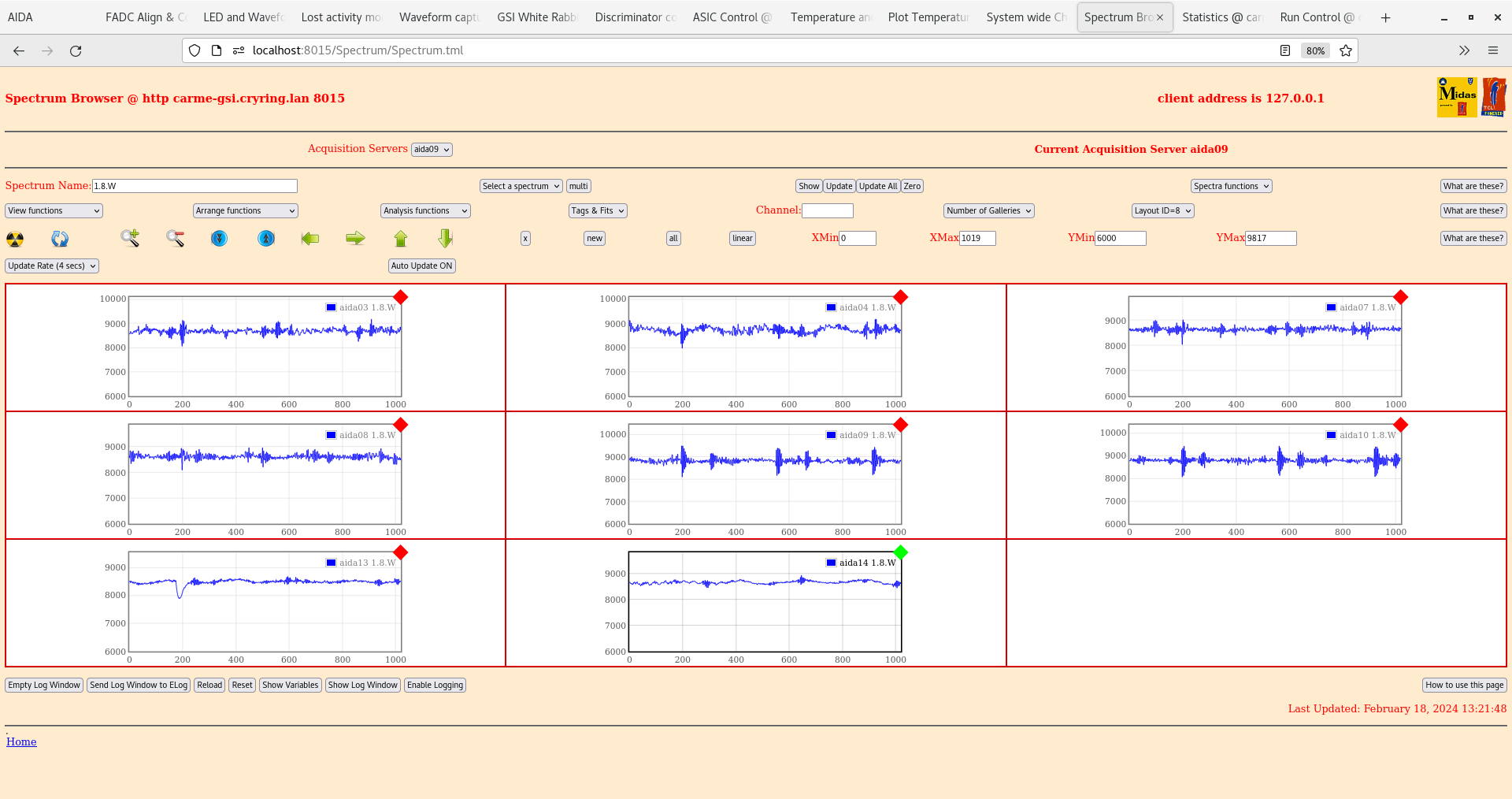

<p>Waveform attached 7 and 8</p>

<p>Merger ok, spinner is pinning,</p>

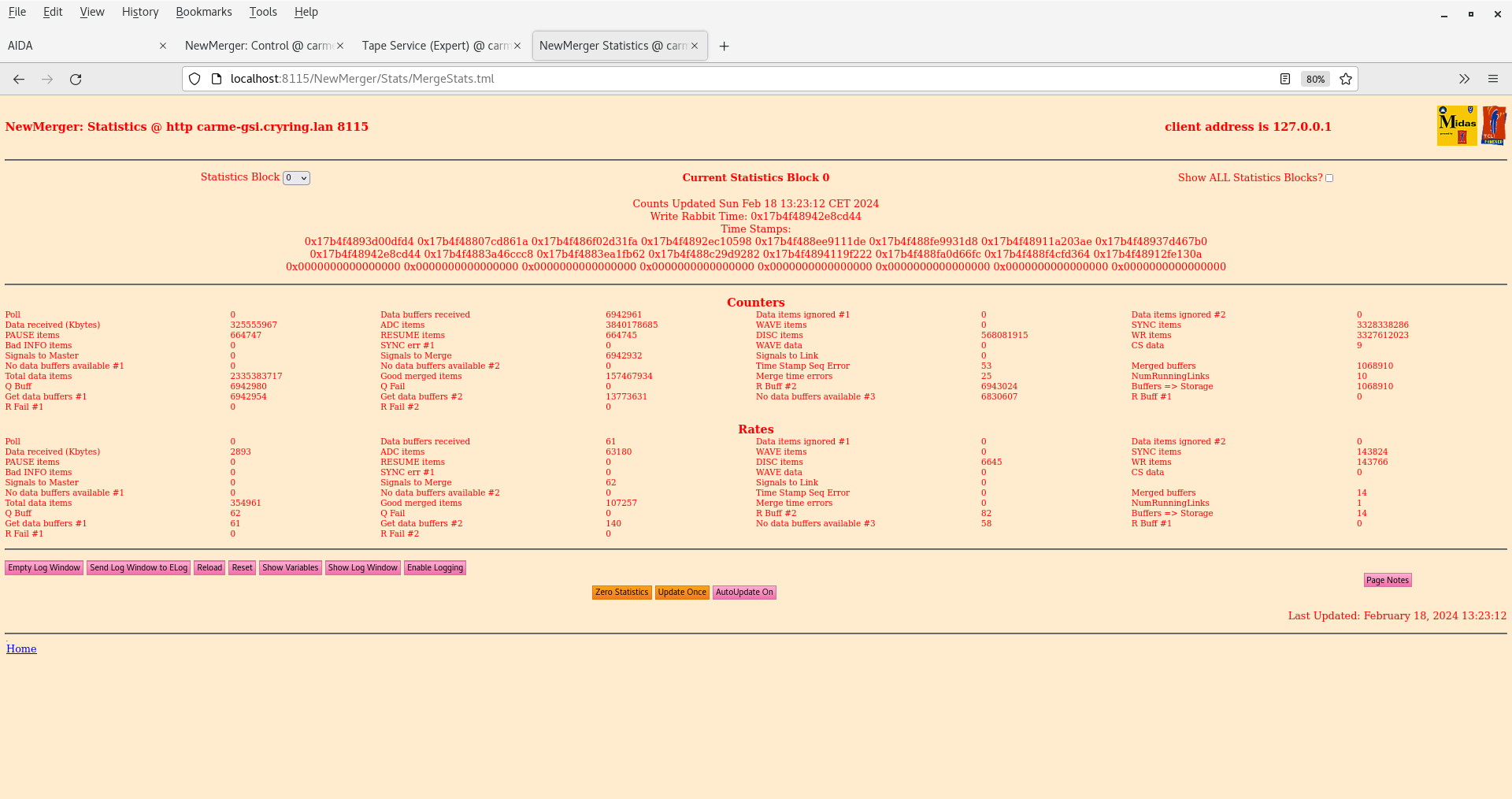

<p>Attached 9 merger info</p>

<p>&nbsp;</p>

<p>&nbsp;</p>
