Entry time:
Sun Feb 18 13:10:18 2024
Author
*
:
Subject
*
:

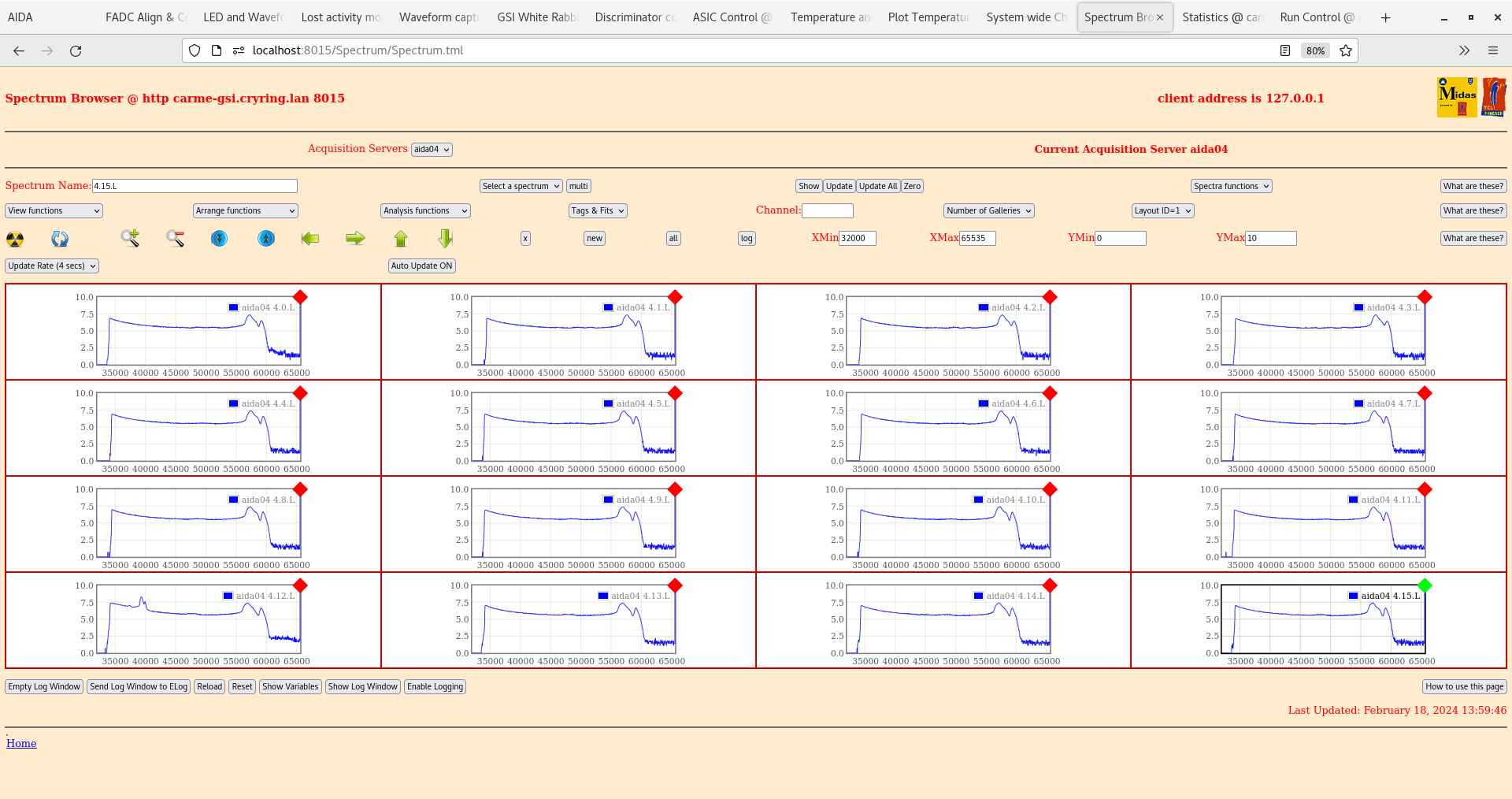

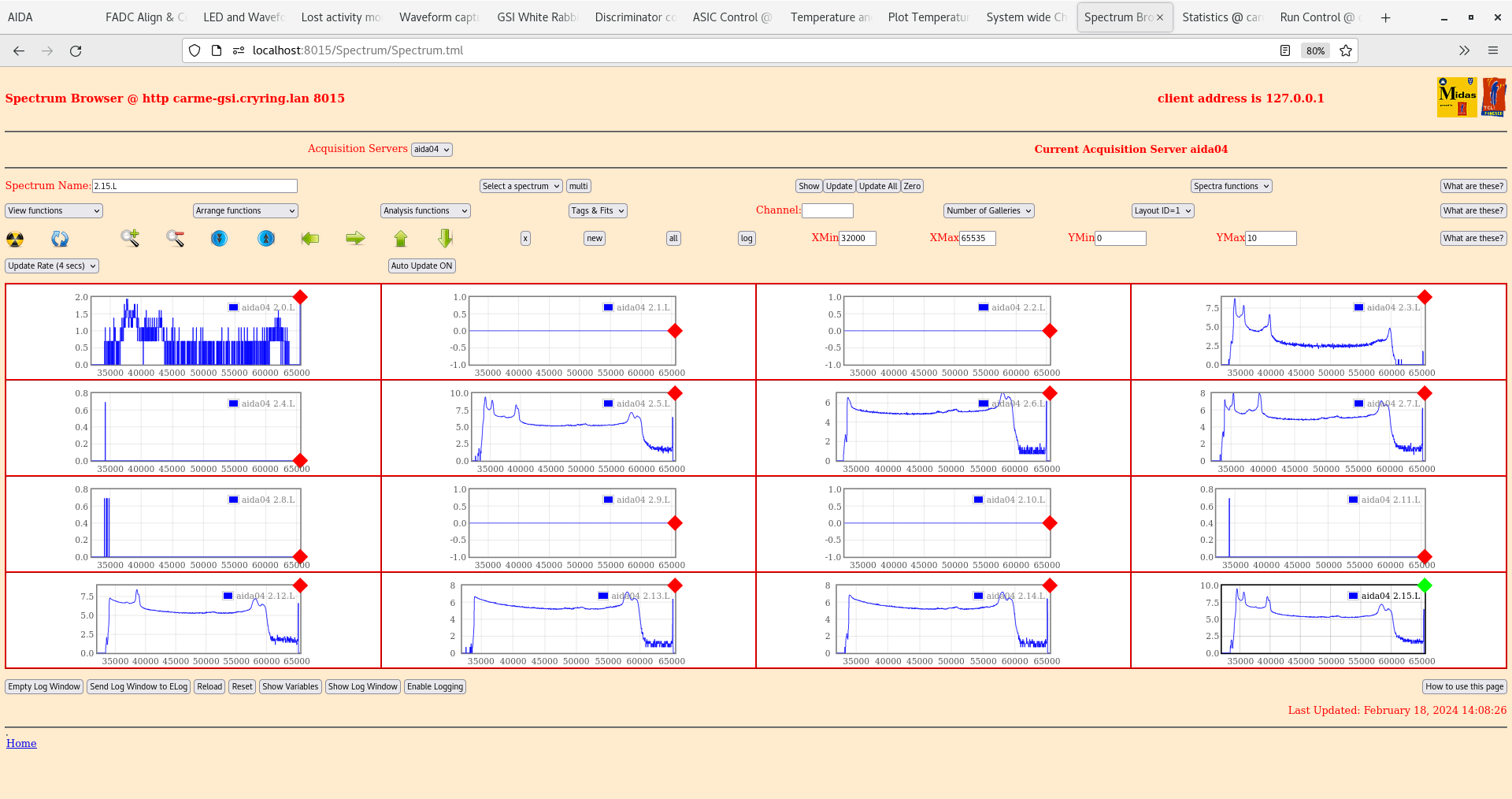

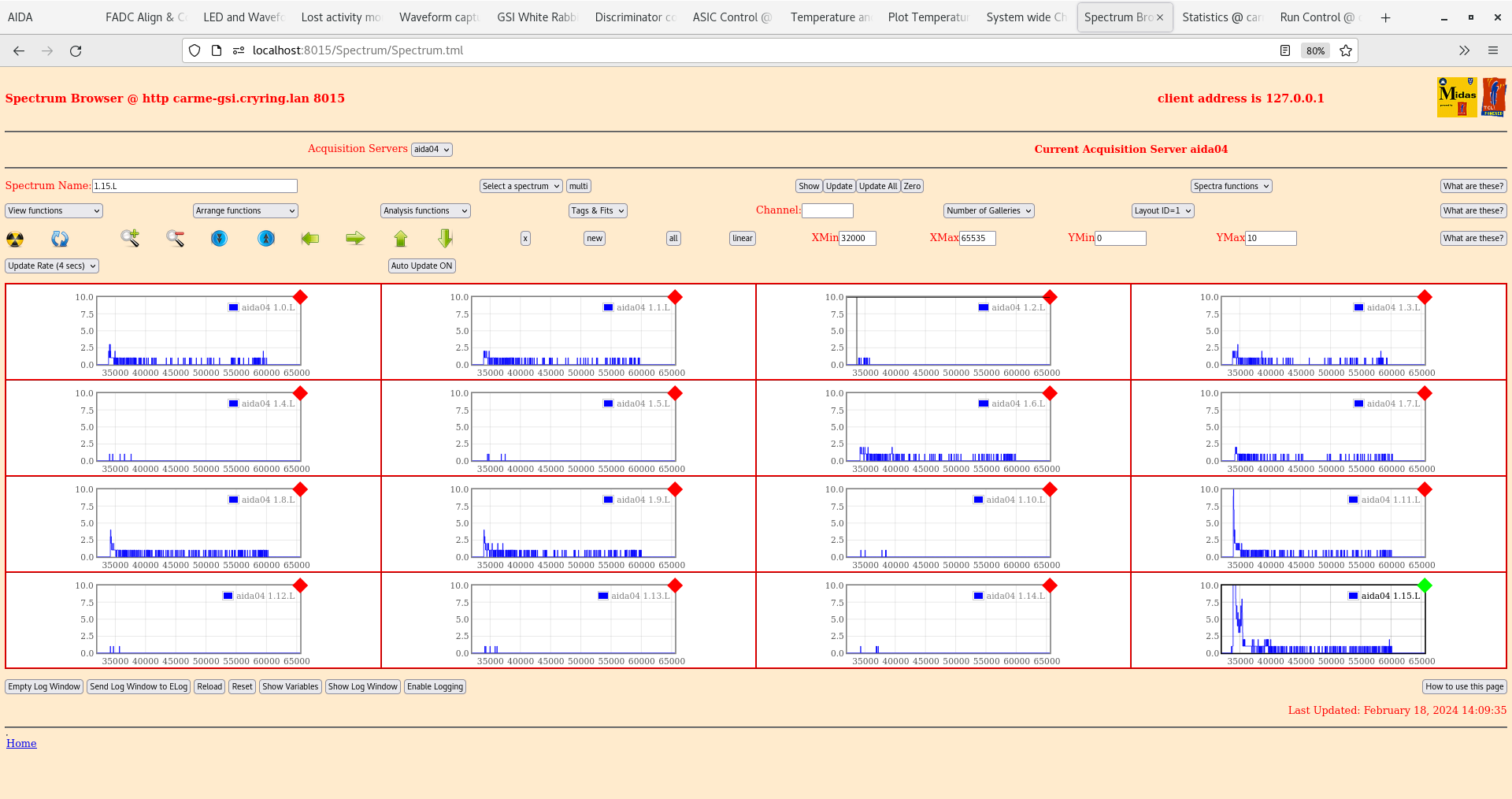

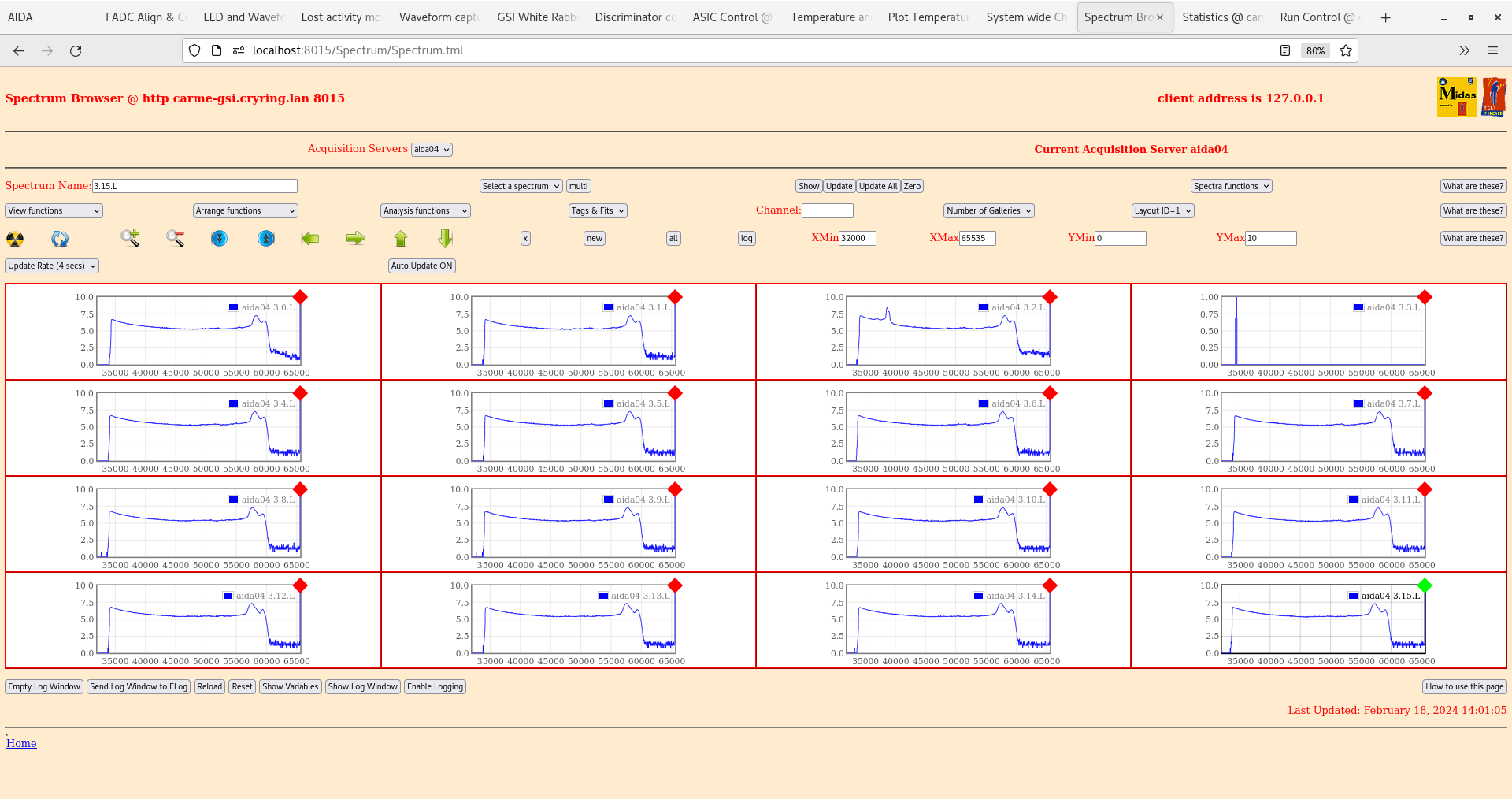

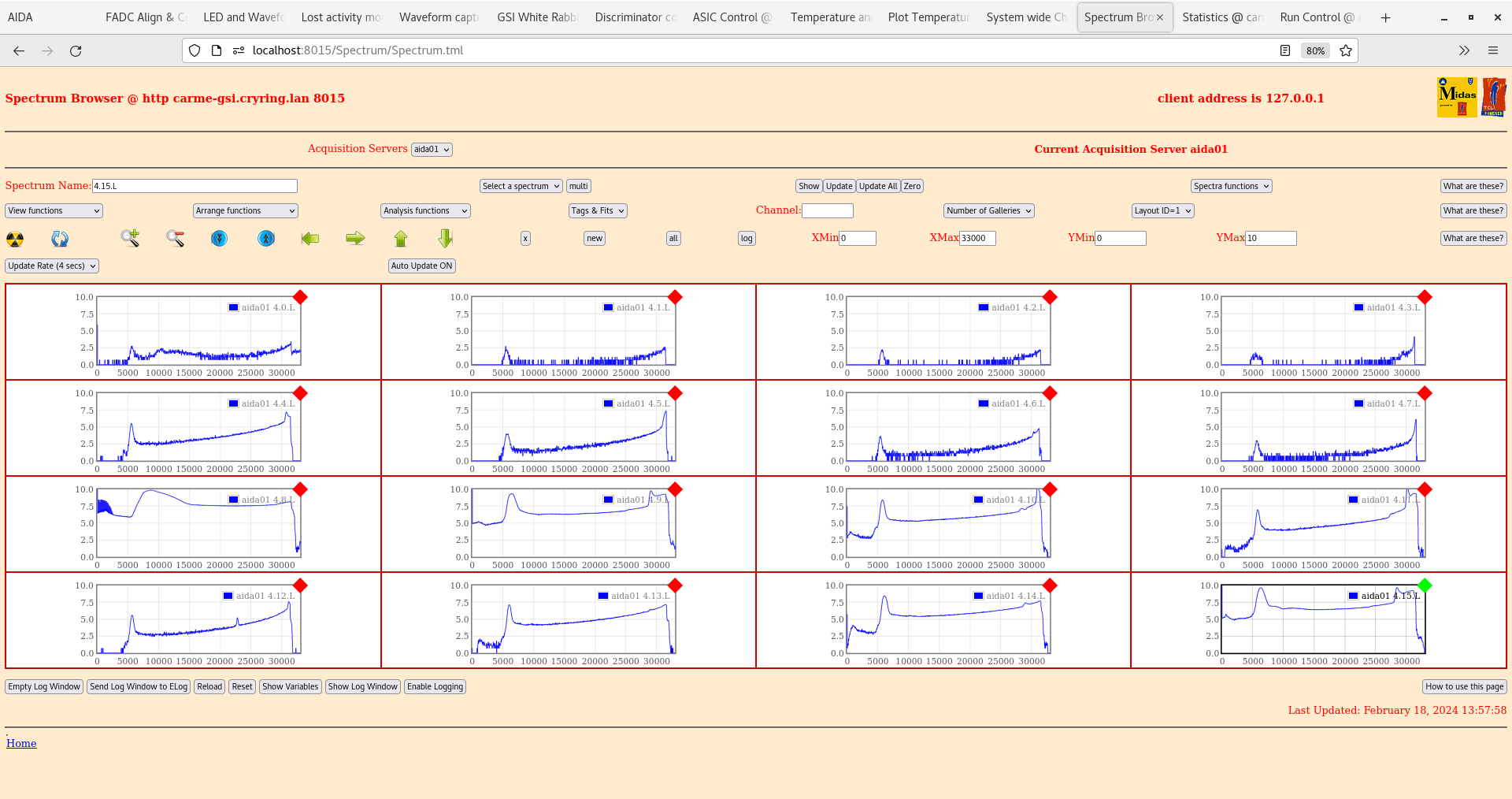

DSSSD 0 aida01 1*L spectra, aida04 **L spectra Double peak structure feature of aida04 ( n+n Ohmic side ) strips. Single ( albeit sometimes broad peak ) observed in aida01 ( p+n junction side ) strips. Not currently observed by DSSSD 1-3. DSSSD 0 high energy peak rate far higher than DSSSD 1-3. Data from last week did not display this double peak but DSSSDs and beam have been moved since. Unclear whether this reflects radiation damage and/or wafer/active area edge effects on the n+n side. Might also reflect beam characteristics throughout cycle. Requires calibration and dE cut to investigate. JM comment -> early time cut analysis indicates this is a beam effect. DSSD#0 has majority of halo on it so double peak is very pronounced. We observe double peak all DSSDs just to a much lower level.
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 1920x1014
Attachment 2:
Original size: 1920x1014
Attachment 3:
Original size: 1920x1014
Attachment 4:
Original size: 1920x1014
Attachment 5:
Original size: 1920x1014
