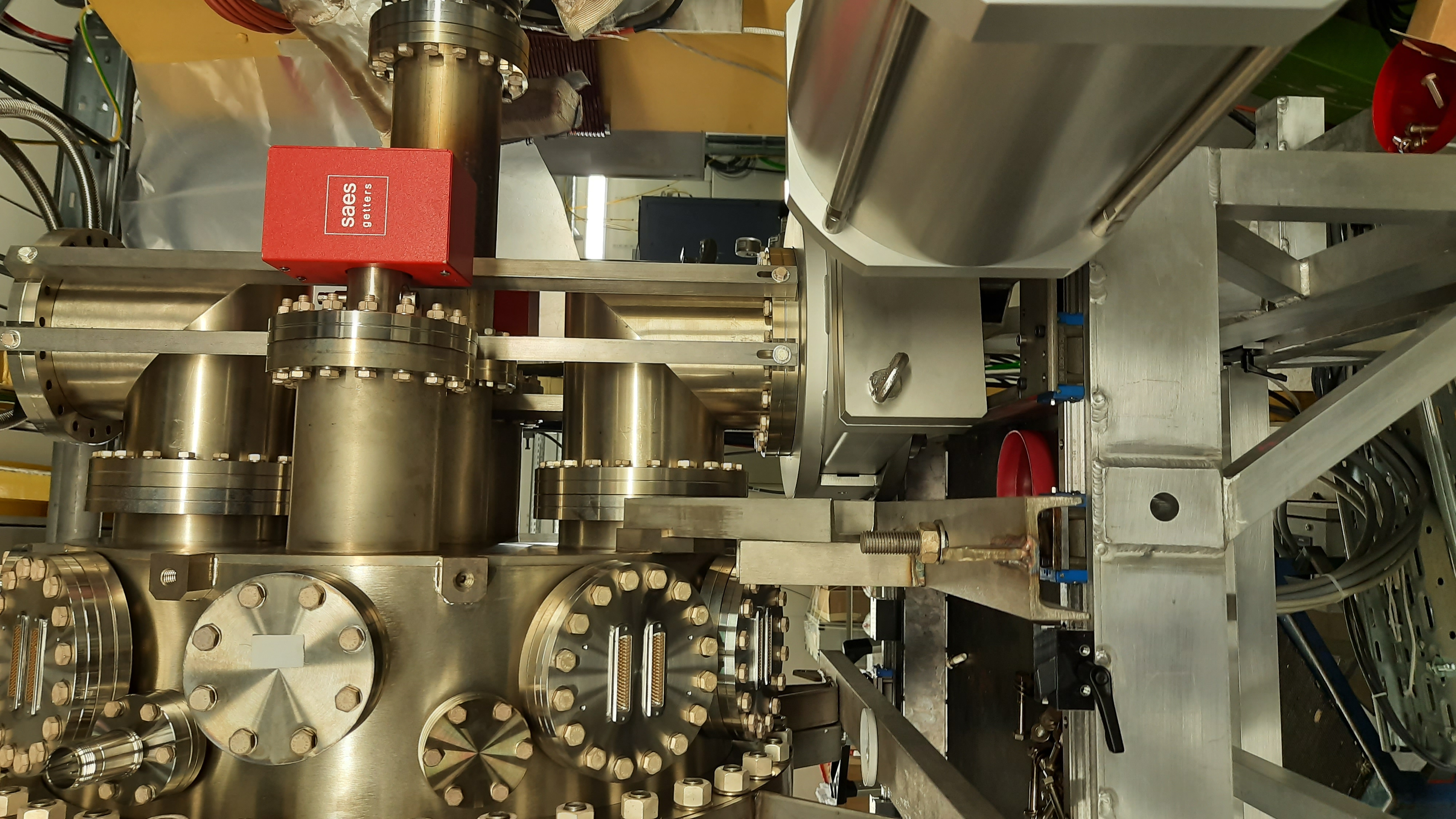

Mounted both gate valves and support. Gate
valves could not be installed one bolt
rotated from 90 degrees as per drawings
due to mechanical conflict with back foot.

Using rotating flanges some small rotation
from 90 was achieved. This may be
sufficient given the reason for the
rotation was to avoid mechanical conflicts
with ring parts that are no longer there.

Valve struts had to be modified as gate
valve is much lower and close to Al frame
than in Daresbury.

ML suggested that the reason for the
change in height mentioned in previous
entry is that the ring gate valve to YR10
is not centered. Solutions will be
considered when the other two setups in
YR09 are mounted and the alignment
situation is more clear

Noted a few blind flanges are bluish,
which indicates SS 304 instead of 316. Did
we get the wrong ones from ITL? Did we
swap them in Daresbury by mistake? Is it
just an odd colour?

Installed turbo pump on top gate valve,
Pirani gauge provided by ABD (where is
ours?) and pumped down.

Reached 10-1 mbar in 10 minutes. Turbo on.

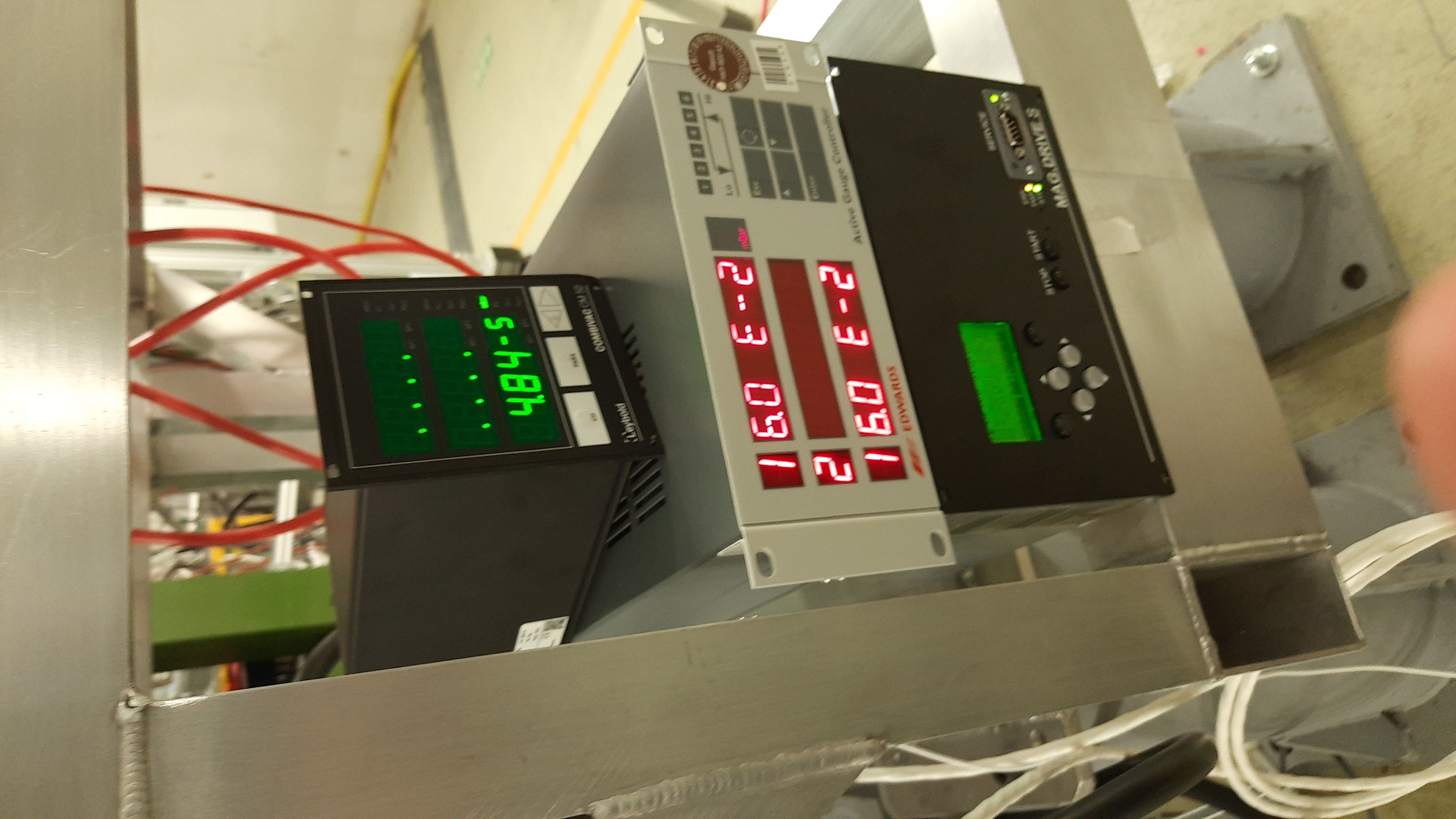

Reached 10-5 mbar on IE514 in 17 more
minutes (where is its manual?)

Will leave pumping overnight.
