Entry time:
Thu Apr 18 13:34:06 2024
Author
*
:
Subject
*
:

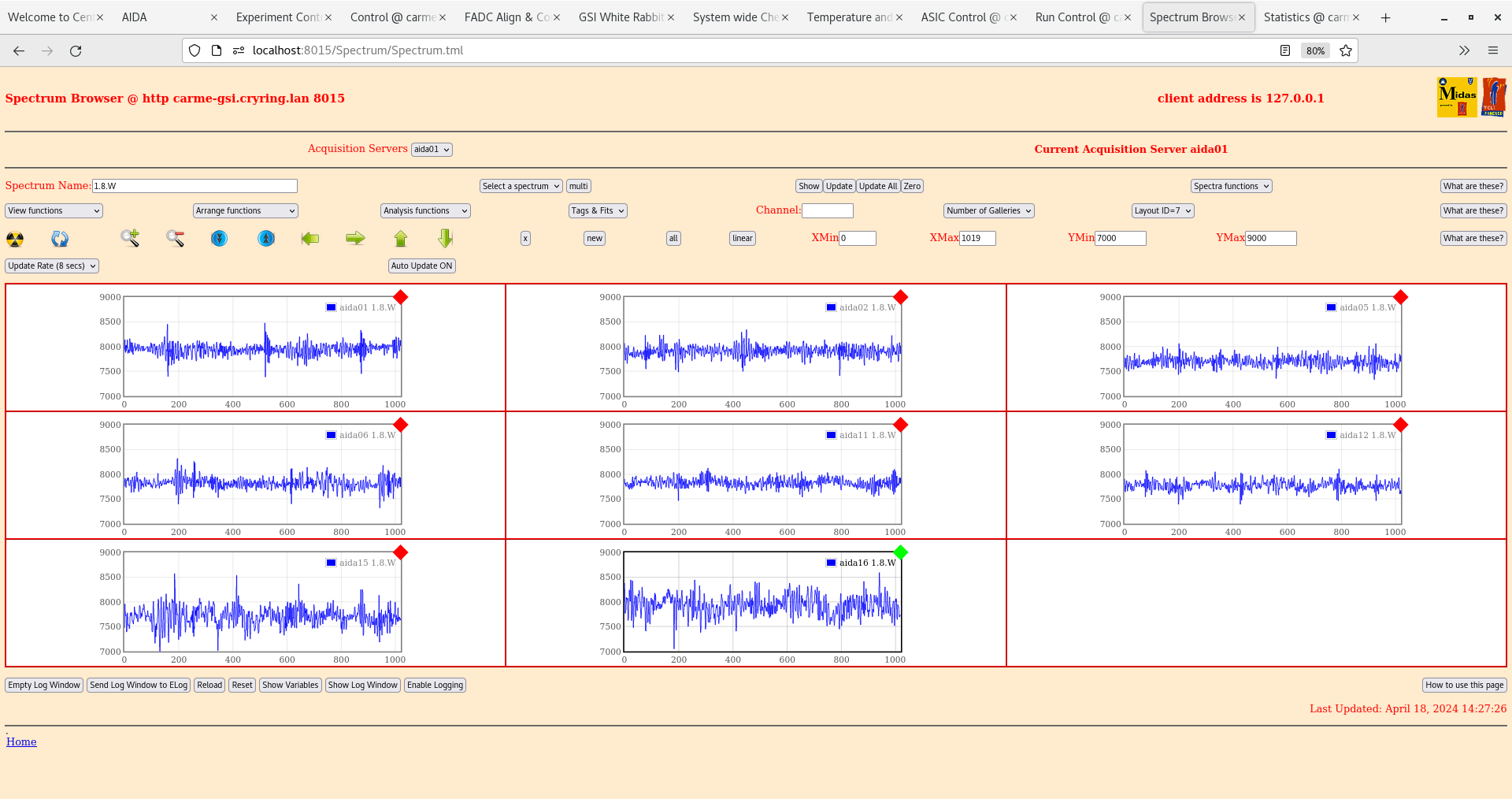

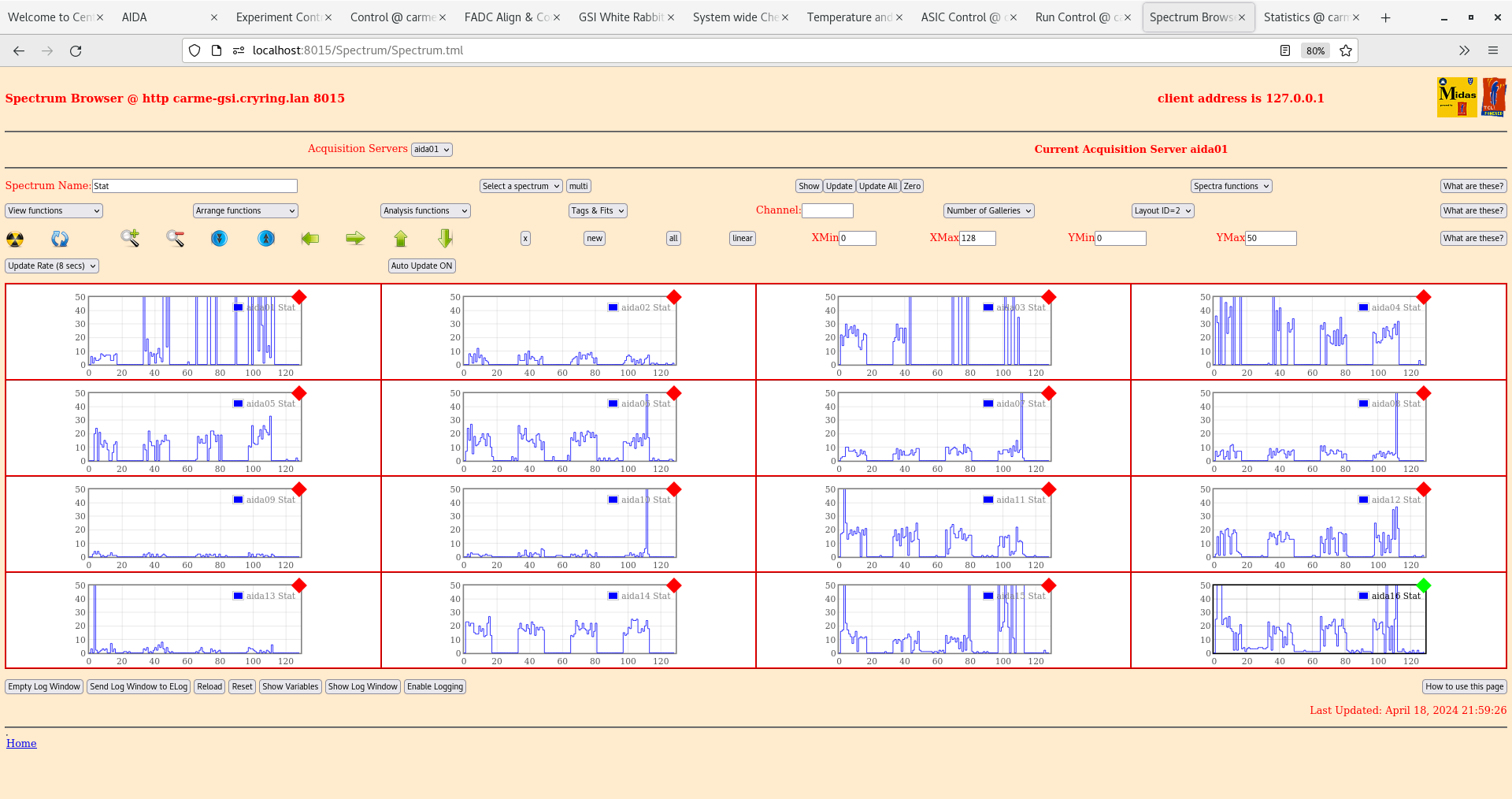

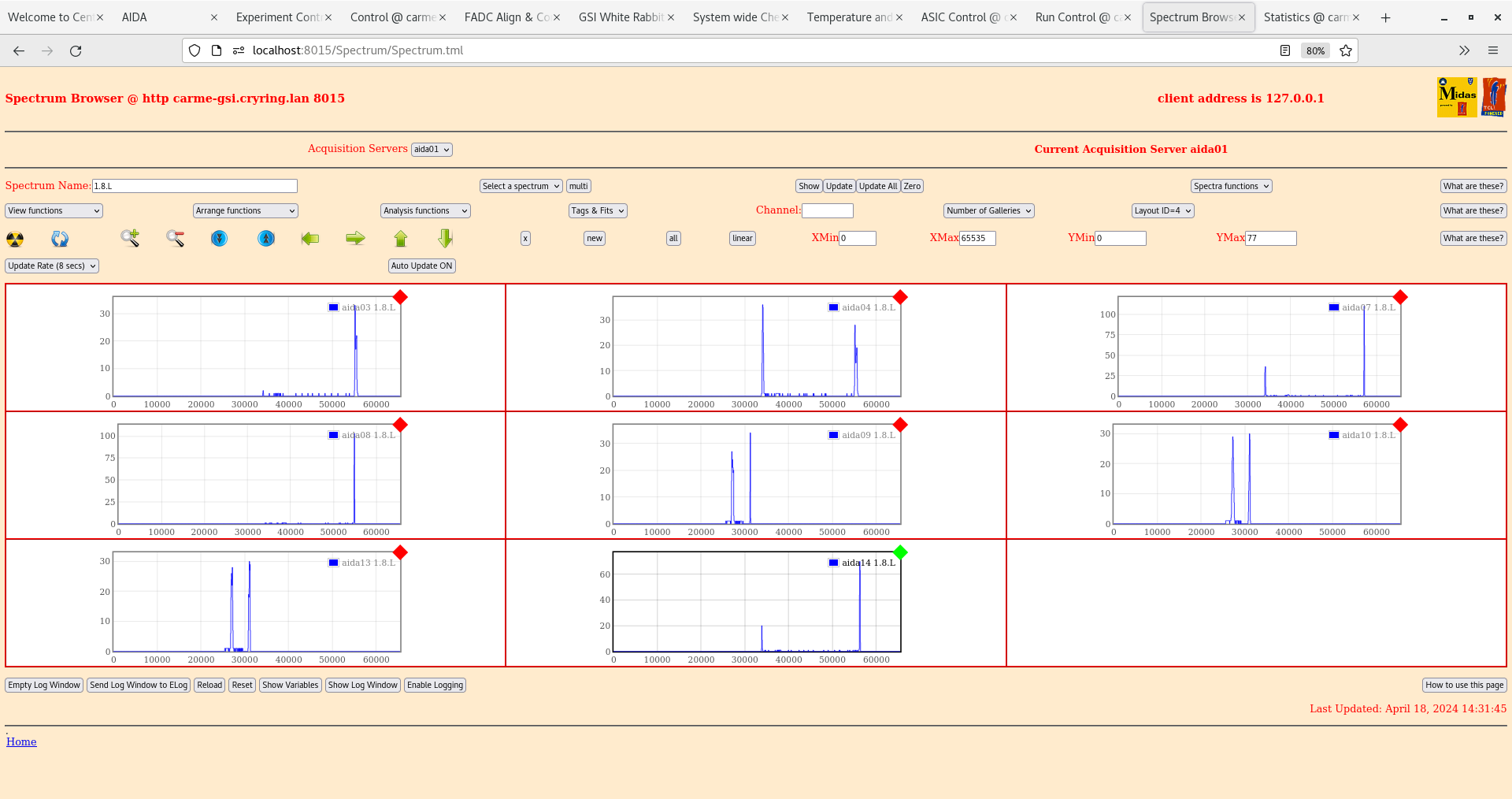

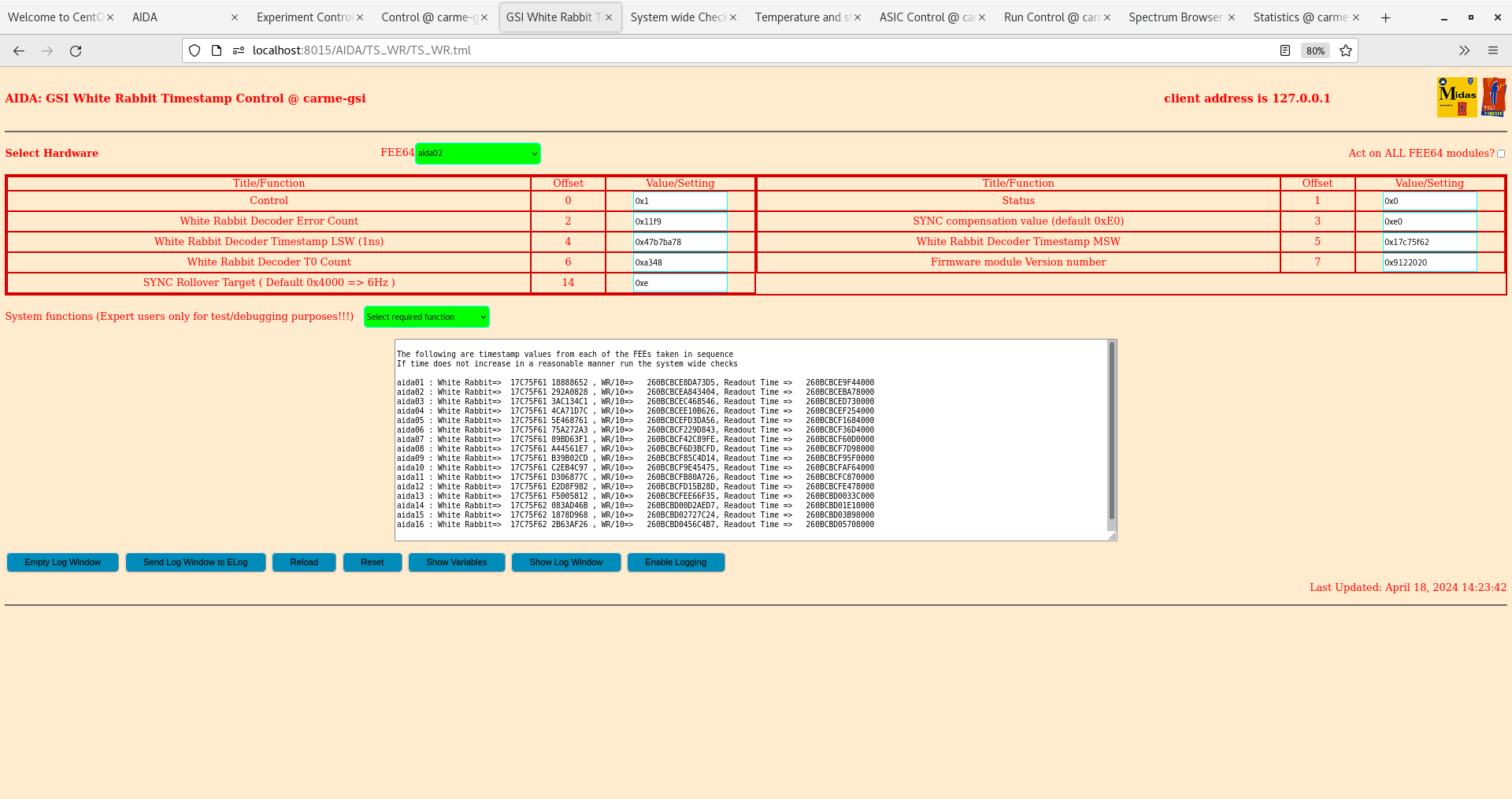

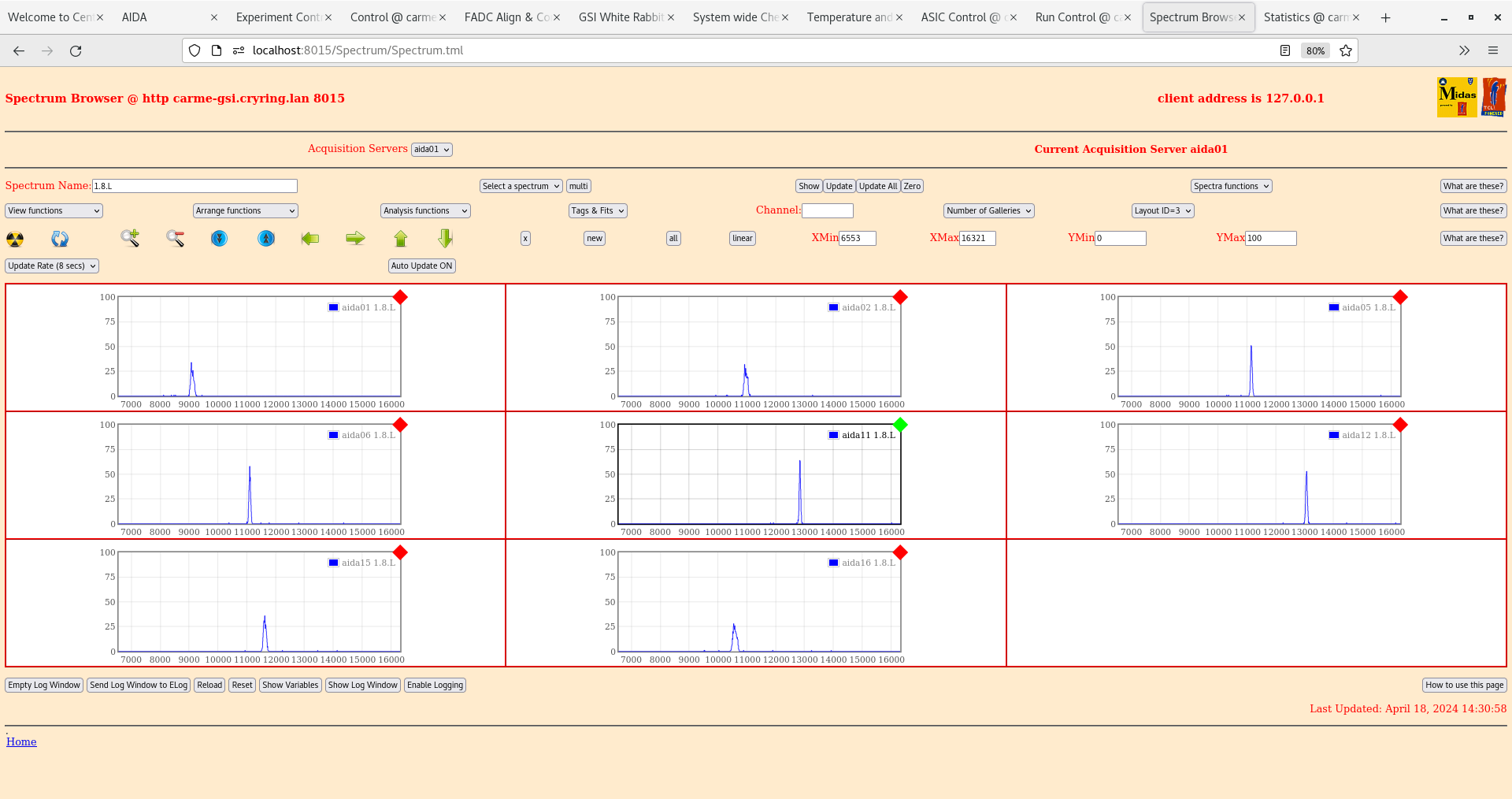

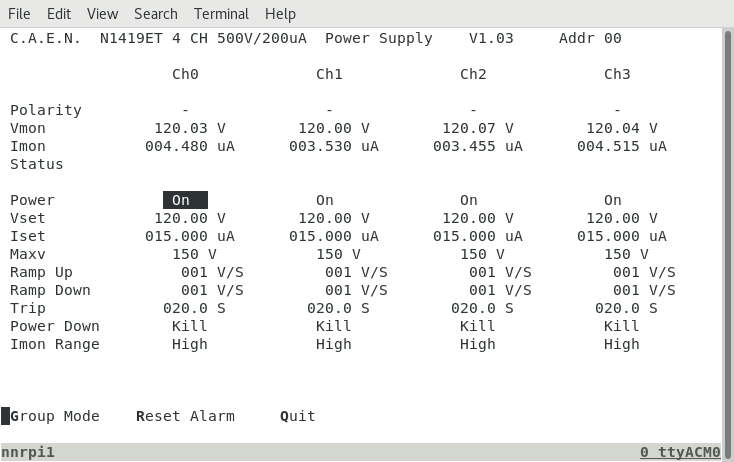

14.30 per FEE64 1.8.L spectra aida11 pulser peak width 52 ch FWHM 14.45 EG&G Ortec 448 Pulser OFF all stats & histograms zero'd alpha background 22.00 DSSSD bias and leakage current OK - attachment 10 FEE64 temperatures OK - attachment 11 ADC data item stats - attachment 12 per FEE64 Stat spectra - attachment 13 Comparison of attachment 9 (per FEE64 Rate spectra with pulser) indicates significant issues (downstream of adaptor PCB) for DSSSD #1 Possible issues asics #3 aida01 and possible adaptor PCB misalignment aida05
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 734x462
Attachment 2:
Original size: 1920x1014
Attachment 3:
Original size: 1920x1014
Attachment 4:
Original size: 1920x1014
Attachment 5:
Original size: 1920x1014
Attachment 6:
Original size: 1920x1014
Attachment 7:
Original size: 1920x1014
Attachment 8:
Original size: 1920x1014
Attachment 9:
Original size: 1920x1014
Attachment 10:
Original size: 734x462
Attachment 11:
Original size: 1920x1014
Attachment 12:
Original size: 1920x1014
Attachment 13:
Original size: 1920x1014
Attachment 14:
