Entry time:
Sun Jun 2 14:30:16 2024
Author
*
:
Subject
*
:

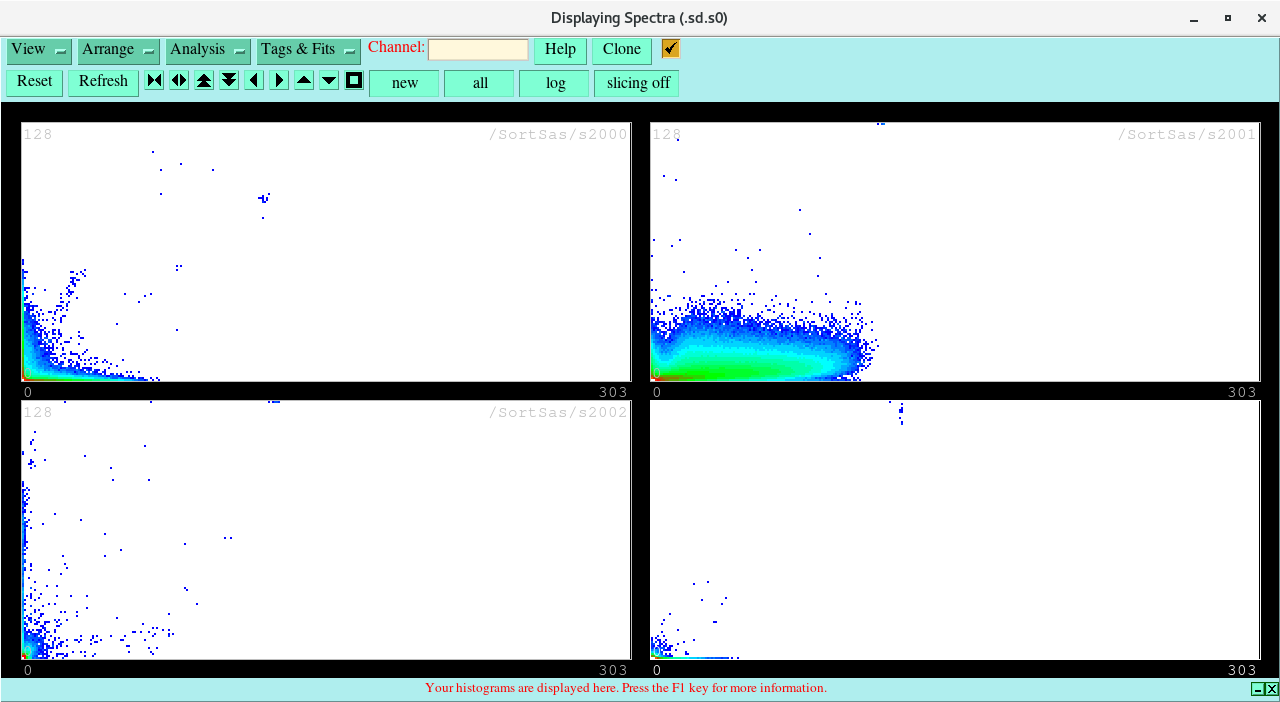

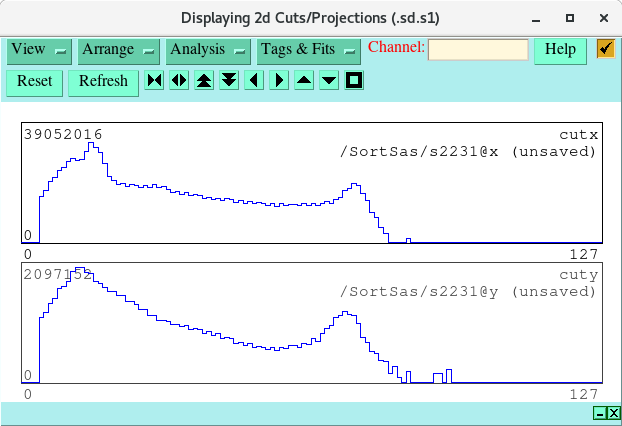

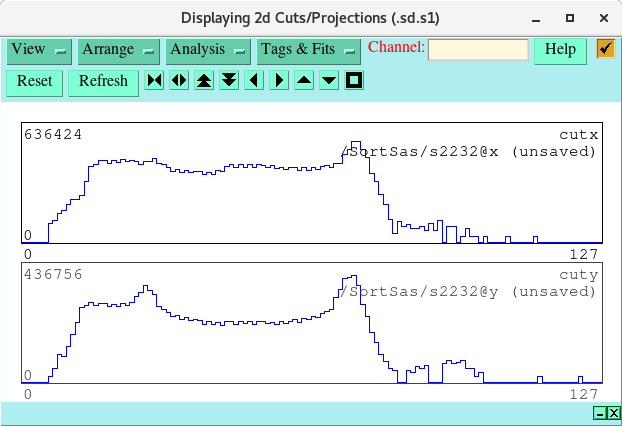

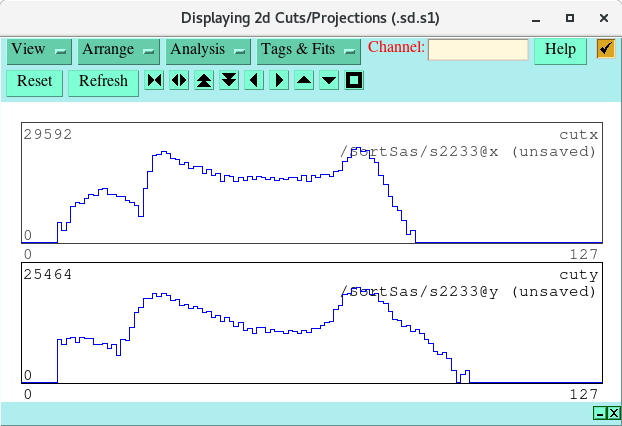

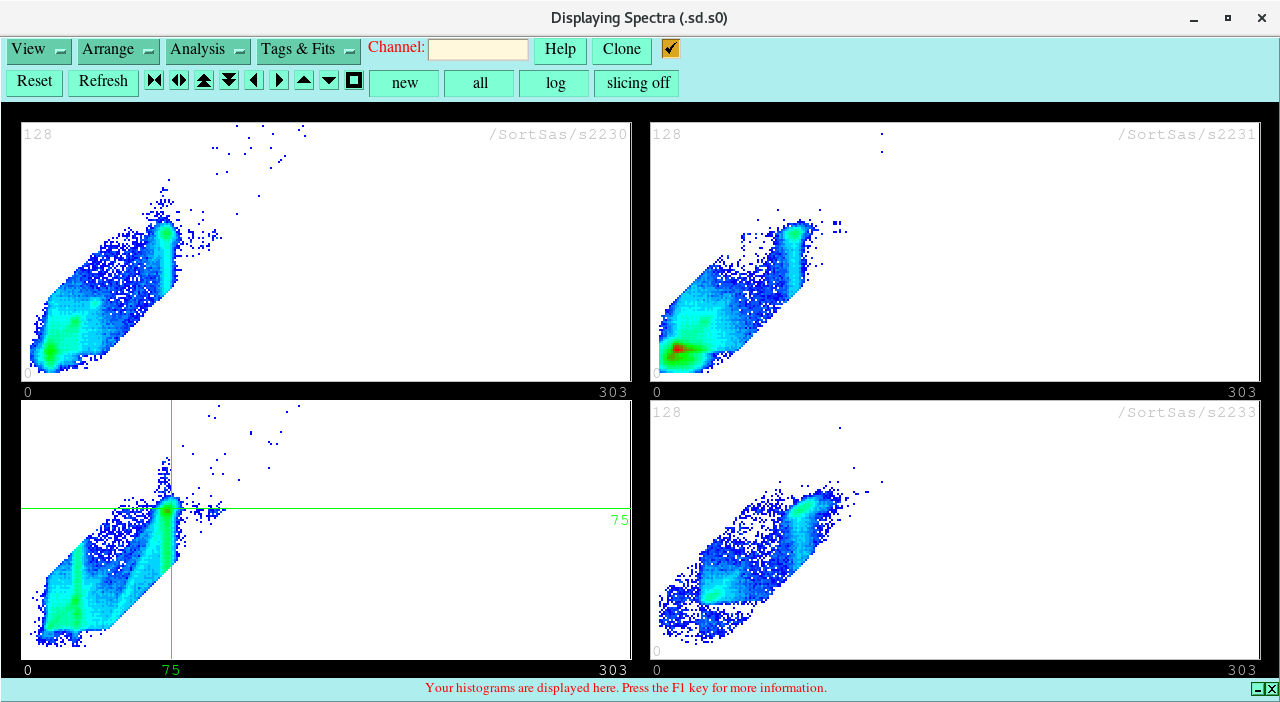

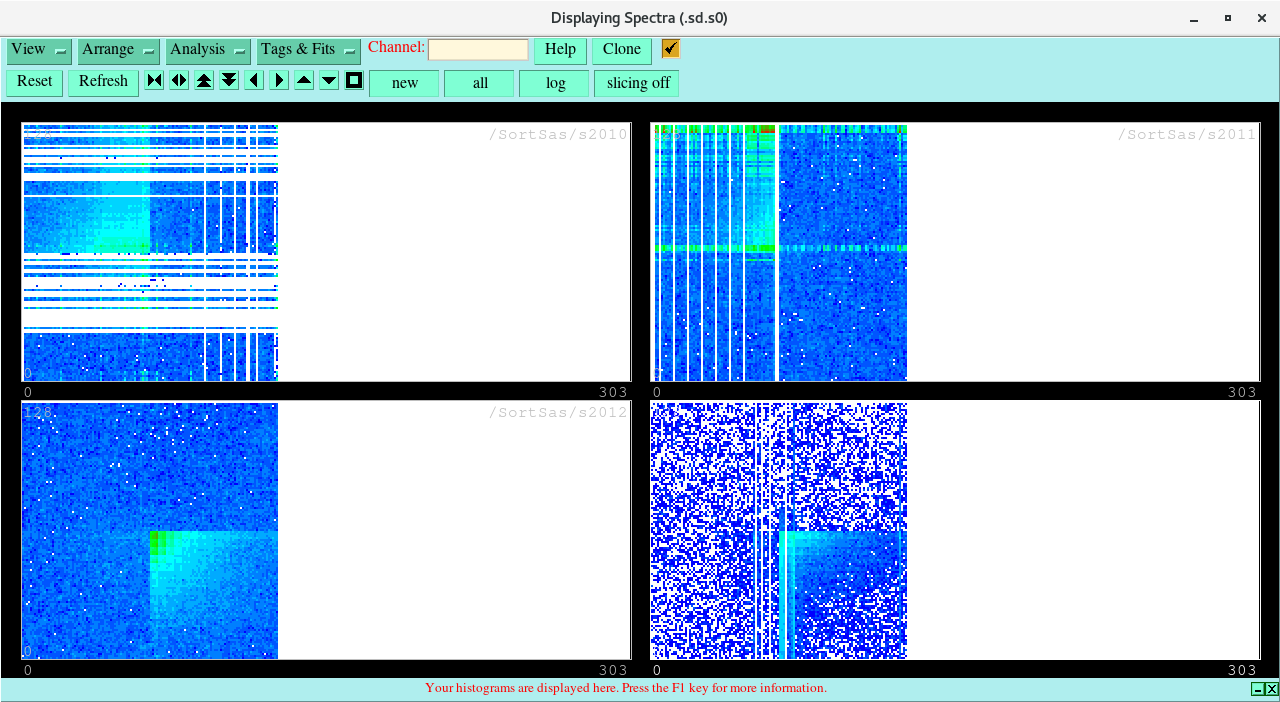

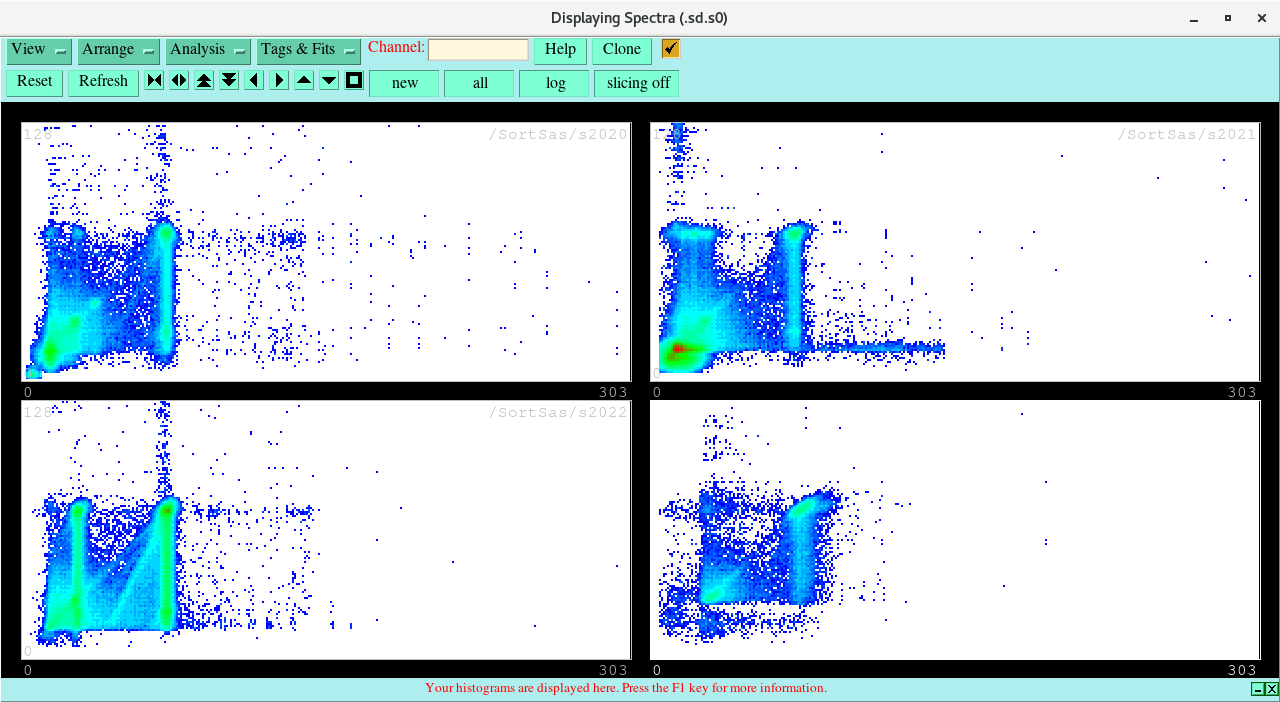

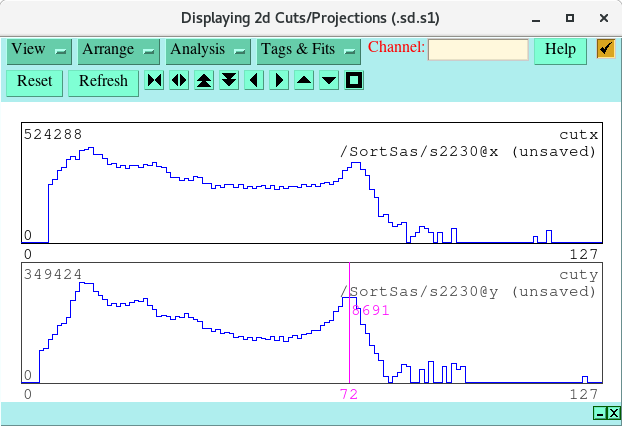

Offline analysis data file G22-201/R22_0 to R22_11 Sort program variables https://elog.ph.ed.ac.uk/CARME/240530_180659/variables.dat ADC data corrected for ADC offset but not gain per DSSSD m_p verus m_n - attachment 1 For spectra below events must satisfy condition 0 < m_p < 8 *and* 0 < m_n < 8 per DSSSD p+n junction strip versus n+n Ohmic strip - attachment 2 note - x/y channel ordering to be checked per DSSSD E_p versus E_n - attachment 3 20keV/channel nominal per DSSSD E_p versus E_n - attachment 4 gated w(1) & w(2) 20keV/channel nominal per DSSSD projection of gated E_p versus E_n spectra - attachments 5-8 20keV/channel nominal
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 1280x702
Attachment 2:
Original size: 1280x702
Attachment 3:
Original size: 1280x702
Attachment 4:
Original size: 1280x702
Attachment 5:
Original size: 622x426
Attachment 6:
Original size: 622x426
Attachment 7:
Original size: 622x426
Attachment 8:
Original size: 622x426
