Entry time:

Sat Sep 4 15:54:50 2021

Author*:

Subject*:

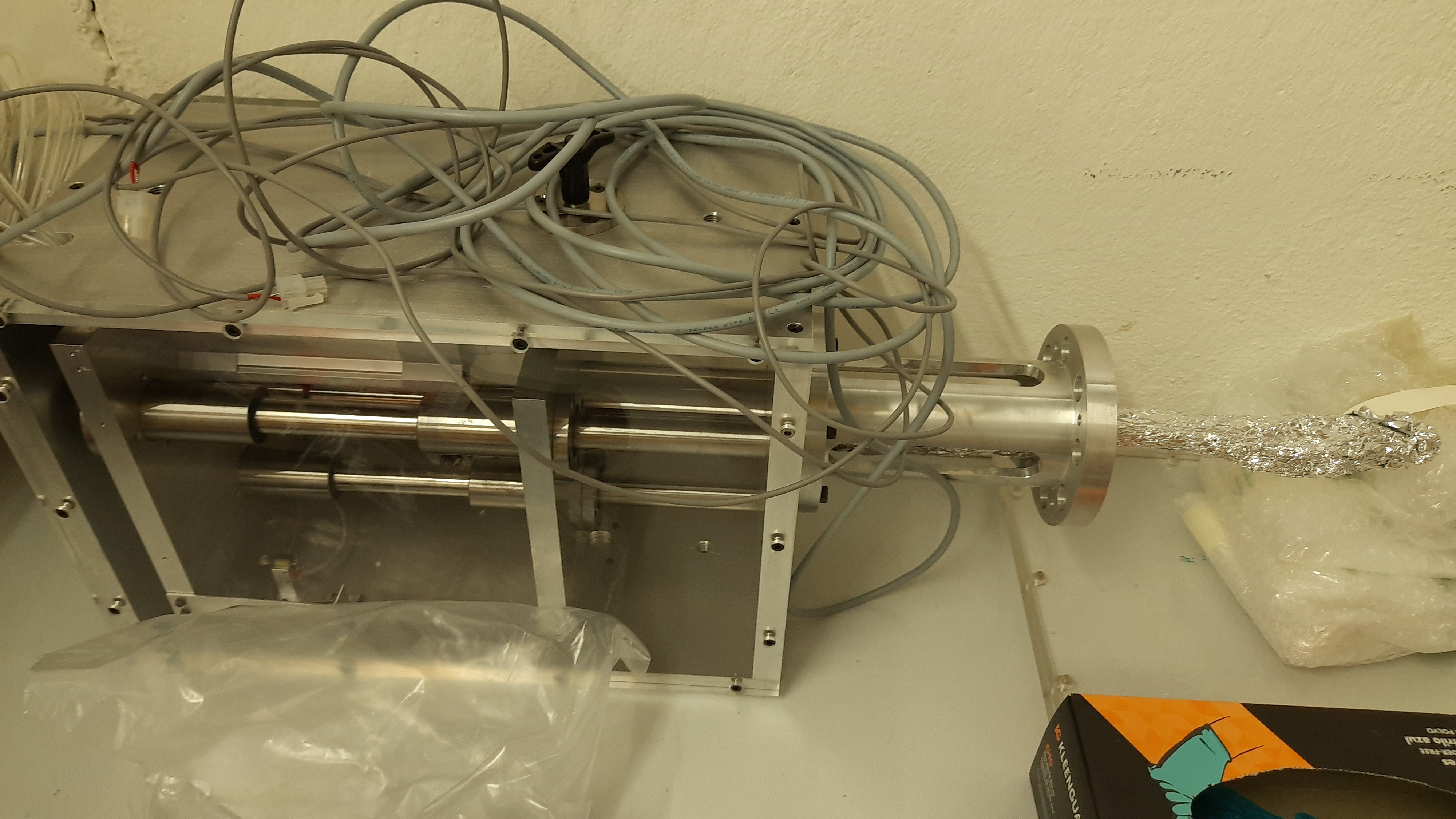

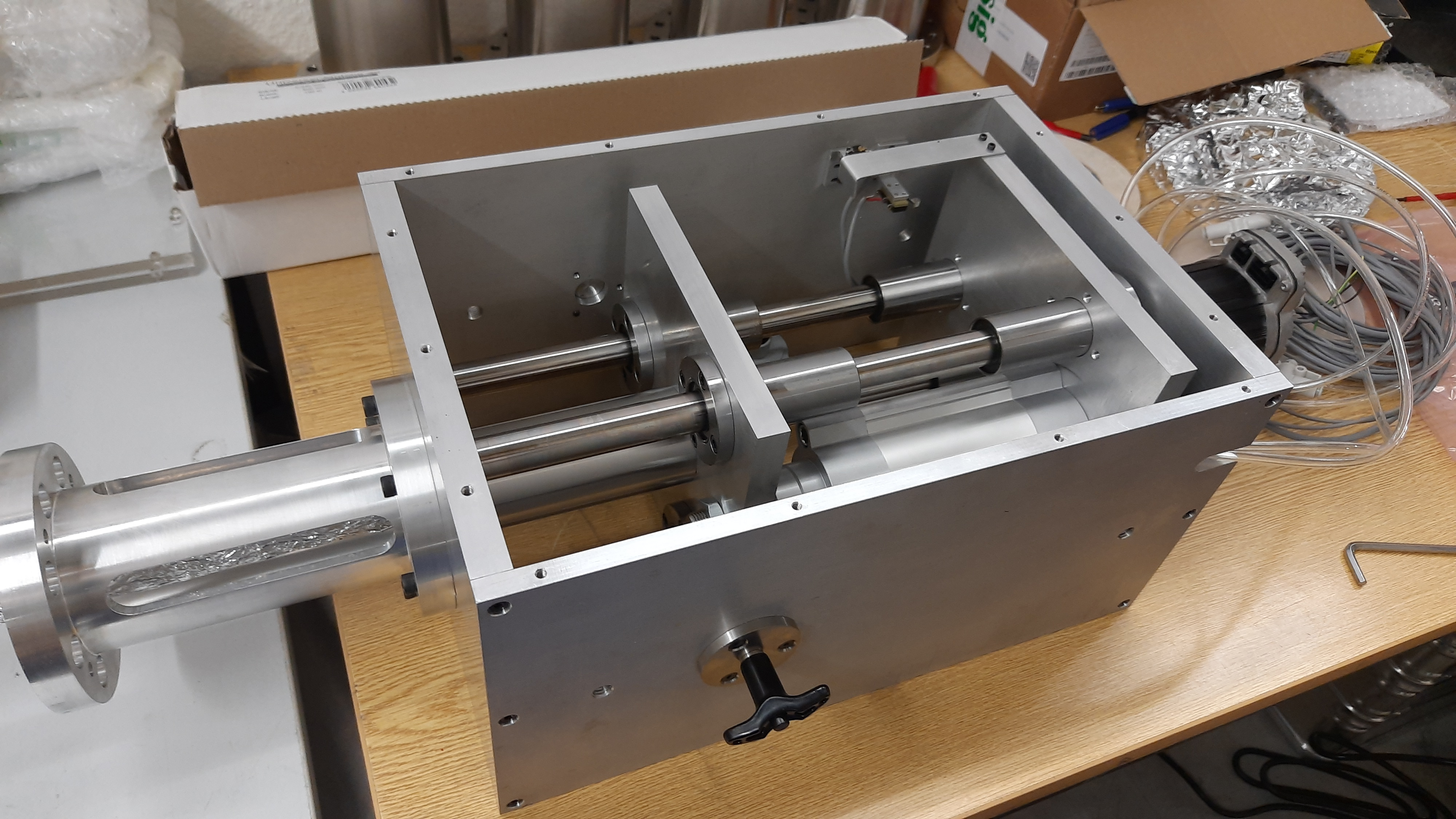

Prepared the motors to be mounted and
found all components required. No issues.
May have to partly dismount again to fix
bellows depending on ease of mounting.

Note extremely long screws mentioned in
previous Elog inventory are to be used for
the motors.

Attempted to swap Pirani gauge with ours
but realised it's CF and needs appropriate
port without risk of baking. That port
would be on the interaction chamber which
is not going to be mounted. Will probably
keep using ABD gauge for now.

Peter spotted mistake in mounting front
foot of CARME which is back to front.
Correct mount will gain us 2-3 cm but will
conflict with current CARME position fixed
by tube on the back. Will discuss options
with ML.

Motor mounting to take place on Mon with
local technical support. No activities
tomorrow unless a solution for the clamps
mentioned in previous entry is found (i.e.
what size bolts go on top). Peter will
check step file and we will consult with
local engineers on Mon pm.
