Mounted both  motors on CARME. Started
with outside motor.

M6x160 screws proved slightly too long to
fix bellows to rod and seal the vacuum.
Had to be manually shortened by 1 cm
roughly.

Mounted whole assembly but could not fix
actuator rod to moving plate due to holes
mis-alignment.

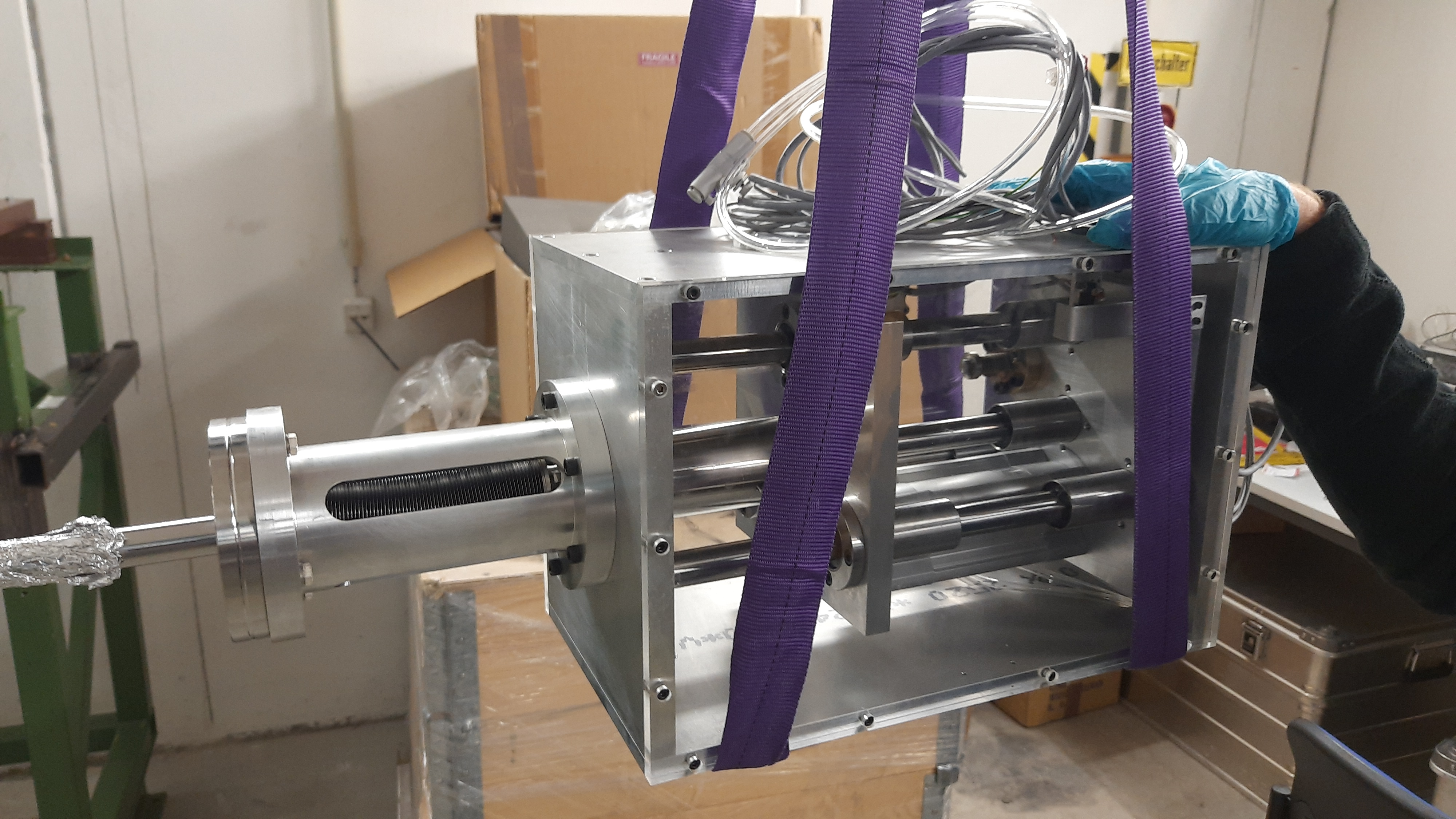

Mounted motor on CARME but could not align
holes on flange and chamber without

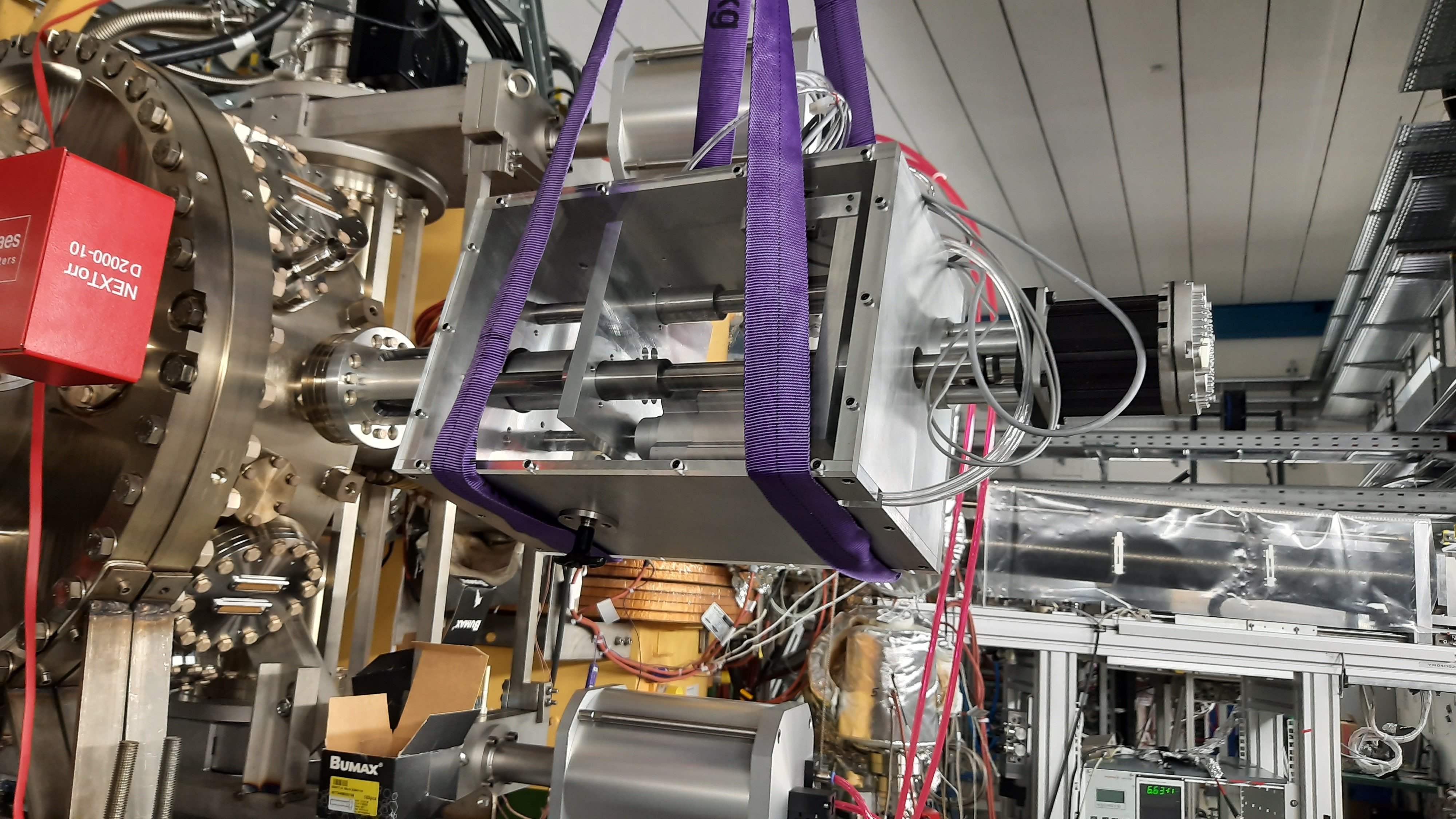

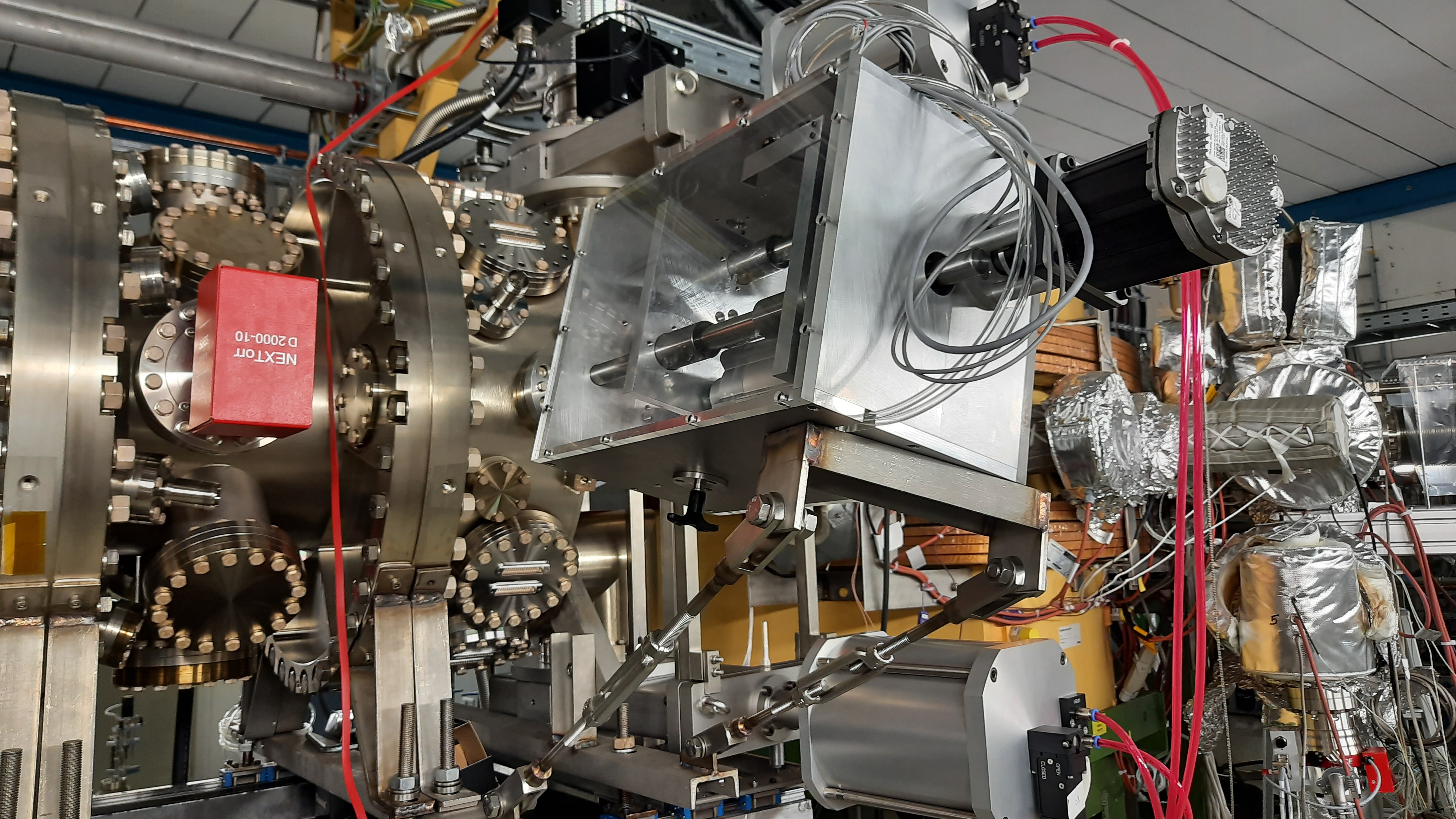

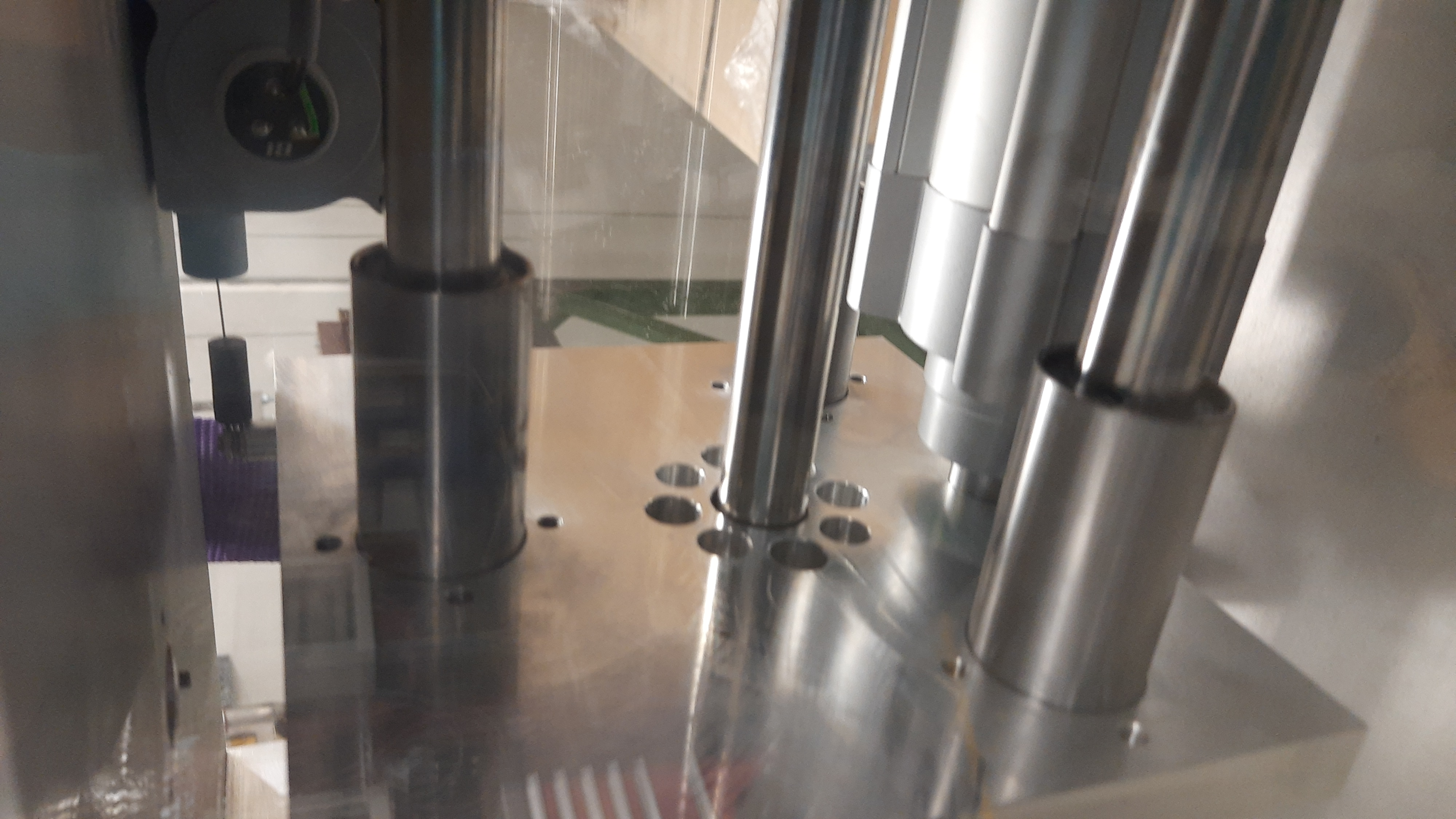

turning motor to the side... see attach 3 and 4

Got in contact with Peter over lunch and
understood issue.

Mounted second motor with experience
acquired. No issues. All screws go in.

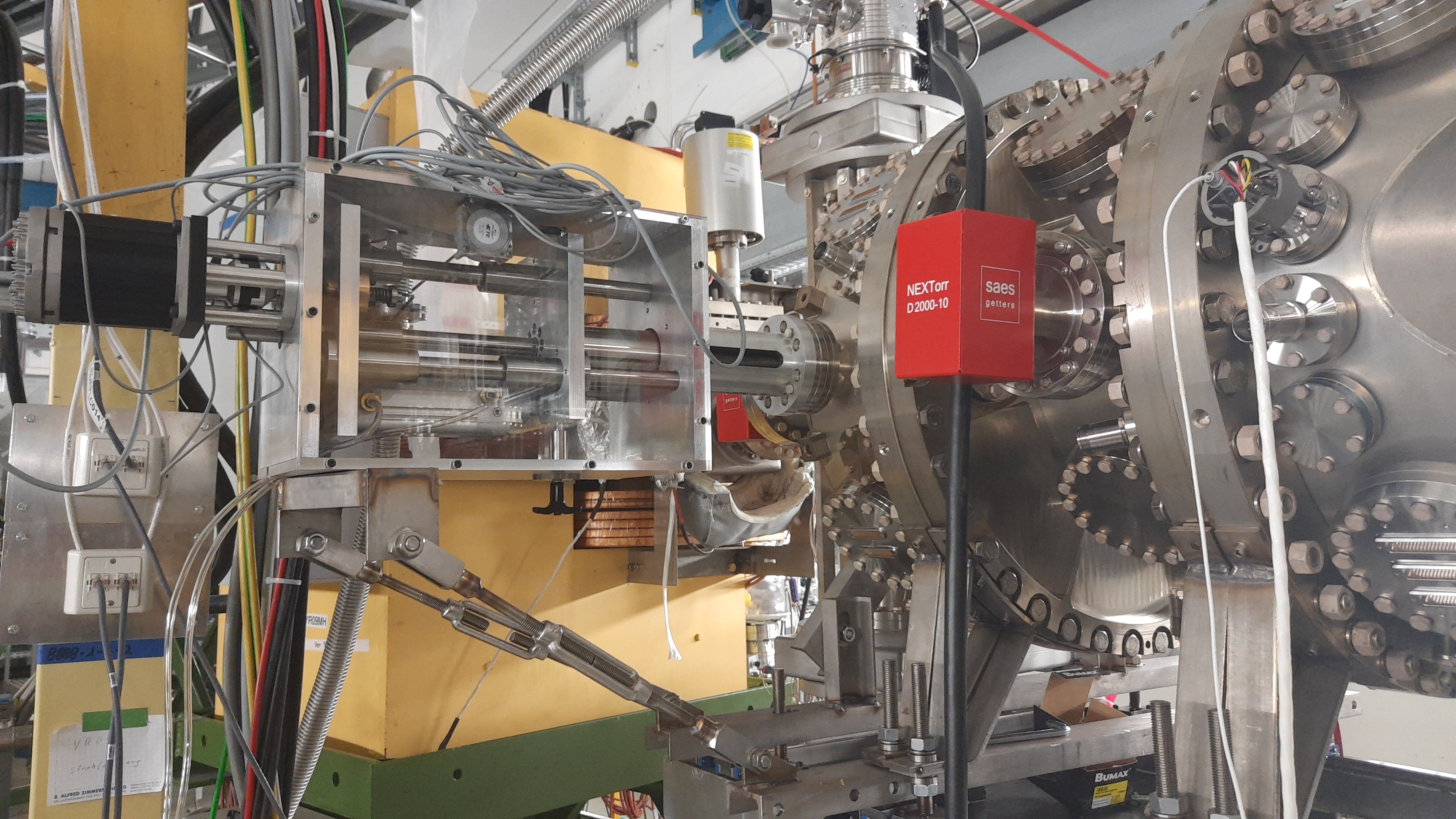

Motor box level. See attach 5

Will need to dismount / remount first
motor box before pumping down. Currently
secure on CARME thanks to adjustable
support.

Note we forgot to buy DN 40 CF gaskets. ML
supplied a few. Will buy more. Needed
between bellows and rod.

Strain relief mentioned in previous ELOG
entry was taken to workshop and hole re-
drilled. Workshop reports other hole is OK
for M3 screw. Either screw used or hole
were poorly machined. M3 screws should be
correct. Re-machined part sent for
cleaning.

Will try with clean parts again tomorrow
unless we remount motors.

Activities for the day cut shorter due to
SPARC meeting this week.
