Entry time:
Sat Jun 8 10:13:52 2024
Author
*
:
Subject
*
:

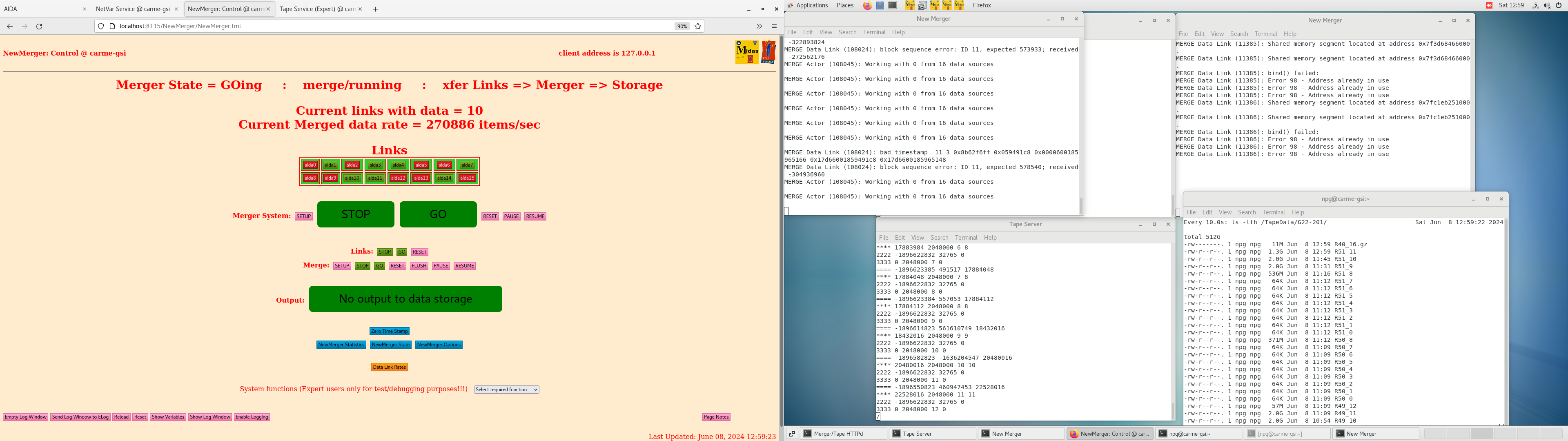

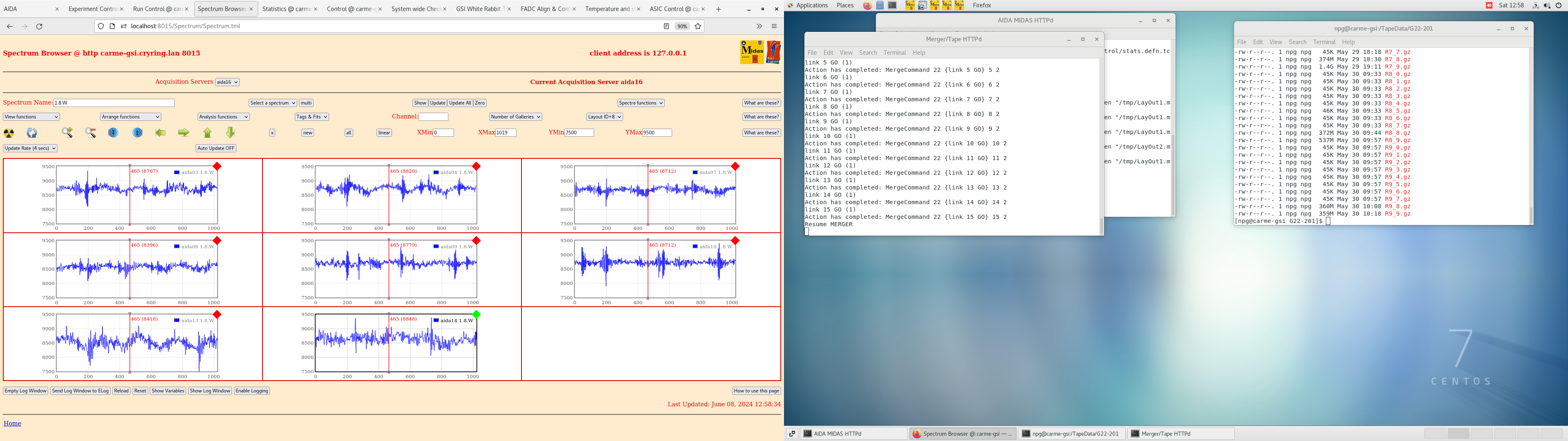

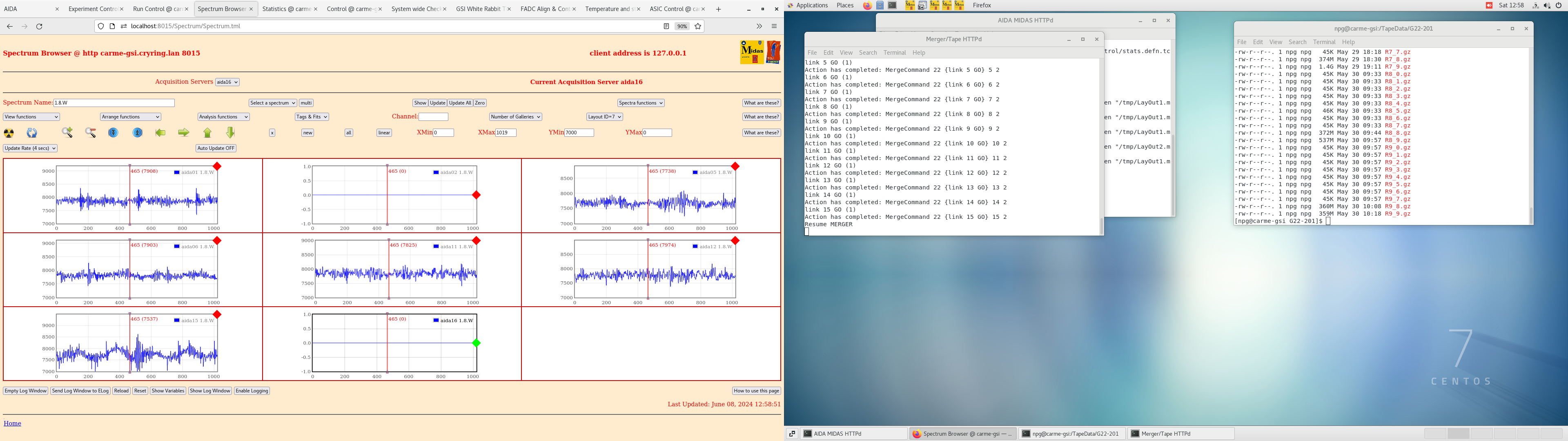

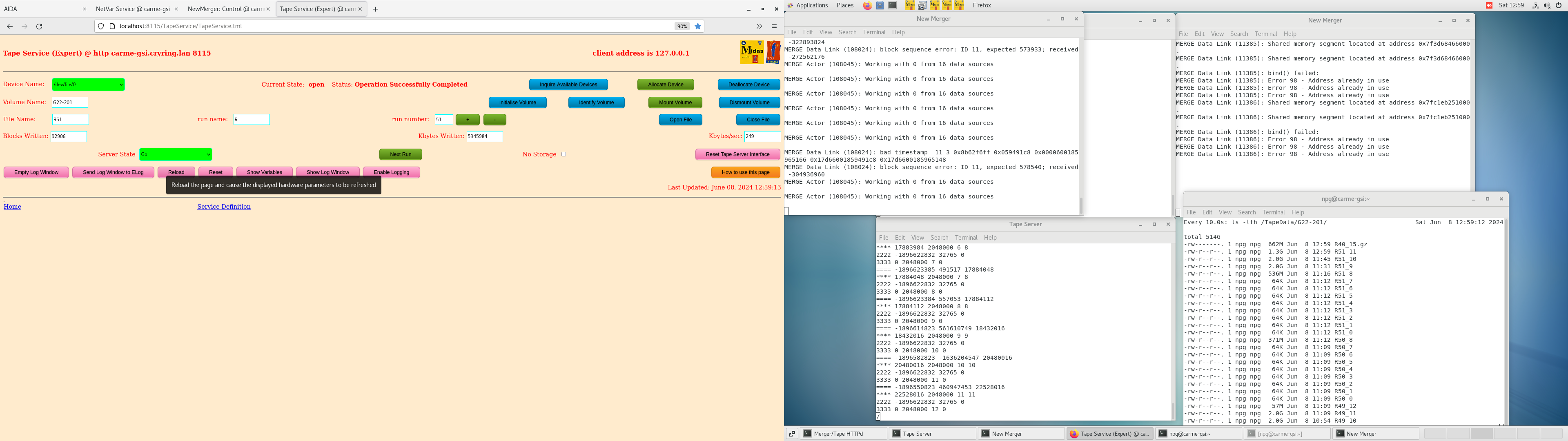

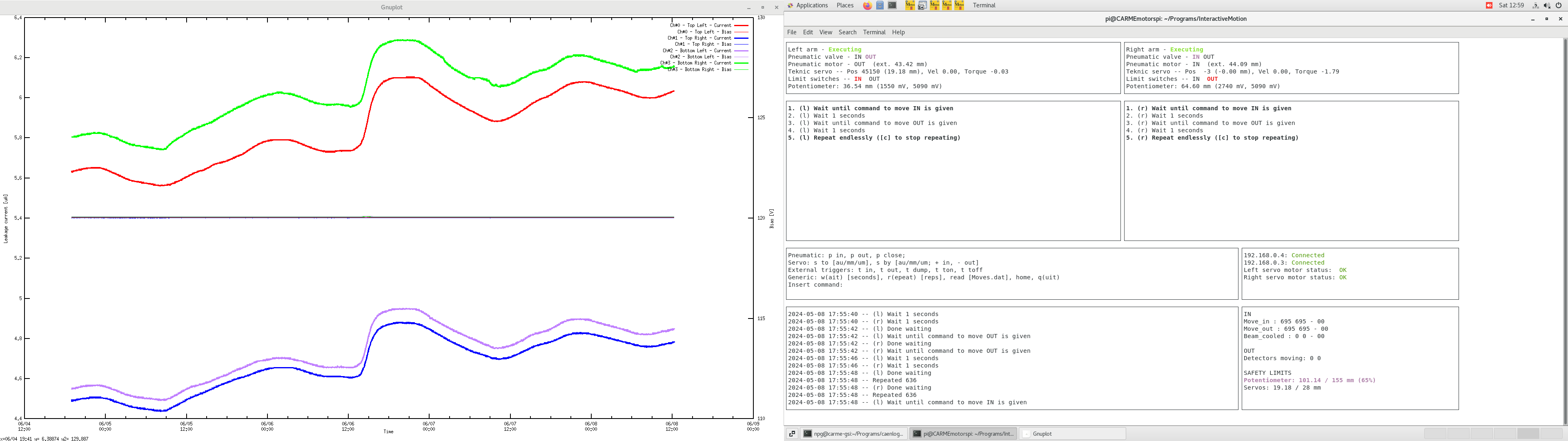

<p><strong>11:13</strong></p> <p>ML enabled ring signals remotely.</p> <p>Used FakeMotion.dat (read FakeMotion.dat from InteractiveMotion.x).</p> <p>Started run 50.</p> <p> </p> <p>Cooler voltage moved up by 0.1 V. Did not refocus.</p> <p>Setpoint = 244.4 V</p> <p>Read = 243.85 V</p> <p>Collector current = 4.3 mA</p> <p> </p> <p>Target thickness 3.4E11 atoms/cm2 now stable</p> <p>Injection 1-4E7 ions</p> <p> </p> <p>Realised motors were not in.</p> <p>Moved detectors in (36.54 / 64.60 mm)</p> <p>Started run 51. Ignore run 50.</p> <p> </p> <p><strong>11:46</strong></p> <p>Realised the left half of DSSD BL was not counting. Checkloaded. Fixed it.</p> <p> </p> <p><strong>12:00</strong></p> <p>Fire alarm? Stopped later. EM thinks it is a test.</p> <p> </p> <p><strong>13:00</strong></p> <p>Run continues.</p> <p>Rates OK. Merger OK. Writing to disk back to 200 kB/s. Nothing changed, reasons unclear.</p> <p>FakeMotion.dat continues</p> <p>System wide checks as before</p> <p>Temperatures OK</p> <p> </p> <p><strong>13:36</strong></p> <p>Beam lost. Called HKR. Detectors out. Run continues. FakeMotion stopped</p> <p><strong>14:09</strong></p> <p>Beam is back. Detectors back in. FakeMotion.dat restarted.</p> <p> </p> <p>15.10 High rates observed aida01-auida04 ( c. 250k/FEE64)</p> <p> Cycled Left Servo</p> <p> Rates normal</p> <p> </p>
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 3840x1080
Attachment 2:
Original size: 3840x1080
Attachment 3:
Original size: 3840x1080
Attachment 4:
Original size: 3840x1080
Attachment 5:
Original size: 3840x1080
Attachment 6:
Original size: 3840x1080
Attachment 7:
Original size: 3840x1080
Attachment 8:
Original size: 3840x1080
