23:15 New run 56 with

Right arm at 64.60 mm

Left arm IN at 36.54 mm

MBS working - hopefully

Target 4E11

Injection ca. 4E7

horizontal beam position 8.75 mm

vertical beam position&nbsp; -5mm

      Changed electron cooler set point to 244.3 V

Read value 243.757 V

Collector current 4.31A

Rates OK. Temps OK

00.30 DAQ continues file G22-201/R56_9

DSSSD bias & leakage current OK - attachment 1

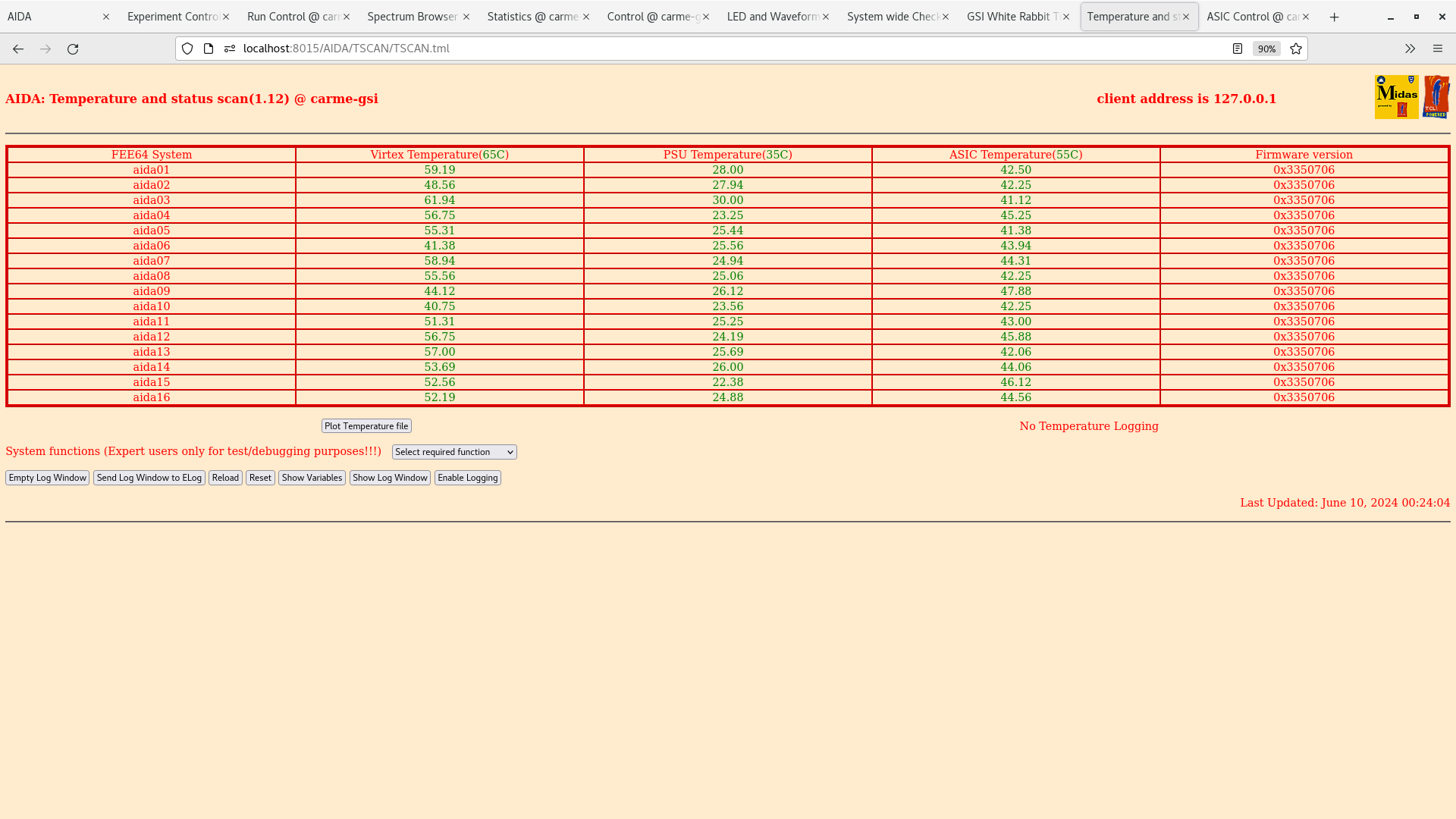

FEE64 temperatures OK - attachment 2

ADC data item stats - attachment 3

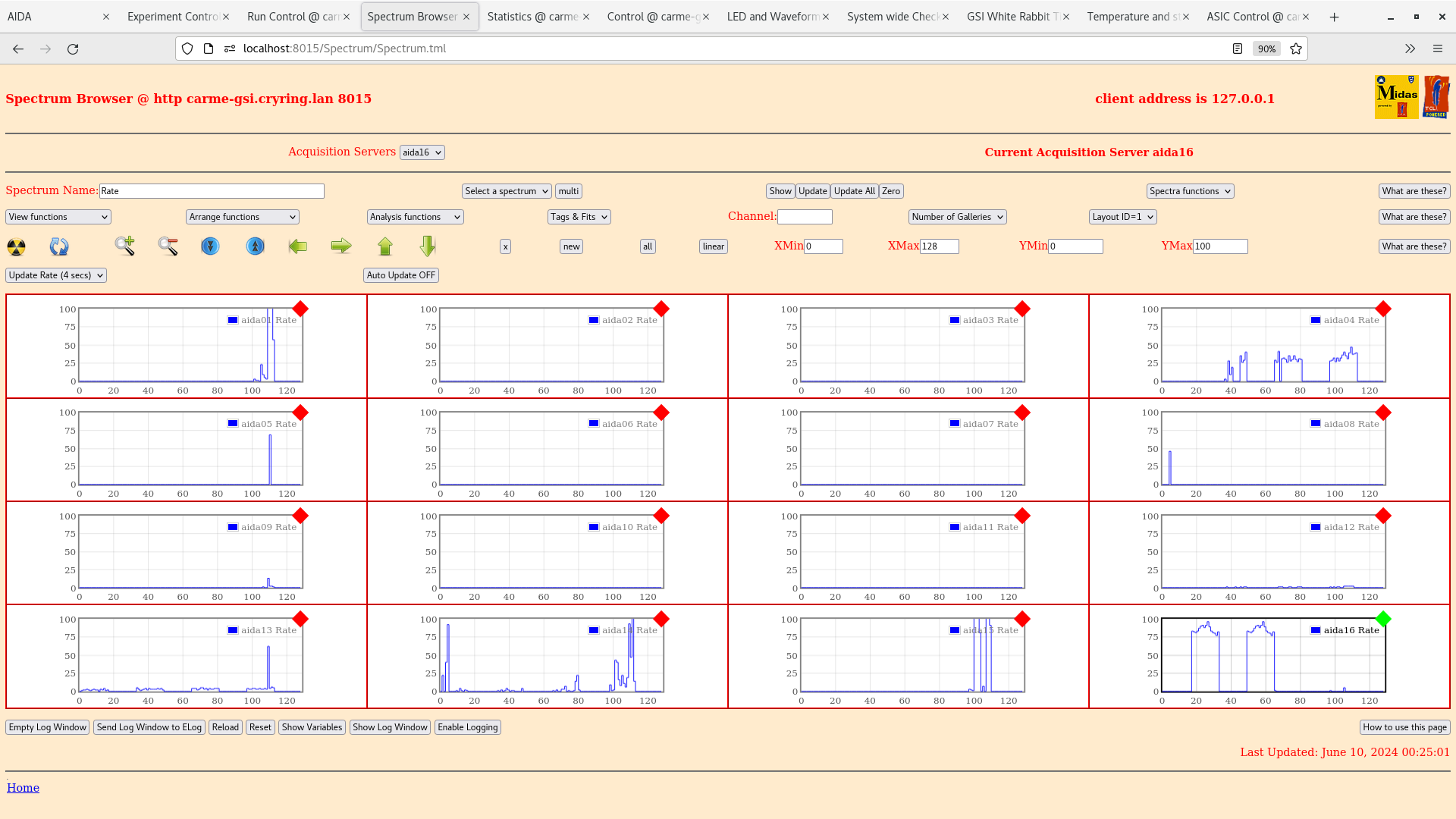

per FEE64 Rate spectra - attachment 4

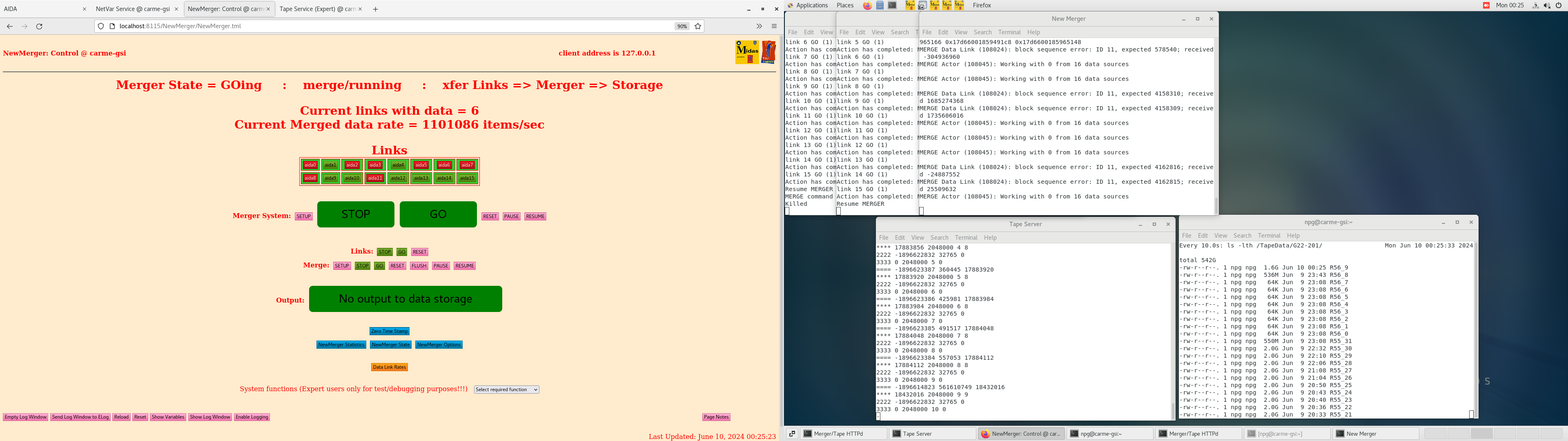

Merger etc - attachment 5

DSSSD bias & leakage current log, CRYRING hall ambient temperature log - attachments 6-7

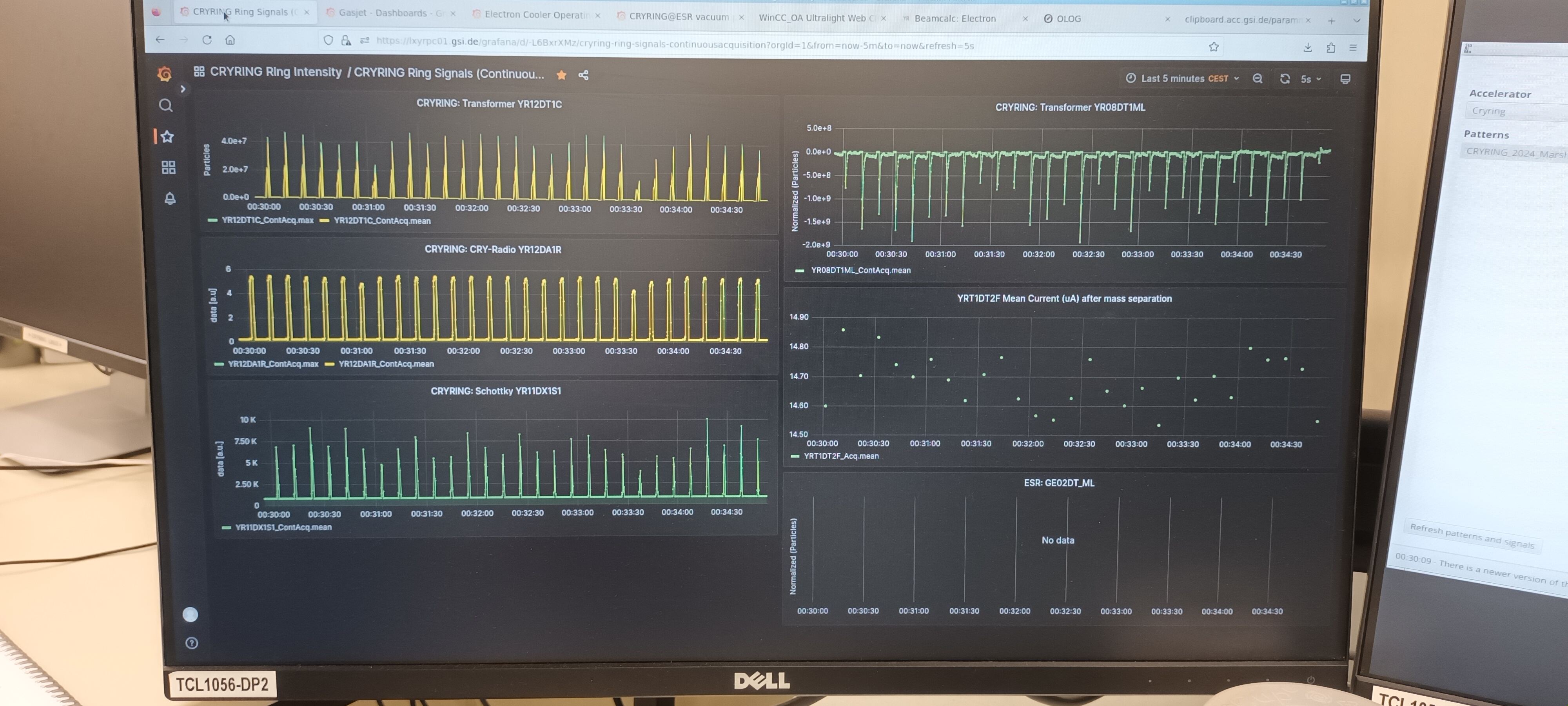

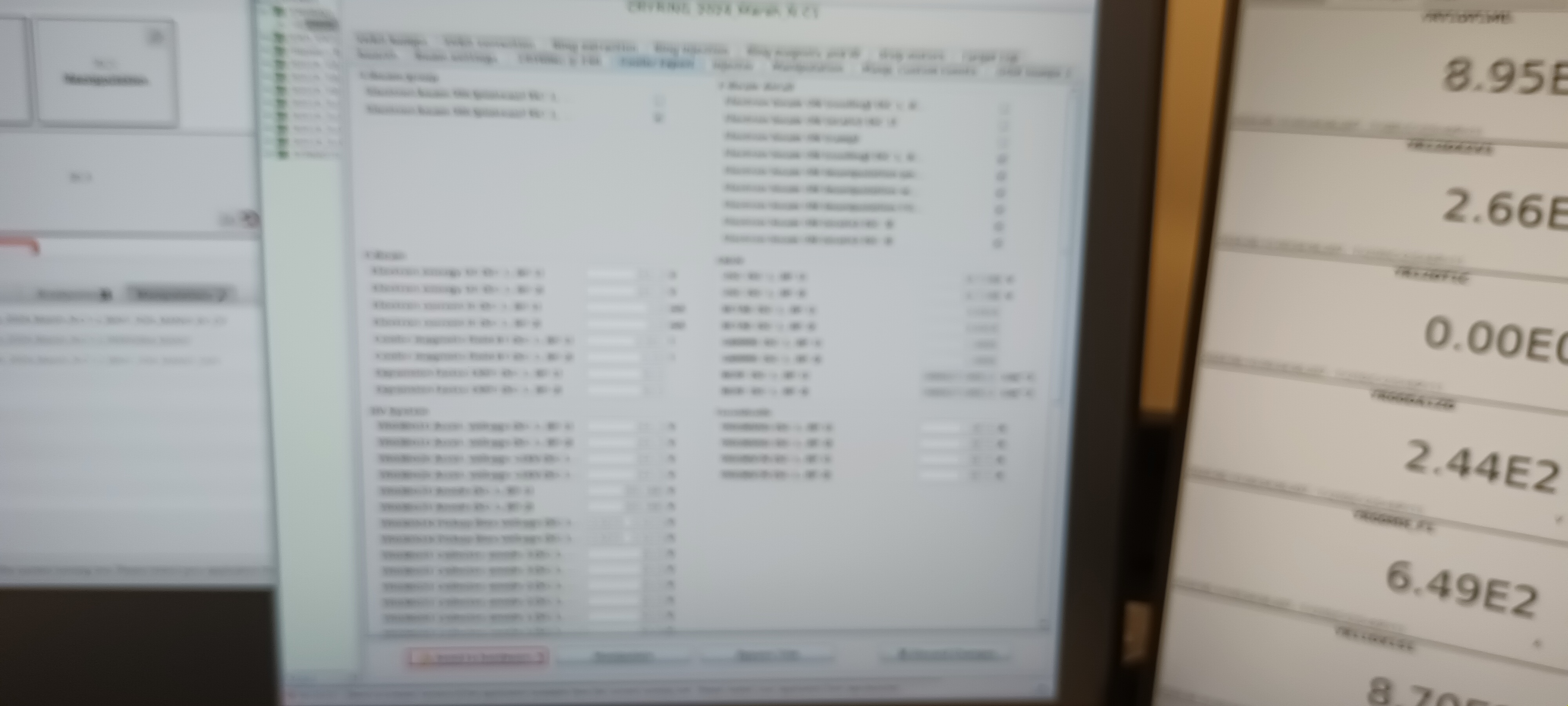

01.30 Photographs of current CRYRING controls - attachments 8-14

01.30 DAQ continues file G22-201/R56_14

DSSSD bias & leakage current OK - attachment 15

FEE64 temperatures OK - attachment 16

ADC data item stats - attachment 17

per FEE64 Rate spectra
       aida16 asics # 1 & # 2 HEC data - attachment 18
       aida16 ASIC load check x2 restores normal operation - attachment 19

target 5e+11 stable, beam 4e+7 stable

02.45 beam off - reported to HKR

DAQ continues file G22-201/R56_16

03.00 beam back

beam 4e+7 stable, target 5e+11 stable

DSSSD bias & leakage current OK - attachment 20

FEE64 temperatures OK - attachment 21

ADC data item stats - attachment 22

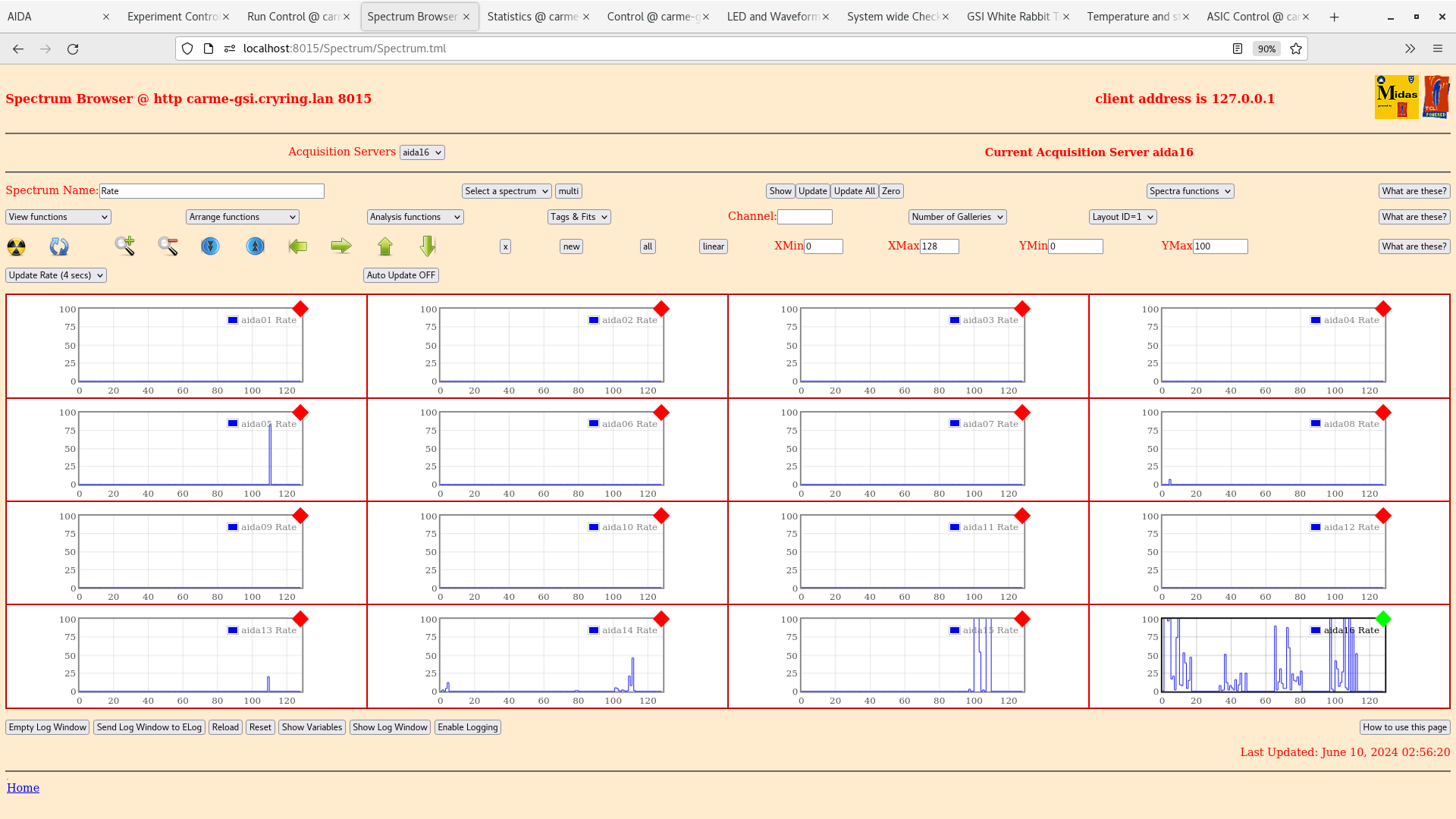

per FEE64 Rate spectra - attachment 23

04.20 DAQ continues file G22-201/R56_21

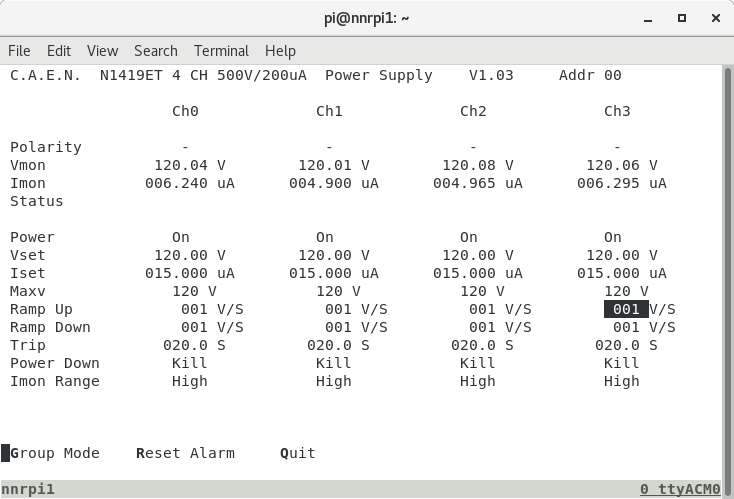

DSSSD bias & leakage current OK - attachment 24

FEE64 temperatures OK - attachment 25

ADC data item stats - attachment 26

per FEE64 Rate spectra - attachments 27

Cycle L DSSSDs per https://elog.ph.ed.ac.uk/CARME/603

06.04 DAQ continues file G22-201/R56_21

DSSSD bias & leakage current OK - attachment 28

FEE64 temperatures OK - attachment 29

ADC data item stats - attachment 30

per FEE64 Rate spectra - attachments 31

beam 4e+7 stable, target 4e+11 stable
