Entry time:

Mon Jun 10 05:24:49 2024

Author*:

Subject*:

06:45 New data file G22-201/R57

Right arm at 64.60 mm

Left arm IN at 36.54 mm

horizontal beam position 8.75 mm

vertical beam position -5mm

      Changed electron cooler set point to 244.4 V

Read value 243.851 V

Collector current 4.31A

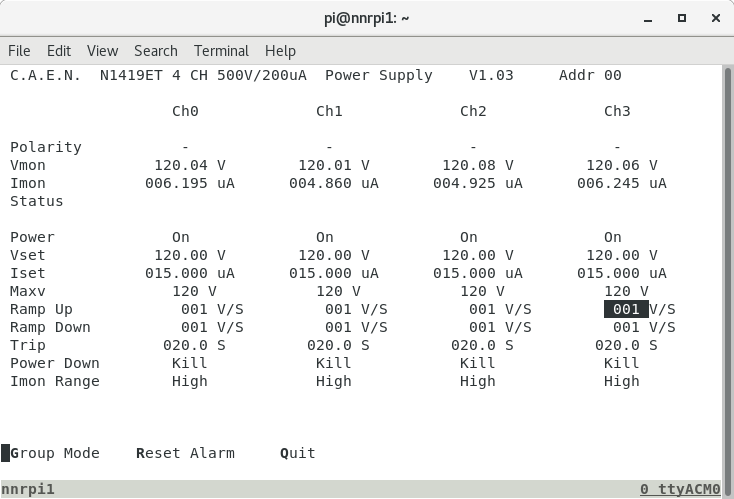

DSSSD bias & leakage current OK - attachment 1

FEE64 temperatures OK - attachment 2

ADC data item stats - attachment 3

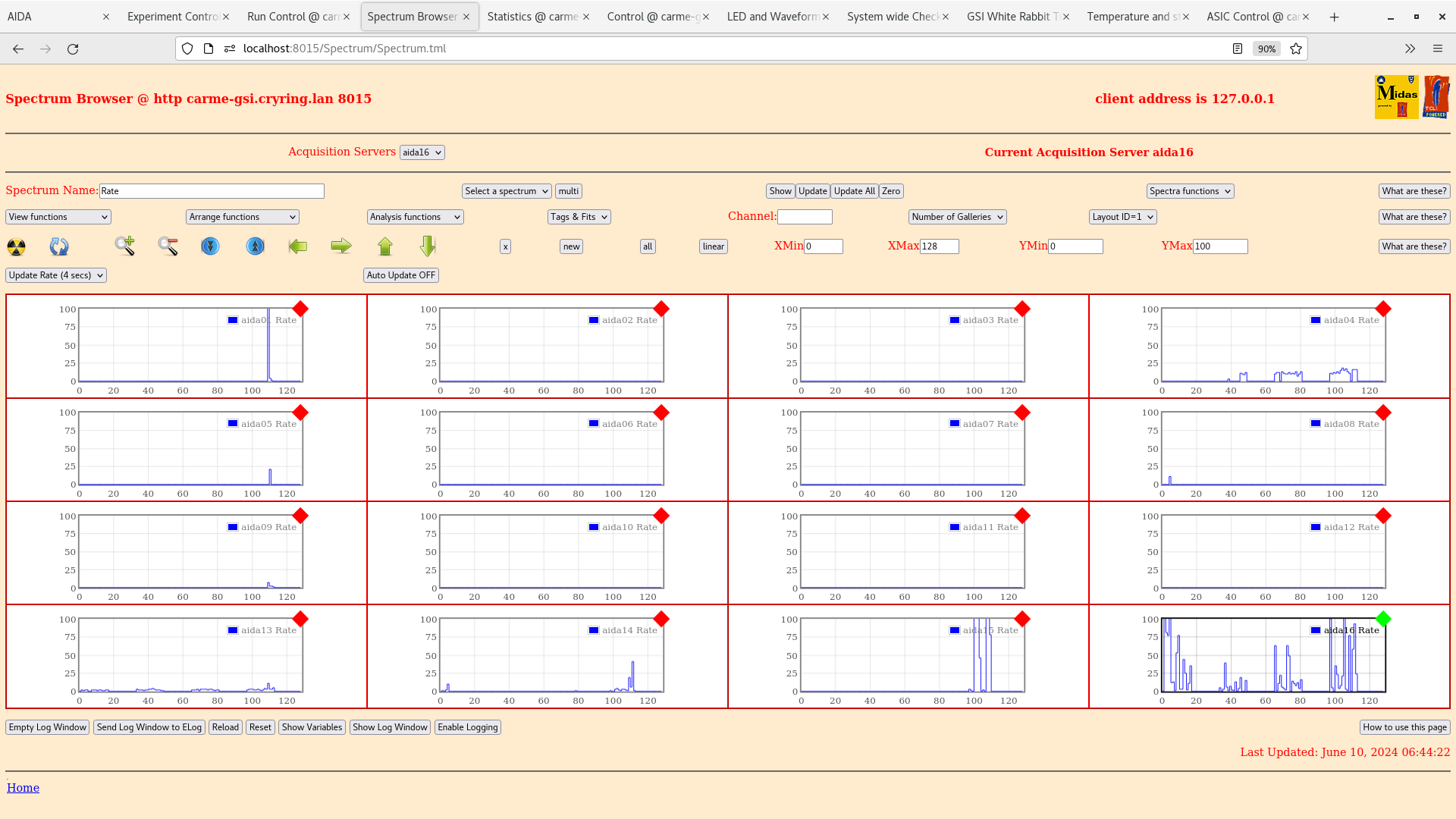

per FEE64 Rate spectra - attachment 4

      Beam intensity - ~ 5.7E7 pps

Target density - 2.91E11 atoms/cm2

8:35

DSSSD bias & leakage current OK - attachment 5

FEE64 temperatures OK - attachment 6

ADC data item stats - attachment 7

per FEE64 Rate spectra - attachment 8

      Beam intensity - ~ 4.8E7 pps

Target density - 2.86E11 atoms/cm2

      There is no beam since 8:26 and Gleb is informed. 08:46: Beam is back.

10:49

DSSSD bias & leakage current OK - attachment 9

FEE64 temperatures OK - attachment 10

ADC data item stats - attachment 11

per FEE64 Rate spectra - attachment 12

      Beam intensity - ~ 4.0E7 pps

Target density - 3.66E11 atoms/cm2

13:18

DSSSD bias & leakage current OK - attachment 13

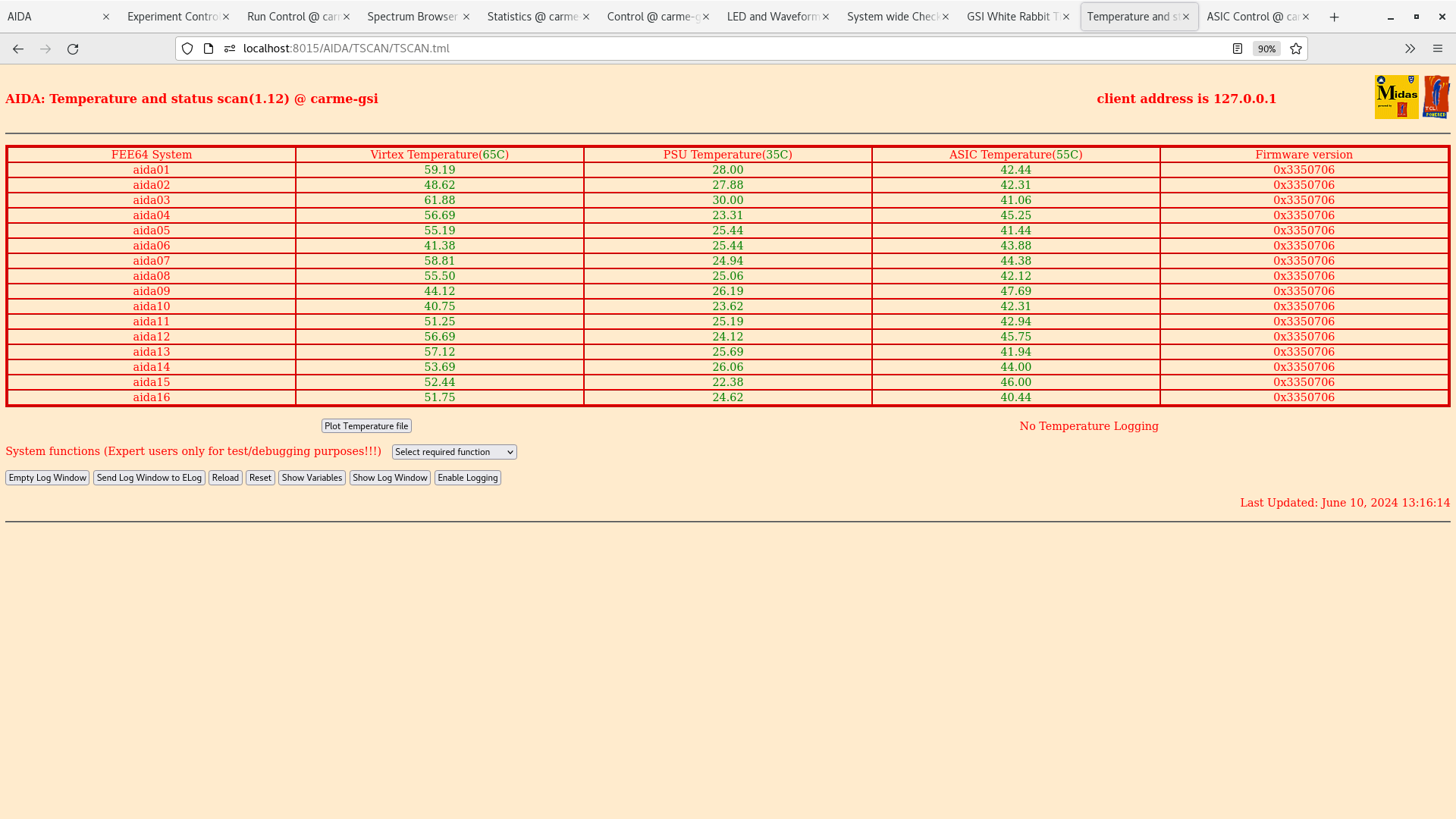

FEE64 temperatures OK - attachment 14

ADC data item stats - attachment 15

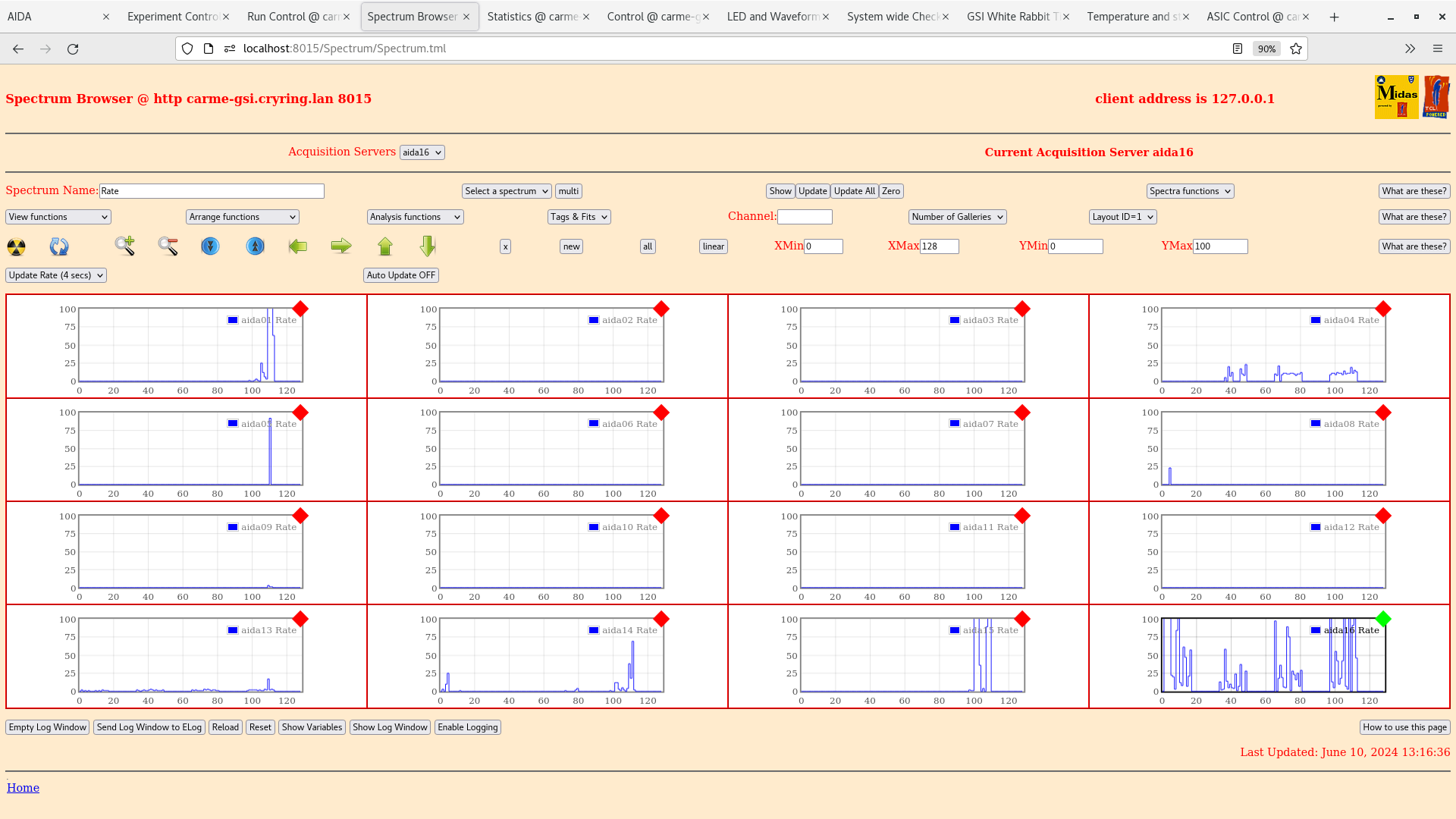

per FEE64 Rate spectra - attachment 16

      Beam intensity - ~ 5.0E7 pps

Target density - 5.67E11 atoms/cm2
