Message ID: 611 Entry time: Mon Jun 10 12:49:56 2024

Author:	RSS, DB, CB, JM
Subject:	R58 Space Charge Test

13:53

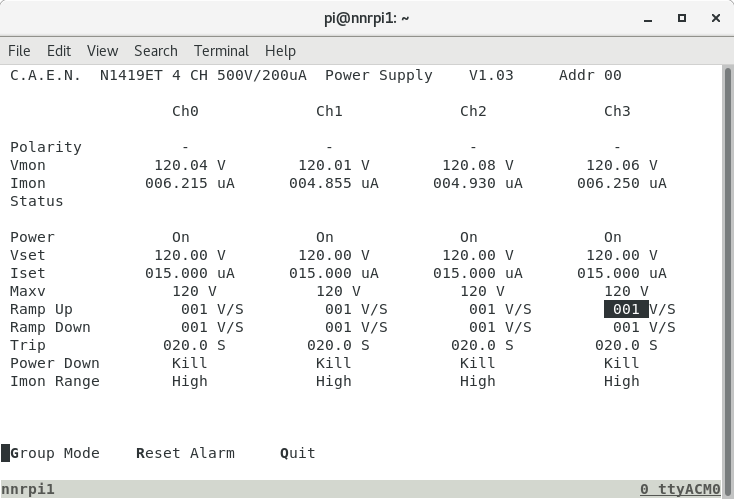

      DSSSD bias & leakage current OK - attachment 1

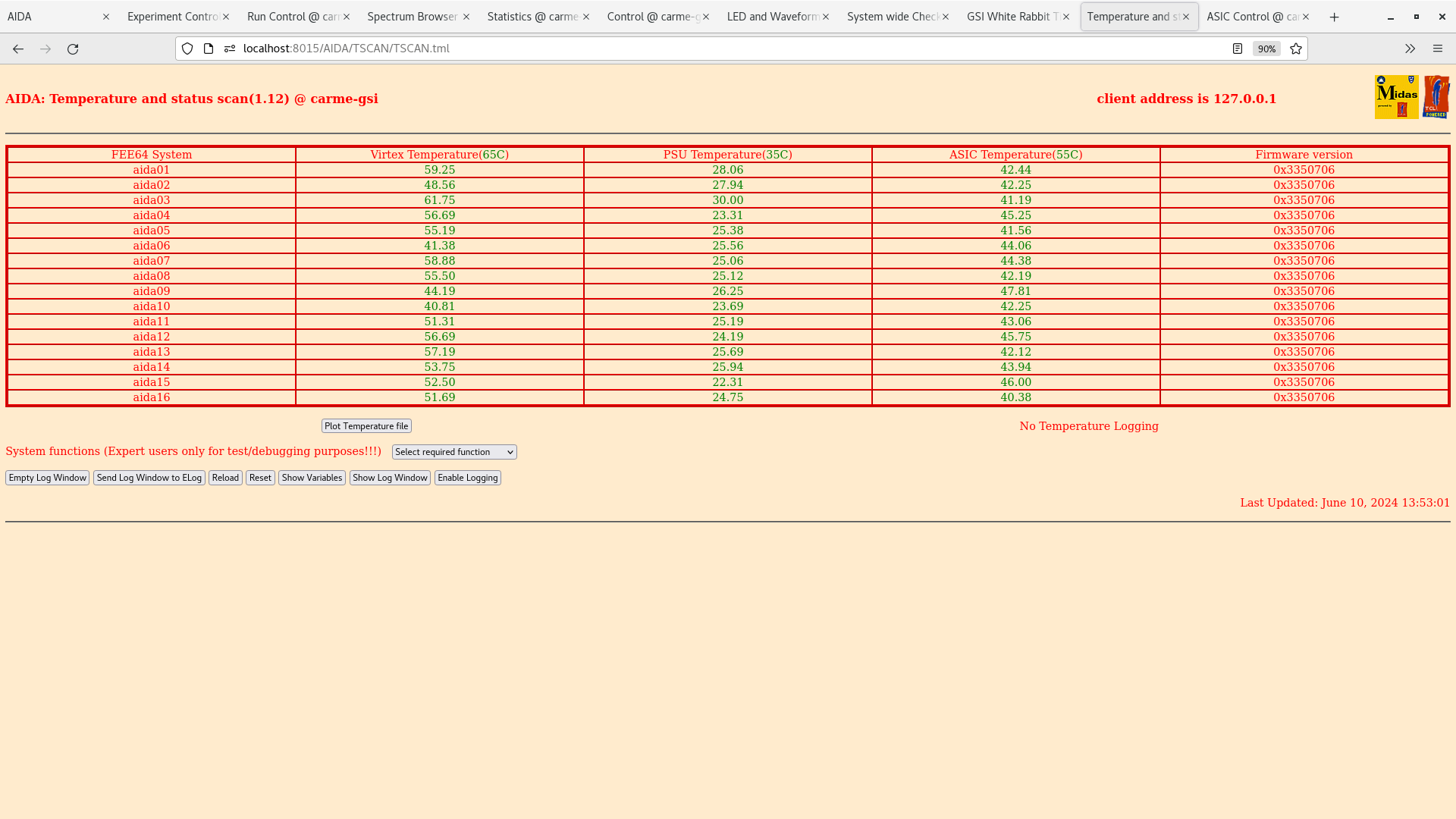

      FEE64 temperatures OK - attachment 2

      ADC data item stats - attachment 3

      per FEE64 Rate spectra - attachment 4

      Beam intensity - ~ 5.0E7 pps

      Target density - off

Attachment 1:

Screenshot_from_2024-06-10_13-52-45.png 42 kB Uploaded Mon Jun 10 13:55:37 2024 | Hide | Hide all

Attachment 2:

Screenshot_from_2024-06-10_13-53-04.png 161 kB Uploaded Mon Jun 10 13:55:37 2024 | Hide | Hide all

Attachment 3:

Screenshot_from_2024-06-10_13-53-17.png 117 kB Uploaded Mon Jun 10 13:55:37 2024 | Hide | Hide all

Attachment 4:

Screenshot_from_2024-06-10_13-53-28.png 179 kB Uploaded Mon Jun 10 13:55:37 2024 | Hide | Hide all
