Run 63 continued

22.06 DSSSD bias & leakage current OK - attachment 1

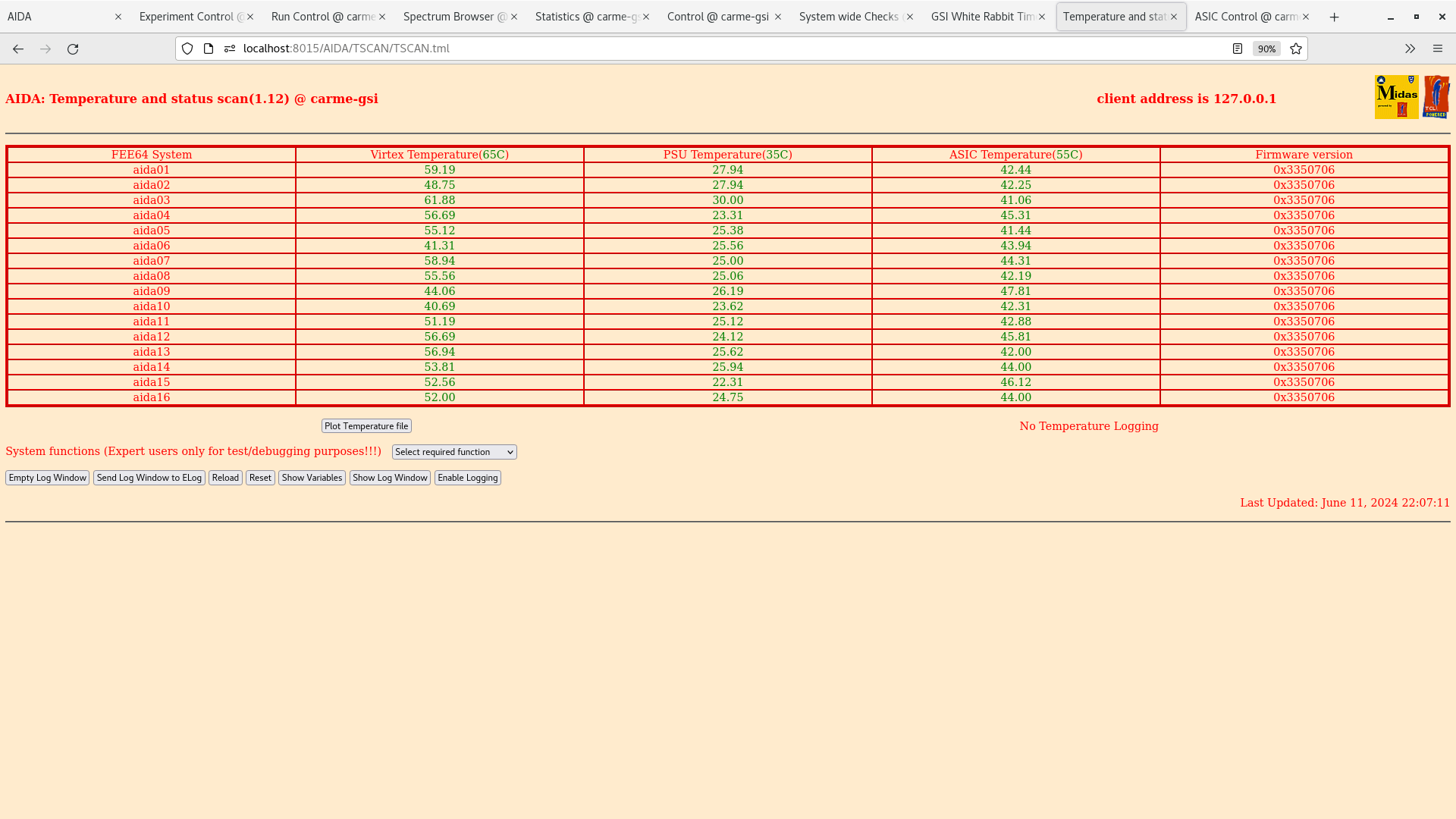

FEE64 temperatures OK - attachment 2

ADC data item stats - attachment 3

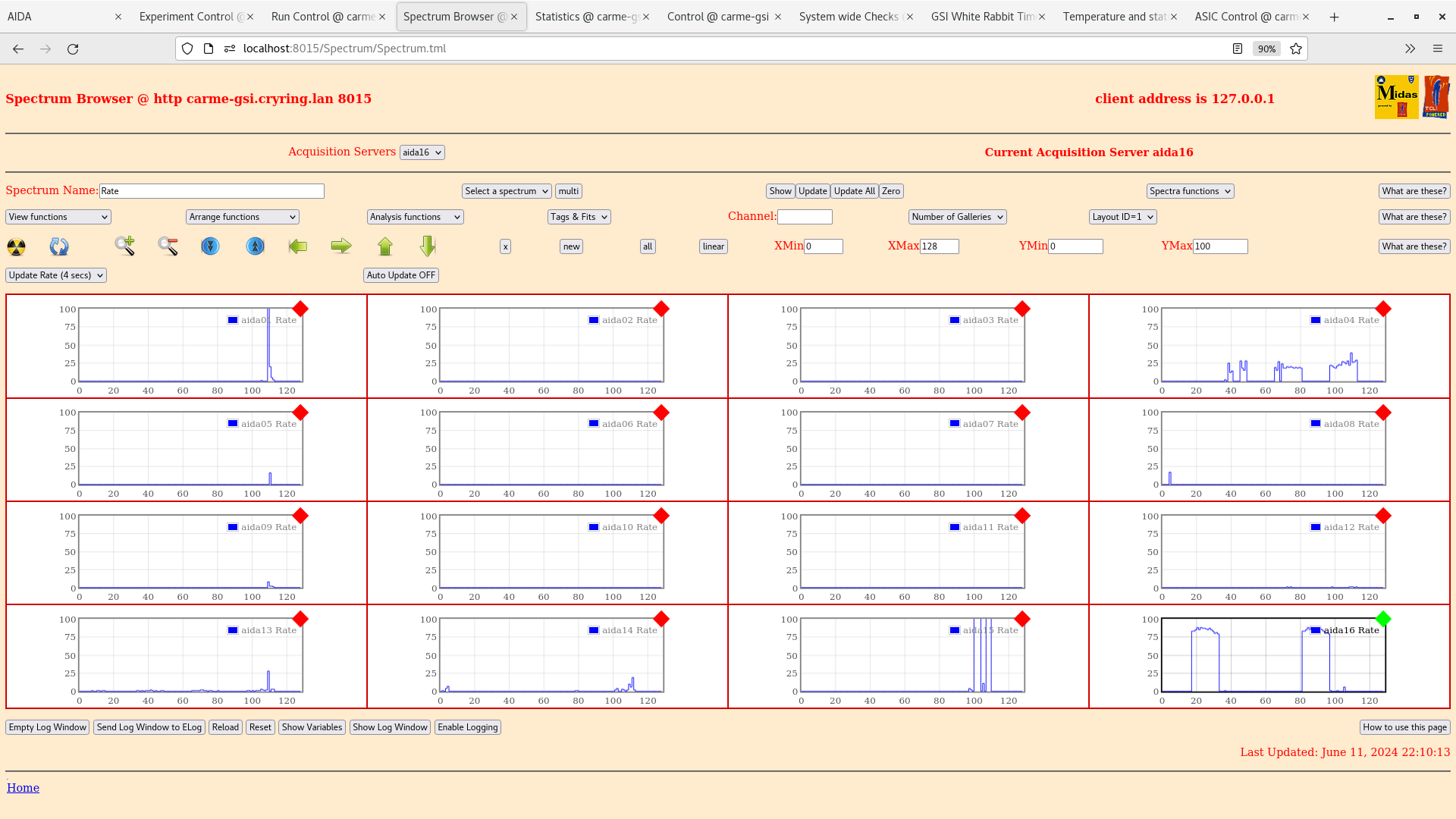

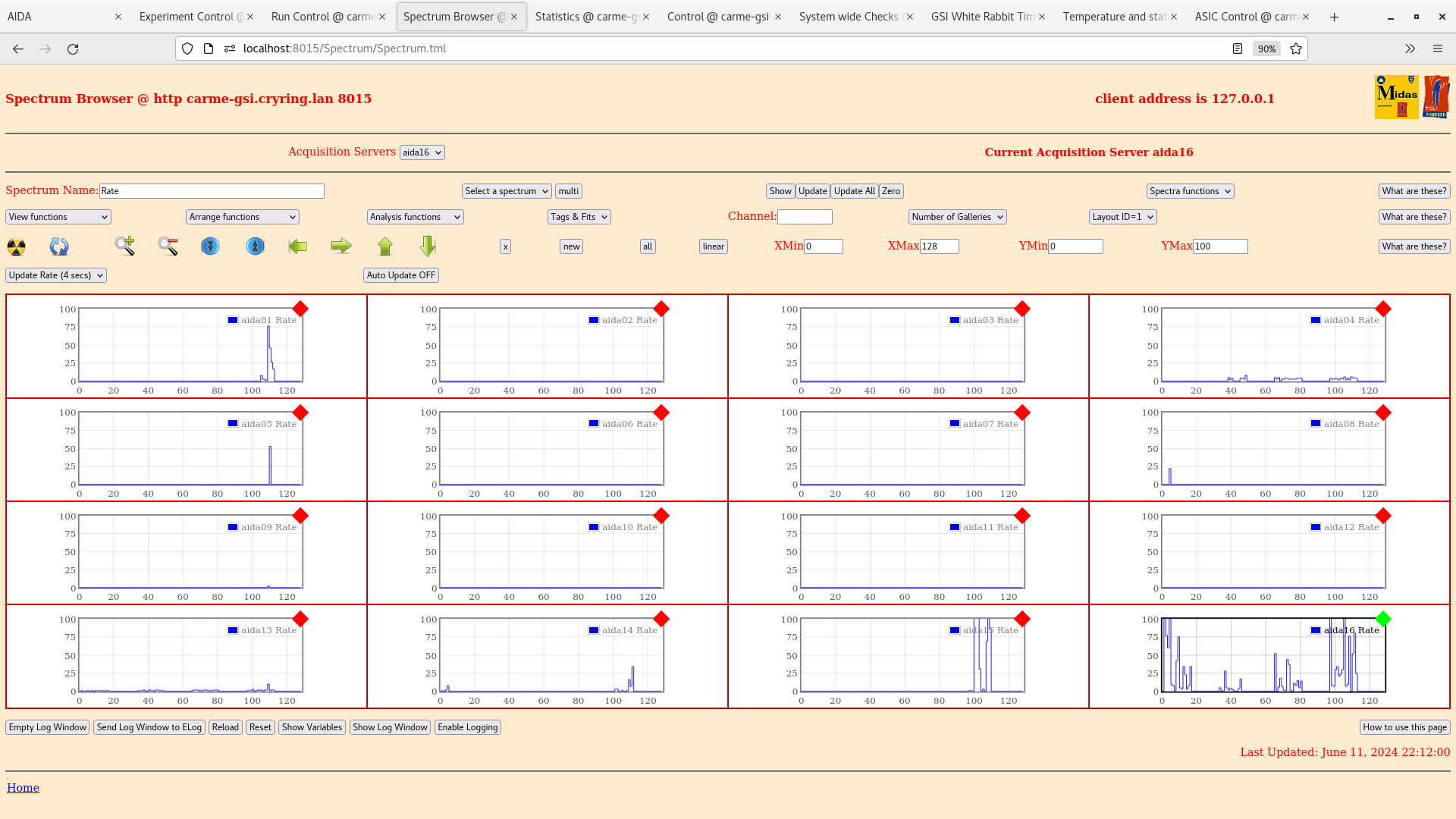

per FEE64 Rate spectra - attachments 4-5
       aida16 producing HEC data, ASIC check load to clear

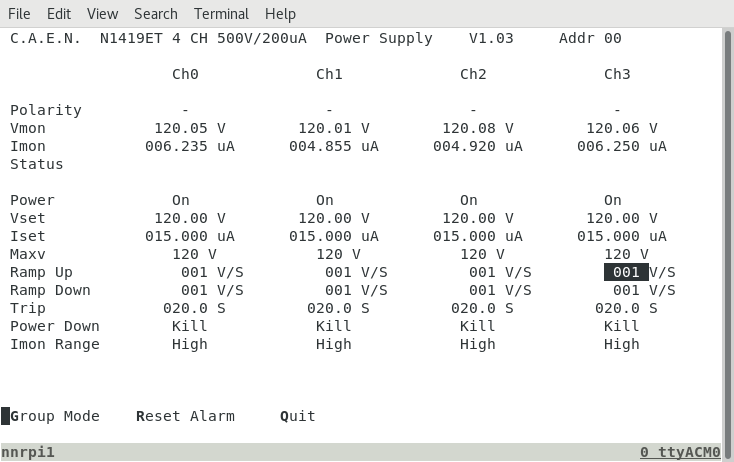

23.56 DSSSD bias & leakage current OK - attachment 6

FEE64 temperatures OK - attachment 7

ADC data item stats - attachment 8

per FEE64 Rate spectra - attachments 9

aida01-aida04 high ADC data item rates - left DSSSD motion cycle required to reset

03.28 DSSSD bias & leakage current OK - attachment 10

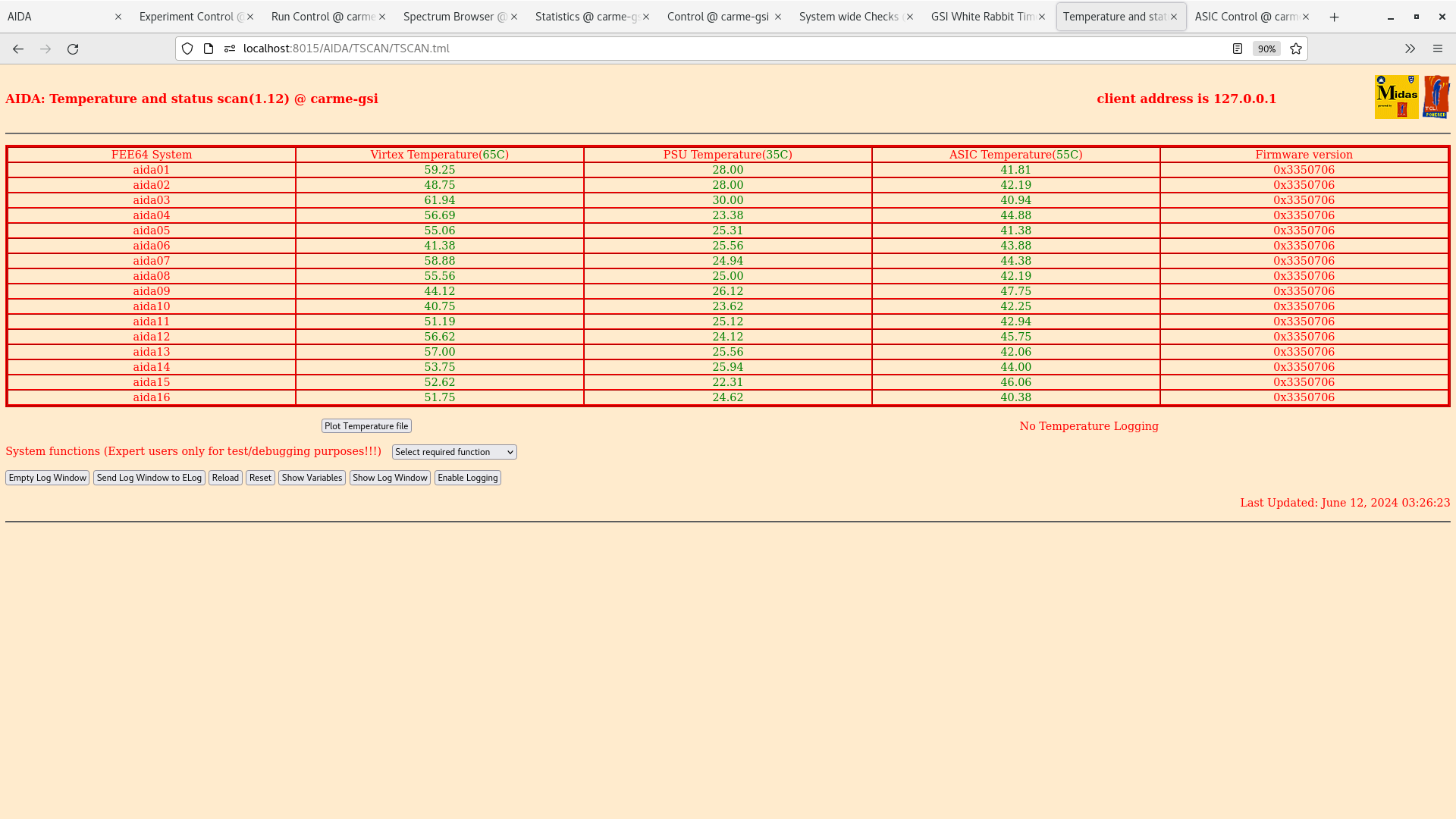

FEE64 temperatures OK - attachment 11

ADC data item stats - attachment 12

per FEE64 Rate spectra - attachments 13

aida01-aida04 high ADC data item rates - left DSSSD motion cycle required to reset

07.50 DSSSD bias & leakage current OK - attachment 14

FEE64 temperatures OK - attachment 15

ADC data item stats - attachment 16

per FEE64 Rate spectra - attachments 17

aida01-aida04 high ADC data item rates (see above) appears to have resolved itself or has been resolved (but not logged)
