Entry time:
Fri Jun 14 10:21:24 2024
Author
*
:
Subject
*
:

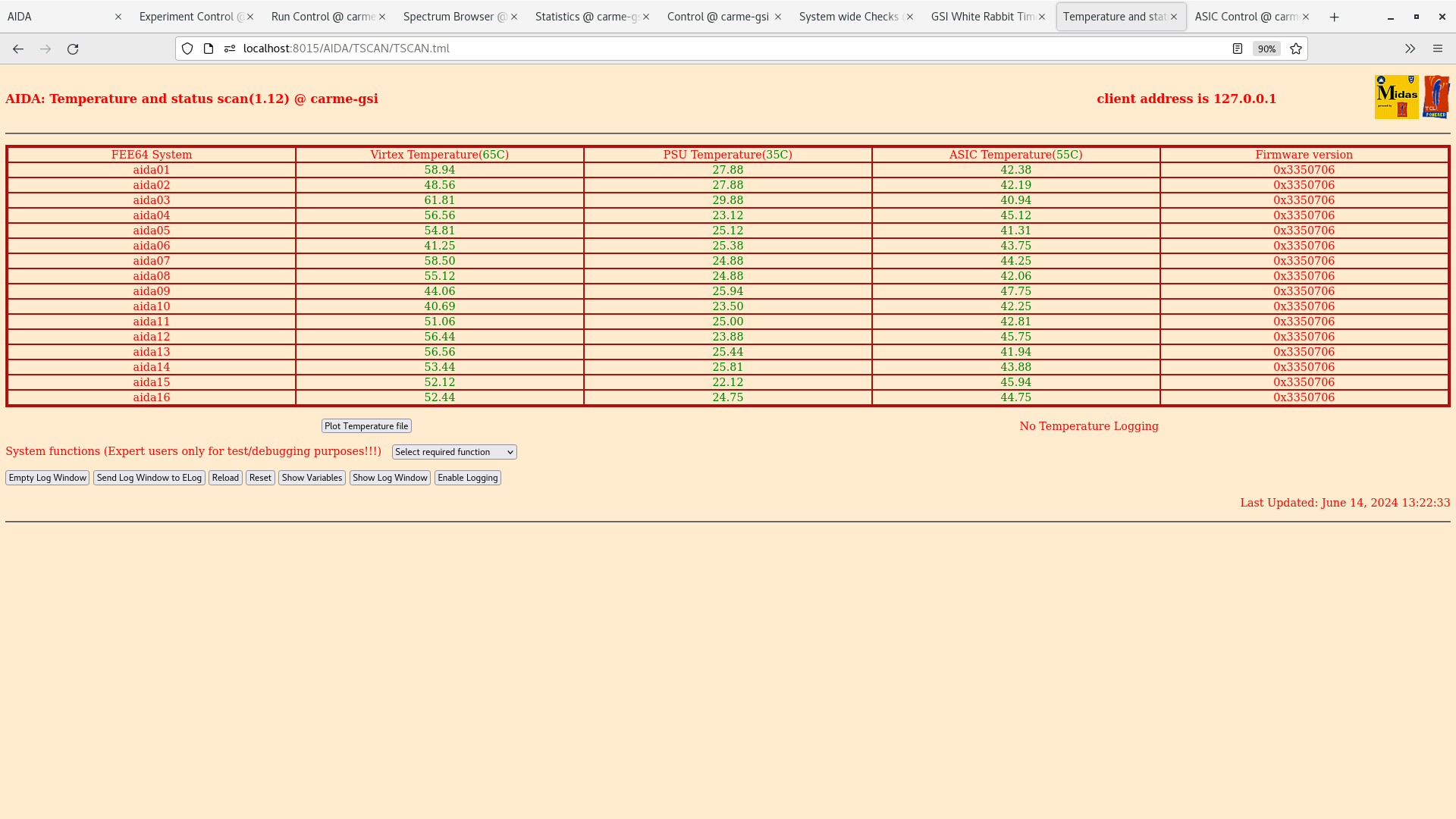

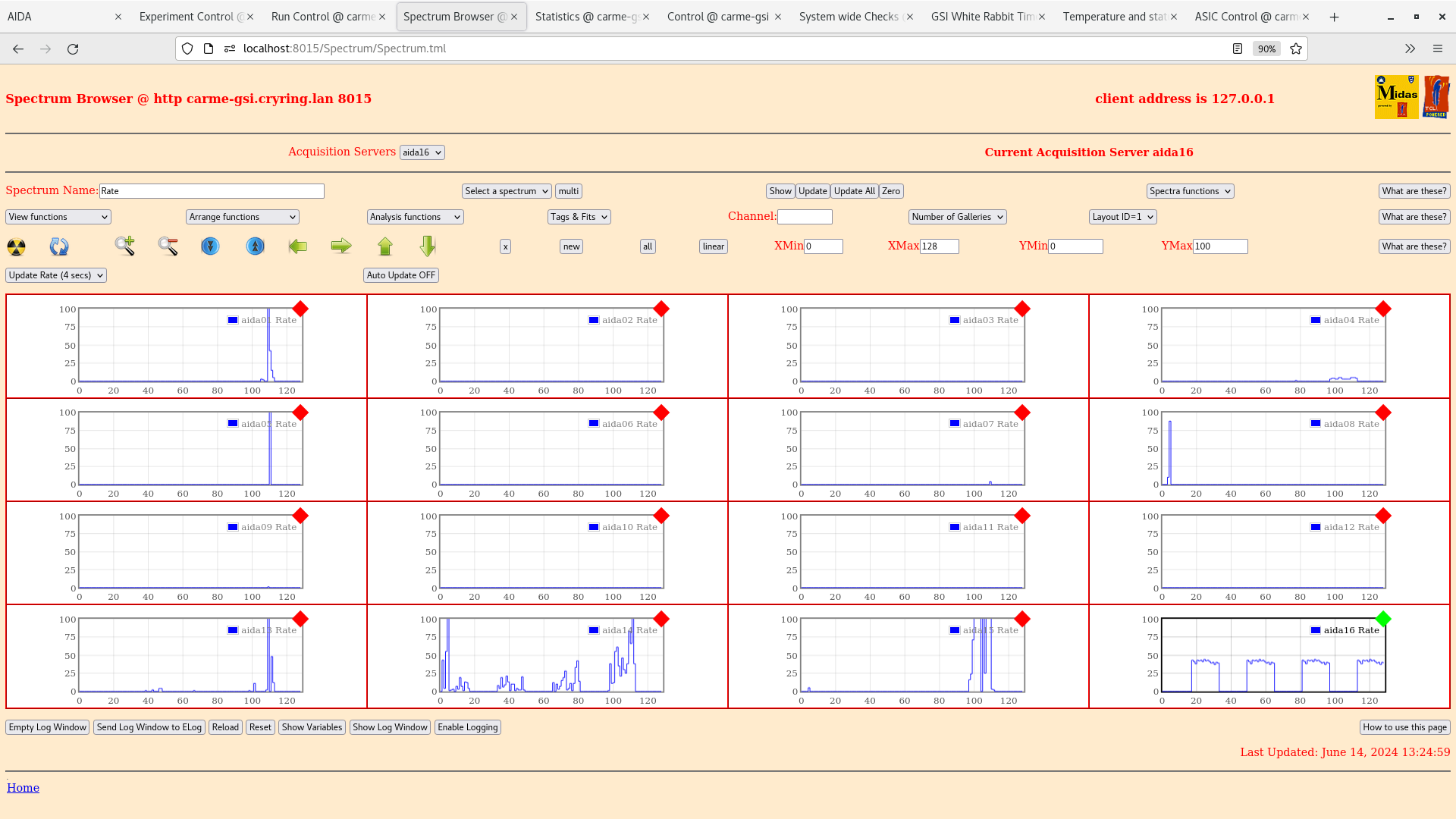

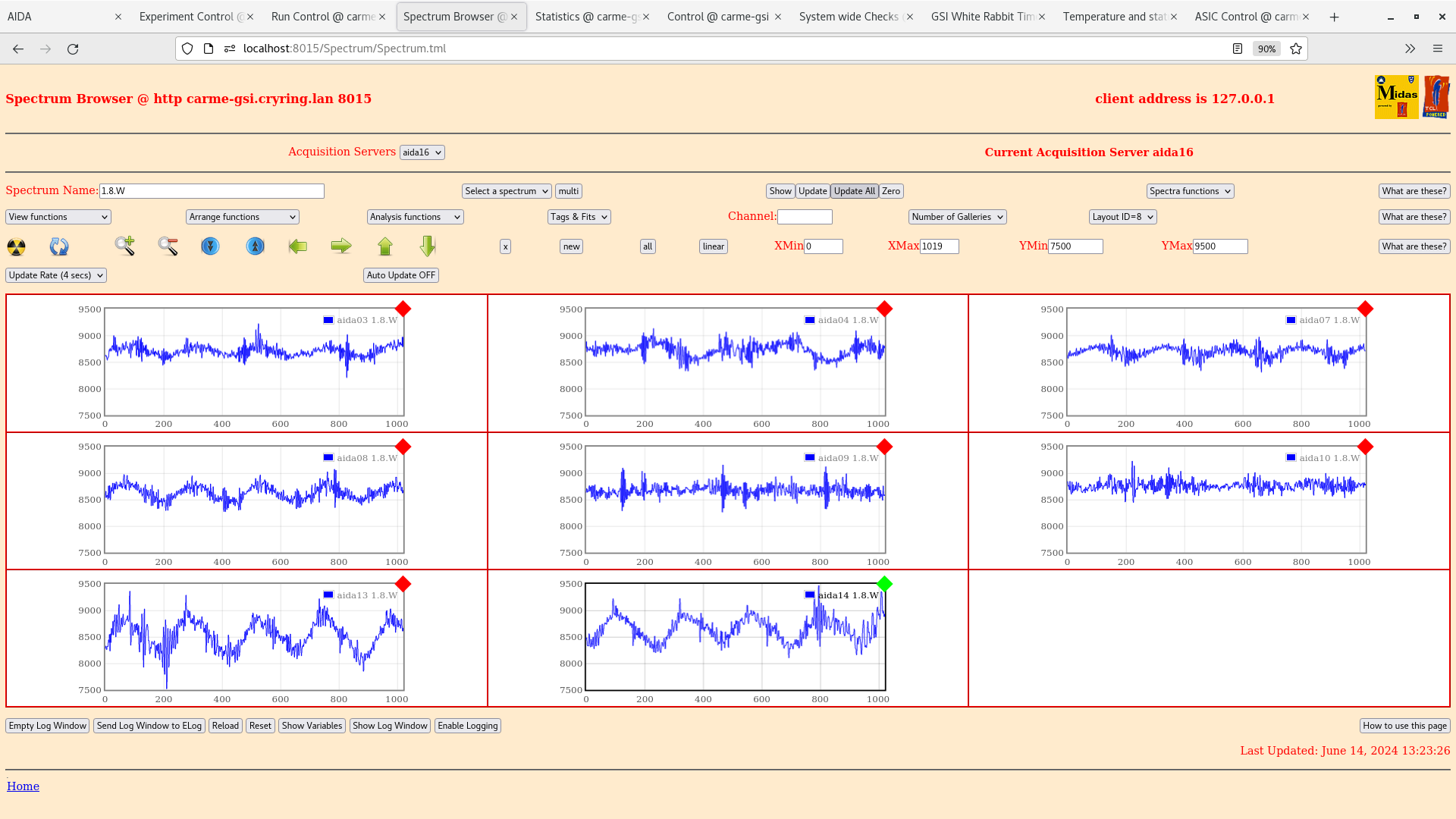

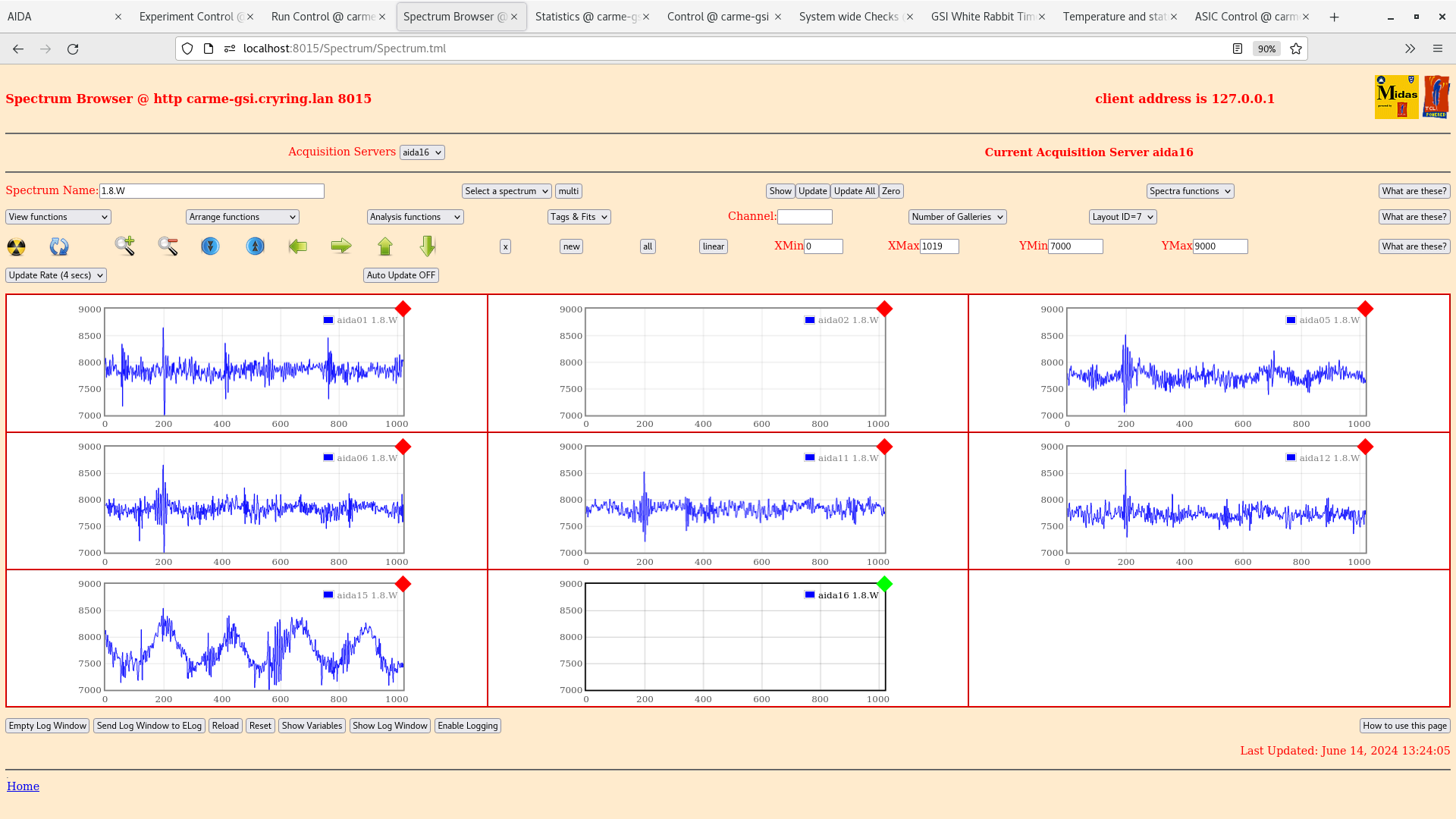

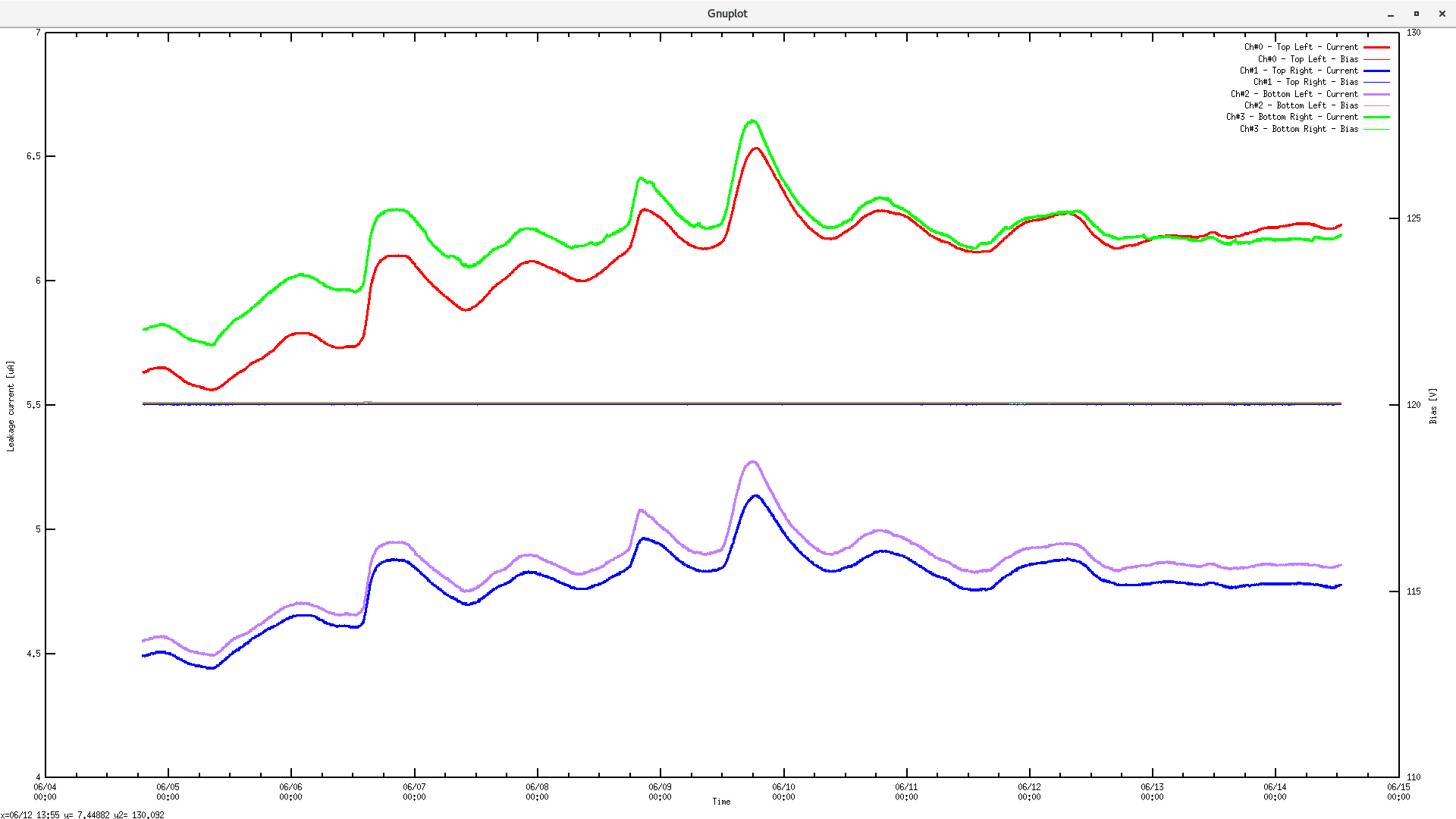

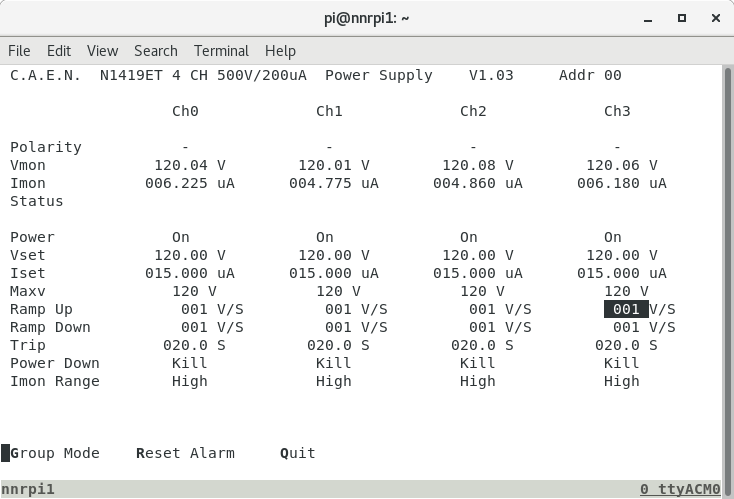

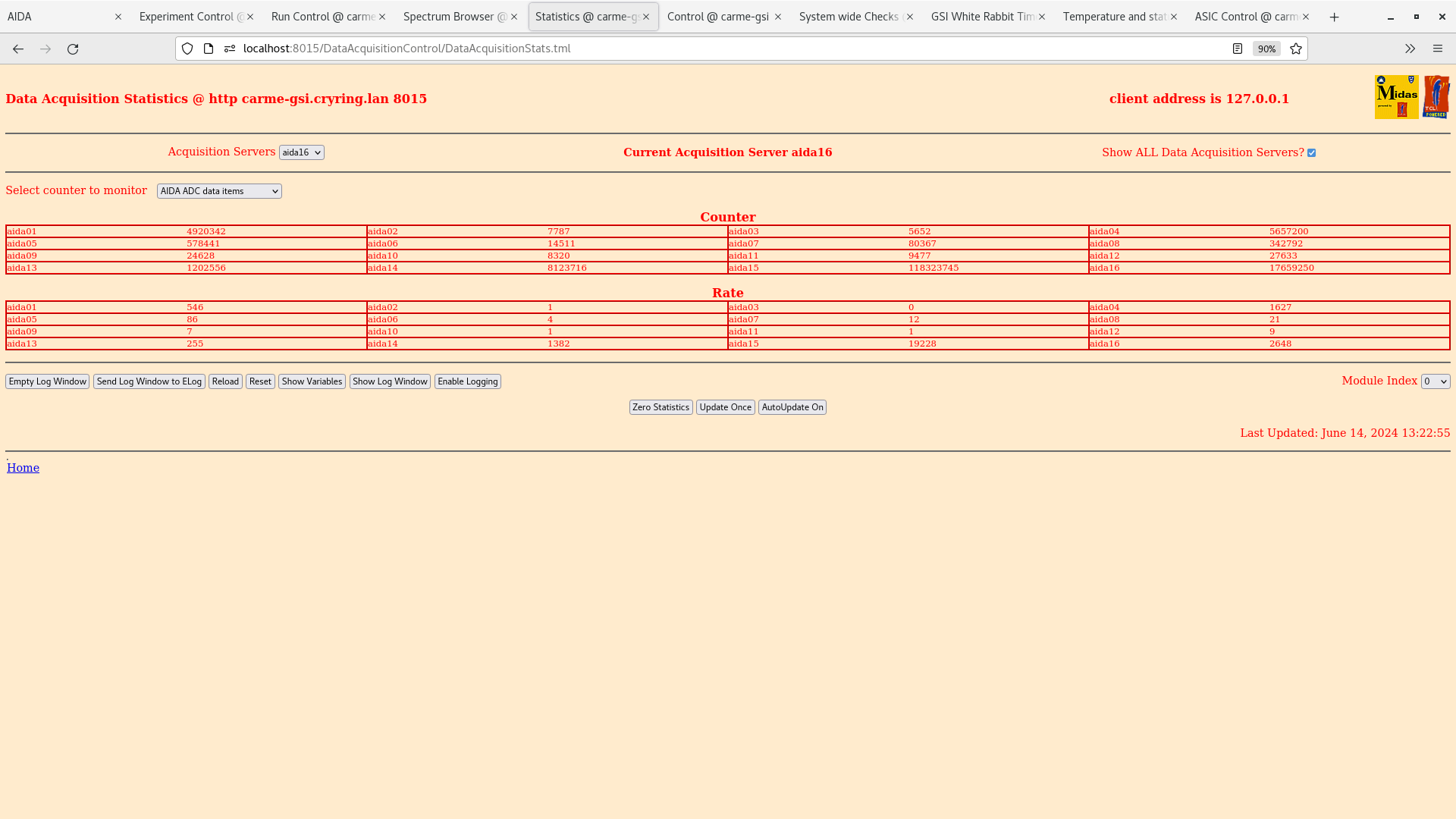

<p>Frank has been tuning the beam since 08:00</p> <p>detectors moved fully out</p> <p>11:20</p> <p>New run (R68) started at 11:20. Put into no storage mode as rates are high during beam tuning. Cut off the end of last nights run when analysing</p> <p>System checks OK</p> <p> </p> <p>13.20 DSSSD bias & leakage current OK - attachment 1</p> <p>FEE64 temperatures OK - attachment 2</p> <p>ADC data item stats - attachment 3</p> <p>per FEE64 1.8.W spectra - attachments 4-5</p> <p>per FEE64 Rate spectra - attachment 6</p> <p> aida16 producing HEC data - Chck ASIC load to fix</p> <p>TapeServer - no storage mode</p> <p> </p> <p>13.35 aida01-aida04 c. 250k ADC data items/s - will await completion of current beam/target scan to fix by cycing Left DSSSD motion</p> <p> </p> <p>14.00 CB cycles Left DSSSD motion to fix aida01-aida04 rate issue</p> <p> </p> <p>CRYRING vacuum & hall temprature - attachments 7-8</p> <p> </p> <p>14.28 New run data file G22-201/R69</p> <p>Beam/target overlap optimised - details to follow</p>
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 734x499
Attachment 2:
Original size: 1920x1080
Attachment 3:
Original size: 1920x1080
Attachment 4:
Original size: 1920x1080
Attachment 5:
Original size: 1920x1080
Attachment 6:
Original size: 1920x1080
Attachment 7:
Original size: 1920x1080
Attachment 8:
Original size: 1920x1020
Attachment 9:
Original size: 1920x1020
