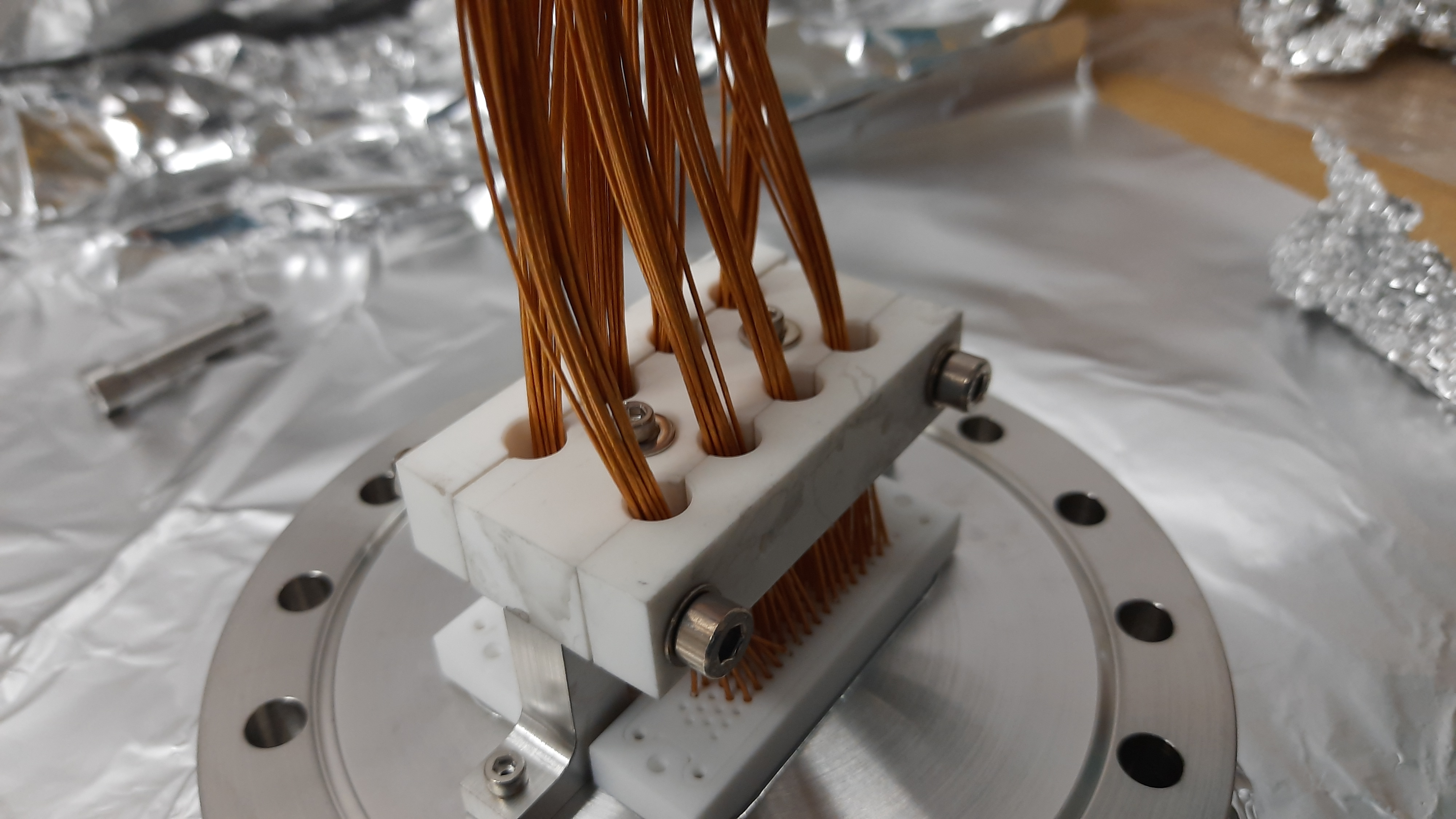

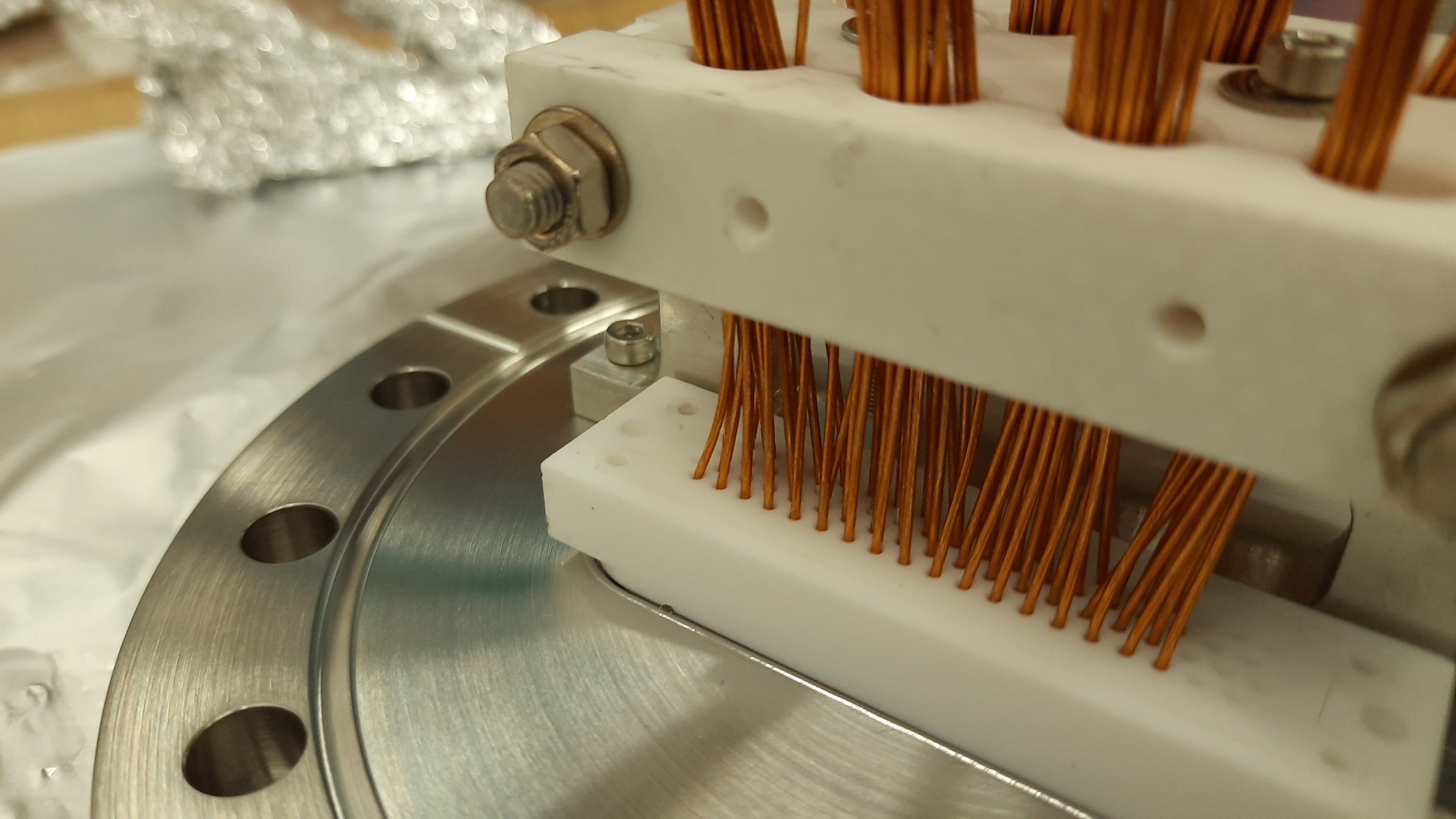

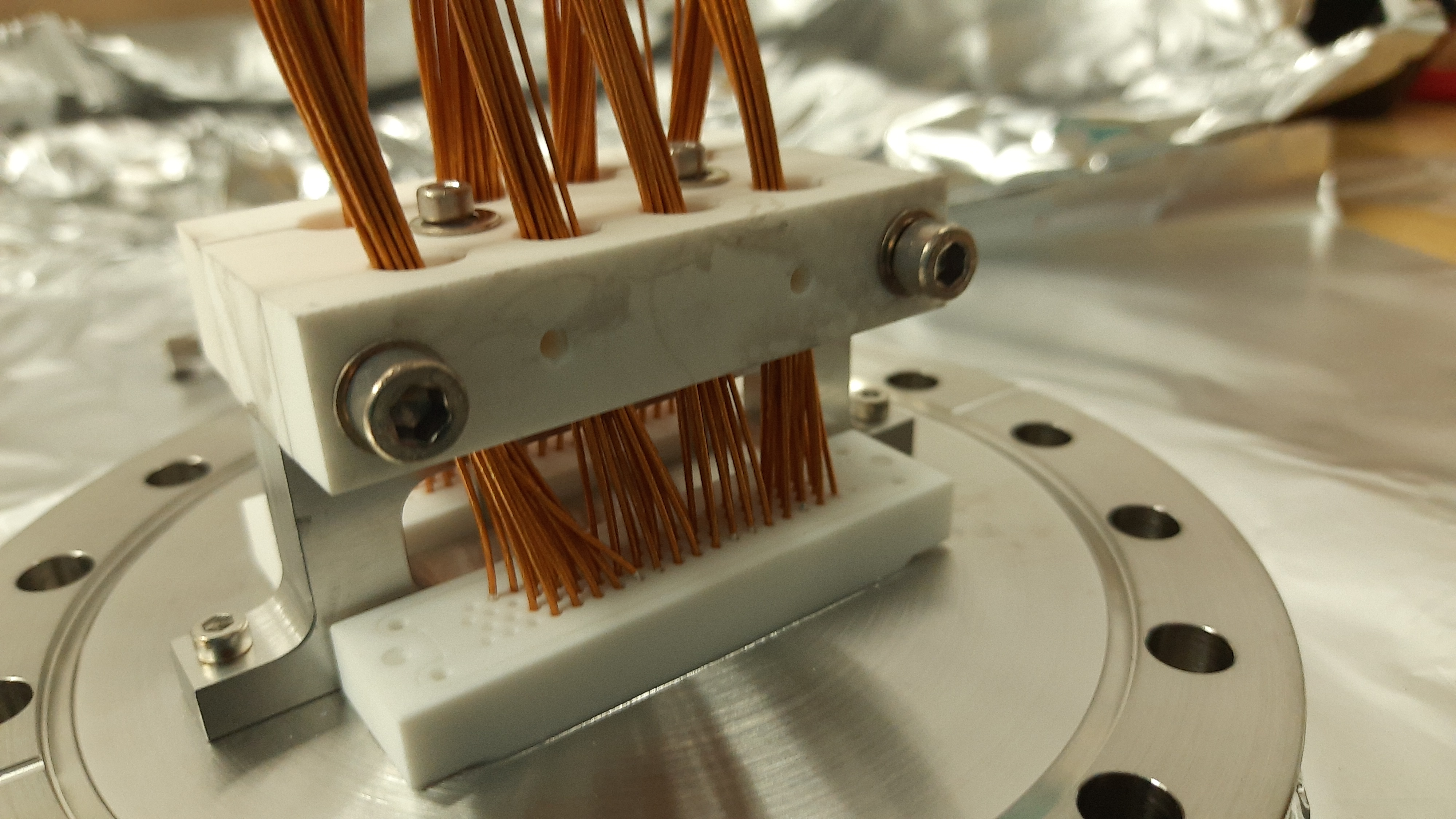

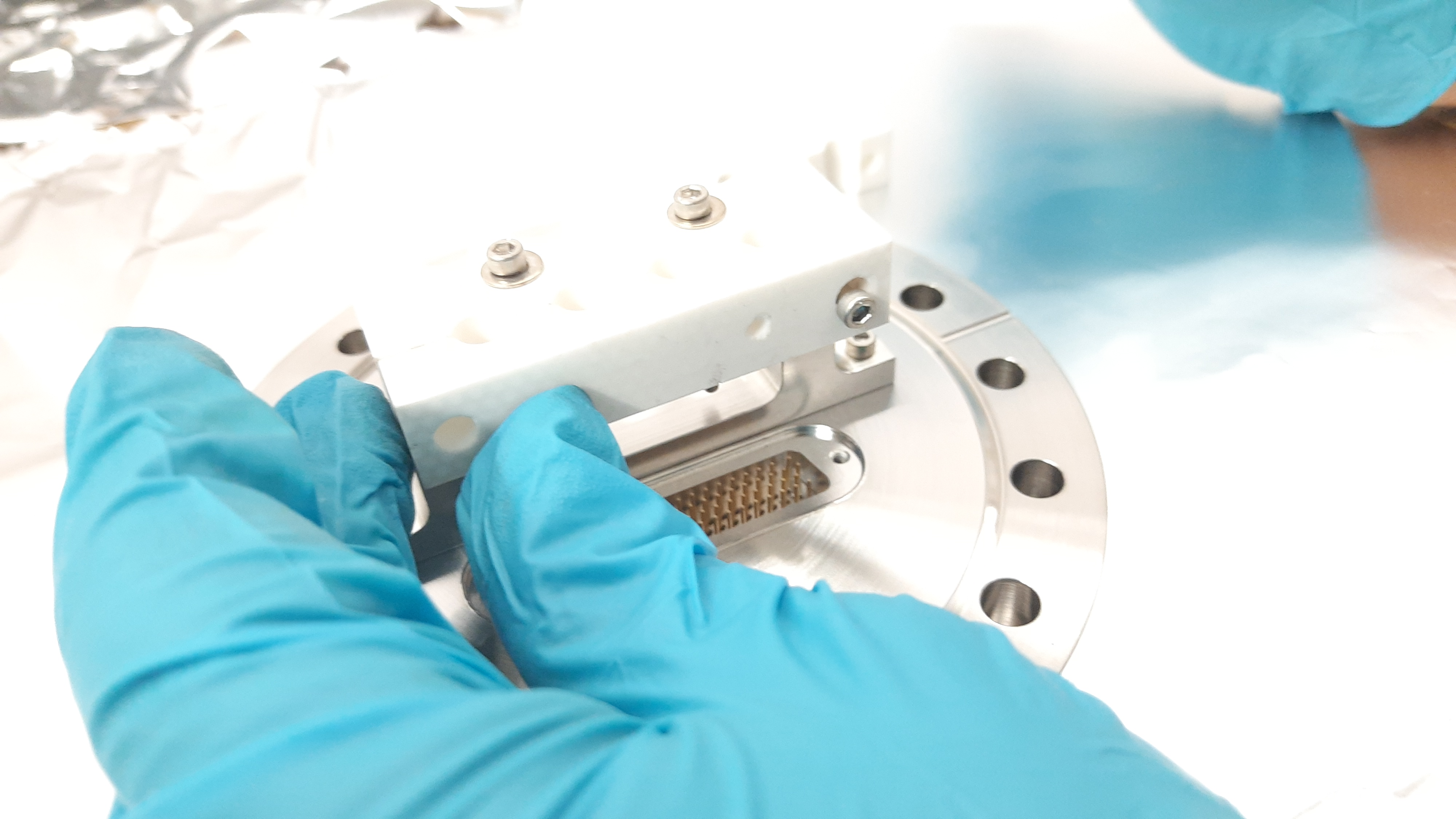

Assembled feedthrough flange with re-cut SS support bracket. M3 vented on the sides, M3x30 partly threaded on top. Top screws don't touch the Macor (by design? See first attachment). Macor affixed but has some play - good for thermal dilation. Mounted long wire harness (side flange) on top. Unable to get one of the two connectors fully in. Unable to get it out as well. See last attach, it's a small gap. Tested few pins with multimeter - all ok. Decided to mount. No issues mounting. Slowly and carefully threaded wires harness in CARME taking care not to hit negs. Slightly concerned about weight of Macor connector on wires, but no obvious alternative. Please have a look at attachments and comment. Will keep mounting in the afternoon.
