Entry time:

Wed Jun 19 12:01:29 2024

Author*:

Subject*:

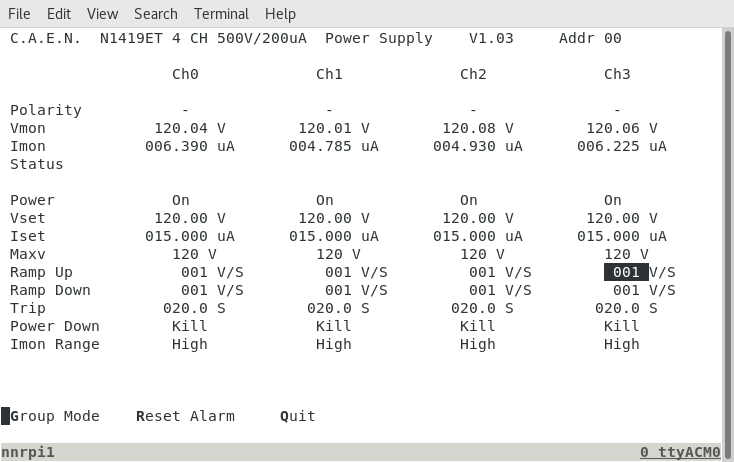

23.18 DSSSD bias & leakage current OK - attachment 1

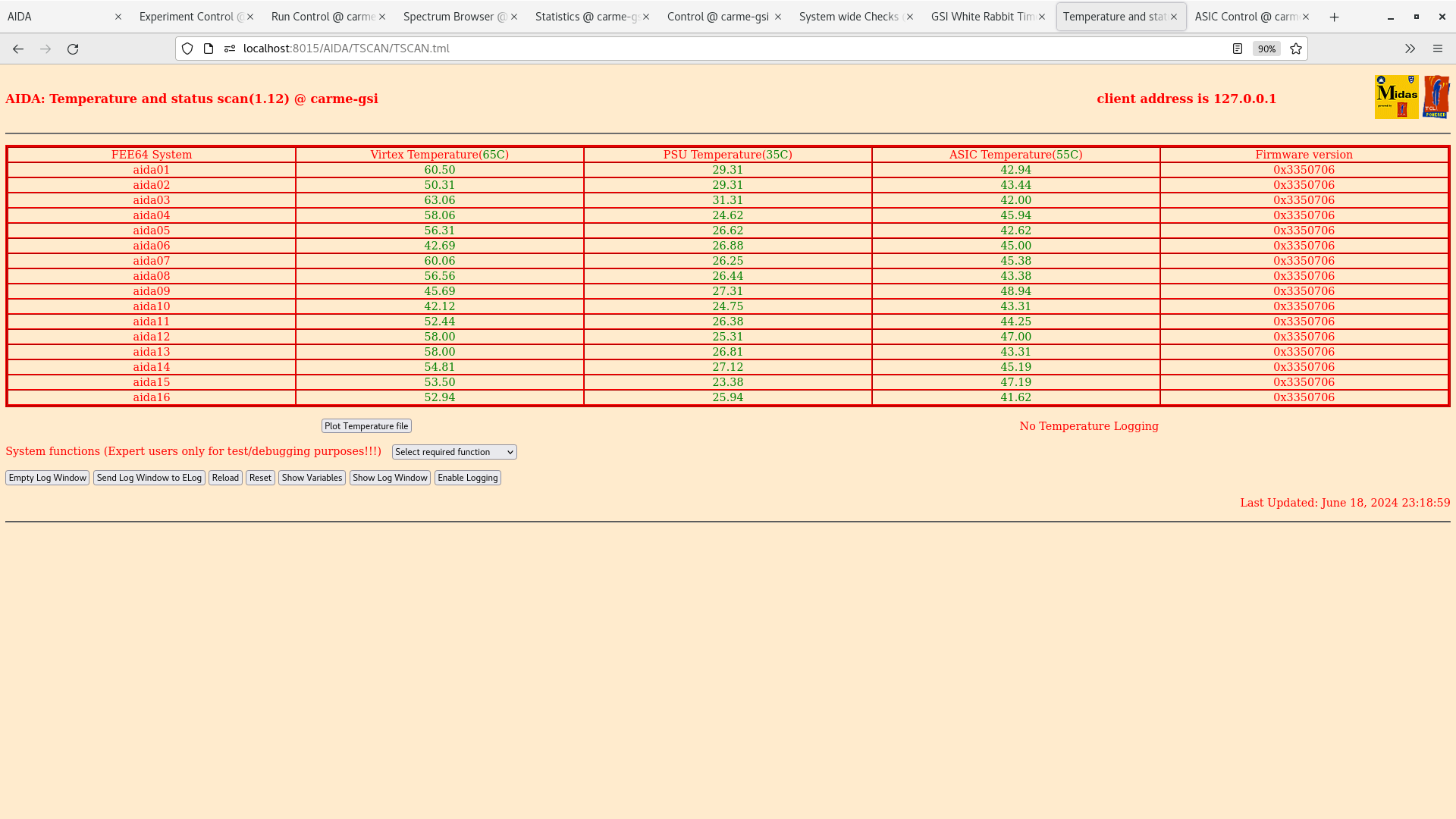

      FEE64 temps OK - attachment 2
      ADC data item stats attachment 3
       aida01-aida04 c. 250k

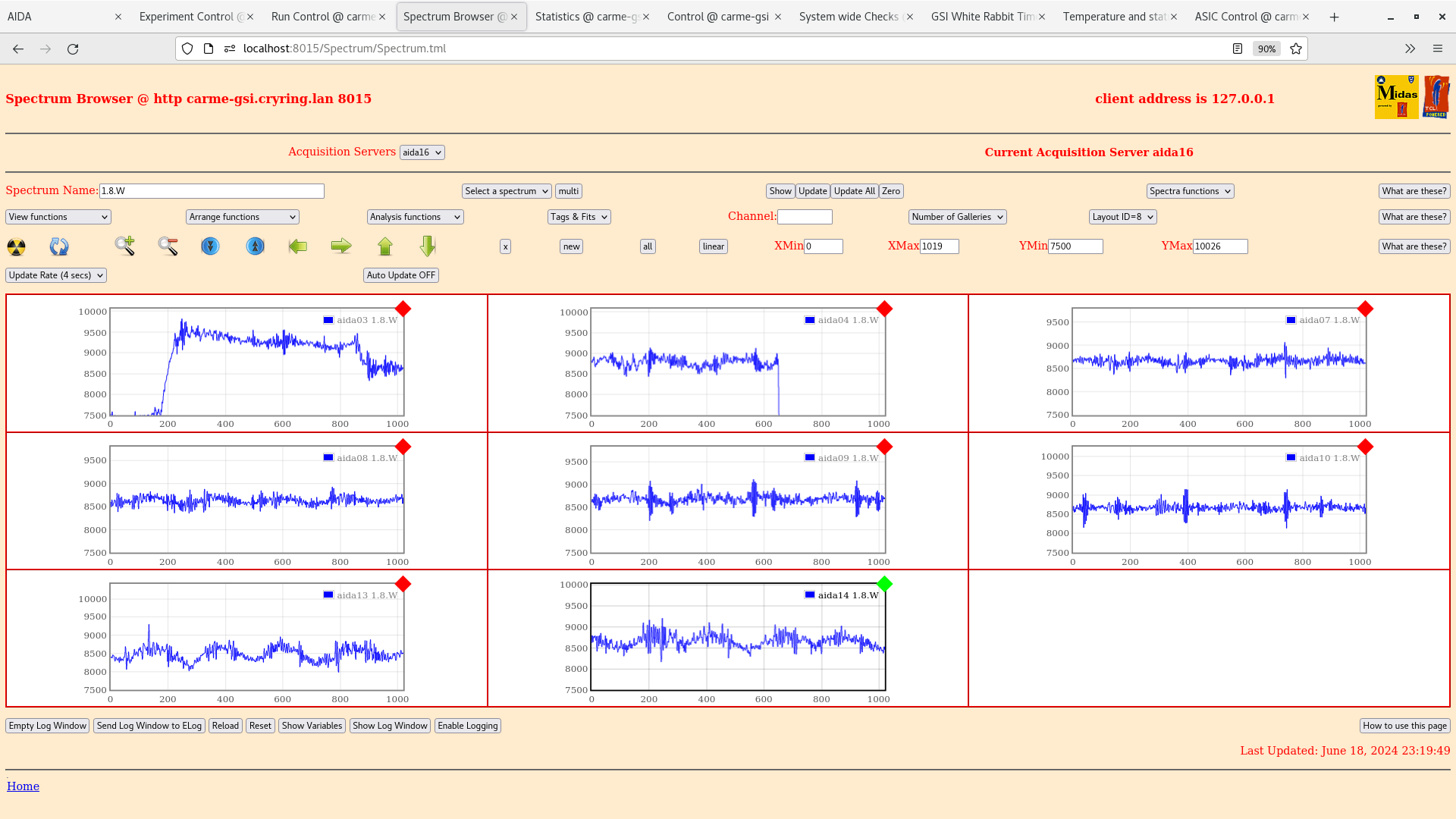

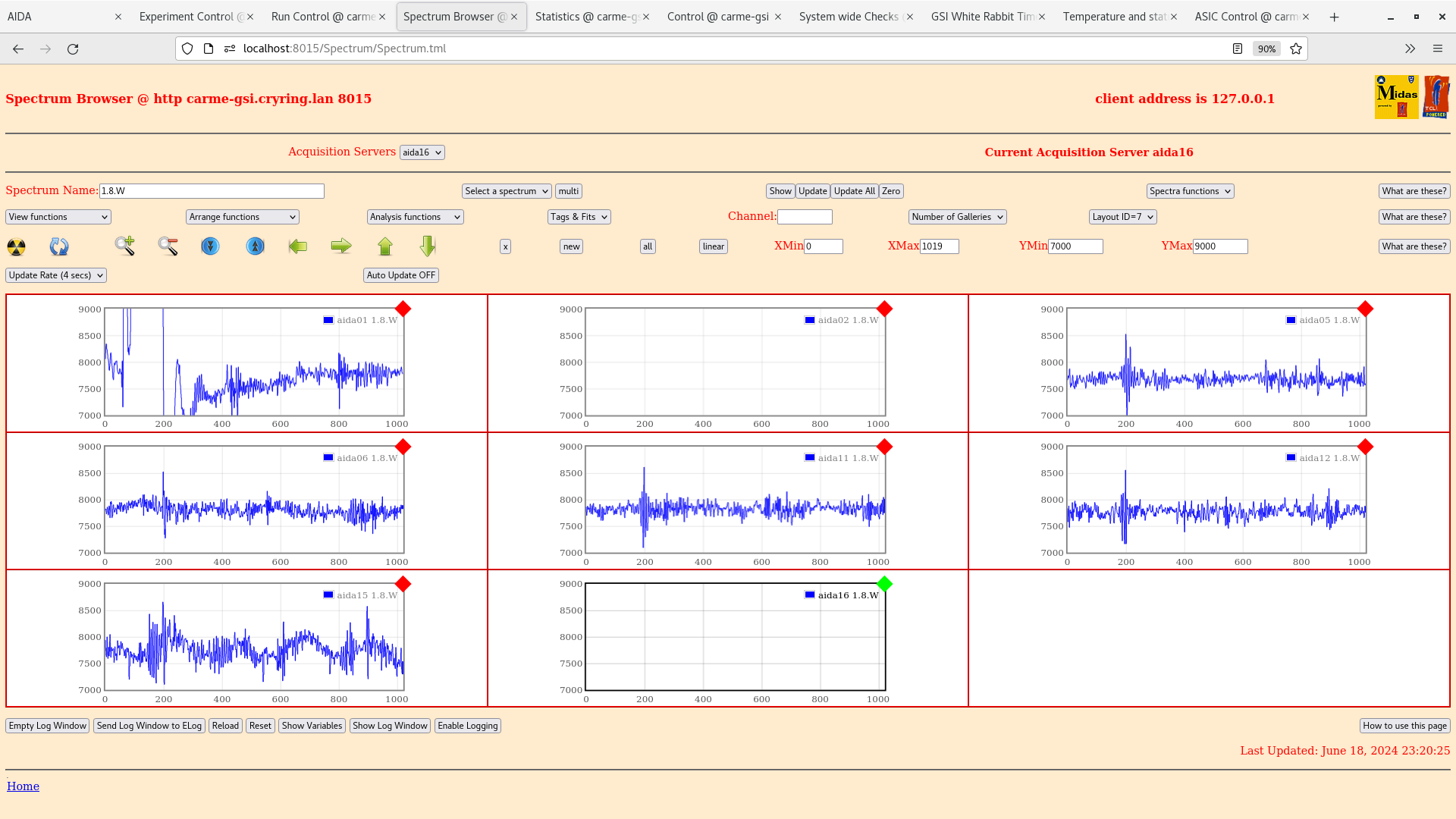

      per FEE64 1.8.W spectra - 20us FSR - attachments 4-5
       large transients aida01-aida04
      per FEE64 Rate spectra - attachment 6
      Merger, TapeServer etc. - attachments 7-8
        data file R101_15

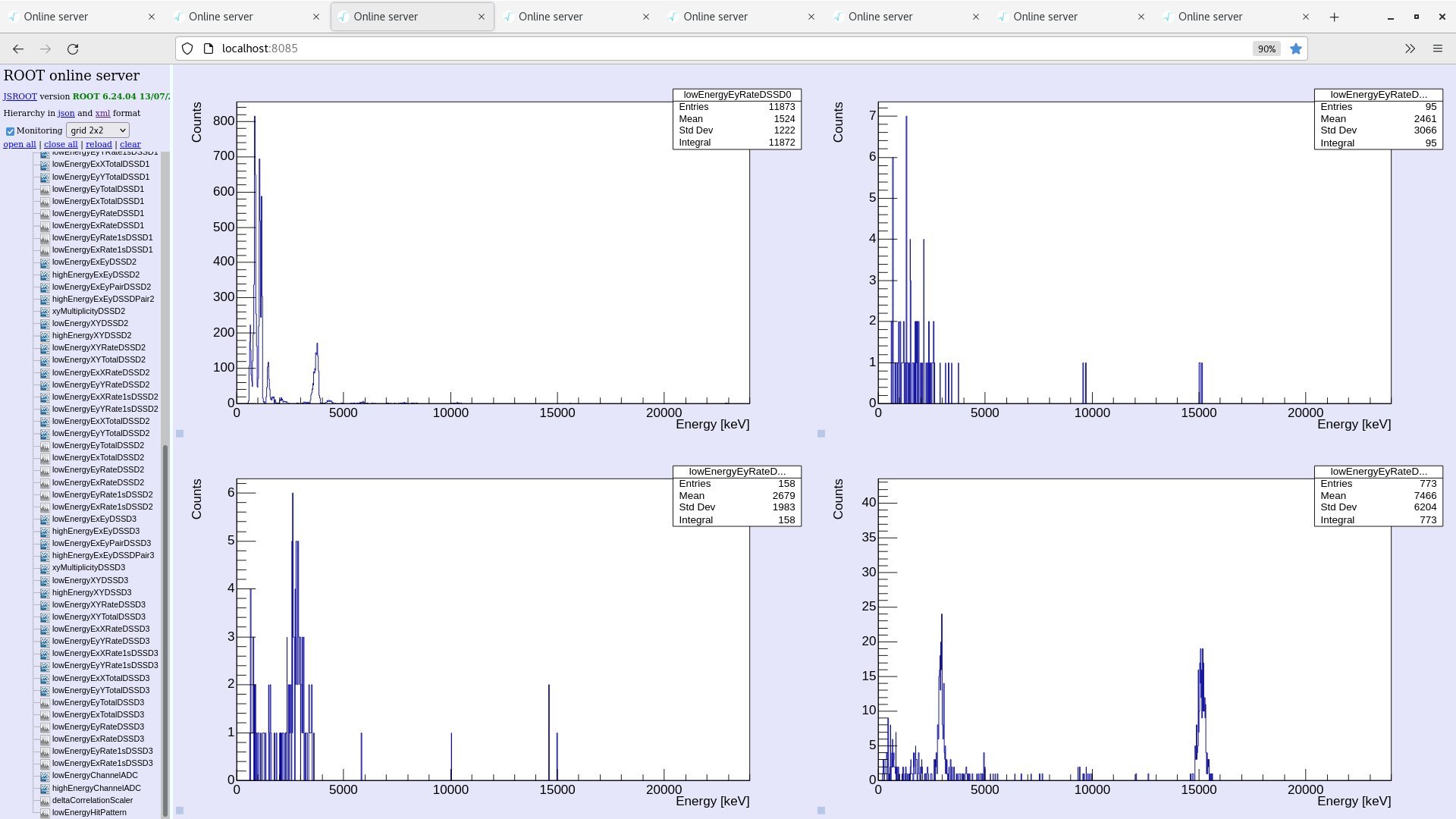

      DSSSD energy spectra (updating) - attachment 9
      DSSSD bias & leakage current log - attachment 10
        transients bottom & top left c. 02:00 18.6.24

cycle slow comparator 0x32 -> 0x64 -> Check ASIC Control -> 0x32
        aida01 - aida04 rates return to normal

ADC data item stats - attachment 11

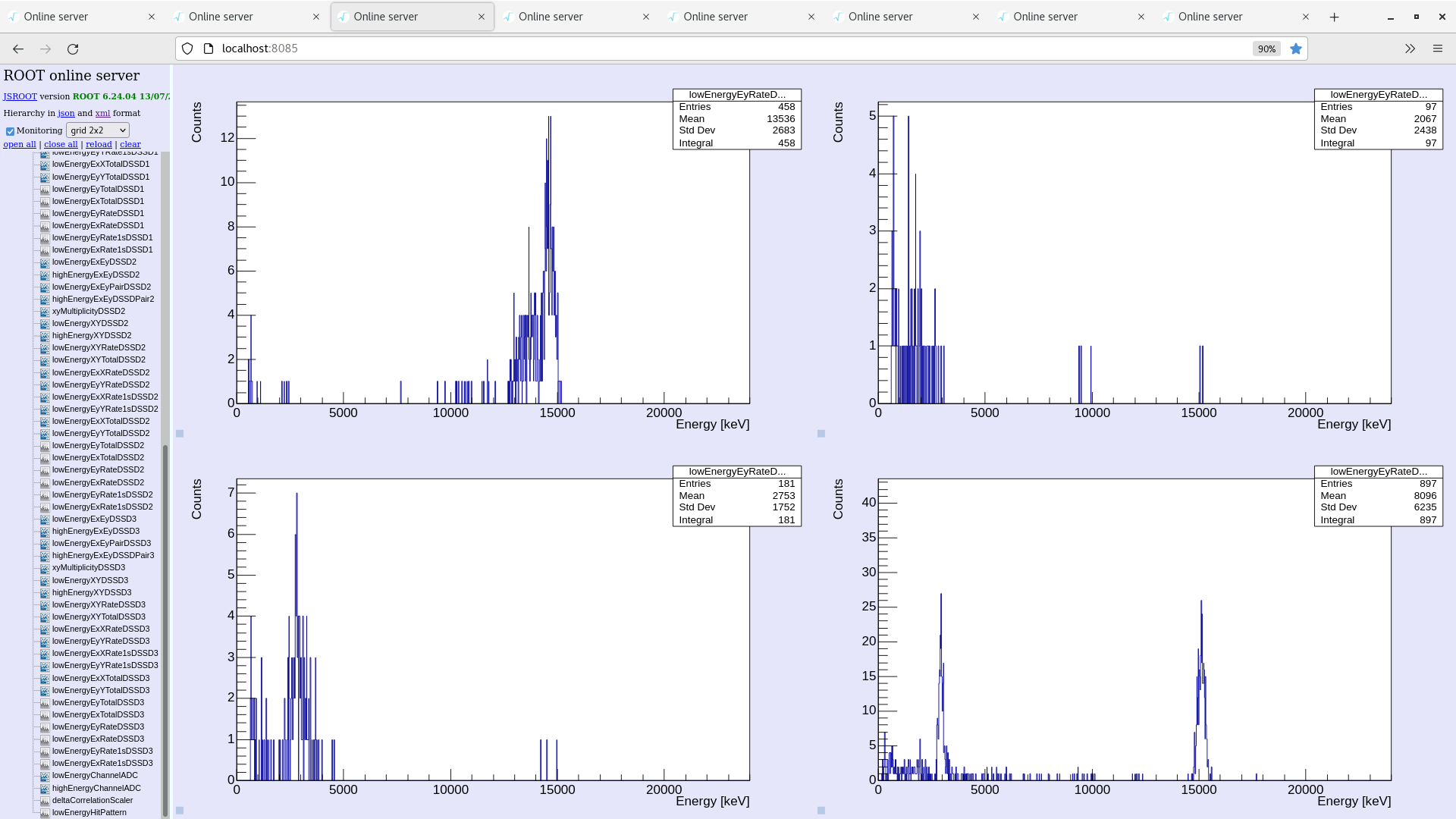

      DSSSD energy spectra - attachment 12

23.40 cycle slow comparator 0x32 -> 0x64 -> Check ASIC Control -> 0x32
        aida01 - aida04 rates return to normal

00.10 cycle slow comparator 0x32 -> 0x64 -> Check ASIC Control -> 0x32
        aida01 - aida04 rates return to normal

01.43 ADC item stats OK - attachment 13
       FEE64 temps OK - attachment 14

04.43 ADC data items stats
       ADC data item stats - attachment 15
       FEE64 temps OK - attachment 16
       cycle slow comparator 0x32 -> 0x64 -> Check ASIC Control -> 0x32
        aida01 - aida04 rates return to normal
       ADC data item stats - attachment 17
       per FEE64 Rate spectra - attachment 18

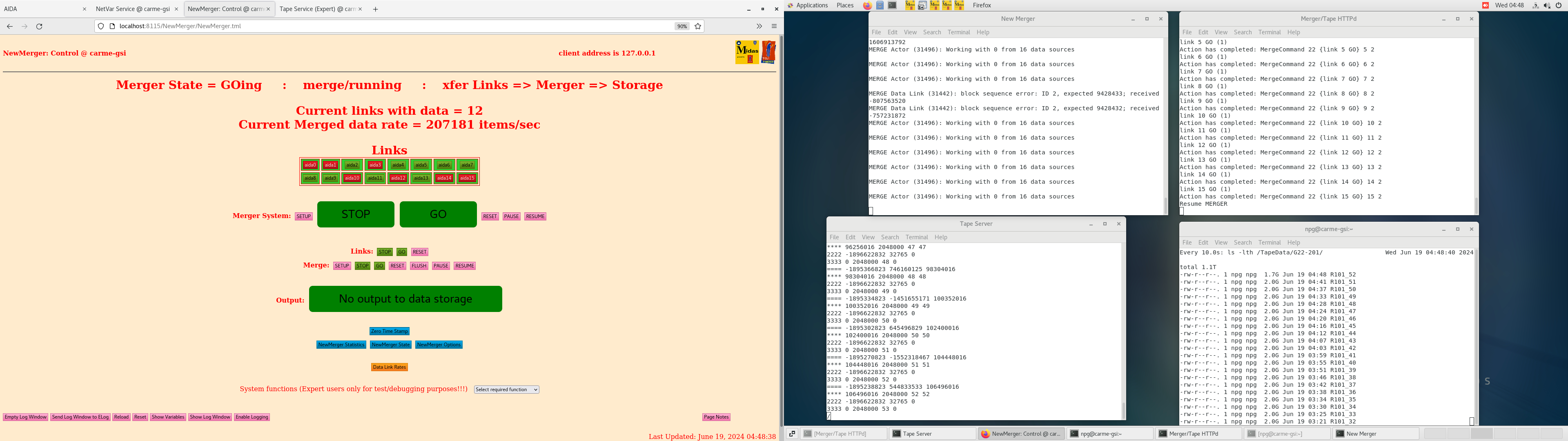

       Merger, TapeServer etc. - attachment 19
        data file R101_51

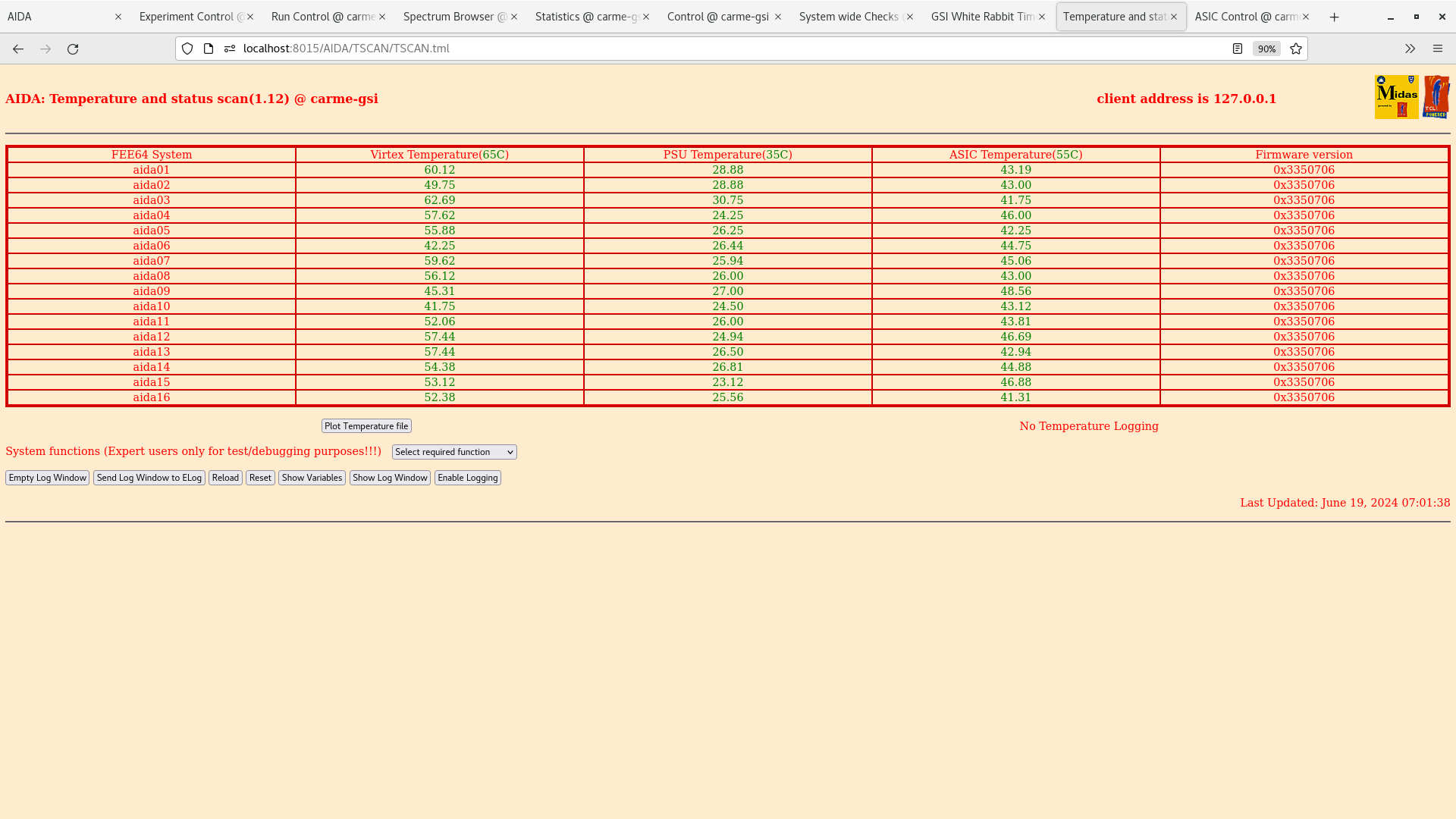

07.00 FEE64 temps OK - attachment 21
      ADC data items OK - attachment 20
      Merger, Tape Server OK - attachment 22

DSSSD bias & leakage current - attachment 23

DAQ stop, close data file
      DSSSD bias OFF
      FEE64 power OFF

Gzip'ing all uncompressed data files
