Entry time:
Tue Jul 2 17:43:32 2024
Author
*
:
Subject
*
:

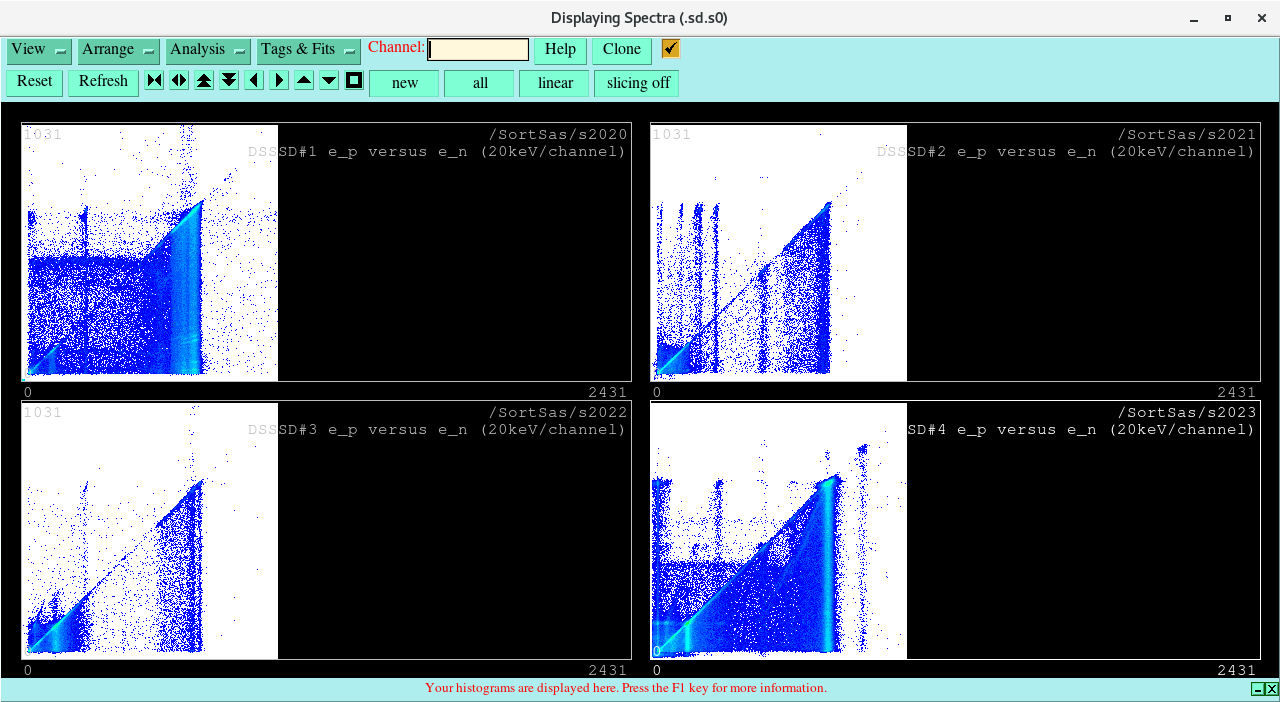

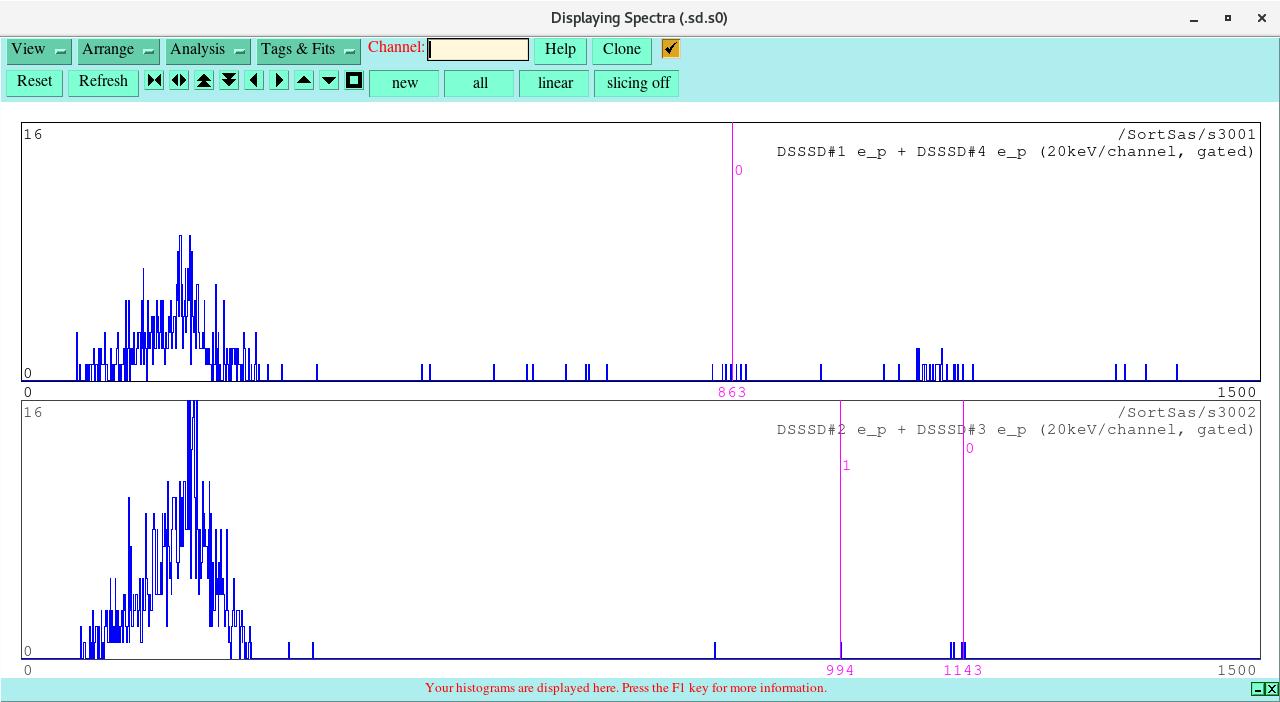

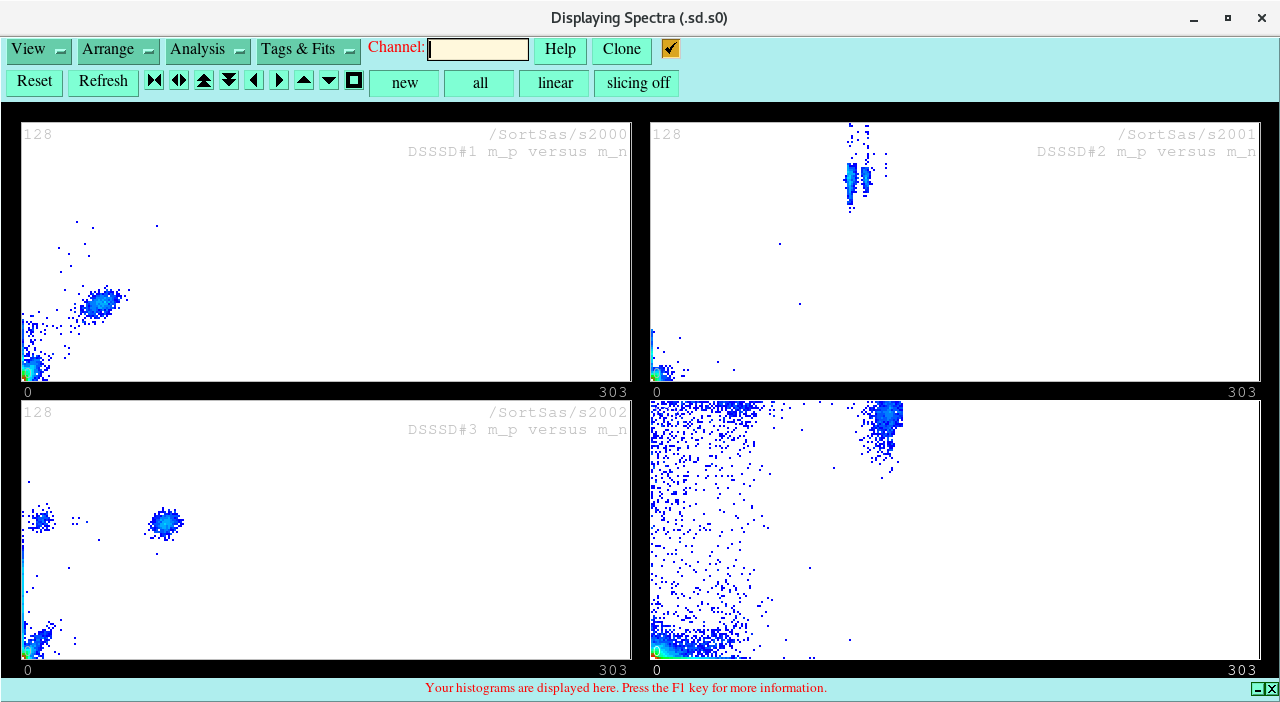

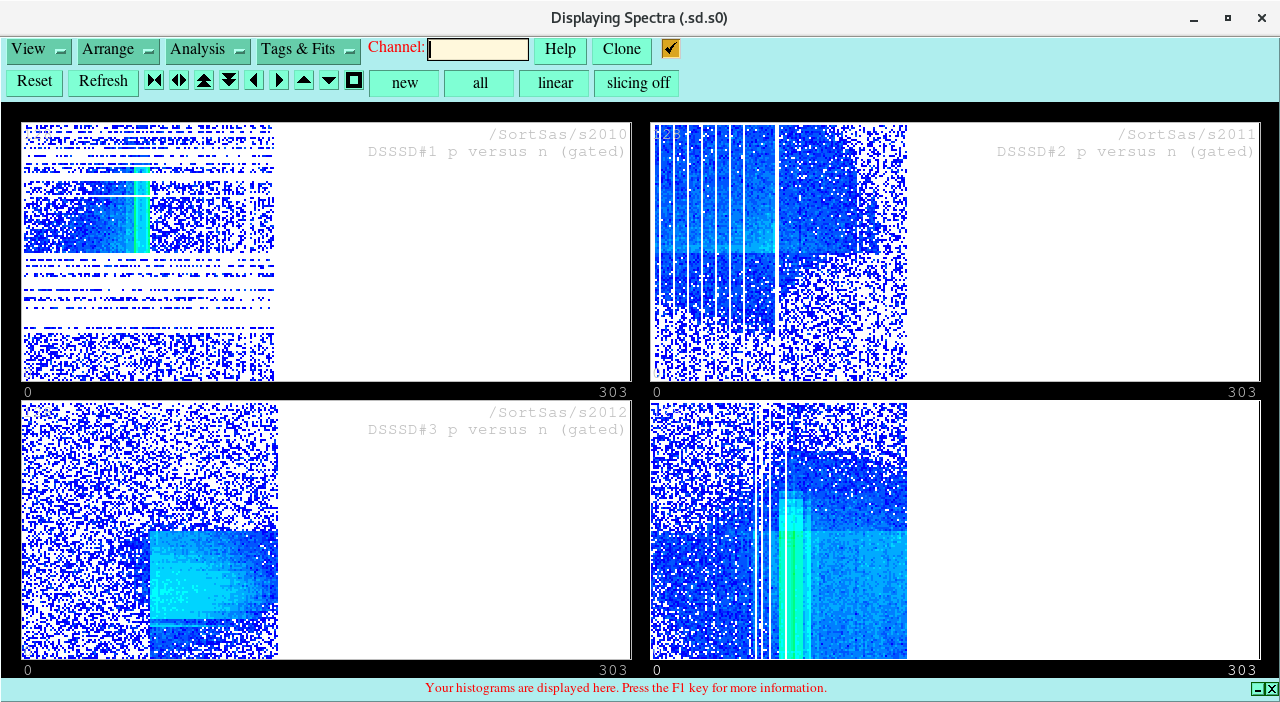

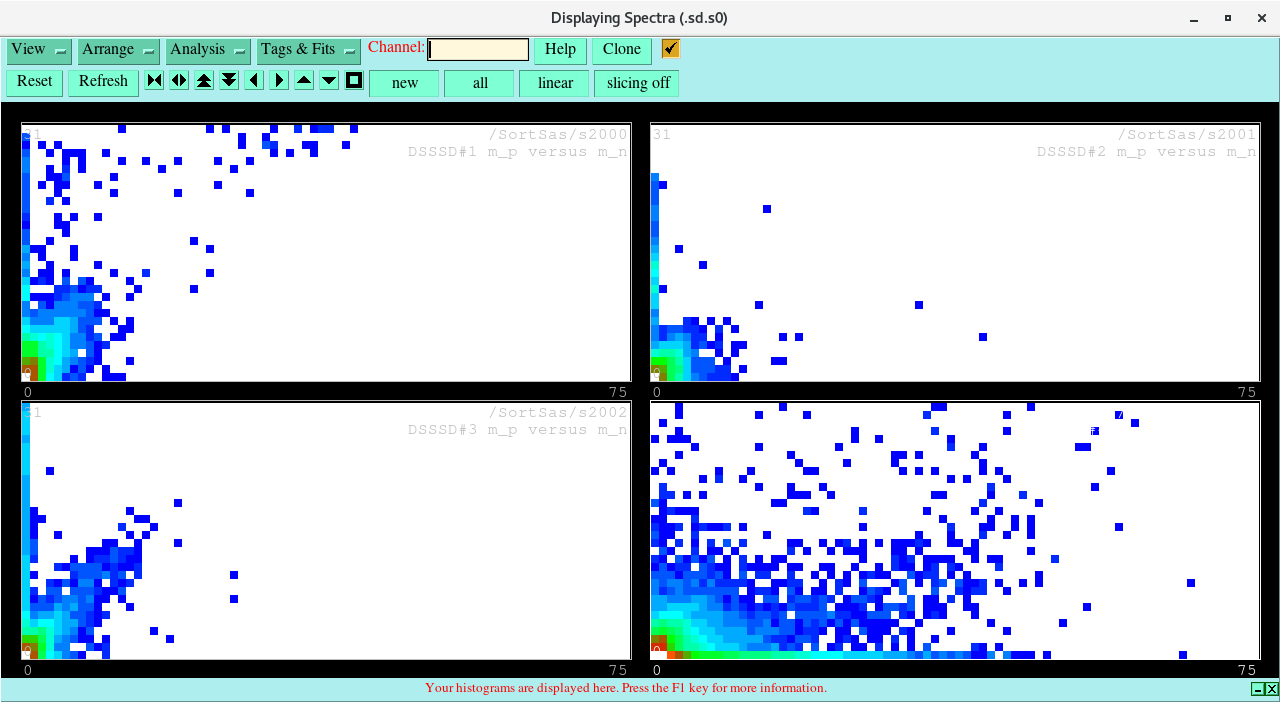

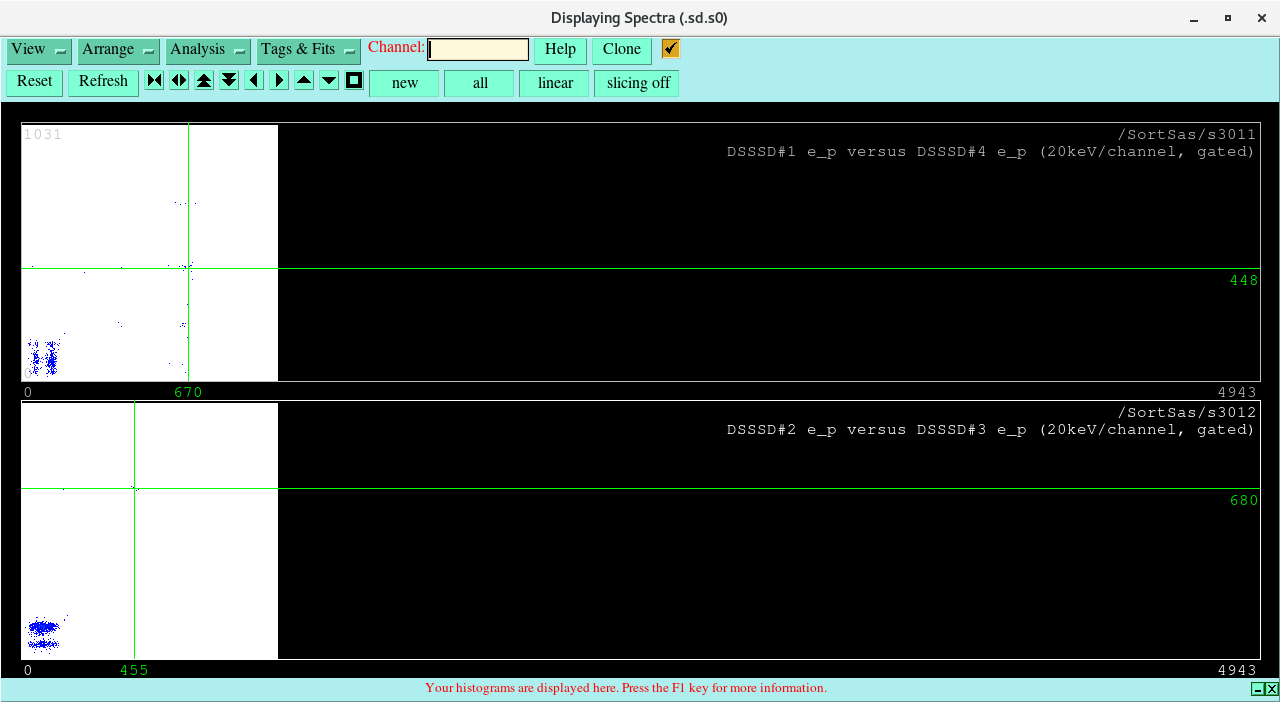

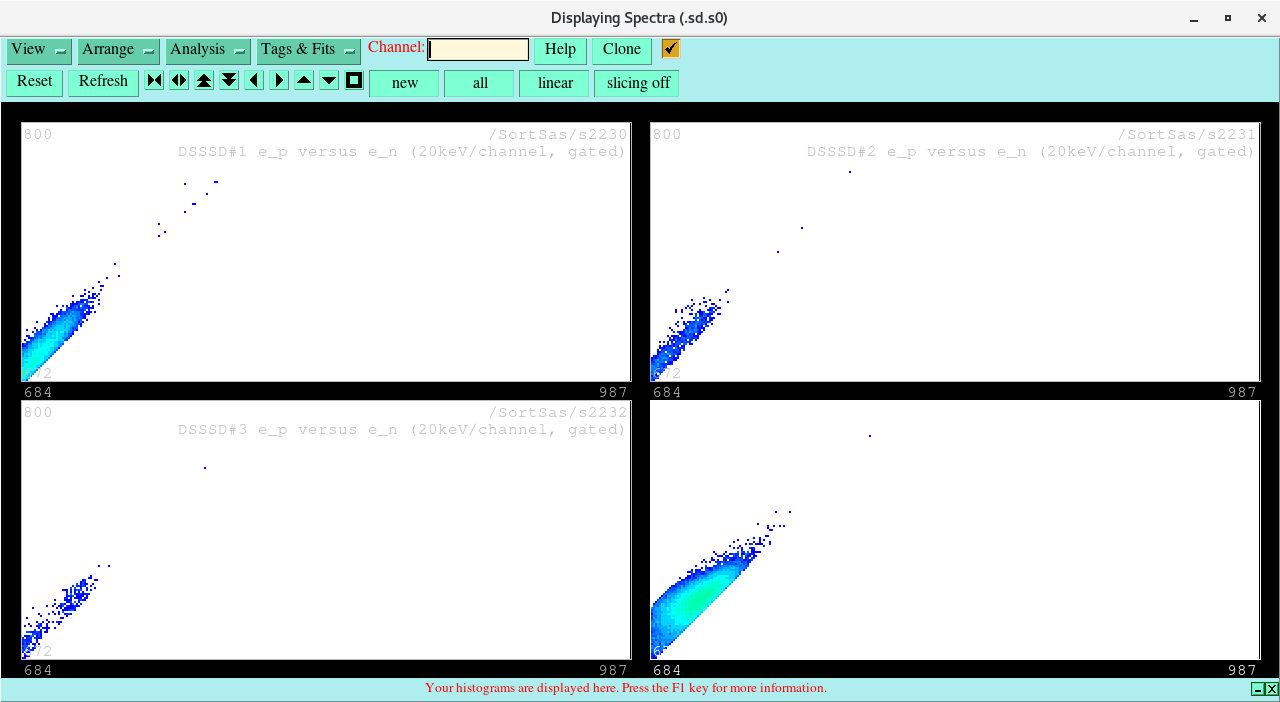

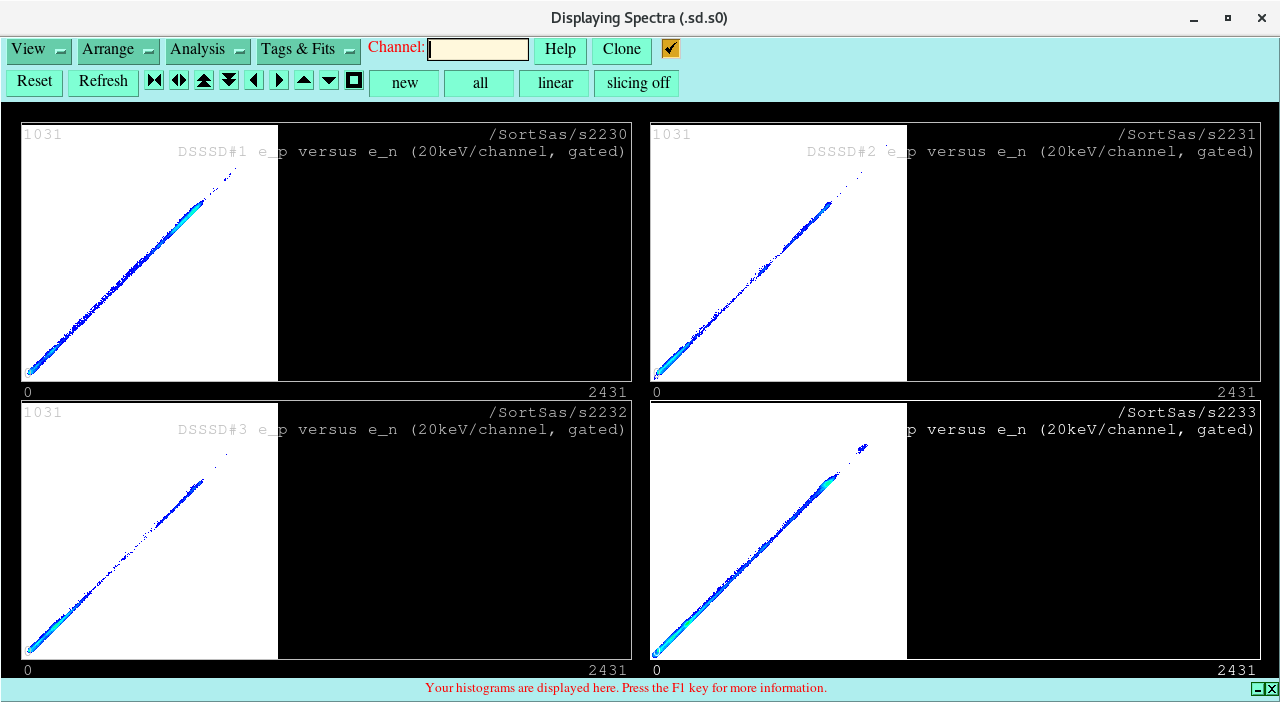

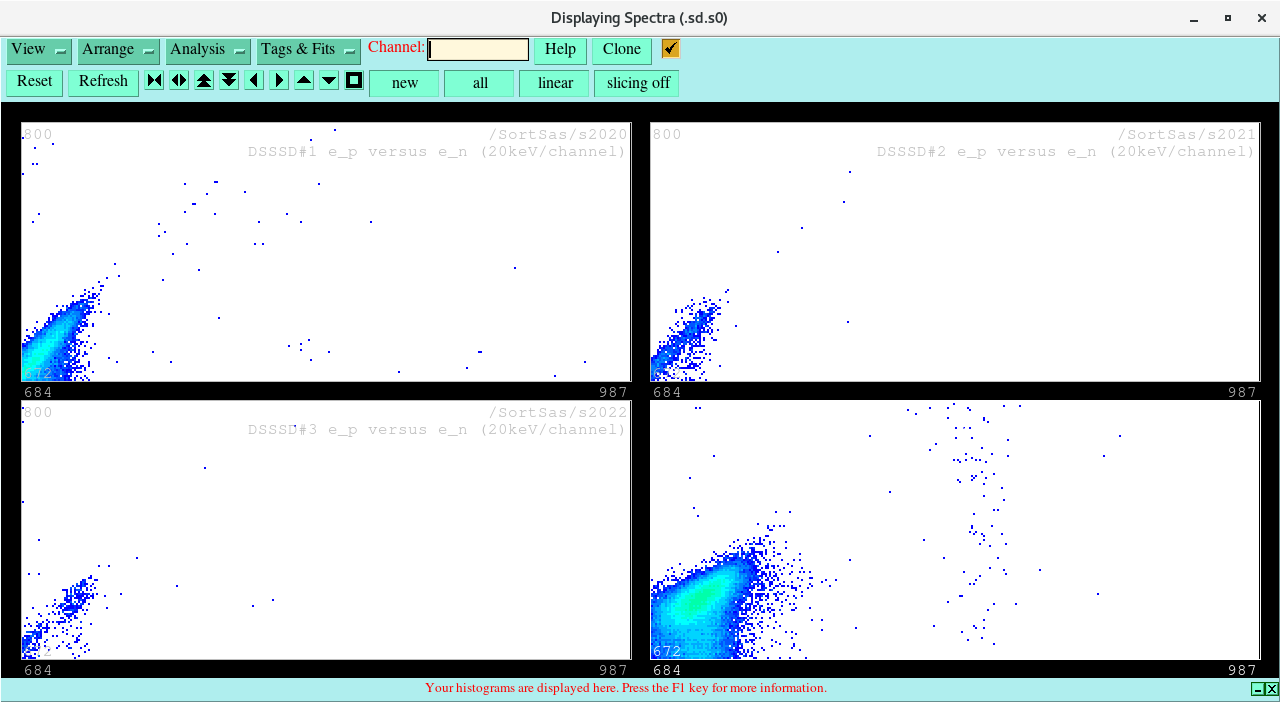

Offline analysis data file G22-201/R89_0 to R89_13 (c. 6h40m data) DSSSD#1 & 3 36.54mm -> ~ 2.3-8.6 deg DSSSD#2 & 4 64.60mm -> ~ 4.1-10.4 deg Beam ~1.06MeV/u 15N5+ Sort program variables https://elog.ph.ed.ac.uk/CARME/240530_180659/variables.dat ADC data corrected for ADC offset but not gain (assume 0.7keV/LSB) per DSSSD m_p verus m_n - attachments 1-2 For spectra below events must satisfy condition 0 < m_p < 4 *and* 0 < m_n < 4 gated w(1)=50 & w(2)=-50 20keV/channel nominal per DSSSD p+n junction strip versus n+n Ohmic strip - attachment 3 note - x/y channel ordering to be checked per DSSSD E_p versus E_n - attachments 4 & 6 check whether vertical structures (correct E_n but low E_p) are associated with specific strips or edge of DSSSD? per DSSSD E_p versus E_n - attachment 5 & 7 expanded view high energy events DSSSD #1 E_p + DSSSD#4 E_p - attachment 8 DSSSD #2 E_p + DSSSD#3 E_p - attachment 8 DSSSD #1 E_p versus DSSSD#4 E_p - attachment 9 DSSSD #2 E_p versus DSSSD#3 E_p - attachment 9 note clusters of events at asymmetric energies but only for one combination of detectors - random events? ______________________________________________________________________________________________________________________________ Reaction: 1H(15N,4He)12C A: 1 15 4 12 Z: 1 7 2 6 Mass(amu): 1.007825 15.000109 4.002603 12.000000 Error(keV): 0.000 0.001 0.001 0.000 Origin: Status: Q(gs): 4.9655 +/- 0.0001 MeV Projectile lab energy: 15.900 MeV CM energy: 1.001 MeV Excitation energy: 0.000 MeV Reaction Q-value: 4.965 MeV Reaction threshold: 0.000 MeV Particle 3 Particle 4 Non-relativistic Jacobians ( scattered/ejectile ) ( recoil ) Ejectile Ejectile Ejectile Recoil dOmega/ dOmega/ Lab CM Lab Lab Lab dOmega Lab CM Lab Lab Lab dOmega dOmega dOmega Recoil Recoil Angle Angle Energy Beta ToF Lab/CM Angle Angle Energy Beta ToF Lab/CM Lab/CM Lab/CM dOmega dOmega (deg) (deg) (MeV) (ns/cm) ratio (deg) (deg) (MeV) (ns/cm) ratio Lab/Lab CM/Lab 0.00 NaN 16.372 0.0934 0.357 NaN 0.00 NaN 4.494 0.0283 1.177 NaN NaN NaN NaN NaN 1.00 1.91 16.367 0.0934 0.357 0.2729 1.10 178.09 4.498 0.0284 1.176 -0.3314 0.2729 -0.3314 -0.8233 -3.0175 2.00 3.83 16.354 0.0934 0.357 0.2730 2.20 176.17 4.512 0.0284 1.174 -0.3290 0.2730 -0.3290 -0.8296 -3.0393 3.00 5.74 16.331 0.0933 0.358 0.2732 3.29 174.26 4.535 0.0285 1.171 -0.3251 0.2732 -0.3251 -0.8403 -3.0759 4.00 7.66 16.299 0.0932 0.358 0.2735 4.37 172.34 4.566 0.0286 1.167 -0.3197 0.2735 -0.3197 -0.8553 -3.1277 5.00 9.57 16.258 0.0931 0.358 0.2739 5.43 170.43 4.607 0.0287 1.162 -0.3129 0.2738 -0.3130 -0.8750 -3.1954 6.00 11.49 16.208 0.0929 0.359 0.2743 6.47 168.51 4.657 0.0289 1.156 -0.3049 0.2743 -0.3049 -0.8996 -3.2796 7.00 13.40 16.150 0.0928 0.360 0.2749 7.49 166.60 4.716 0.0290 1.149 -0.2957 0.2749 -0.2957 -0.9294 -3.3815 8.00 15.31 16.082 0.0926 0.360 0.2755 8.48 164.69 4.784 0.0292 1.141 -0.2855 0.2755 -0.2855 -0.9648 -3.5023 9.00 17.23 16.006 0.0924 0.361 0.2762 9.45 162.77 4.860 0.0295 1.132 -0.2745 0.2762 -0.2745 -1.0063 -3.6434 10.00 19.14 15.921 0.0921 0.362 0.2770 10.38 160.86 4.945 0.0297 1.122 -0.2627 0.2770 -0.2627 -1.0545 -3.8067 11.00 21.05 15.827 0.0918 0.363 0.2779 11.27 158.95 5.039 0.0300 1.111 -0.2503 0.2779 -0.2503 -1.1100 -3.9944 12.00 22.96 15.725 0.0916 0.364 0.2789 12.13 157.04 5.141 0.0303 1.100 -0.2376 0.2789 -0.2376 -1.1738 -4.2091 13.00 24.87 15.614 0.0912 0.366 0.2800 12.96 155.13 5.251 0.0306 1.089 -0.2245 0.2800 -0.2245 -1.2469 -4.4539 14.00 26.78 15.496 0.0909 0.367 0.2812 13.74 153.22 5.370 0.0310 1.077 -0.2113 0.2811 -0.2113 -1.3305 -4.7326 15.00 28.69 15.369 0.0905 0.369 0.2824 14.49 151.31 5.496 0.0313 1.064 -0.1980 0.2824 -0.1980 -1.4260 -5.0496 ______________________________________________________________________________________________________________________________ Options available: (r)eaction e(x)citation energy (e)nergy (a)ngles (p)rint (q)uit Enter option: x Enter excitation energy (MeV): 4.44 Enter projectile lab energy (MeV): / Enter lab scattering angles [start,stop,step] (deg): / ______________________________________________________________________________________________________________________________ Reaction: 1H(15N,4He)12C A: 1 15 4 12 Z: 1 7 2 6 Mass(amu): 1.007825 15.000109 4.002603 12.000000 Error(keV): 0.000 0.001 0.001 0.000 Origin: Status: Q(gs): 4.9655 +/- 0.0001 MeV Projectile lab energy: 15.900 MeV CM energy: 1.001 MeV Excitation energy: 4.440 MeV Reaction Q-value: 0.525 MeV Reaction threshold: 0.000 MeV Particle 3 Particle 4 Non-relativistic Jacobians ( scattered/ejectile ) ( recoil ) Ejectile Ejectile Ejectile Recoil dOmega/ dOmega/ Lab CM Lab Lab Lab dOmega Lab CM Lab Lab Lab dOmega dOmega dOmega Recoil Recoil Angle Angle Energy Beta ToF Lab/CM Angle Angle Energy Beta ToF Lab/CM Lab/CM Lab/CM dOmega dOmega (deg) (deg) (MeV) (ns/cm) ratio (deg) (deg) (MeV) (ns/cm) ratio Lab/Lab CM/Lab 0.00 0.00 9.002 0.0694 0.481 0.0000 0.00 180.00 7.423 0.0364 0.916 0.0000 0.0000 0.0000 NaN NaN 180.00 0.740 0.0199 1.675 0.0000 0.00 0.00 15.686 0.0529 0.630 0.0000 0.0000 0.0000 NaN NaN 1.00 2.81 8.997 0.0693 0.481 0.1270 0.64 177.19 7.428 0.0364 0.915 -0.0513 0.1270 -0.0513 -2.4762 ******* 179.20 0.740 0.0199 1.674 1.5463 0.13 0.80 15.685 0.0529 0.630 0.0243 -1.5463 0.0243 ******* 41.1048 2.00 5.61 8.983 0.0693 0.481 0.1271 1.27 174.39 7.443 0.0365 0.915 -0.0509 0.1271 -0.0509 -2.4951 ******* 178.39 0.741 0.0199 1.673 1.5414 0.25 1.61 15.684 0.0529 0.630 0.0243 -1.5414 0.0243 ******* 41.1102 3.00 8.42 8.958 0.0692 0.482 0.1271 1.90 171.58 7.468 0.0365 0.913 -0.0503 0.1271 -0.0503 -2.5269 ******* 177.58 0.743 0.0200 1.671 1.5334 0.38 2.42 15.682 0.0529 0.630 0.0243 -1.5334 0.0243 ******* 41.1194 4.00 11.24 8.923 0.0691 0.483 0.1271 2.52 168.76 7.502 0.0366 0.911 -0.0494 0.1271 -0.0494 -2.5722 ******* 176.77 0.746 0.0200 1.668 1.5221 0.50 3.23 15.679 0.0529 0.630 0.0243 -1.5221 0.0243 ******* 41.1323 5.00 14.05 8.879 0.0689 0.484 0.1272 3.13 165.95 7.547 0.0367 0.908 -0.0483 0.1272 -0.0483 -2.6319 ******* 175.96 0.750 0.0201 1.663 1.5077 0.63 4.04 15.676 0.0529 0.631 0.0243 -1.5077 0.0243 ******* 41.1490 6.00 16.88 8.824 0.0687 0.486 0.1273 3.73 163.12 7.601 0.0369 0.905 -0.0470 0.1273 -0.0470 -2.7072 ******* 175.13 0.754 0.0201 1.658 1.4901 0.76 4.87 15.671 0.0529 0.631 0.0243 -1.4901 0.0243 ******* 41.1697 7.00 19.71 8.760 0.0684 0.487 0.1273 4.32 160.29 7.665 0.0370 0.901 -0.0455 0.1273 -0.0455 -2.7995 ******* 174.30 0.760 0.0202 1.652 1.4695 0.89 5.70 15.665 0.0529 0.631 0.0243 -1.4695 0.0243 ******* 41.1945 8.00 22.55 8.686 0.0681 0.490 0.1274 4.89 157.45 7.739 0.0372 0.897 -0.0438 0.1274 -0.0438 -2.9108 ******* 173.46 0.766 0.0203 1.645 1.4458 1.02 6.54 15.659 0.0529 0.631 0.0243 -1.4458 0.0243 ******* 41.2236 9.00 25.41 8.603 0.0678 0.492 0.1275 5.44 154.59 7.823 0.0374 0.892 -0.0419 0.1275 -0.0419 -3.0436 ******* 172.61 0.774 0.0204 1.637 1.4191 1.15 7.39 15.652 0.0529 0.631 0.0242 -1.4192 0.0242 ******* 41.2573 10.00 28.27 8.509 0.0674 0.495 0.1276 5.97 151.73 7.916 0.0376 0.887 -0.0399 0.1276 -0.0399 -3.2011 ******* 171.75 0.782 0.0205 1.628 1.3896 1.28 8.25 15.643 0.0528 0.631 0.0242 -1.3896 0.0242 ******* 41.2958 11.00 31.15 8.407 0.0670 0.498 0.1277 6.48 148.85 8.019 0.0379 0.881 -0.0377 0.1277 -0.0377 -3.3875 ******* 170.87 0.792 0.0206 1.619 1.3572 1.42 9.13 15.634 0.0528 0.631 0.0242 -1.3572 0.0242 ******* 41.3394 12.00 34.05 8.294 0.0666 0.501 0.1278 6.97 145.95 8.131 0.0381 0.875 -0.0354 0.1278 -0.0354 -3.6080 ******* 169.97 0.803 0.0207 1.608 1.3221 1.56 10.03 15.623 0.0528 0.632 0.0242 -1.3221 0.0242 ******* 41.3886 13.00 36.96 8.172 0.0661 0.505 0.1279 7.43 143.04 8.253 0.0384 0.868 -0.0330 0.1279 -0.0330 -3.8695 ******* 169.06 0.815 0.0209 1.596 1.2843 1.70 10.94 15.611 0.0528 0.632 0.0241 -1.2844 0.0241 ******* 41.4437 14.00 39.90 8.040 0.0656 0.509 0.1280 7.87 140.10 8.385 0.0387 0.862 -0.0306 0.1280 -0.0306 -4.1814 ******* 168.13 0.828 0.0211 1.583 1.2440 1.84 11.87 15.598 0.0528 0.632 0.0241 -1.2441 0.0241 ******* 41.5053 15.00 42.86 7.899 0.0650 0.513 0.1280 8.28 137.14 8.526 0.0390 0.855 -0.0281 0.1280 -0.0281 -4.5560 ******* 167.17 0.843 0.0213 1.569 1.2012 1.99 12.83 15.583 0.0527 0.632 0.0241 -1.2013 0.0241 ******* 41.5741 ______________________________________________________________________________________________________________________________ Assume alphas of coincident events detected at 5 deg lab 1H(15N,4He)12C(gs) E_alpha + E_12C = 16.528+4.607MeV = 20.865MeV - 0.9MeV 12C energy loss dead layer = 19.965MeV = ch 998 1H(15N,4He)12C(4.44) forward CM E_alpha + E_12C = 0.750+15.676MeV = 16.426MeV - 0.8MeV 12C energy loss dead layer = 15.626MeV = ch 781 1H(15N,4He)12C(4.44) backward CM E_alpha + E_12C = 8.879+7.547MeV = 16.426MeV - 0.9MeV 12C energy loss dead layer = 15.526MeV = ch 776
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 1280x702
Attachment 2:
Original size: 1280x702
Attachment 3:
Original size: 1280x702
Attachment 4:
Original size: 1280x702
Attachment 5:
Original size: 1280x702
Attachment 6:
Original size: 1280x702
Attachment 7:
Original size: 1280x702
Attachment 8:
Original size: 1280x702
Attachment 9:
Original size: 1280x702
