Entry time:
Mon Apr 7 08:59:41 2025
Author
*
:
Subject
*
:

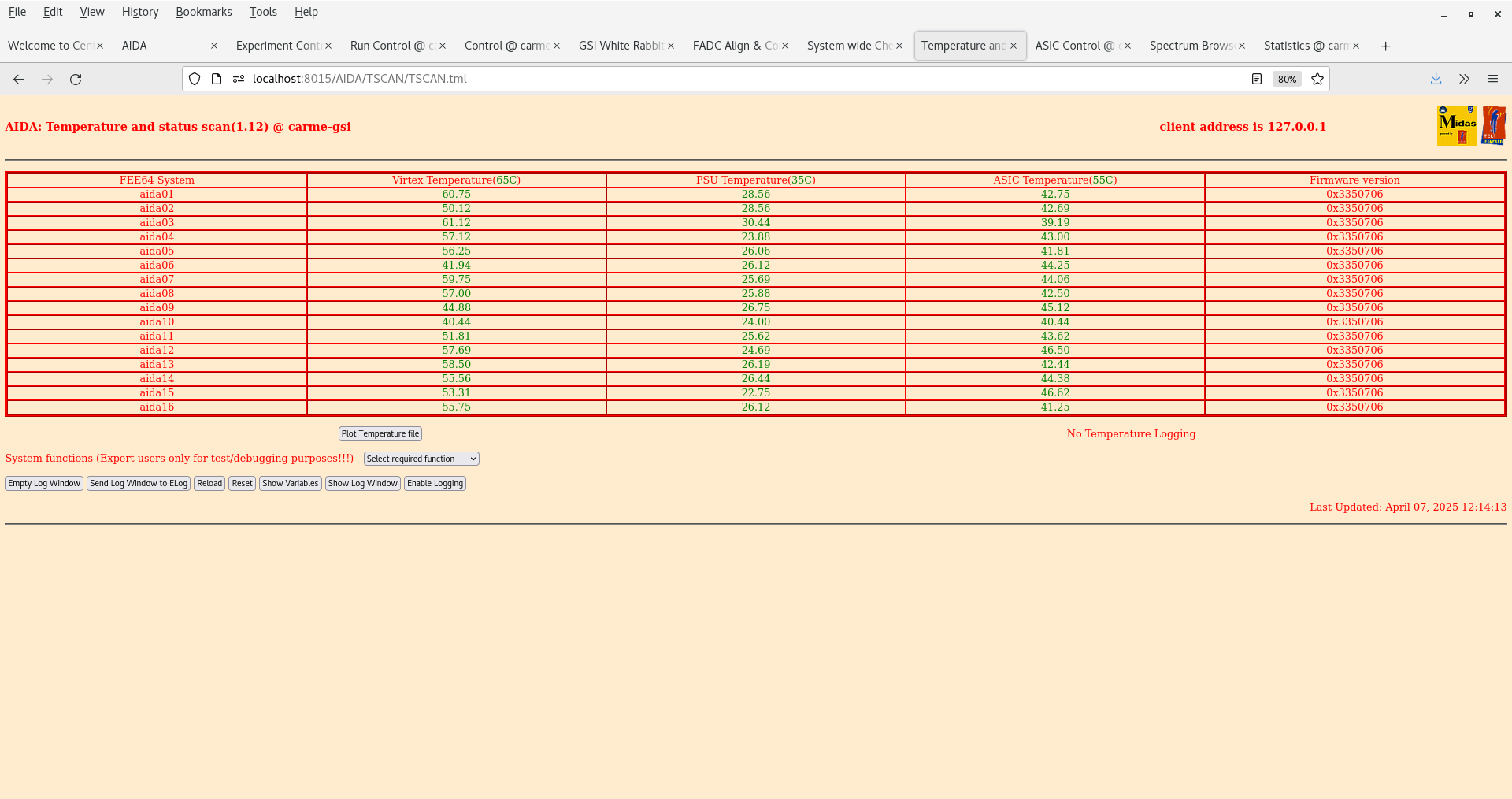

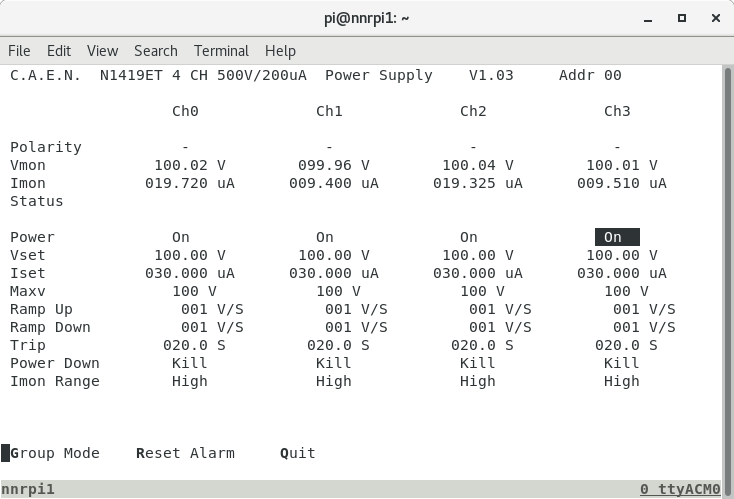

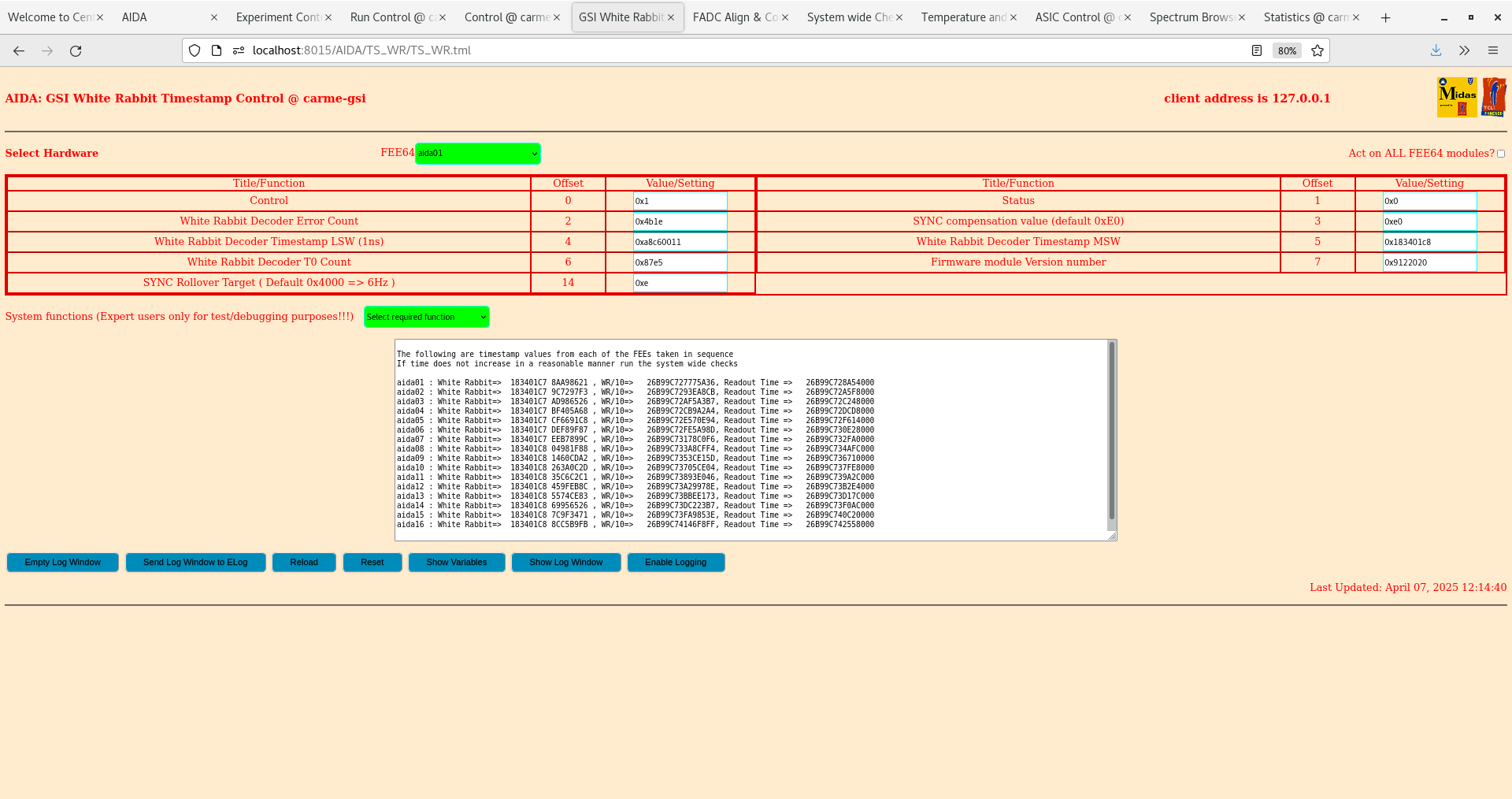

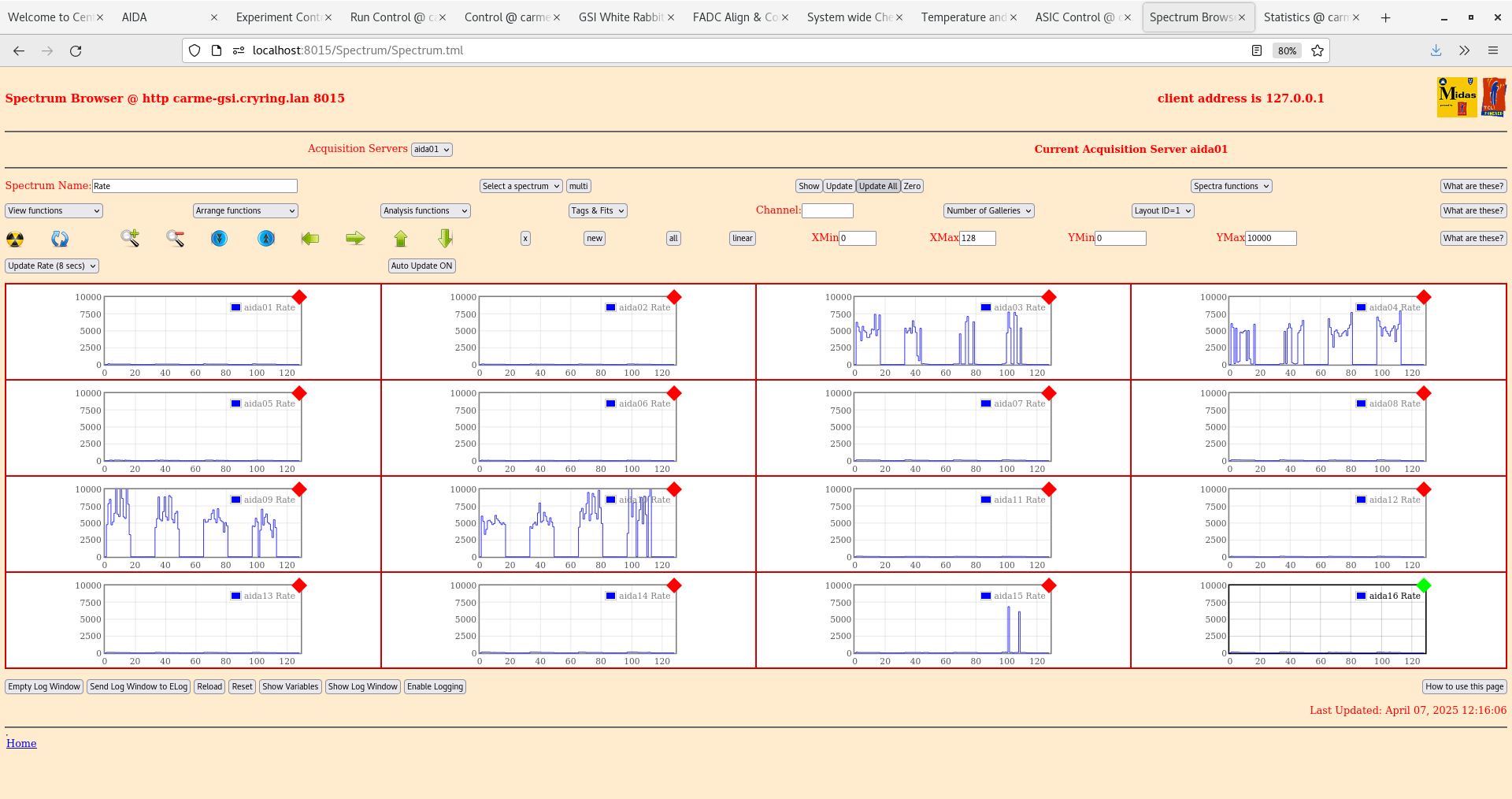

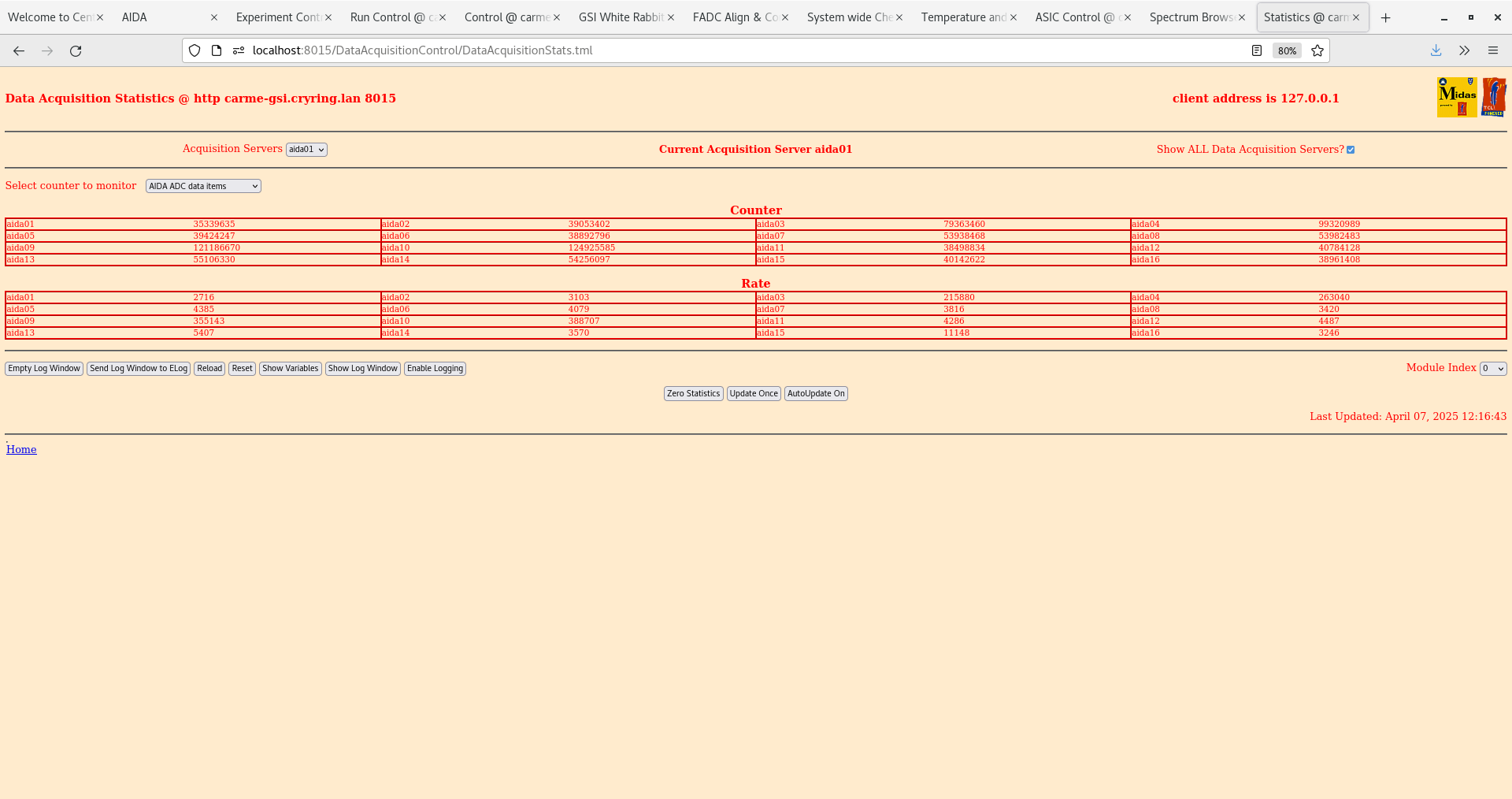

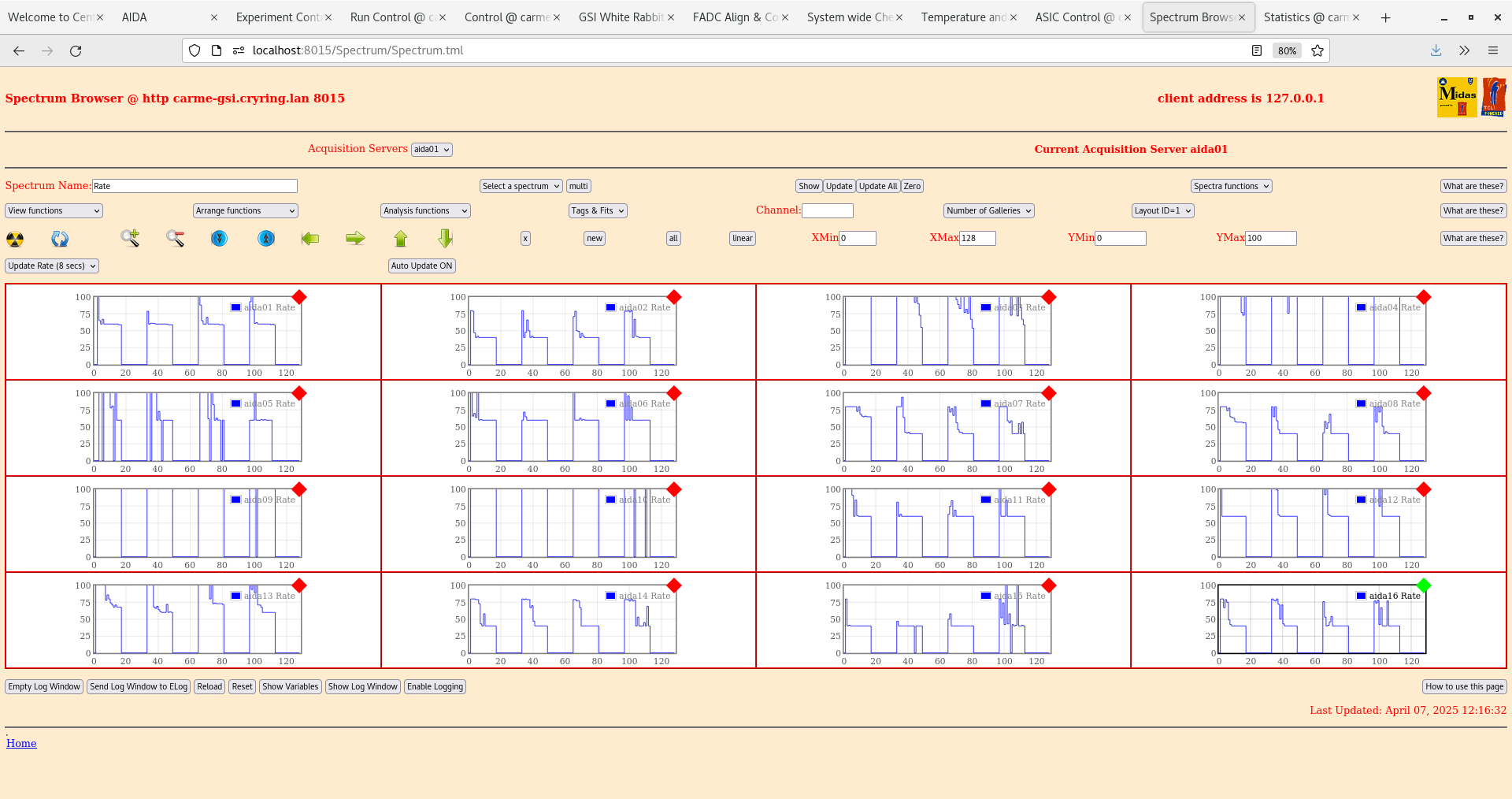

10.00 FEE64 power ON CARME IE514 OFF Confirm DAQ SETUP restores ASIC settings 2024Apr24-14.14.03 for *all* FEE64s DSSSD bias & leakage current - attachment 1 leakage currents remain high cf. June 2024 - status of vacuum group controlled ion gauge unknown 12.10 FEE64 power ON DSSSD bias & leakage current - attachment 2 FEE64 temps OK - attachment 3 All system wide checks OK WR timestamps OK - attachment 4 per FEE64 Rate spectra - attachments 5-6 ADC data item stats - attachment 7 13.45 ML says vacuum group have switched off YR09DD1AS DSSSD bias & leakage currents - attachment 8 DSSSD #2 and DSSSD #4 leakage currents return to 'normal' values cf. June 2024 DSSSD #1 and DSSSD #3 leakage currents reduce by c. 10-15% only and remain high cf. June 2024 17.47 DSSSD bias OFF FEE6 Power OFF
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 734x499
Attachment 2:
Original size: 734x499
Attachment 3:
Original size: 1920x1014
Attachment 4:
Original size: 1920x1014
Attachment 5:
Original size: 1920x1014
Attachment 6:
Original size: 1920x1014
Attachment 7:
Original size: 1920x1014
Attachment 8:
Original size: 734x499
