Entry time:
Tue May 27 05:03:41 2025
Author
*
:
Subject
*
:

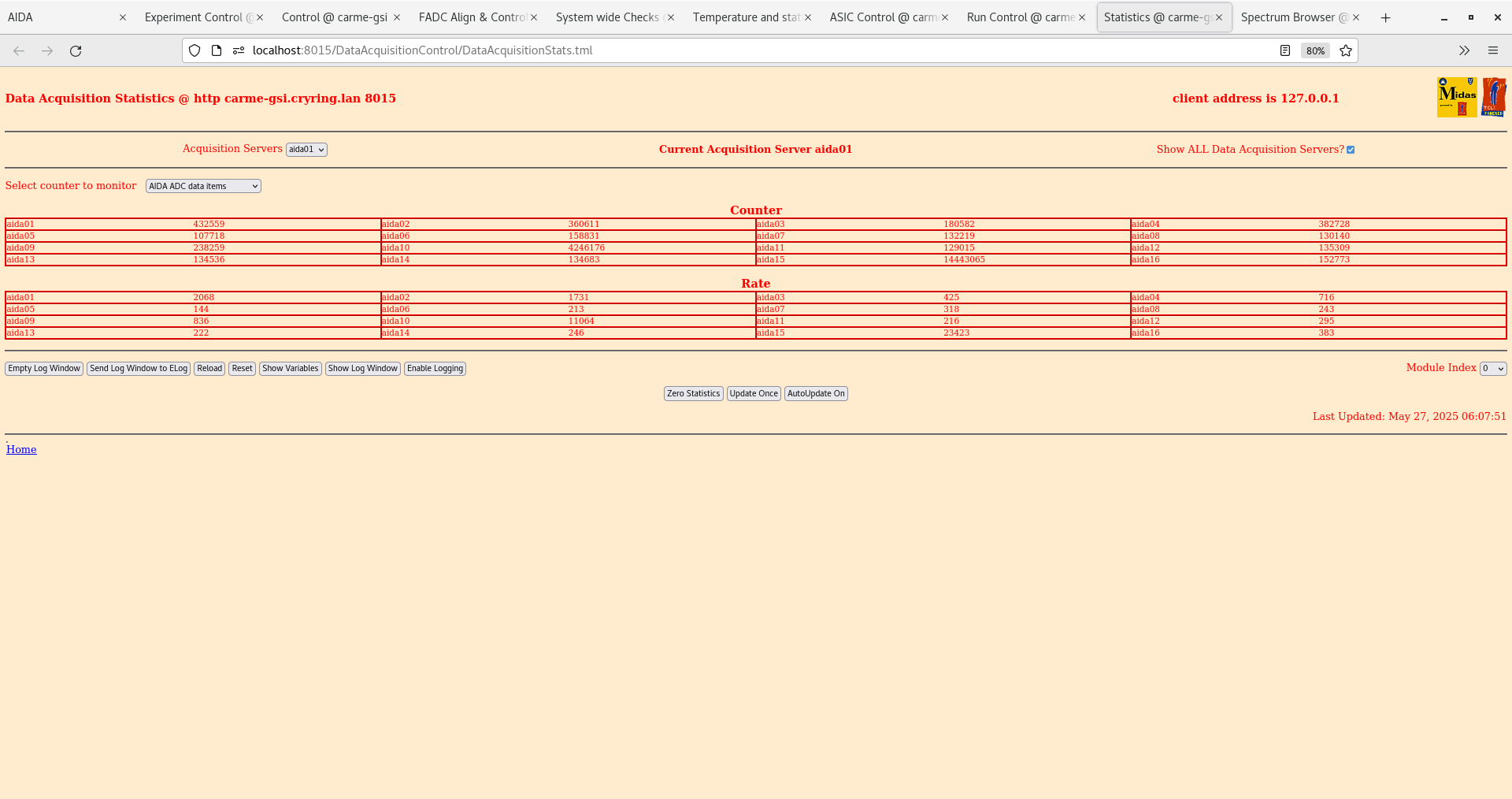

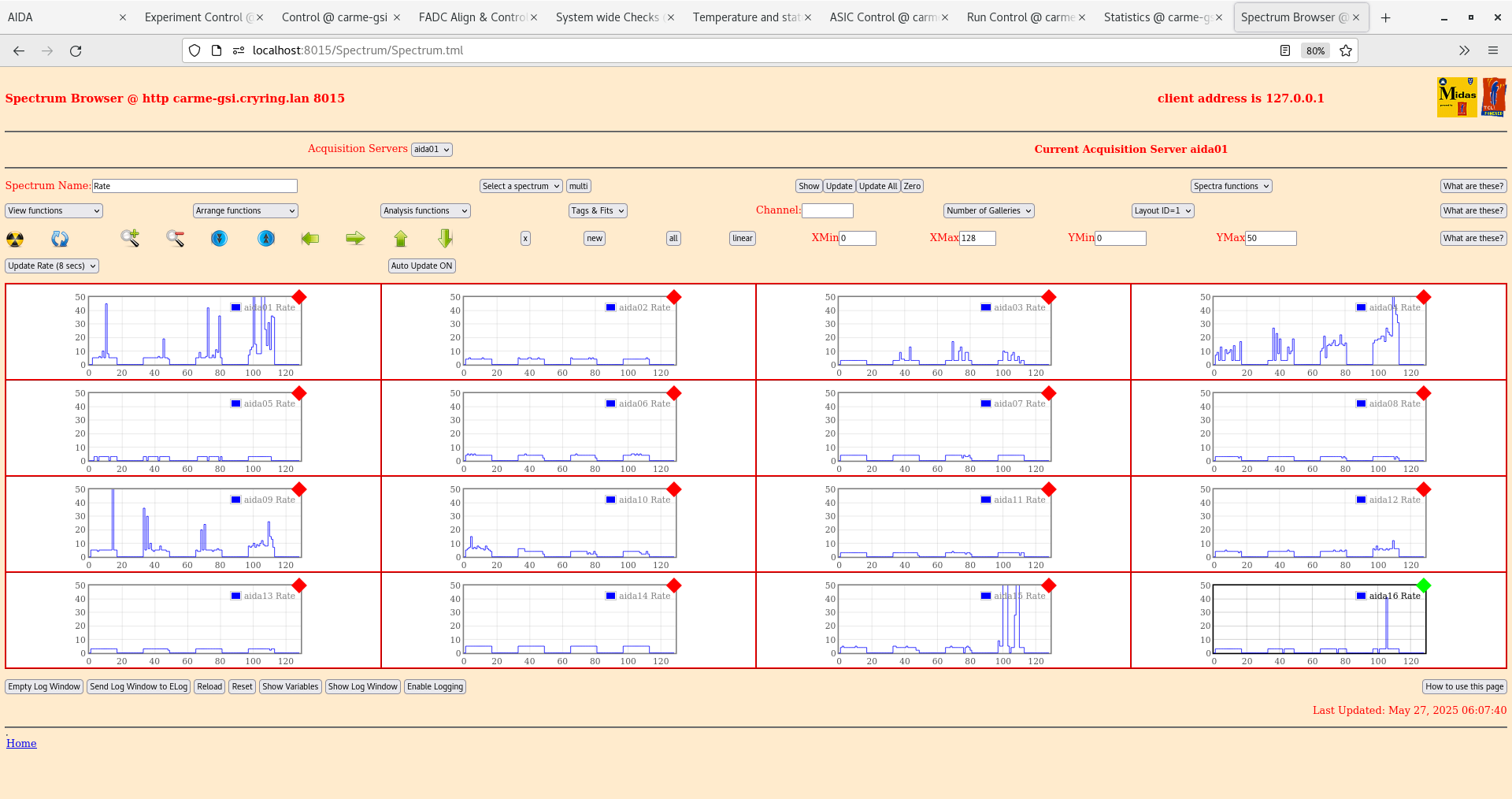

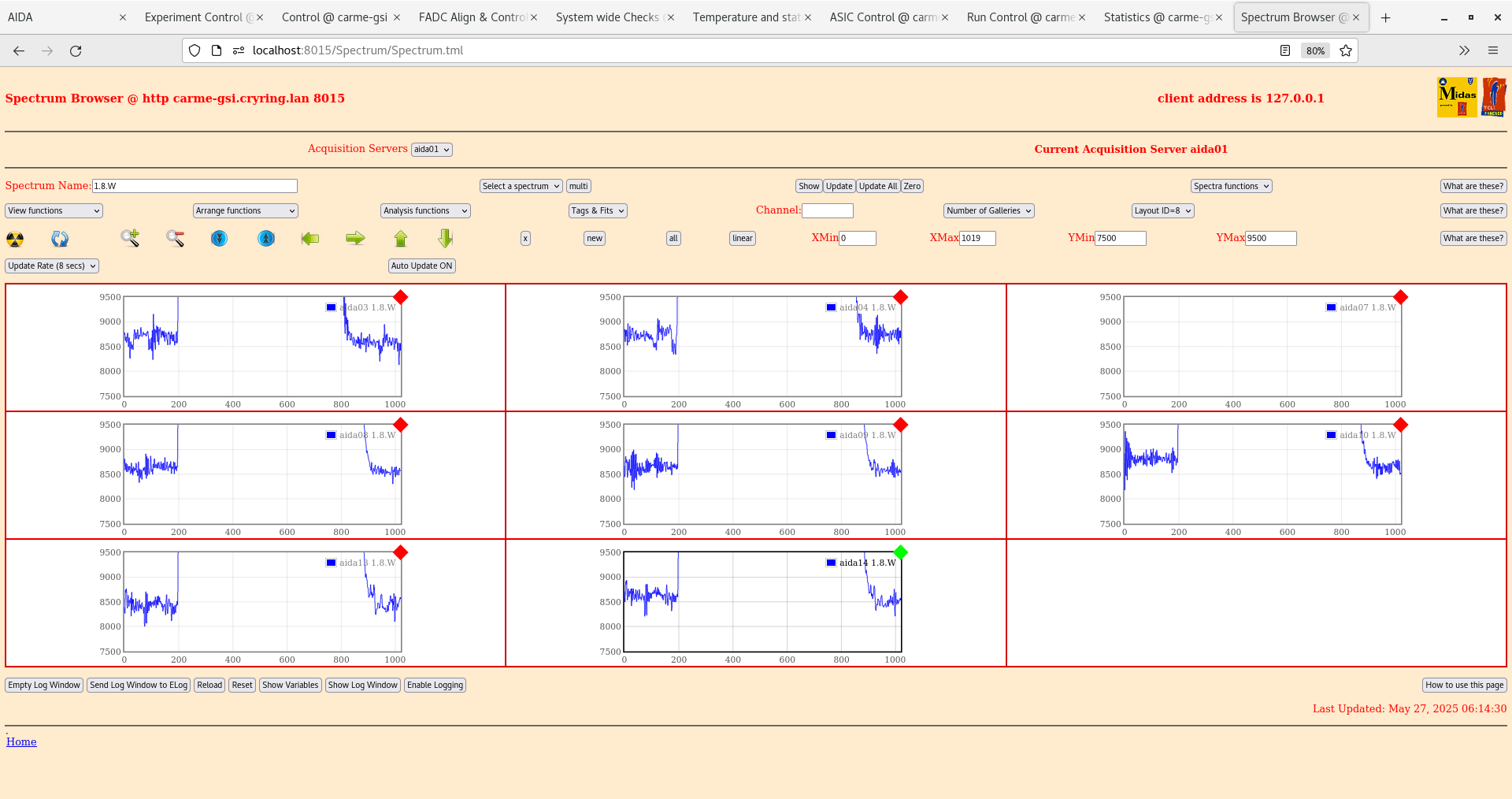

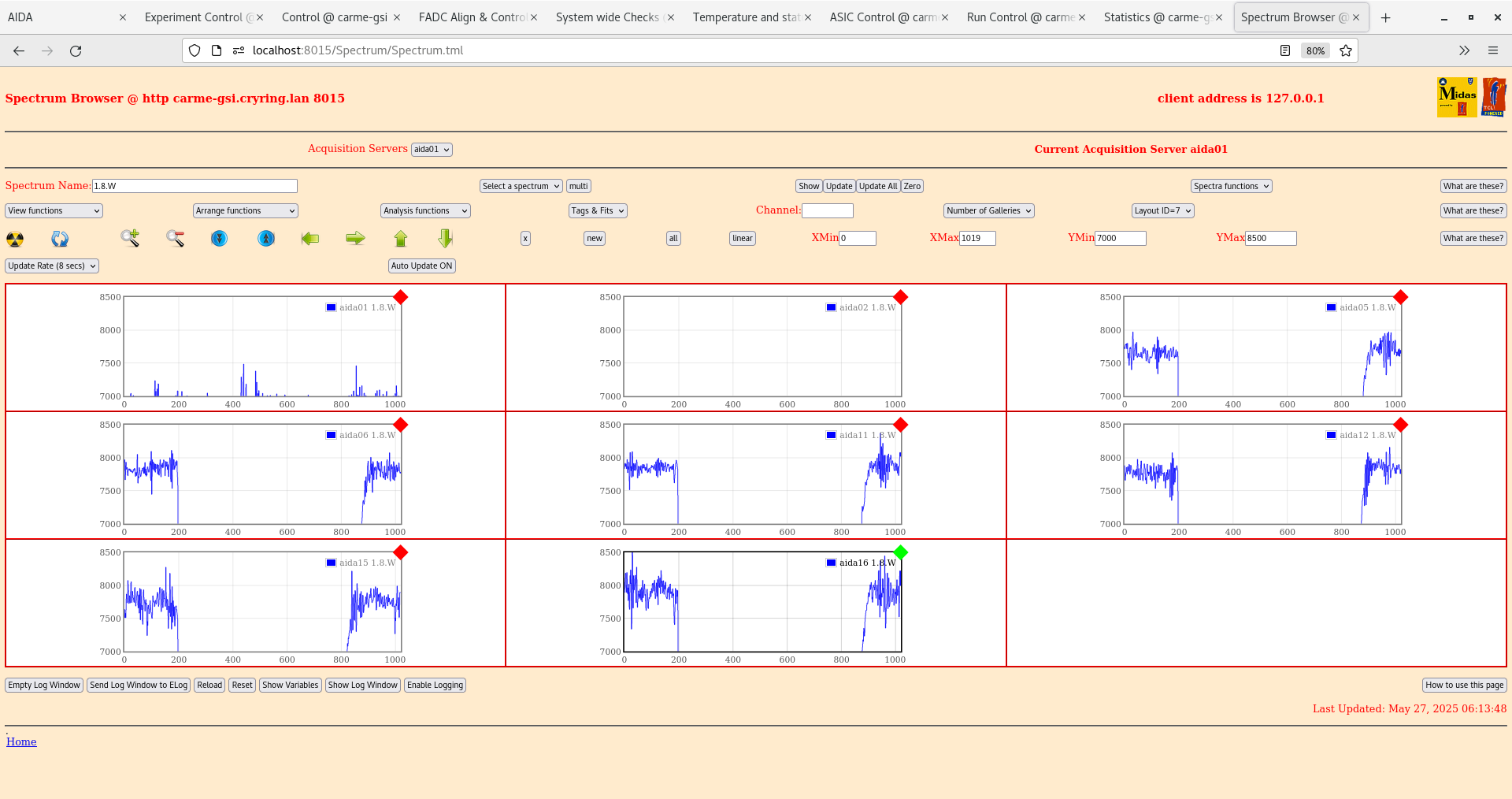

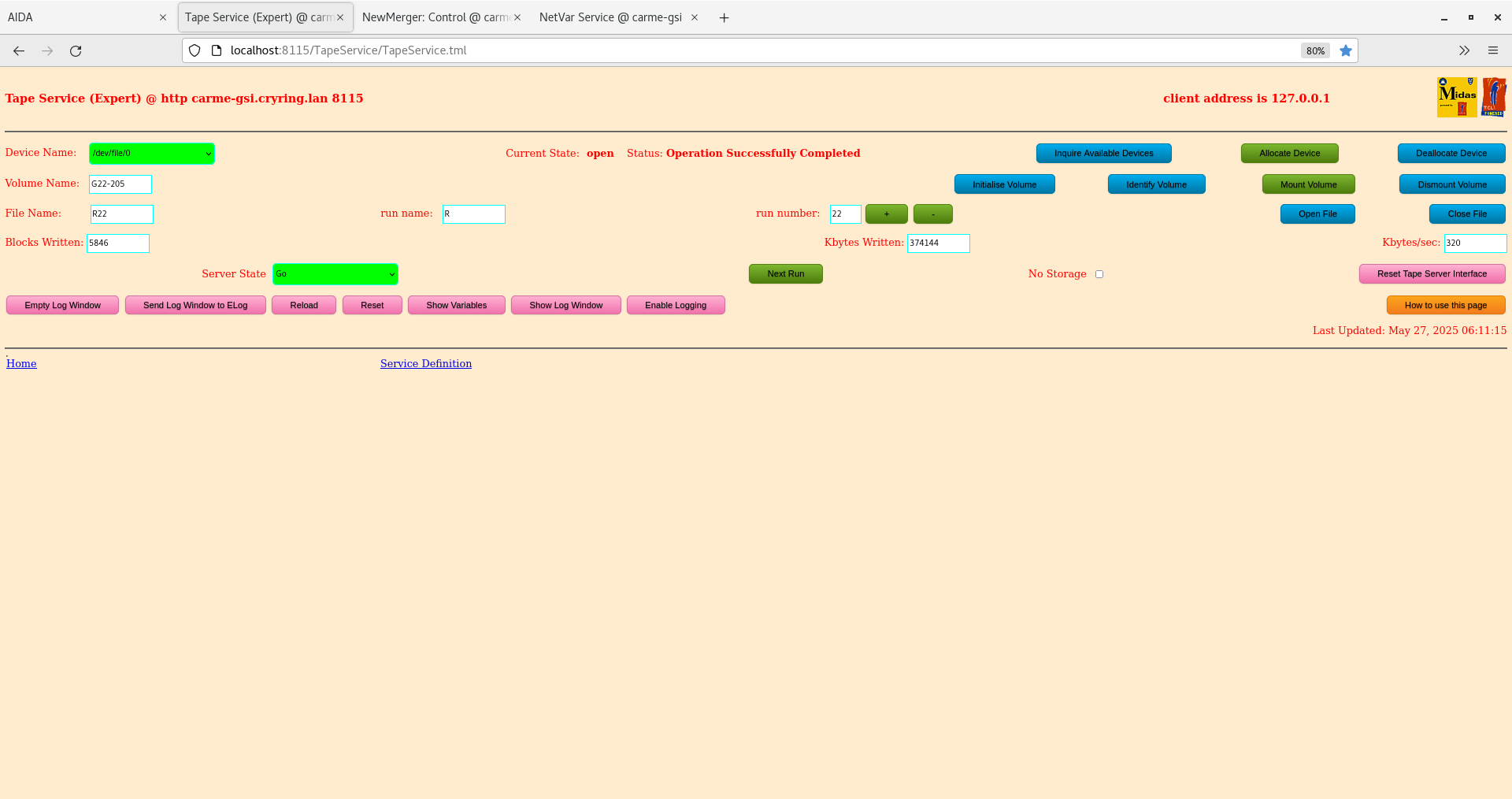

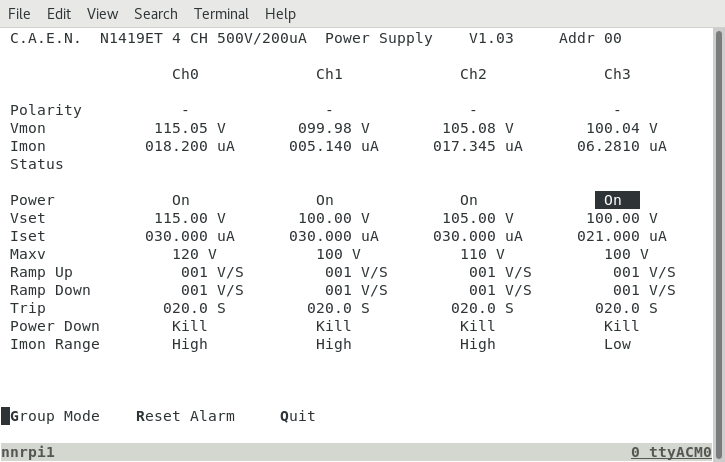

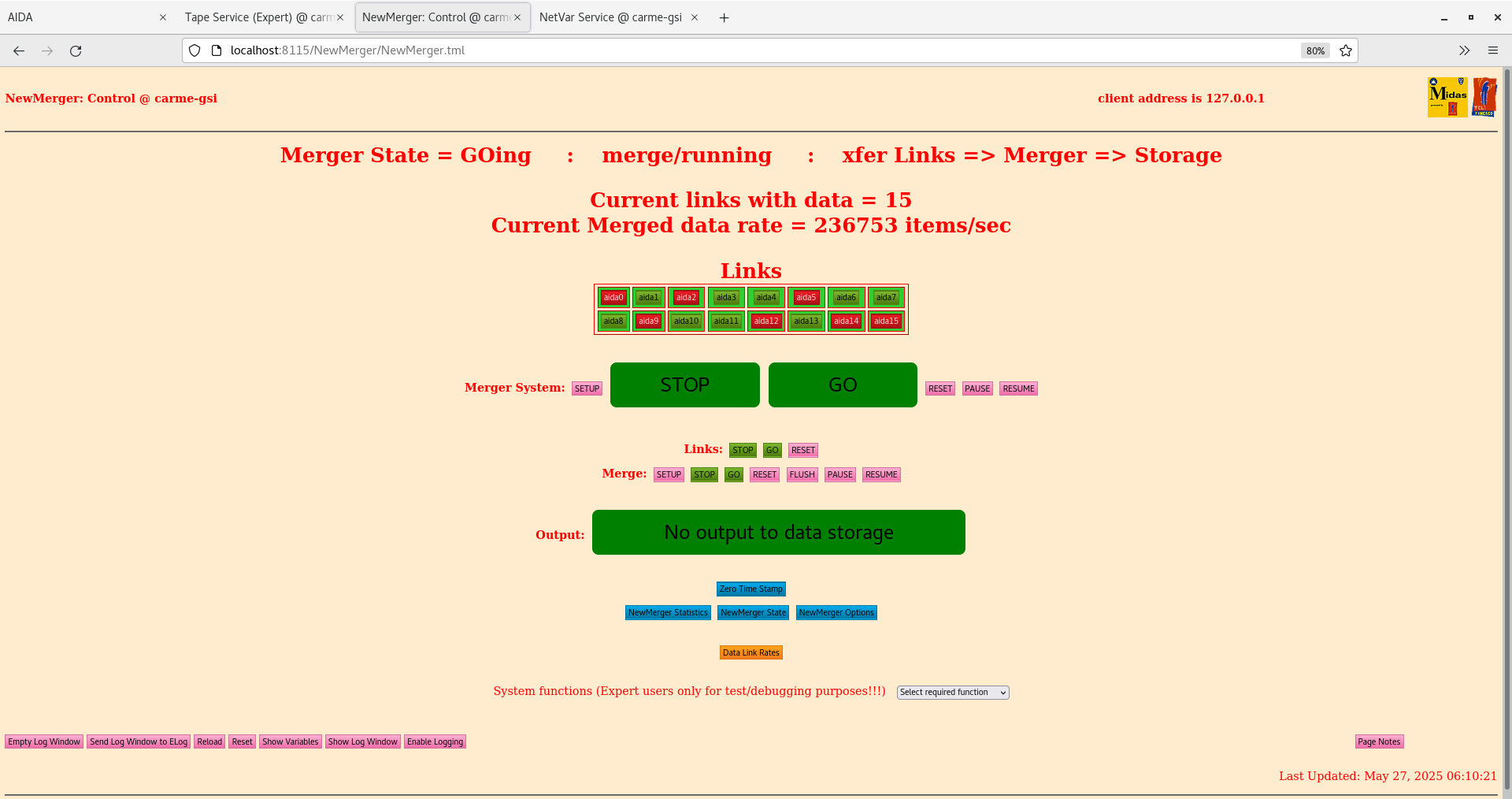

<p>06:00</p> <p>FEE modules power cycled.</p> <p>No issues on power cycle restart.</p> <p>All system check OK - clock status, ADC calibration etc.</p> <p>ASIC settings loaded are the same as previous startup. Slow comparator thresholds 0x32 (500 keV) and all FEEs set to LEC.</p> <p>Statistics (ADC data) - attachment 1. Note aida10 fluctuations between 10,000 and 300 which appears to be a physics effect (beam on target)</p> <p>Spectrum browser - layout 1 - attachment 2</p> <p>Merger - attachment 3</p> <p>Tape server - attachment 4 Data rate is about 300 kB/sec.</p> <p>FEE temperatures OK</p> <p>Waveforms - attachments 4,5</p> <p>All Lekagae currents appear normal</p> <p>Online monitoring scropt started. Beam on target. Run 22 started. See nect elog for details.</p>
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 1920x1014
Attachment 2:
Original size: 1920x1014
Attachment 3:
Original size: 1920x1014
Attachment 4:
Original size: 1920x1014
Attachment 5:
Original size: 1920x1014
Attachment 6:
Original size: 1920x1014
Attachment 7:
Original size: 725x462
