Draft saved at 00:00:00
Fields marked with
*
are required
Entry time:
Tue May 27 05:24:05 2025
Author
*
:
Subject
*
:

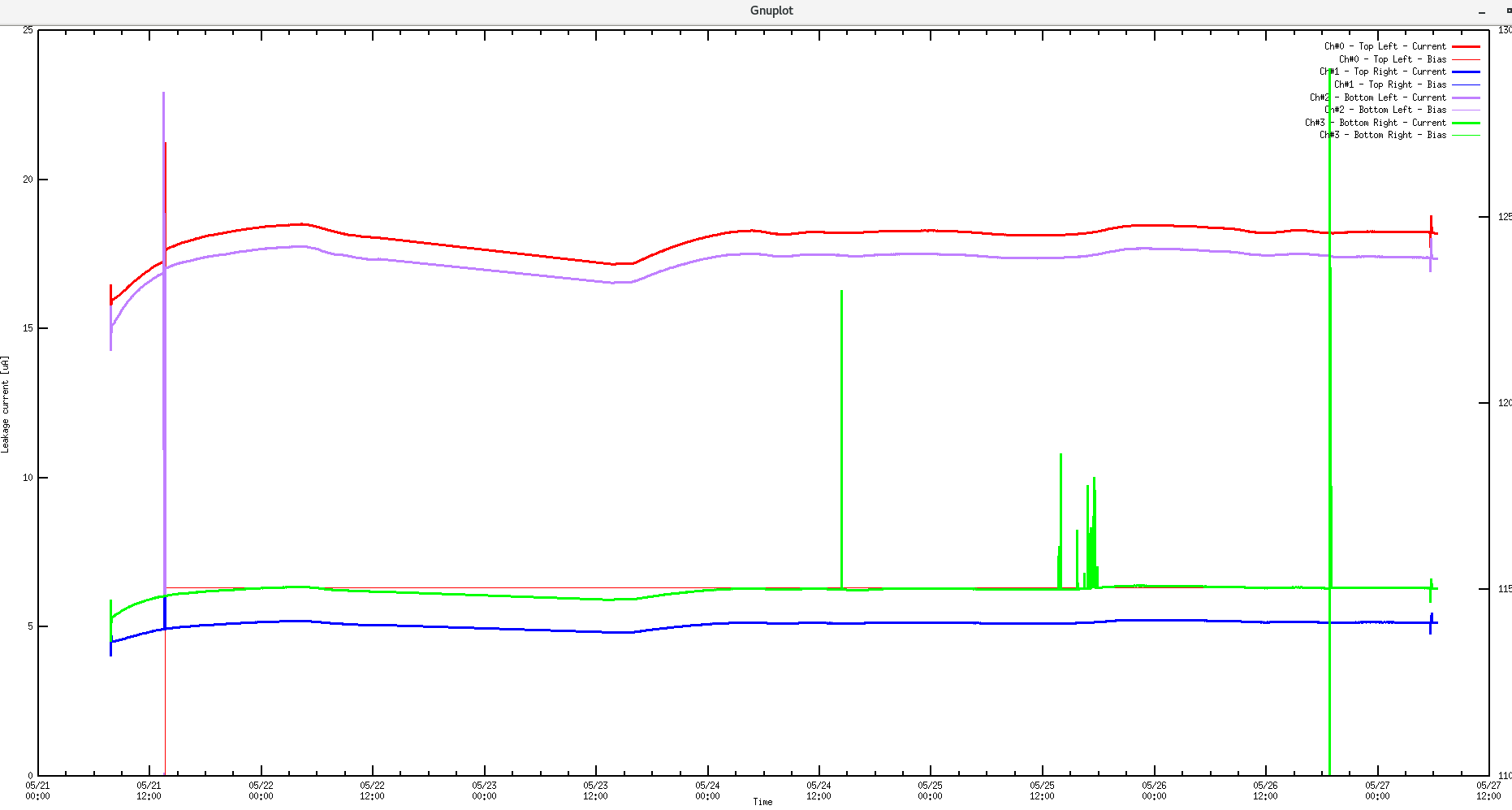

<p><strong>27/05/2025 ca. 6:00</strong></p> <p>We start a new run: beam is ok, target density ok, detectors are moving in-out periodically.</p> <p>Cooler voltage setpoint 1105.7 V</p> <p>Attachment 8 - beamcalc with actual values</p> <p>Next entry - beamcalc with set values</p> <p> </p> <p>Right arm at 19.80 mm</p> <p>Left arm IN at 77.56 mm (OUT 32.53 mm)</p> <p>vertical beam position 0.0 mm</p> <p>horizontal beam position -3.5mm</p> <p>Beam intensity 1.7e+7 particles.</p> <p>Target density ~6e11 at/cm2</p> <p>Target temperatures: T1=31.5 K T2=35.2 K</p> <p>Beam cycle set to 10 seconds.</p> <p>All check are Ok!</p> <p>6:30</p> <p>Noticed a small spike in all leakage currents, see attachment 1</p> <p>6:50</p> <p>all checks ok!</p> <p> </p> <p>07:40</p> <p>All checks are Ok!</p> <p>Aida 10 shows sometimes higher statistics.</p> <p> </p> <p>09:02</p> <p>All checks are Ok!</p> <p>Aida 10 shows sometimes higher statistics.</p> <p> </p> <p>10:00</p> <p>Checks OK.</p> <p>Compression works OK.</p> <p>Moved to run 23. Now moving RIGHT hand side detectors instead of LEFT hand side.</p> <p>Motion 37.96 mm -> 83.69 mm</p> <p>Left arm stationary at 18.86 mm</p> <p>Planning to change energy around lunch.</p> <p> </p> <p>11:35</p> <p>Parameters are OK! Tragte density dropped down a bit: ~6e11 at/cm2</p> <p> </p> <p>12:35</p> <p>Parameters are OK! Tragte density dropped down a bit: ~1e12 at/cm2</p> <p> </p> <p>13:10</p> <p>Starting beam energy change. Detectors OUT.</p>
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 1862x997
Attachment 2:
Original size: 1694x899
Attachment 3:
Original size: 1668x905
Attachment 4:
Original size: 1677x893
Attachment 5:
Original size: 1668x893
Attachment 6:
Original size: 1683x904
Attachment 7:
Original size: 1669x899
Attachment 8:
Original size: 1920x1080
