11.40 DAQ continues
      File G22-205/R38

ASIC settings
       slow comparator 0x32 all FEE64s

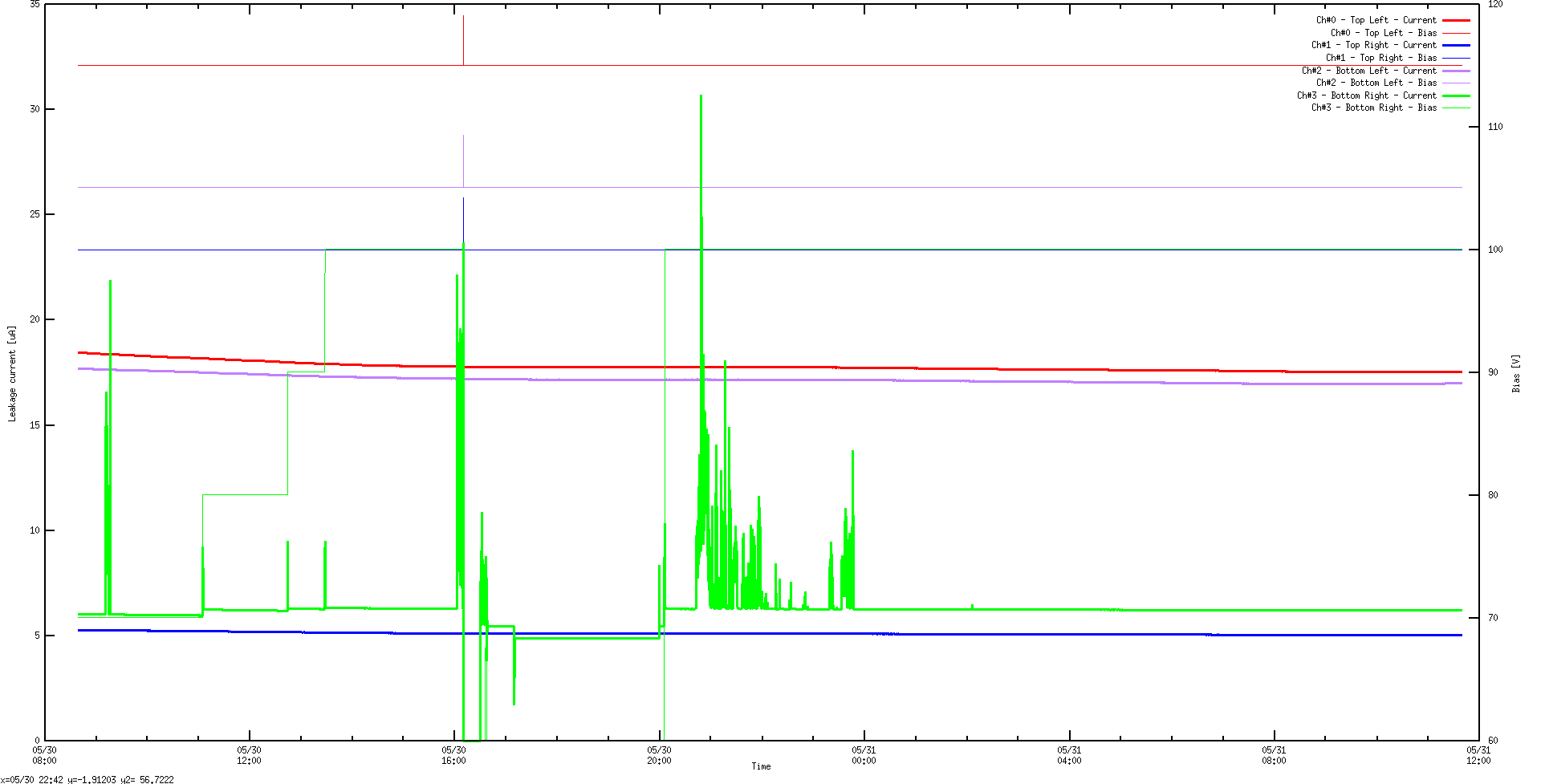

DSSSD bias & leakage current OK - attachments 1-2

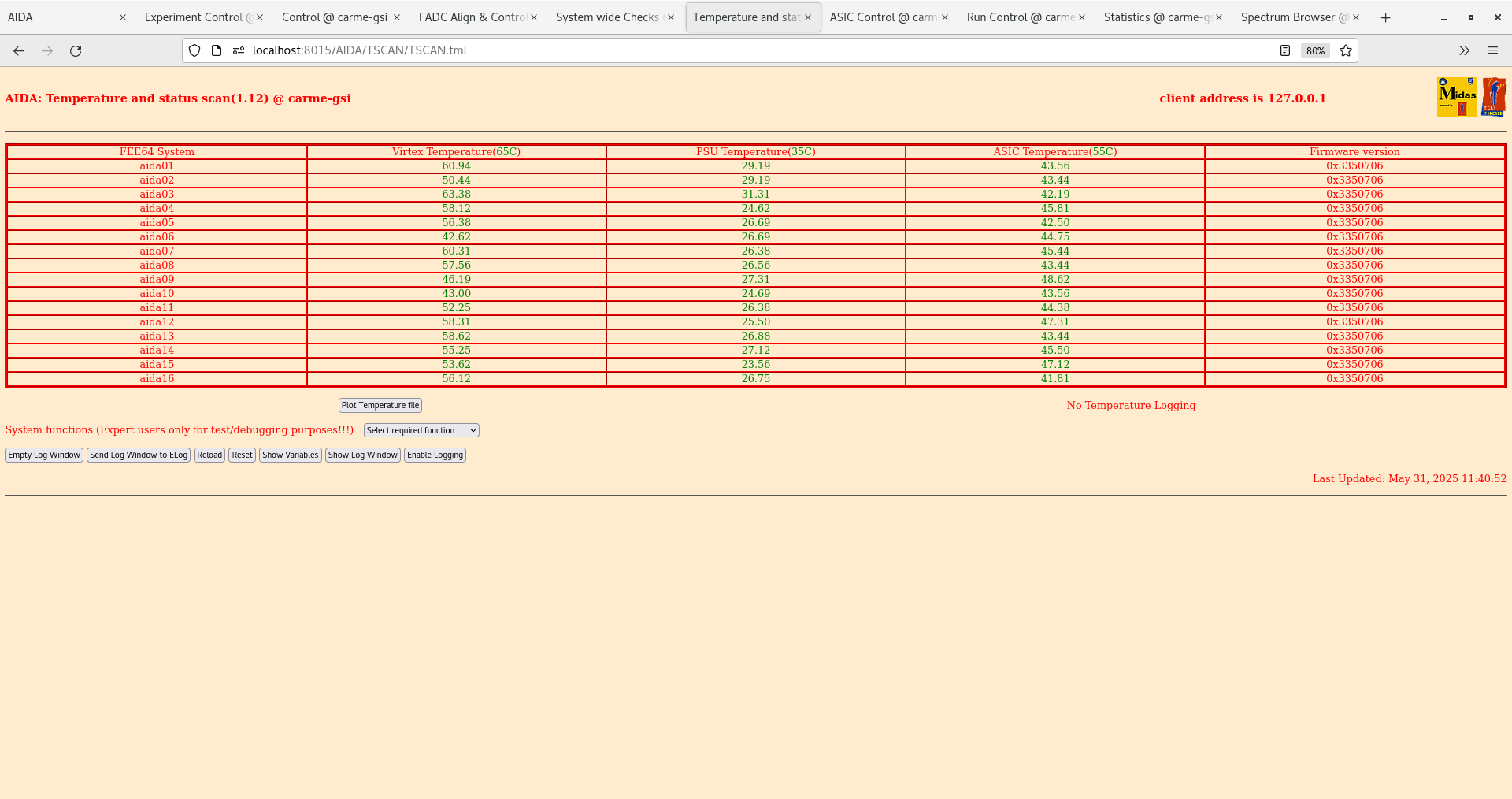

FEE64 temps OK - attachment 3

ADC data item stats OK - attachment 4

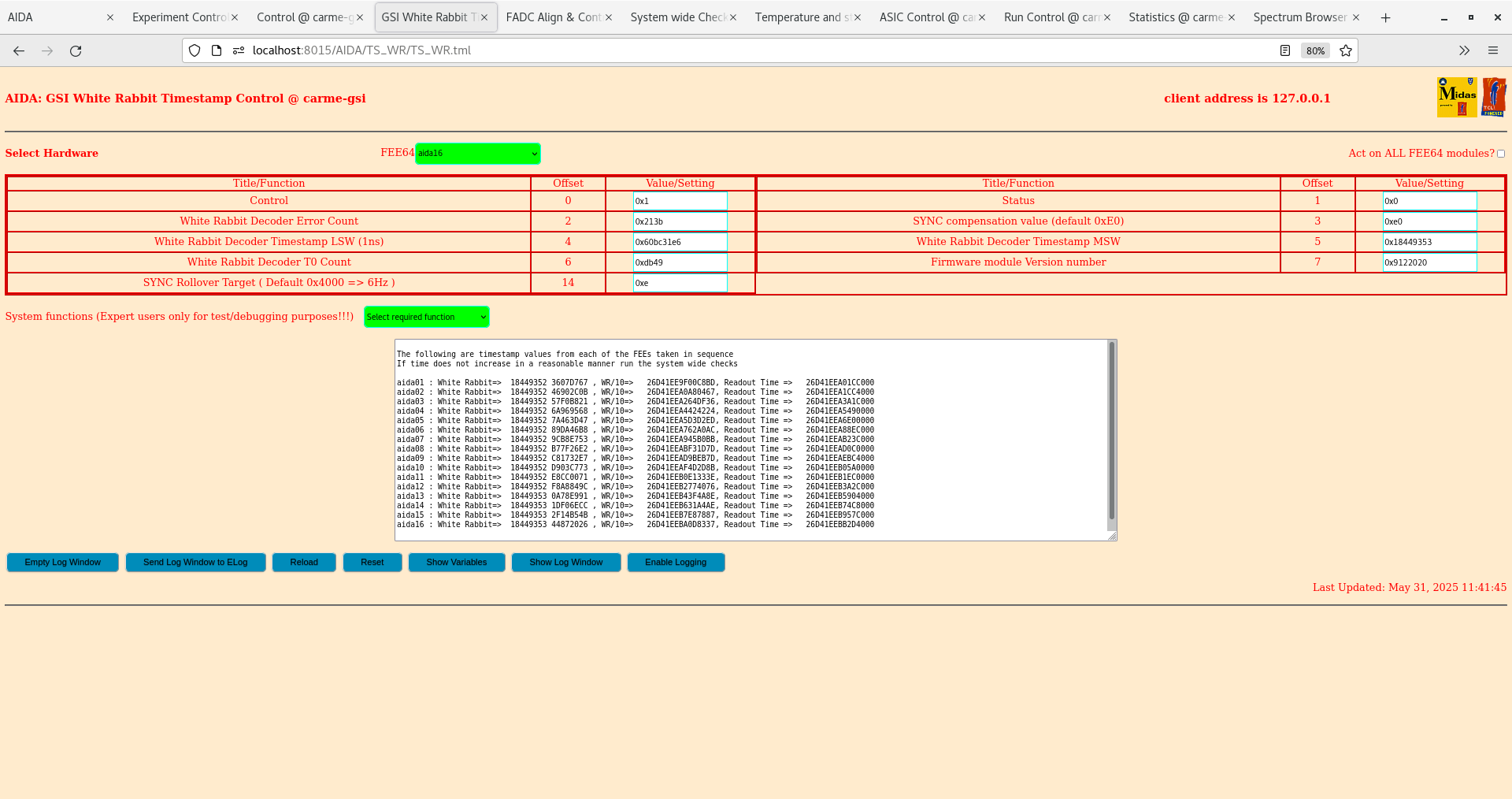

WR timestamps OK - attachment 5

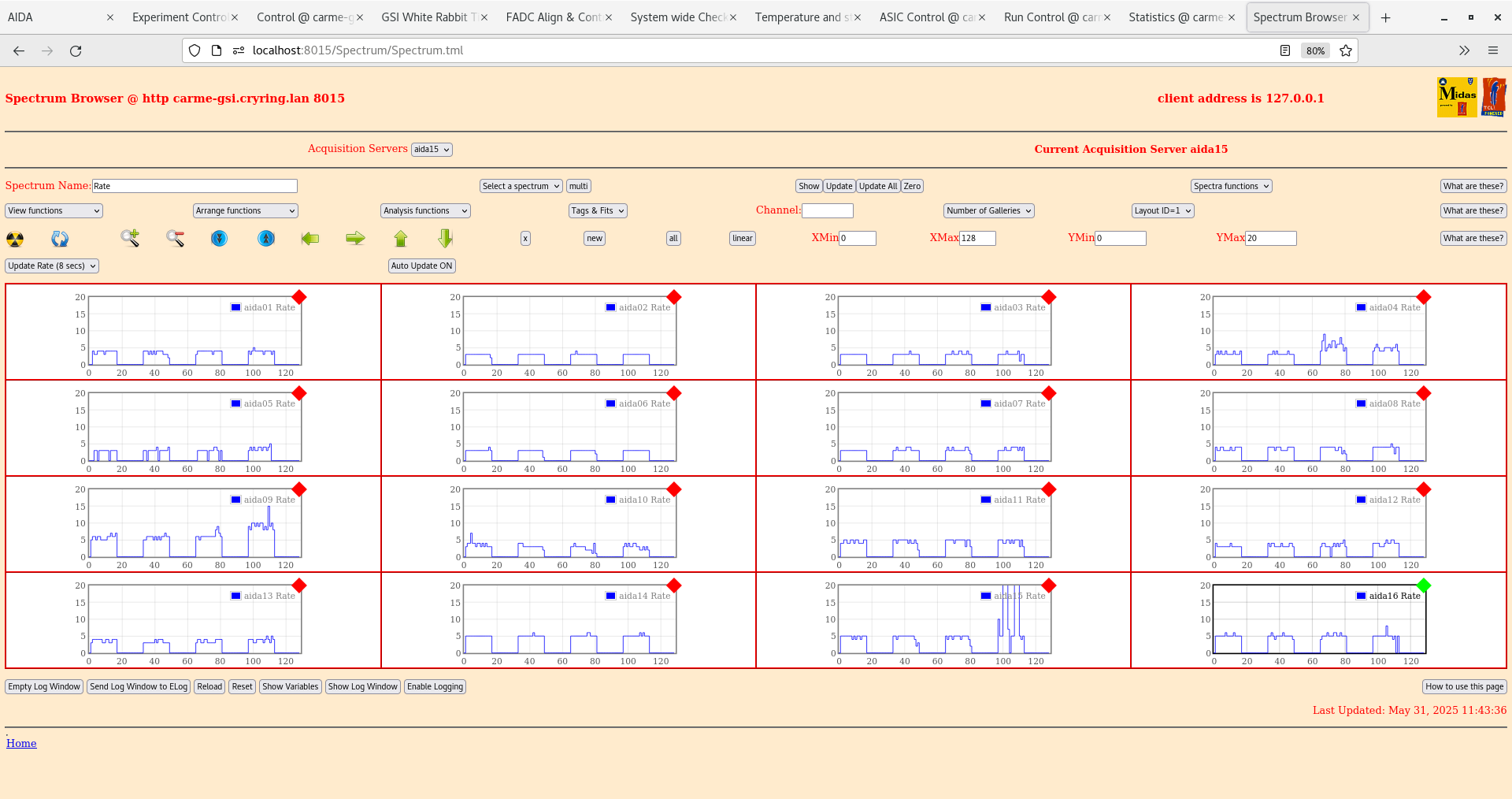

per FEE64 Rate spectra - attachment 6

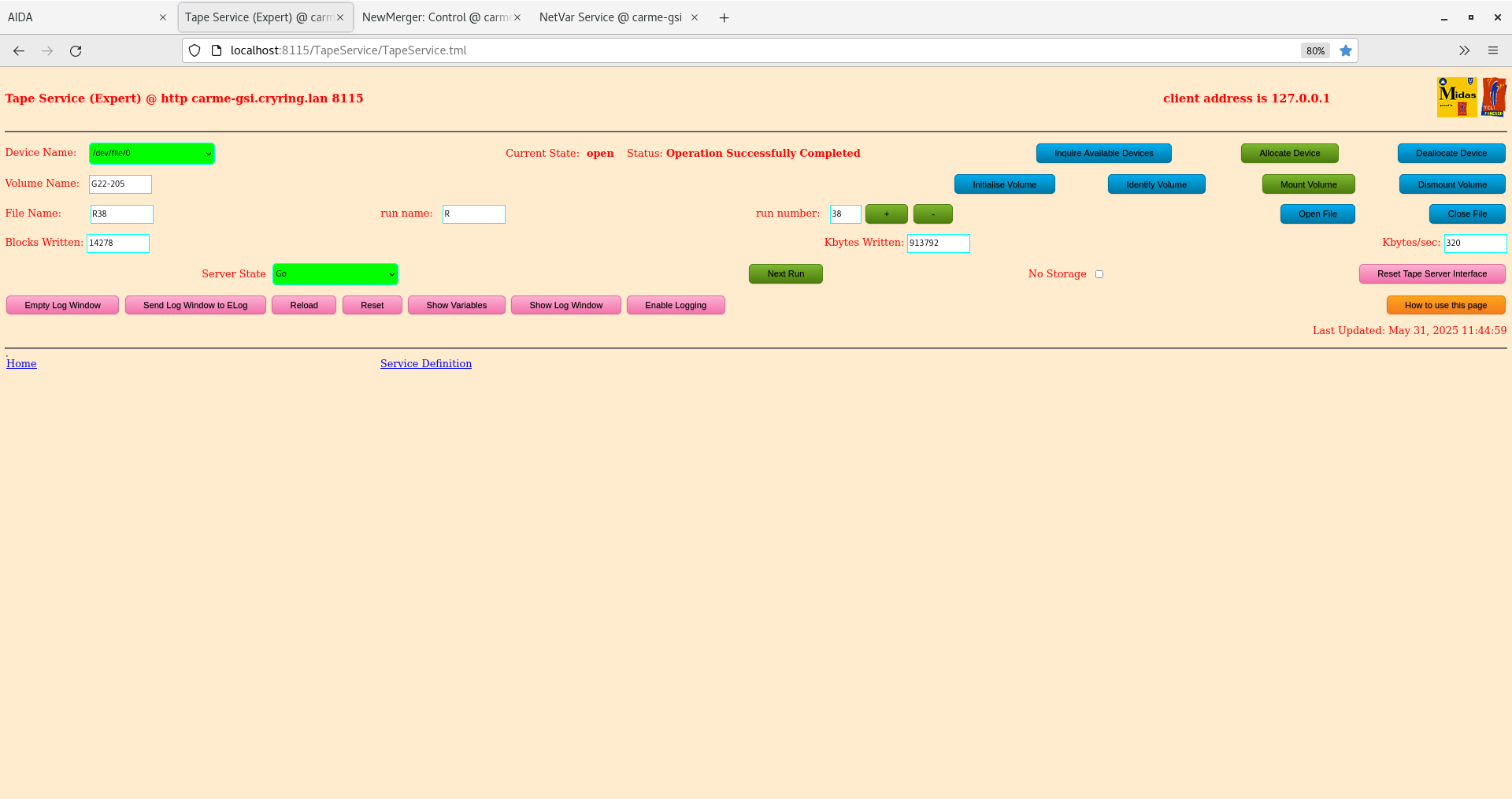

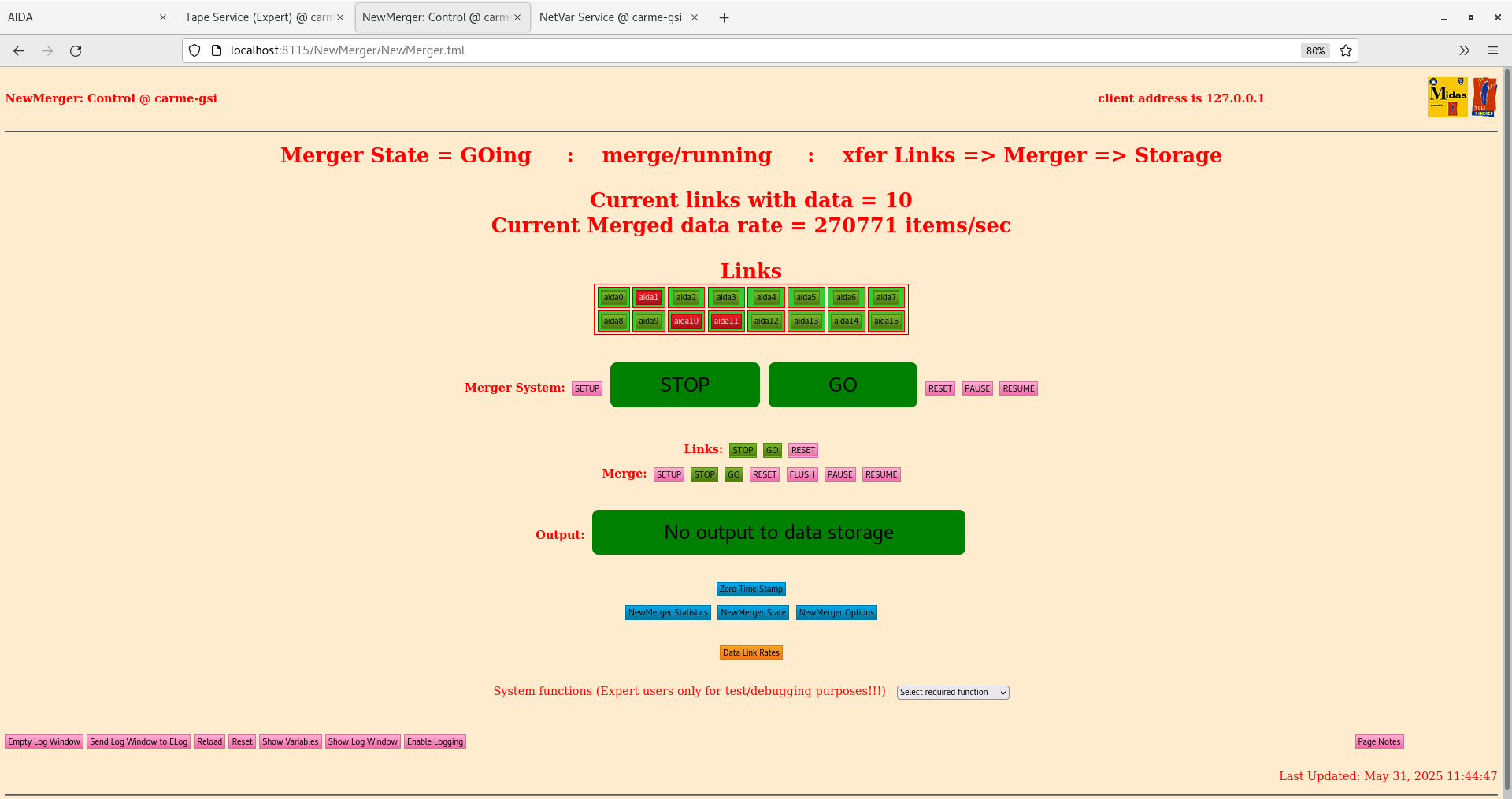

Merger & Tape Server - attachments 7-8
       filesystem /mnt/data1 4.7Tb remaining

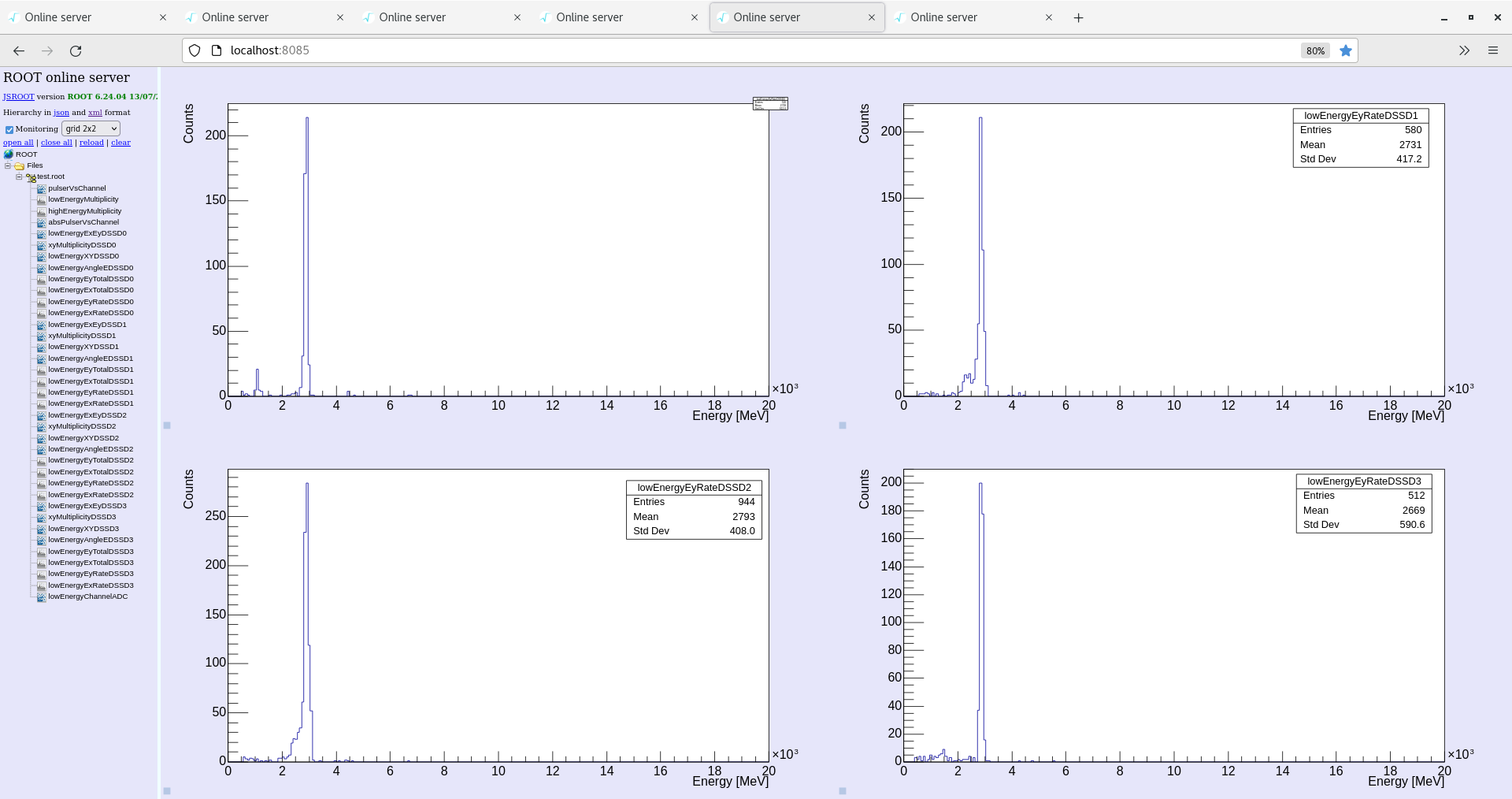

Online analysis - per DSSSD energy spectra - elastic peak max count / channel c. 250-300Hz - attachment 9

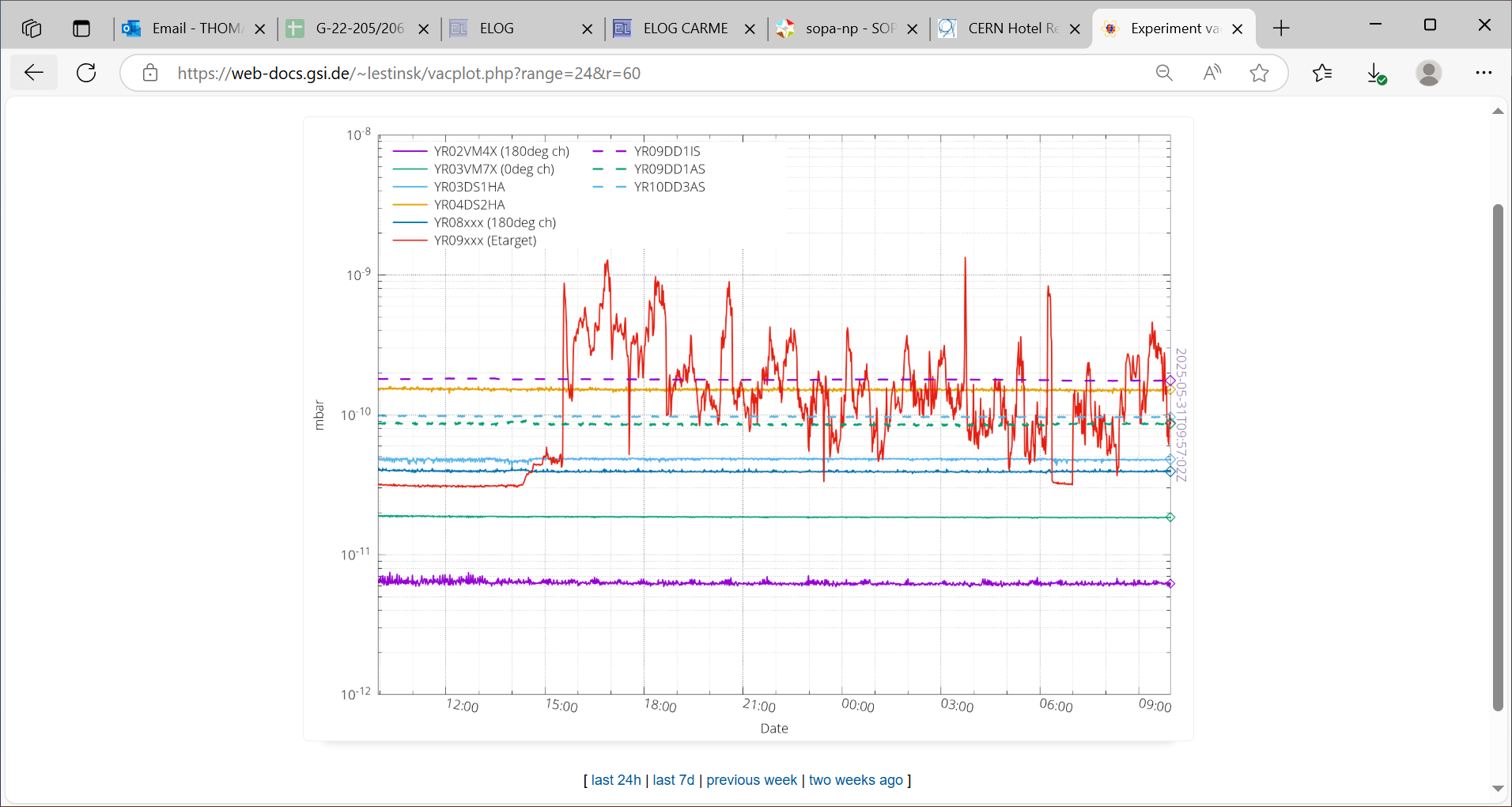

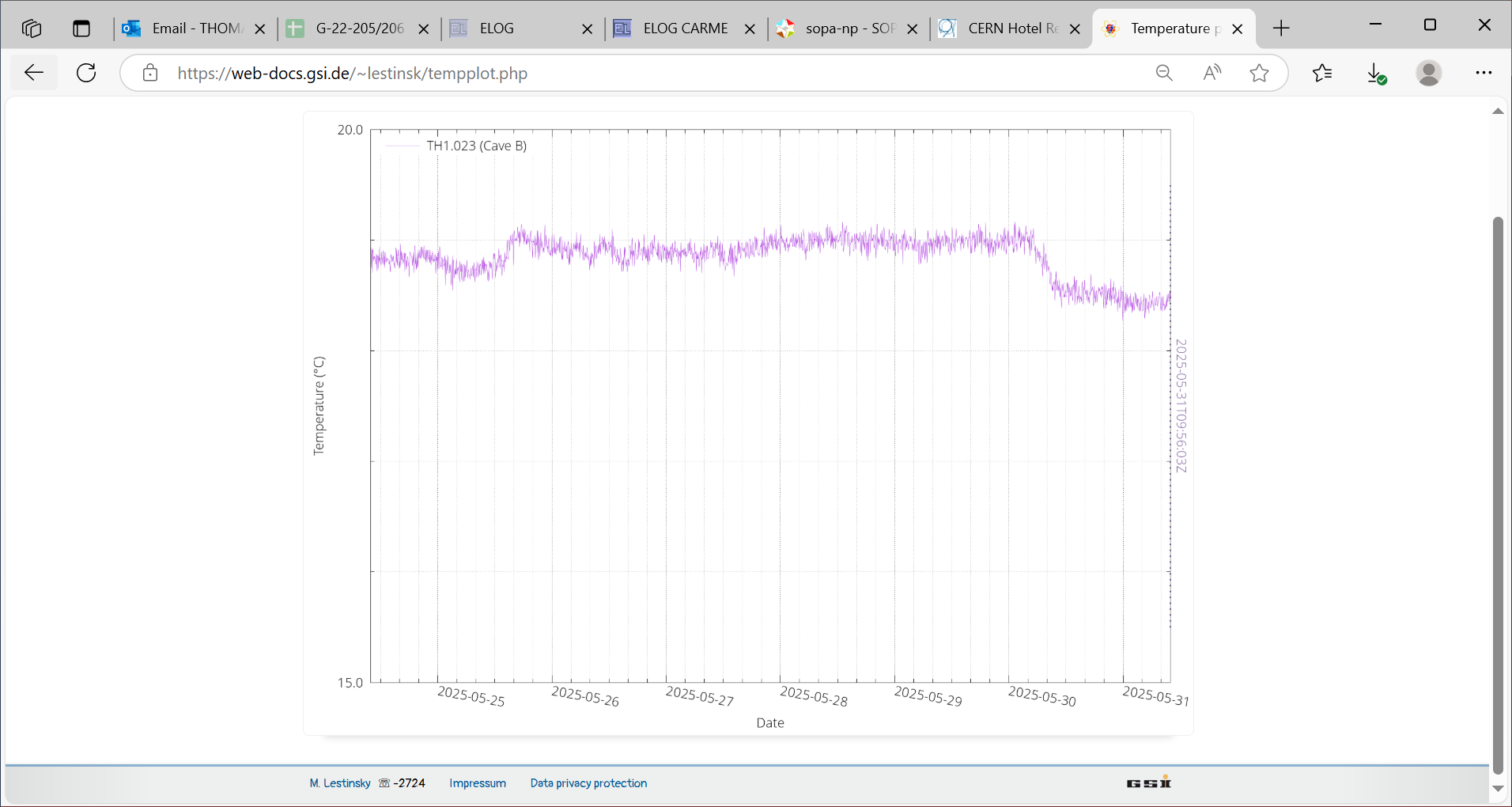

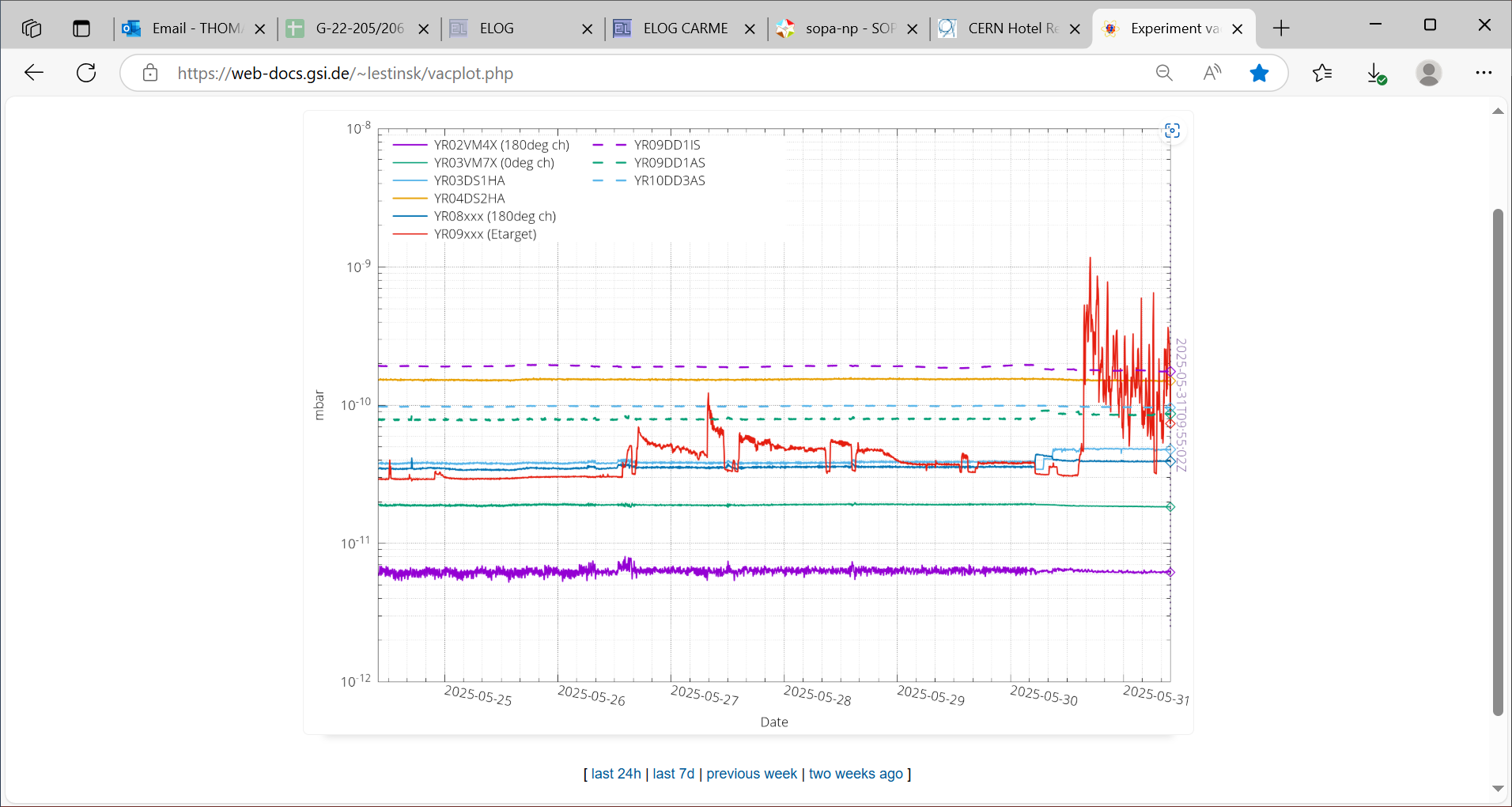

CRYRING vacuum & temperature - attachments 10-12
       YR09 e-target gauge indicates vacuum transients from high e-11 to low e-9mbar presumably due to high density D2 target

11.42 All histograms & stats zero'd

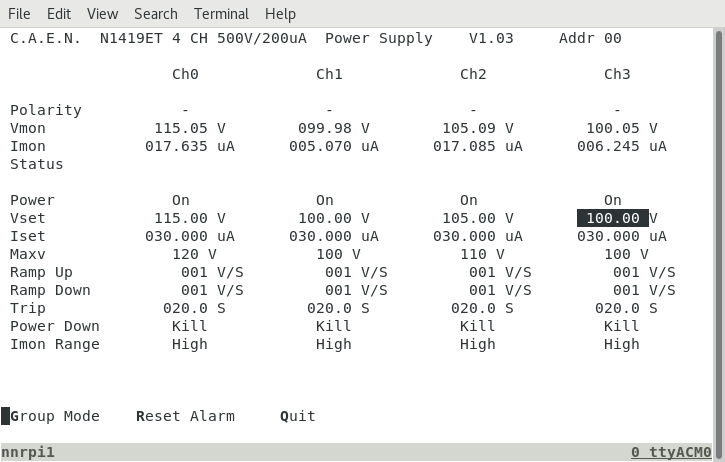

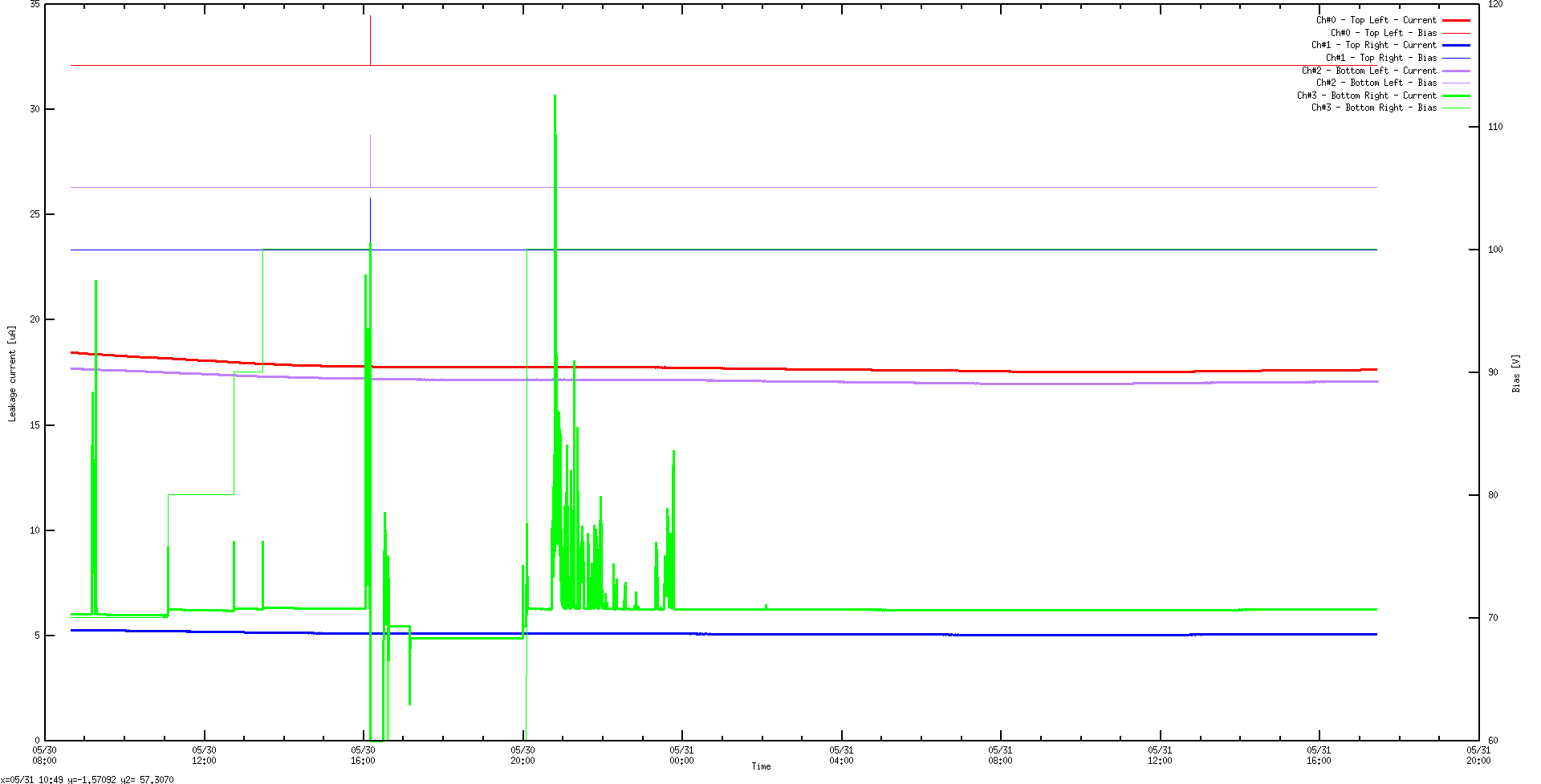

17.36 DSSSD bias & leakage current OK - attachments 13-14

FEE64 temps OK - attachment 15

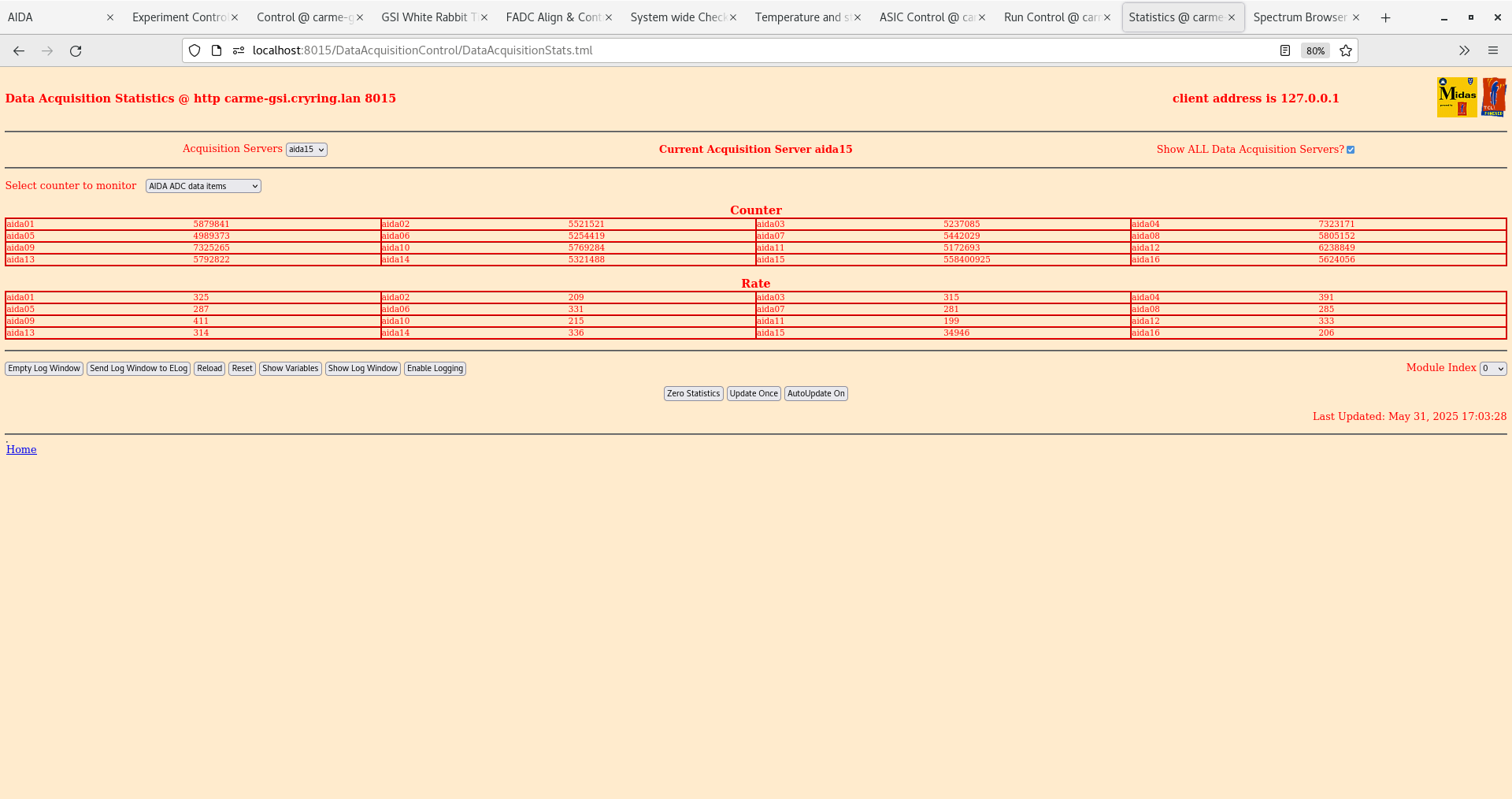

ADC data item stats OK - attachment 16

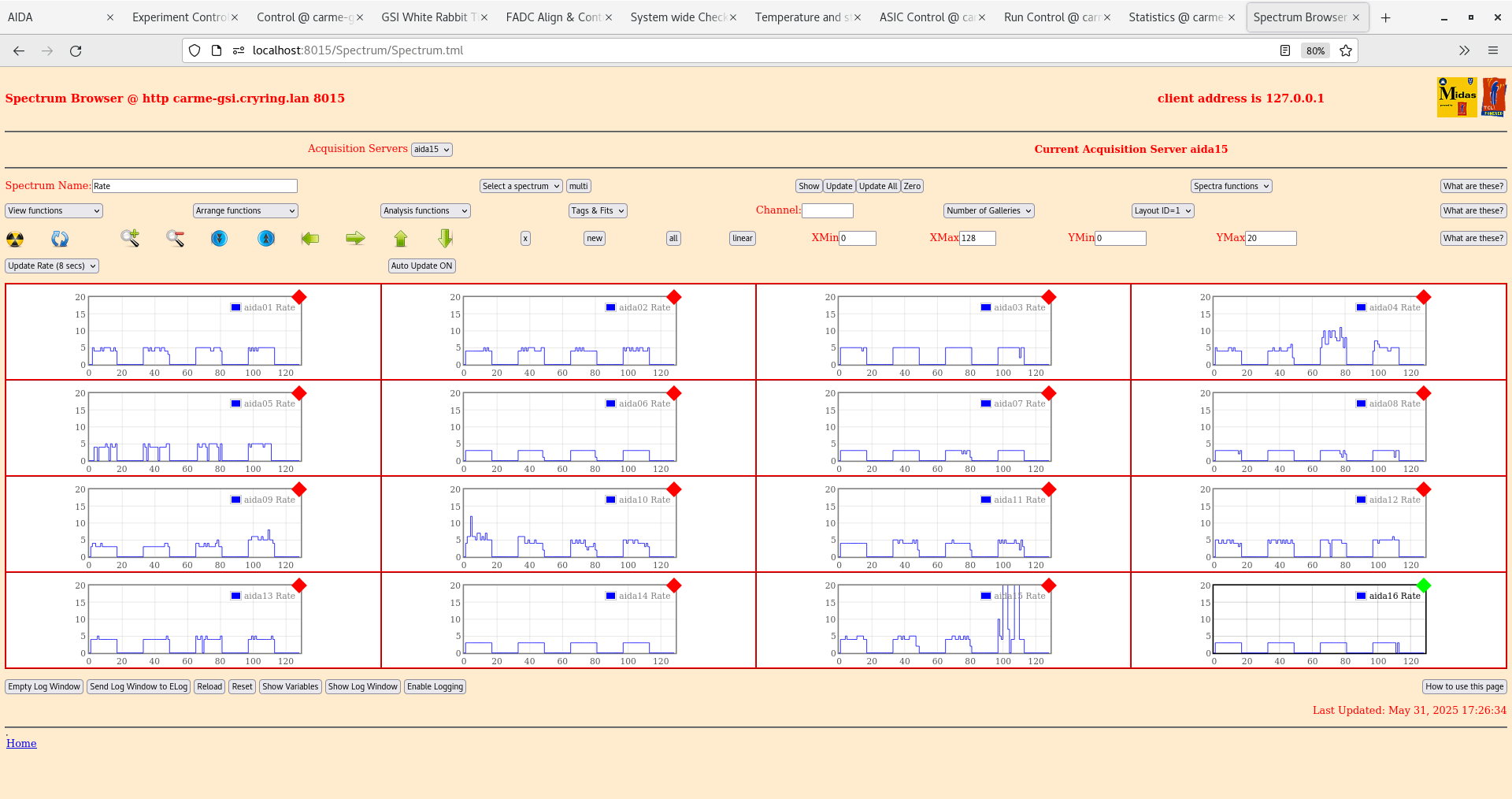

per FEE64 Rate spectra - attachment 17

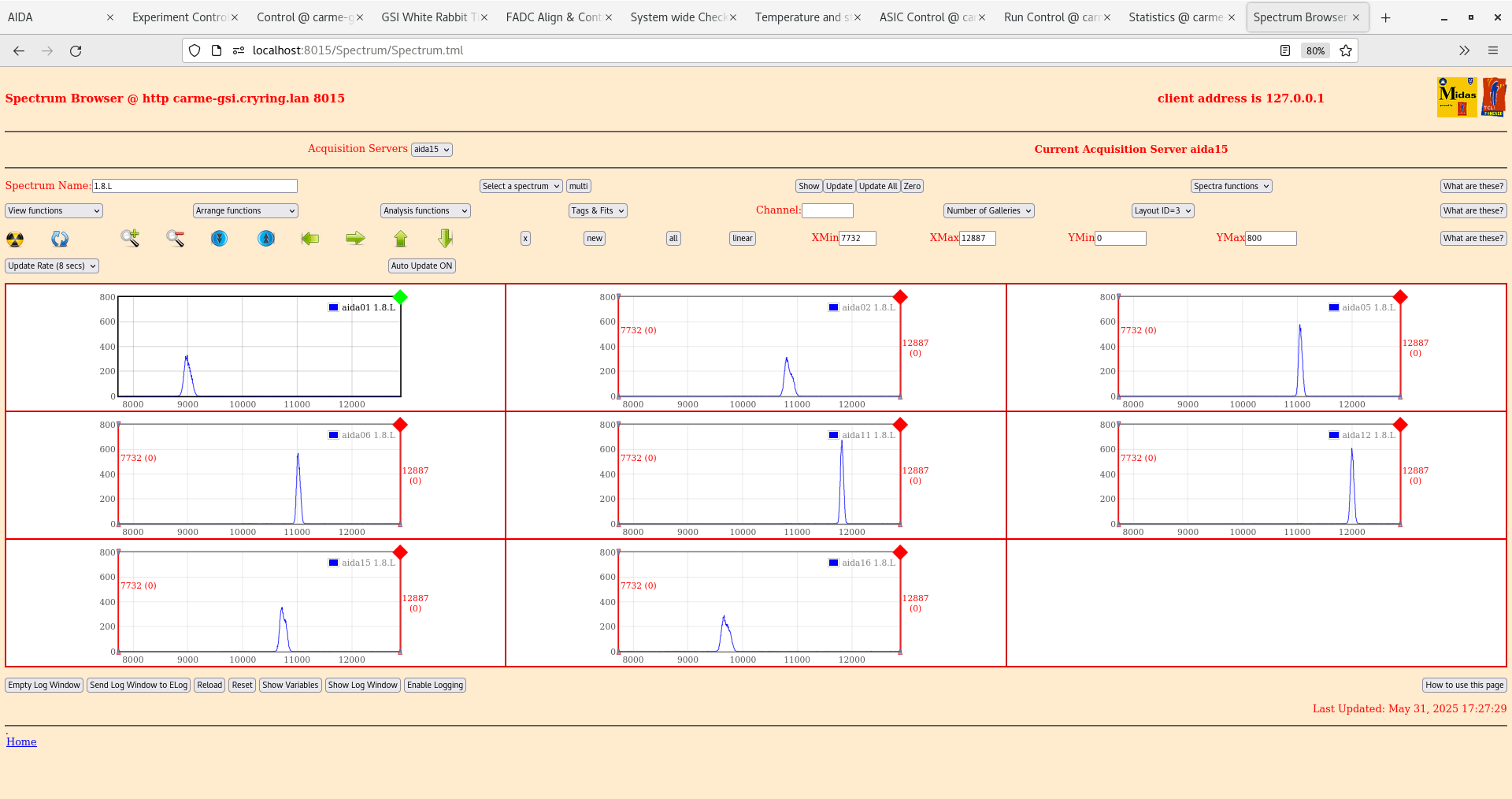

per FEE64 1.8.L spectra - attachments 18-19
       aida11 p+n pulser peak width 63 ch FWHM
       aida03 n+n pulser peak width 85 ch FWHM

Merger - attachment 20

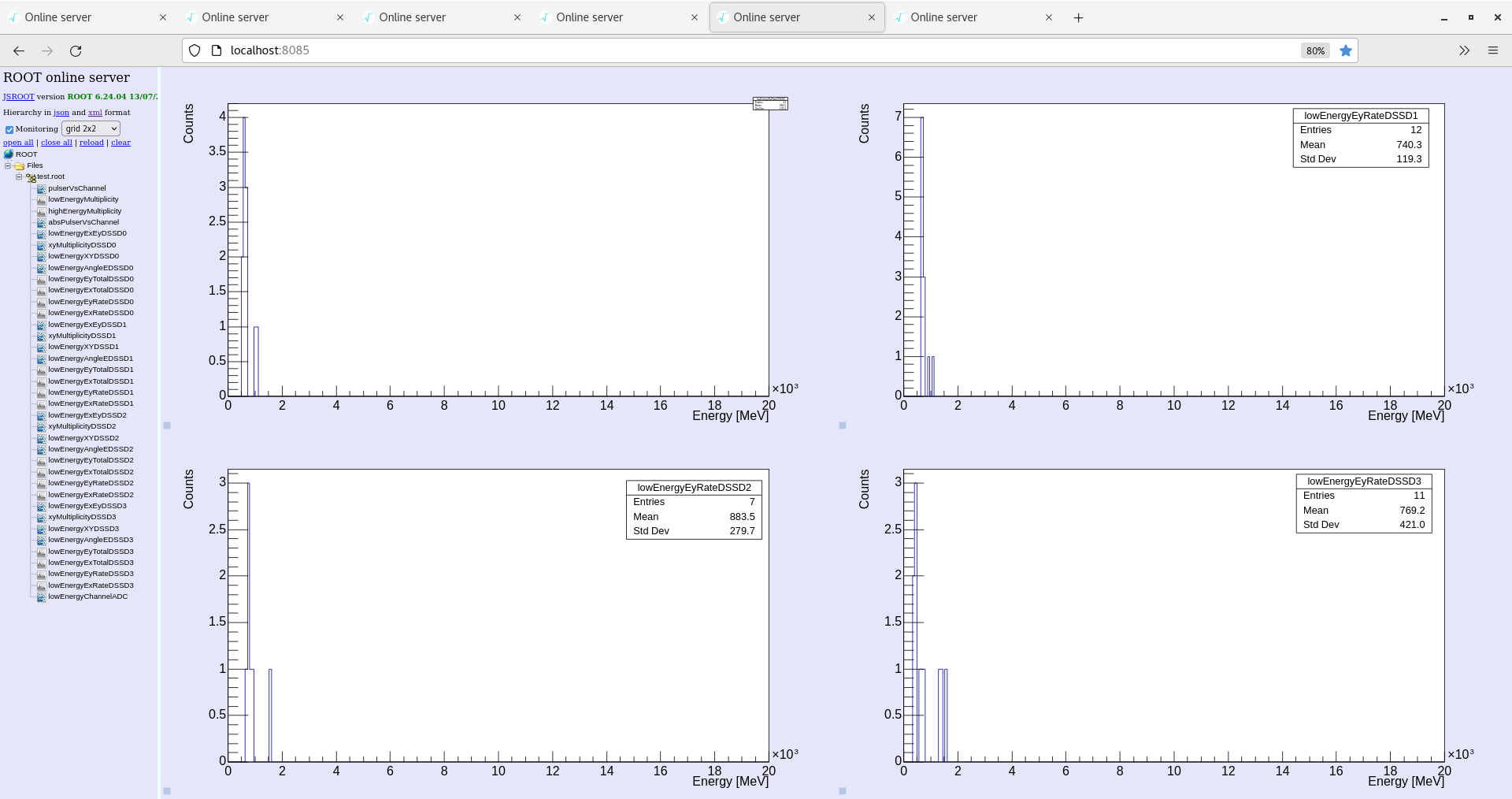

Online analysis spectra - elastic peak max count / channel c. few Hz - attachment 21
       rates much lower than earlier - no beam and/or no target - alert JM
