Entry time:

Thu Jun 12 15:33:17 2025

Author*:

Subject*:

16:34

Like Run 73, but particle detector in YR10 now active, and recorded in MBS.

Clear effect of target on beam lifetime. Target off -&gt; nearly no counts.

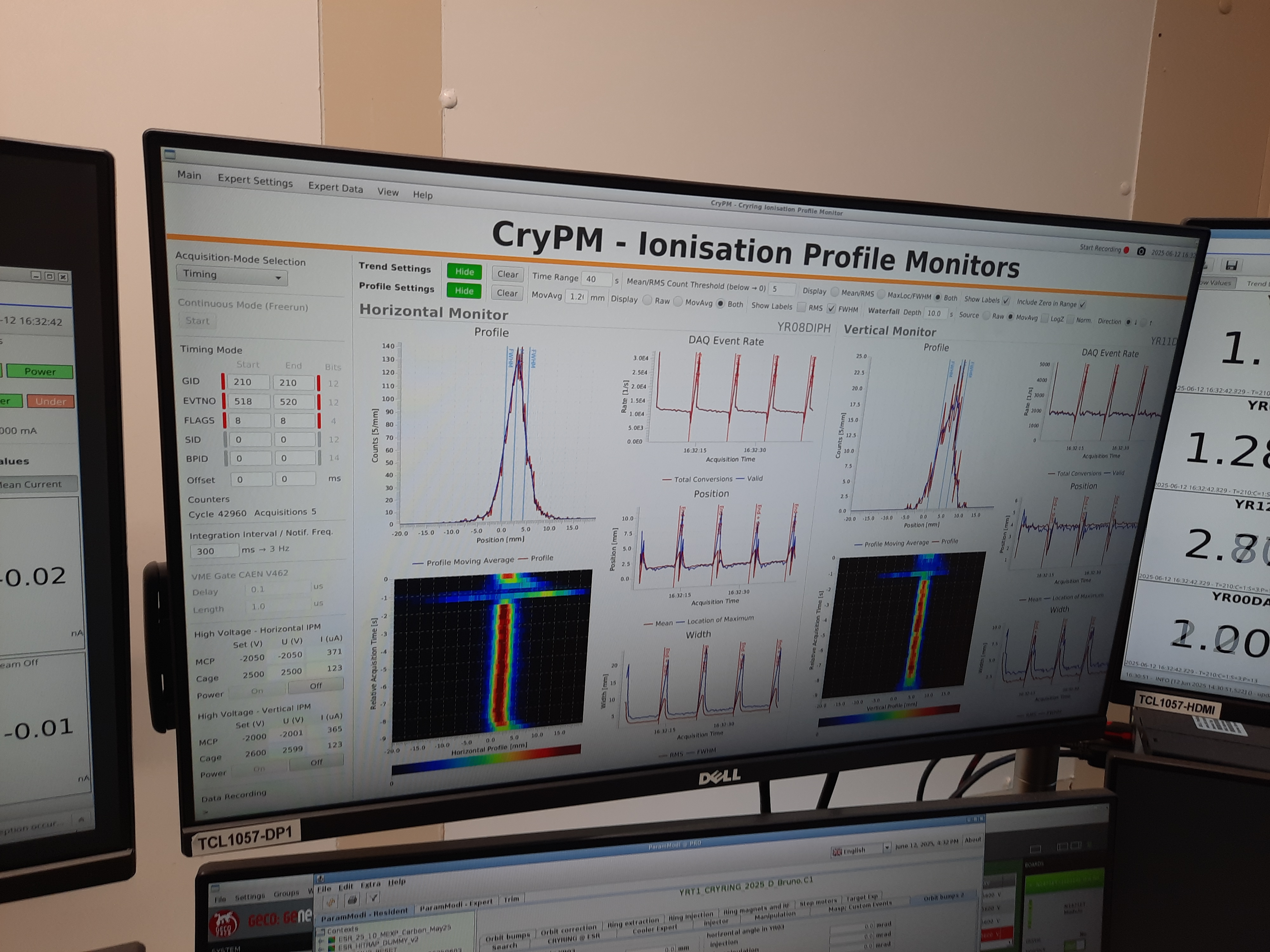

Attachment 22 - IPM (no target)

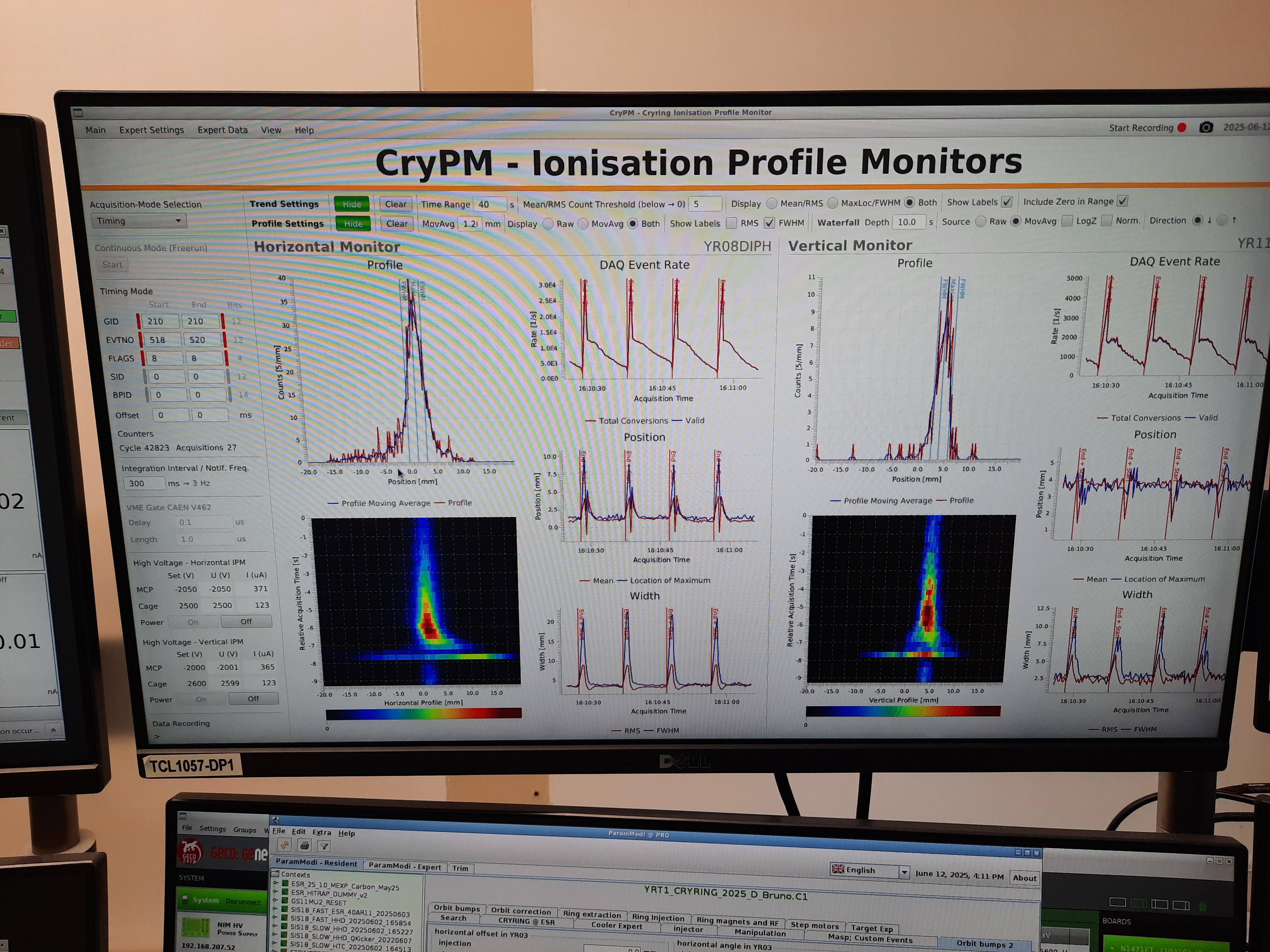

Attachment 23 - IPM (target)

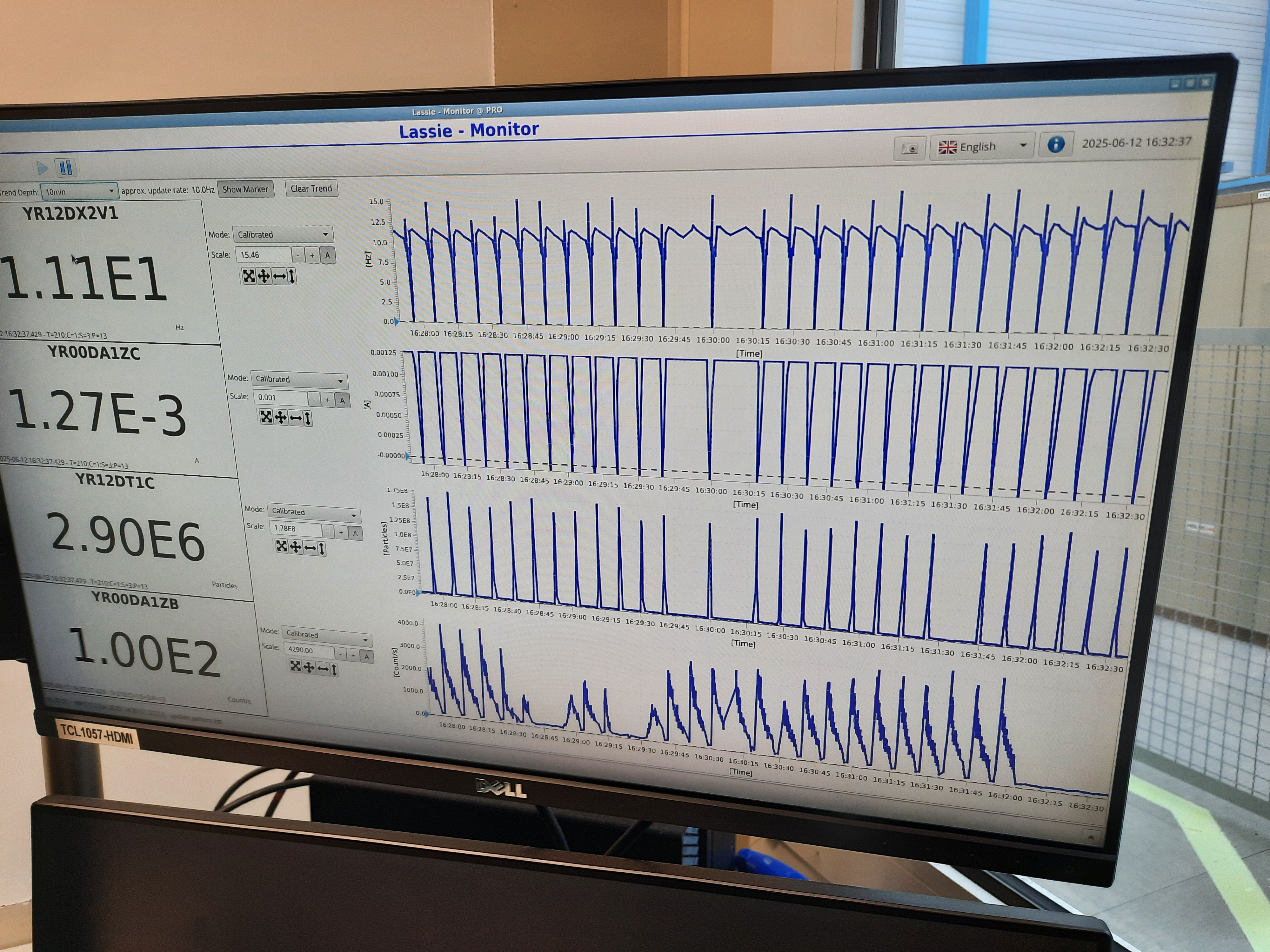

Attachment 24 - YR10 particle detector (gap in events corresponds to target off period)

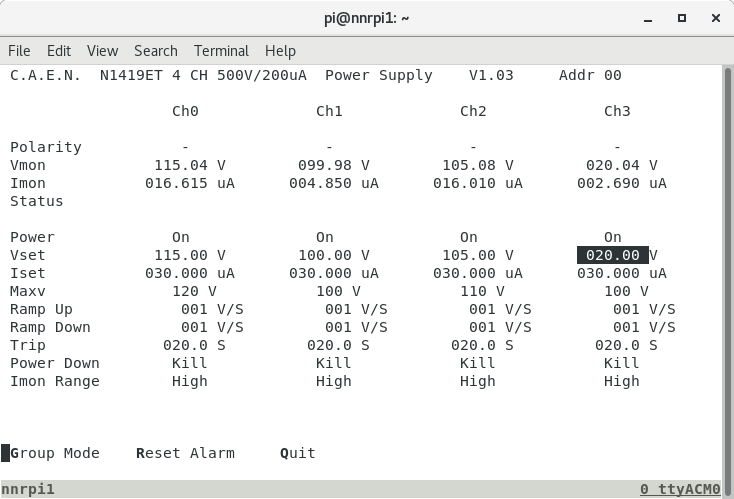

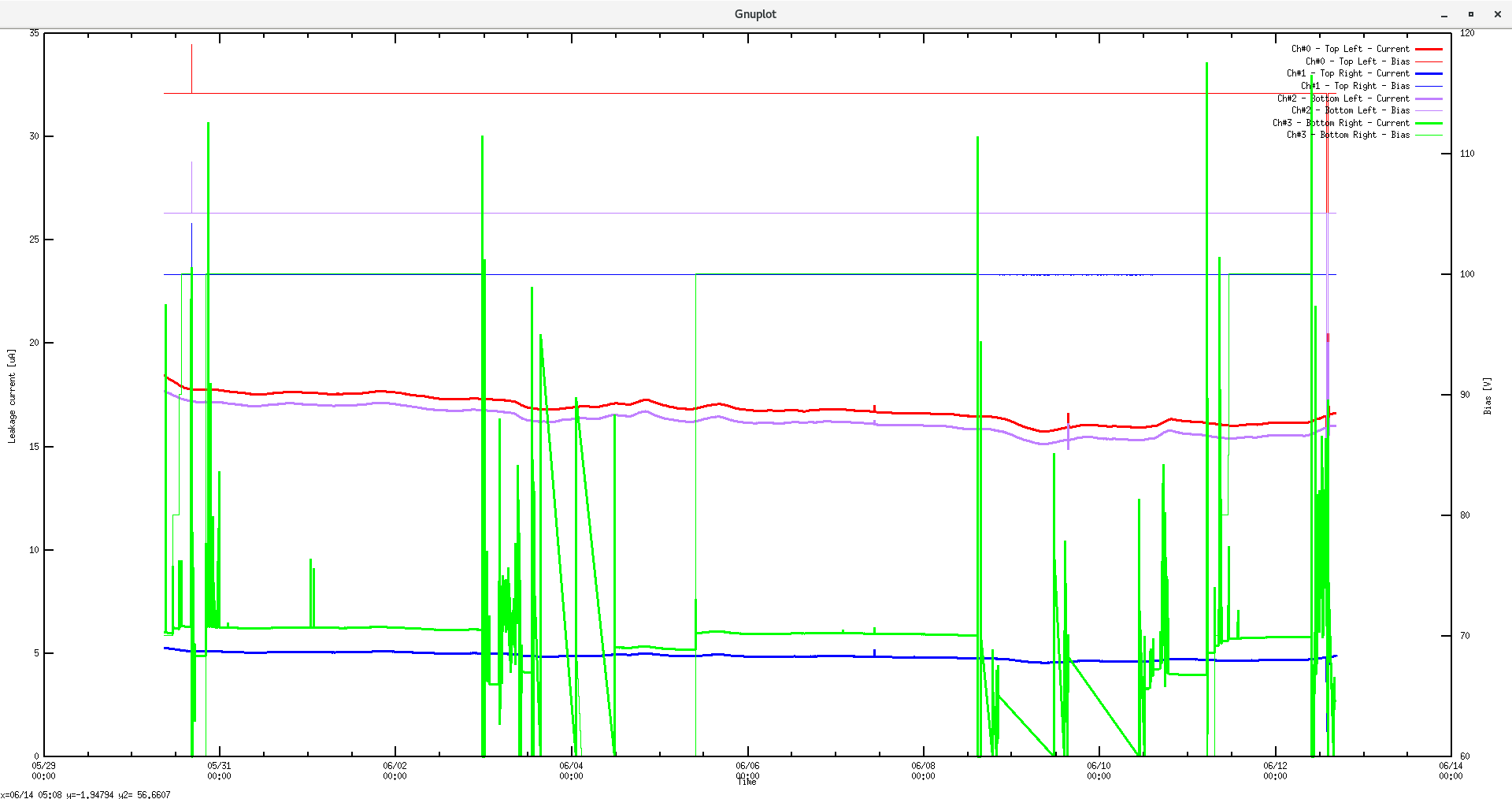

16.42 DSSSD bias &amp; leakage current - attachments 1-2

DSSSD #4 currently conditioning at -20V

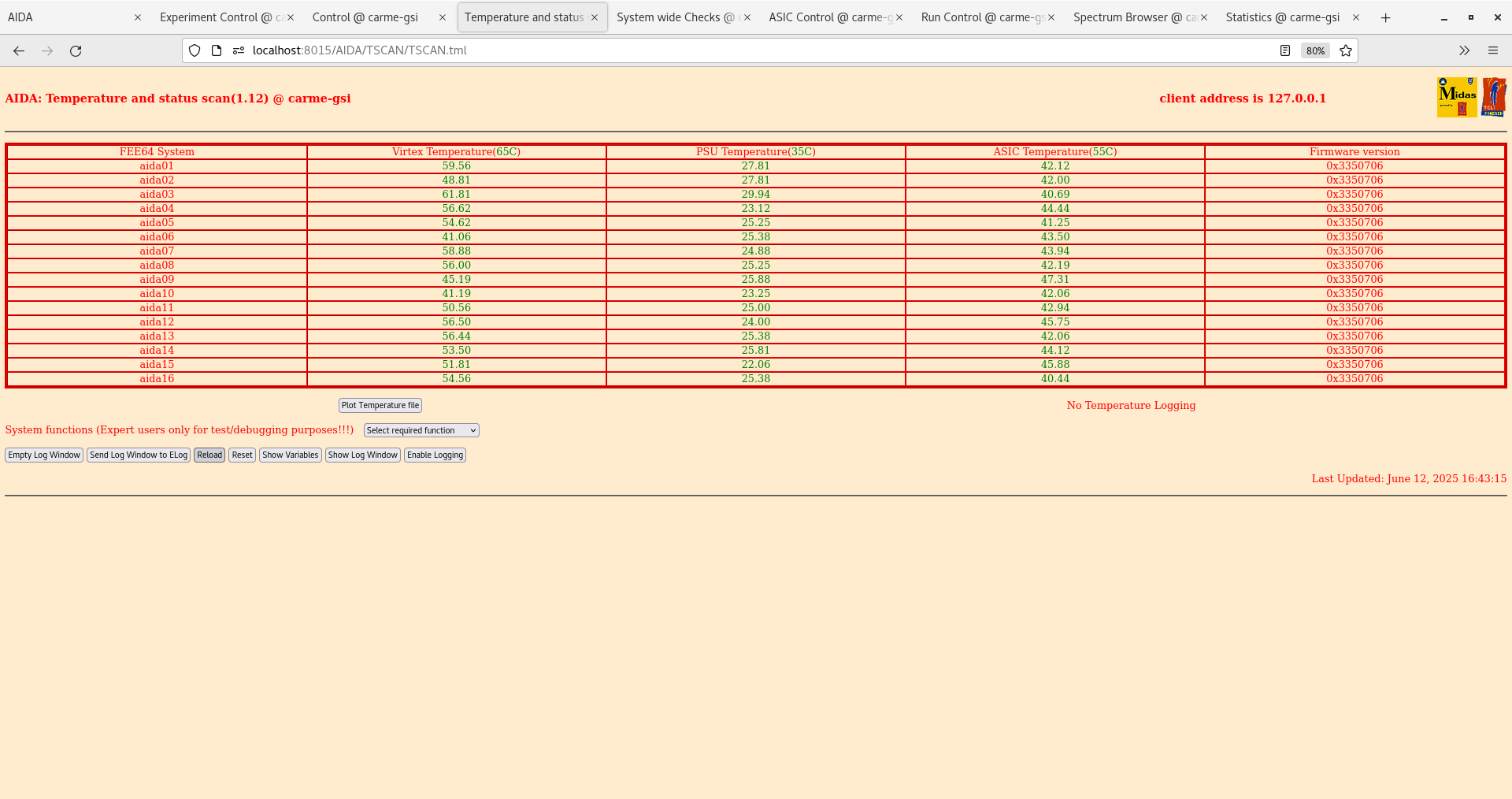

FEE64 temperatures OK - attachment 3

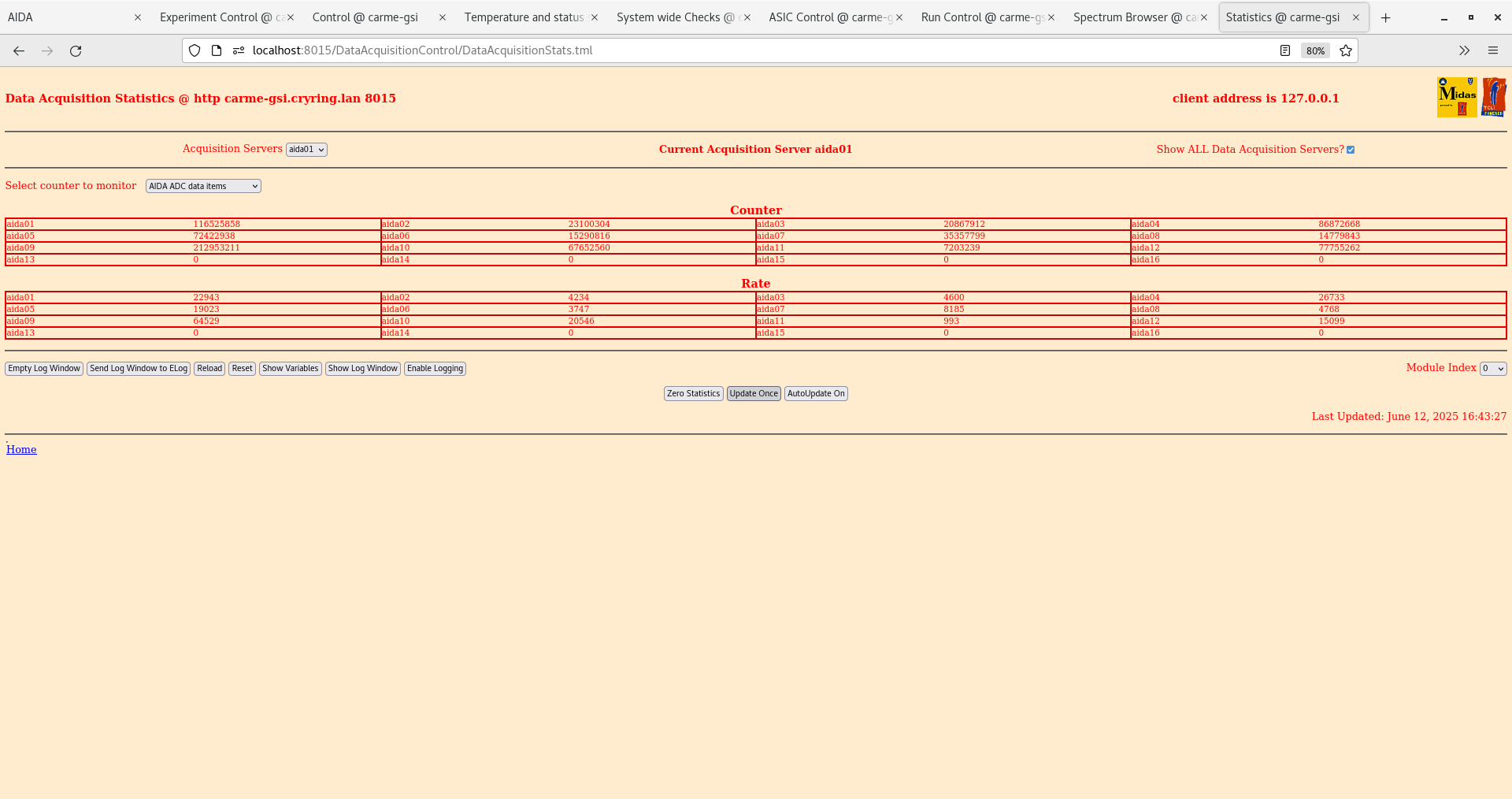

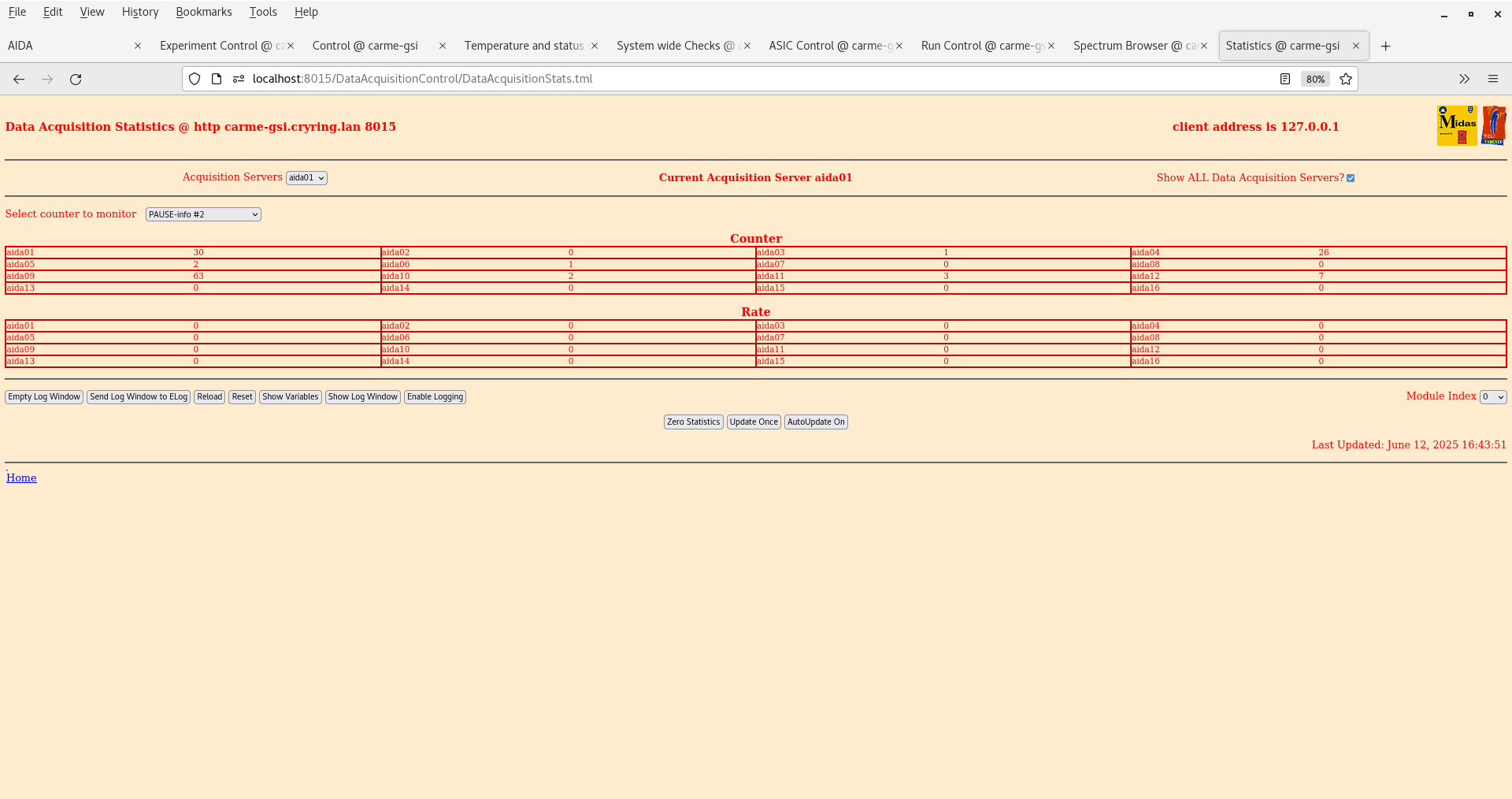

ADC, DISC, PAUSE &amp; RESUME data item stats - attachments 4-7

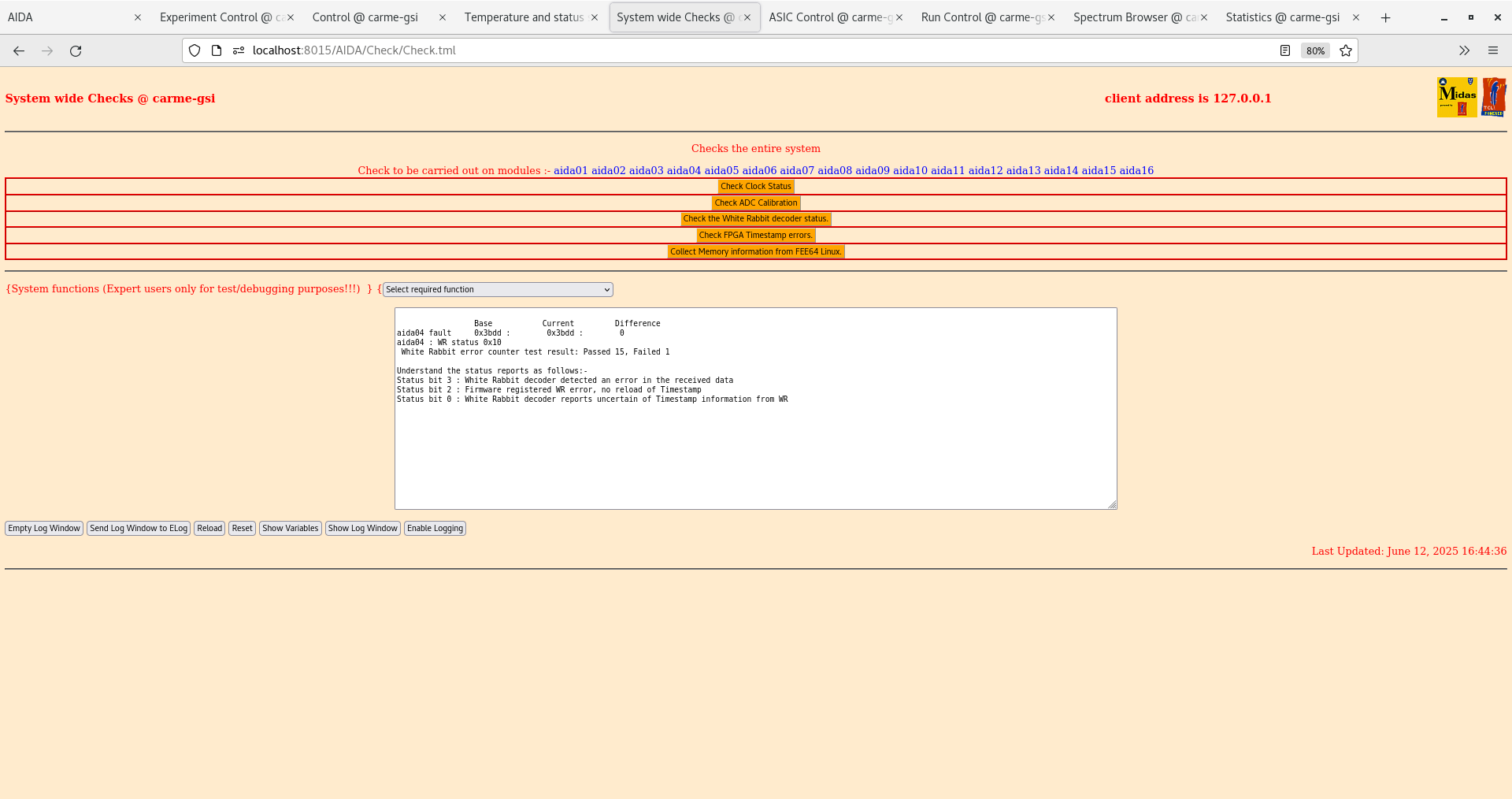

System wide checks OK *except* WR deocder status aida04 - attachment 8

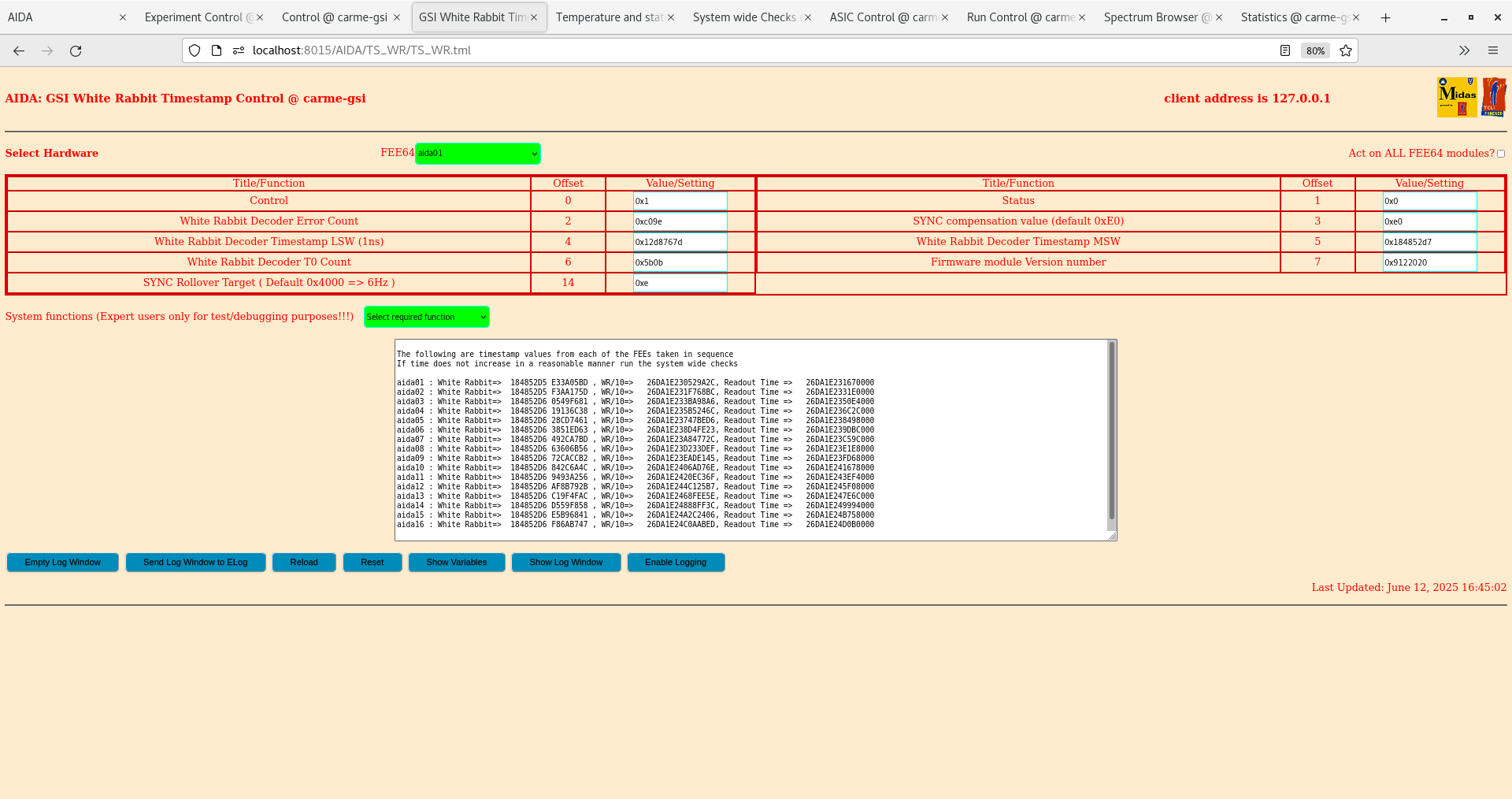

WR timestamps OK - attachment 9

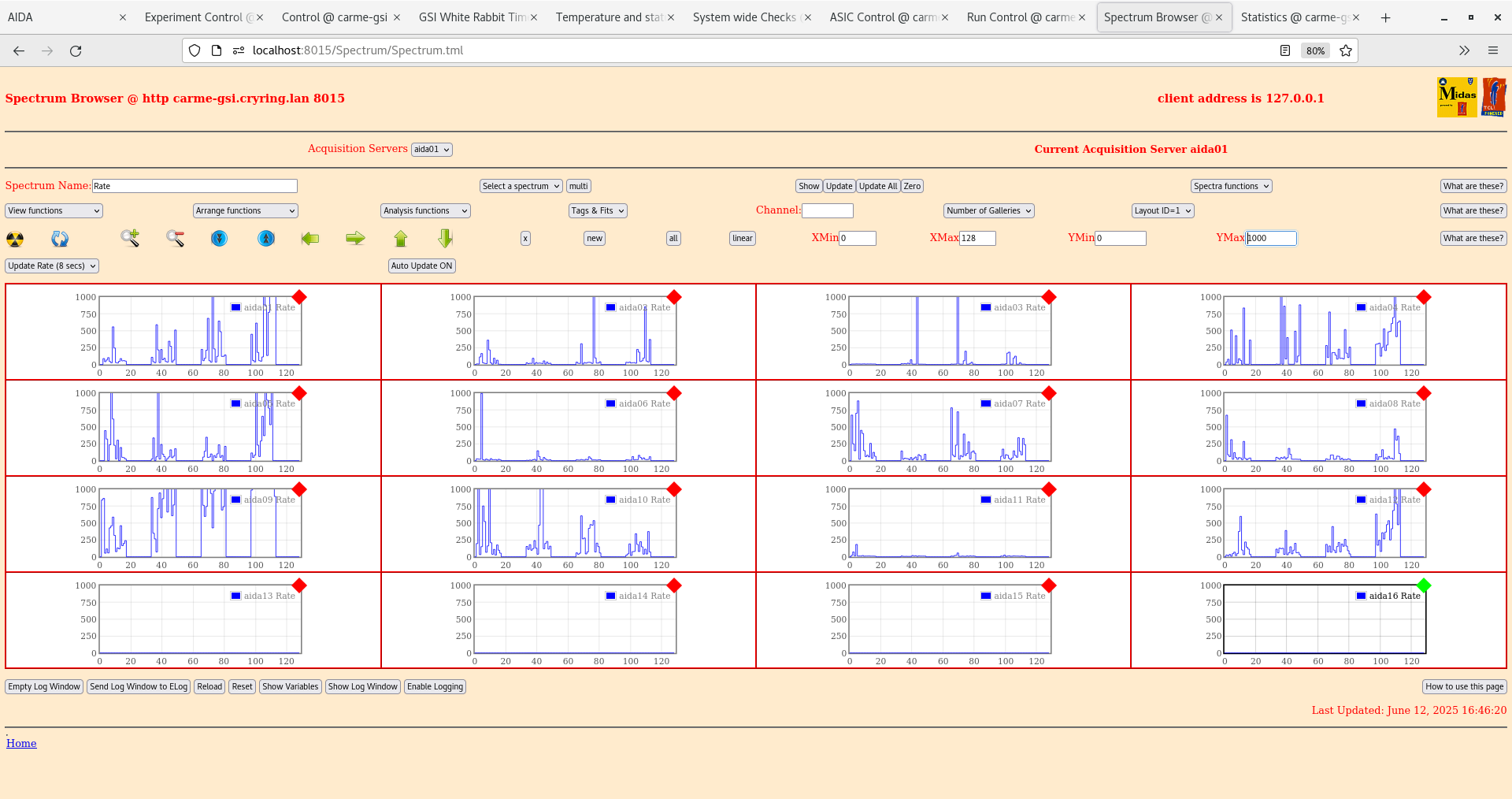

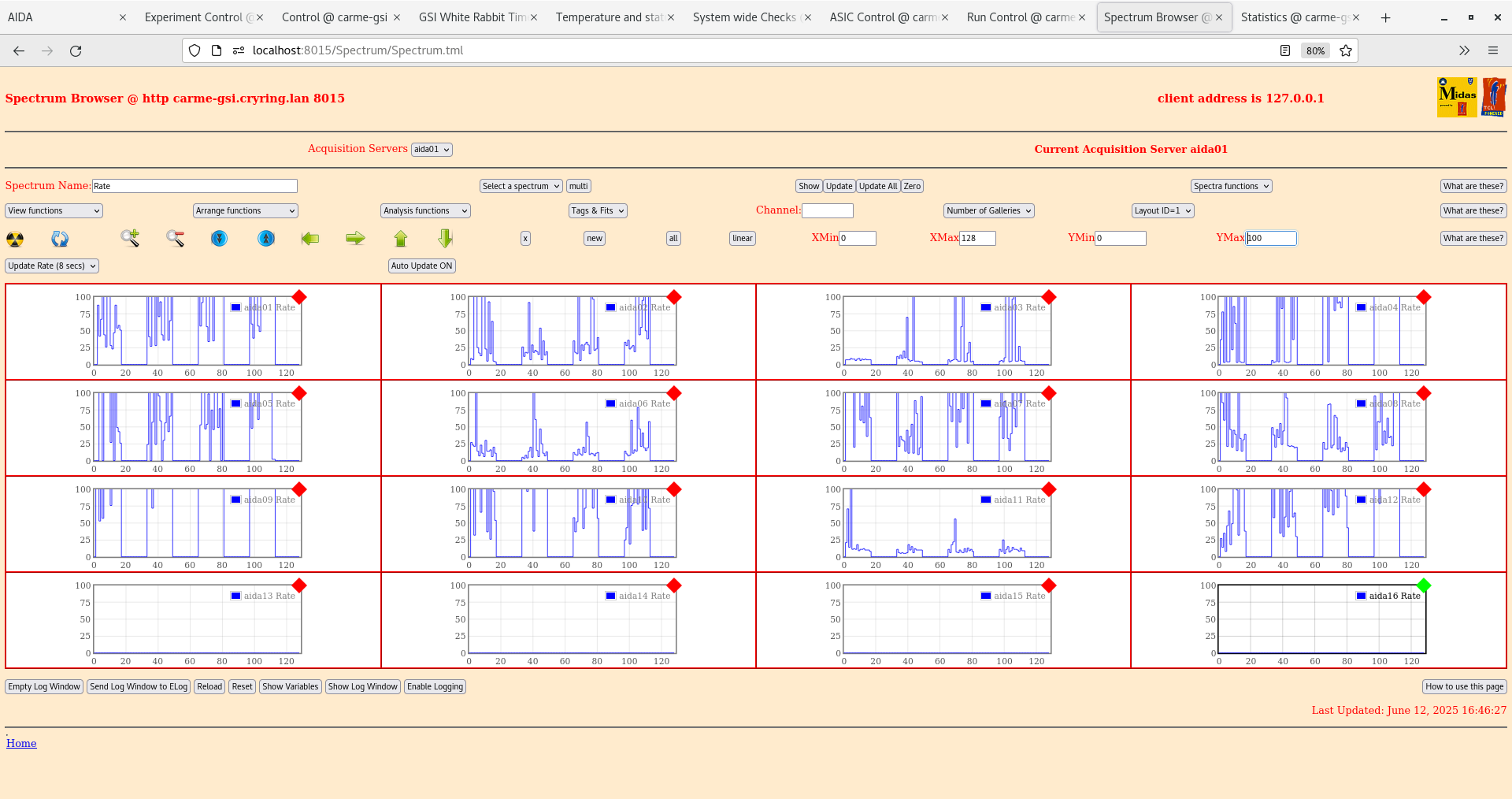

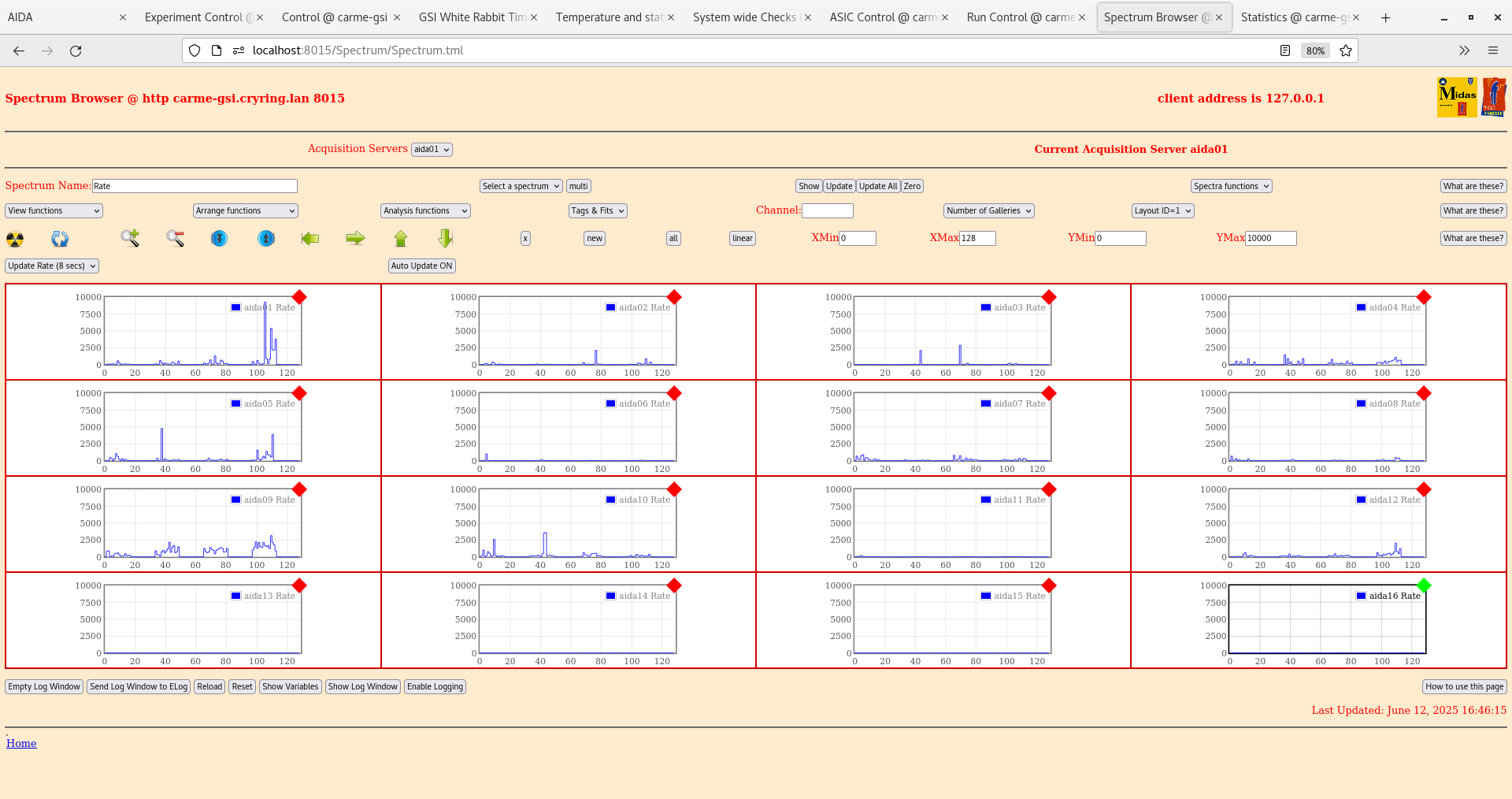

per FEE64 Rate spectra - attachments 10-12

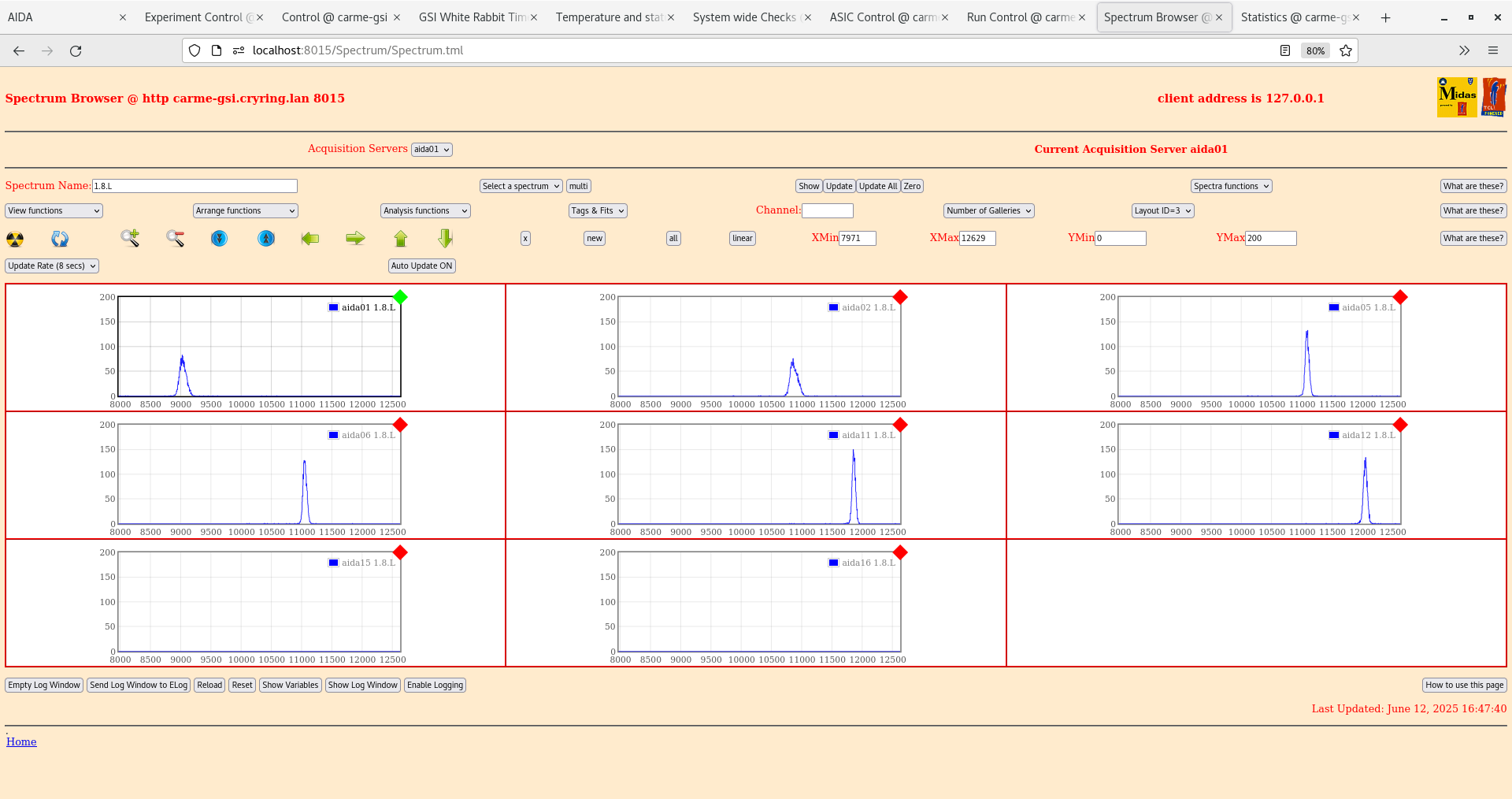

per FEE64 1.8.L spectra - attachments 13-14

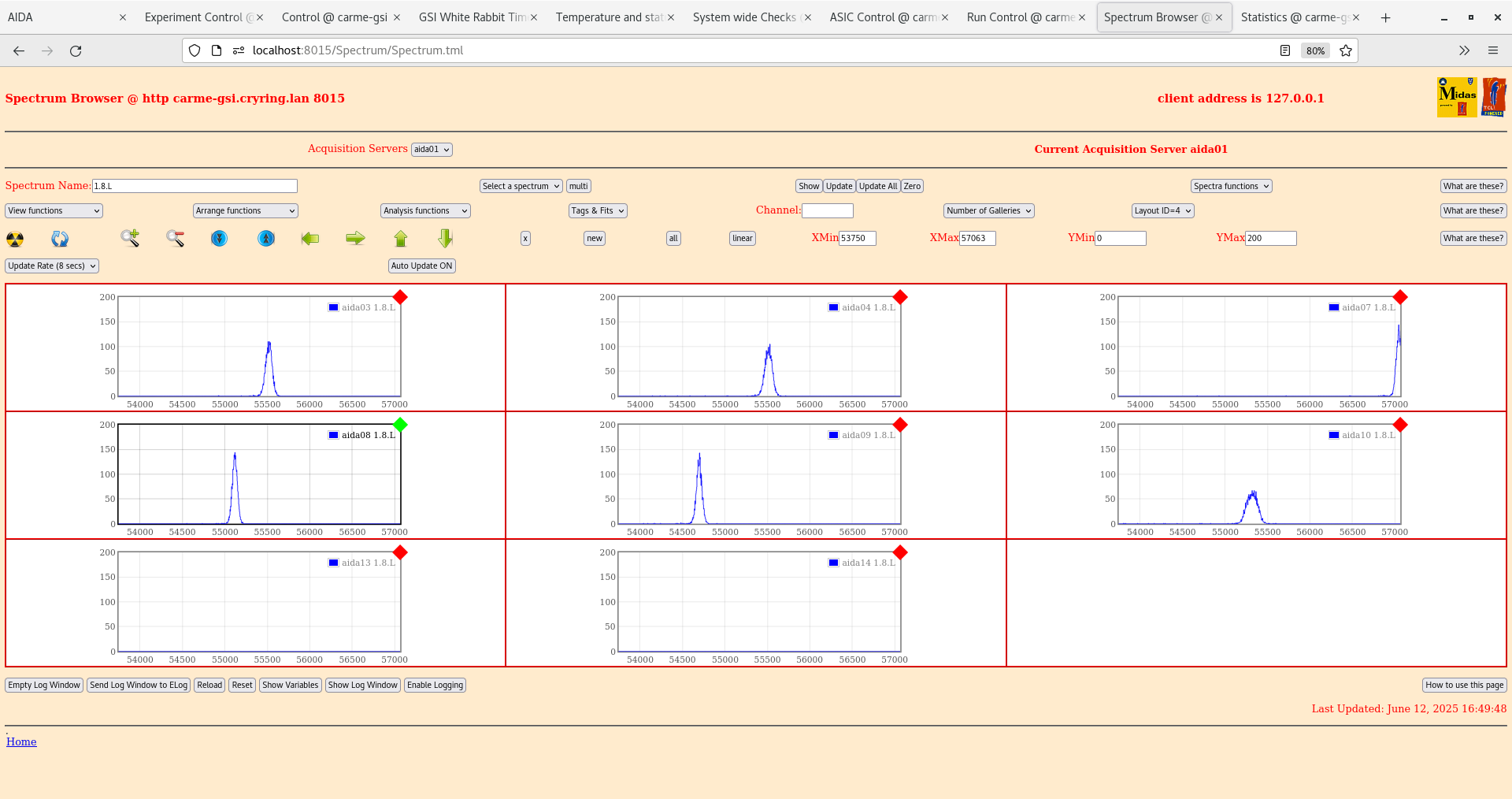

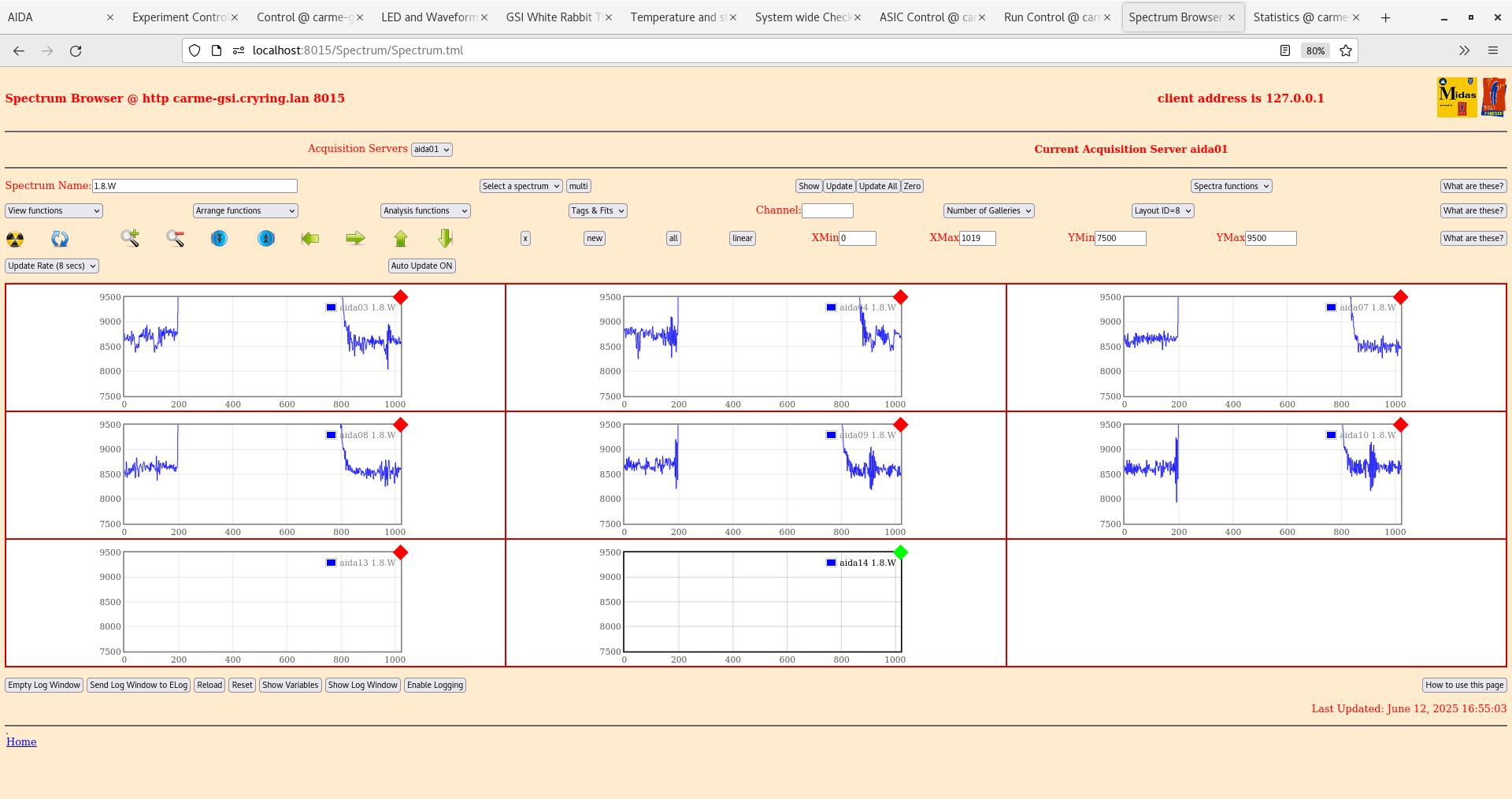

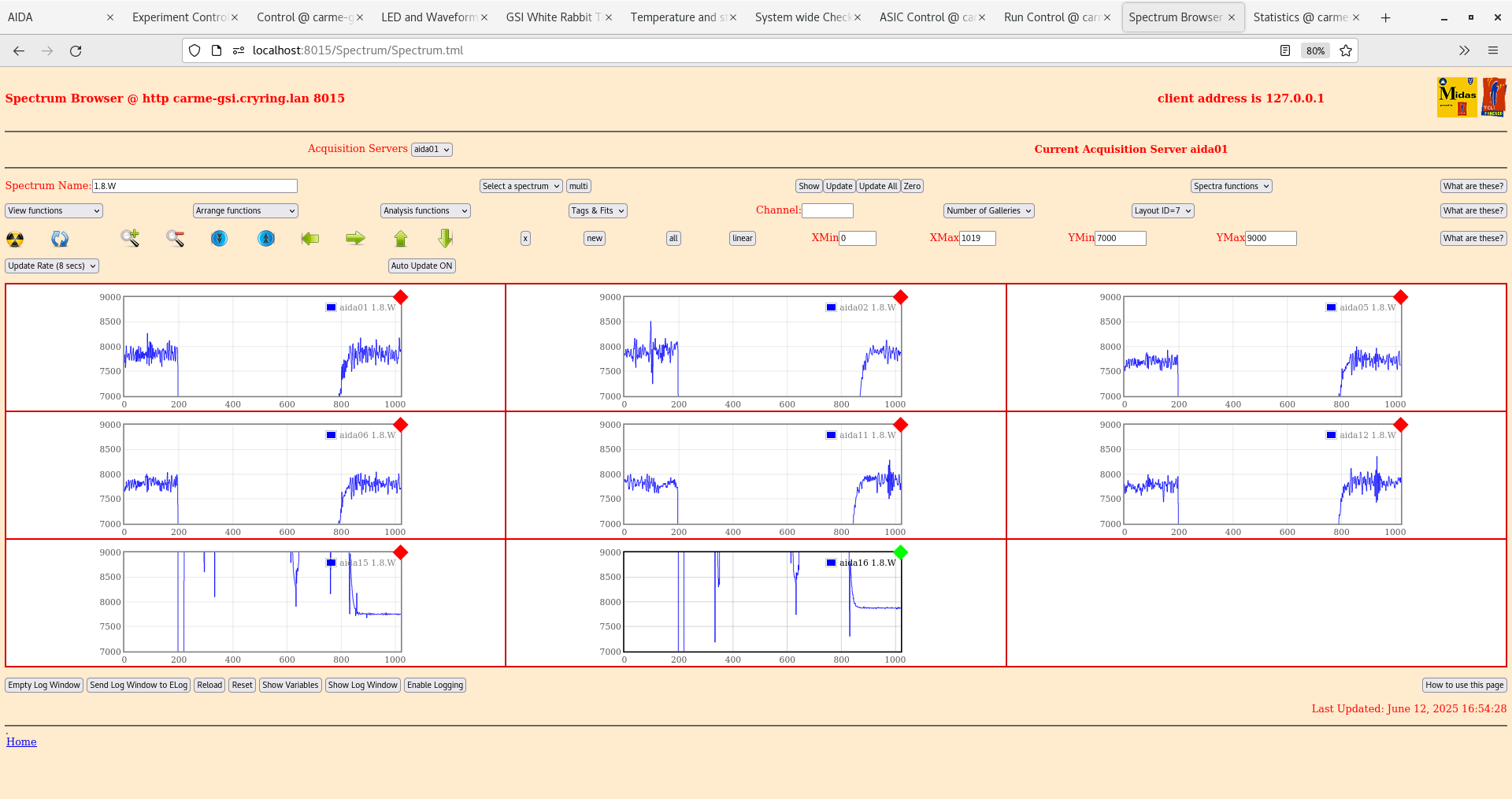

per FEE64 1.8.W spectra - 20us FSR - attachments 15-16

pulser peak width aida06 69 ch FWHM, aida08 67 ch FWHM

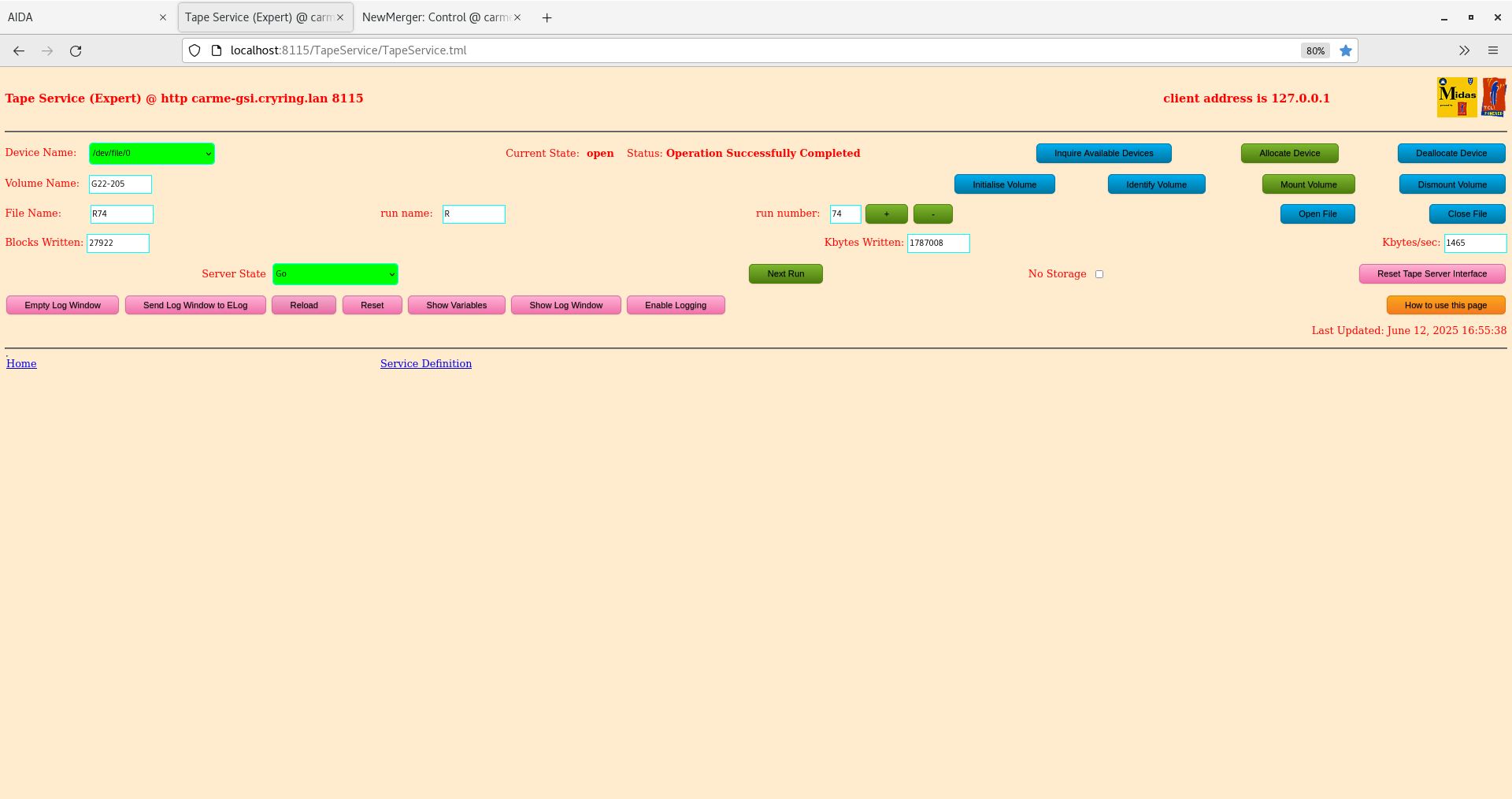

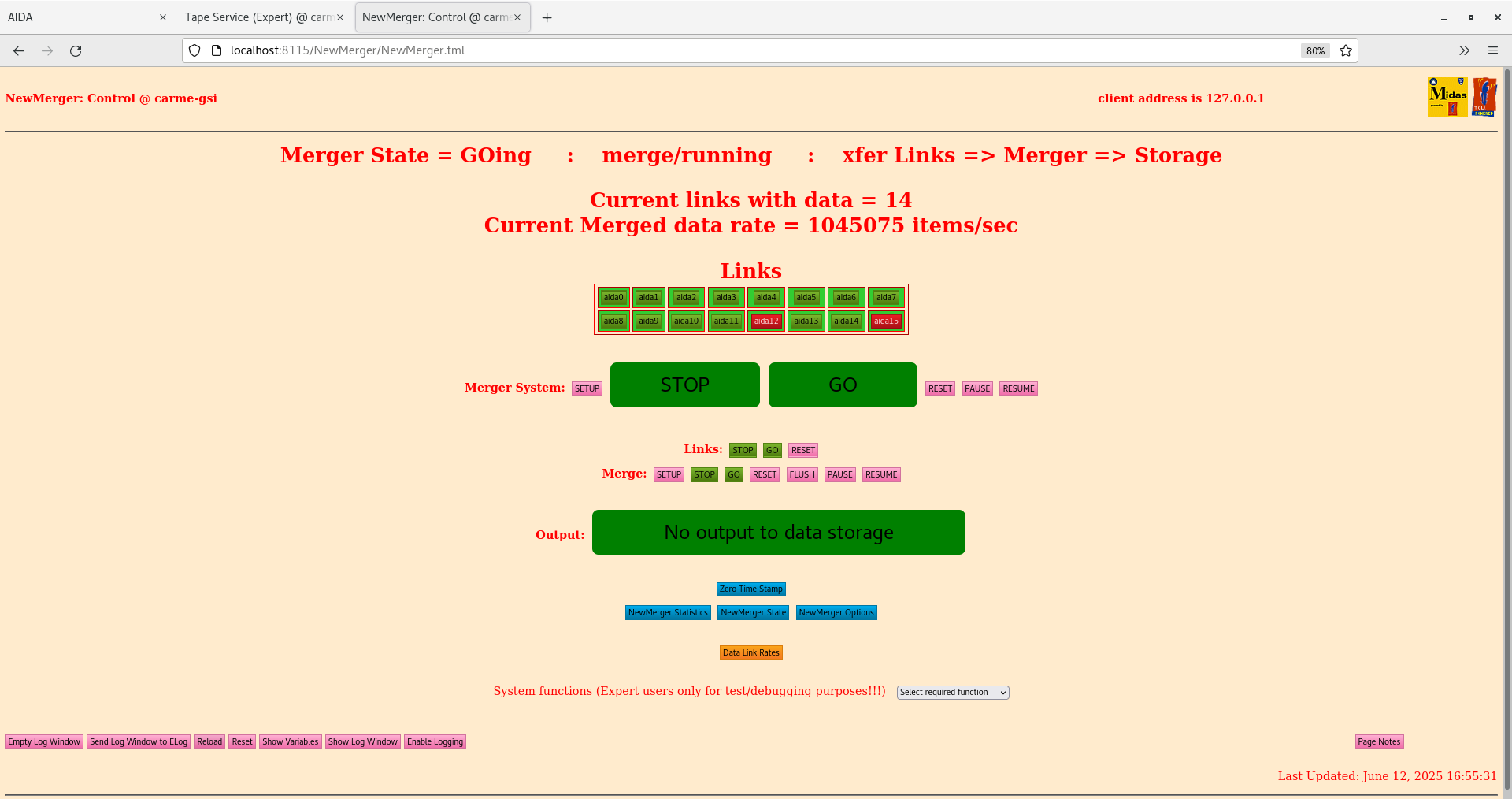

Merger, TapeServer OK - attachments 17-18

&nbsp;

ASIC settings 2025Apr08-13.45.30

&nbsp;aida01-aida04 slow comparator 0xc

aida05-aida12 slow comparator 0x8

aida13-aida16 slow comparator 0x64, LEC/MEC 0x1

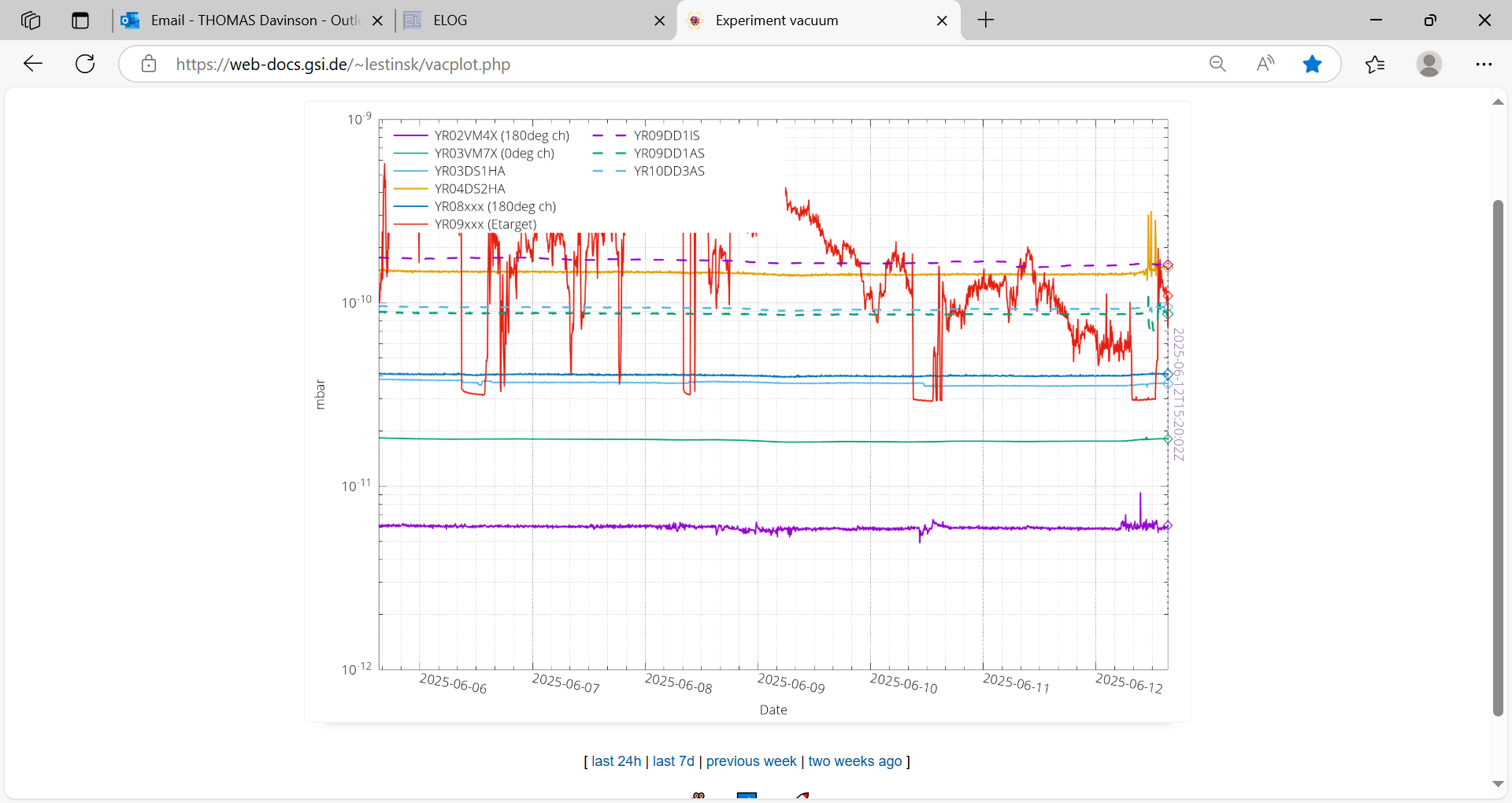

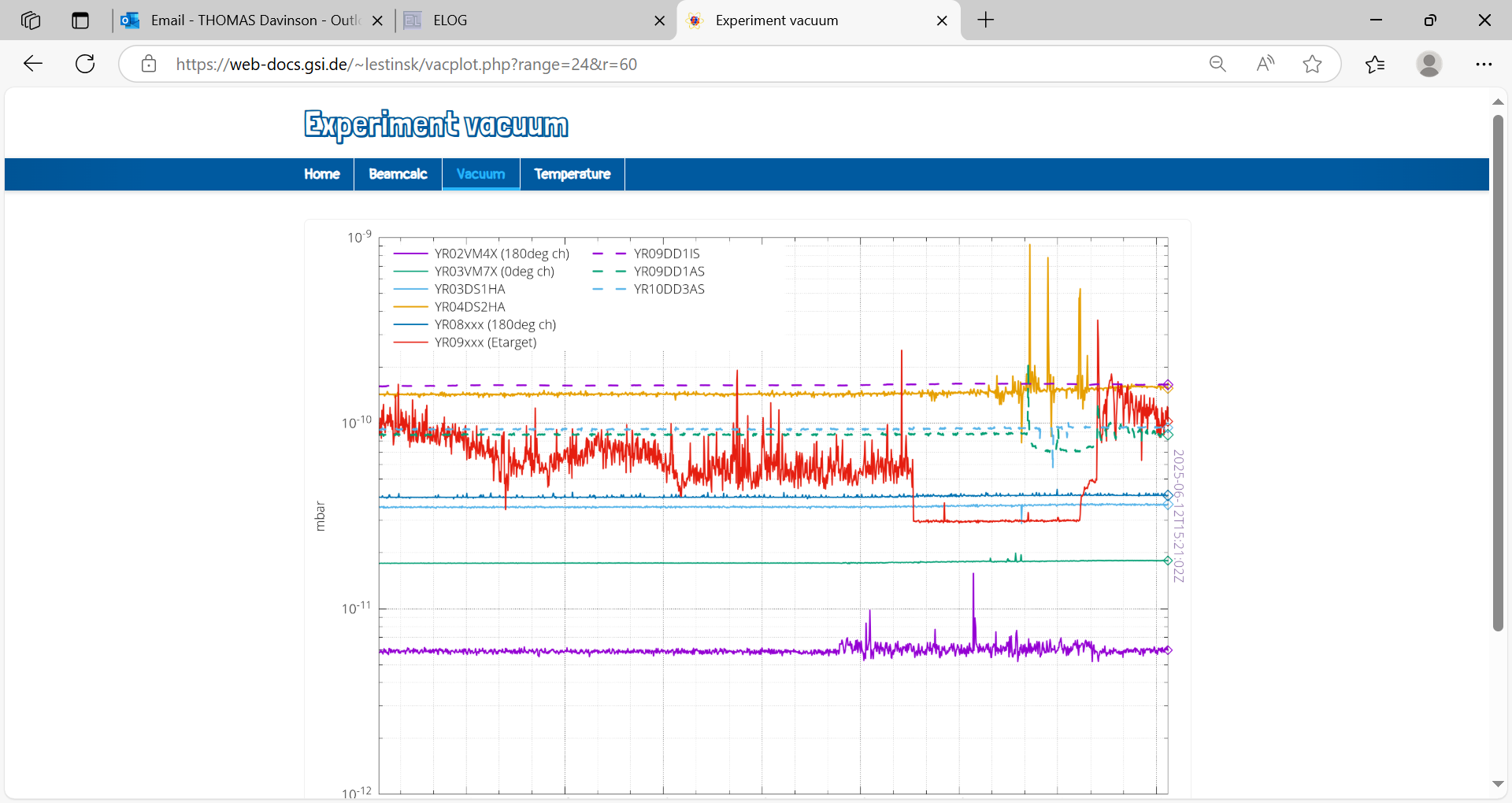

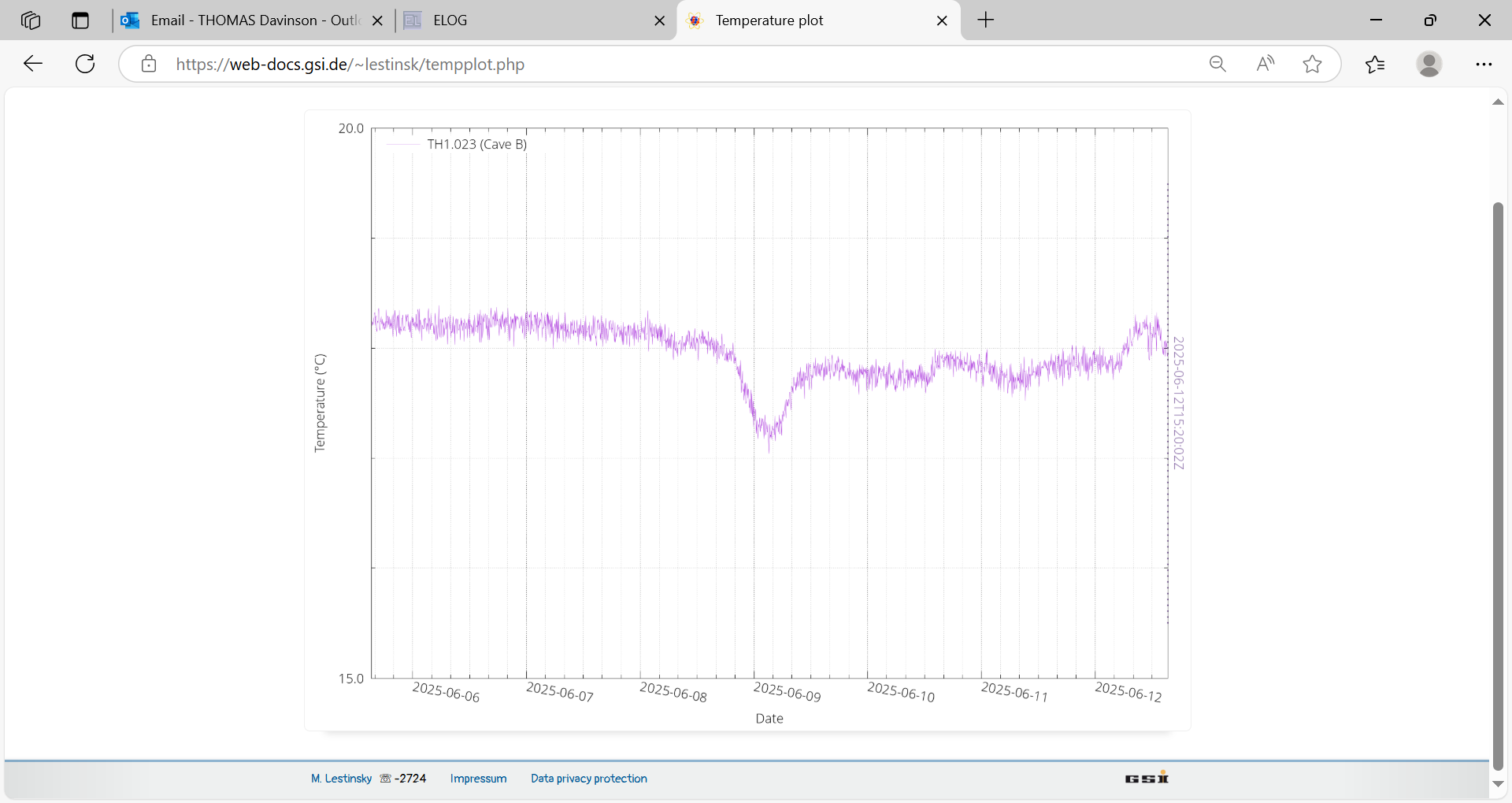

17.23 CRYRING vacuum and temperature - attachments 19-21

&nbsp;

17.34 routine checks OK

target density c. 5e+12, beam 3e+6

&nbsp;

18.40 changed target x,y position to check correlation between target density and detector counts. New position: x:-1500, y:2400.

checks OK.

target density c. 3.7e+12, beam 3.1e+6

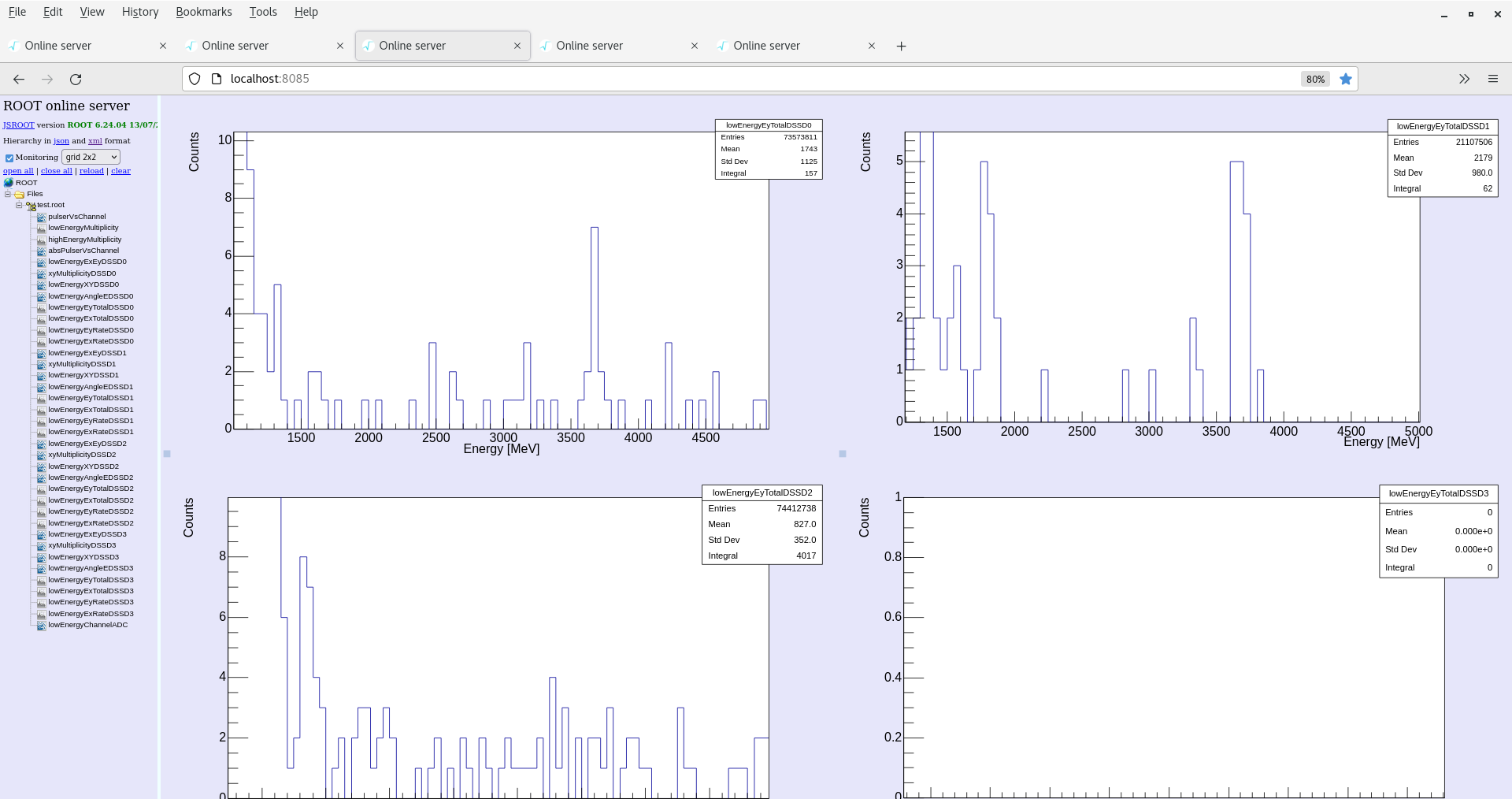

20.00 online analysis - per DSSSD energy spectra - attachment 25

&nbsp;t, h and p energy peaks clearly observed DSSSD #1 and #2 - p energy peak less clear in DSSSD #3

&nbsp;

20.30 checks ok

target density increased to c. 5e+12 for some minutes then back at c. 3.7e+12, beam 3.1e+6.

&nbsp;

21.47 checks ok

target density increased to c. 5.7e+12 around 21.35, then back at c. 3.7e+12. beam 3.1e+6.

&nbsp;

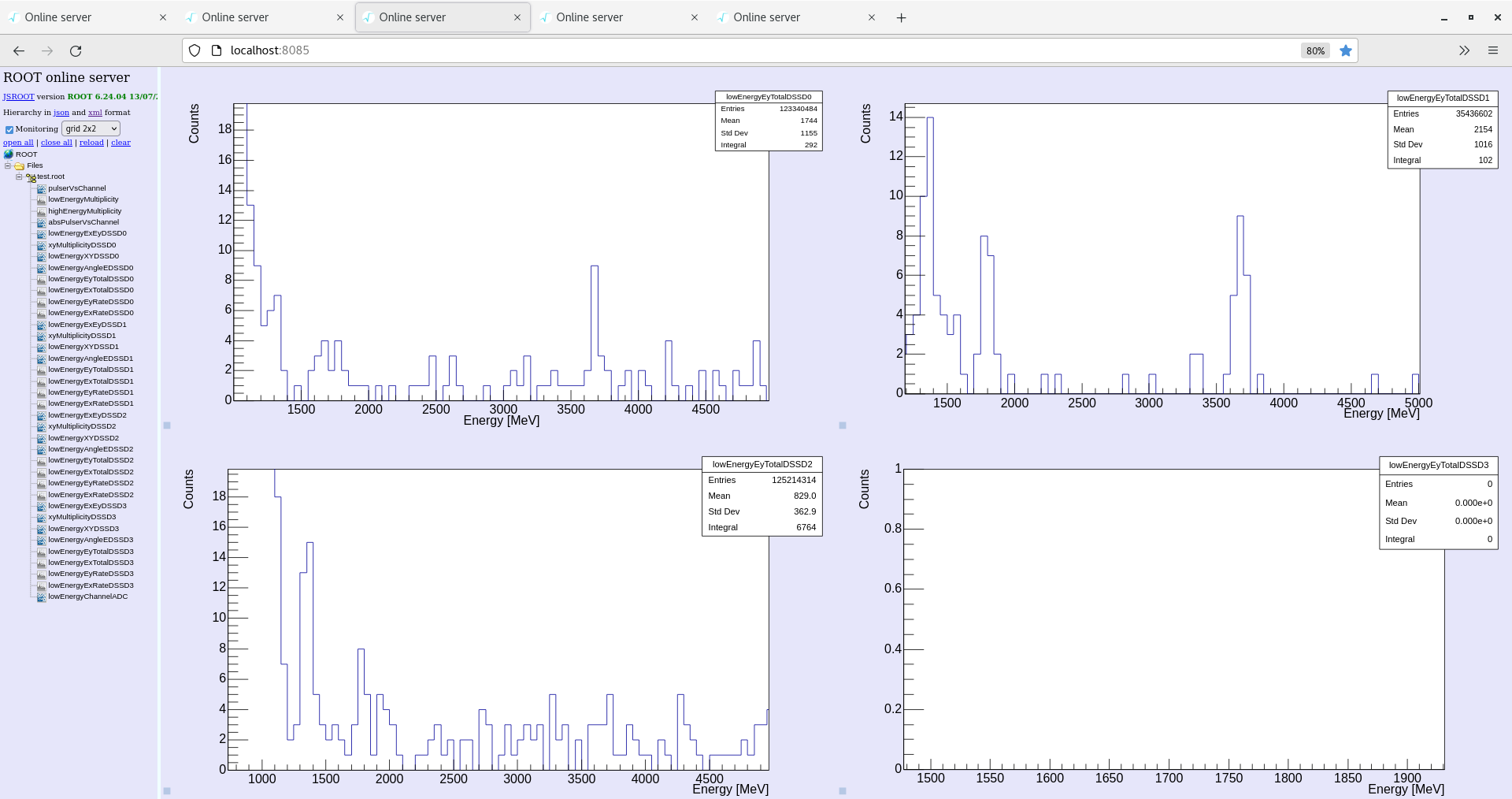

22.30 online analysis - per DSSSD energy spectra - attachment 26

&nbsp;

22.35 Analysis of data file G22-205/R74_29 - attachment 27

no timewarps, all deadtimes &lt;&lt; 1%

&nbsp;

22.45 DSSSD#4 bias -20V -&gt; -40V, leakage current -2.7uA -&gt; -4.09uA

23.14 DSSS\D#4 leakage current c. -9uA, return to bias -20V

&nbsp;

23.21 target density slightly unstable in the last hour, changed nozzle position to x=-2000, y=2500.

&nbsp;

00:04

Temps OK

System wide checks OK

Rates OK

Merger OK (1400 kb/s)

Target oscillating, but looks usable. Need to have another look at temperatures tomorrow morning.

&nbsp;

01:57

Temps OK

Rates OK

Merger OK

Target getting thicker.

&nbsp;

05:00

Temps OK

Rates OK

Merger OK

Target fluctuating

7:20 All sysytem checks ok. Target lost density @ 6;55 from 4.6e12 to 2.6e12 - will try moving. Update 7:30 after moving density back up to 4.4e12.

8:45 All Checks ok but target is fluctuating - really wants to be around 2e12. Had it up to 5e12 about 25 mins ago. Naughty target tbh.

9:25 All checks ok, gone to no storage as now tuning next beam energy.

10:30 All system checks OK, still tuning.

11:38 All system checks ok, still tuning. Frank entered cave to adjust magnetic field as the beam was not cooling at 90 keV/A

12:36 All checks okay, cave still open

13:40 All checks okay, tuning beam currently

14:50 All Checks OK. Target beam overlap currently happening - scanning range not showing anything. Target back on but not hitting - thickness 1.2e12.
