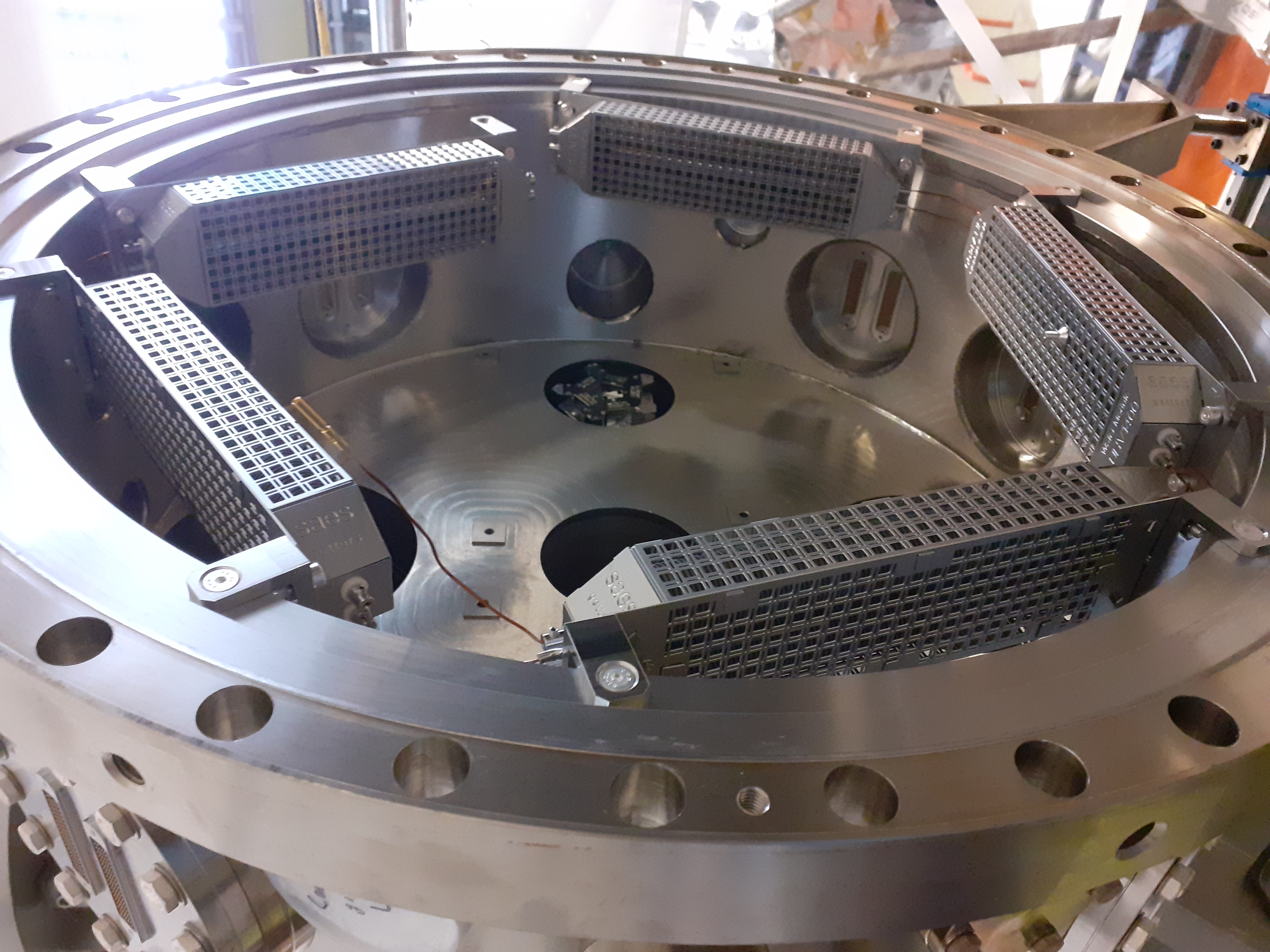

All neg feed-throughs have now been fully installed, with ground tags and power wires crimped and attached to the correct pins. Feed-throughs are installed as seen in Image 1 of zip file, with mark at the top of the feed-through. The pin assignment is seen in Image 2. The pins are assigned letters A to F, with F the top pin and C the bottom pin as installed(refer to images 1+2). The ground is pin c, with the two power wires connected to the bottom pins either side of the ground (pins b and d). Connections of wires from the negs to the feed-through is seen in image 3. Feed- throughs have been electrically checked. The ground pin is checked against the chamber giving approx 0.5 ohms and the power pins are checked together giving 5-10 ohms. Each of the power pins are open circuit with respect to the ground. A thermocouple has been attached under the bolt of one of the neg pumps (image 4). Pirani gauge and hot cathode gauge have been installed on the chamber (images 5,6,7,8) on the section furthest from the turbos. Upper valve, turbo and supports have all now been installed (images 9,10,11). Images 12,13 are of the internal of the turbo and turbo ports. The lower valve supports produced by the Daresbury group (image 14) are also now attached. These supports were required as the lower valve sits higher than anticipated due to shorter right-angled flanges. Chamber is now ready to close and leak test!
