Entry time:
Wed Nov 21 08:37:24 2018
Author
*
:
Subject
*
:

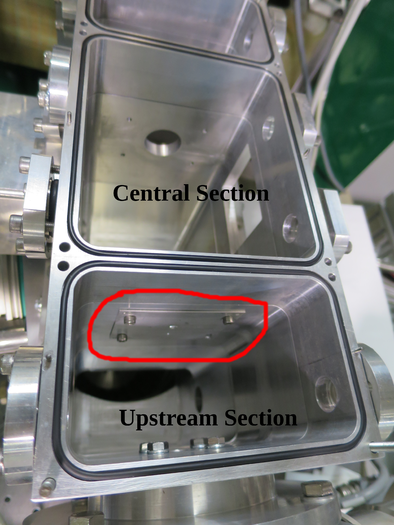

<p>On 19/11/2018:</p> <p>During the target ladder calibration (see elog entry #41) we also replaced the collimator (thickness ~24mm, diameter 3mm) located immediately upstream from the target ladder - that is between the upstream and central sections of the chamber. We mounted an aluminium collimator (thickness ~1mm, diameter 5mm). See attached picture 1.</p> <p>Using the same telescopic sight as that used for the target ladder calibration, we aligned the 5mm collimator with the beam axis.</p>
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 3000x4000
