Entry time:
Tue Feb 20 13:17:12 2024
Author
*
:
Subject
*
:

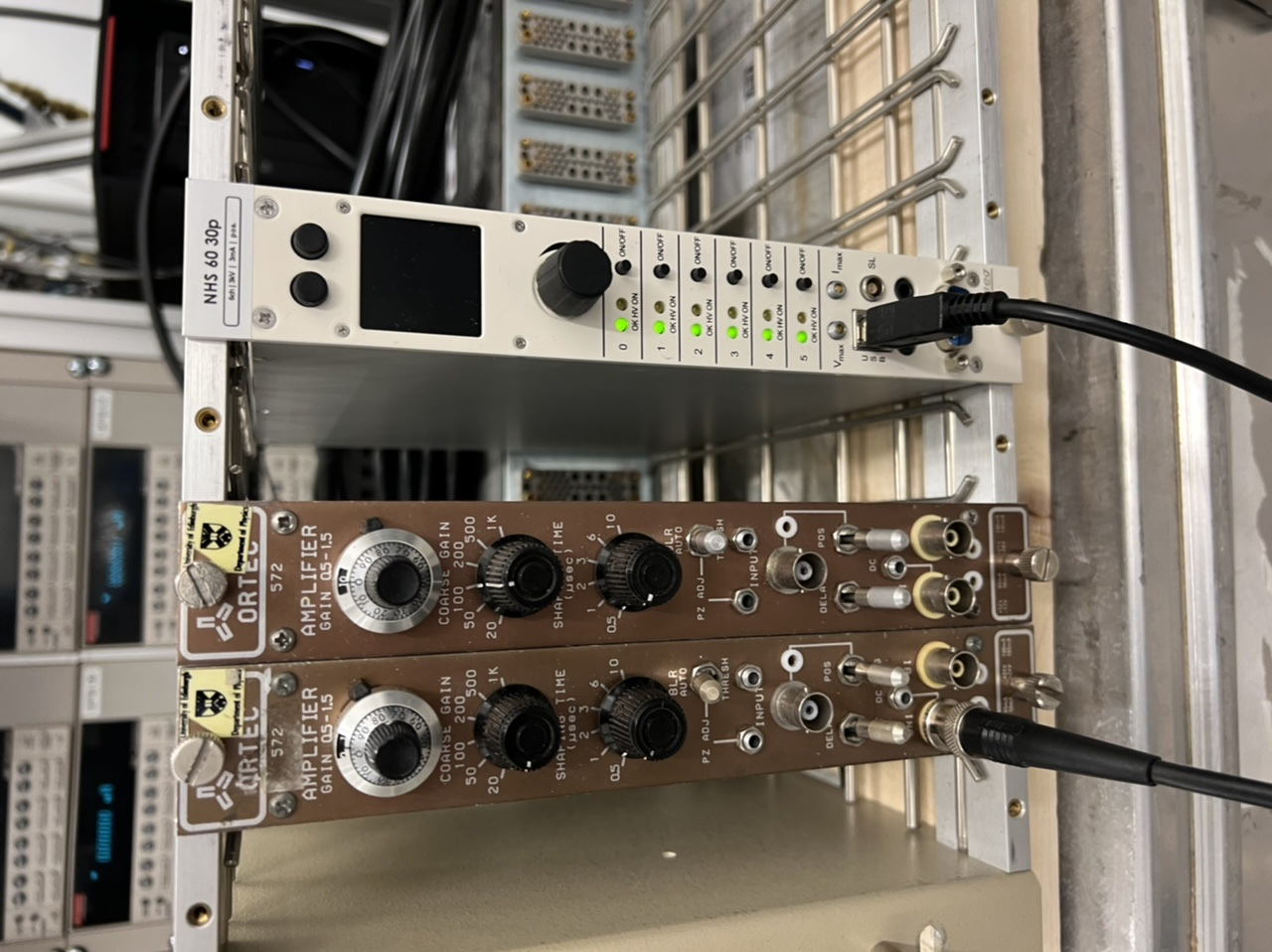

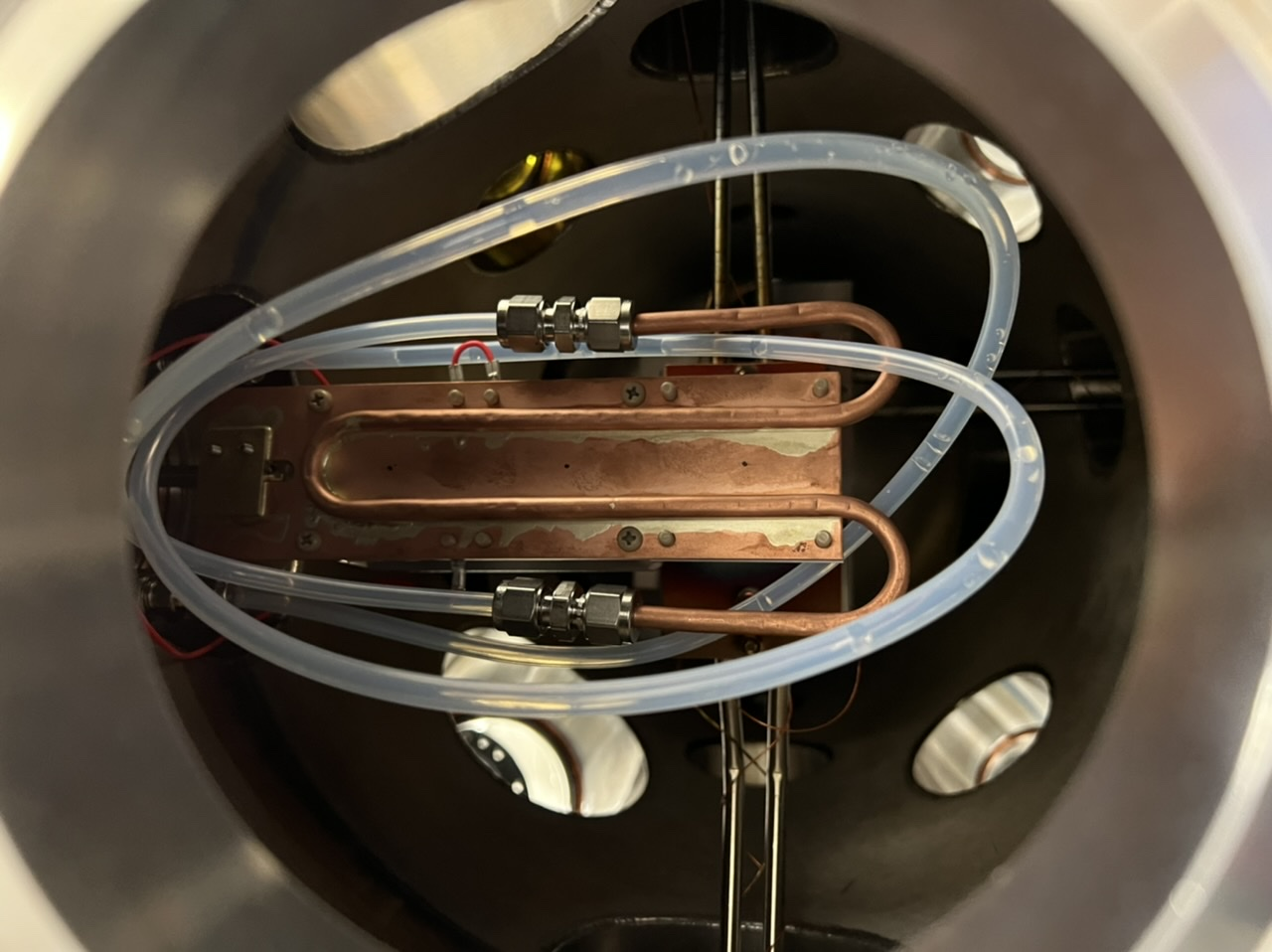

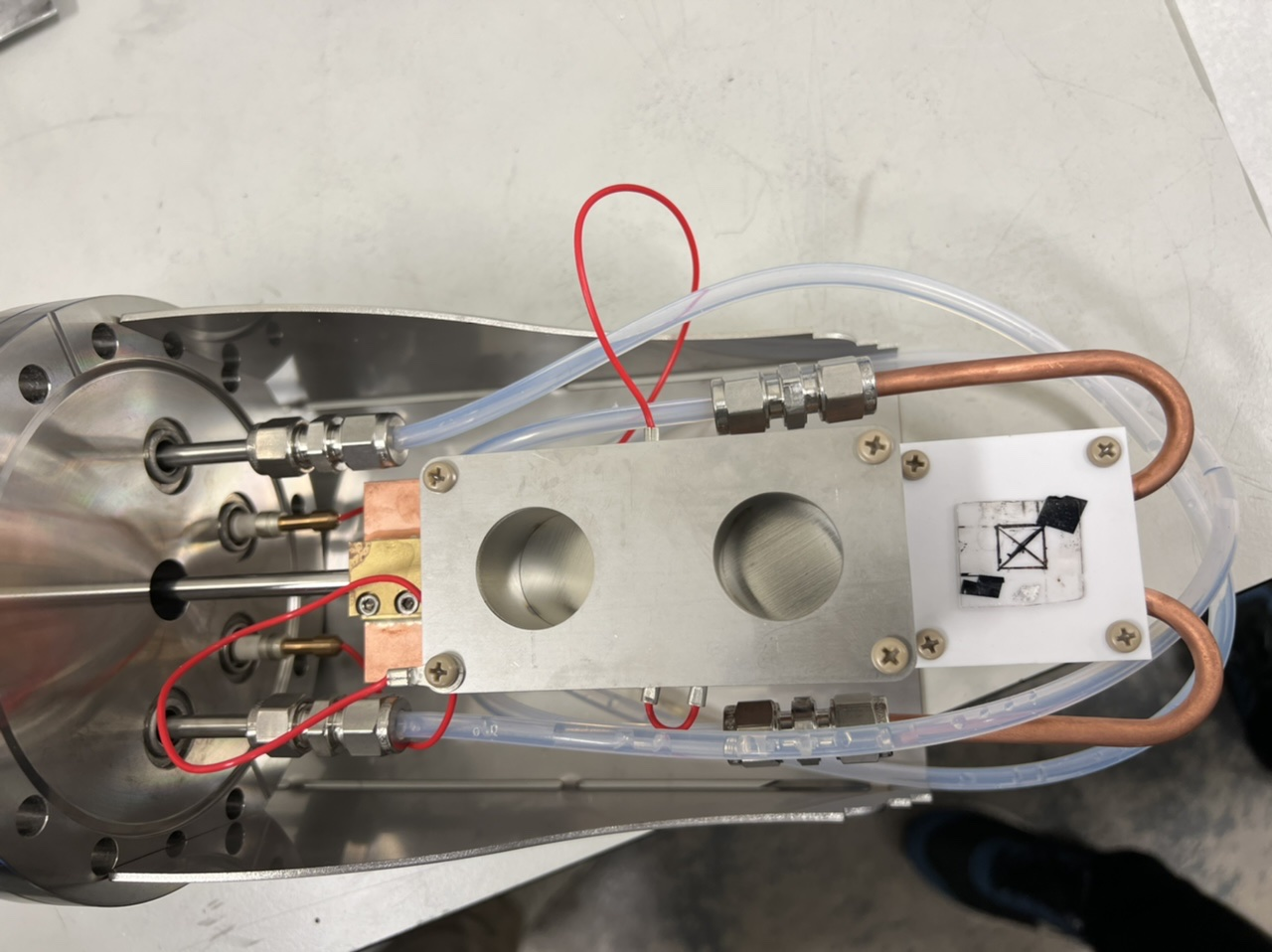

<p>On the ladder, Quartz was mounted on the bottom position. The bottom position (Quartz) is called target 1 at 0 mm, middle position (27Al target on Ta backing) is called target 2 at 50 mm, and top position (27Al target on Ta backing) is called target 3 at 100 mm.</p> <p>On HV supply, Channel 0 is connected to Suppressor and Channel 1 is connected to Target.</p> <p> </p> <p>Settings on Electronics:</p> <p>HV to NaI detector = +694 V</p> <p>Amplifier gain x1 (internal jumper) x1.5 (fine gain) x20 (course gain)</p> <p>Shaping time is 0.5 us</p>
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 1280x958
Attachment 2:
Original size: 1280x958
Attachment 3:
Original size: 1280x958
Attachment 4:
Original size: 1280x958
Attachment 5:
Original size: 1280x958
