Draft saved at 00:00:00
Fields marked with
*
are required
Entry time:
Fri Dec 6 20:34:56 2019
Author
*
:
Subject
*
:

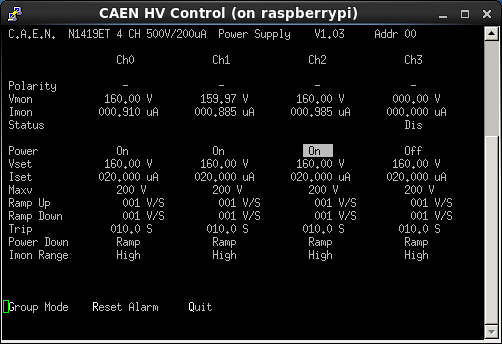

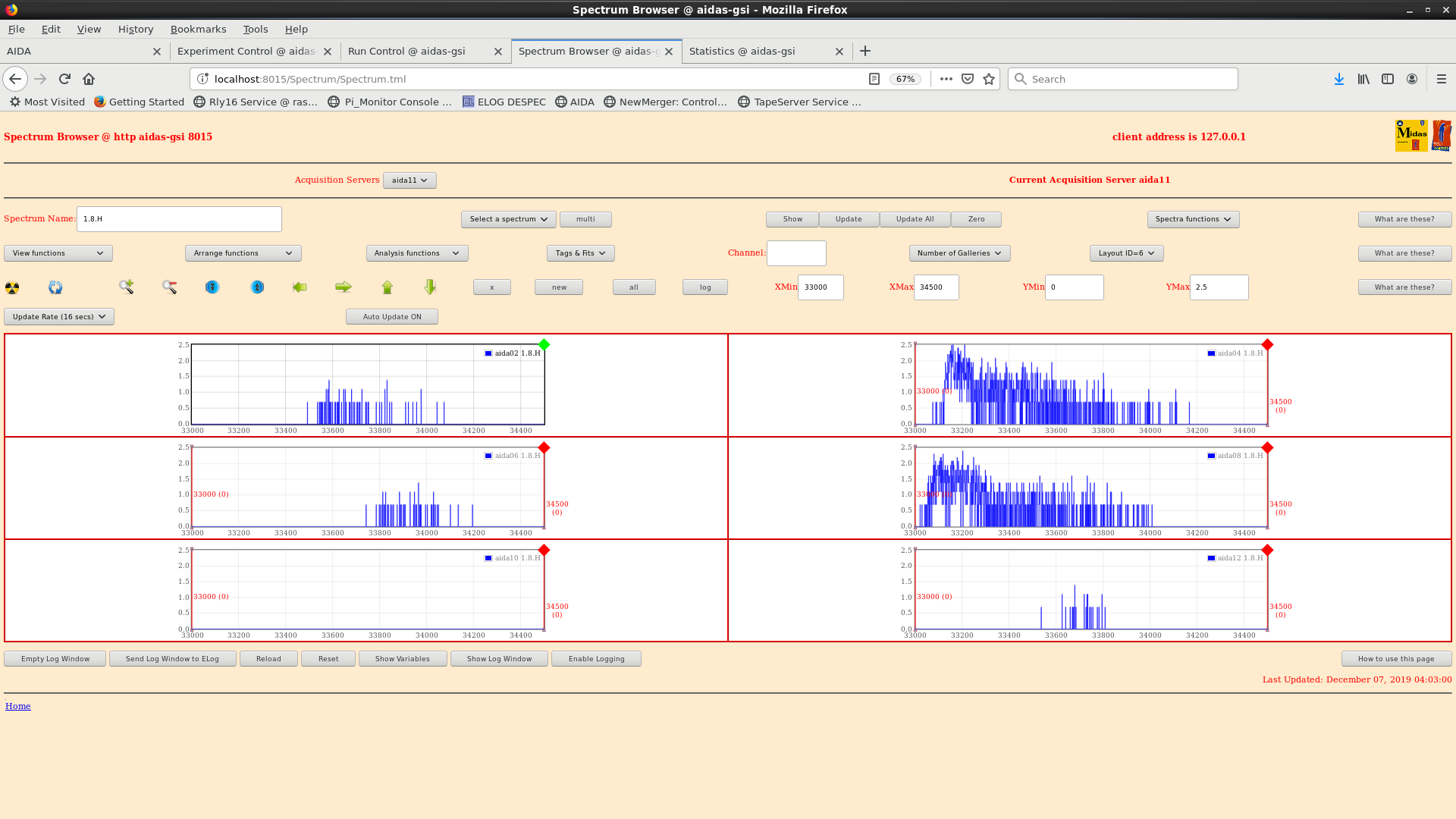

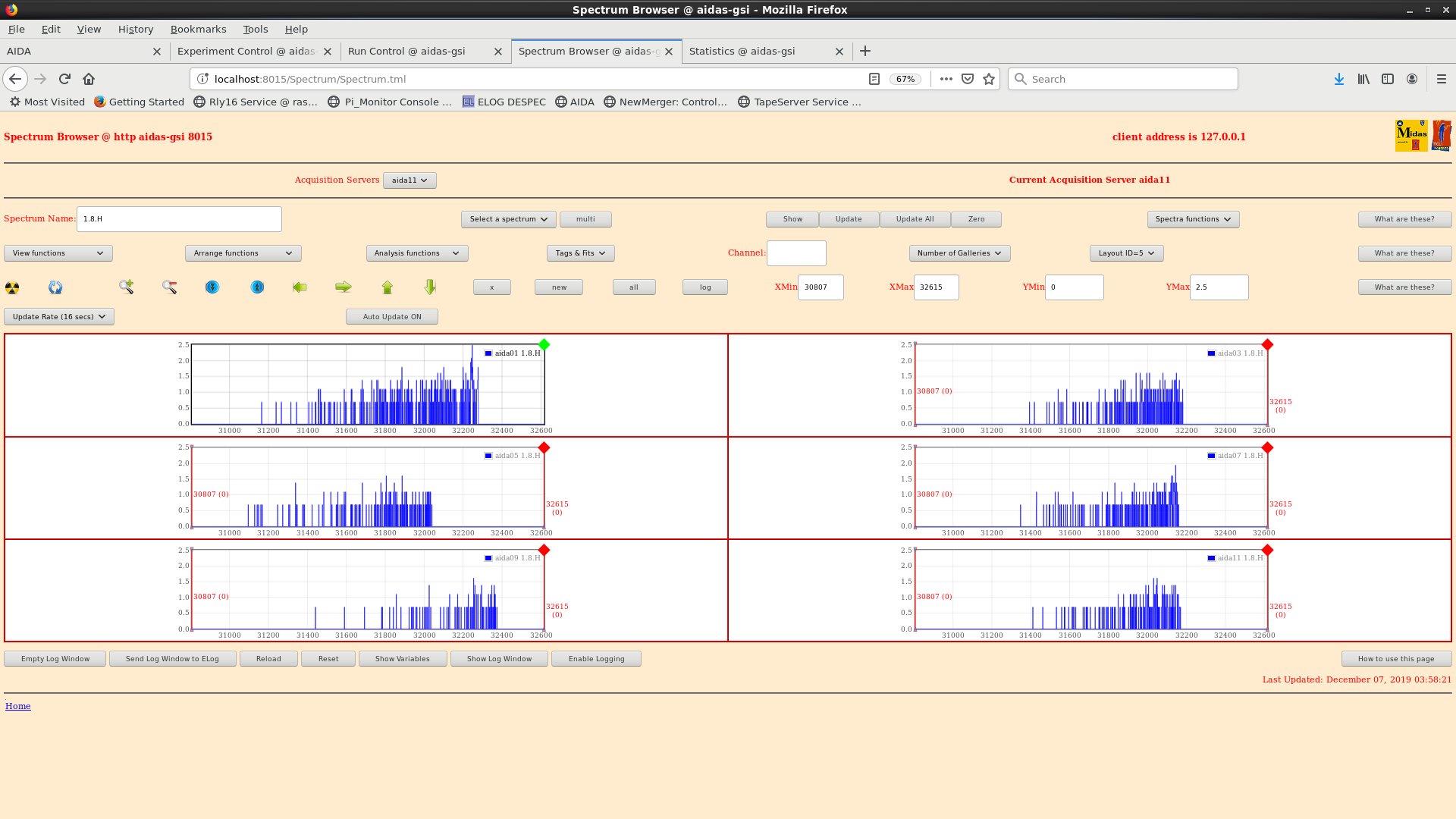

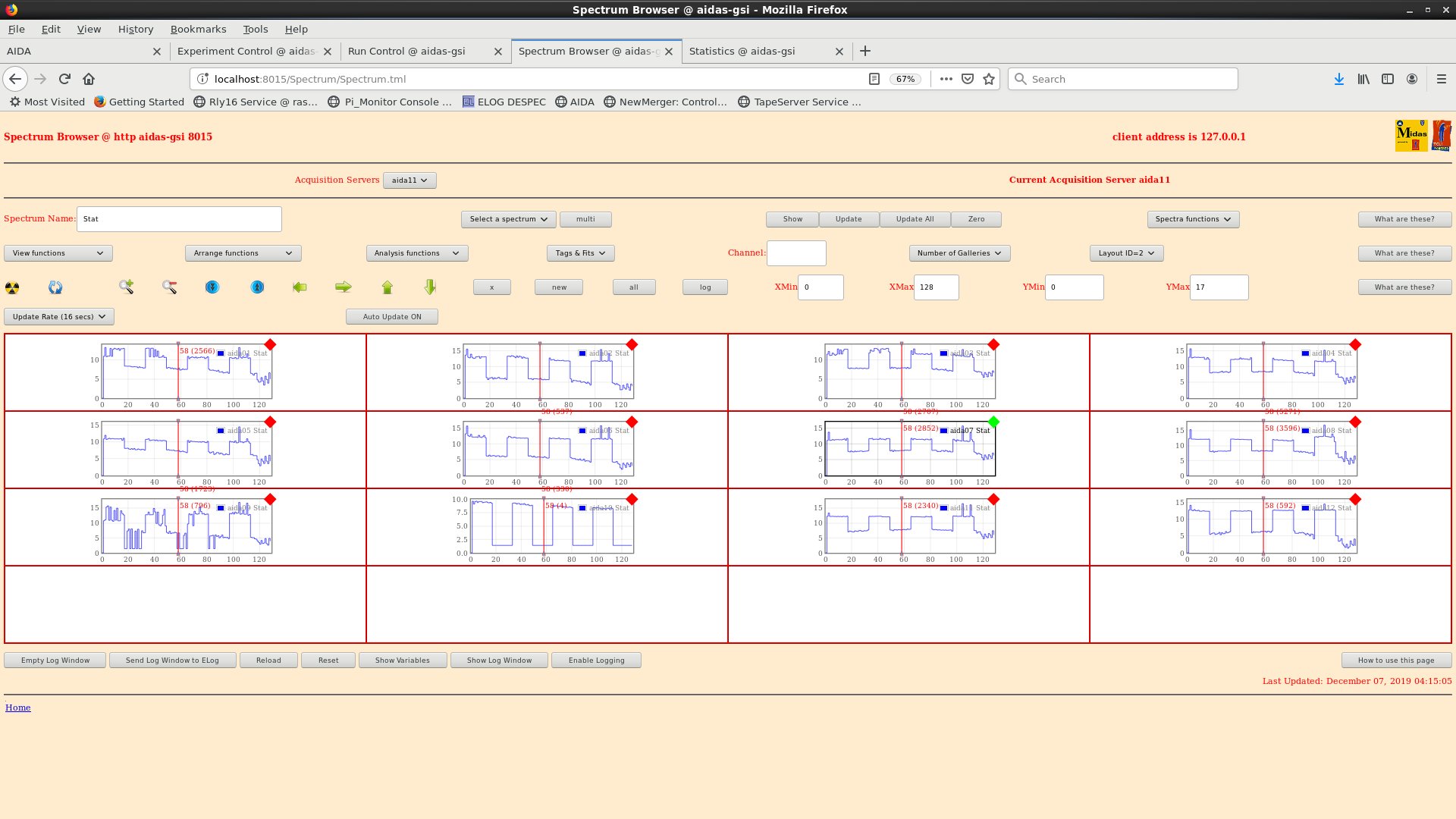

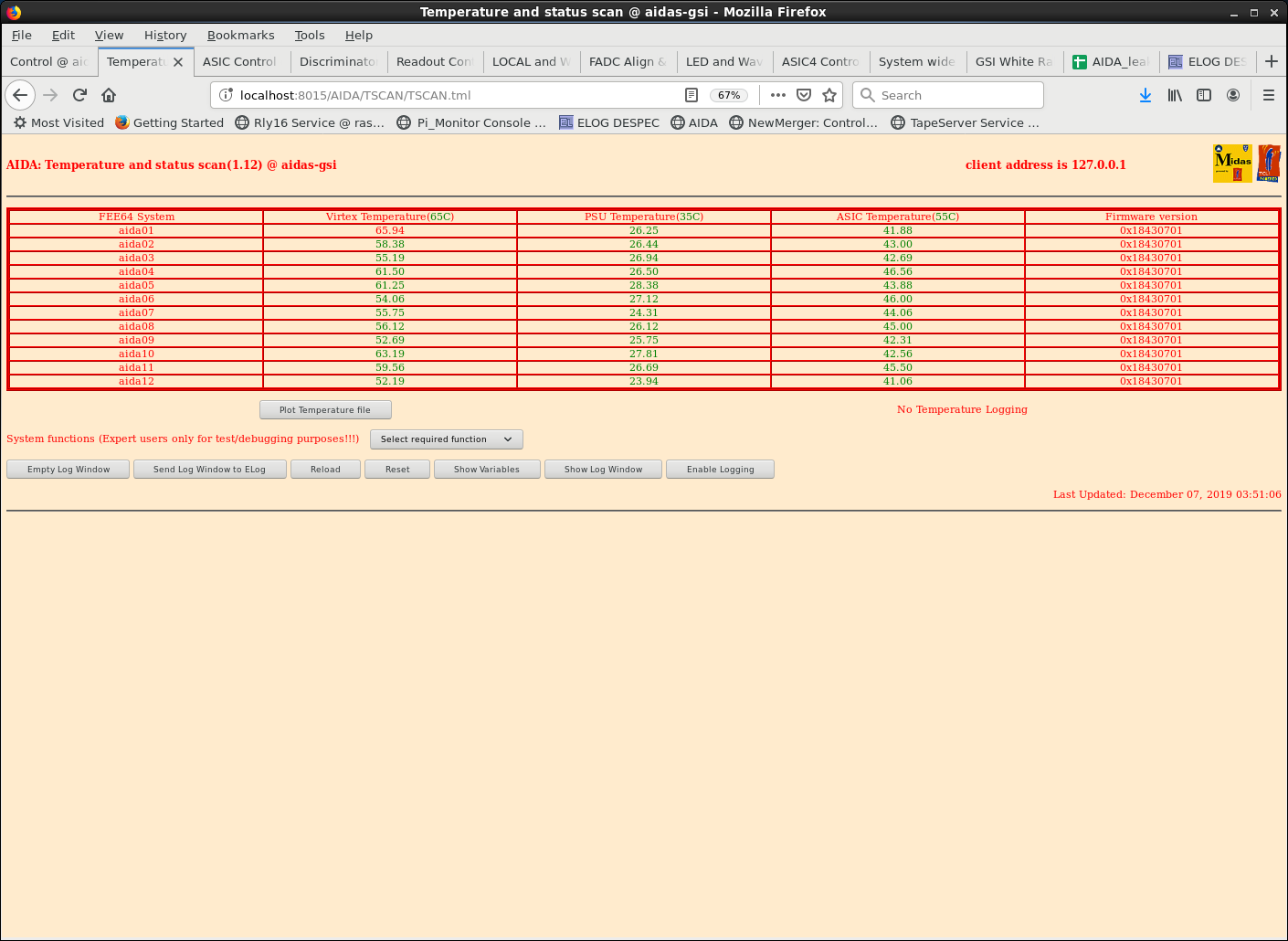

21.35 AIDA DAQ currently running, TapeService on, not writing to storage System wide checks ok Attachments 1-3: temperatures, good event stats, detector bias/leakage currents ok 22.04 waiting for beam. Possibility of fragments, further news to come 22.43 expecting fragments with 300 MeV/u 40Ar primary beam histograms zeroed 00.31 still waiting for beam detector bias/leakage currents ok (see google spreadsheet) FEE64 temps and good event statistics ok 02:02 still awaiting beam - issues with interlock 03:17 beam tuning - centering primary beam on target 03:43 beam reached AIDA, fragmentation beam (see elog entry by DK for PID) primary beam 300 Mev/u 40Ar, fragments in region of 34Si started writing to file Dec19/R2 at rate ~ 4000 kb/s histograms zeroed 03.49 system wide checks all ok attachments 4-6: temperatures ok bias/leakage currents ok good event statistics ok, except aida09 running slightly fast 04:03 attachments 7-8 - 1.8.H energy spectra - no high energy events seen in aida10 -> checked ASIC control - still no high energy events in aida10 04:09 attachment 9 - rate spectra for all FEE modules 04.16 attachment 10 - 1D hits for all FEE modules 04.19 beam stop - file R2_3 04:52 beam back on - file R2_6 - rate of ~ 5000 ions per spill 06:13 temperatures ok good event statistics ok (aida09 still running fast) - attachment 11 detector bias/ leakage currents ok - see google spreadsheet all system wide checks ok 1.8.H spectra - attachments 12/13 06:20 attachment 14 - rate spectra for all FEE modules attachment 15 - 1D hits for all FEE modules still no high energy events in aida10
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 1410x1030
Attachment 2:
Original size: 502x344
Attachment 3:
Original size: 1920x1080
Attachment 4:
Original size: 1410x1030
Attachment 5:
Original size: 502x344
Attachment 6:
Original size: 1920x1080
Attachment 7:
Original size: 1920x1080
Attachment 8:
Original size: 1920x1080
Attachment 9:
Original size: 1920x1080
Attachment 10:
Original size: 1920x1080
Attachment 11:
Original size: 1920x1080
Attachment 12:
Original size: 1920x1080
Attachment 13:
Original size: 1920x1080
Attachment 14:
Original size: 1920x1080
Attachment 15:
Original size: 1920x1080
