Fig 1: 2D hit pattern of each AIDA DSSD for MBS run 24 (40Ar primary beam, centred)

Low statistics in DSSD2 partly due to low energy deposition

Fig 2: Position according to TPC42 (ca. 2 metres before AIDA)

Fig 3: 2D hit pattern of DSSD 1 for MBS run 37 (34Si fragments, no PID gate)

-
Bottom part of AIDA noticably cut off - rotation in DSSD also noticed (not an issue)

Snout was investigated and platform was discovered to not be fully level by Bogdan using a laser level - he has adjusted it so that the AIDA snout is now level to within 1 mm.
(The beam right side was previous 4-6mm below the beam left side)

Y cut in fragment run is currently of unknown origin. Optics are being investigated

-

Fig 4: Hit pattern of 40Ar with strip offsets fixed (no missing strips)

Fig 5: Energy loss in DSSD1 of 40Ar primary beam

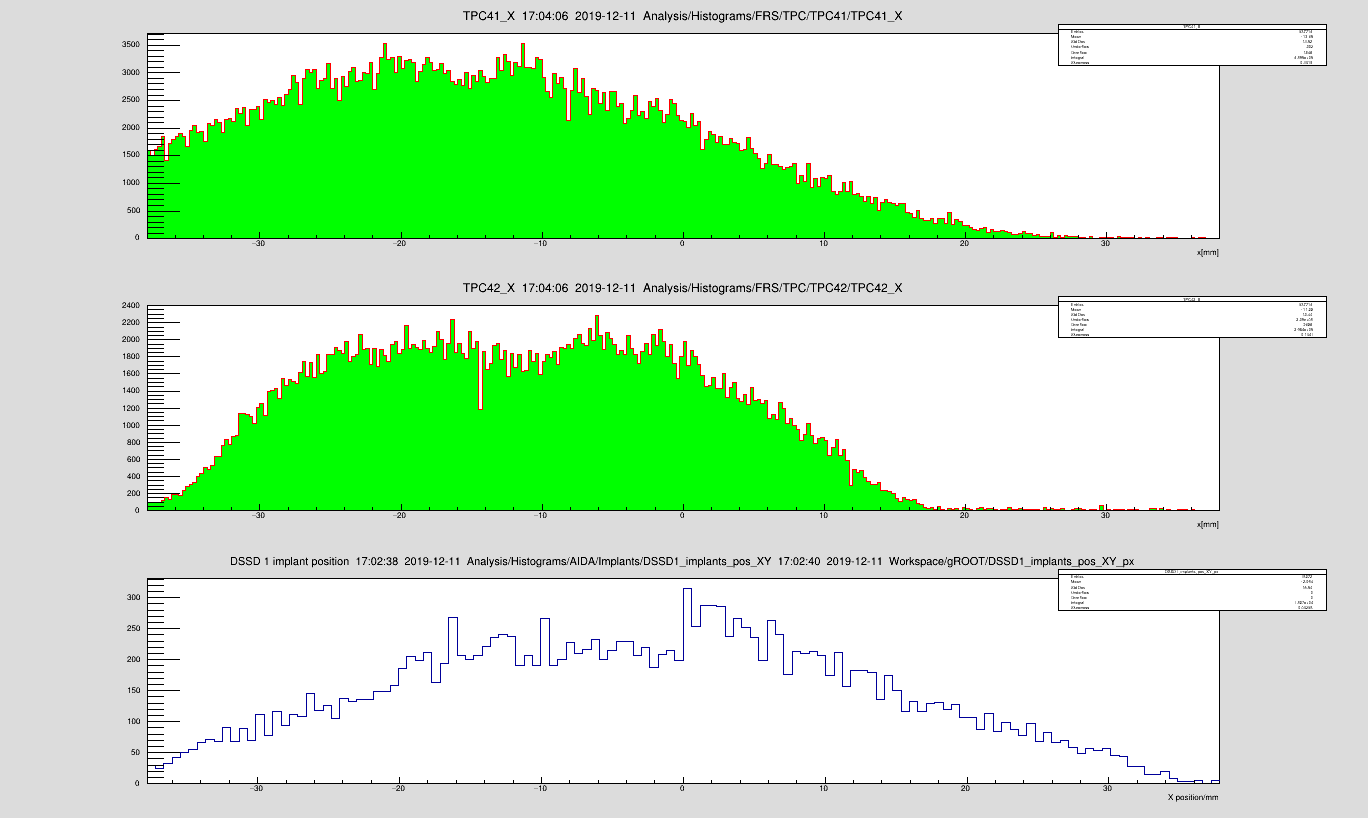

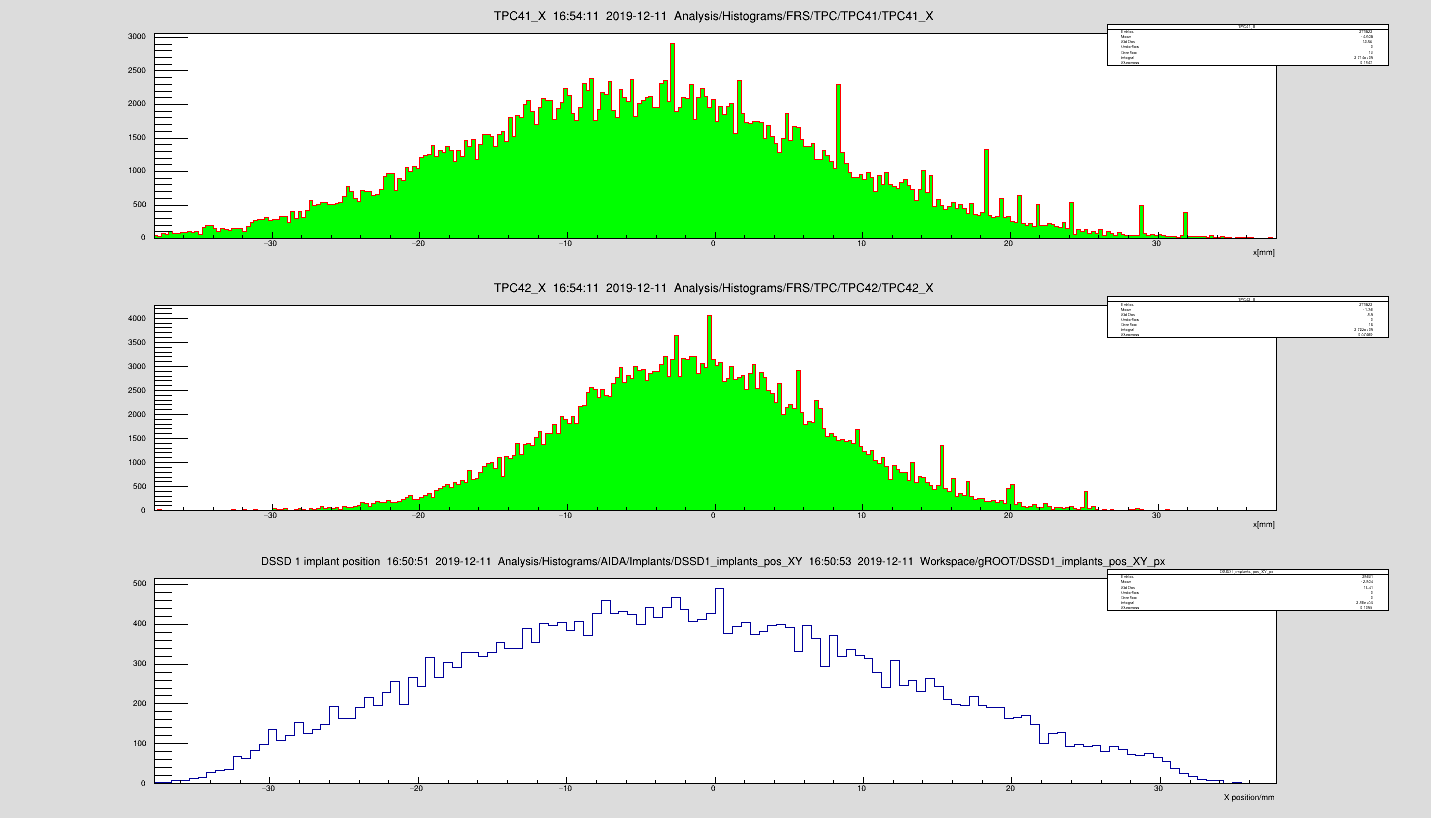

Fig 6: TPC 41, TPC 42, AIDA X comparison

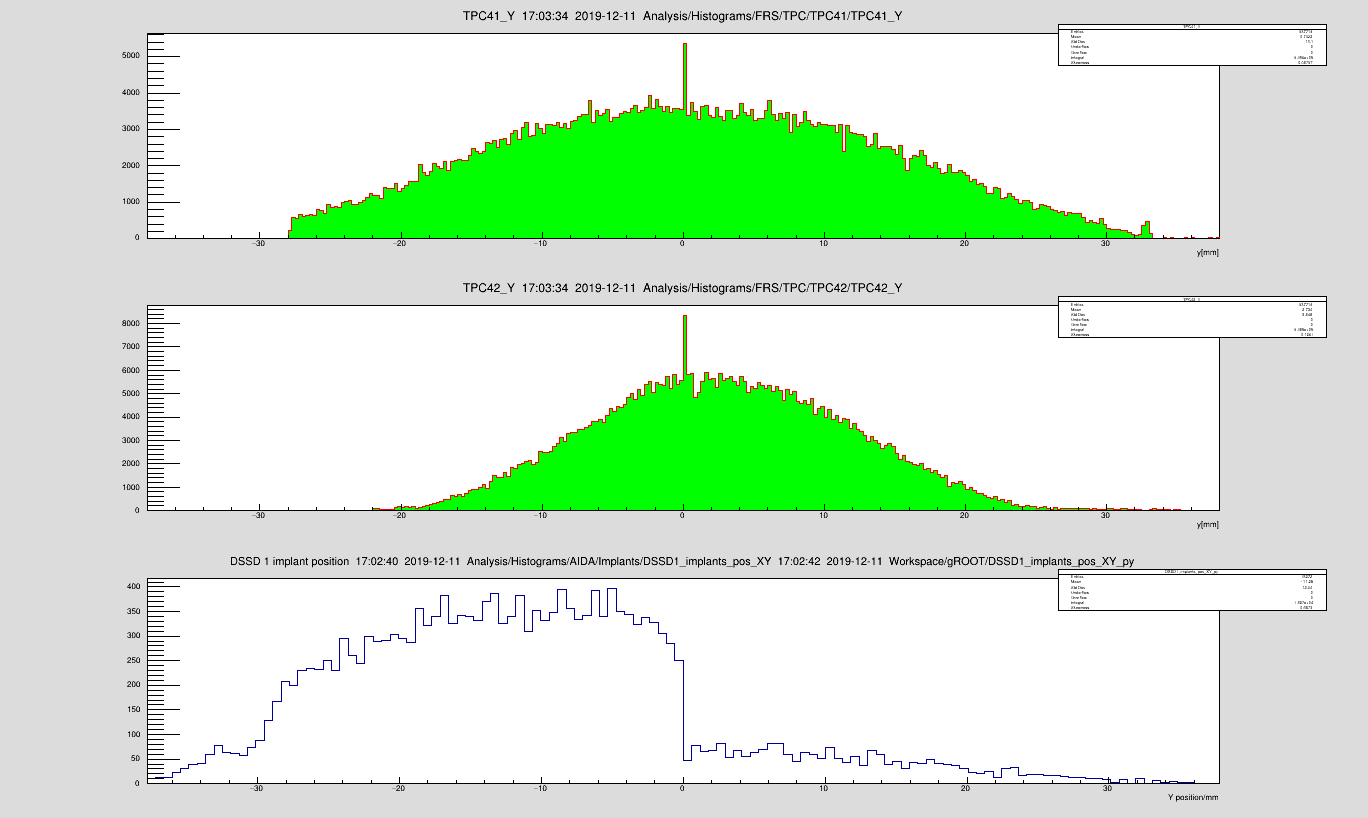

Fig 7: " Y comparison

Fig 8-11: As above for 34Si run

Y cut unknown still.



Statistics of 40Ar file
======================================
AIDA Unpacker Analysis
--------------------------------------
First event: Fri Dec  6 05:21:42 2019
Last event : Fri Dec  6 05:26:17 2019
Duration   : 274.604 seconds
--------------------------------------
MBS Events   (M): 131808426 (481 kHz)
AIDA Words   (W): 110608065 (403 kHz)
ADC Words    (A): 36869349 (134 kHz)
ADC Decays   (D): 36782621 (134 kHz)
ADC Implants (I):    86728 (316 Hz)
Info Words   (F): 73738716 (269 kHz)
SYNC48 Words (S): 36869354 (134 kHz)
SYNC63 Words (s): 36869354 (134 kHz)
PAUSE Words  (P):        4 (0 Hz)
RESUME Words (R):        4 (0 Hz)
Discrim Words(D):        0 (0 Hz)
Unknown Words(U):        0 (0 Hz)
Timewarps    (T):        0 (0 Hz)
Dead Time    (X): 0.113631 s (0.0413799%)
======================================
======================================
Individual FEE Overview
======================================
 FEE |        W        A        D        I        F        S        s    P    R    D    U    T        X
   1 |  4383018  1461006  1439401    21605  2922012  1461006  1461006    0    0    0    0    0 0
   2 | 11468351  3822783  3814577     8206  7645568  3822783  3822783    1    1    0    0    0 0.00733666
   3 |  4353624  1451208  1428500    22708  2902416  1451208  1451208    0    0    0    0    0 0
   4 |  8355002  2785000  2755870    29130  5570002  2785001  2785001    0    0    0    0    0 0
   5 |  1133544   377848   376489     1359   755696   377848   377848    0    0    0    0    0 0
   6 |  9617940  3205980  3205767      213  6411960  3205980  3205980    0    0    0    0    0 0
   7 |  4385477  1461825  1460962      863  2923652  1461826  1461826    0    0    0    0    0 0
   8 | 15105135  5035043  5032985     2058 10070092  5035045  5035045    1    1    0    0    0 0.0126429
   9 | 37487211 12495735 12495422      313 24991476 12495736 12495736    2    2    0    0    0 0.0936512
  10 |   110316    36772    36772        0    73544    36772    36772    0    0    0    0    0 0
  11 | 12329904  4109968  4109763      205  8219936  4109968  4109968    0    0    0    0    0 0
  12 |  1878543   626181   626113       68  1252362   626181   626181    0    0    0    0    0 0


Statistics of 34Si file
======================================
AIDA Unpacker Analysis
--------------------------------------
First event: Sat Dec  7 05:20:22 2019
Last event : Sat Dec  7 05:23:51 2019
Duration   : 208.635 seconds
--------------------------------------
MBS Events   (M): 148639738 (714 kHz)
AIDA Words   (W): 132033086 (634 kHz)
ADC Words    (A): 44011024 (211 kHz)
ADC Decays   (D): 43874168 (210 kHz)
ADC Implants (I):   136856 (657 Hz)
Info Words   (F): 88022062 (423 kHz)
SYNC48 Words (S): 44011028 (211 kHz)
SYNC63 Words (s): 44011028 (211 kHz)
PAUSE Words  (P):        3 (0 Hz)
RESUME Words (R):        3 (0 Hz)
Discrim Words(D):        0 (0 Hz)
Unknown Words(U):        0 (0 Hz)
Timewarps    (T):        0 (0 Hz)
Dead Time    (X): 0.0806864 s (0.0386734%)
======================================
======================================
Individual FEE Overview
======================================
 FEE |        W        A        D        I        F        S        s    P    R    D    U    T        X
   1 |  6814953  2271651  2255653    15998  4543302  2271651  2271651    0    0    0    0    0 0
   2 | 14012582  4670860  4668280     2580  9341722  4670860  4670860    1    1    0    0    0 0.0088226
   3 |  7618290  2539430  2523614    15816  5078860  2539430  2539430    0    0    0    0    0 0
   4 |  8928934  2976310  2950380    25930  5952624  2976312  2976312    0    0    0    0    0 0
   5 |  1631415   543805   531957    11848  1087610   543805   543805    0    0    0    0    0 0
   6 | 10908021  3636007  3633830     2177  7272014  3636007  3636007    0    0    0    0    0 0
   7 |  5644296  1881432  1864053    17379  3762864  1881432  1881432    0    0    0    0    0 0
   8 | 14863755  4954585  4931620    22965  9909170  4954585  4954585    0    0    0    0    0 0
   9 | 36745143 12248379 12244135     4244 24496764 12248380 12248380    2    2    0    0    0 0.0718638
  10 |   198573    66191    66191        0   132382    66191    66191    0    0    0    0    0 0
  11 | 15101900  5033966  5018830    15136 10067934  5033967  5033967    0    0    0    0    0 0
  12 |  9565224  3188408  3185625     2783  6376816  3188408  3188408    0    0    0    0    0 0

All good (no deadtime issues)
