Entry time:
Mon Dec 16 14:48:02 2019
Author
*
:
Subject
*
:

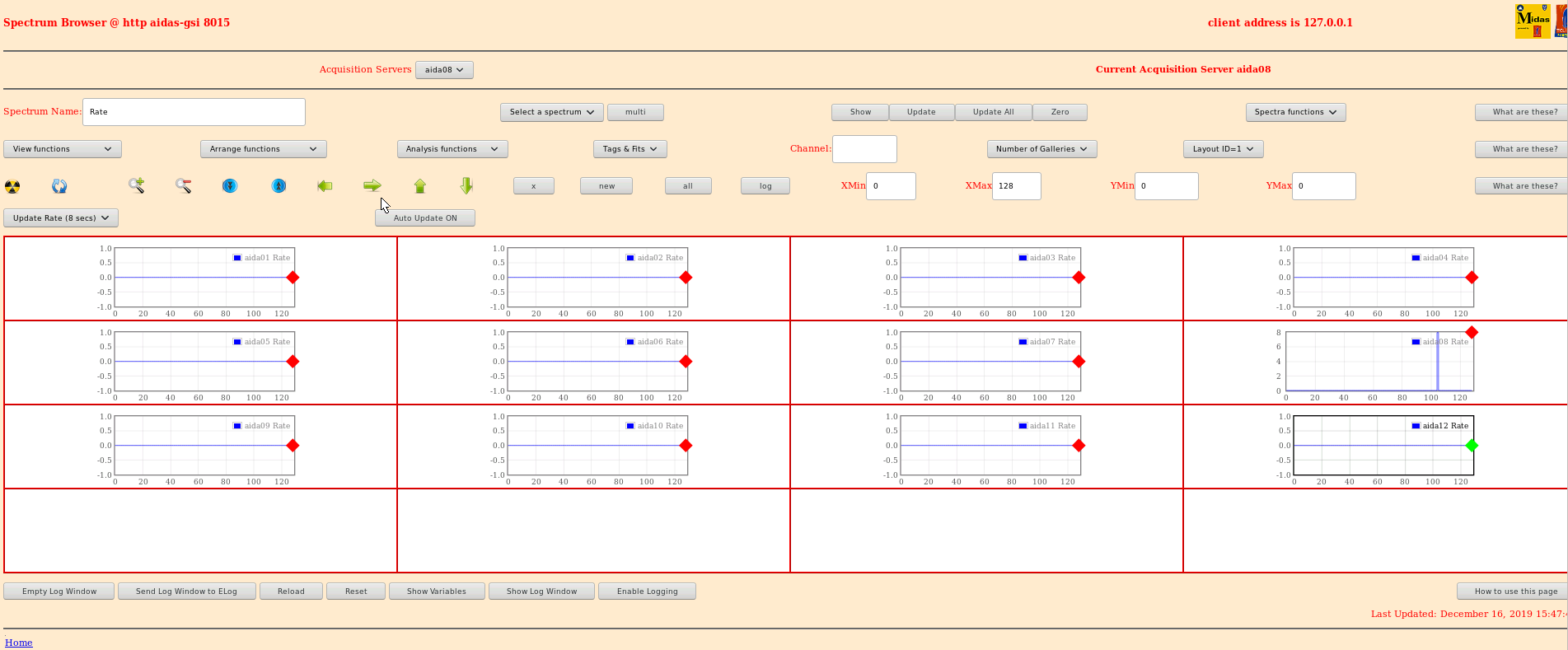

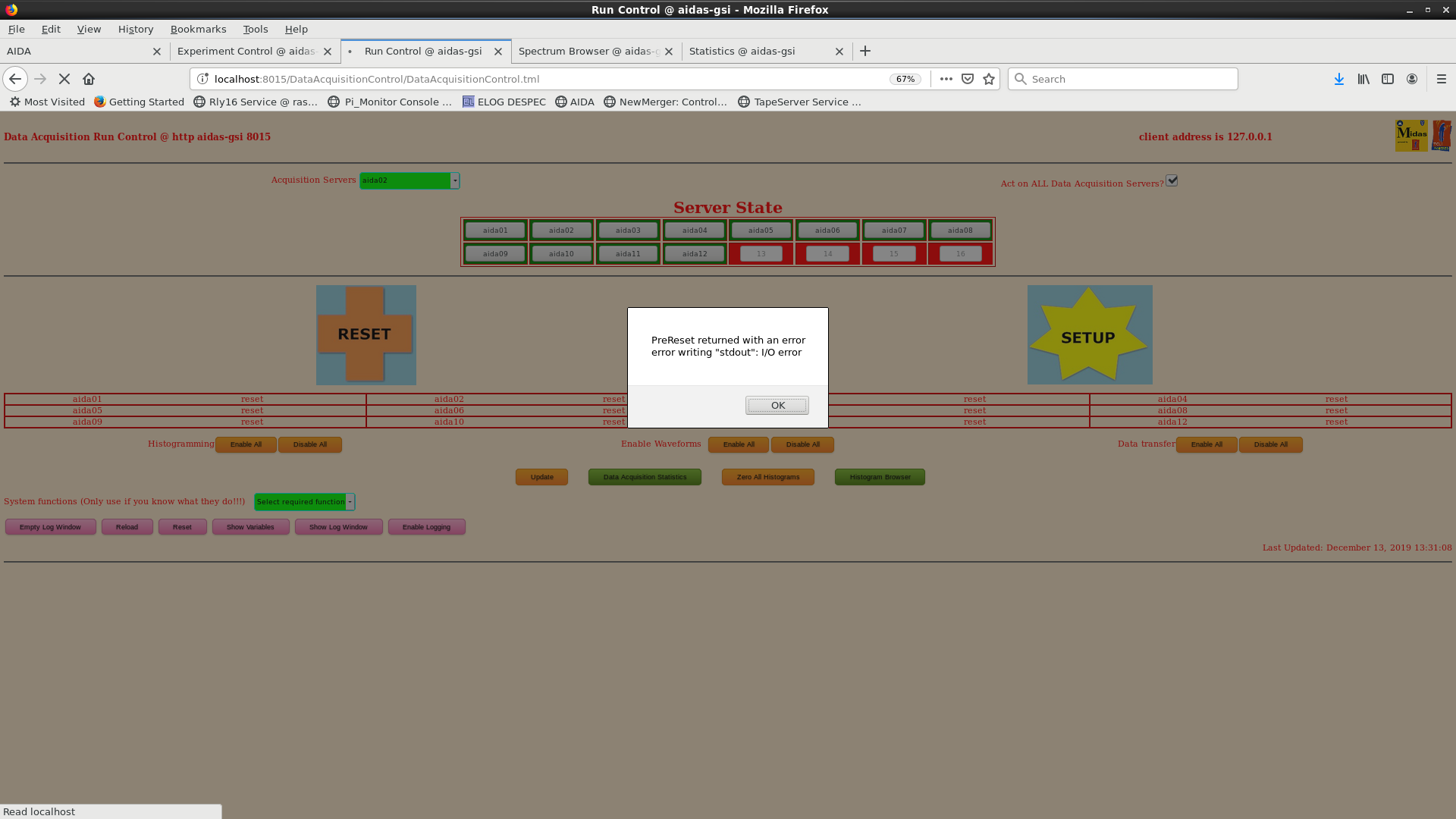

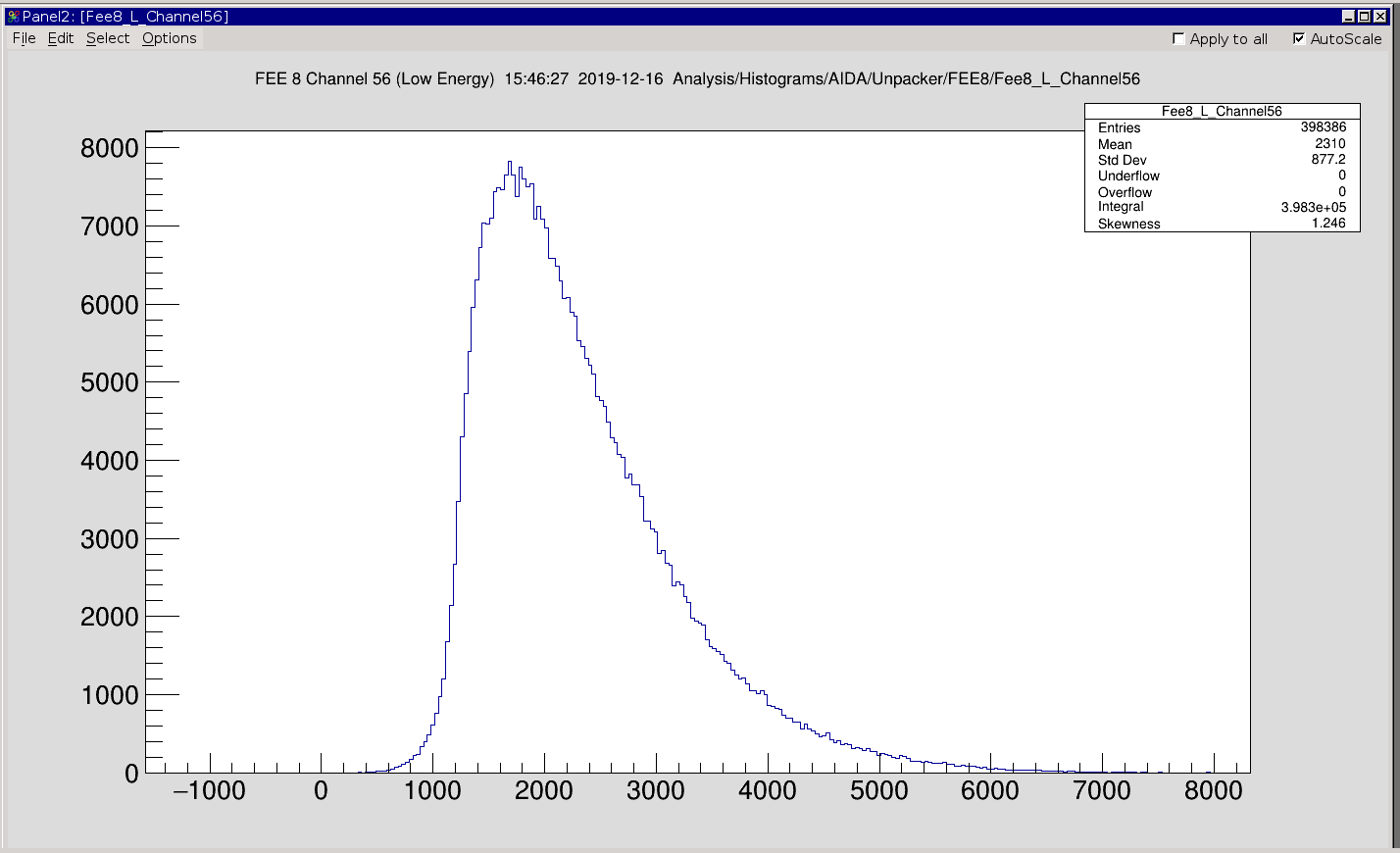

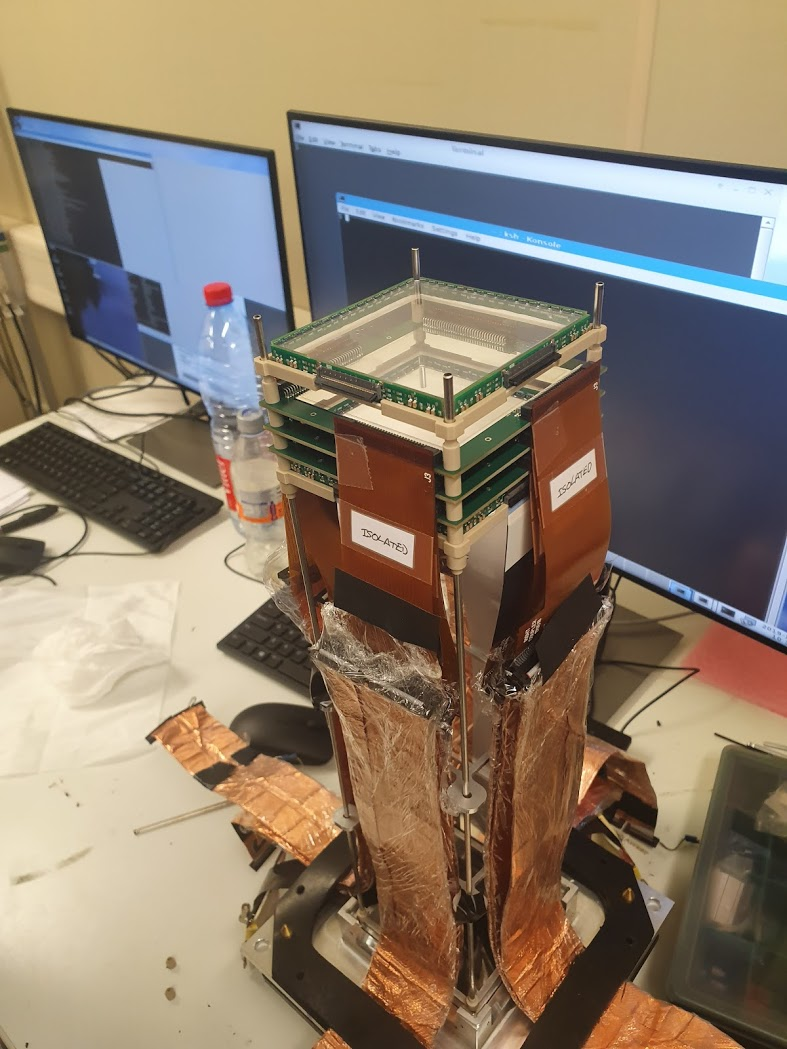

DSSD Snout was reassembled to install the second bPlast (downstream) (fig 1) Ribbon cable for aida10 was replaced (DSSD3 upper) All DSSDs bias again (see fig 2) Alpha run in progress - channels OK with 2 exceptions (fig 3) - aida10 still recording minimal to no counts - channel 55 aida08 reading lots of data even with comparator 0x64 - corresponds to DSSD1 strip 0 (bottom strip) possible ground/cable issue? will check when access possible (fig 4) Unusual MIDAS error noticed (fig 5) - restart of HTTPd fixed it
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 787x1049
Attachment 2:
Original size: 503x341
Attachment 3:
Original size: 1903x789
Attachment 4:
Original size: 1428x870
Attachment 5:
Original size: 1920x1080
