Entry time:
Mon Jan 20 14:01:23 2020
Author
*
:
Subject
*
:

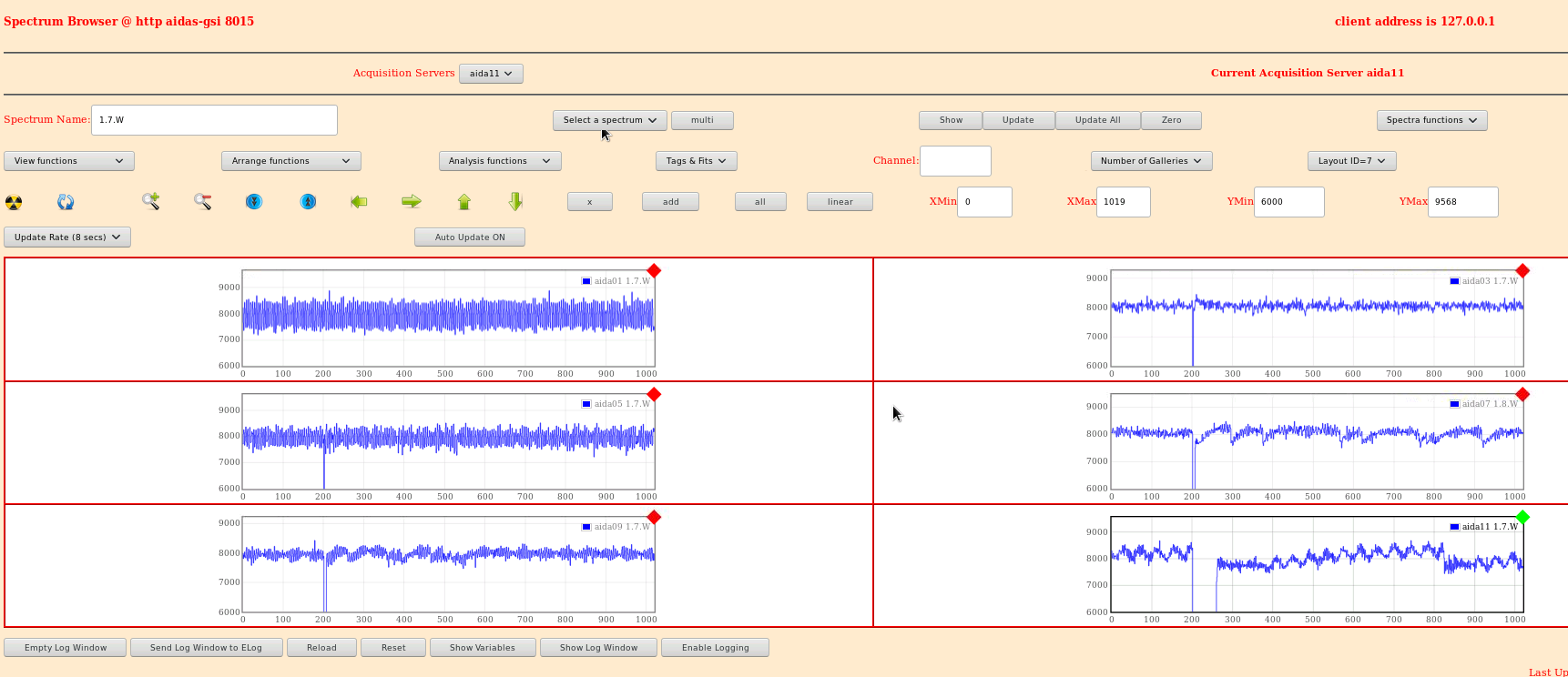

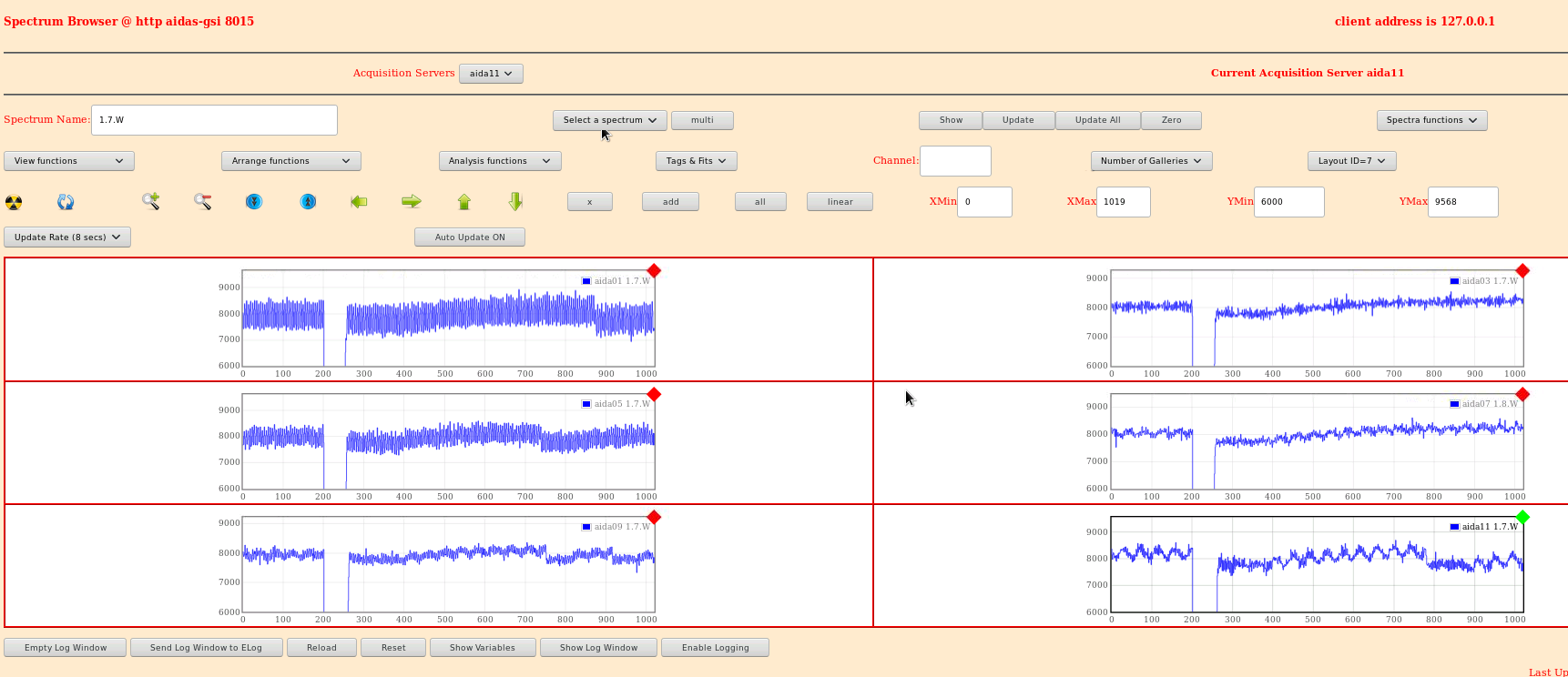

> Checking noise > > DESPEC crate entirely offline except: > VME Crate (for VETAR2) > AIDA (All) > > Figs 1-2: Waveforms (Odd/Even) > Figs 3-4: Zoomed In (Odd/Even) > Fig 5: Good Event Stats > Fig 6: Merger Rate > > Noise still present, despite nothing on DESPEC. > > Things to check: > Turn off VME (kills time stamps but might be OK for waveform test?) > Check floor PSU under AIDA is offline too > > Not sure that other FRS systems (e.g. Ion Catcher) is offline - I think RF may be on. Update with different sampling rates (in order) 10 (200 ns) 100 (2 us) 1000 (20 us) Note that some waveforms didn't update very reliably In particular aida11 does not seem right at large sample rates
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 1722x744
Attachment 2:
Original size: 1722x744
Attachment 3:
Original size: 1722x744
Attachment 4:
Original size: 1722x744
Attachment 5:
Original size: 1722x744
Attachment 6:
Original size: 1722x744
Attachment 7:
