Entry time:
Wed Jan 29 12:22:13 2020
Author
*
:
Subject
*
:

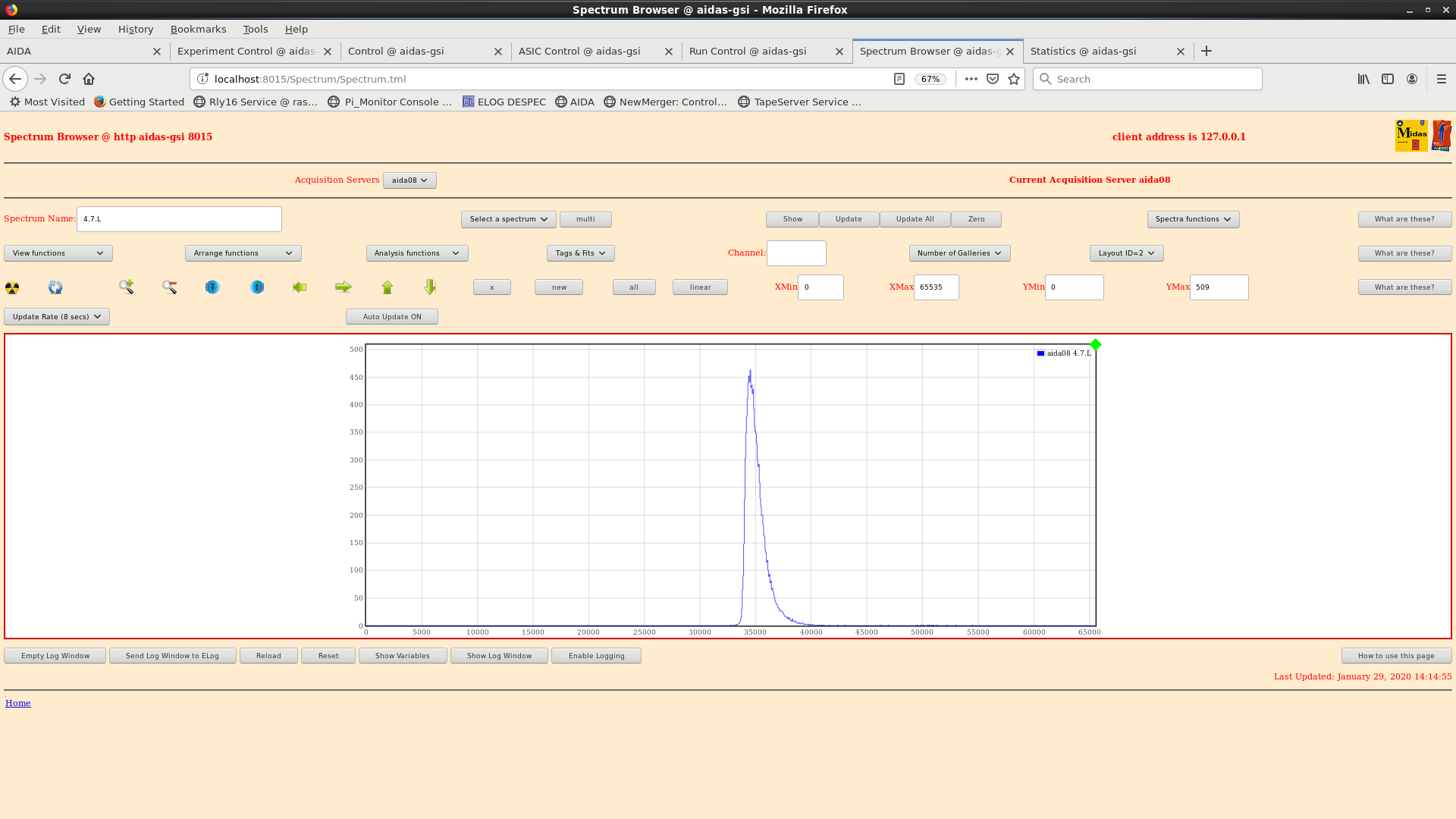

aida10 has no ASIC events when running without pulser DSSD ribbon cable was replaced, no change 29.01.2020 - change AIDA half adapter board, no change Swapped HV (braid) from aida10 to aida12 - no change in leakage current, now testing data... Looks the same (no data) fig 2 Very hot channel in aida08 as well: - Channel 104 in histogram Stat = 4.7.L fig 1 Change FEE64 card? Any other checks possible? 31.01.2020: Installed new FEE64 card aida10: d8:80:39:41:ba:89 Updated dhcpd.conf System boots OK. returned bias ground to aida10 for symmetry reasons Firmware updated from 0x12110103 to 0x18430701 Left recording alpha data over the weekend: See stats in fig 3 DSSD 1 and 2 look excellent (one broken strip in DSSd 1)? aida10 still no counts? aida09 looks very... weird as well? aida11 and aida12 seem ok? Detector fault?
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 1920x1080
Attachment 2:
Original size: 1920x1080
Attachment 3:
Original size: 1912x778
Attachment 4:
