Entry time:

Fri Feb 21 09:21:10 2020

Author*:

Subject*:

Overnight alpha data

======================================
AIDA Unpacker Analysis
--------------------------------------
First event: Thu Feb 20 17:46:47 2020
Last event : Fri Feb 21 10:07:57 2020
Duration   : 58869.9 seconds
--------------------------------------
MBS Events   (M):     1248648 (21 Hz)
AIDA Words   (W): 10222680133 (27 kHz)
ADC Words    (A):  3407431088 (-15076 Hz)
-- Decays    (D):  3407017078 (-15083 Hz)
-- Implants  (I):      414010 (7 Hz)
Info Words   (F):  6815249045 (-30146 Hz)
-- SYNC48    (S):  3407559635 (-15074 Hz)
-- SYNC63    (s):  3407559635 (-15074 Hz)
-- PAUSE     (P):         614 (0 Hz)
-- RESUME    (R):         614 (0 Hz)
-- Discrim   (D):      128547 (2 Hz)
-- Unknown   (U):           0 (0 Hz)
Timewarps    (T):          79 (0 Hz)
Dead Time    (X): 26.8658 s (0.04563588%)
======================================
======================================
Individual FEE Overview
======================================
 FEE |           W           A           D           I           F           S           s     P     R       D     U     T  X
   1 |        5025        1246        1093         153        3779        1675        1675     0     0     429     0     0  0
   2 |        6180         991         851         140        5189        2060        2060     0     0    1069     0     0  0
   3 |  7692461404  2564028610  2564028286         324  5128432794  2564153392  2564153392   614   614 	124782     0    58 26.8658
   4 |        2277         642         581          61        1635         759         759     0     0     117     0     0  0
   5 |        6174        1249        1010         239        4925        2058        2058     0     0     809     0     0  0
   6 |     2467062      822244      822191          53     1644818      822354      822354     0     0     110     0     0  0
   7 |        2484         740         701          39        1744         828         828     0     0      88     0     0  0
   8 |   358445004   119481621   119069026      412595   238963383   119481668   119481668     0     0      47     0     1  0
   9 |        7134        1530        1243         287        5604        2378        2378     0     0     848     0     0  0
  10 |  2168031885   722677295   722677295           0  1445354590   722677295   722677295     0     0       0     0    20  0
  11 |        3981        1252        1190          62        2729        1327        1327     0     0      75     0     0  0
  12 |     1241523      413668      413611          57      827855      413841      413841     0     0     173     0     0  0
**** DESPECAnalysis: PostLoop

A few FEEs running "hot", maybe check. 3 had some alignment issues may need rechecking.
Timewarps somehow in aida03 and aida10 but may be code mistake - must check.
Only aida03 ran fast enough to have dead time.

aida10 shows decay data now - DSSD seems ok

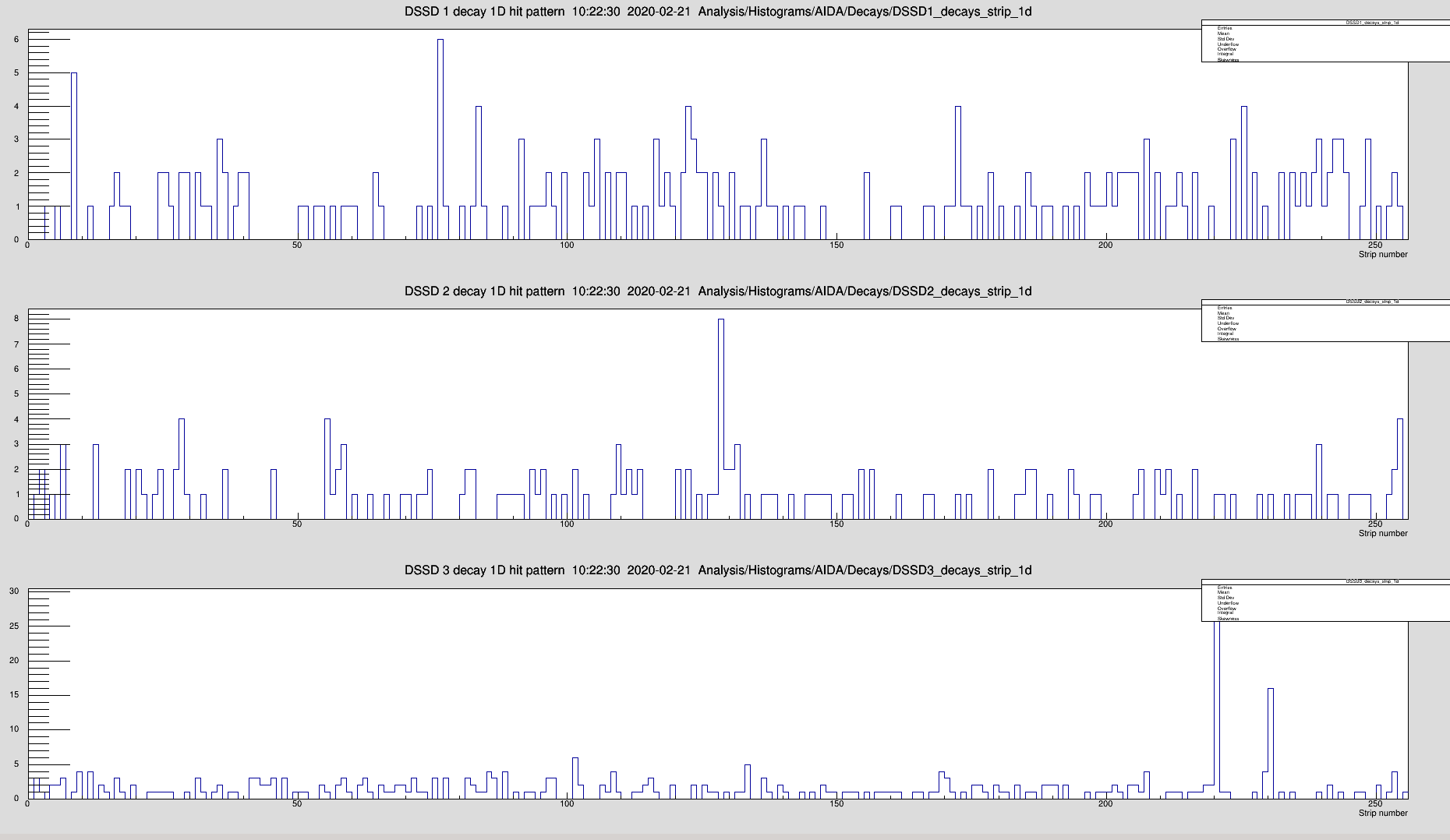

Fig 1: DSSD 1D hit pattern

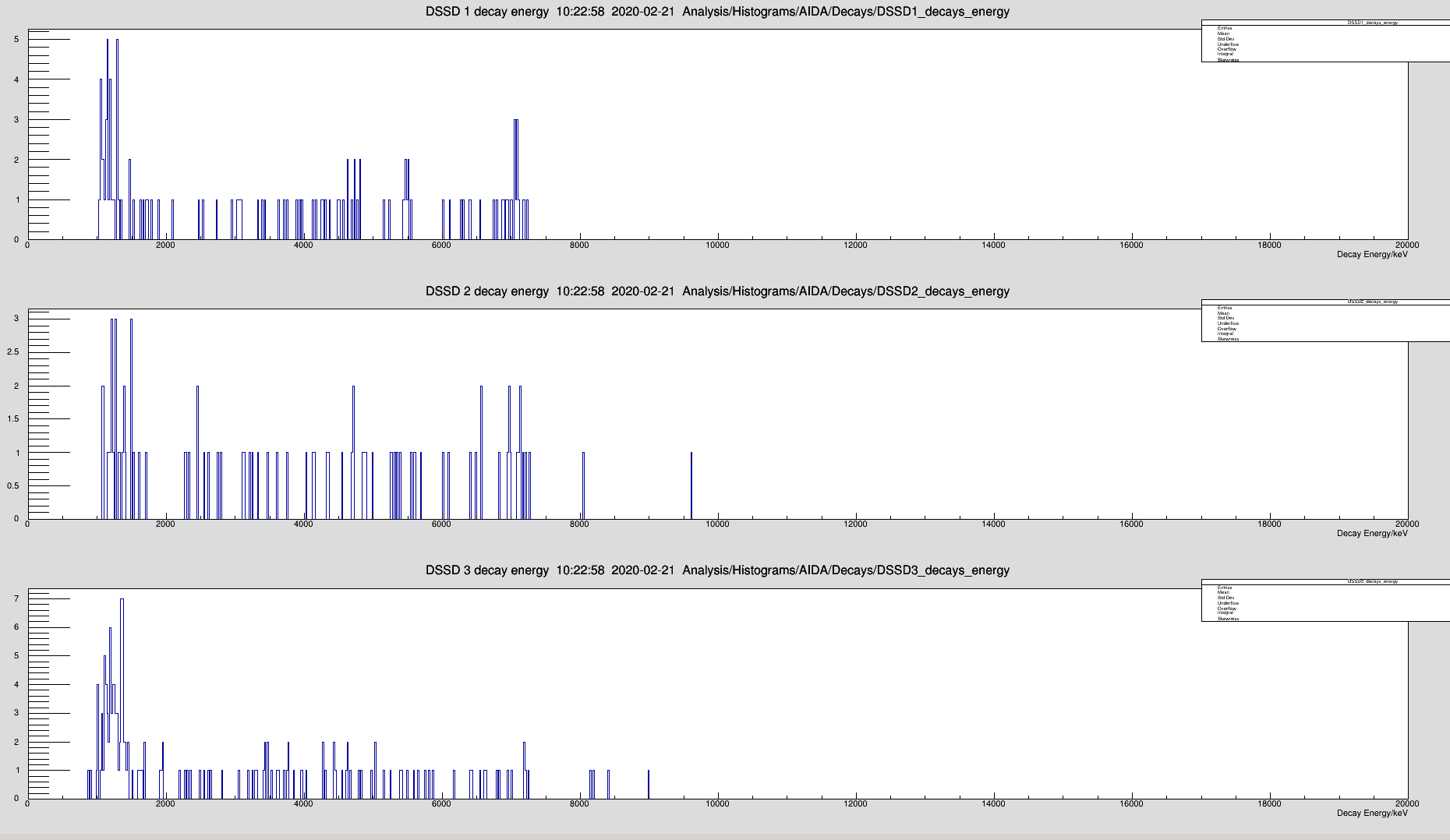

Fig 2: DSSD Energy

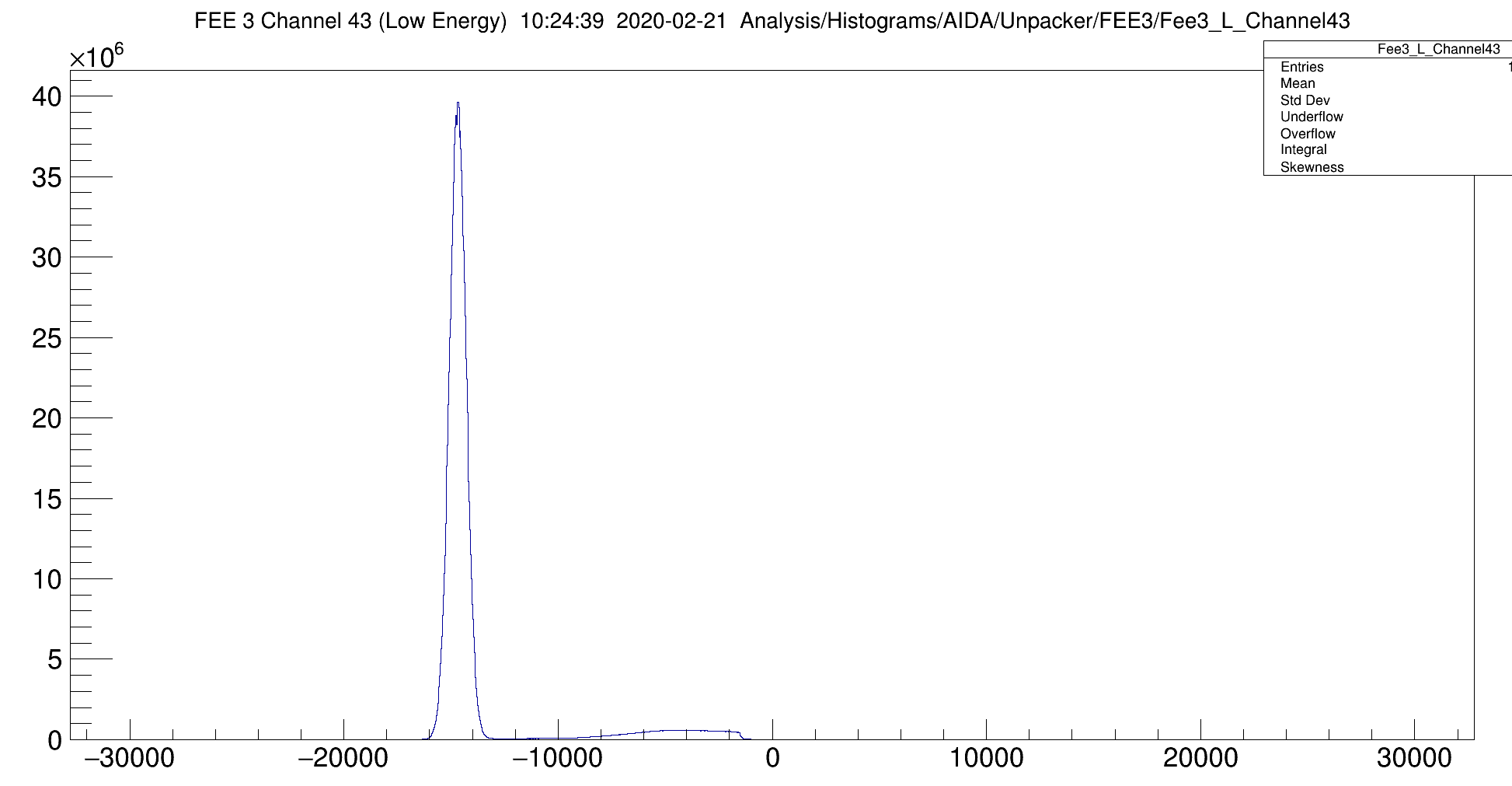

Fig 3: Single channel in aida03 that is hot

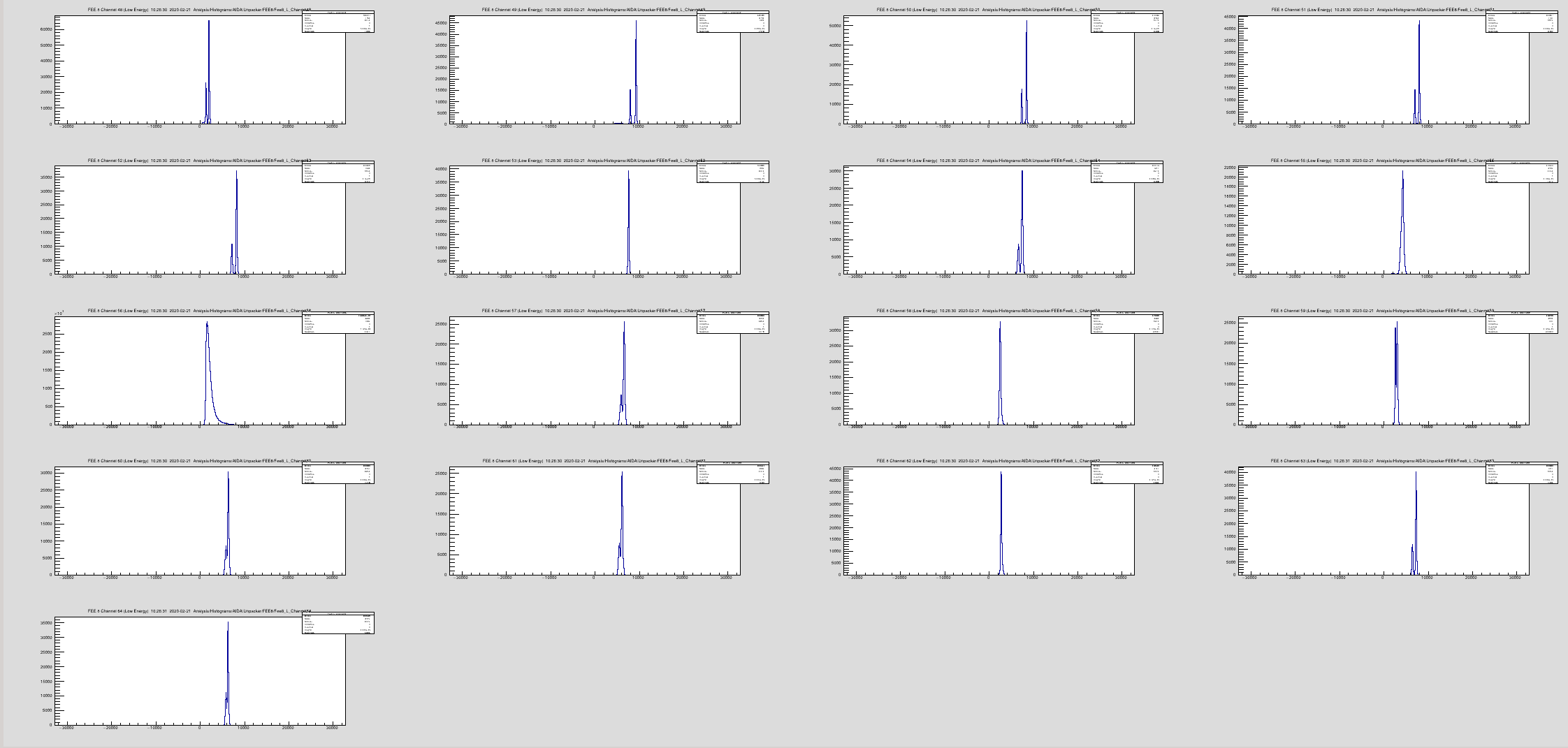

Fig 4: Channels 48-64 in aida08 are hot (wiring?)

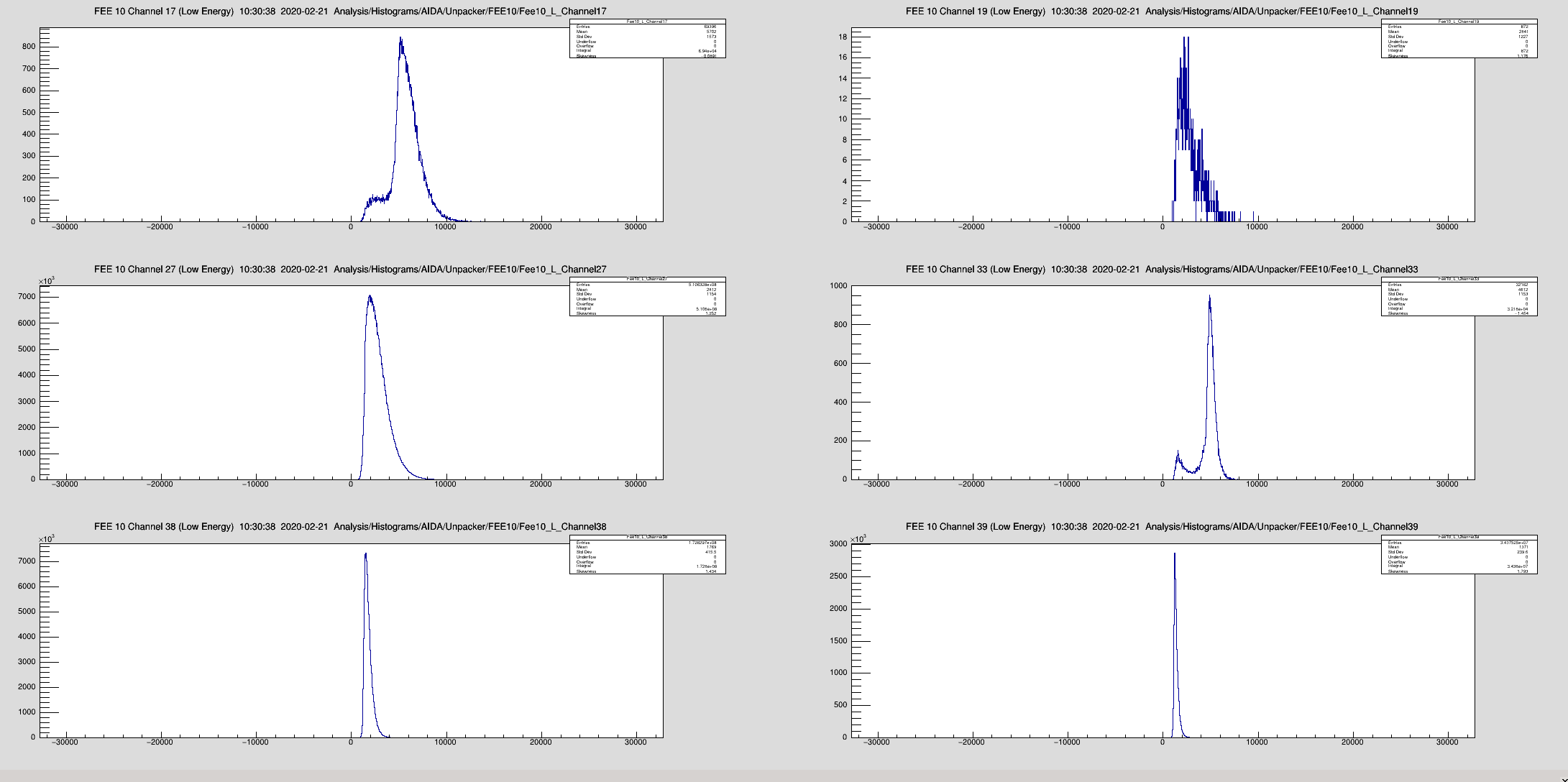

Fig 5: Channels 17, 19 (crosstalk?) and 27, 33, 38, 39

All otehr channels quiet and OK.
