18.25 DAQ currently running No Storage mode

ASIC settings 2019Oct31-13.24.23
     slow comparator 0xa

BNC PB-5 pulser
     amplitude 1.0V , attenuator x1
     frequency 2Hz
     decay time 1ms

DSSSD biases & leakage currents OK - attachment 1
FEE64 temps OK - attachment 2
good events statistics OK - attachment 3

system wide checks - OK

WR timestamp control - attachments 4 & 5

merger & TapeServer OK - attachments 6-8

rate spectra - attachment 9

1.8.L spectra - attachments 10 & 11
  aida03 72 ch FWHM

20:36 DSSSD biases & leakage currents OK - attachment 12
      FEE64 temps OK - attachment 13
      good events statistics OK - attachment 14

      all system wide checks ok

21.50 beam starts back up
      DAQ running, TapeServer now writing to file R7_0
      data rate ~ 25 Mb/s
      data forwarding to MBS ok
      merger ok, data item rate ~ 2.7 million items/sec
      spill time length is now 3 seconds
      1500 count rate per spill, ~ 300 Hz implant rate in AIDA

22.35 FEE64 temps OK - attachment 15

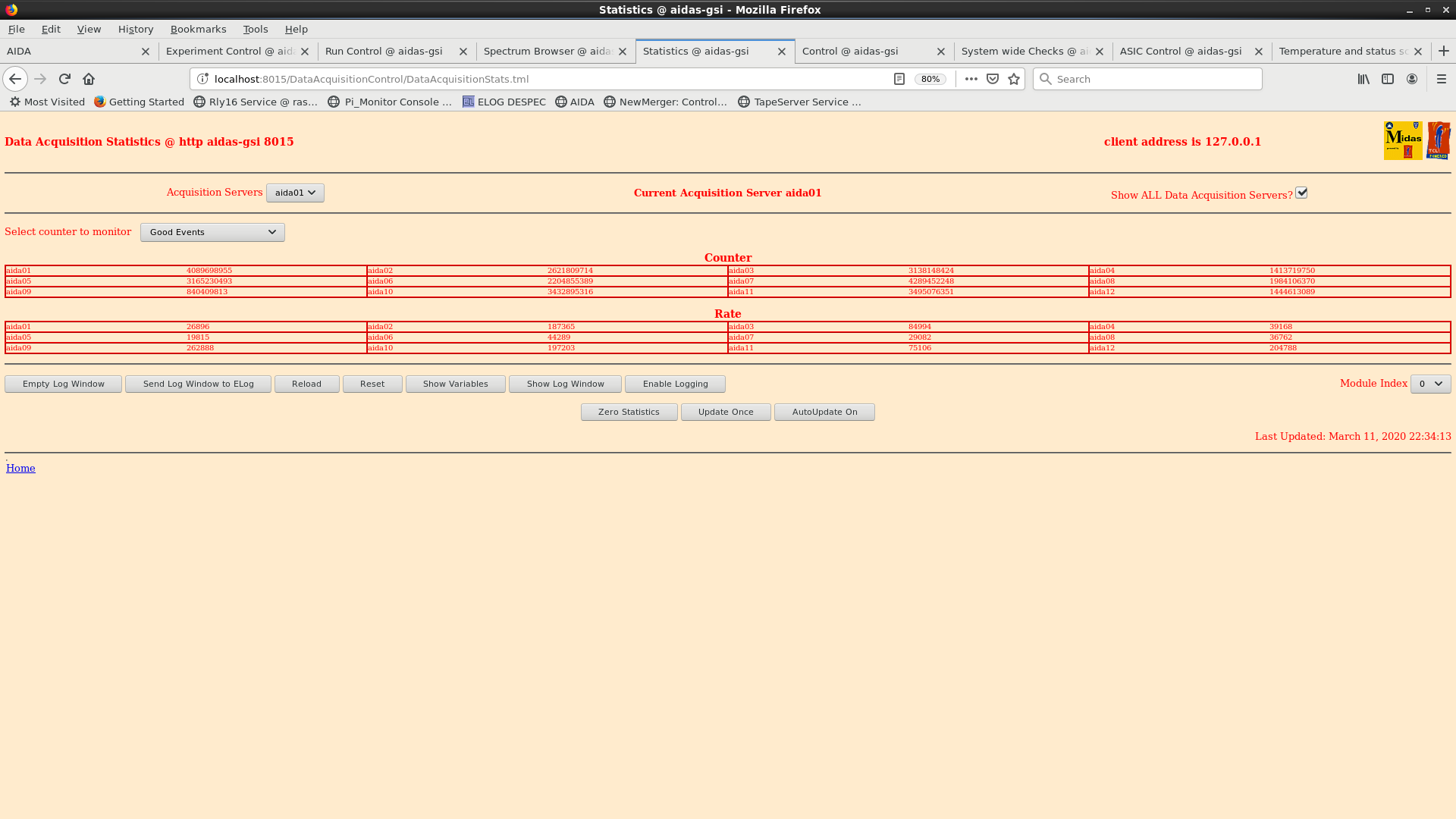

      good event statistics ok - attachment 16

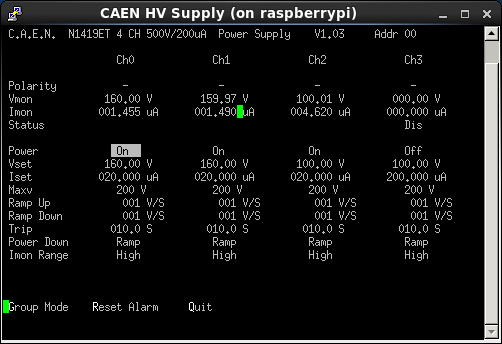

      detector bias/ leakage currents ok - attachment 17

      all system wide checks ok

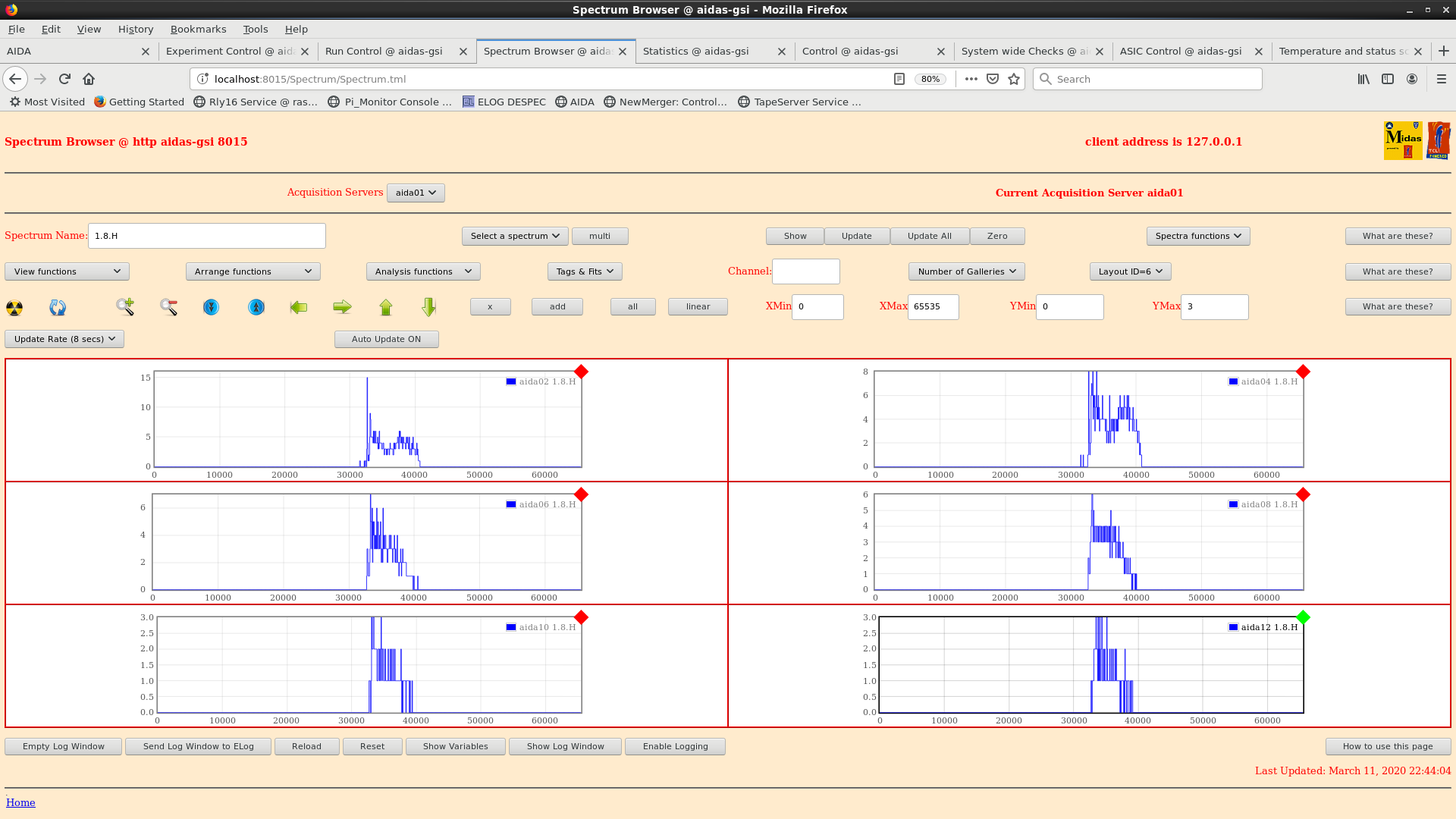

22.47 attachments 18 & 19 - high energy spectra for all FEE64 (1.8.H)

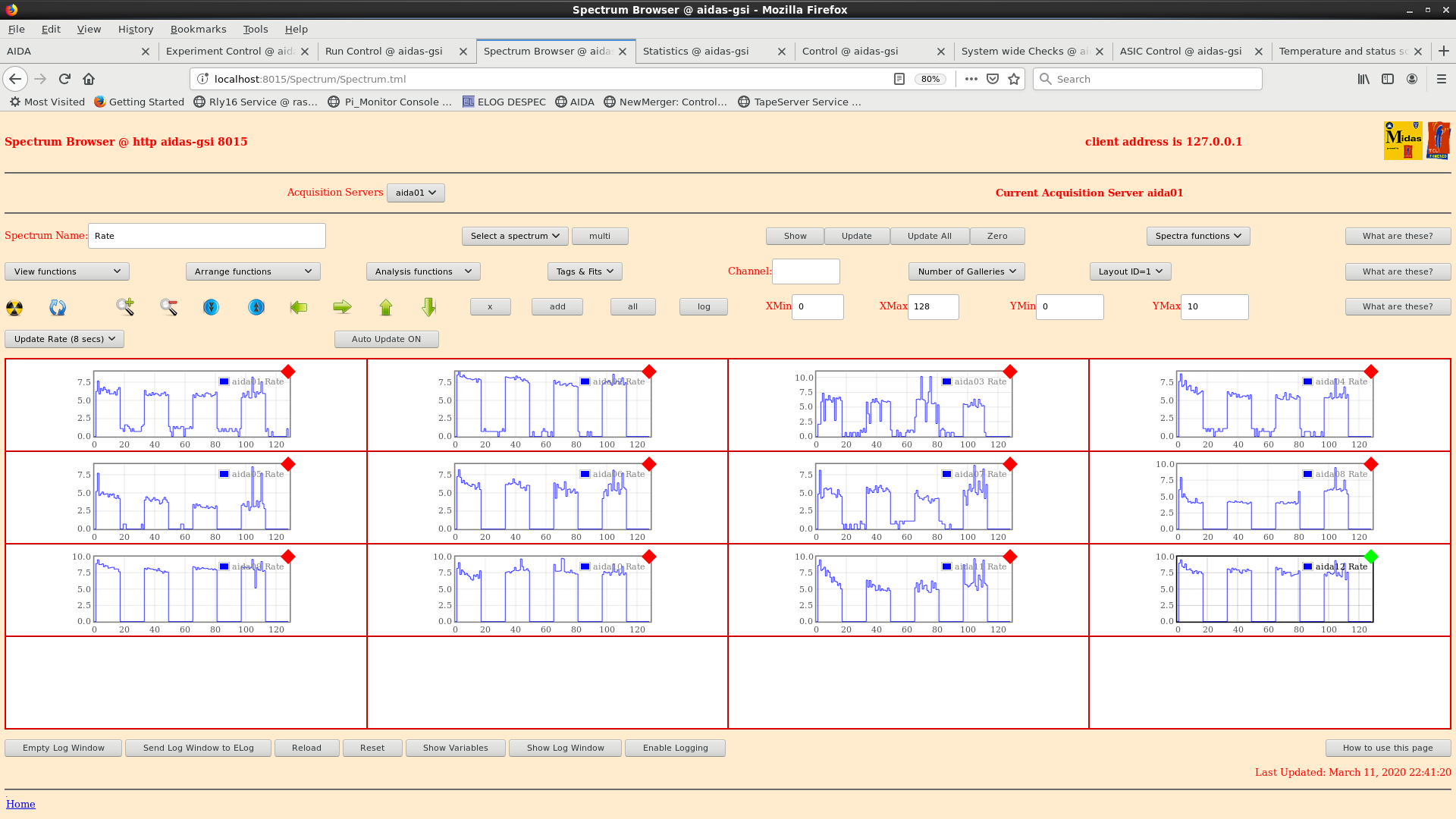

      attachment 20 - hit rate spectra for all FEE64

23.02 beam down
      on file R7_55

23.11 beam back online
      on file R7_61

23.15 system wide checks all ok

      detector bias/ leakage currents ok - attachment 21

      good event statistics ok - attachment 22

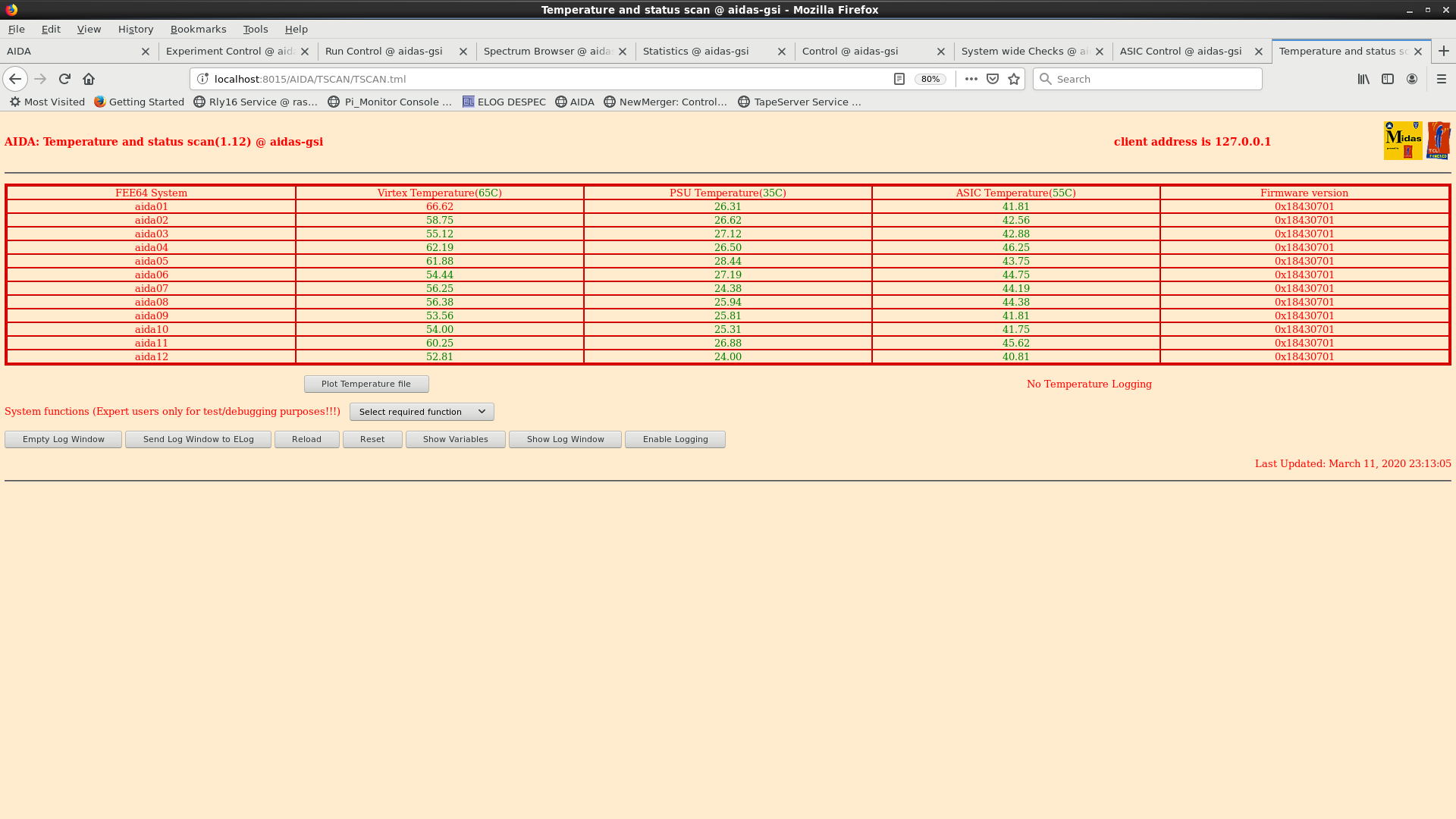

      FEE64 temperatures ok - attachment 23
