Entry time:

Thu Mar 12 15:25:08 2020

Author*:

Subject*:

16:30
    All system wide checks passed
    Temps shown in attachment #1
    Histos shown in attachment #2
      NB: Zoomed in, linear scale
    Biases shown in attachment #3
    Stats shown in attachment #4
    Merger rates fine 3 Mega items / sec
    TapeServer looks happy, 25 MB/s

Paddy was asking us to give a rough estimate for the number of implants per spill.
I zoomed in on the rates histogram (attachment #2) and it looks like roughly 5 implants per channel in SSD 1 and SSD2.
So this is 5*128*2=1280.  Note that I don't know the rate window size (e.g., 1 second, 1 spill?)  Probably the window does not catch a full spill.
This might be an over-estimate because an implant in SSD2 may leave a signal in SSD1.
Paddy was getting around 1k or 2k fragments per spill, but to first order it seems consistent.

18:36
   Near R9_372 they slightly opened some FRS slits, as there is a belief we may be blocking some of 94Pd.
   Implant rate seems similar to before, see attachment #5
   Biases did not change more than normal, see attachment #6

20:15
   All system wide checks passed

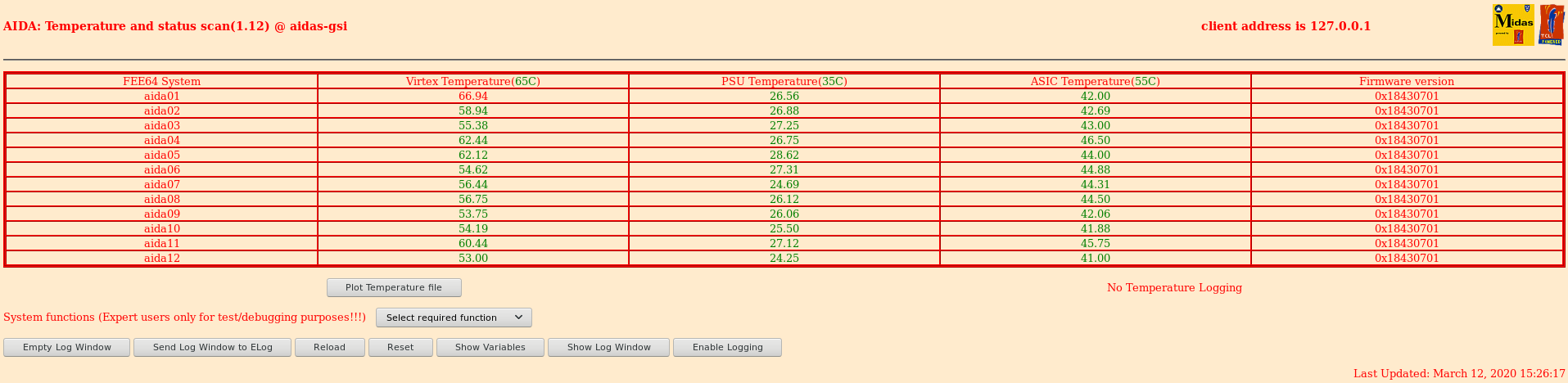

   Temps shown in attachment #7

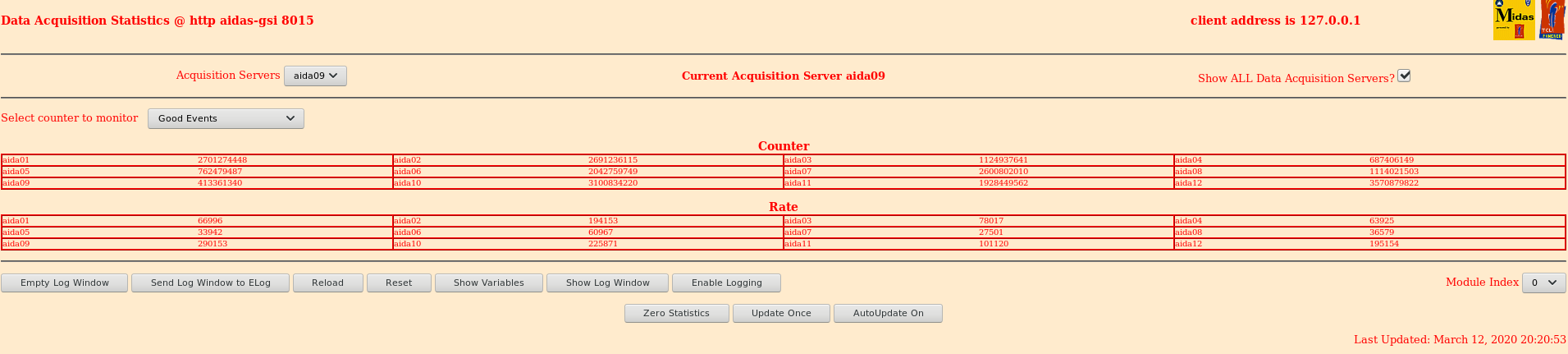

   Stats shown in attachment #8

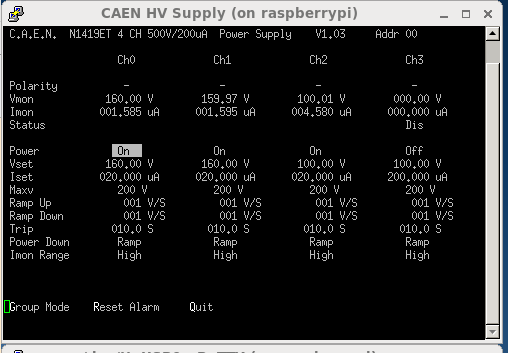

   Biases shown in attchment #9

22:12
   All system wide checks okay
   Histo #10
   Bias #11

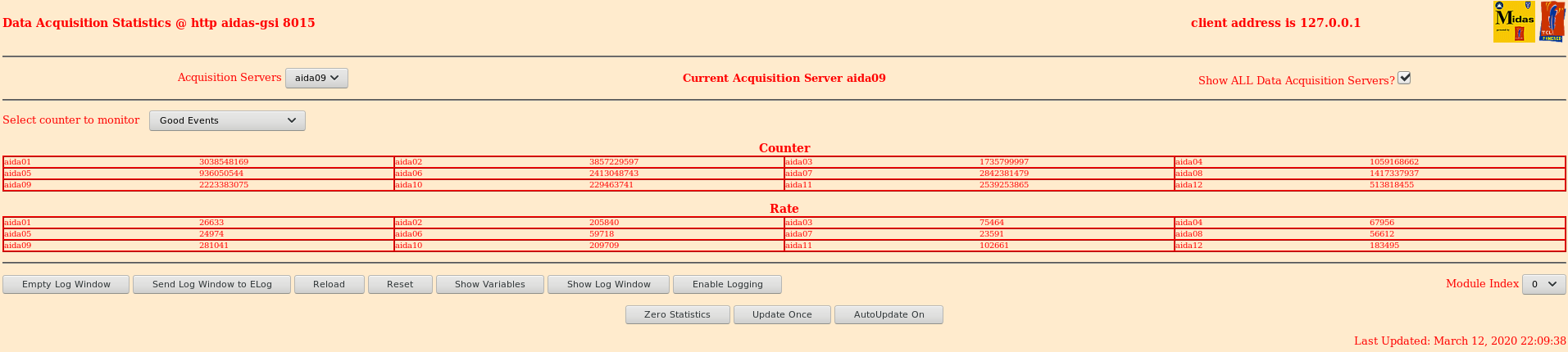

   Stat #12

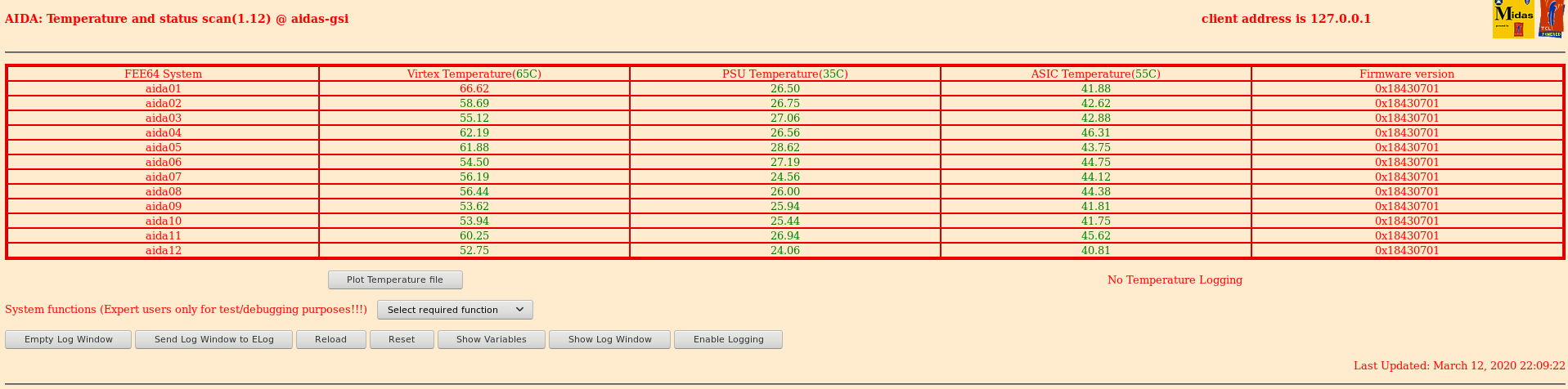

   Temps #13
