Entry time:
Fri Mar 13 23:06:39 2020
Author
*
:
Subject
*
:

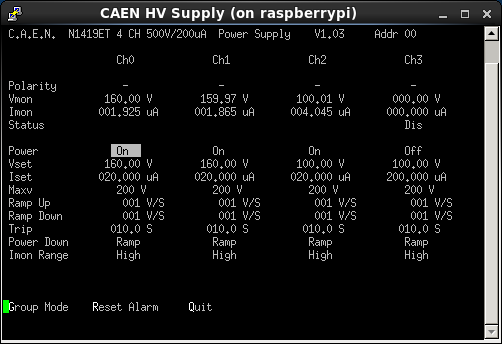

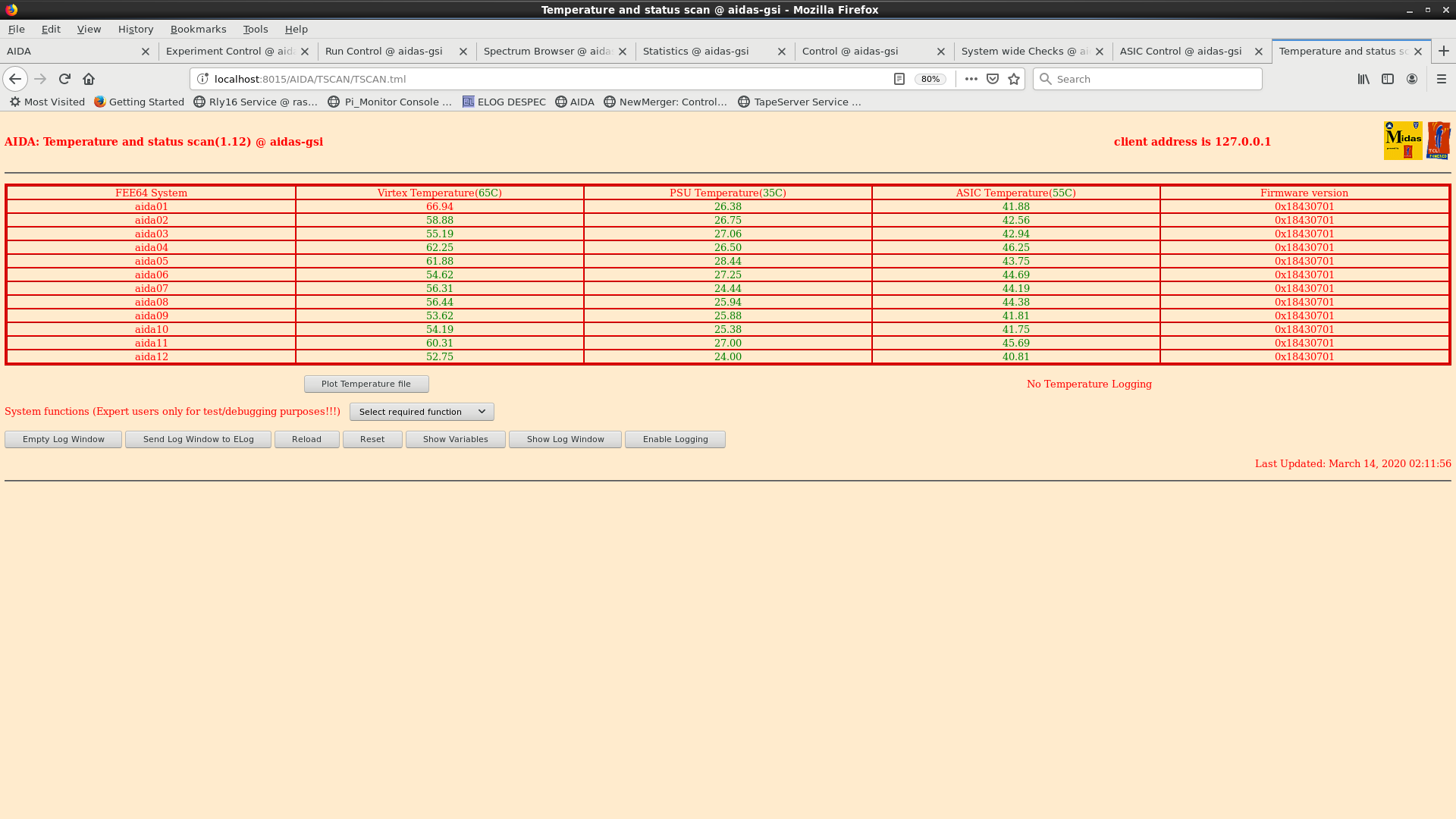

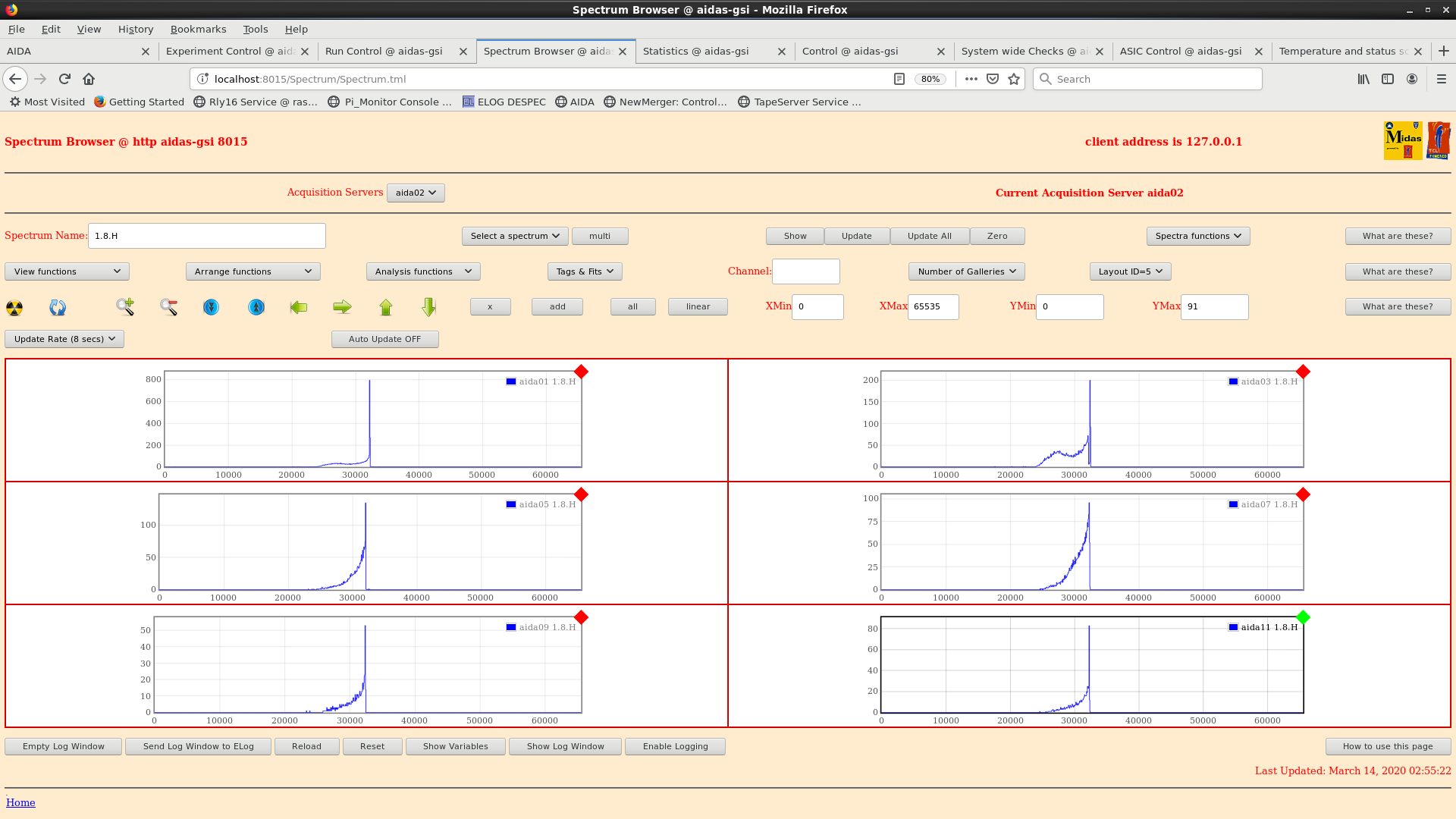

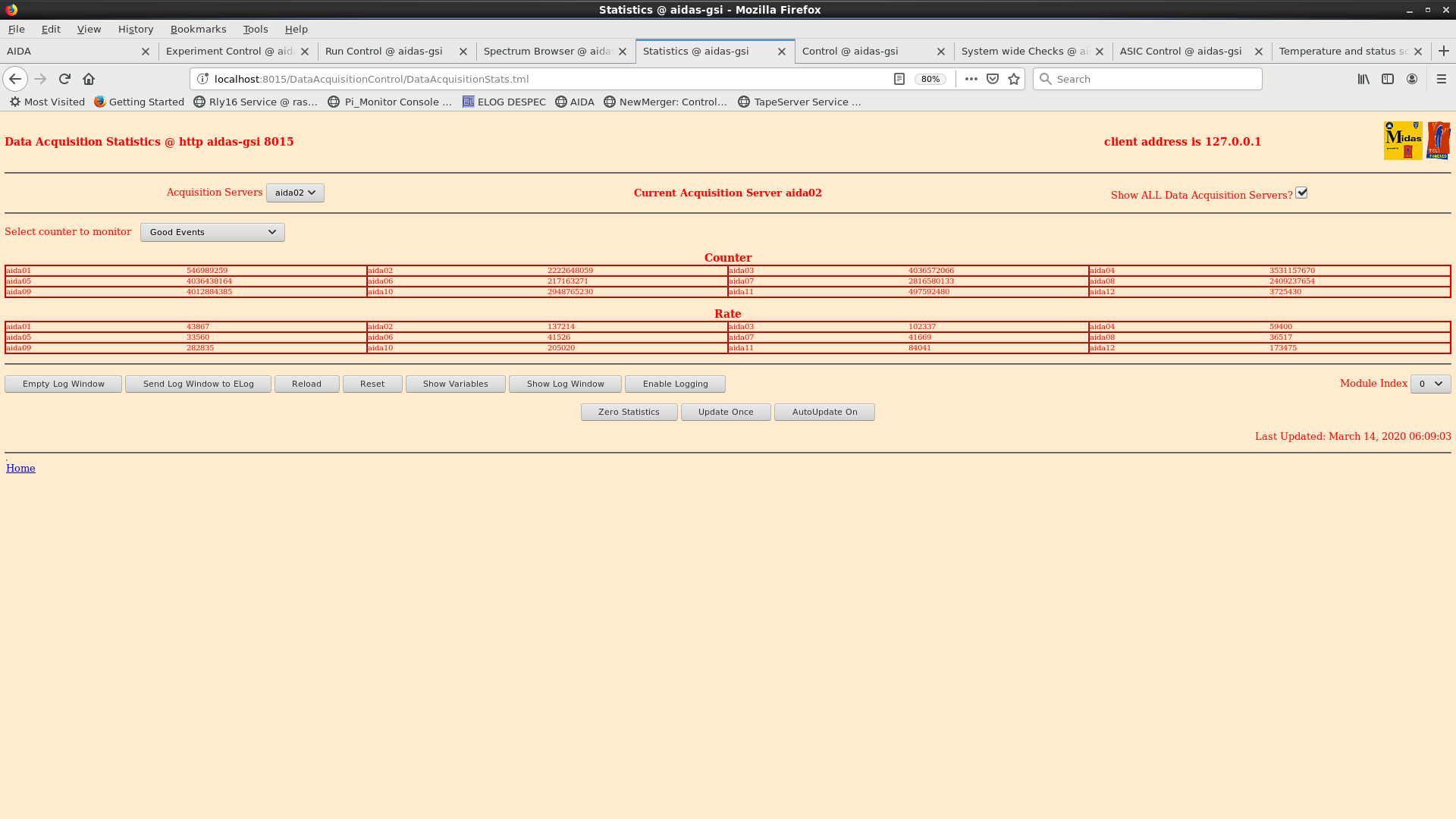

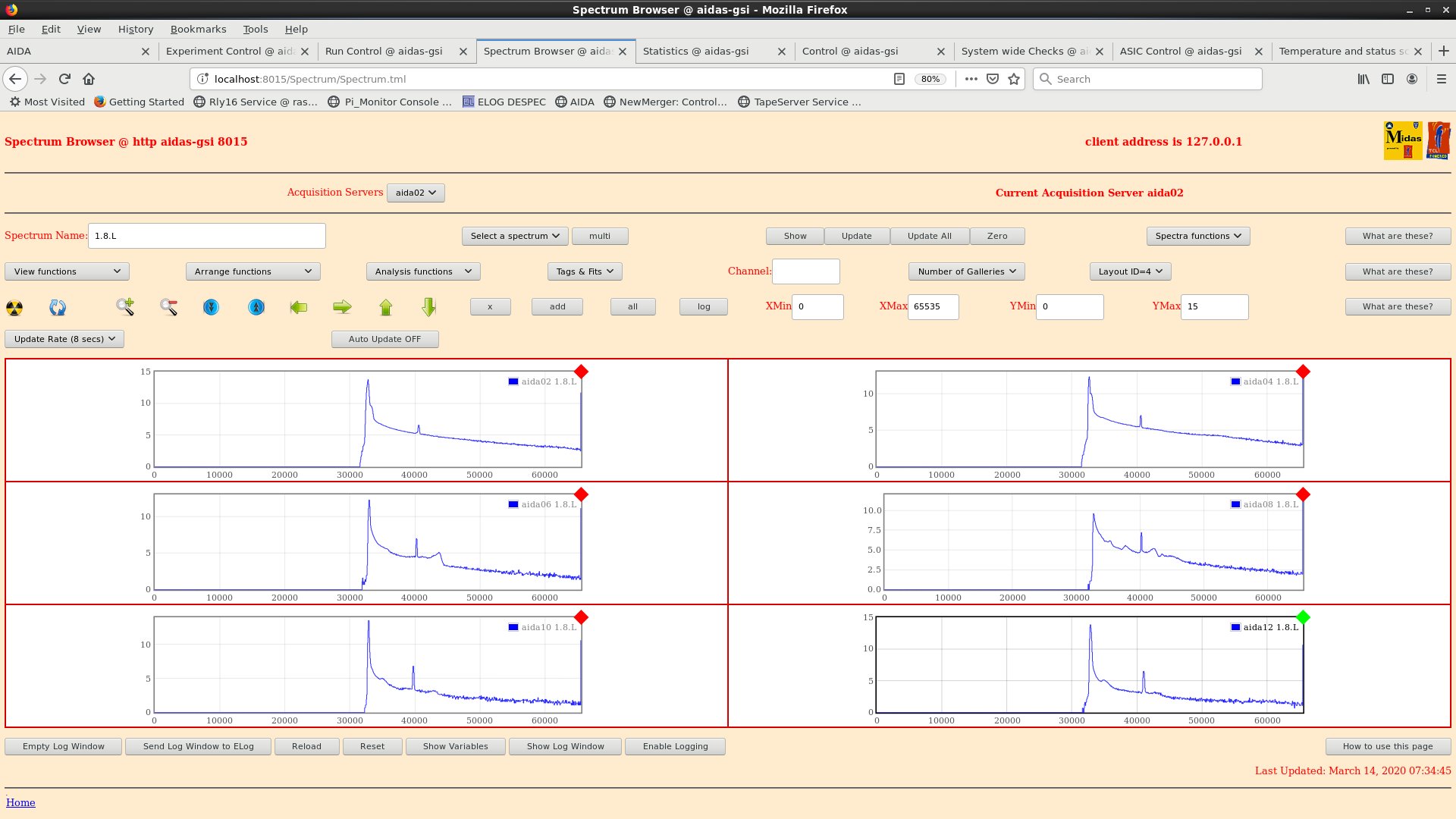

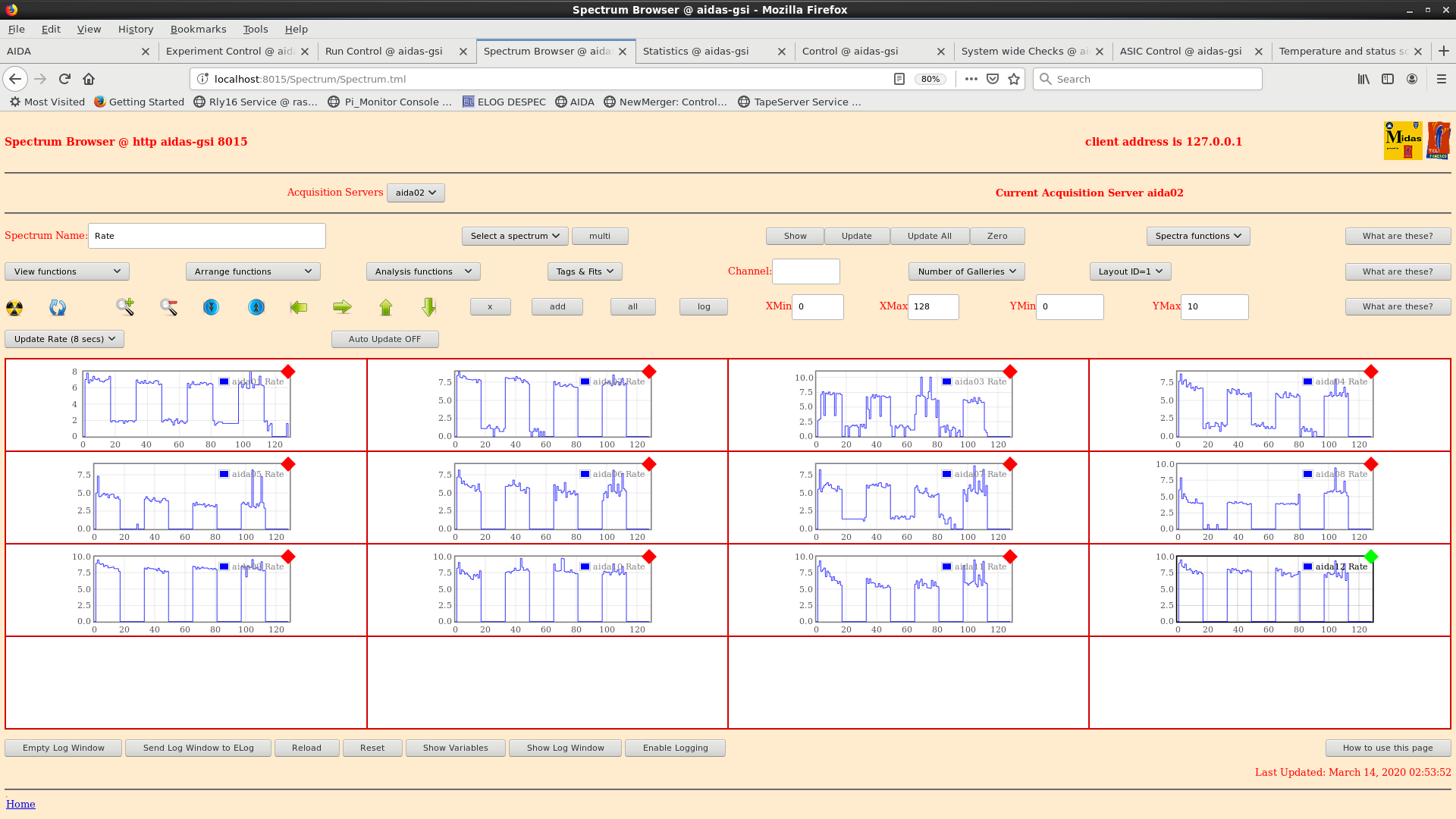

ASIC settings 2019Oct31-13.24.23 slow comparator 0xa BNC PB-5 pulser amplitude 1.0V , attenuator x1 frequency 2Hz decay time 1ms 00.00 DAQ momentarily set to NoStorage OH changes symbolic link such that AIDA is writing directly to mounted hard-drives ("SecondDrive" and "ThirdDrive") 00.02 DAQ now writing to file again - /media/SecondDrive/TapeData/S480/R12_0 00.30 all system wide checks ok FEE64 temperatures ok - attachment 1 good event statistics ok - attachment 2 detector bias and leakage currents ok - attachment 3 00:43 merger ok - writing at ~ 3 million items/s TapeServer ok - writing at ~ 27 Mb/s Data forwarding to MBS ok 02:14 all system wide checks ok FEE64 temperatures ok - attachment 4 good event statistics ok - attachment 5 detector bias and leakage currents ok - attachment 6 02:17 Merger ok ~ 2.7 million items/s TapeServer ok ~ 27 Mb/s Data forwarding to MBS ok 02:18 currently writing to file /media/SecondDrive/TapeData/S480/R12_110 02:57 attachments 7 & 8 - high energy channel spectra attachment 9 - hit rate spectra 04:21 FEE64 temperatures ok - attachment 10 good event statistics ok - attachment 11 detector bias and leakage currents ok - attachment 12 system wide checks ok - except WR decoder status (see attachment 13) 04:26 check ASIC control 04:30 system functions -> select required function -> collect all WhiteRabbit status error counters for baseline WR decoder status check now ok 04:50 Merger ok ~ 3 million items/s TapeServer ok ~ 25 Mb/s Data forwarding to MBS ok 04:52 currently writing to file /media/SecondDrive/TapeData/S480/R12_231 06:11 all system wide checks ok FEE64 temperatures ok - attachment 14 good event statistics ok - attachment 15 detector bias and leakage currents ok - attachment 16 06:41 Merger ok ~ 3.3 million items/s TapeServer ok ~ 25 Mb/s Data forwarding to MBS ok 06:42 currently writing to file /media/SecondDrive/TapeData/S480/R12_315 07:25 hit-rate spectra - attachment 17 07:36 low energy channel spectra (1.8.L) - attachments 18 & 19
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 1920x1080
Attachment 2:
Original size: 1920x1080
Attachment 3:
Original size: 502x344
Attachment 4:
Original size: 1920x1080
Attachment 5:
Original size: 1920x1080
Attachment 6:
Original size: 502x344
Attachment 7:
Original size: 1920x1080
Attachment 8:
Original size: 1920x1080
Attachment 9:
Original size: 1920x1080
Attachment 10:
Original size: 1920x1080
Attachment 11:
Original size: 1920x1080
Attachment 12:
Original size: 502x344
Attachment 13:
Original size: 1920x1080
Attachment 14:
Original size: 1920x1080
Attachment 15:
Original size: 1920x1080
Attachment 16:
Original size: 502x344
Attachment 17:
Original size: 1920x1080
Attachment 18:
Original size: 1920x1080
Attachment 19:
Original size: 1920x1080
