Entry time:

Sat Mar 14 07:13:59 2020

Author*:

Subject*:

8:15
    All system wide checks passed

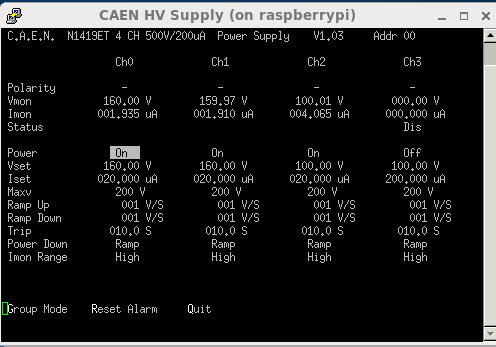

    Leak currents are continuing to creep up - attachment #1

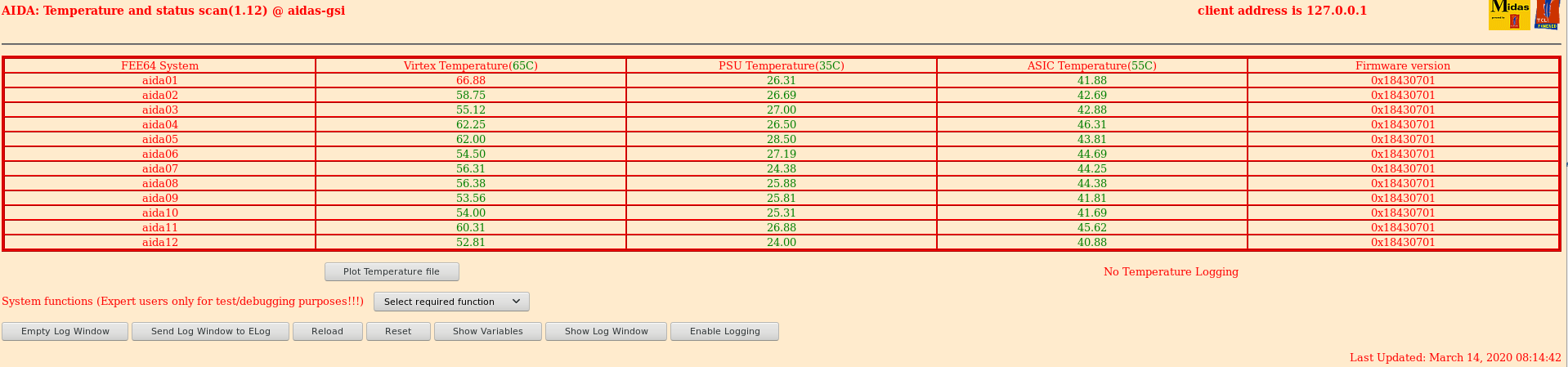

    FEE temperatures fine - attachment #2
    Stats about where they have been - attachment #3
    Implants look as previously (5ish counts per channel in SSD1 and SSD2) - attachment #4
    Merger fine, 3 Mega items / sec
    TapeServer still writing about 25 MB/s

09.37 analysis of data file S480/R12_443
      deadtime aida09 c. 5%, all other FEE64s <<1%
      See attachment #5

09.54.51

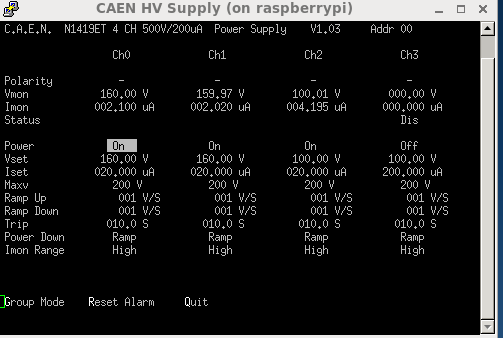

      biases, SSD1 and 2 over 2 uA each now -  attachment #6

11:20
    All  system-wide checks okay
    Merger okay, 3 Mega items / sec
    TapeServer normal, 27 MB/sec

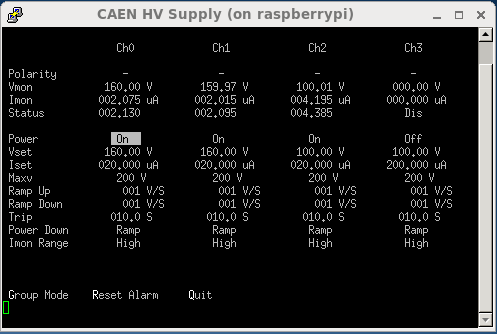

    Biases as attachment #7

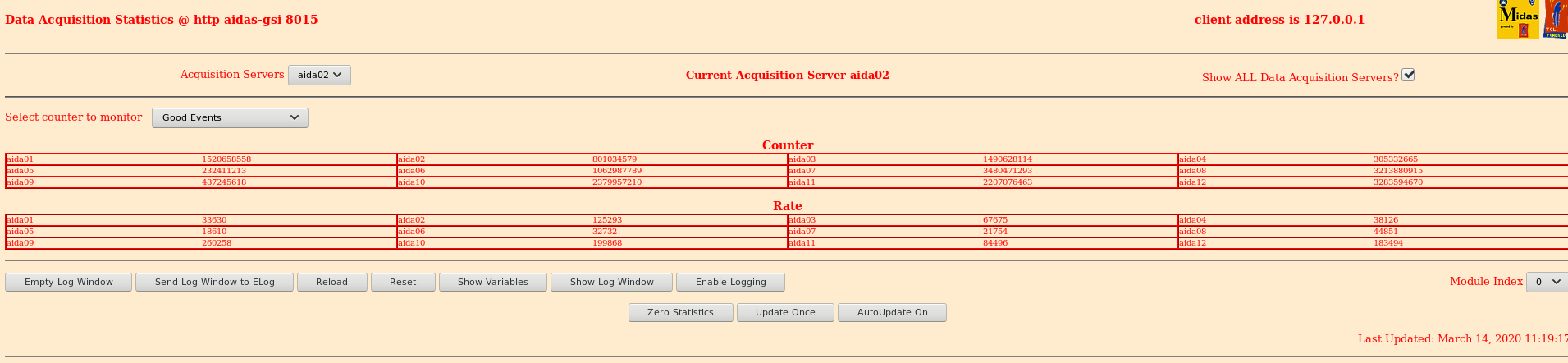

    Stats as #8
    Temps as #9

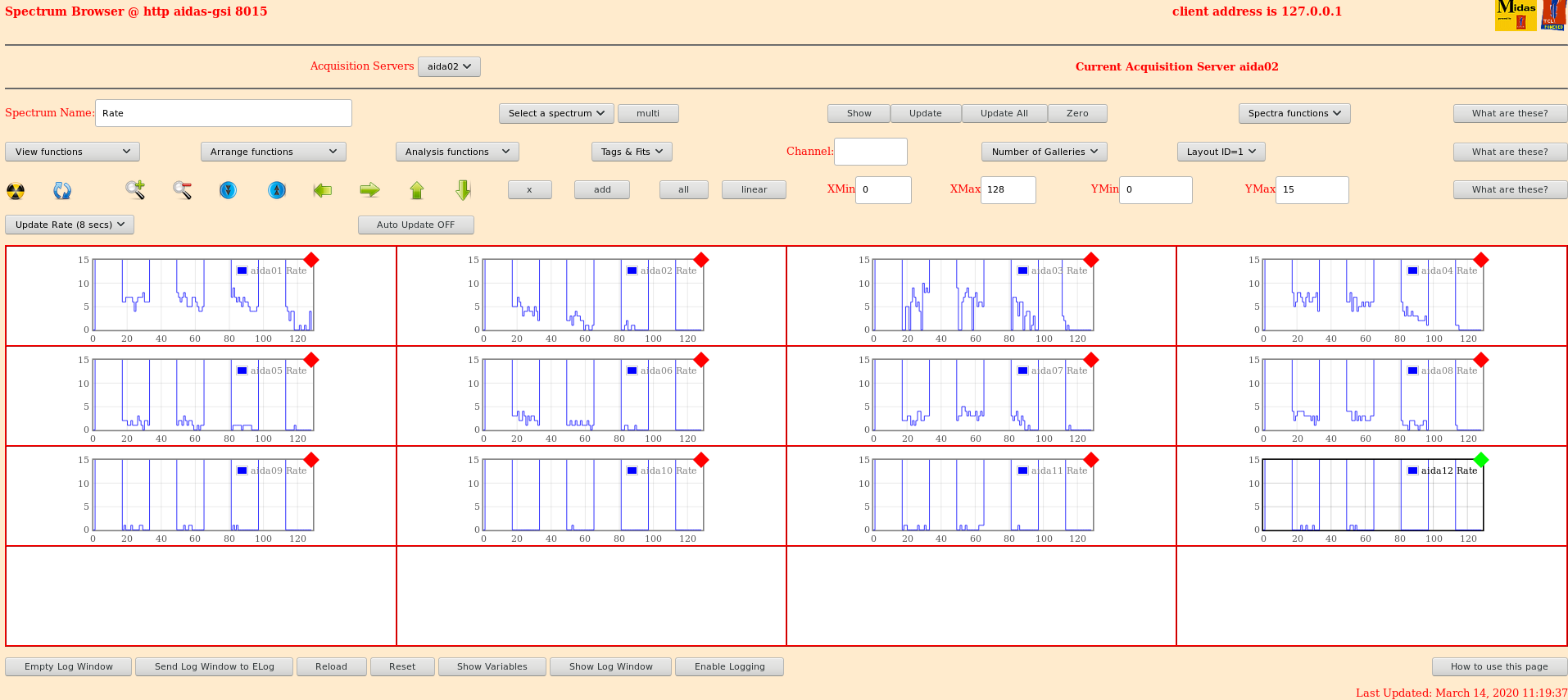

    Histos as #10

14:10
    All system wide checks okay

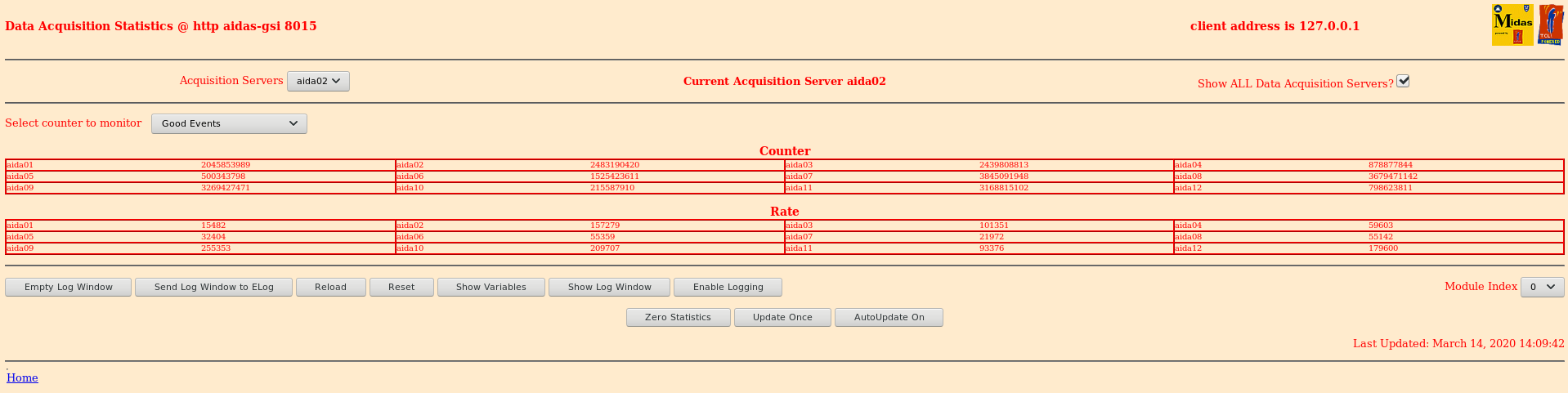

    Stats #11

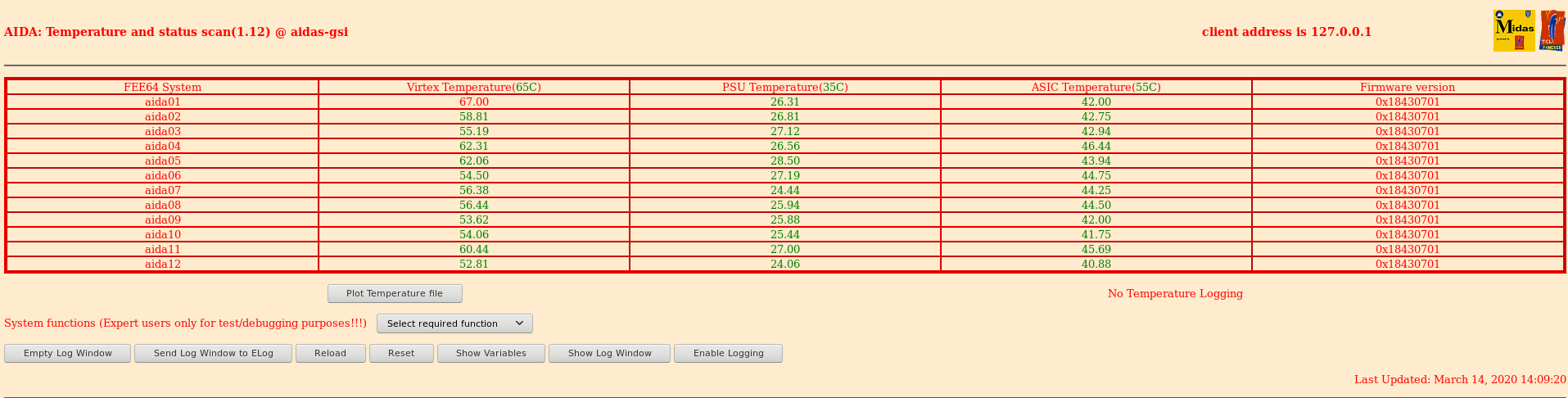

    Temps #12

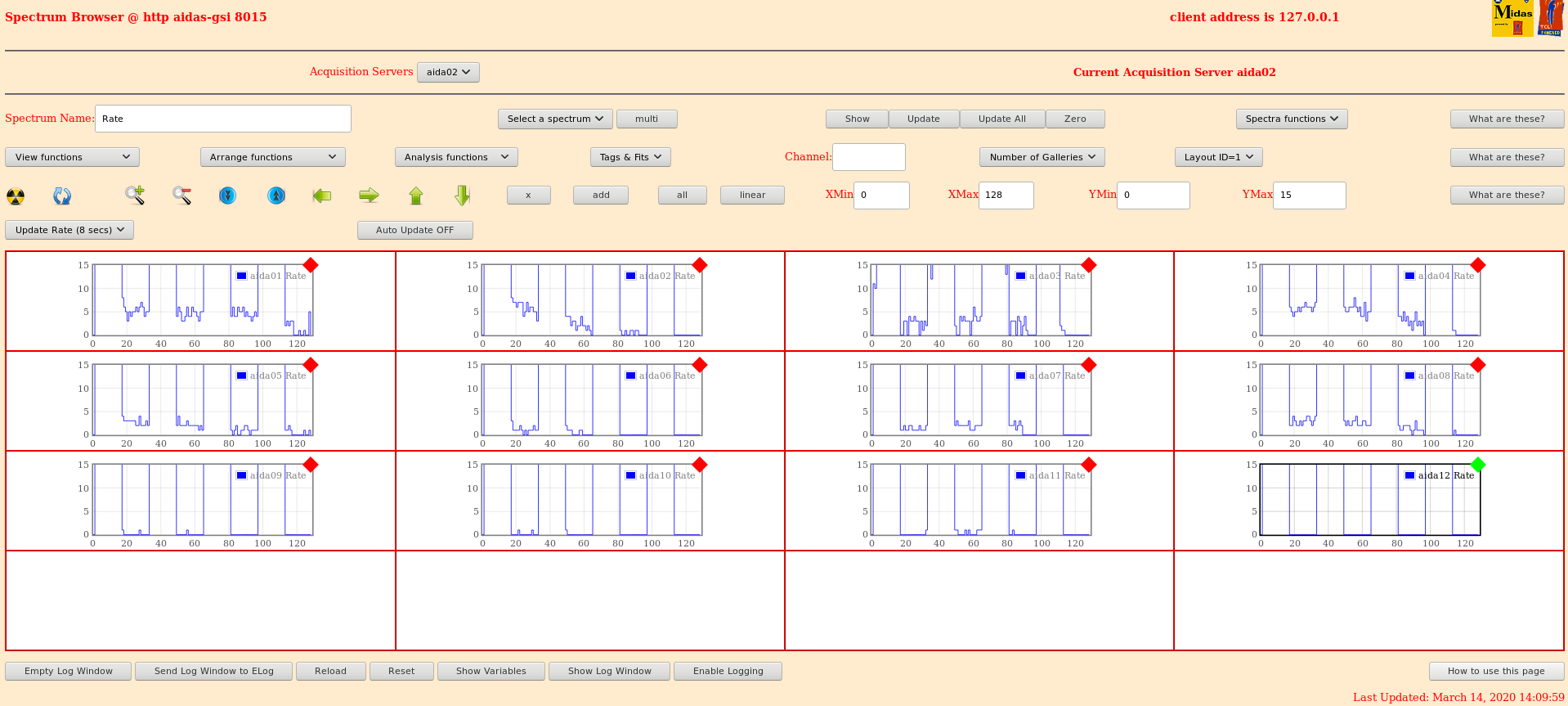

    Implants #13
    Leak currents are getting a bit higher #14

15:30
    All system wide checks passed

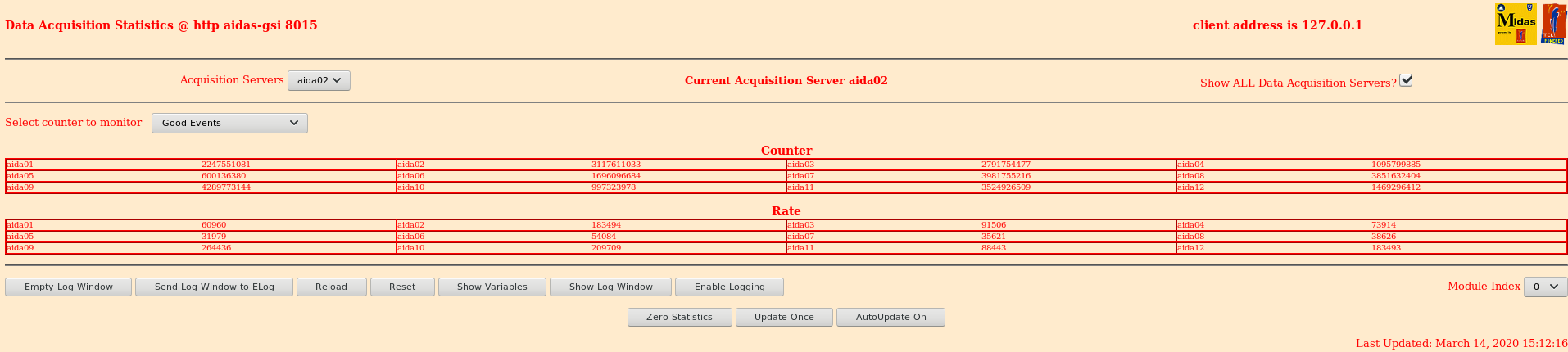

    Stats attachment  #15
    Temps attachment  #16

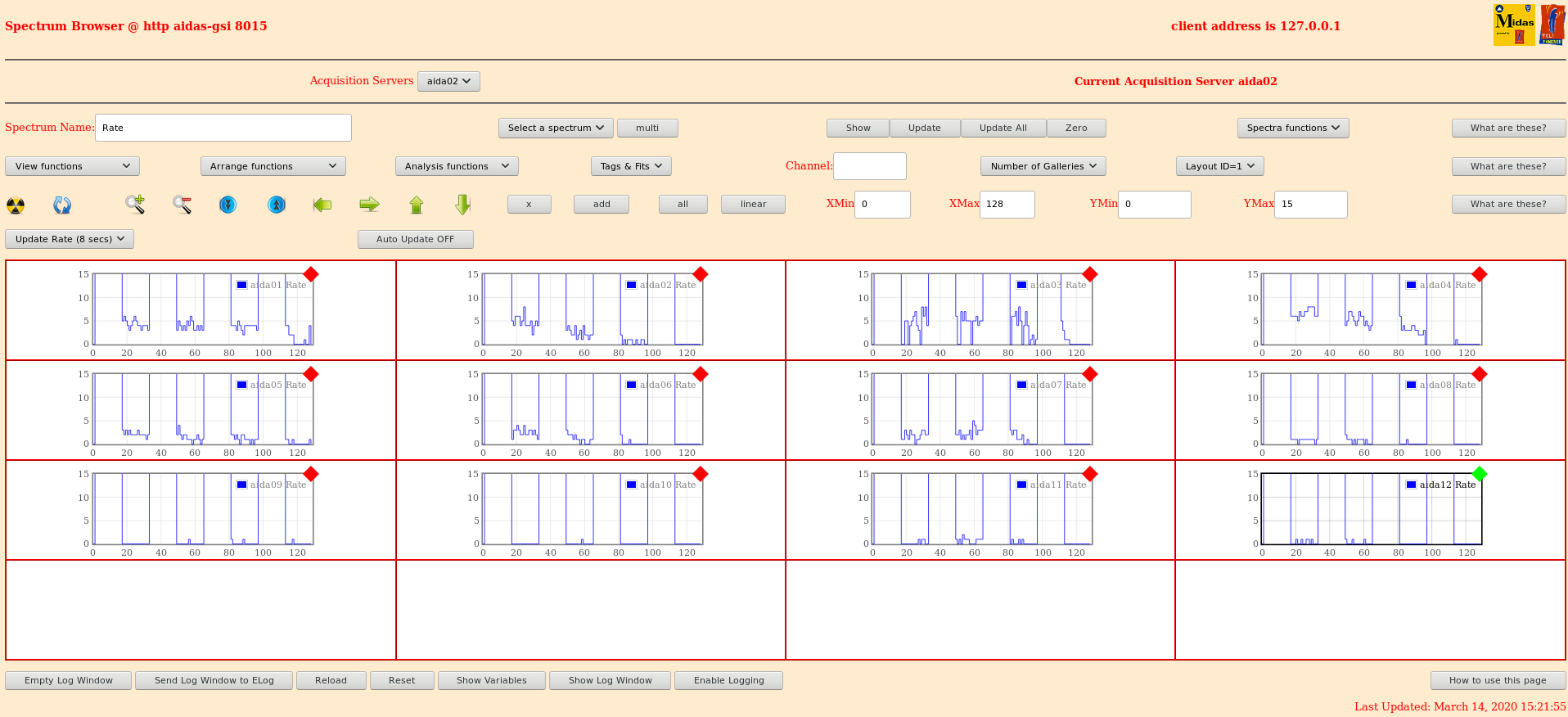

    Implants  attachment #17

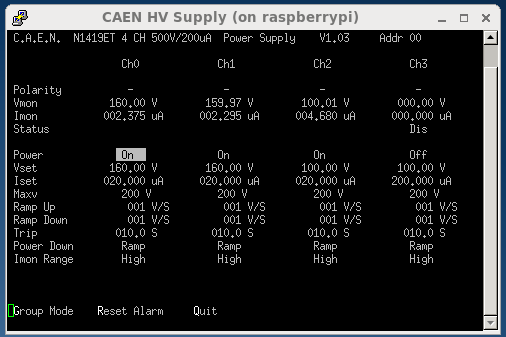

    Biases / leak currents attachment  #18
    Merger okay, 3 Mega items / sec
    TapeServer okay, writing 27 MB/s

16.12 all online spectra zero'd

16.31 stat & rate spectra - attachments 19-22
      1.8.L spectra - attachments 23 & 24
      aida03 pulser peak 57 ch FWHM
      1.8.H spectra - attachments 25 & 26
      NewMerger & TapeServer - attachments 27 & 28

18.29

system wide checks all okay
     FEE temperatures normal (attachment 29)
     Leakage currents okay and recorded to spreadsheet (attachment 30)
     Good event statistics okay (attachment 31)
     Merger running at 3M items/sec
     Tape server running at 25MB/sec

20.25
     system wide checks all okay

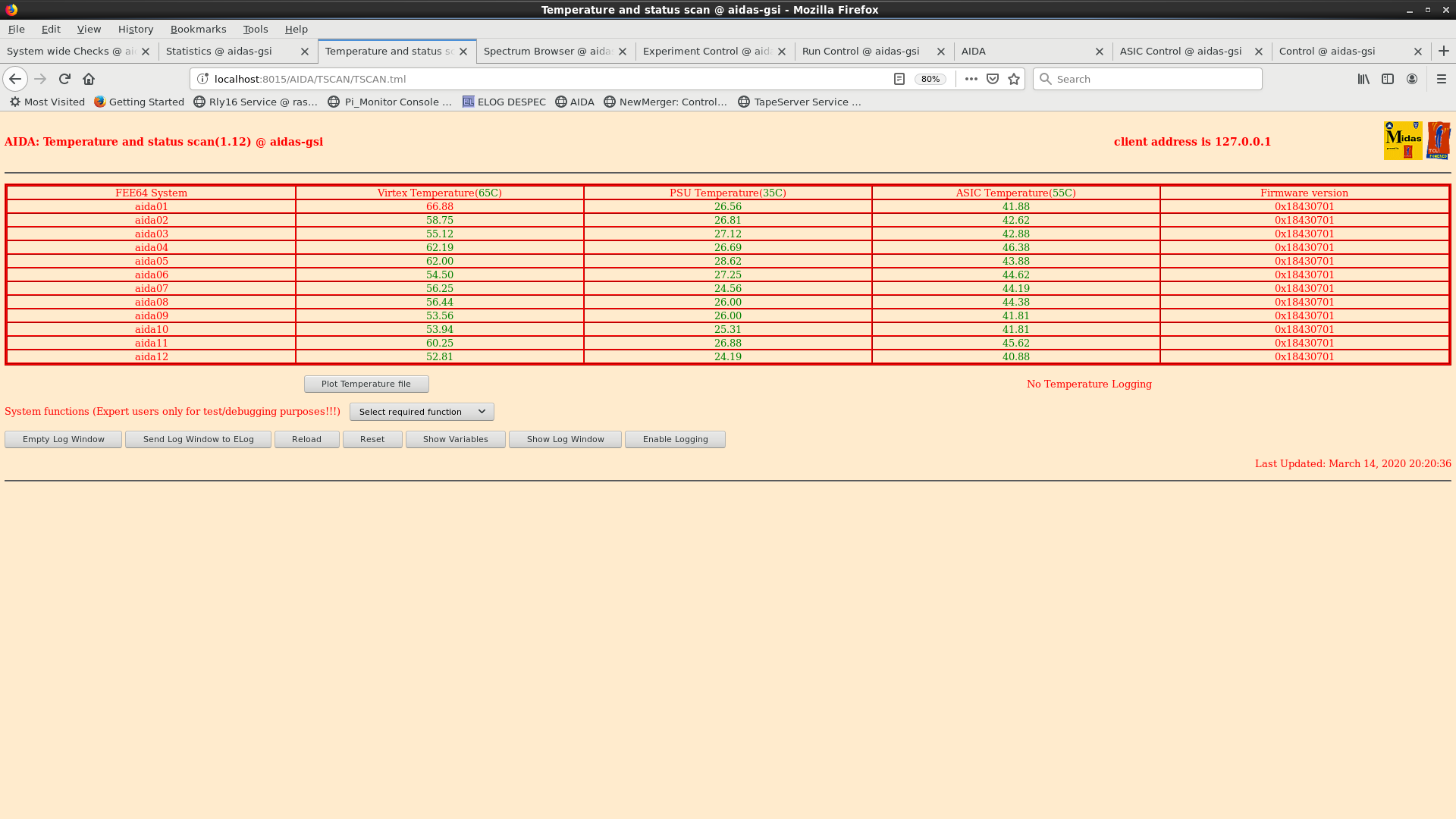

     FEE temperatures normal (attachment 32)
     Leakage currents okay and recorded to spreadsheet (attachment 33)
     Good event statistics okay (attachment 34)
     Merger running at 3M items/sec
     Tape server running at 26MB/sec

as of 20.39 just finished R12_961

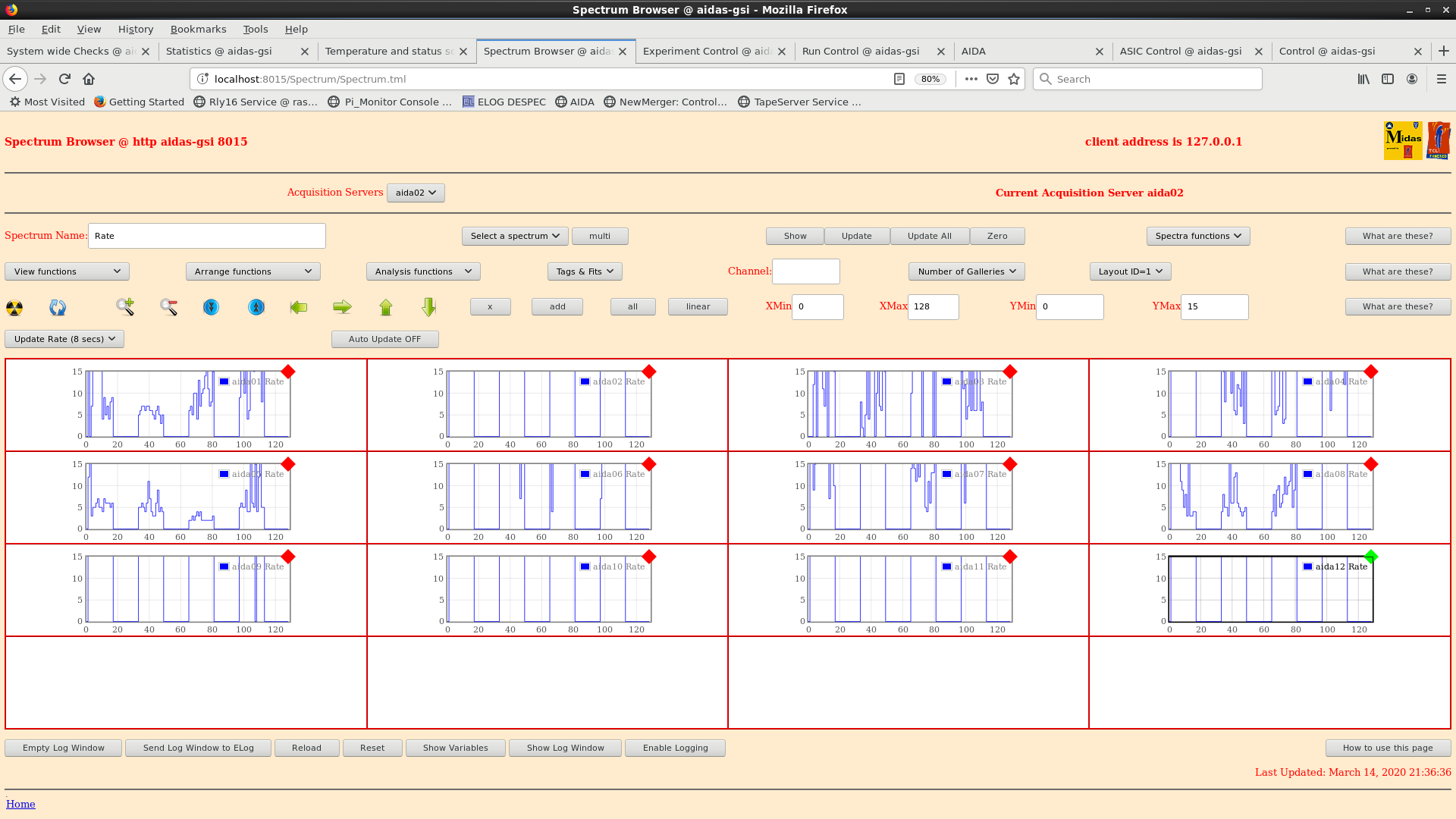

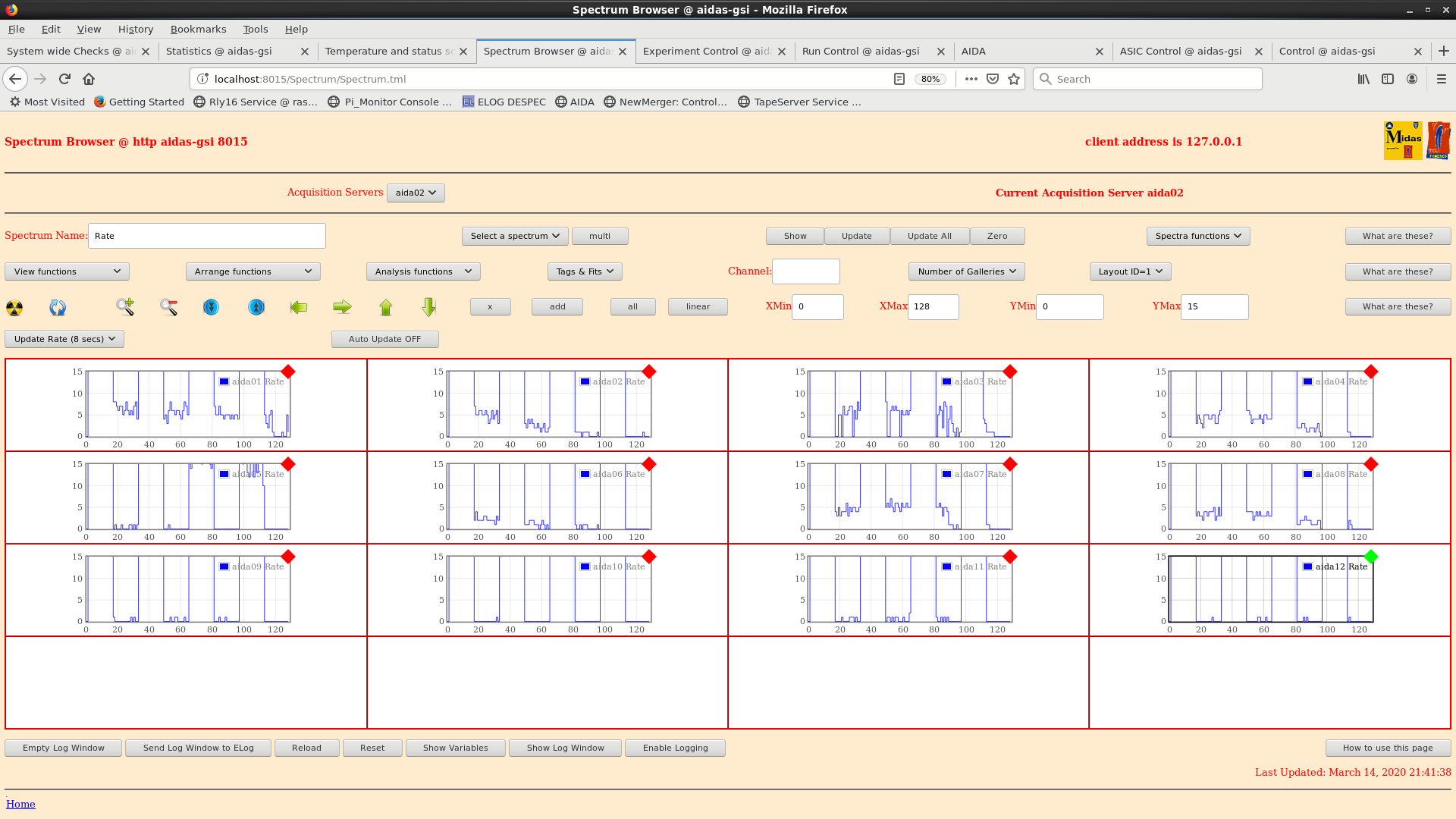

21.36 beam is down confirmed by rates histogram (attachment 35), informed others on shift
      was down for maybe 5 minutes is back on at 21.40 (attachment 36)
      think between R12_1004 to R12_1008

22.10
     system wide checks all okay
     FEE temperatures normal (attachment 37)

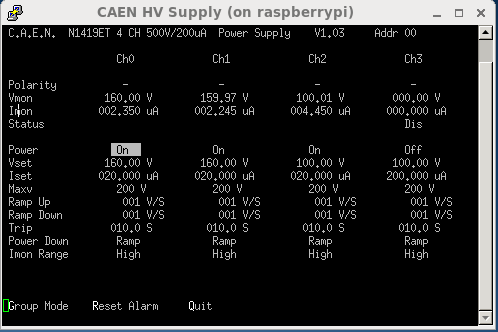

     Leakage currents okay and recorded to spreadsheet (attachment 38)

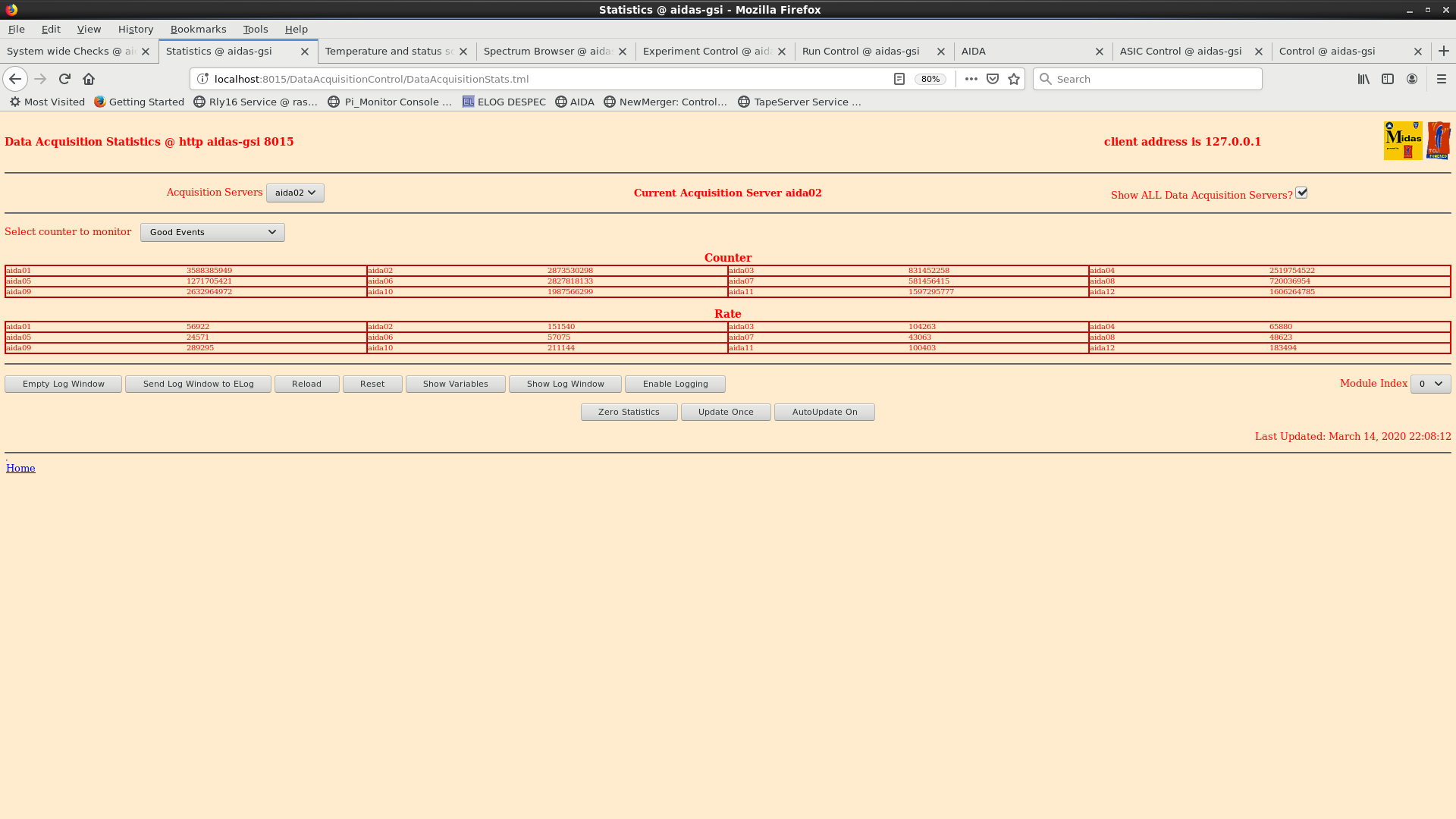

     Good event statistics okay (attachment 39)
     Merger running at 3M items/sec
     Tape server running at 26MB/sec

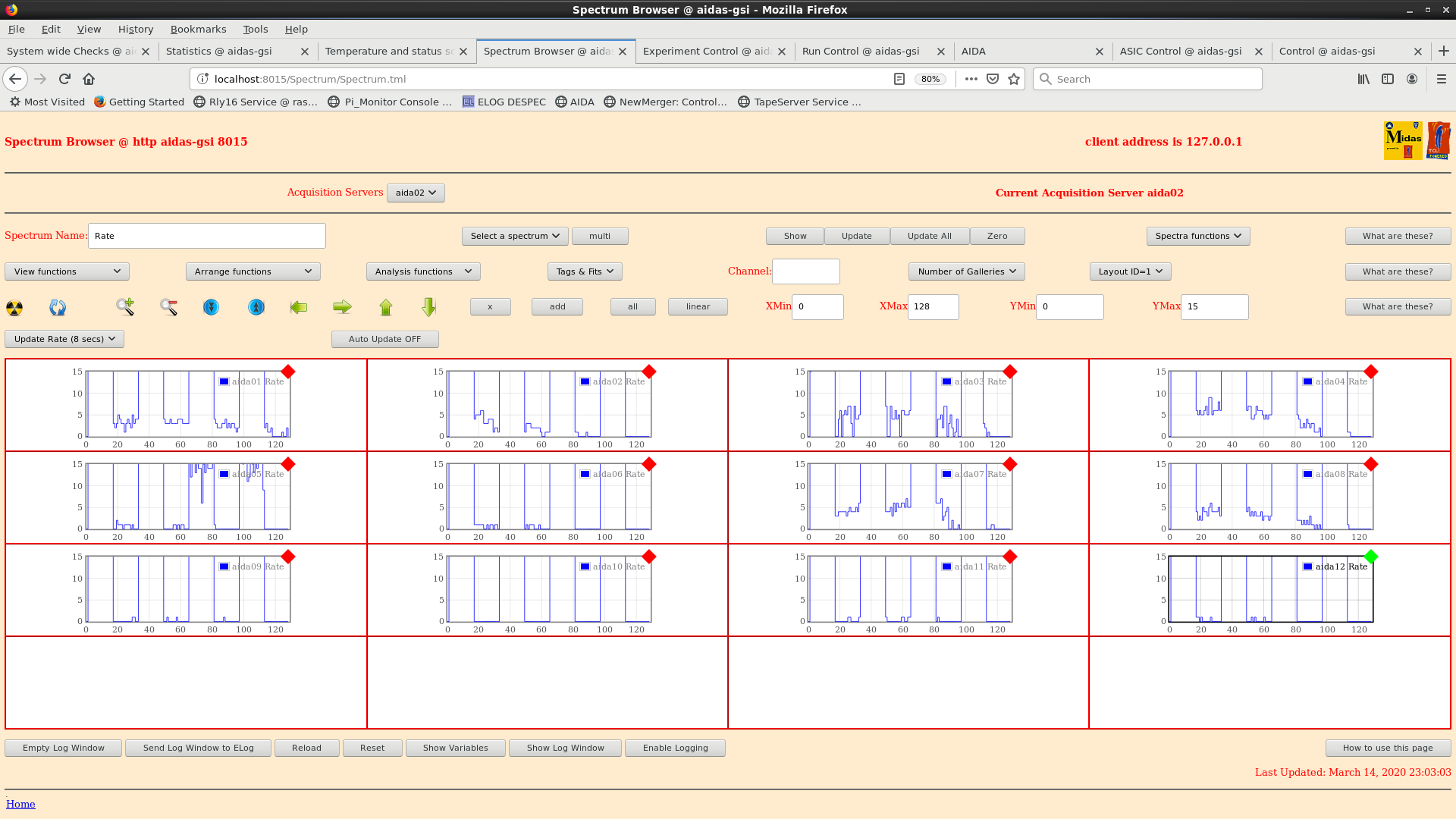

23.03 someone comes to ask if we see an increase in implantation rate as they do their side
      I checked the rates histogram and good events and see nothing that would indicate an increase (attachment 40 and 41)
      FEE temperatures and leakage currents do not seem any different either
      believe they are calling someone about the issue

23.30 leaving now to catch bus but people on night shift have been told how to check on AIDA and know that CG is on call if needed

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

daid-14-biasA.png Original size: 496x347

Attachment 2:

daid-14-tempA.png Original size: 1918x449

Attachment 3:

daid-14-statsA.png Original size: 1918x428

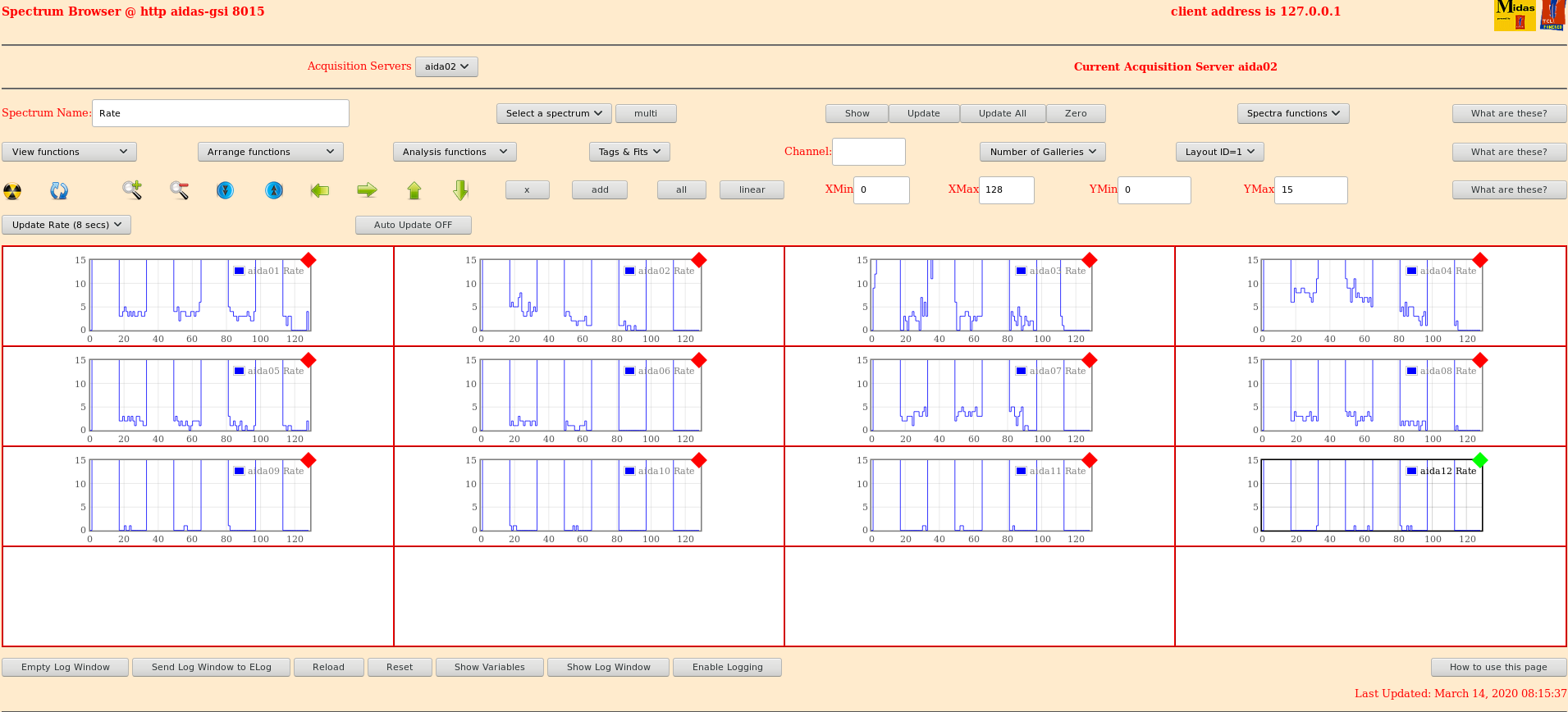

Attachment 4:

daid-14-histosA.png Original size: 1911x868

Attachment 5:

R12_443

 *** TDR format 3.3.0 analyser - TD - January 2019
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:   86997080 ( 1109430.4 Hz)
        Other data format:  174986804 ( 2231519.6 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:         29 (       0.4 Hz)
                               RESUME:         29 (       0.4 Hz)
                              SYNC100:   87327942 ( 1113649.7 Hz)
                              WR48-63:   87327942 ( 1113649.7 Hz)
                           FEE64 disc:     330862 (    4219.3 Hz)
                             MBS info:          0 (       0.0 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     102097 (    1302.0 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:       78.416 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  1                0.000                0.000
  2                0.116                0.000
  3                0.000                0.000
  4                0.000                0.000
  5                0.066                0.000
  6                0.000                0.000
  7                0.000                0.000
  8                4.659                3.647
  9                0.000                0.000
 10                0.112                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0    3143962    6596287          0          0          1          1    3246749    3246749     102787          0          0      19287
  1   11441532   22943556          0          0          0          0   11461696   11461696      20164          0          0       9627
  2    6435721   13042134          0          0          2          2    6492617    6492617      56896          0          0      12957
  3    3633801    7382655          0          0          0          0    3672152    3672152      38351          0          0      19271
  4    1100939    2276428          0          0          0          0    1125789    1125789      24850          0          0       7339
  5    2632637    5296610          0          0          2          2    2643081    2643081      10444          0          0       4759
  6    1846149    3780603          0          0          0          0    1875584    1875584      29435          0          0      12550
  7    2374464    4801965          0          0          0          0    2392143    2392143      17679          0          0       8964
  8   20263627   40557223          0          0         22         22   20273602   20273602       9975          0          0       2005
  9   14853979   29722517          0          0          0          0   14858832   14858832       4853          0          0       1283
 10    6417731   12865067          0          0          2          2    6427598    6427598       9867          0          0       2254
 11   12852538   25721759          0          0          0          0   12858099   12858099       5561          0          0       1801
 12          0          0          0          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:34518.602s (    0.927 blocks/s,   0.058 Mb/s)

Attachment 6:

bias-daid-14B.png Original size: 503x338

Attachment 7:

daid-14-biasC.png Original size: 497x334

Attachment 8:

daid-14-tempC.png Original size: 1910x467

Attachment 9:

daid-14-statsC.png Original size: 1911x442

Attachment 10:

daid-14-histosC.png Original size: 1914x854

Attachment 11:

daid-14-tempsD.png Original size: 1915x486

Attachment 12:

daid-14-statsD.png Original size: 1918x481

Attachment 13:

daid-14-histosD.png Original size: 1918x863

Attachment 14:

daid-14-biasD.png Original size: 496x341

Attachment 15:

daid-14-statsE.png Original size: 1914x430

Attachment 16:

daid-14-tempsE.png Original size: 1917x480

Attachment 17:

daid-14-histosE.png Original size: 1916x876

Attachment 18:

daid-14-biasE.png Original size: 506x337

Attachment 19:

1.png Original size: 1920x1080

Attachment 20:

2.png Original size: 1920x1080

Attachment 21:

3.png Original size: 1920x1080

Attachment 22:

4.png Original size: 1920x1080

Attachment 23:

5.png Original size: 1920x1080

Attachment 24:

6.png Original size: 1920x1080

Attachment 25:

7.png Original size: 1920x1080

Attachment 26:

8.png Original size: 1920x1080

Attachment 27:

9.png Original size: 3840x1080

Attachment 28:

10.png Original size: 1920x1080

Attachment 29:

200314_1823_feetemps.png Original size: 1920x1080

Attachment 30:

200314_1827_leakagecurrents.png Original size: 495x331

Attachment 31:

200314_1824_goodevents.png Original size: 1920x1080

Attachment 32:

200314_2020_feetemps.png Original size: 1920x1080

Attachment 33:

200314_2023_leakagecurrents.png Original size: 497x335

Attachment 34:

200314_2022_goodevents.png Original size: 1920x1080

Attachment 35:

200314_2136_BEAMDOWN.png Original size: 1920x1080

Attachment 36:

200314_2141_beamback.png Original size: 1920x1080

Attachment 37:

200314_2207_feetemps.png Original size: 1920x1080

Attachment 38:

200314_2210_leakagecurrents.png Original size: 498x332

Attachment 39:

200314_2208_goodevents.png Original size: 1920x1080

Attachment 40:

200314_2303_rates.png Original size: 1920x1080

Attachment 41:

200314_2303_goodevents.png Original size: 1920x1080

Attachment 42:

Drop attachments here...

ELOG V3.1.4-unknown
