Entry time:

Mon Mar 8 17:02:38 2021

Author*:

Subject*:

18:00 ASIC settings 2019Dec19-16.19.51
      DSSSD#1 slow comparator 0xa
      DSSSD#2 slow comparator 0xa
      DSSSD#3 slow comparator 0xd

BNC PB-5 Pulser
      Amplitude1.0V
      Attenuation x1
      Frequency 2Hz
      tau_d 1ms
      - polarity
      Delay 250ns, tail pulse

All system wide checks ok *except aida06 fails clock status 6*
      Statistics - attachment 1
      FEE Temperatures - attachment 2

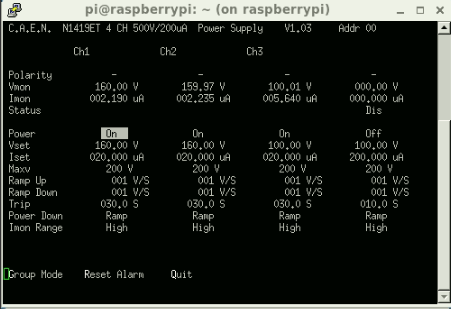

      Bias and leakage currents ok - attachment 3

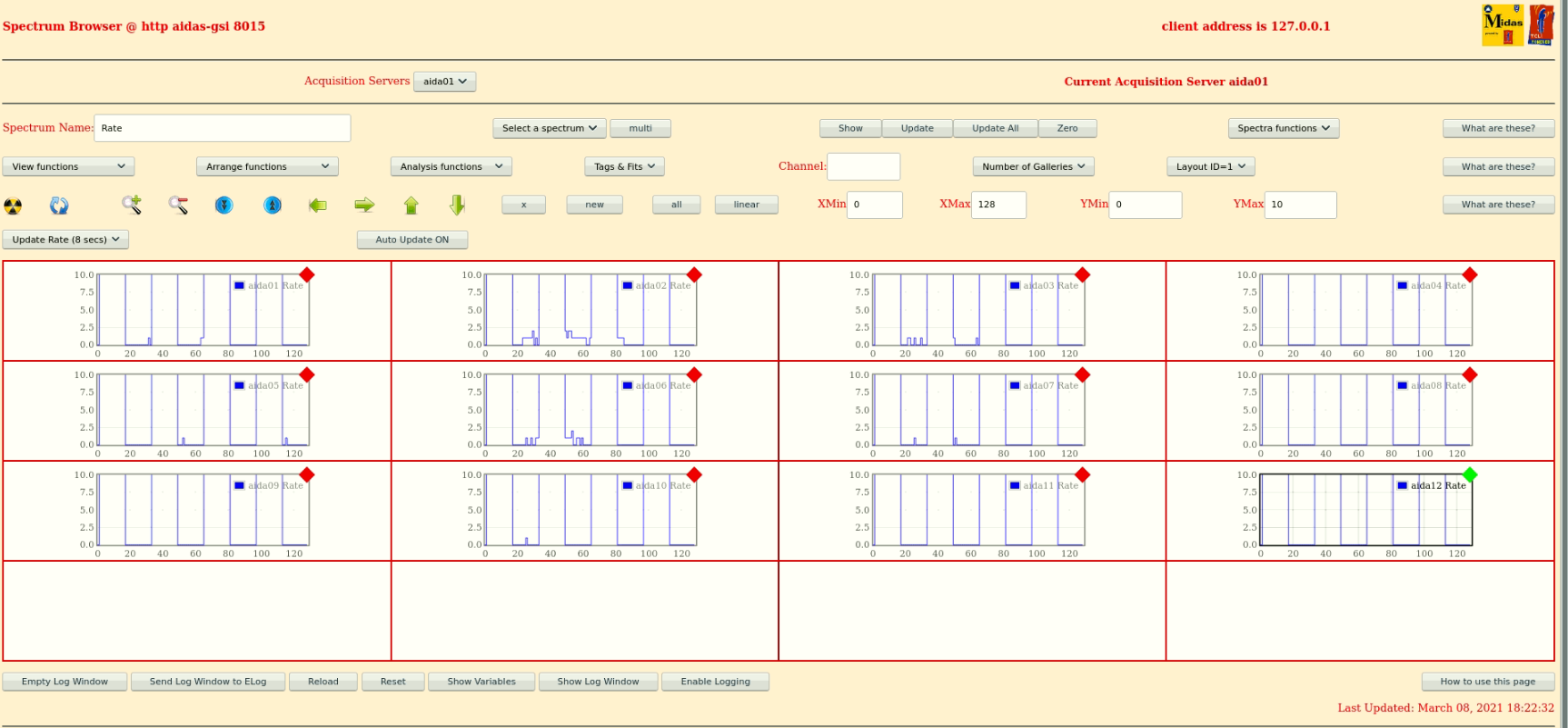

18:24 Rate spectra - attachment 4

18:30 Merger ok - 4.4M data items/s

TapeServer ok - 43MB/s

Data forwarding to MBS ok

19:28 beam back after a brief outage - AIDA on file R9_736

FRS having DAQ issues

19:57 FRS DAQ/Scalars back

20:12 All system wide checks ok *except aida06 fails clock status 6*

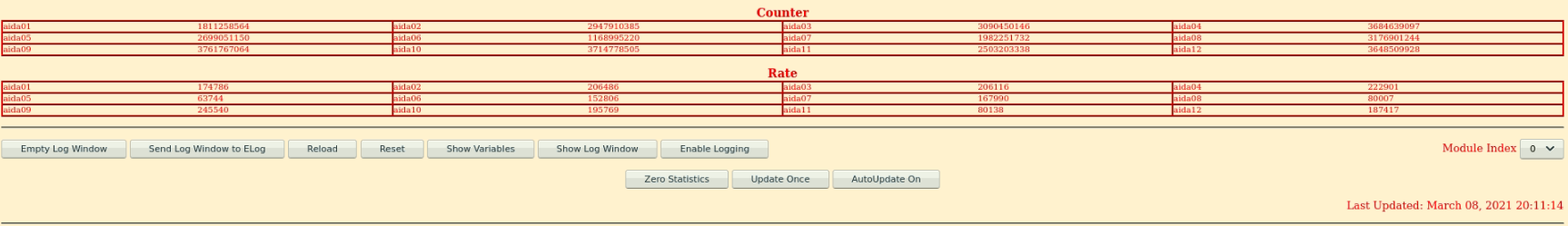

      Statistics - attachment 5
      FEE Temperatures - attachment 6

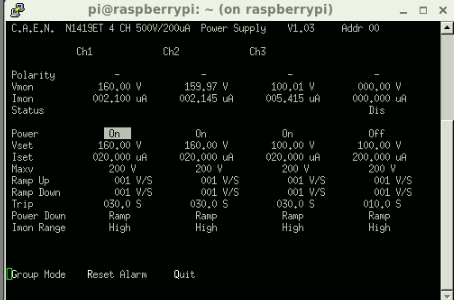

      Bias and leakage currents ok - attachment 7

Merger ok - 4.5M data items/s

TapeServer ok - 46MB/s

Data forwarding to MBS ok

20:33 No beam - AIDA on file R9_821

21:08 rates spectra - attachment 8

22:35 All system wide checks ok *except aida06 fails clock status 6*

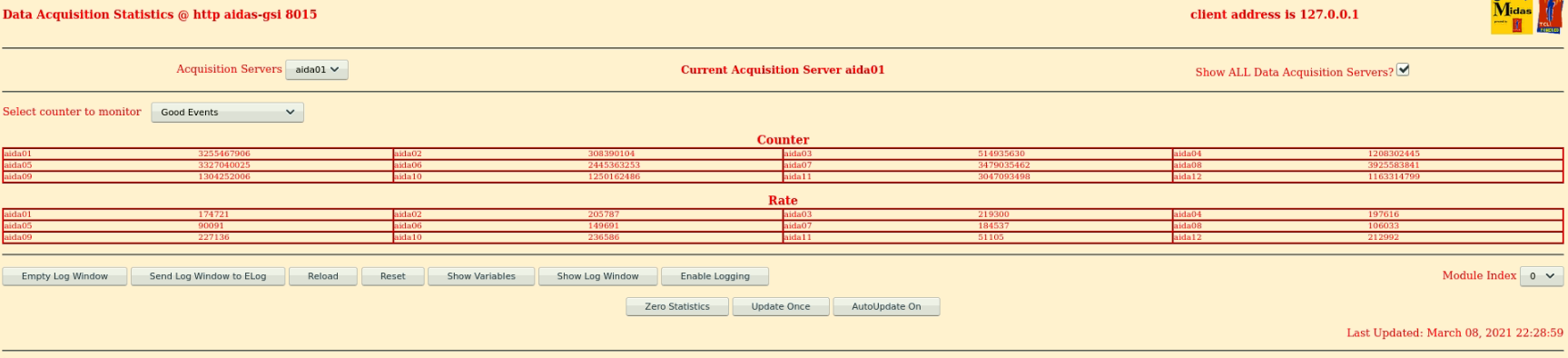

      Statistics - attachment 9

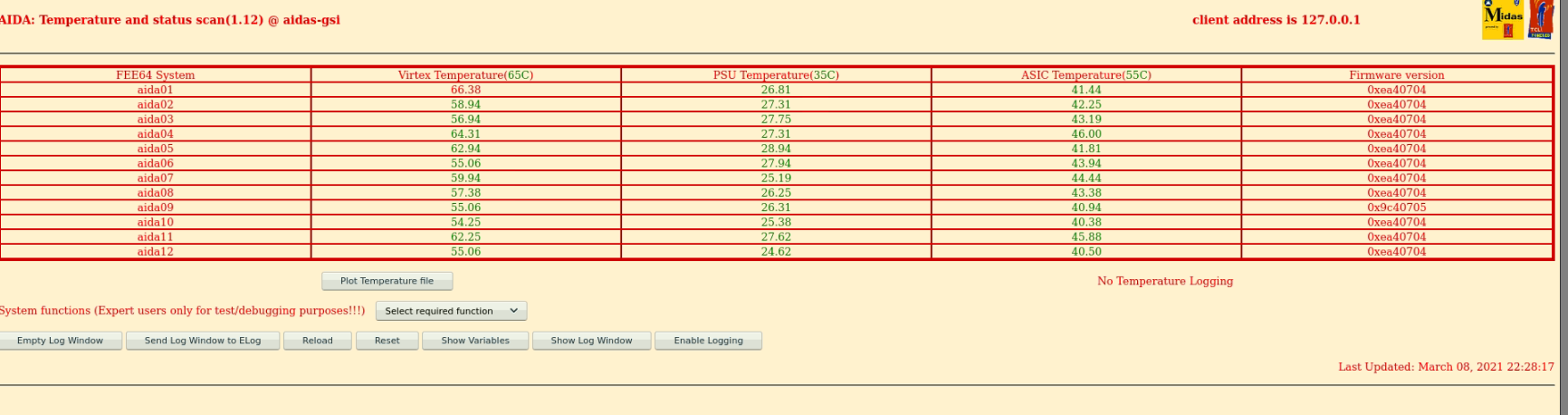

      FEE Temperatures - attachment 10
      Bias and leakage currents ok - attachment 11

Merger ok - 4.4M data items/s

TapeServer ok - 43MB/s

Data forwarding to MBS ok

temperatures slightly longer to load, and aida04 came up as not responding. Responded as normal after another reload.

23:07 media/ThirdDrive at 65% capacity

writing to file R9_1021

file compression currently up to R1_686

23:36 beam stable ~1e9 pps

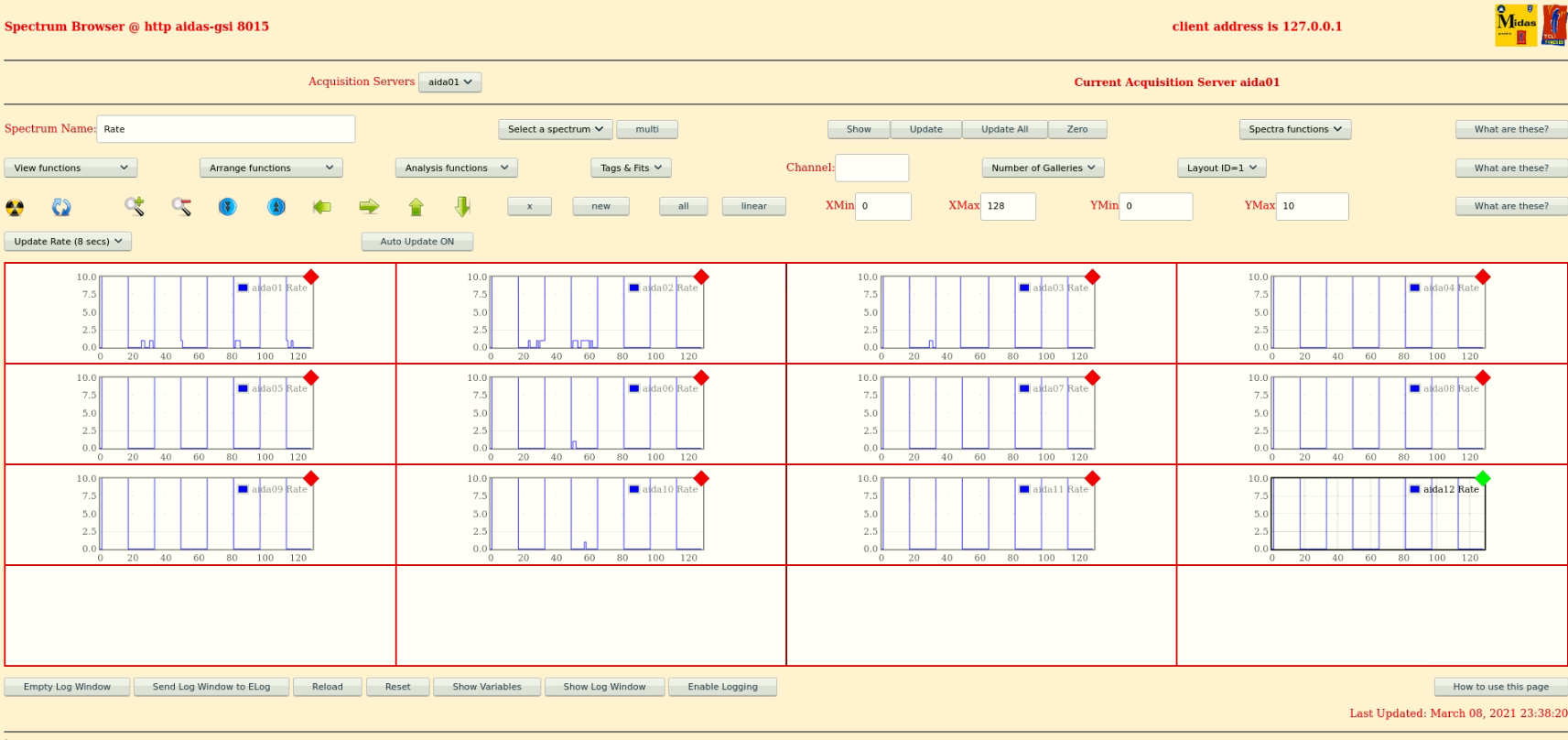

rate spectra - attachment 12
