00:13 beam back, but some spills 'missing'

      DESPEC keeping beam as is, but may stop later if it worsens

00:15 DAQ continues OK - file R20_622

      ASIC settings 2019Dec19-16.19.51
      DSSSD#1 slow comparator 0xa
      DSSSD#2 slow comparator 0xa
      DSSSD#3 slow comparator 0xd

      BNC PB-5 Pulser
      Amplitude1.0V
      Attenuation x1
      Frequency 2Hz
      tau_d 1ms
      - polarity
      Delay 250ns, tail pulse

00:20 System wide checks all OK *except*

      ADC Calibration
      FEE64 module aida07 failed
      FEE64 module aida10 failed
      Calibration test result: Passed 10, Failed 2

      If any modules fail calibration , check the clock status and open the FADC Align and Control browser page to rerun calibration for that module

      Check FPGA Timestamp Errors
      Base 		Current 		Difference
      aida12 fault 	 0x0 : 	 0x1 : 	 1
      FPGA Timestamp error counter test result: Passed 11, Failed 1

     If any of these counts are reported as in error
     The ASIC readout system has detected a timeslip.
     That is the timestamp read from the time FIFO is not younger than the last

00:24 still no bad timestamp errors in NewMerger since 16:30 UTC

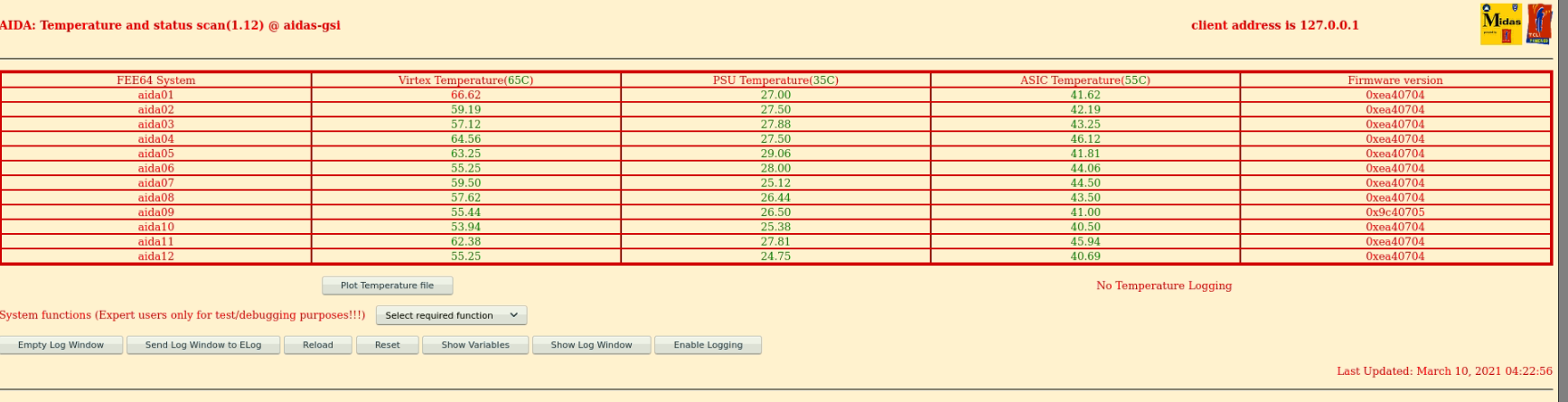

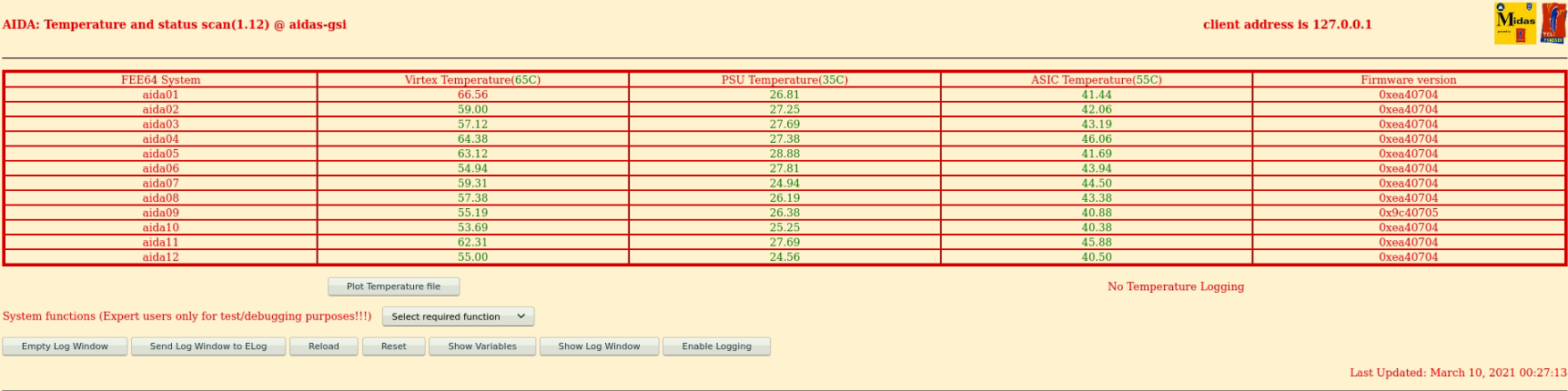

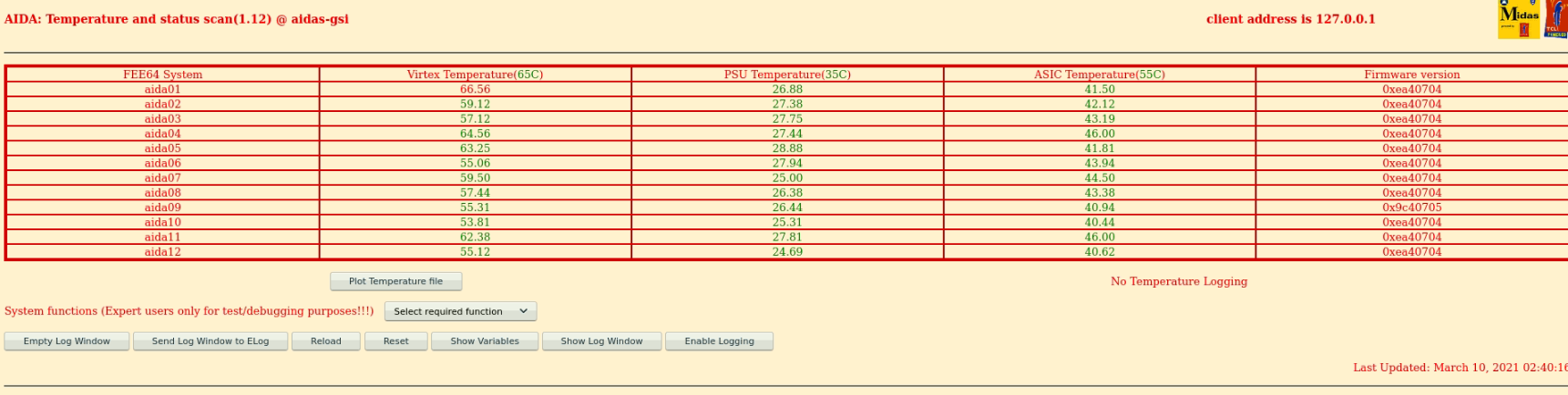

00:30 FEE64 Temperatures OK - attachment 1

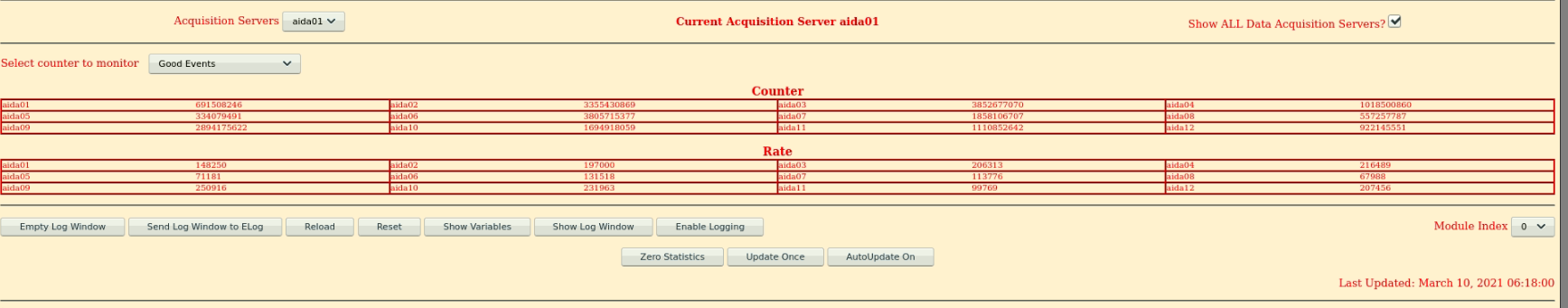

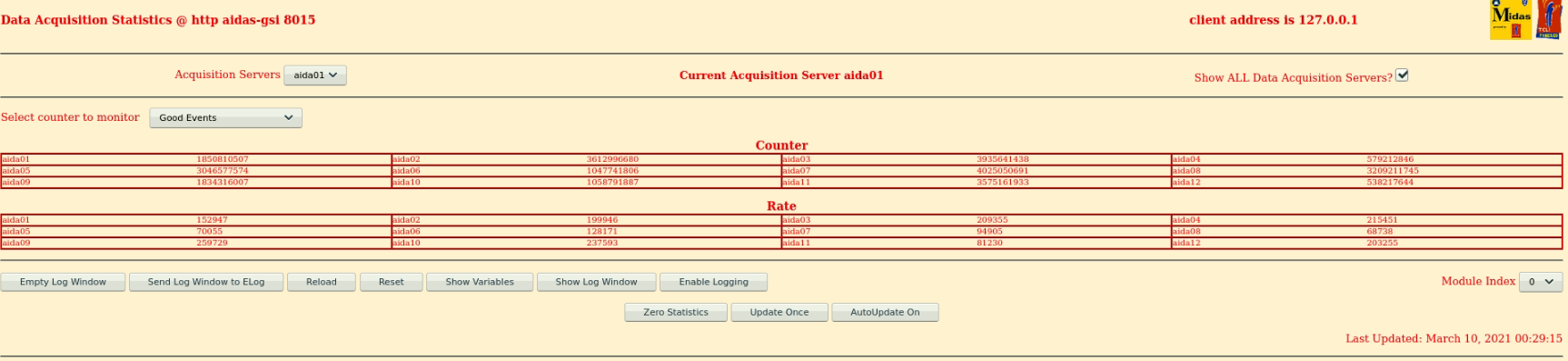

      Good event statistics OK - attachment 2

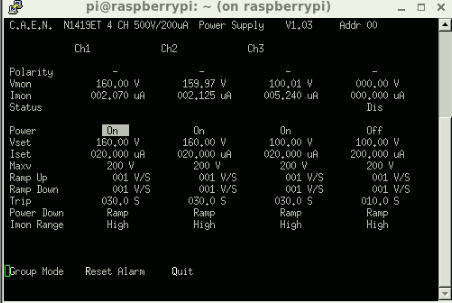

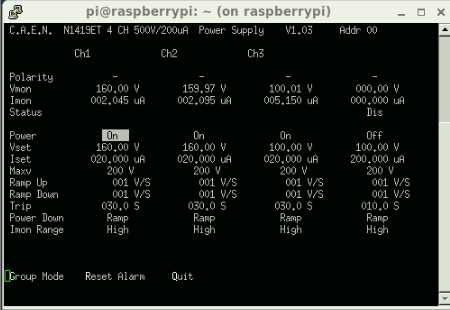

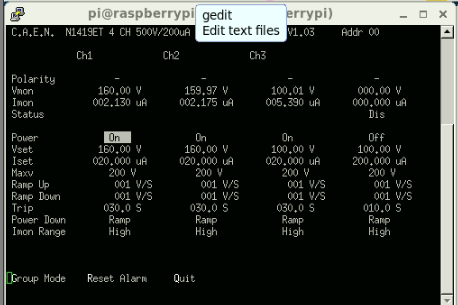

      Detector bias & leakage currents OK - attachment 3

      Merger OK - 4.2M data items/s
      TapeServer OK - 45 Mb/s

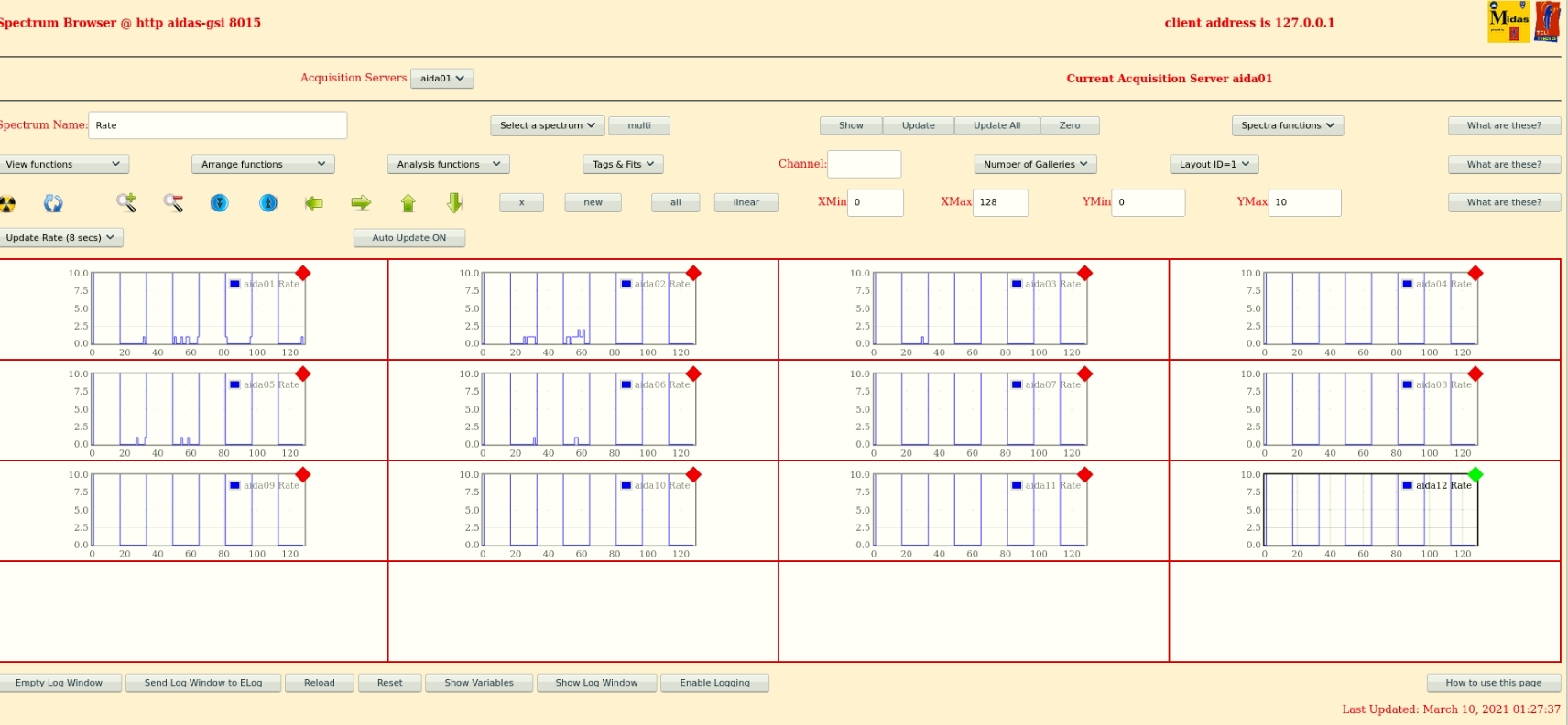

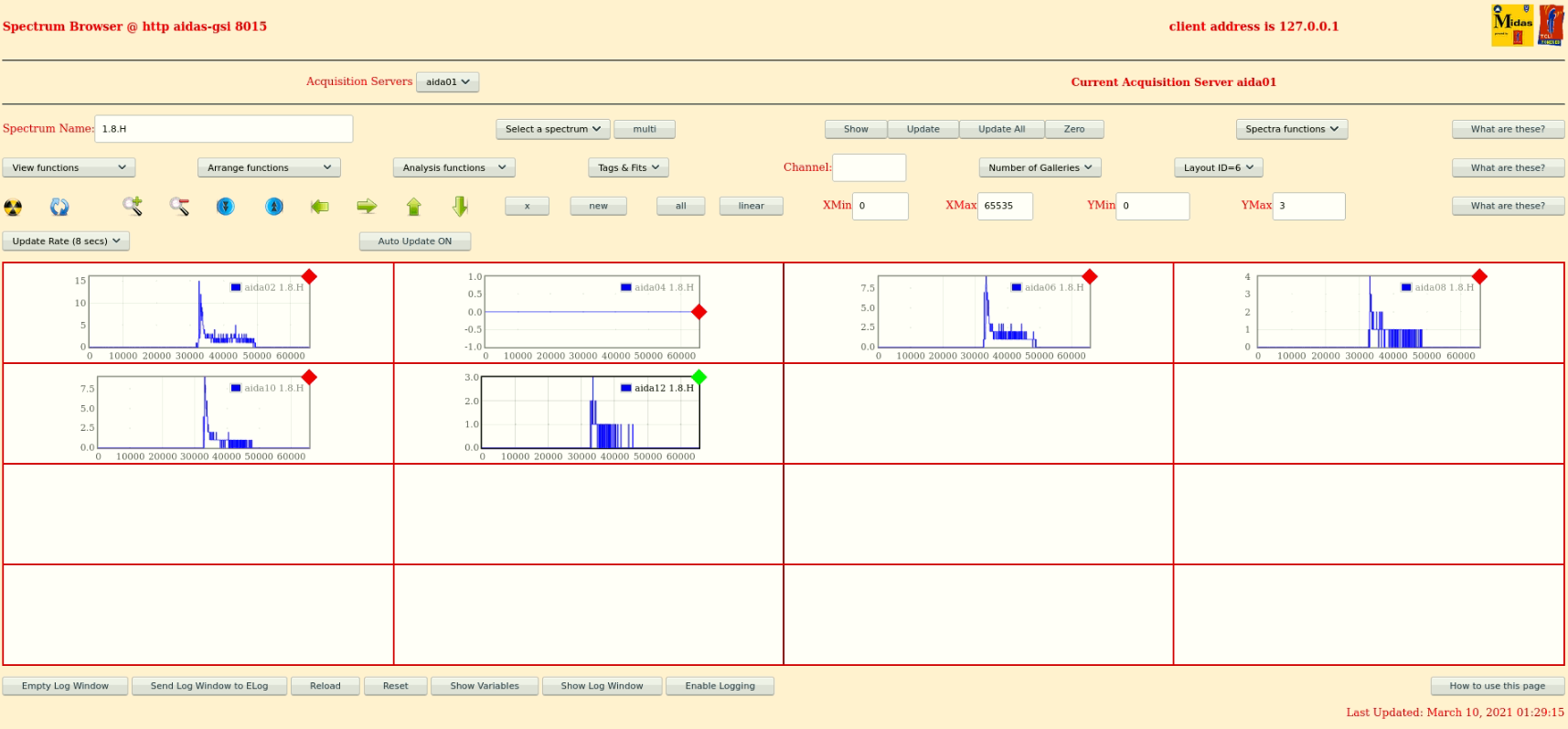

01:30 rate spectra - attachment 4

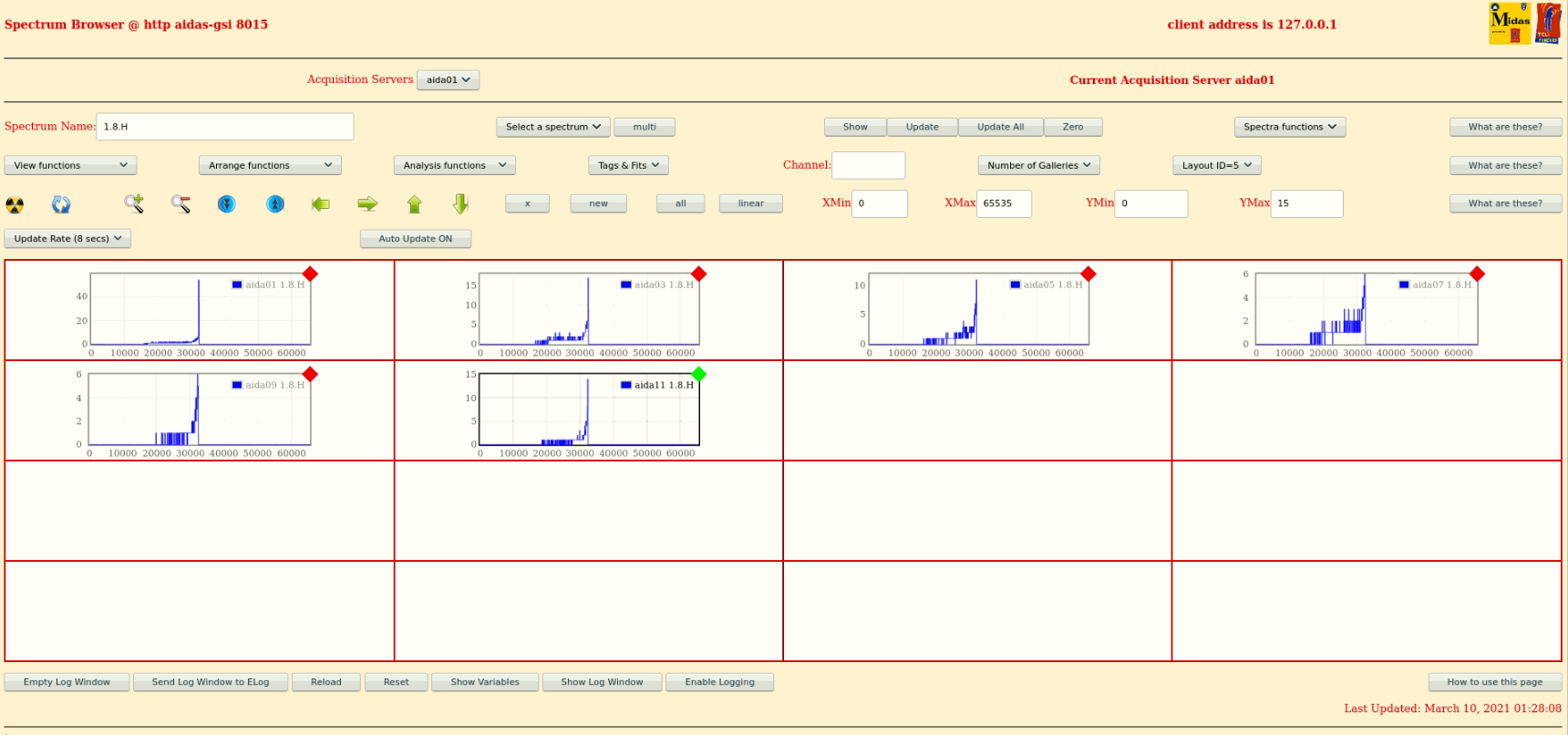

      HEC spectra - attachment 5 & 6

      note aida04 spectrum still not showing

02:07 beam off - file R20_760

02:11 beam back - file R20_764

02:44 System wide checks all OK *except*

      ADC Calibration
      FEE64 module aida07 failed
      FEE64 module aida10 failed
      Calibration test result: Passed 10, Failed 2


      Check FPGA Timestamp Errors
      Base 		Current 		Difference
      aida12 fault 	 0x0 : 	 0x1 : 	 1
      FPGA Timestamp error counter test result: Passed 11, Failed 1


      still no bad timestamp errors in NewMerger since 16:30 UTC

      FEE64 Temperatures OK - attachment 7

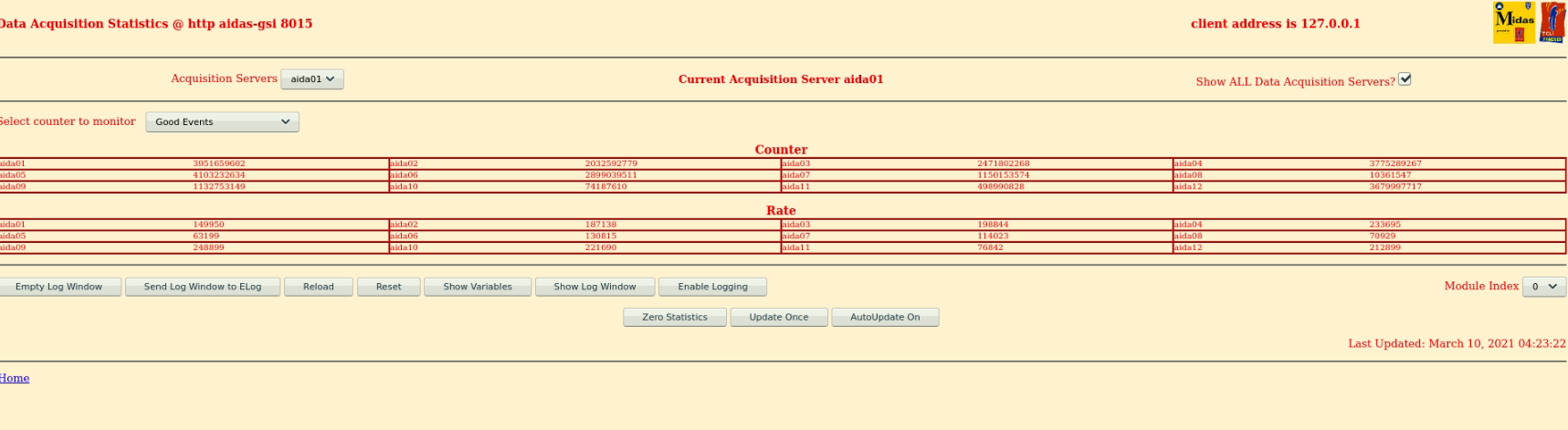

      Good event statistics OK - attachment 8
      Detector bias & leakage currents OK - attachment 9

      Merger OK - 4.2M data items/s
      TapeServer OK - 44 Mb/s

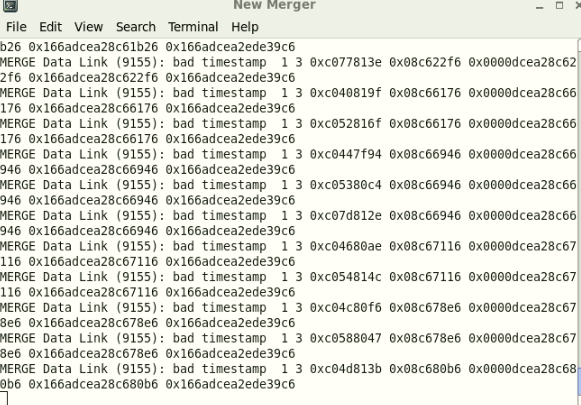

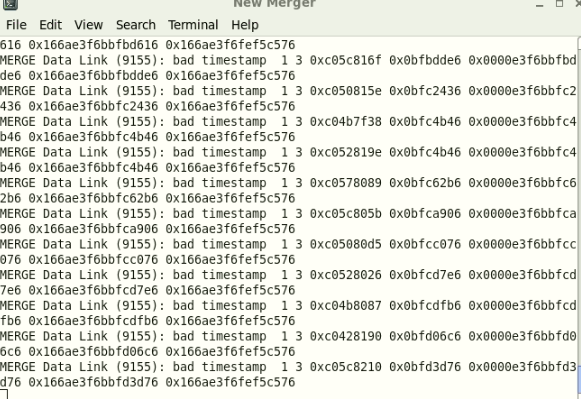

04:16 bad timestamp errors in NewMerger terminal, first since 16:30 UTC - attachment 10

      System wide checks all OK *except*

      ADC Calibration
      FEE64 module aida07 failed
      FEE64 module aida10 failed
      Calibration test result: Passed 10, Failed 2


      Check FPGA Timestamp Errors
      Base 		Current 		Difference
      aida12 fault 	 0x0 : 	 0x1 : 	 1
      FPGA Timestamp error counter test result: Passed 11, Failed 1


      FEE64 Temperatures OK - attachment 11
      Good event statistics OK - attachment 12
      Detector bias & leakage currents OK - attachment 13

05:03 Merger OK - 4.5M data items/s
      TapeServer OK - 43 Mb/s

      no bad timestamp errors for ~40 mins, data forwarding to MBS ok at usual rate

06:11 rates spectra - attachment 14

06:14 System wide checks

      ADC Calibration
      FEE64 module aida07 failed
      FEE64 module aida10 failed
      Calibration test result: Passed 10, Failed 2

      Check WR decoder status
      Base 		Current 	Difference
      aida05 fault 	 0x1591 : 	 0x1593 : 	 2
      aida06 fault 	 0xe23c : 	 0xe23e : 	 2
      aida07 fault 	 0x743 : 	 0x745 : 	 2
      aida08 fault 	 0xf84e : 	 0xf850 : 	 2
      aida09 fault 	 0x5449 : 	 0x544a : 	 1
      White Rabbit error counter test result: Passed 7, Failed 5

      Understand the status reports as follows:-
      Status bit 3 : White Rabbit decoder detected an error in the received data
      Status bit 2 : Firmware registered WR error, no reload of Timestamp
      Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR


      Check FPGA Timestamp Errors
      Base 		Current 		Difference
      aida12 fault 	 0x0 : 	 0x1 : 	 1
      FPGA Timestamp error counter test result: Passed 11, Failed 1

      still no further bad timestamp errors in NewMerger terminal

      collected all WR and FPGA errors from baseline, system wide checks ok

      FEE64 Temperatures OK - attachment 15
      Good event statistics OK - attachment 16
      Detector bias & leakage currents OK - attachment 17

06:24 AIDA writing to file R20_1080

      Merger OK - 4.5M data items/s
      TapeServer OK - 46 Mb/s

06:26 another burst of bad timestamp errors - attachment 18

      performed system wide checks again - all ok aside from aida07/aida10 calibration

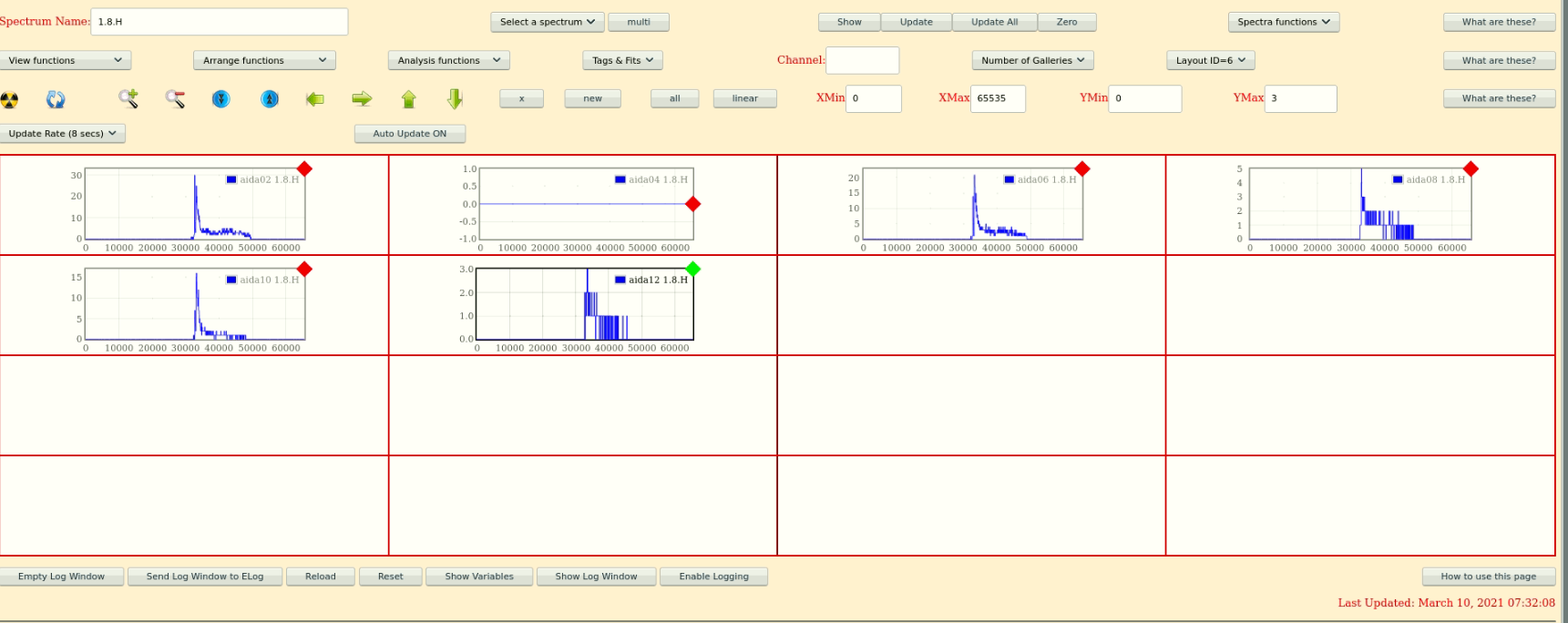

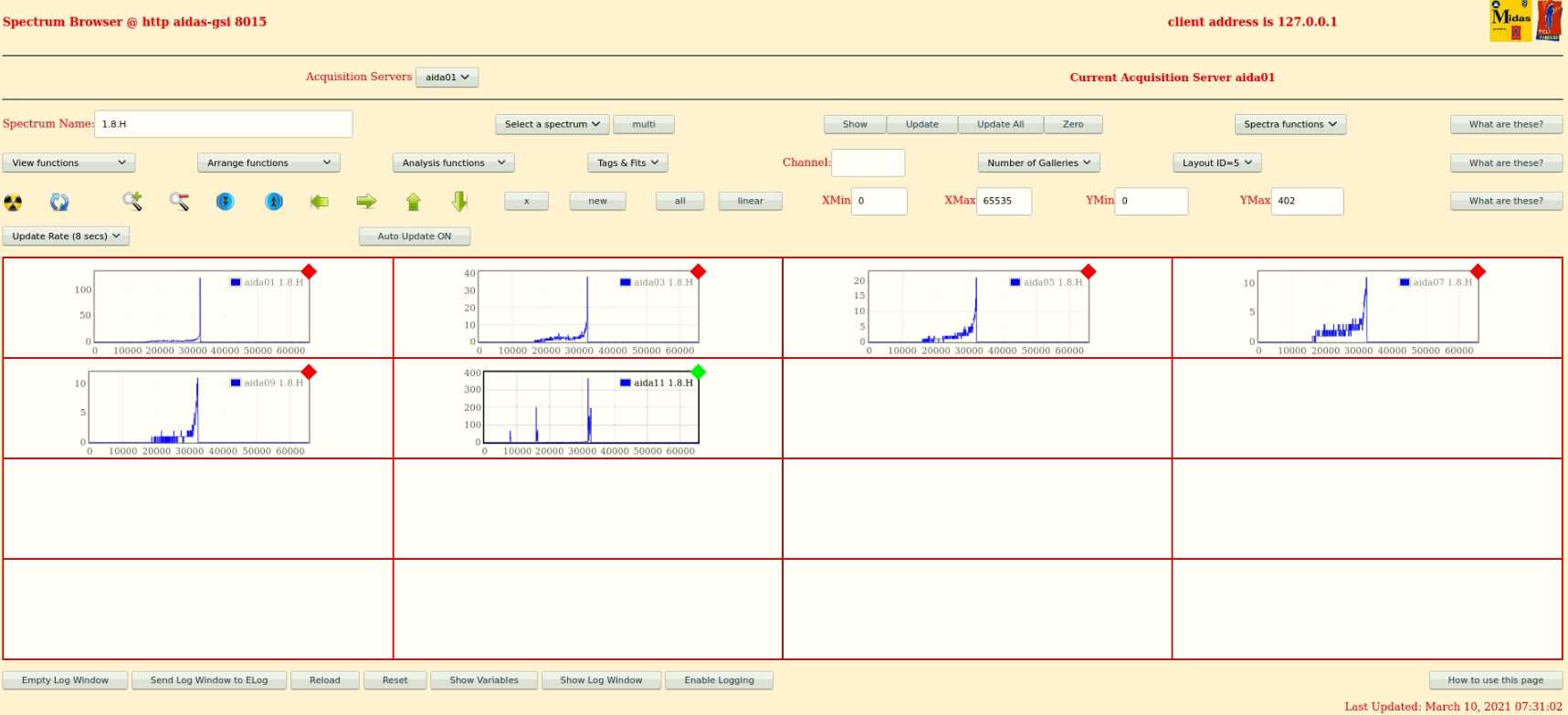

07:32 HEC spectra - attachments 19/20

07:35 no beam
