Entry time:

Wed Mar 10 07:16:02 2021

Author*:

Subject*:

08:16 System wide checks all ok

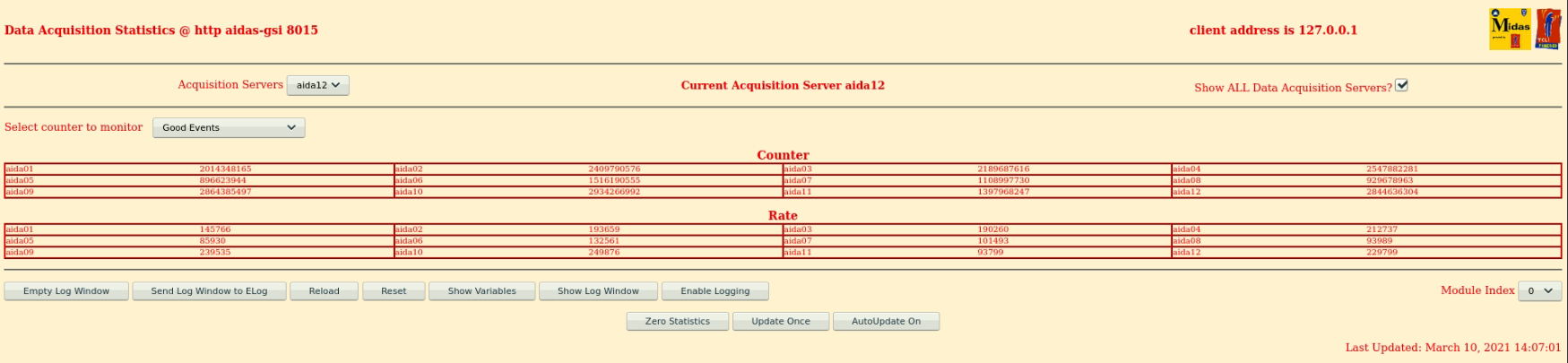

      Statistics - attachment 1
      Temperatures - attachment 2

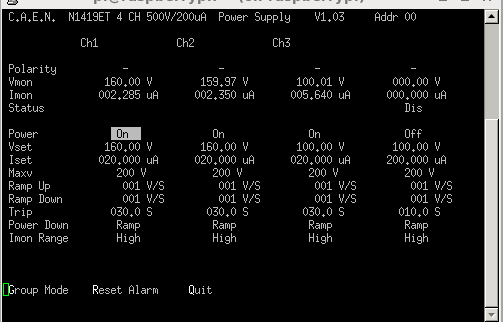

      bias - attachment 3
      Merger running 4.5e6 events per second
      Tape data writing at 42MB per second

Currently no beam

09:45 While there is no beam we will perform a longer test of the new merger.
      Run R20 stopped and merger changed to neew version
      Started R21.

The now usual behaviour of additional files at start of merge observed.
      N.B. That there was no toggling of the merger no storage or tapeserver no storage. Both were running before the DAQ was
set to going
-rw-rw-r--. 1 npg npg  64K Mar 10 09:50 R21_0
-rw-rw-r--. 1 npg npg  64K Mar 10 09:50 R21_1
-rw-rw-r--. 1 npg npg  64K Mar 10 09:50 R21_2
-rw-rw-r--. 1 npg npg  64K Mar 10 09:50 R21_3
-rw-rw-r--. 1 npg npg  64K Mar 10 09:50 R21_4
-rw-rw-r--. 1 npg npg  64K Mar 10 09:50 R21_5
-rw-rw-r--. 1 npg npg  64K Mar 10 09:50 R21_6
-rw-rw-r--. 1 npg npg  64K Mar 10 09:50 R21_7
-rw-rw-r--. 1 npg npg  64K Mar 10 09:50 R21_8
-rw-rw-r--. 1 npg npg  64K Mar 10 09:50 R21_9
-rw-rw-r--. 1 npg npg  64K Mar 10 09:50 R21_10
-rw-rw-r--. 1 npg npg  64K Mar 10 09:50 R21_11
-rw-rw-r--. 1 npg npg  64K Mar 10 09:50 R21_12
-rw-rw-r--. 1 npg npg  64K Mar 10 09:50 R21_13
-rw-rw-r--. 1 npg npg  64K Mar 10 09:50 R21_14
-rw-rw-r--. 1 npg npg  64K Mar 10 09:50 R21_15
-rw-rw-r--. 1 npg npg  64K Mar 10 09:50 R21_16
-rw-rw-r--. 1 npg npg 407M Mar 10 09:50 R21_17
-rw-rw-r--. 1 npg npg 1.6G Mar 10 09:52 R21_18

TapeData rate of 13280 kB/sec
     No errors observed in ucesb
     Correlations seen between time machine in AIDA and Ge in online
     Pulser rate in the online makes sense
     With the current data rate remaining HDD space on current drive will last around 89 hours.

09.20 analysis of file R21_27
      ignore rates/elapsed idle time - timestamp incomplete until first info code 4 & 5 data

10:24 Message while performing system wide checks:
Get returned with an error
error: SOAP http transport timed out after 10000 ms
NONE
error: SOAP http transport timed out after 10000 ms
    while executing
"$transport $procVarName $url $req"
    (procedure "::SOAP::invoke" line 18)
    invoked from within
"::SOAP::invoke ::SOAP::_XAIDAAccessClient__Get 10"
    ("eval" body line 1)
    invoked from within
"eval ::SOAP::invoke ::SOAP::_XAIDAAccessClient__Get $args"
    (procedure "XAIDAAccessClient__Get" line 1)
    invoked from within
"XAIDAAccessClient__Get $Addr"

aida02 restarted itself during the reset process
     Looking at the log messages on aida02 cannot see any reason for the cause of the restart.
     System wide checks following the restart all ok.
     When restarting the MBS relay errors observed until a timestamp was observed:
     Warning: MBSTimeF = 0; 0x0000000000000000 0x00000000 0x00000000 0x00000000

10:55 Statistics - attachment 5
      Temperature - attachment 6

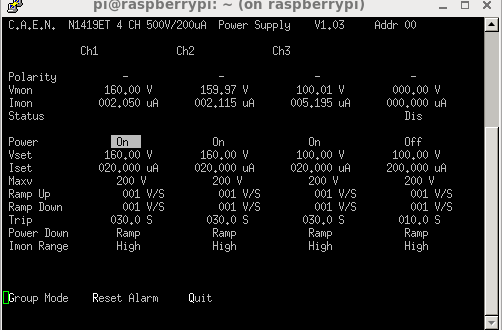

      Bias - attachment 7

11:03 Time machine correlation spectra with new merger
      AIDA - FATIMA - Attachment 8
      AIDA - Ge - Attachment 9

11:30 An implant rate observed in DSSD2. With no beam. A check of the ASIC control restored the rate to 0. Did not check the
layout to determine which FEE/ASIC caused the events before checking ASIC control

12:12 System wide checks all ok *except adc calibration which is same as before

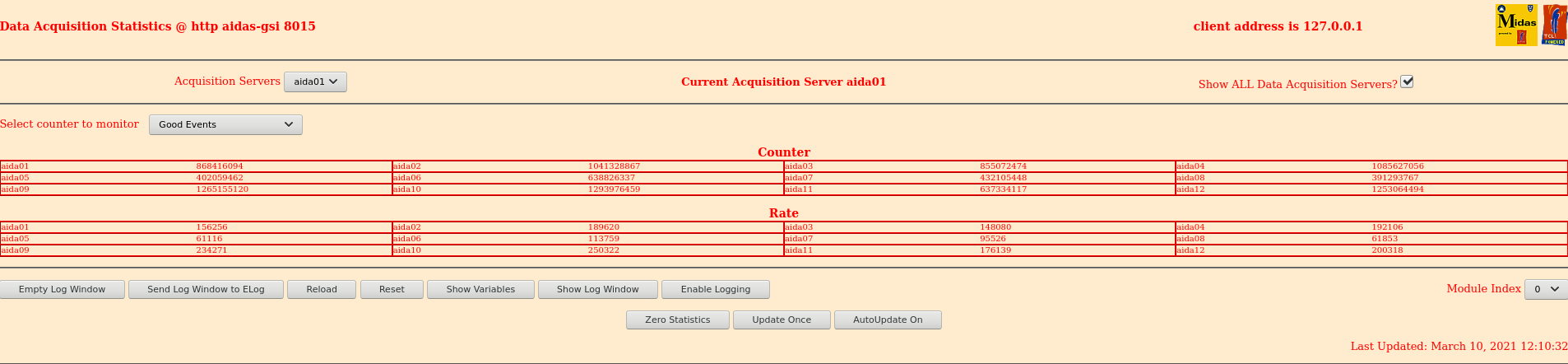

      Statistics - attachment 10
      Temperature - attachment 11

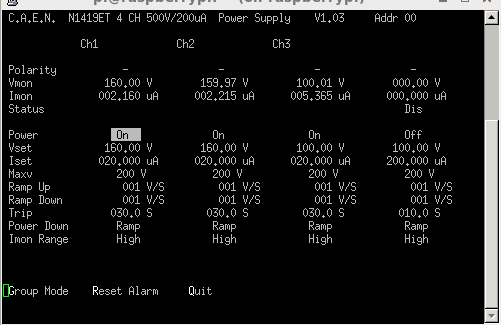

      Bias and leakage currents ok - attachment 12

A note on the statistics. aida11 has doubled in rate today and aida07 has gone down somewhat.

After talking with the DESPEC locals. Helena and Juergen entere at S4 at 9:40 German time.
      They stood on the platform but stayed away from the snout, they added two channels to the scope and adjusted the ribbon
cable from the VME scalers.

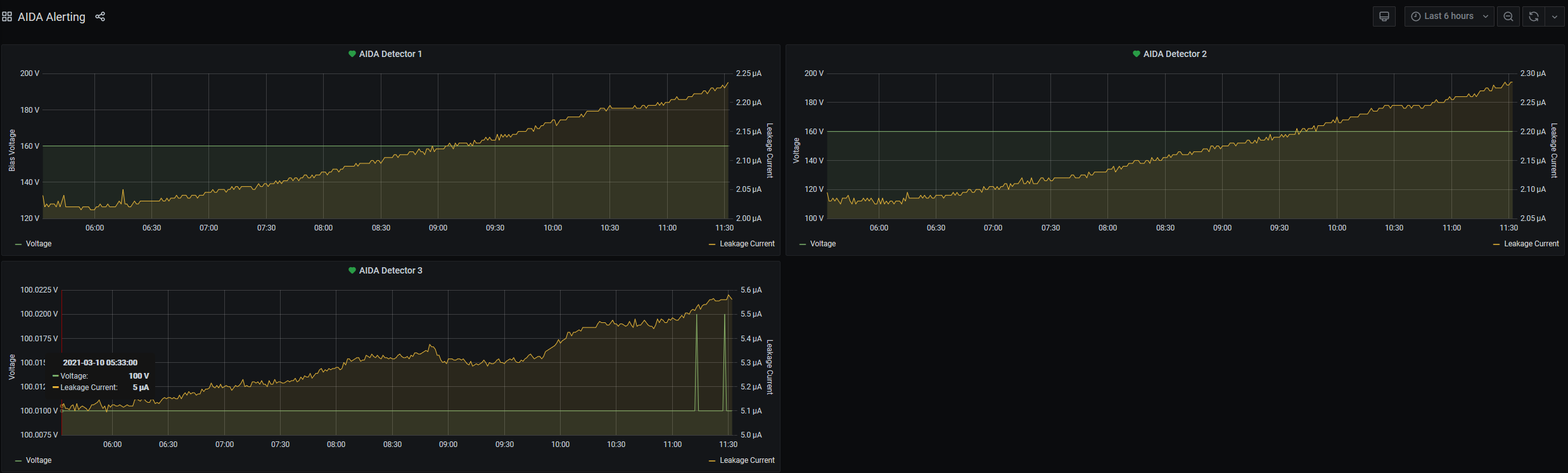

      Looking at the leakage currents on Grafana at 9:50 German time a fluctuation can be observed in the leakage currents of
DSSD3.

12:50 We have waveforms for some FEES
      Layout 7 attachment -14
      Layout 8 - attachment 15

14.00 (LS)
      Still no beam
      System wide checks okay except same as before:
      **FEE64 module aida07 failed
      FEE64 module aida10 failed
      Calibration test result: Passed 10, Failed 2
      If any modules fail calibration , check the clock status and open the FADC Align and Control browser page to rerun
      calibration for that module**

      Statistics (attachment16)
      Checked rate in aida07 and aida11 following Oscars previous comment, last four statistics attachments(1,5,10,16):
      aida07 - 124772, 81773, 95526, 101493 - seems to be increasing back up
      aida11 - 72901, 95942, 176139, 93799 - more than doubled but large drop in rate back below 100k will keep an eye on

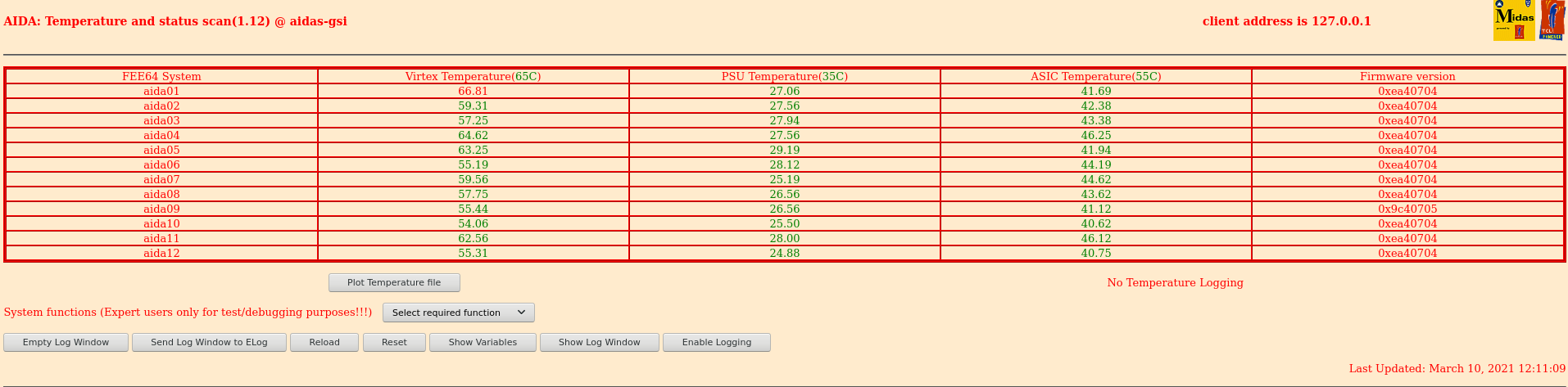

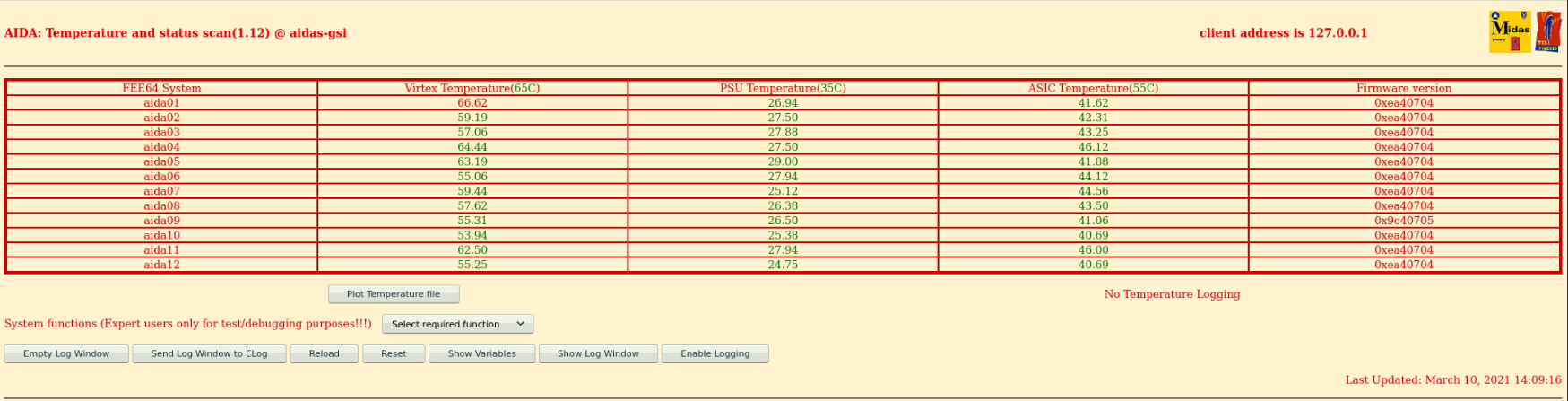

      FEE Temps (attachment17)

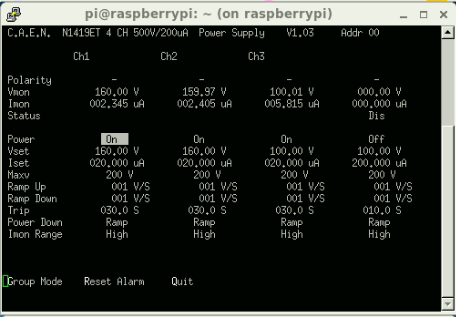

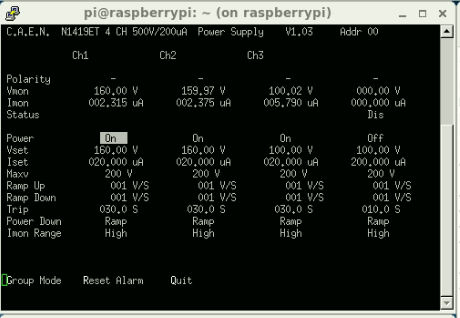

      Leakage currents written to sheets(attachment18)
      Merger ~ 45M items/s
      TapeServer~ 14MB/s

14.10 While performing checks informed that some beam is back, and they have started a run file (no. S452f113), AIDA on file
      R22_98, rate spectra attached (attachment19)

14.10 During the meeting errors appeared in ucesb, checked these timestamps with the corresponding AIDA files and saw
      no timewarps so we are not losing anything.
      Restarted MBS relay, errors have not reappeared so far

16.10 System wide checks all okay except aida07 and aida10 fail calibration (same as previous checks)
      Statistics (attachment20)
      Rate spectra (attachment21)

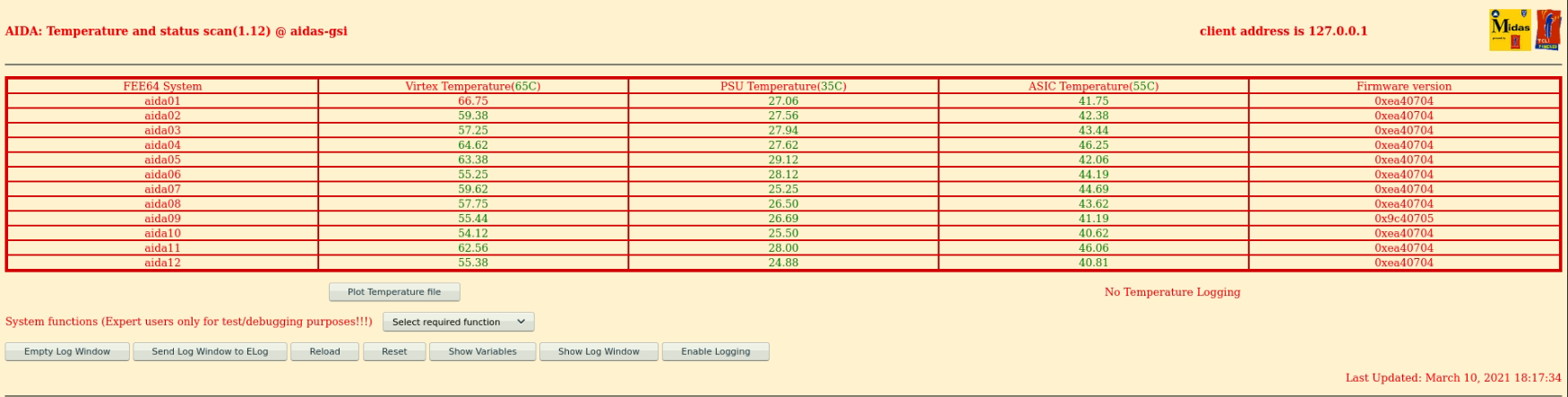

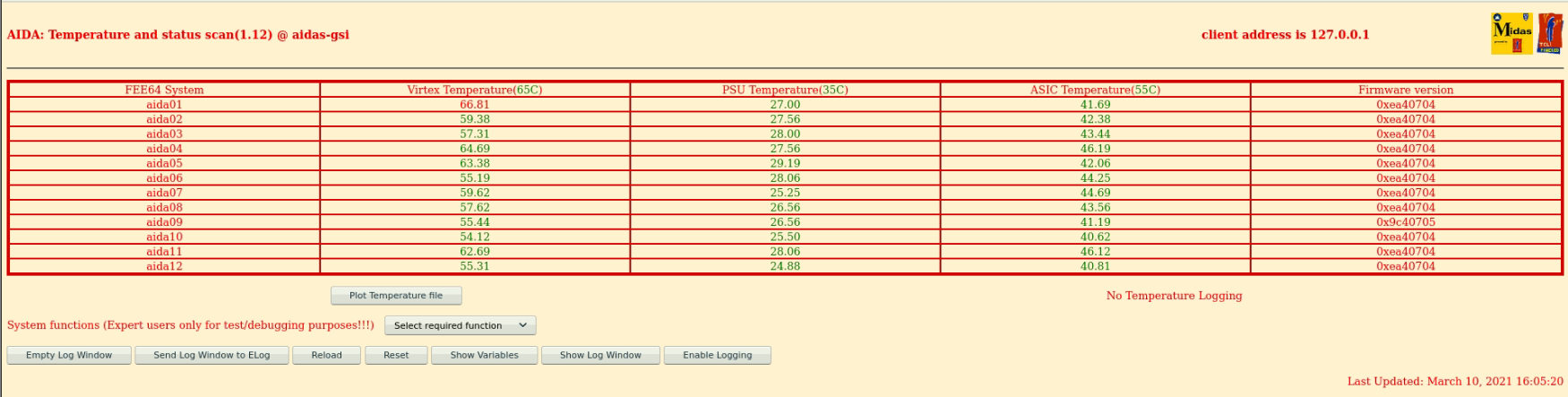

      FEE Temps (attachment22)

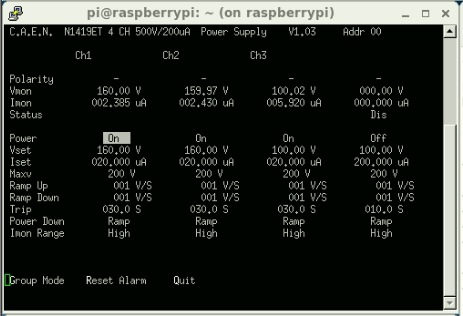

      Leakage currents written to sheets(attachment23)
      Merger ~ 4.3M items/s
      TapeServer~ 14MB/s
      Current file R22_148

16.26 Increase rate in AIDA as target slits have been opened wider (attachment24), corresponding to runs starting from
S452f115
      Around R22_150

18.00 Analysis of R22_122 (before slit adjustments think +-3mm) and R22_178 (after slit adjustment to +-5mm)
      Rates of R22_122 (attachment25):
      First DSSSD (fee0-fee3) ~66/s
      Second DSSSD (fee4-fee7) ~49/s
      Third DSSSD (fee8-fee11) ~22/s

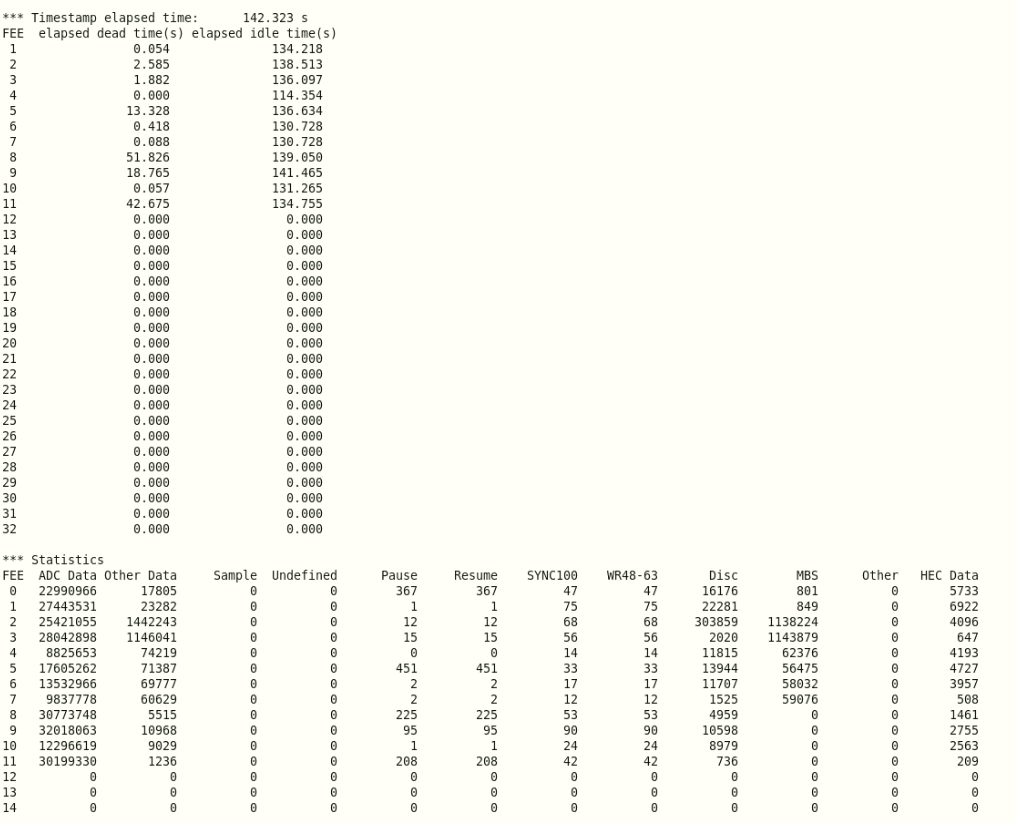

Rates of R22_178 (attachment26):
      First DSSSD (fee0-fee3) ~122/s
      Second DSSSD (fee4-fee7) ~94/s
      Third DSSSD (fee8-fee11) ~49/s

18.10 System wide checks all okay except aida07 and aida10 fail calibration (same as previous checks)
      Statistics (attachment27)
      Rate spectra (attachment28)
      FEE Temps (attachment29)
      Leakage currents written to sheets(attachment30), look to be on the way down
      Merger ~ 4.5M items/s
      TapeServer~ 15MB/s

18.24 Several timestamp errors again which also happened earlier (14.10) restarted MBS relay like earlier

19:34 MBS DAQ Crashed
20:00 DAQ is still down. They have Sultan working on it.

20:21 DAQ is back but there are issues with land04 (The raid array data is written to. It was taken out during the lustre
reboot)
      We are borrowing a HDD from the SHIP group

20:30 System wide checks all ok
      Statistics - attachment 31
      Temperature - attachment 32
      Bias - attachment 33

22:10 MBS DAQ has crashed
      Merger terminal is now showing a large number of bad merge events

It's taken a while but we have managed to get the DAQ back. We had to reset the AIDA MBS.

22:42 System wide checks all ok

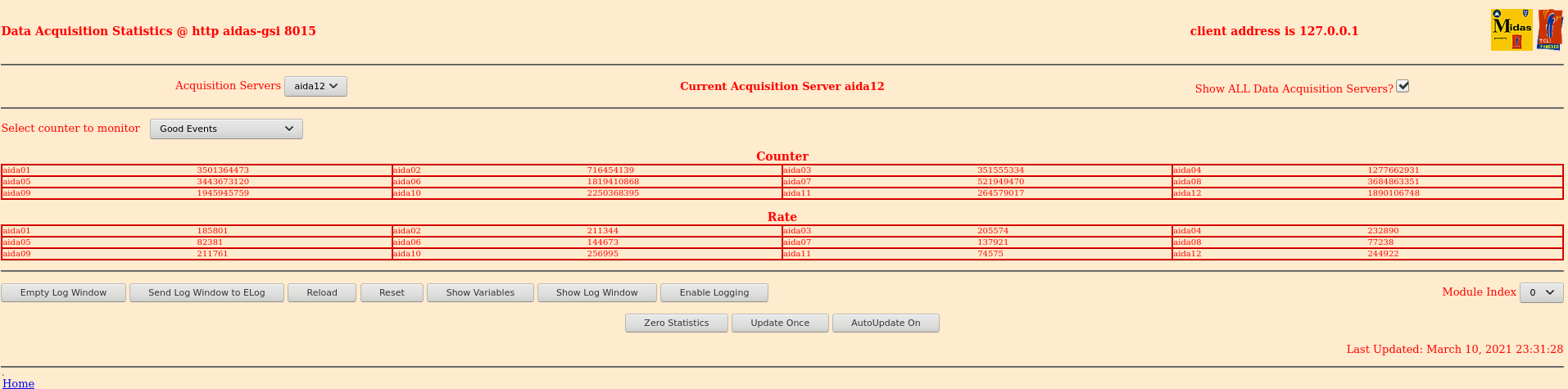

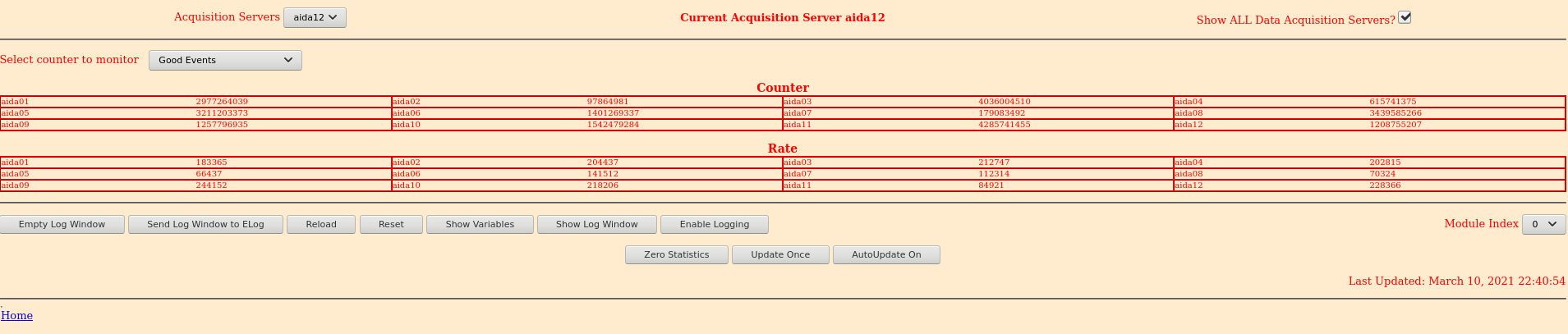

      Statistics - attachment 34
      Temperature - Attachment 35

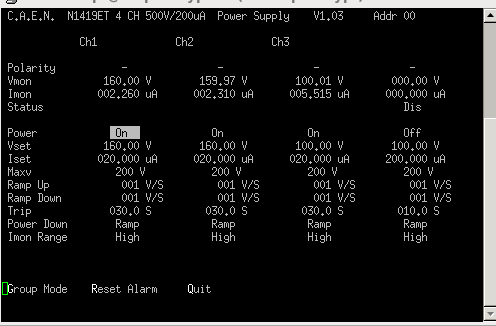

      Bias and leakage currents ok - attachment 36

23:33 System wide checks all ok - attachment 37
      Temperatures - attachment 38

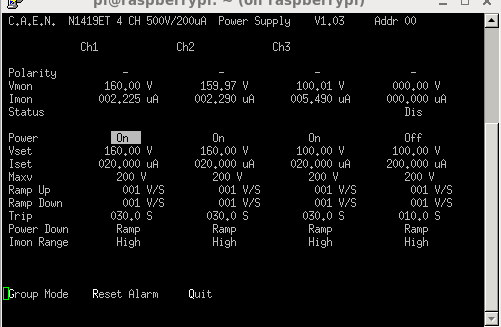

      Bias and leakage currents ok - attachment 39
