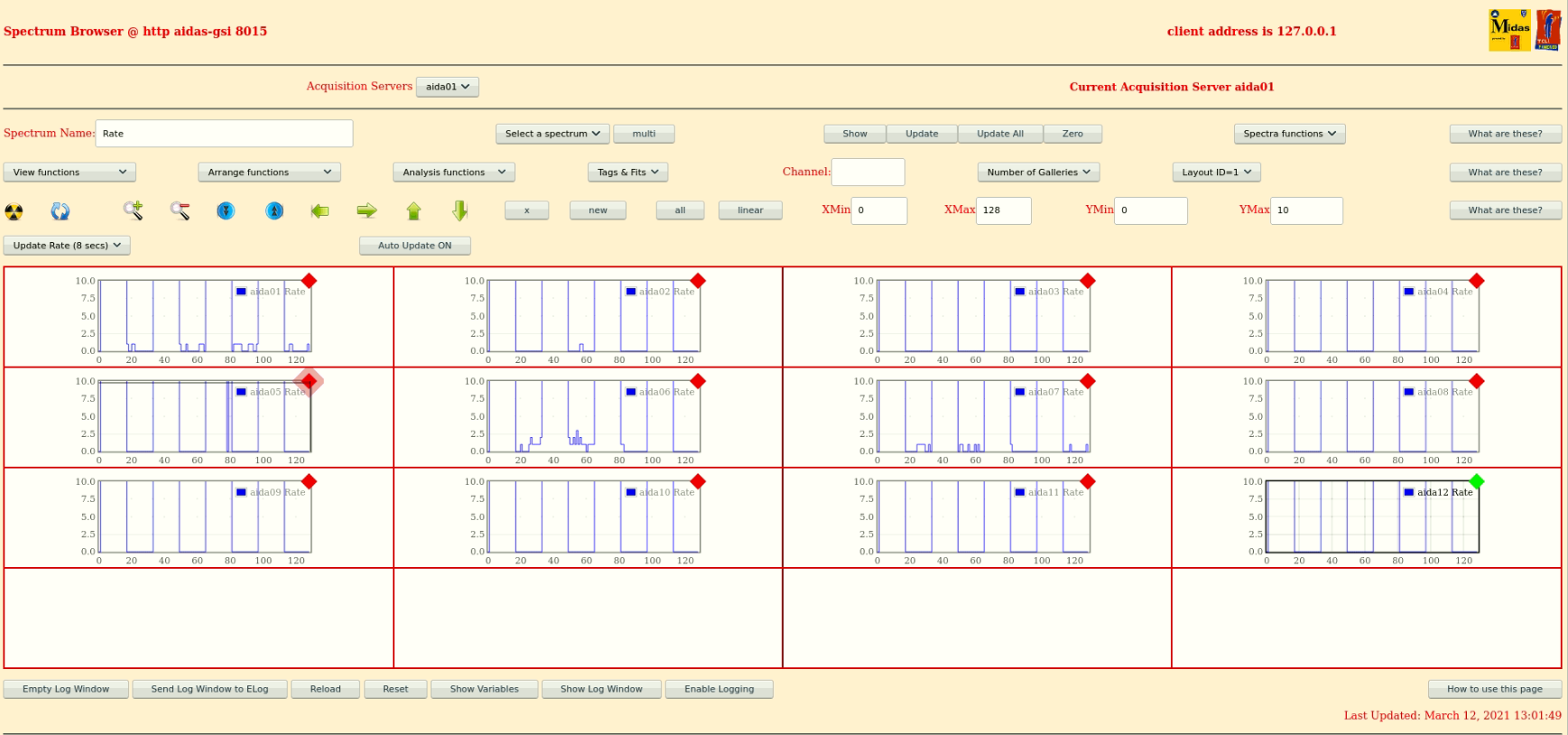

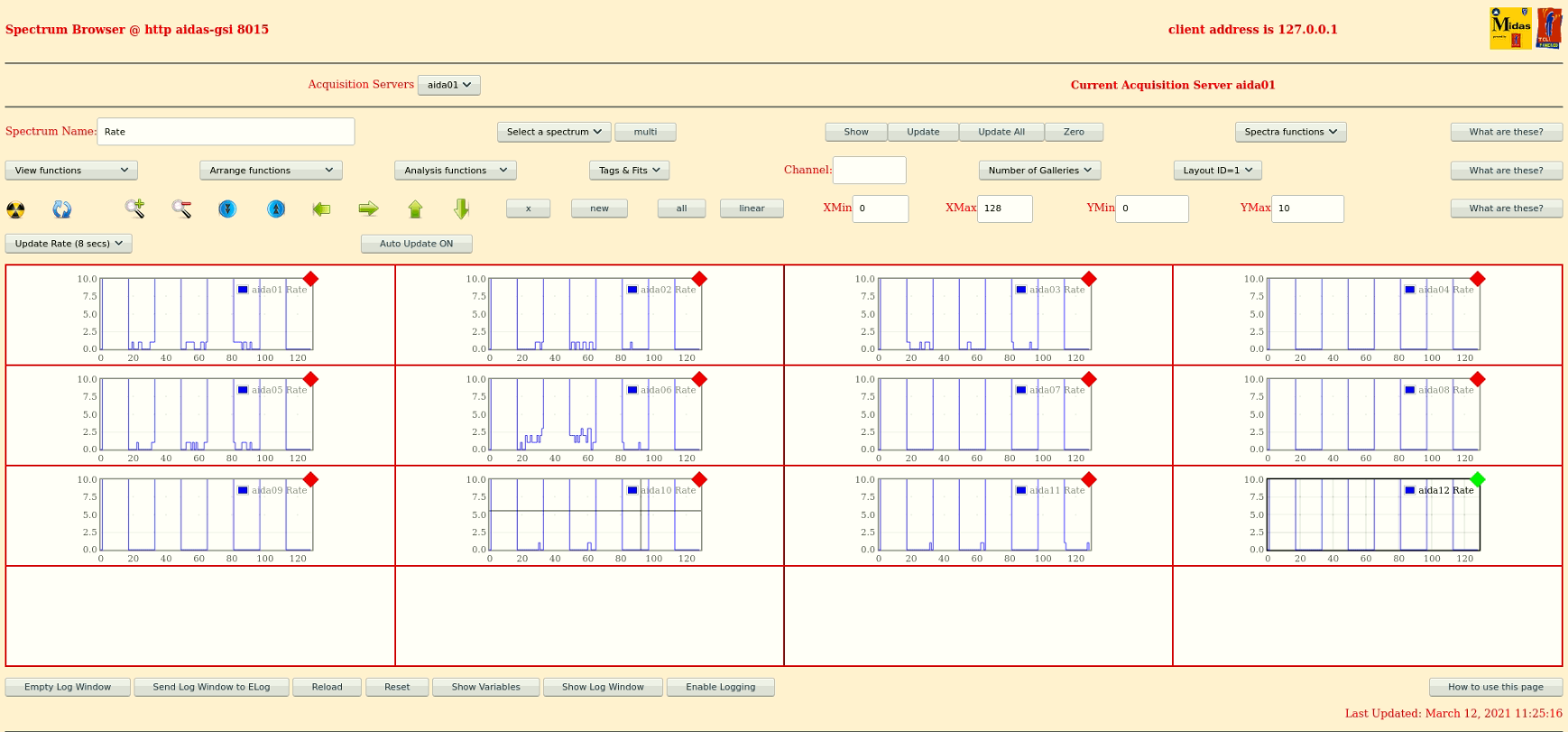

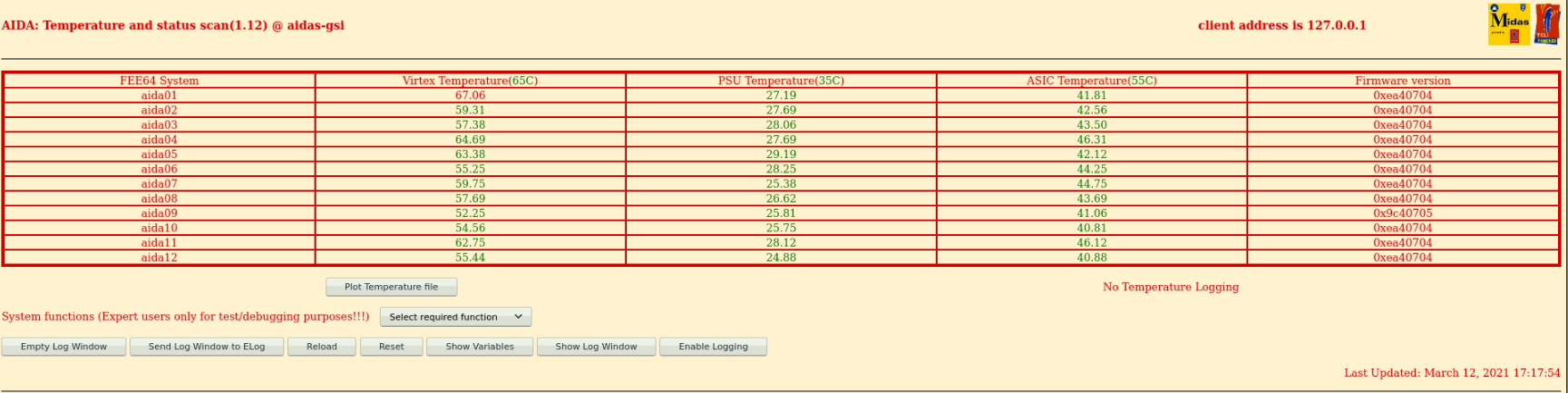

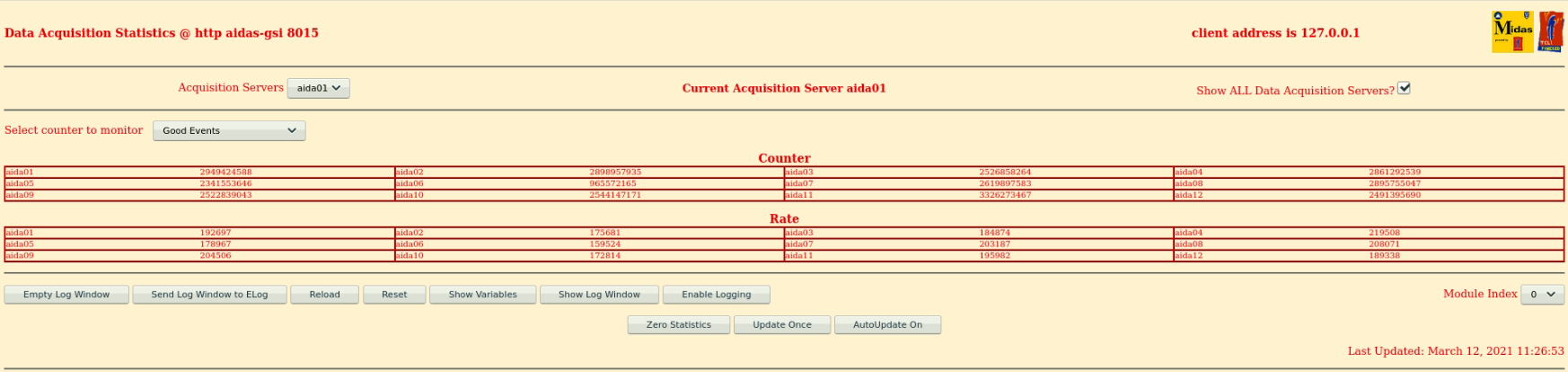

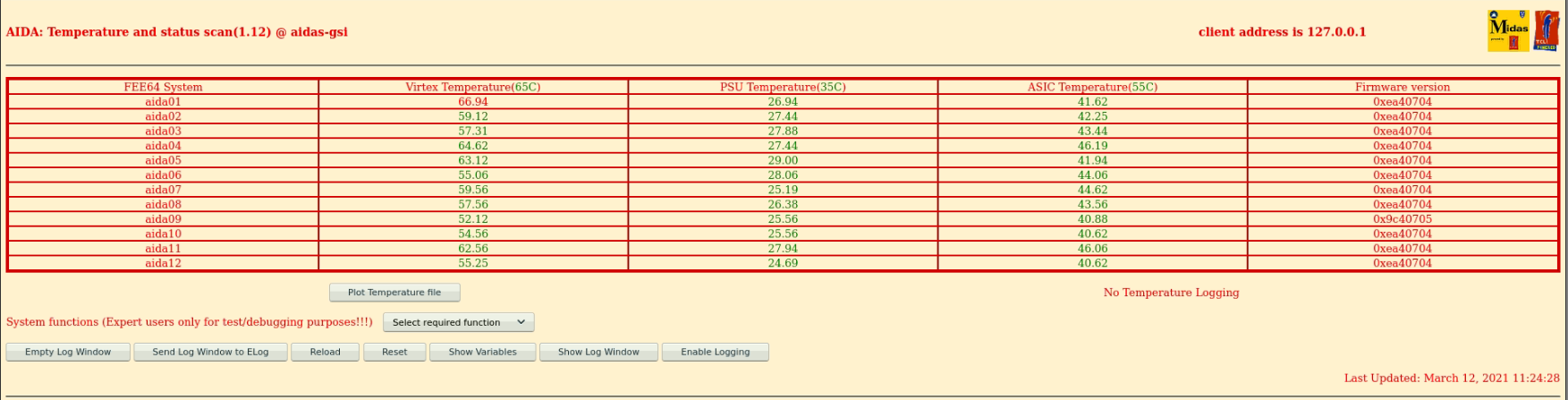

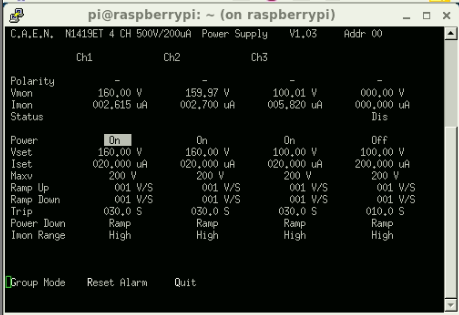

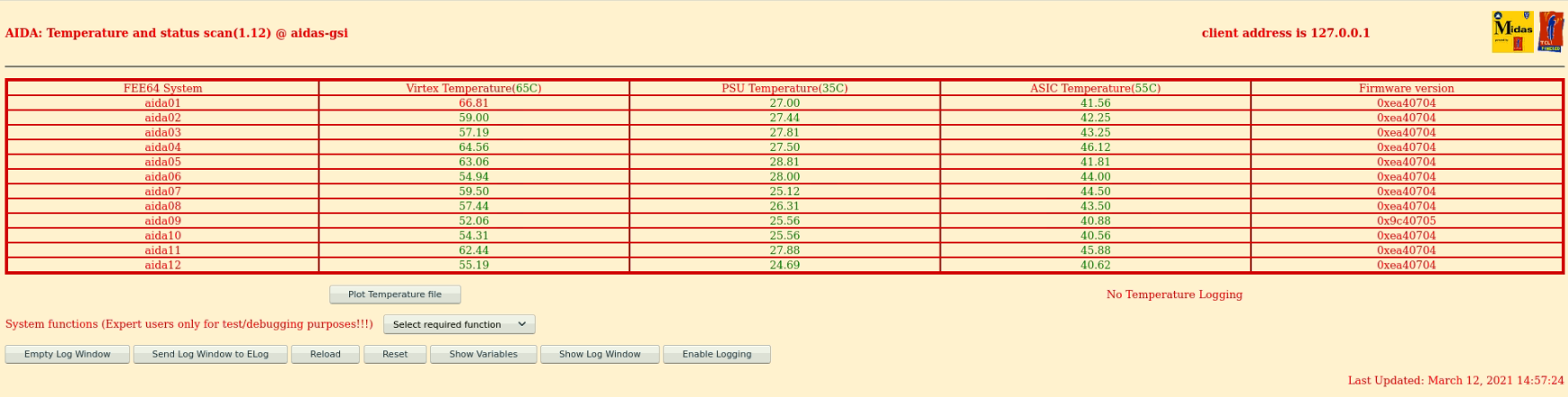

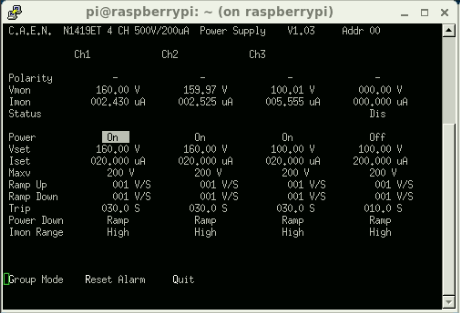

11.00(Germany) System wide checks okay except: FEE64 module aida09 global clocks failed, 6 Clock status test result: Passed 11, Failed 1 Understand status as follows Status bit 3 : firmware PLL that creates clocks from external clock not locked Status bit 2 : always logic '1' Status bit 1 : LMK3200(2) PLL and clock distribution chip not locked to external clock Status bit 0 : LMK3200(1) PLL and clock distribution chip not locked to external clock If all these bits are not set then the operation of the firmware is unreliable FEE64 module aida07 failed FEE64 module aida09 failed Calibration test result: Passed 10, Failed 2 If any modules fail calibration , check the clock status and open the FADC Align and Control browser page to rerun calibration for that module Statistics (attachment1) Spectra rates (attachment2) FEE temps (attachment3) Leakage currents, written to google sheet (attachment4) Merger~ 4.9M items/s Tapeserver ~17MB/s In MBS control terminal, connection has been closed intentionally since this morning (file S452f160), AIDA has been taken out of the timesorter due to the high data rate, buffers were full AIDA cannot be seen in ucesb or Go4. 13.00 System wide checks okay except: FEE64 module aida09 global clocks failed, 6 Clock status test result: Passed 11, Failed 1 Understand status as follows Status bit 3 : firmware PLL that creates clocks from external clock not locked Status bit 2 : always logic '1' Status bit 1 : LMK3200(2) PLL and clock distribution chip not locked to external clock Status bit 0 : LMK3200(1) PLL and clock distribution chip not locked to external clock If all these bits are not set then the operation of the firmware is unreliable FEE64 module aida07 failed FEE64 module aida09 failed Calibration test result: Passed 10, Failed 2 If any modules fail calibration , check the clock status and open the FADC Align and Control browser page to rerun calibration for that module Statistics (attachment5) Spectra rates (attachment6) FEE temps (attachment7) Leakage currents, written to google sheet (attachment8) Merger~ 5.1M items/s Tapeserver ~18MB/s No timestamp related errors this shift 13.37 AIDA MBS control restarted R33_388 System wide checks same as previous time 13.54 beam stopped for access, file R33_396 13.57 seen recent batch of bad timestamp errors in new merger terminal (attachment9) should be around R33_397 Analysed R33_395, 396, 397, 398 no timewarps 14.29 beam back R33_415 14.54 see more bad timestamps in new merger terminal (attachment10) 14.55 System wide checks okay except: FEE64 module aida09 global clocks failed, 6 Clock status test result: Passed 11, Failed 1 Understand status as follows Status bit 3 : firmware PLL that creates clocks from external clock not locked Status bit 2 : always logic '1' Status bit 1 : LMK3200(2) PLL and clock distribution chip not locked to external clock Status bit 0 : LMK3200(1) PLL and clock distribution chip not locked to external clock If all these bits are not set then the operation of the firmware is unreliable FEE64 module aida07 failed FEE64 module aida09 failed Calibration test result: Passed 10, Failed 2 If any modules fail calibration , check the clock status and open the FADC Align and Control browser page to rerun calibration for that module Statistics (attachment11) Spectra rates (attachment12) FEE temps (attachment13) Leakage currents, written to google sheet (attachment14) Merger~ 5.0M items/s Tapeserver ~17MB/s 16.05 AIDA included back into timesorter, AIDA scalers now seen in ucesb, file R33_463 16.15 CA takes over until 18:00 17:11 System wide checks: FEE64 module aida09 global clocks failed, 6 Clock status test result: Passed 11, Failed 1 Understand status as follows Status bit 3 : firmware PLL that creates clocks from external clock not locked Status bit 2 : always logic '1' Status bit 1 : LMK3200(2) PLL and clock distribution chip not locked to external clock Status bit 0 : LMK3200(1) PLL and clock distribution chip not locked to external clock If all these bits are not set then the operation of the firmware is unreliable FEE64 module aida07 failed FEE64 module aida09 failed Calibration test result: Passed 10, Failed 2 If any modules fail calibration , check the clock status and open the FADC Align and Control browser page to rerun calibration for that module Base Current Difference aida07 fault 0xcdd6 : 0xcdd7 : 1 White Rabbit error counter test result: Passed 11, Failed 1 17:13 FEE64 temps ok - attachment 15 Statistics ok - attachment 16 bias and leakage currents ok - attachment 17
