ASIC settings 2019Dec19-16.19.51
      DSSSD#1 slow comparator 0xa
      DSSSD#2 slow comparator 0xa
      DSSSD#3 slow comparator 0xd

      BNC PB-5 Pulser
      Amplitude1.0V
      Attenuation x1
      Frequency 2Hz
      tau_d 1ms
      - polarity
      Delay 250ns, tail pulse


08:09 System wide checks ok *except*

      aida09 fails clock check

      aida09 calibration failed

08:14 FEE64 temperatures ok - attachment 1

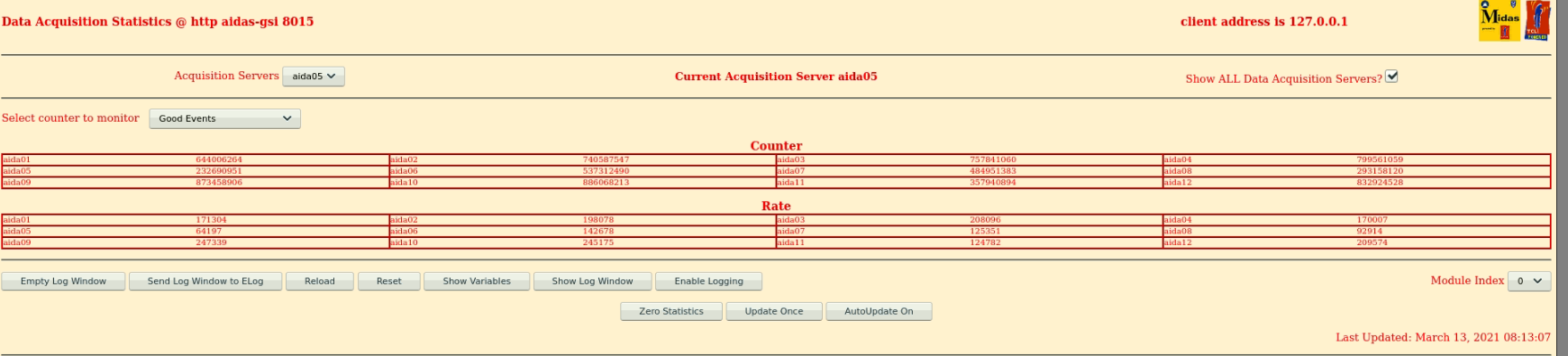

      good event statistics ok - attachment 2

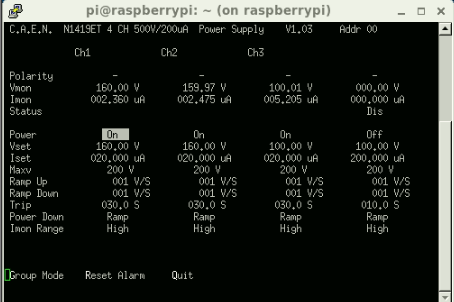

      detector bias/leakage current ok - attachment 3

08:22 Merger 4.3M items/s

      Tapeserver 14 MB/s

08:24 DAQ ok, writing to file R43_45

08:39 rate spectra - attachment 4

      aida09 spectrum not showing, however continues to collect statistics ok

10:03 System wide checks ok *except*

      aida09 fails clock check

      aida09 calibration failed

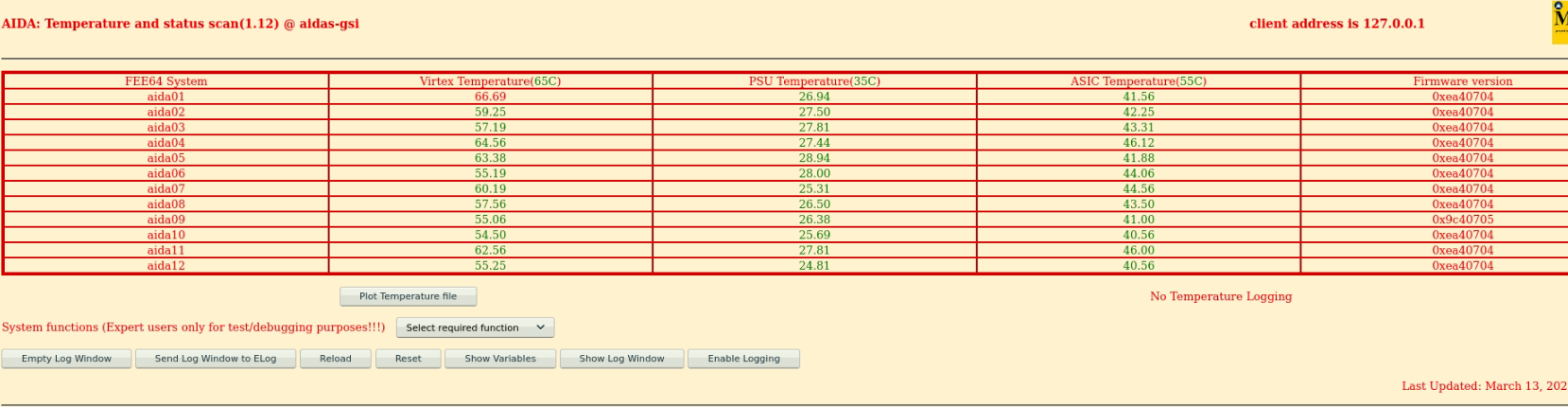

      FEE64 temperatures ok - attachment 5

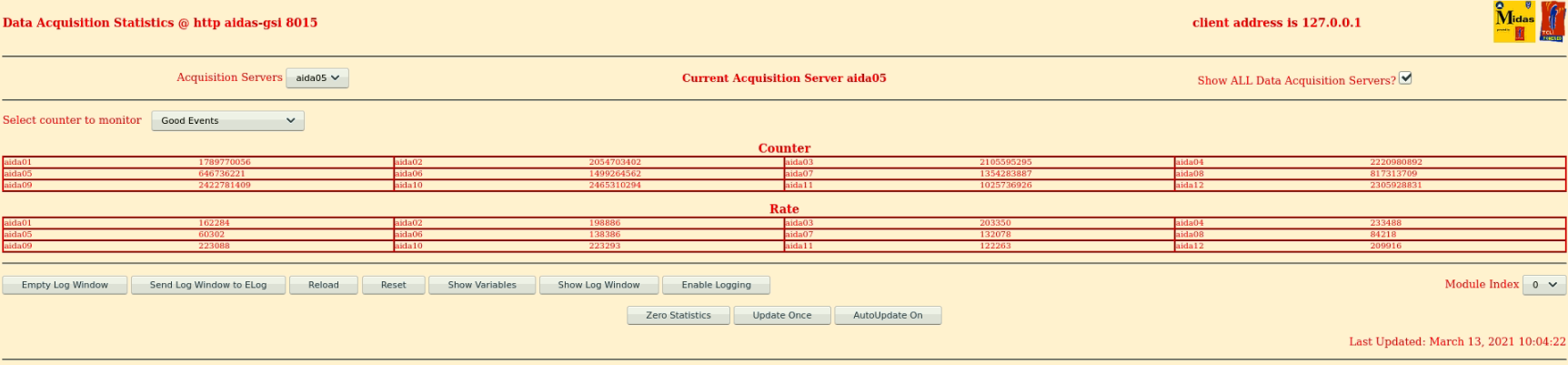

      good event statistics ok - attachment 6

      detector bias/leakage current ok - attachment 7

10:10 Merger 4.5M items/s

      Tapeserver 14 MB/s

      data forwarding to MBS ok

10:11 writing to file R43_91

12.00 (LS)
      System wide checks:
      FEE64 module aida09 global clocks failed, 6
      Clock status test result: Passed 11, Failed 1
      Understand status as follows
      Status bit 3 : firmware PLL that creates clocks from external clock not locked
      Status bit 2 : always logic '1'
      Status bit 1 : LMK3200(2) PLL and clock distribution chip not locked to external clock
      Status bit 0 : LMK3200(1) PLL and clock distribution chip not locked to external clock
      If all these bits are not set then the operation of the firmware is unreliable


      FEE64 module aida09 failed
      Calibration test result: Passed 11, Failed 1
      If any modules fail calibration , check the clock status and open the FADC Align and Control browser page to rerun
      calibration for that module

      		         Base 		Current 	Difference
      aida07 fault 	 0x829e : 	 0x829f : 	 1
      White Rabbit error counter test result: Passed 11, Failed 1
      Understand the status reports as follows:-
      Status bit 3 : White Rabbit decoder detected an error in the received data
      Status bit 2 : Firmware registered WR error, no reload of Timestamp
      Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR

      no FGPA timestamp errors all passed

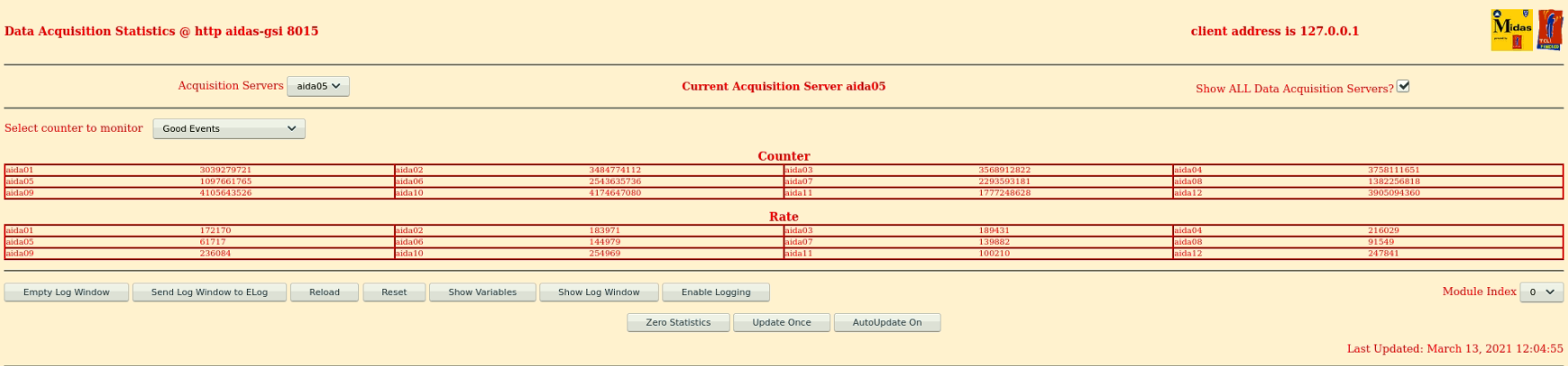

      Statistics (attachment8)
      Spectra rate (attachment9), aida09 still does not show histogram, but on run control are enabled for all fees. still
      showing good events and other information (temperatures etc)
      FEE temps (attachment10)

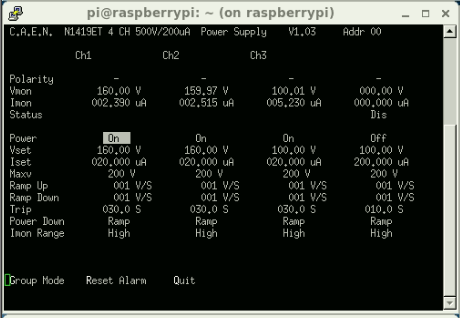

      Leakage currents written to sheets (attachment11)
      Merger~4.6M items/s
      Tapeserver~14MB/s

12.36 bunch of bad timestamp errors in the new merger terminal (attachment 12) around file R43_152
      this error is still occurring at 12.45 will continue to monitor, all other system checks are reporting as normal


13.50 beam down file R43_183
      beam back a couple of minutes later

14.00 System wide checks:
      FEE64 module aida09 global clocks failed, 6
      Clock status test result: Passed 11, Failed 1
      Understand status as follows
      Status bit 3 : firmware PLL that creates clocks from external clock not locked
      Status bit 2 : always logic '1'
      Status bit 1 : LMK3200(2) PLL and clock distribution chip not locked to external clock
      Status bit 0 : LMK3200(1) PLL and clock distribution chip not locked to external clock
      If all these bits are not set then the operation of the firmware is unreliable


      FEE64 module aida09 failed
      Calibration test result: Passed 11, Failed 1
      If any modules fail calibration , check the clock status and open the FADC Align and Control browser page to rerun
      calibration for that module

      no white rabbit or FPGA errors all passed

      Statistics (attachment13)
      Spectra rate (attachment14)
      FEE temps (attachment15)

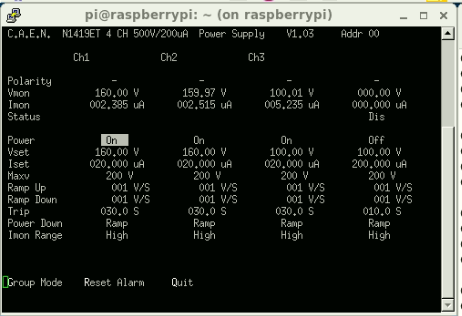

      Leakage currents written to sheets (attachment16)
      Merger~4.6M items/s
      Tapeserver~14MB/s
      Writing to MBS okay, still seeing bad timestamp errors in the new merger terminal continuing to monitor and update
      statistics tab every 20 to 30 minutes

14.12 Analysed files R43_185,186,187 from timestamp error in ucesb, but see no timewarps

14.30 have not seen any bad timestamp errors in new merger terminal for a while, unsure if something has been changed which
      has stopped them

15.25 beam down
15.53 beam back

16.00 moved back to writing to /media/SecondDrive which should last until the end of the experiment
      now writing R46

16.10 System wide checks okay except:
      FEE64 module aida09 global clocks failed, 6
      Clock status test result: Passed 11, Failed 1
      Understand status as follows
      Status bit 3 : firmware PLL that creates clocks from external clock not locked
      Status bit 2 : always logic '1'
      Status bit 1 : LMK3200(2) PLL and clock distribution chip not locked to external clock
      Status bit 0 : LMK3200(1) PLL and clock distribution chip not locked to external clock
      If all these bits are not set then the operation of the firmware is unreliable


      FEE64 module aida09 failed
      Calibration test result: Passed 11, Failed 1
      If any modules fail calibration , check the clock status and open the FADC Align and Control browser page to rerun
      calibration for that module

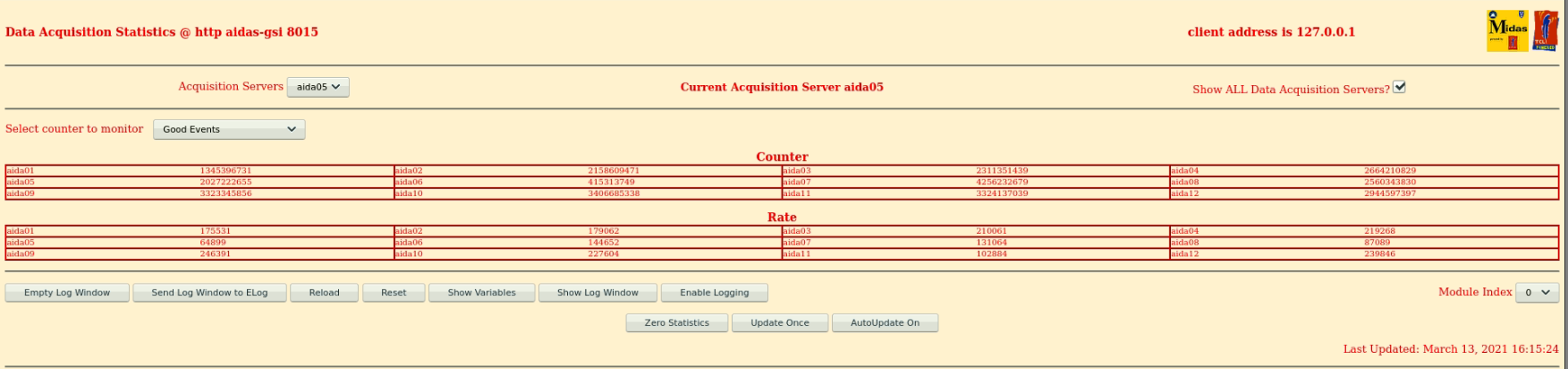

      Statistics (attachment17)
      Spectra rate (attachment18)
      FEE temps (attachment19)
      Leakage currents written to sheets (attachment20)
      Merger~4.7M items/s
      Tapeserver~14MB/s
      Writing to MBS okay
