Entry time:

Sat Mar 13 23:08:08 2021

Author*:

Subject*:

00:08 DAQ continues ok - writing to file R46_221

ASIC settings 2019Dec19-16.19.51
      DSSSD#1 slow comparator 0xa
      DSSSD#2 slow comparator 0xa
      DSSSD#3 slow comparator 0xd

BNC PB-5 Pulser
      Amplitude1.0V
      Attenuation x1
      Frequency 2Hz
      tau_d 1ms
      - polarity
      Delay 250ns, tail pulse

00:09 system wide checks:

FEE64 module aida09 global clocks failed, 6
Clock status test result: Passed 11, Failed 1

Understand status as follows
Status bit 3 : firmware PLL that creates clocks from external clock not locked
Status bit 2 : always logic '1'
Status bit 1 : LMK3200(2) PLL and clock distribution chip not locked to external clock
Status bit 0 : LMK3200(1) PLL and clock distribution chip not locked to external clock
If all these bits are not set then the operation of the firmware is unreliable

FEE64 module aida09 failed
Calibration test result: Passed 11, Failed 1

If any modules fail calibration , check the clock status and open the FADC Align and Control browser page to rerun calibration for that module

Base 		Current 	Difference
aida07 fault 	 0x82a0 : 	 0x82a4 : 	 4
White Rabbit error counter test result: Passed 11, Failed 1

Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR

Base 		Current 		Difference
aida07 fault 	 0x2 : 	 0x3 : 	 1
FPGA Timestamp error counter test result: Passed 11, Failed 1
If any of these counts are reported as in error
The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last

Returned 0 0 0 0 0 0 0 0 0 0 0 0
Mem(KB) :	4	8	16	32	64	128	256	512	1k	2k	4k
aida01 :     11      6      2      5      1      3      2      2      3      4     10   : 54492
aida02 :     12      7      3      4      3      3      3      2      3      3      6   : 36440
aida03 :      4      4      2      4      2      3      2      2      3      3      6   : 36048
aida04 :     18      9      4      2      1      3      2      4      1      4     15   : 73936
aida05 :     31     11      8      7      6      4      2     18      7      4      7   : 55220
aida06 :     36      8     18      4      4      2      1      4      3      2      5   : 31088
aida07 :     26      7      4      3      1      2      1      3      3      3      6   : 36224
aida08 :     25     12      5      4      4      3      2      3      3      3      6   : 36884
aida09 :      2      9      4      2      2      2      2      3      3      3      6   : 36432
aida10 :     11      3      4      6      4      3      1      3      3      3      6   : 36548
aida11 :     21      8      5      0      1      3      3      3      2      3      6   : 35748
aida12 :     10      6      6      2      4      4      1      3      3      3      6   : 36600

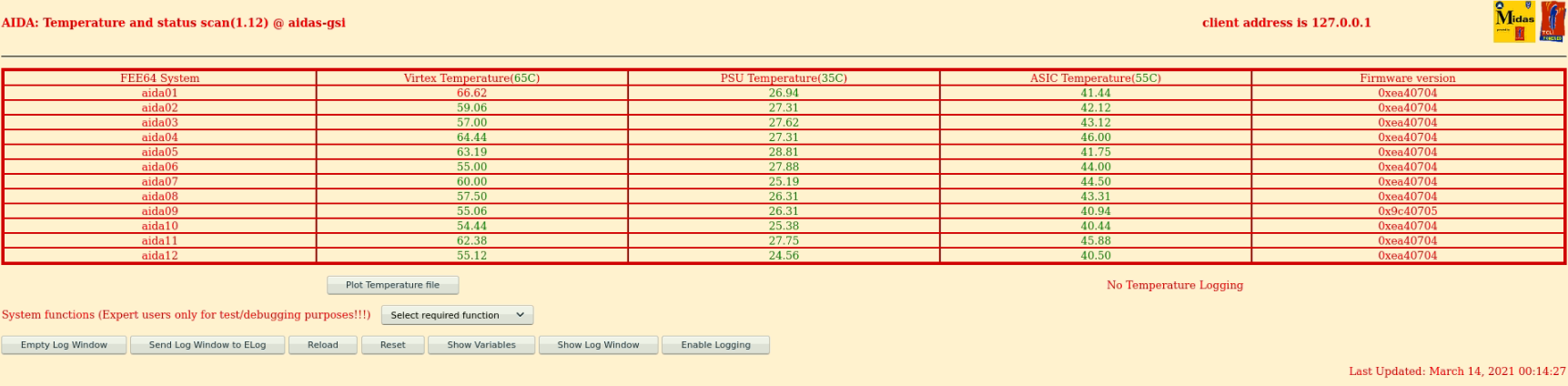

00:14 FEE64 Temperatures ok - attachment 1

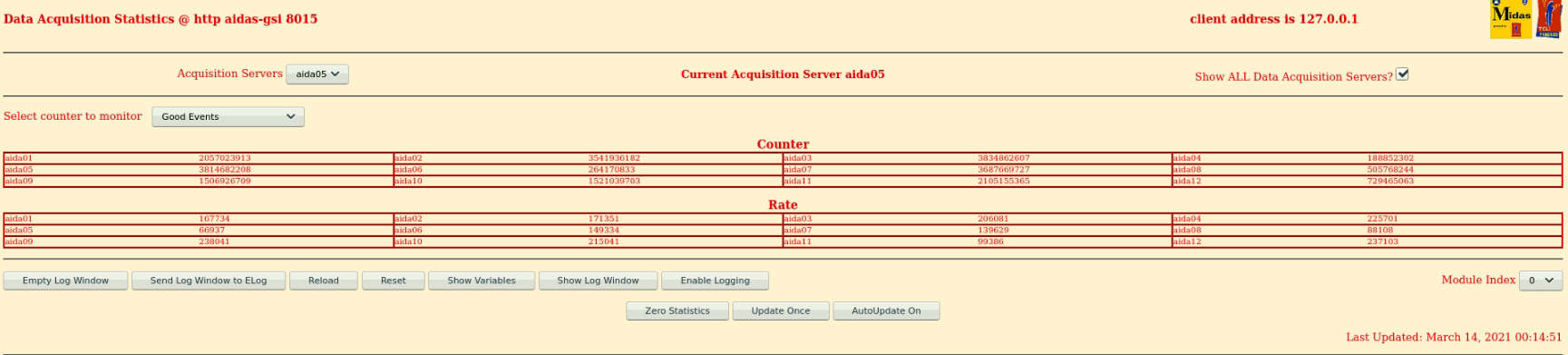

      Good event statistics ok - attachment 2

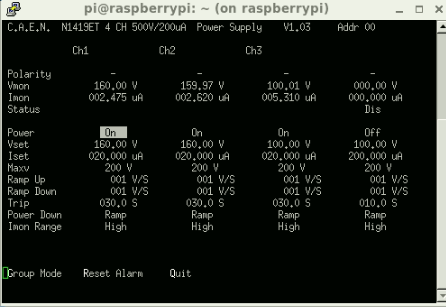

      Detector bias/leakage currents ok - attachment 3

00:17 Merger ok - 4.4M items/s
      TapeServer ok - 14 MB/s

01:30 beam off

01:31 beam back

02:19 system wide checks

same as entry at 00:09, *except*

Base 		Current 	Difference
aida07 fault 	 0x82a0 : 	 0x82a5 : 	 5
White Rabbit error counter test result: Passed 11, Failed 1

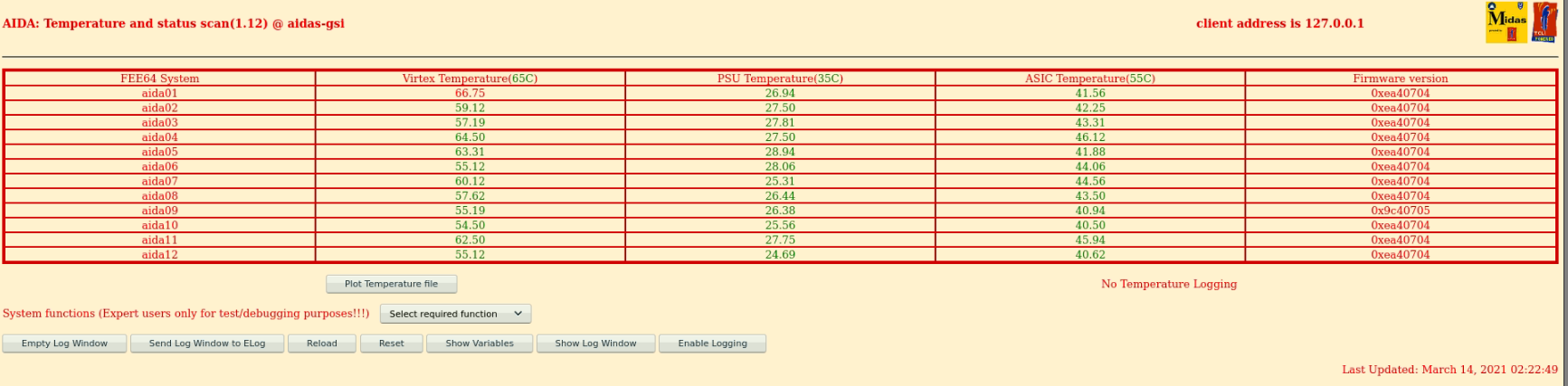

02:22 FEE64 Temperatures ok - attachment 4

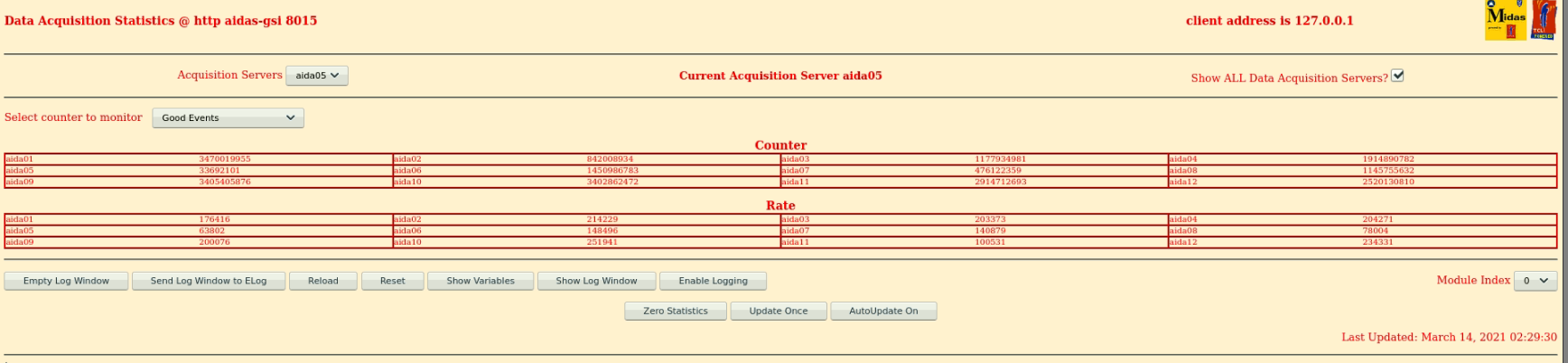

      Good event statistics ok - attachment 5

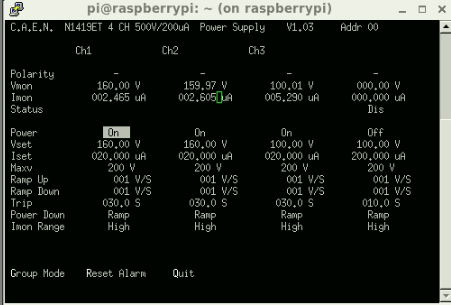

      Detector bias/leakage currents ok - attachment 6

02:30 Merger ok - 4.4M items/s
      TapeServer ok - 14 MB/s

no further bad timestamp errors in NewMerger terminal

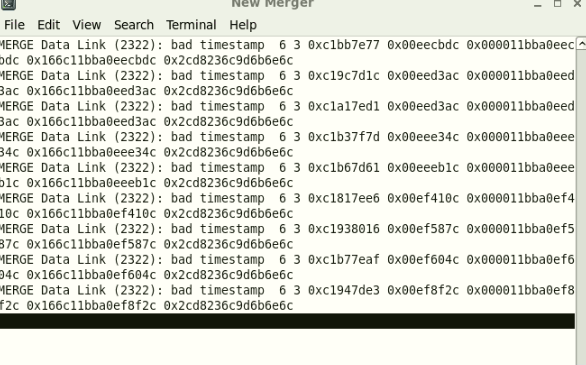

02:40 ... burst of bad timestamp errors in NewMerger terminal - attachment 7

02:50 ... and sure enough lose connection to aida07 after checking stats

DAQ stop, Merger/TapeServer closed

telnet aida07 -> sent reboot command

mounted ok, reset DAQ, TapeService and Merge

restarted DATA forwarding to MBS

all looks to be ok now -> writing to R56

03:09 system wide checks:

FEE64 module aida09 global clocks failed, 6
Clock status test result: Passed 11, Failed 1

FEE64 module aida07 failed
FEE64 module aida09 failed
Calibration test result: Passed 10, Failed 2

If any modules fail calibration , check the clock status and open the FADC Align and Control browser page to rerun calibration for that module

Base 	Current Difference
aida07 fault 	 0x2 : 	 0x5 : 	 3
FPGA Timestamp error counter test result: Passed 11, Failed 1
If any of these counts are reported as in error
The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last

Returned 0 0 0 0 0 0 0 0 0 0 0 0
Mem(KB) :	4	8	16	32	64	128	256	512	1k	2k	4k
aida01 :     13      5      3      7      2      2      2      2      3      4     10   : 54508
aida02 :      2      7      3      2      2      3      1      4      3      3      6   : 36784
aida03 :      8      8      1      3      2      3      1      3      3      3      6   : 36304
aida04 :     20      9      2      3      0      3      2      4      1      4     15   : 73880
aida05 :     51     74     70     54     53     49     22     18      7      4      7   : 72188
aida06 :     15     15      3      9      1      2      2      4      3      2      5   : 31044
aida07 :     24      6      2      3      3      4      2      3      2      3      7   : 39888
aida08 :     19     15      1      2      1      3      1      4      3      3      6   : 36820
aida09 :     18      4      2      7      3      4      1      3      3      3      6   : 36648
aida10 :     20      7      1      1      1      3      3      2      3      3      6   : 36216
aida11 :     25      7      5      3      4      2      1      4      2      3      6   : 35916
aida12 :      3      3      2      2      3      2      3      2      3      3      6   : 36164

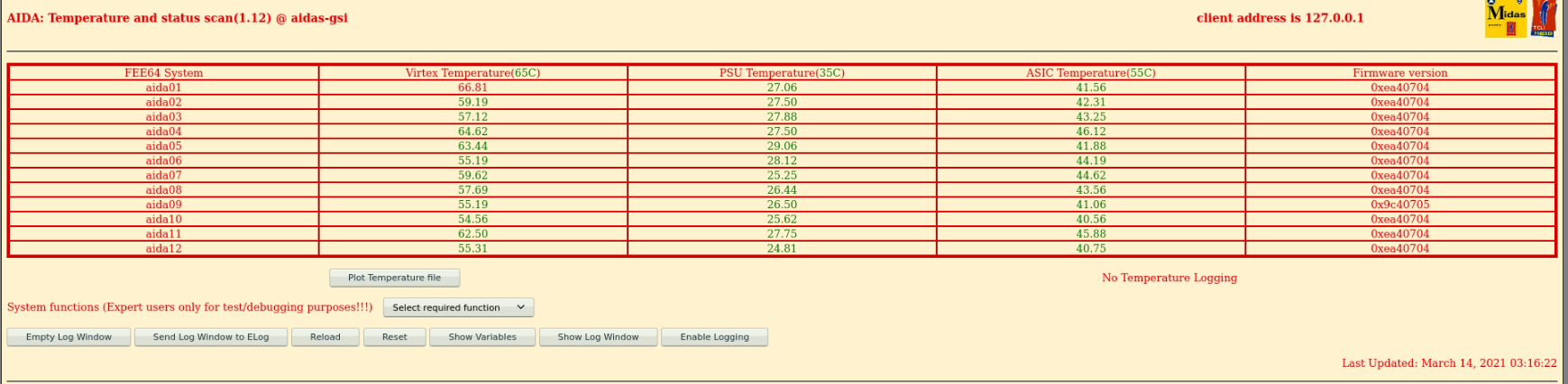

03:18 FEE64 Temperatures ok - attachment 8

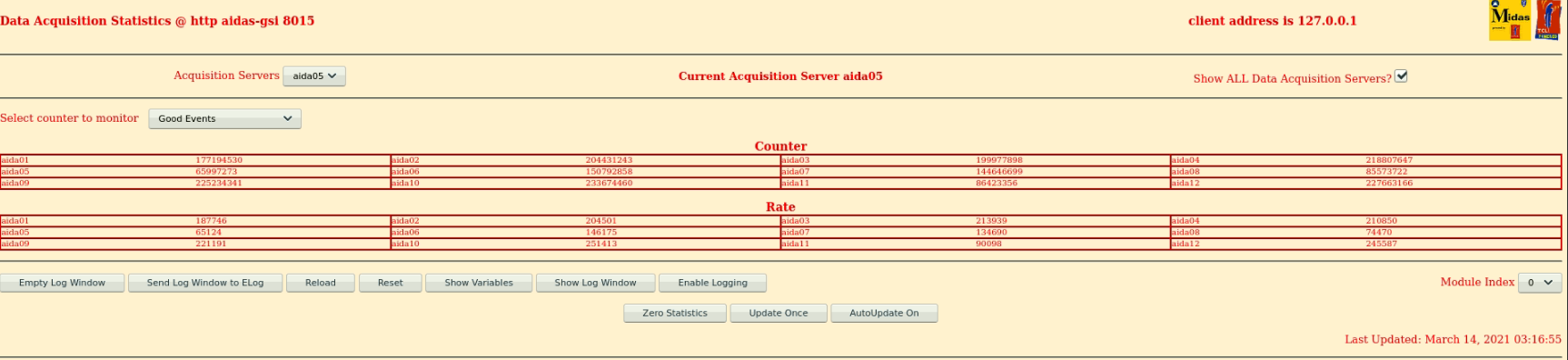

      Good event statistics ok - attachment 9

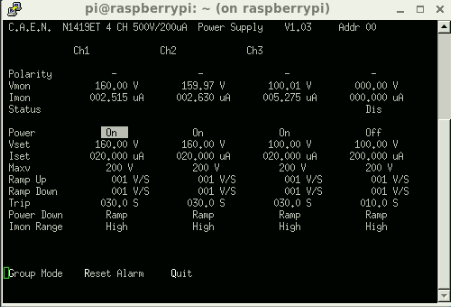

      Detector bias/leakage currents ok - attachment 10

Merger ok - 4.4M items/s
      TapeServer ok - 14 MB/s

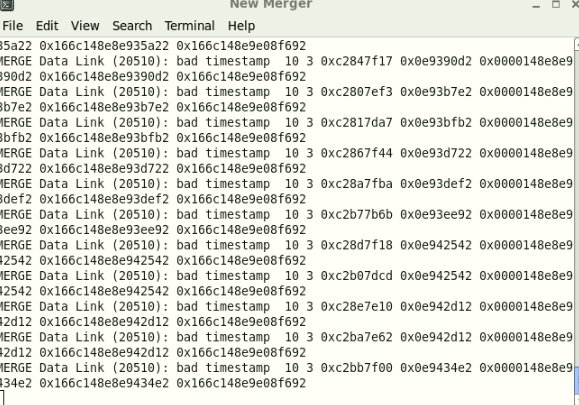

03:29 more bad timestamp error messages - attachment 11

03:52 analyser output on R56_35 - attachment 12

no timewarps

03:53 DAQ continues ok, writing to file R56_41

05:18 system wide checks:

same as entry at 03:08, *but* with additional WR decoder status error

Base 		Current 	Difference
aida07 fault 	 0x8c74 : 	 0x8c77 : 	 3
White Rabbit error counter test result: Passed 11, Failed 1

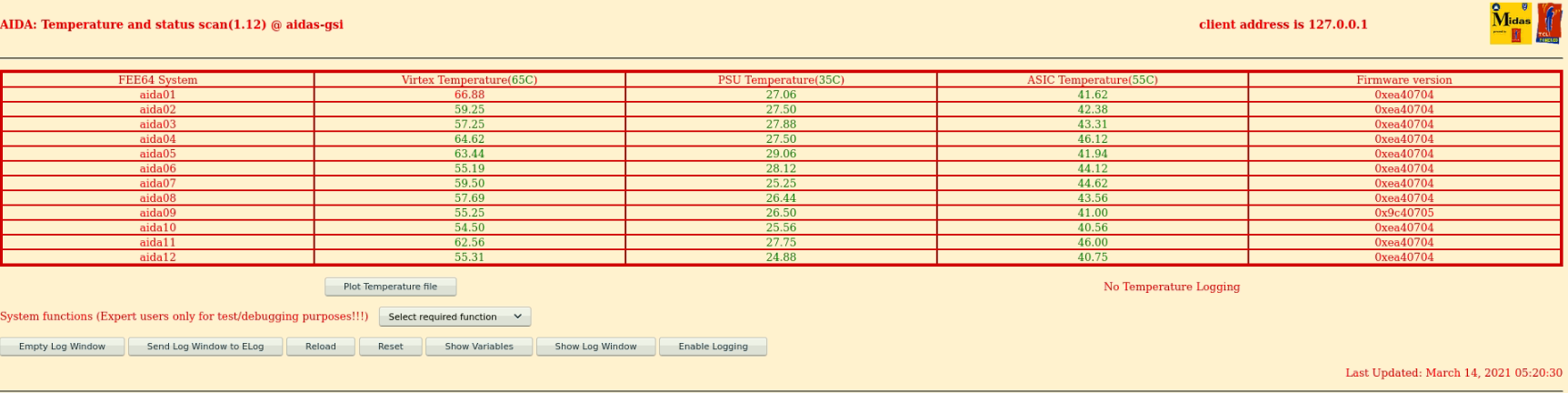

05:19 FEE64 Temperatures ok - attachment 14
      Good event statistics ok - attachment 13

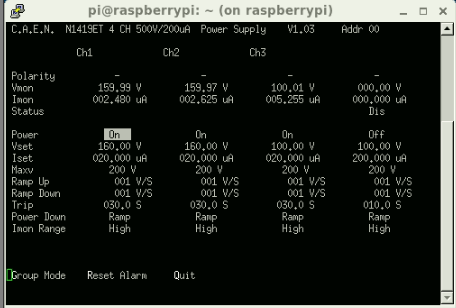

      Detector bias/leakage currents ok - attachment 15

Merger ok - 4.4M items/s
      TapeServer ok - 15 MB/s

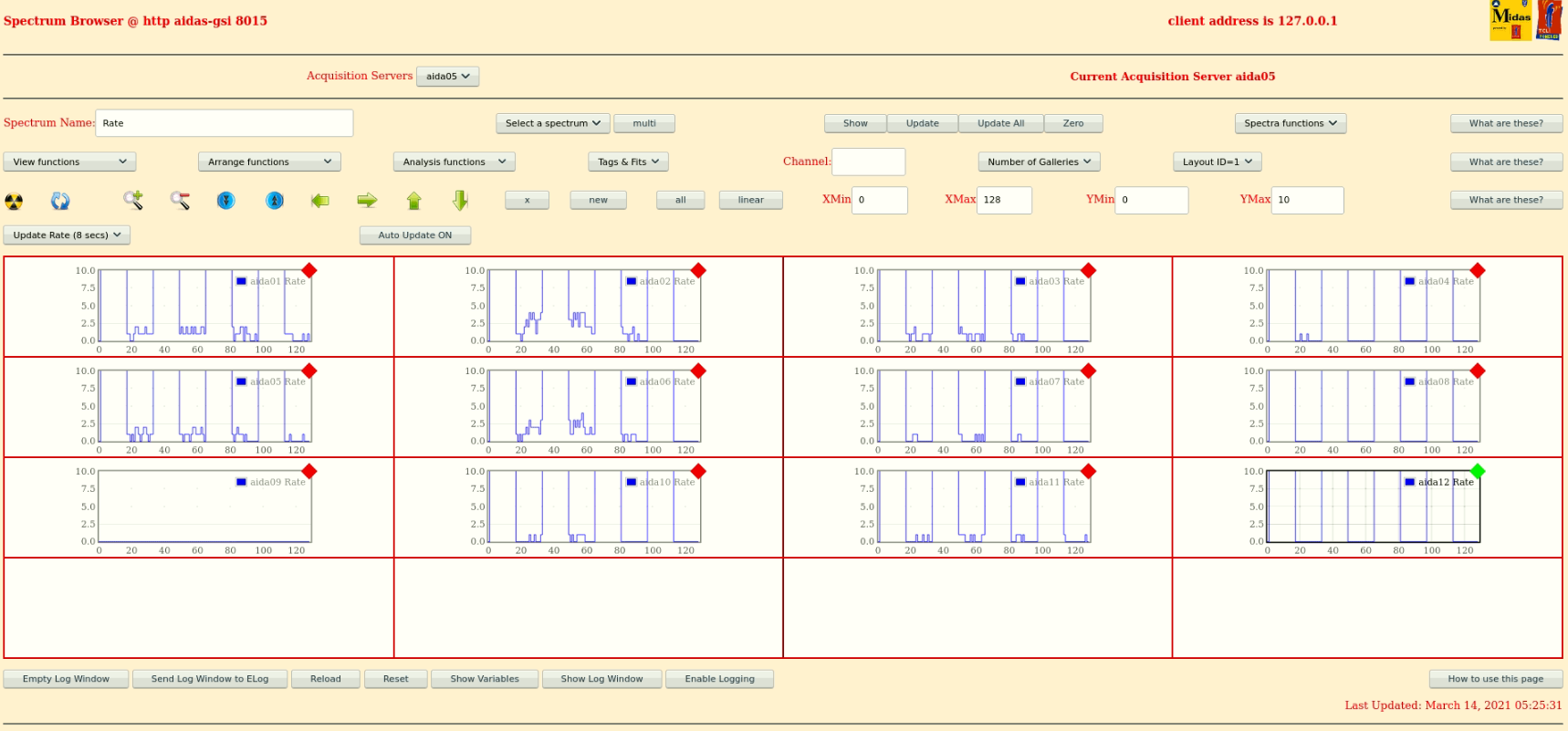

05:25 rate spectra - attachment 16

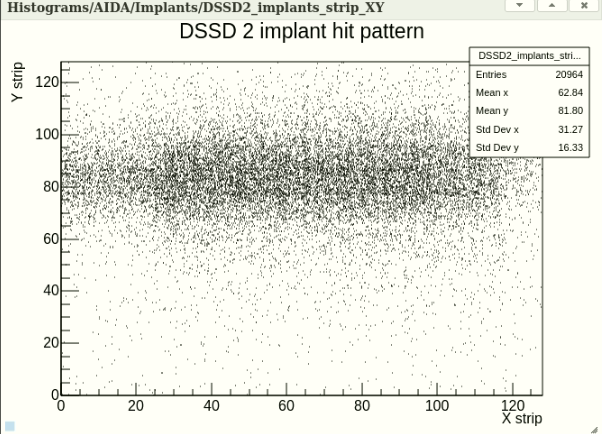

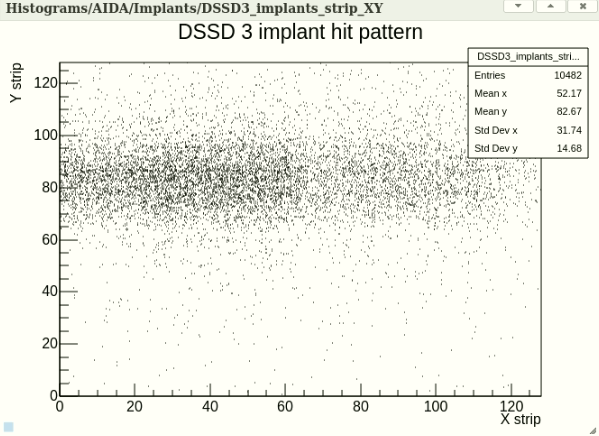

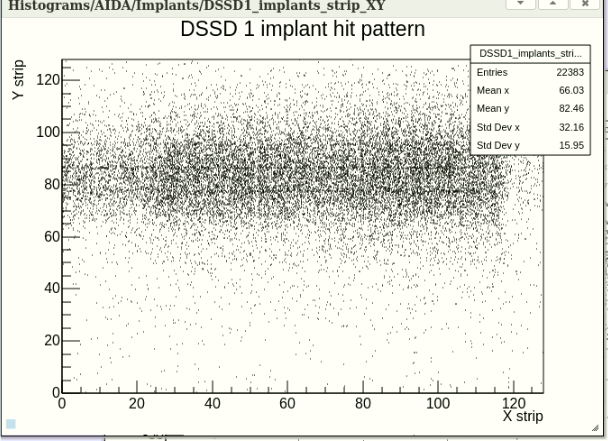

05:33 AIDA implant XY hit patterns - attachments 17/18/19

05:56 BuTIS interface control set to 0x3 at 04.52 UTC

07:06 system wide checks - same error messages as entry at 05:18

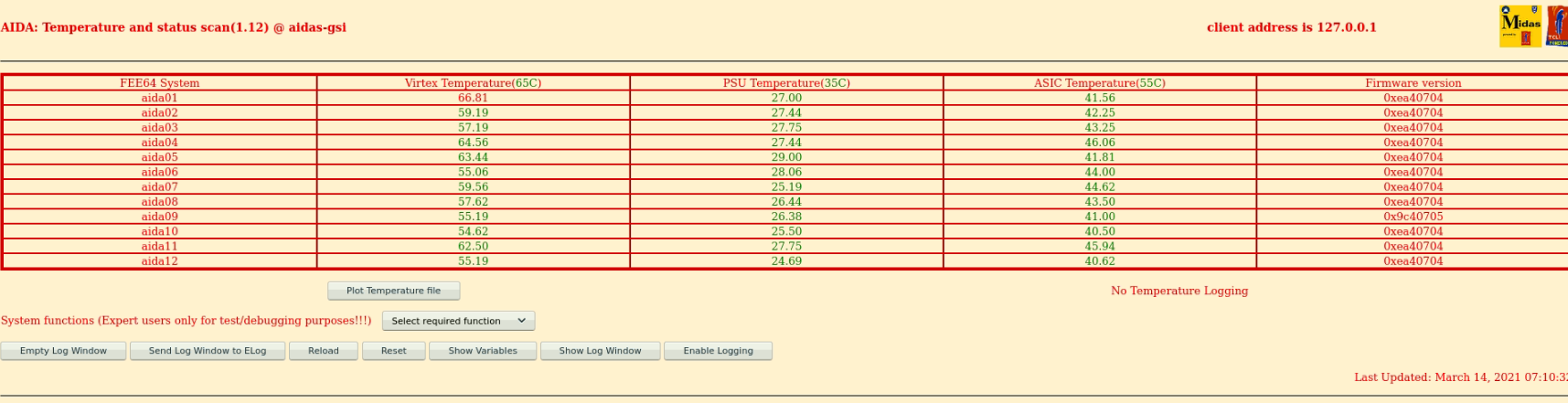

07:08 FEE64 Temperatures ok - attachment 20

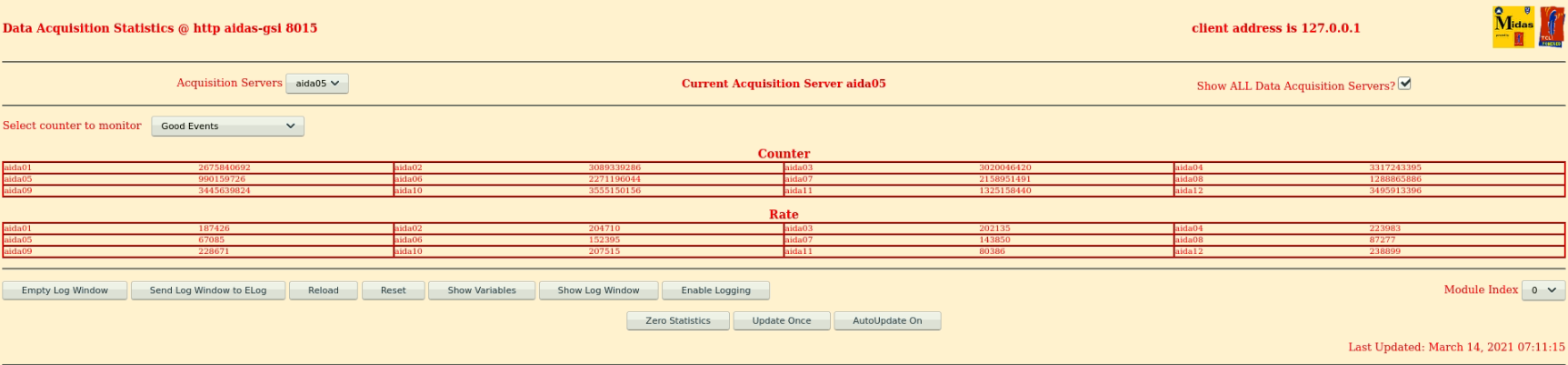

good event statistics ok - attachment 21

detector bias/leakage currents ok - attachment 22

Merger ok - 4.3M items/s
      TapeServer ok - 15 MB/s

07:22 no bad timestamp errors since 02:30 UTC

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

Screenshot_from_2021-03-13_23-14-33.png Original size: 1723x424

Attachment 2:

Screenshot_from_2021-03-13_23-14-57.png Original size: 1729x391

Attachment 3:

Screenshot_from_2021-03-13_23-15-12.png Original size: 446x307

Attachment 4:

Screenshot_from_2021-03-14_01-22-56.png Original size: 1733x427

Attachment 5:

Screenshot_from_2021-03-14_01-29-35.png Original size: 1736x402

Attachment 6:

Screenshot_from_2021-03-14_01-29-52.png Original size: 451x305

Attachment 7:

Screenshot_from_2021-03-14_01-40-57.png Original size: 586x365

Attachment 8:

Screenshot_from_2021-03-14_02-16-28.png Original size: 1739x426

Attachment 9:

Screenshot_from_2021-03-14_02-17-01.png Original size: 1726x396

Attachment 10:

Screenshot_from_2021-03-14_02-17-32.png Original size: 451x307

Attachment 11:

Screenshot_from_2021-03-14_02-29-29.png Original size: 579x405

Attachment 12:

R56_35

 *** TDR format 3.3.0 analyser - TD - January 2019
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  261409816 ( 1907248.6 Hz)
        Other data format:     510184 (    3722.3 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:       2488 (      18.2 Hz)
                               RESUME:       2487 (      18.1 Hz)
                              SYNC100:        511 (       3.7 Hz)
                              WR48-63:        511 (       3.7 Hz)
                           FEE64 disc:     503410 (    3672.9 Hz)
                             MBS info:        777 (       5.7 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:      60911 (     444.4 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                              WR48-63:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      137.061 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  1                2.725              132.339
  2                3.132              135.291
  3                6.180              132.876
  4               12.844              128.581
  5                8.386              132.070
  6                1.216              132.607
  7                1.093              115.159
  8               50.447              129.654
  9               19.940              134.755
 10                0.568              132.339
 11               51.844              133.681
 12                0.000                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100    WR48-63       Disc        MBS      Other   HEC Data
  0   22917695      26526          0          0        878        878         65         65      23863        777          0       8590
  1   26593258      35084          0          0         13         13         51         51      34956          0          0      10875
  2   25634005     337148          0          0         16         16         76         76     336964          0          0       6926
  3   28548879       3343          0          0         34         34         27         27       3221          0          0       1214
  4    7607641      18967          0          0        663        663         14         14      17613          0          0       6303
  5   19366719      25239          0          0        305        304         24         24      24582          0          0       8037
  6   18601227      17453          0          0          3          3         18         18      17411          0          0       6563
  7   10076045       2592          0          0          4          4         24         24       2536          0          0        908
  8   30026924       8042          0          0        217        216         34         34       7541          0          0       2274
  9   30858440      18084          0          0        113        113         88         88      17682          0          0       4590
 10    9946552      15820          0          0          3          3         46         46      15722          0          0       4264
 11   31232431       1886          0          0        239        240         44         44       1319          0          0        367
 12          0          0          0          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100    WR48-63       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0

 *** Program elapsed time:13611.407s (    2.351 blocks/s,   0.147 Mb/s)

Attachment 13:

Screenshot_from_2021-03-14_04-20-07.png Original size: 1718x394
