Entry time:
Sun Mar 14 07:04:30 2021
Author
*
:
Subject
*
:

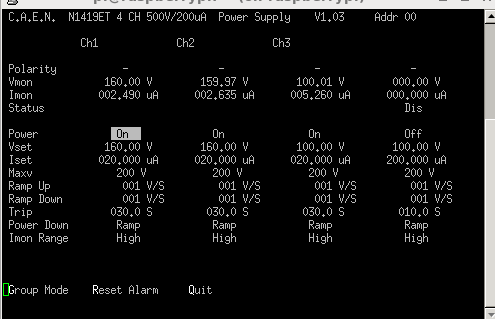

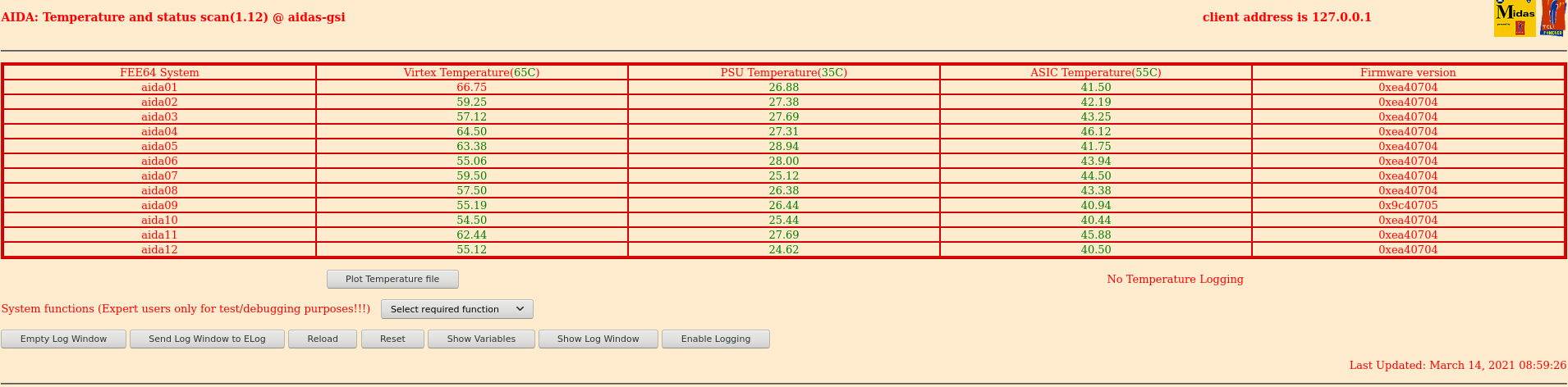

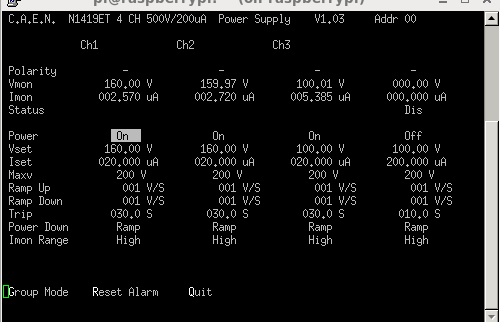

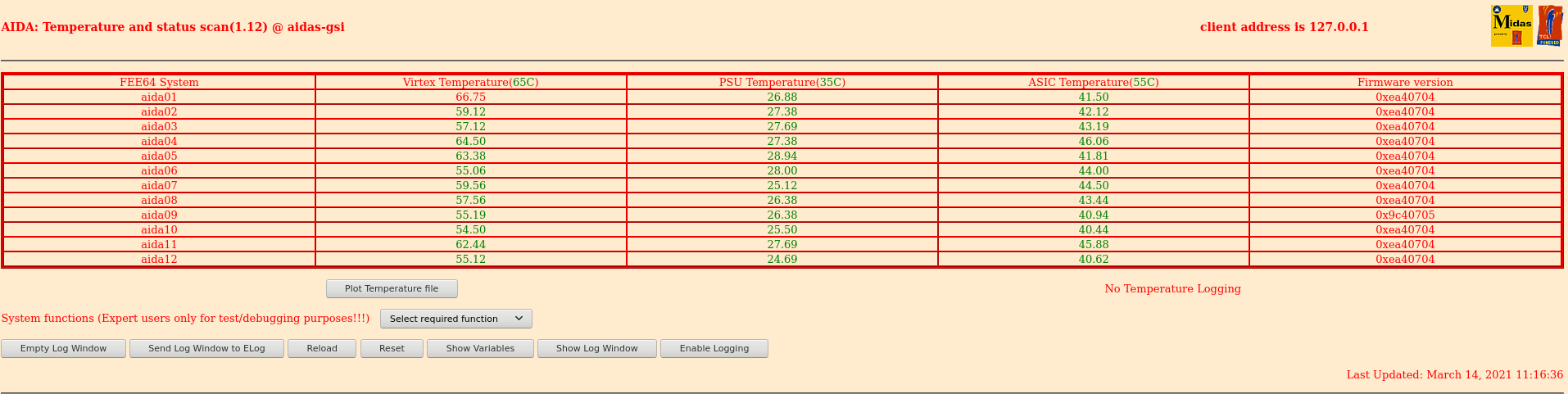

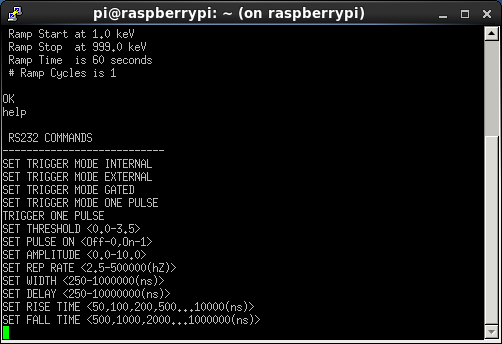

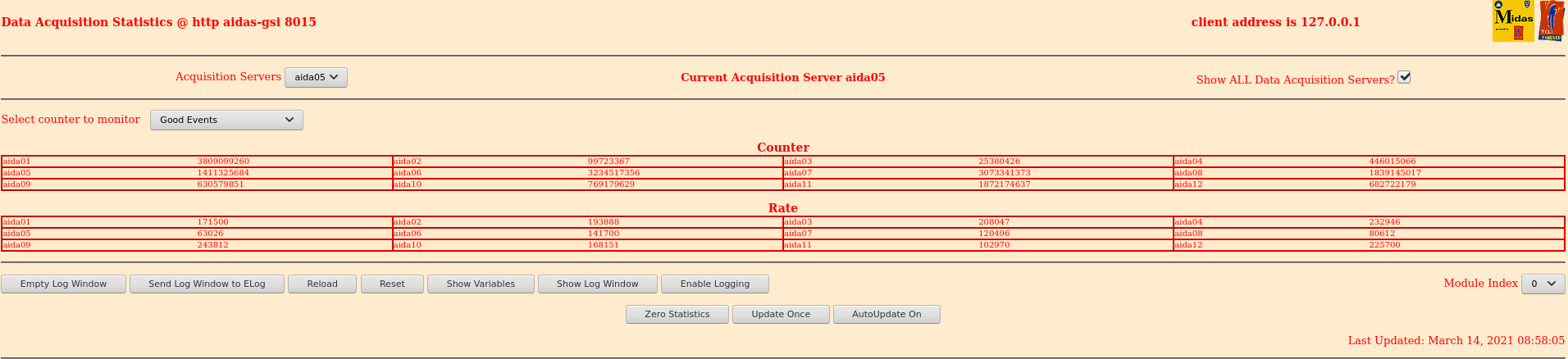

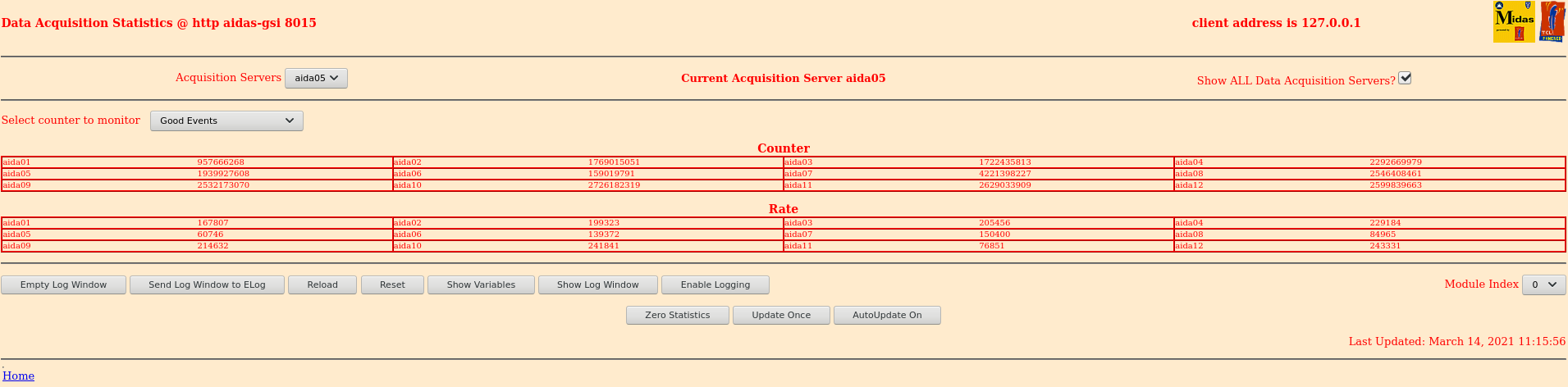

08:07 Realised the correlation scalers hadn't been enabled again. Have enabled them now. R56_151 Looking through the merger messages from the nightshift we see bad timestamps in FEE 11. This FEE does not have any scalers going into it. It is also the least noisy FEE in the back DSSD MERGE Data Link (20510): bad timestamp 10 3 0xc2b77eff 0x037a3b92 0x000017f7f37a3b92 0x166c17f7f37a3b92 0x166c17f7f3877262 MERGE Data Link (20510): bad timestamp 10 3 0xc2827f3a 0x037aa122 0x000017f7f37aa122 0x166c17f7f37aa122 0x166c17f7f3877262 09:01 System wide checks Base Current Difference aida07 fault 0x8c74 : 0x8c77 : 3 White Rabbit error counter test result: Passed 11, Failed 1 Understand the status reports as follows:- Status bit 3 : White Rabbit decoder detected an error in the received data Status bit 2 : Firmware registered WR error, no reload of Timestamp Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR Base Current Difference aida07 fault 0x2 : 0x5 : 3 FPGA Timestamp error counter test result: Passed 11, Failed 1 If any of these counts are reported as in error The ASIC readout system has detected a timeslip. That is the timestamp read from the time FIFO is not younger than the last Statistics - attachment 1 Temperature - attachment 2 Bias and leakage current - attachment 3 11:18 System wide checks Base Current Difference aida07 fault 0x8c77 : 0x8c78 : 1 White Rabbit error counter test result: Passed 11, Failed 1 Understand the status reports as follows:- Status bit 3 : White Rabbit decoder detected an error in the received data Status bit 2 : Firmware registered WR error, no reload of Timestamp Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR Statistics - attachment 4 Temperatures - attachment 5 Bias and leakage - attachment 6 13.14 DAQ continues OK - file R56_285 ASIC settings 2019Dec19-16.19.51 DSSSD#1 slow comparator 0xa DSSSD#2 slow comparator 0xa DSSSD#3 slow comparator 0xd BNC PB-5 Pulser Amplitude1.0V Attenuation x1 Frequency 2Hz tau_d 1ms - polarity Delay 250ns, tail pulse 13.18 System wide checks FEE64 module aida09 global clocks failed, 6 Clock status test result: Passed 11, Failed 1 Understand status as follows Status bit 3 : firmware PLL that creates clocks from external clock not locked Status bit 2 : always logic '1' Status bit 1 : LMK3200(2) PLL and clock distribution chip not locked to external clock Status bit 0 : LMK3200(1) PLL and clock distribution chip not locked to external clock If all these bits are not set then the operation of the firmware is unreliable FEE64 module aida07 failed FEE64 module aida09 failed Calibration test result: Passed 10, Failed 2 If any modules fail calibration , check the clock status and open the FADC Align and Control browser page to rerun calibration for that module Base Current Difference aida07 fault 0x8c77 : 0x8c78 : 1 White Rabbit error counter test result: Passed 11, Failed 1 Understand the status reports as follows:- Status bit 3 : White Rabbit decoder detected an error in the received data Status bit 2 : Firmware registered WR error, no reload of Timestamp Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR FPGA Timestamp error counter test result: Passed 12, Failed 0 If any of these counts are reported as in error The ASIC readout system has detected a timeslip. That is the timestamp read from the time FIFO is not younger than the last Returned 0 0 0 0 0 0 0 0 0 0 0 0 Mem(KB) : 4 8 16 32 64 128 256 512 1k 2k 4k aida01 : 27 8 3 4 2 2 2 2 3 4 10 : 54492 aida02 : 0 2 3 0 2 3 2 3 3 3 6 : 36416 aida03 : 18 9 1 2 0 4 1 3 3 3 6 : 36320 aida04 : 2 3 3 3 1 4 3 2 2 4 15 : 74224 aida05 : 26 72 72 54 53 49 22 18 7 4 7 : 72104 aida06 : 7 5 5 10 0 2 2 4 3 2 5 : 30932 aida07 : 2 4 2 1 1 3 2 3 2 3 7 : 39464 aida08 : 25 9 4 2 1 2 1 4 3 3 6 : 36716 aida09 : 4 11 3 5 2 4 1 2 3 3 6 : 36024 aida10 : 18 5 2 1 0 5 2 2 3 3 6 : 36144 aida11 : 25 10 4 1 1 4 2 3 2 3 6 : 35668 aida12 : 26 7 1 1 1 3 2 3 3 3 6 : 36496 13.19 FEE64 temperatures OK - attachment 7 Good events stats OK - attachment 8 Bias & leakage currents OK - attachment 9 Merger 4.5M items/s Tape Server 14Mb/s No Merger warning/error messages since last report. No MBS relay warning/error/messages since last restart. All histograms zero'd 16.00 DAQ contiues R56_361 System wide checks FEE64 module aida09 global clocks failed, 6 Clock status test result: Passed 11, Failed 1 Understand status as follows Status bit 3 : firmware PLL that creates clocks from external clock not locked Status bit 2 : always logic '1' Status bit 1 : LMK3200(2) PLL and clock distribution chip not locked to external clock Status bit 0 : LMK3200(1) PLL and clock distribution chip not locked to external clock If all these bits are not set then the operation of the firmware is unreliable FEE64 module aida07 failed FEE64 module aida09 failed Calibration test result: Passed 10, Failed 2 If any modules fail calibration , check the clock status and open the FADC Align and Control browser page to rerun calibration for that module Base Current Difference aida07 fault 0x8c77 : 0x8c79 : 2 White Rabbit error counter test result: Passed 11, Failed 1 Understand the status reports as follows:- Status bit 3 : White Rabbit decoder detected an error in the received data Status bit 2 : Firmware registered WR error, no reload of Timestamp Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR FPGA Timestamp error counter test result: Passed 12, Failed 0 If any of these counts are reported as in error The ASIC readout system has detected a timeslip. That is the timestamp read from the time FIFO is not younger than the last Returned 0 0 0 0 0 0 0 0 0 0 0 0 Mem(KB) : 4 8 16 32 64 128 256 512 1k 2k 4k aida01 : 23 8 6 4 2 2 2 2 3 4 10 : 54524 aida02 : 1 3 4 2 1 2 1 4 3 3 6 : 36572 aida03 : 2 3 2 3 1 3 2 2 3 3 6 : 35936 aida04 : 19 7 2 3 1 4 3 3 1 4 15 : 73796 aida05 : 34 68 72 54 53 49 22 18 7 4 7 : 72104 aida06 : 11 10 4 10 0 2 2 4 3 2 5 : 30972 aida07 : 1 3 2 2 2 2 2 3 2 3 7 : 39420 aida08 : 24 10 5 2 1 3 1 4 3 3 6 : 36864 aida09 : 20 8 3 5 2 3 2 3 3 3 6 : 36704 aida10 : 2 3 2 3 1 3 3 2 3 3 6 : 36192 aida11 : 17 10 4 0 1 4 2 3 2 3 6 : 35604 aida12 : 20 6 3 2 1 3 2 2 2 4 6 : 37040 15.05 FEE64 temperatures OK - attachment 10 Good events stats OK - attachment 11 Bias & leakage currents OK - attachment 12 Merger 4.6M items/s Tape Server 14Mb/s No Merger warning/error messages since last report. No MBS relay warning/error/messages since last restart. Rate spectra - attachments 13 & 14 p+n junction HEC spectra - attachment 15 17.33 end of S452 run file R56_397 No Merger warning/error messages since last report. No MBS relay warning/error/messages since last restart. BNC PB-5 config - attachment 16 CAEN 8xxx NIM bin config - attachment 17
