12.48 DAQ continues OK - no storage

      ASIC settings 2019Dec19-16.19.51
      DSSSD#1 slow comparator 0xa
      DSSSD#2 slow comparator 0xa
      DSSSD#3 slow comparator 0xd

      BNC PB-5 Pulser
      Amplitude1.0V
      Attenuation x1
      Frequency 2Hz
      tau_d 1ms
      - polarity
      Delay 250ns, tail pulse

12.50 System wide checks


FEE64 module aida09 global clocks failed, 6
 Clock status test result: Passed 11, Failed 1

Understand status as follows
Status bit 3 : firmware PLL that creates clocks from external clock not locked
Status bit 2 : always logic '1'
Status bit 1 : LMK3200(2) PLL and clock distribution chip not locked to external clock
Status bit 0 : LMK3200(1) PLL and clock distribution chip not locked to external clock
If all these bits are not set then the operation of the firmware is unreliable


FEE64 module aida07 failed
FEE64 module aida09 failed
Calibration test result: Passed 10, Failed 2

If any modules fail calibration , check the clock status and open the FADC Align and Control browser page to rerun calibration for that module



		 Base 		Current 	Difference
aida05 fault 	 0x6acb : 	 0x6acc : 	 1
aida06 fault 	 0x8394 : 	 0x8395 : 	 1
aida07 fault 	 0x8c77 : 	 0x8c7a : 	 3
aida08 fault 	 0x1692 : 	 0x1693 : 	 1
White Rabbit error counter test result: Passed 8, Failed 4

Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR



FPGA Timestamp error counter test result: Passed 12, Failed 0
If any of these counts are reported as in error
The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last


Returned 0 0 0 0 0 0 0 0 0 0 0 0
Mem(KB) :	4	8	16	32	64	128	256	512	1k	2k	4k
aida01 :     20     18      5      4      2      2      2      2      3      4     10   : 54576
aida02 :     26     18     16     10      6      4      2      4      2      3      6   : 37048
aida03 :     18     10      4      3      2      3      2      4      2      3      6   : 36152
aida04 :     13      9      4      2      2      2      2      4      1      4     15   : 73852
aida05 :     46     72     70     54     52     48     21     19      7      4      7   : 72216
aida06 :     32     10      4     10      0      2      2      4      3      2      5   : 31056
aida07 :     19      7      5      3      2      3      3      3      3      3      6   : 36916
aida08 :     20     14      2      3      1      3      1      4      3      3      6   : 36864
aida09 :      3      6      3      3      2      4      1      2      3      3      6   : 35916
aida10 :     23     11      3      3      1      3      3      2      3      3      6   : 36356
aida11 :      2      5      6      2      2      4      2      3      2      3      6   : 35664
aida12 :     25     10      5      2      2      2      2      3      3      3      6   : 36548


      FEE64 Temperatures OK - attachment 1
      Good event statistics OK - attachment 2
      Detector bias & leakage currents OK - attachment 3
      Merger OK - 4.6M data items/s
      TapeServer OK - 14Mb/s

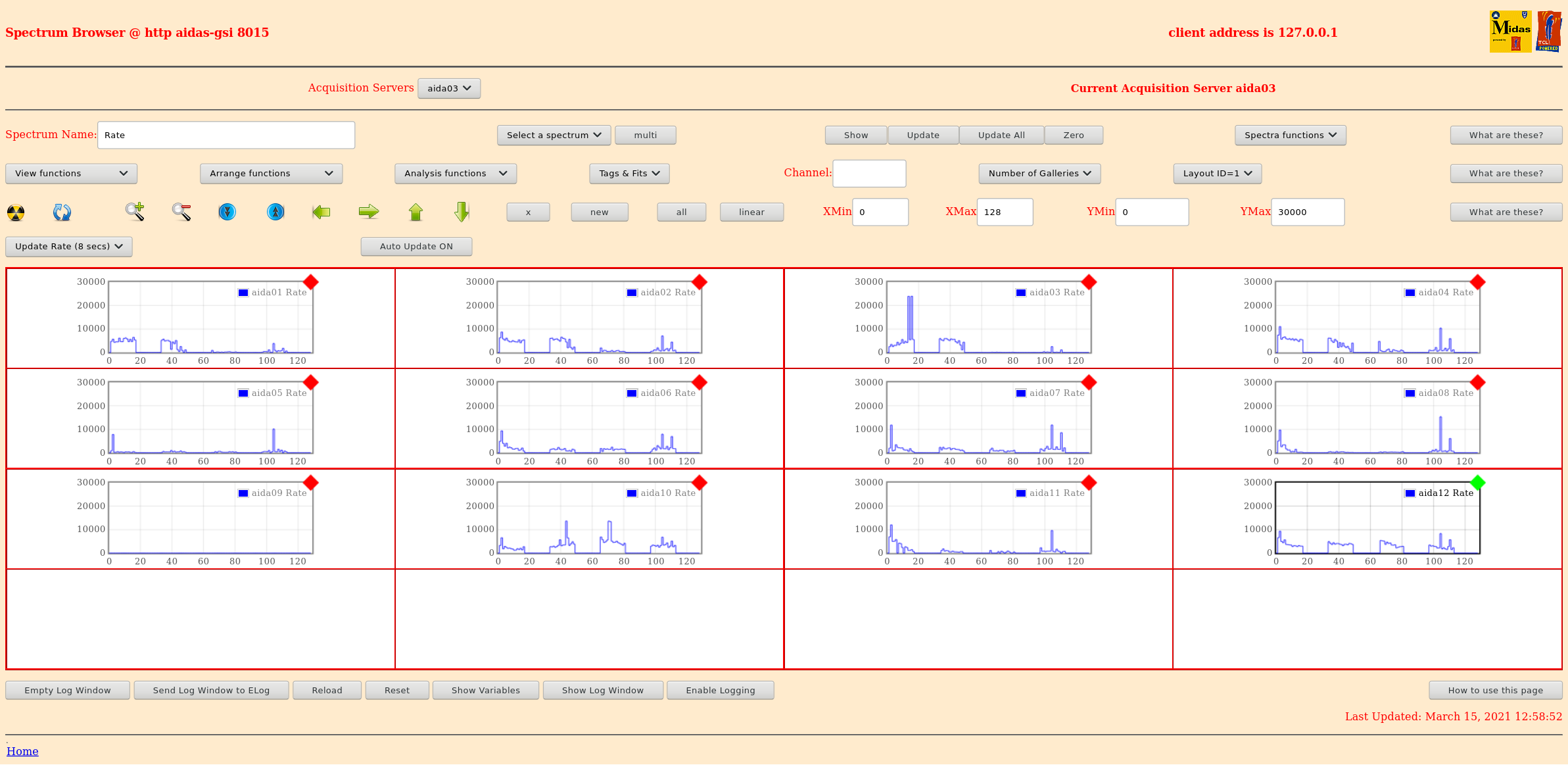

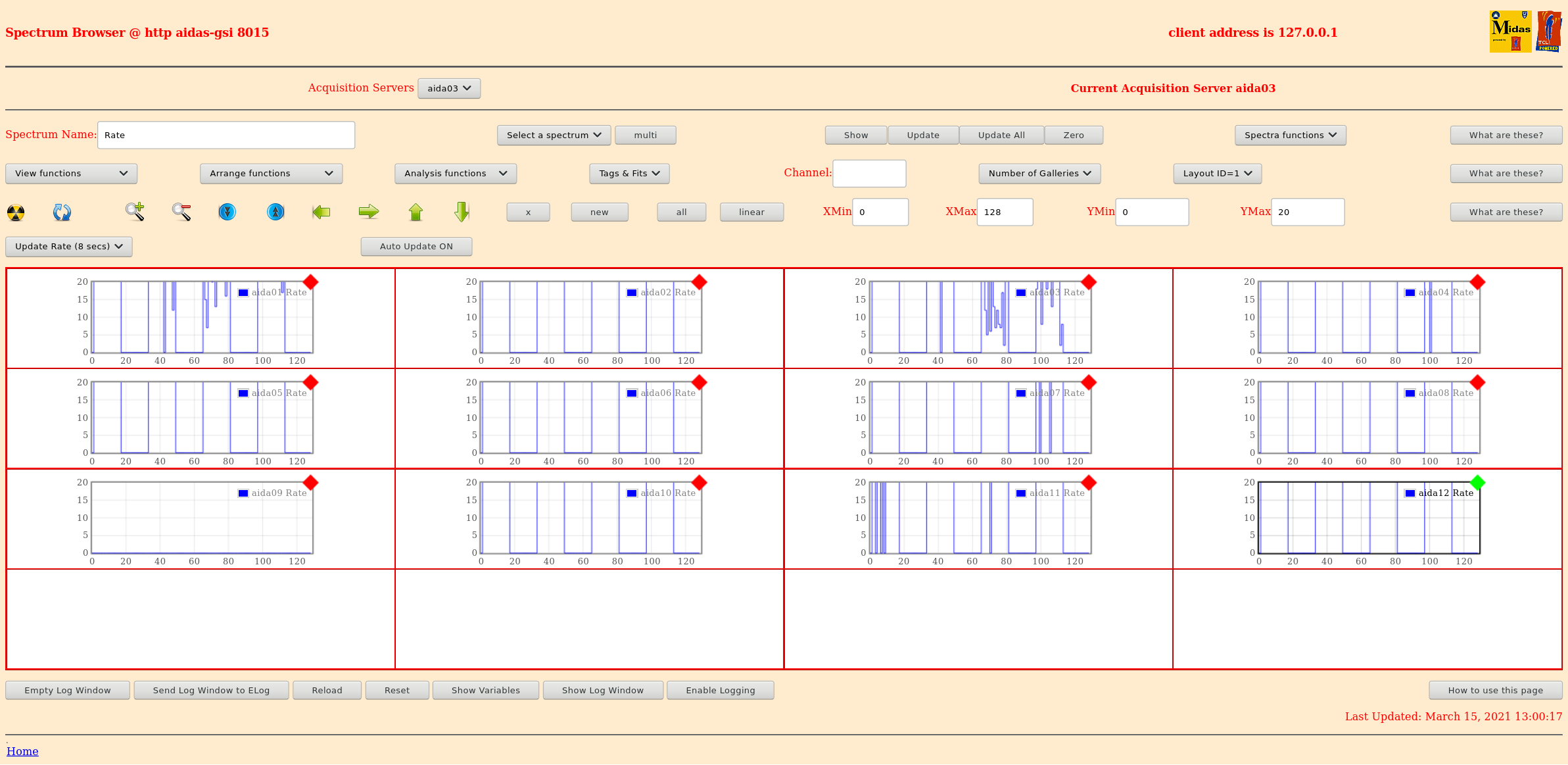

12.55 Rate spectra - attachments 4 & 5

      Merger server error messages since most recent check

MERGE Data Link (20503): bad timestamp  3 3 0xc0d582ee 0x04f02352 0x000064aa97efd660 0x166c64aa94f02352 0x166c64aa97efd660
MERGE Data Link (20503): bad timestamp  3 3 0xc0e680cf 0x04f032f2 0x000064aa94f032f2 0x166c64aa94f032f2 0x166c64aa97efd660
MERGE Data Link (20503): bad timestamp  3 3 0xc0c68215 0x04f03ac2 0x000064aa94f03ac2 0x166c64aa94f03ac2 0x166c64aa97efd660
MERGE Data Link (20503): bad timestamp  3 3 0xc0fd81f1 0x04f061d2 0x000064aa94f061d2 0x166c64aa94f061d2 0x166c64aa97efd660
MERGE Data Link (20503): bad timestamp  3 3 0xc0eb812a 0x04f07942 0x000064aa94f07942 0x166c64aa94f07942 0x166c64aa97efd660
MERGE Data Link (20503): bad timestamp  3 3 0xc0f68041 0x04f07942 0x000064aa94f07942 0x166c64aa94f07942 0x166c64aa97efd660
MERGE Data Link (20503): bad timestamp  3 3 0x83806b78 0x04f07aa0 0x000064aa94f07aa0 0x166c64aa94f07aa0 0x166c64aa97efd660
MERGE Data Link (20503): bad timestamp  3 3 0x83811ea0 0x04f07aa0 0x000064aa94f07aa0 0x166c64aa94f07aa0 0x166c64aa97efd660
MERGE Data Link (20503): bad timestamp  3 3 0x83820000 0x04f07aa0 0x000064aa94f07aa0 0x166c64aa94f07aa0 0x166c64aa97efd660
MERGE Data Link (20503): bad timestamp  3 3 0xc0c183d5 0x04f0aff2 0x000064aa94f0aff2 0x166c64aa94f0aff2 0x166c64aa97efd660
MERGE Data Link (20503): bad timestamp  3 3 0xc0d58220 0x04f0b7c2 0x000064aa94f0b7c2 0x166c64aa94f0b7c2 0x166c64aa97efd660
MERGE Data Link (20503): bad timestamp  3 3 0xc0e68097 0x04f0bf92 0x000064aa94f0bf92 0x166c64aa94f0bf92 0x166c64aa97efd660
MERGE Data Link (20503): bad timestamp  3 3 0xc0c682e7 0x04f0c762 0x000064aa94f0c762 0x166c64aa94f0c762 0x166c64aa97efd660
MERGE Data Link (20503): bad timestamp  3 3 0xc0cf7ff7 0x04f0cf32 0x000064aa94f0cf32 0x166c64aa94f0cf32 0x166c64aa97efd660
MERGE Data Link (20503): bad timestamp  3 3 0xc0fd817e 0x04f0ee72 0x000064aa94f0ee72 0x166c64aa94f0ee72 0x166c64aa97efd660
MERGE Data Link (20503): bad timestamp  3 3 0xc0e180e5 0x04f105e2 0x000064aa94f105e2 0x166c64aa94f105e2 0x166c64aa97efd660
MERGE Data Link (20503): bad timestamp  3 3 0xc0d181fd 0x04f10db2 0x000064aa94f10db2 0x166c64aa94f10db2 0x166c64aa97efd660
MERGE Data Link (20503): bad timestamp  3 3 0xc0d78072 0x04f11582 0x000064aa94f11582 0x166c64aa94f11582 0x166c64aa97efd660
MERGE Data Link (20503): bad timestamp  3 3 0xc0c17fff 0x04f14462 0x000064aa94f14462 0x166c64aa94f14462 0x166c64aa97efd660
MERGE Data Link (20503): bad timestamp  3 3 0xc0c68234 0x04f15bd2 0x000064aa94f15bd2 0x166c64aa94f15bd2 0x166c64aa97efd660
MERGE Data Link (20503): bad timestamp  3 3 0xc0c780f9 0x04f17342 0x000064aa94f17342 0x166c64aa94f17342 0x166c64aa97efd660
MERGE Data Link (20503): bad timestamp  3 3 0xc0c98277 0x04f17b12 0x000064aa94f17b12 0x166c64aa94f17b12 0x166c64aa97efd660
MERGE Data Link (20503): bad timestamp  3 3 0xc0d28174 0x04f17b12 0x000064aa94f17b12 0x166c64aa94f17b12 0x166c64aa97efd660
MERGE Data Link (20503): bad timestamp  3 3 0xc0d5812d 0x04f182e2 0x000064aa94f182e2 0x166c64aa94f182e2 0x166c64aa97efd660
MERGE Data Link (20503): bad timestamp  3 3 0xc0fd8112 0x04f182e2 0x000064aa94f182e2 0x166c64aa94f182e2 0x166c64aa97efd660
MERGE Data Link (20503): bad timestamp  3 3 0x83806b78 0x04f186a2 0x000064aa94f186a2 0x166c64aa94f186a2 0x166c64aa97efd660
MERGE Data Link (20503): bad timestamp  3 3 0x83811ea0 0x04f186a2 0x000064aa94f186a2 0x166c64aa94f186a2 0x166c64aa97efd660
MERGE Data Link (20503): bad timestamp  3 3 0x83820000 0x04f186a2 0x000064aa94f186a2 0x166c64aa94f186a2 0x166c64aa97efd660
MERGE Data Link (20503): bad timestamp  3 3 0xc0d98224 0x04f18ab2 0x000064aa94f18ab2 0x166c64aa94f18ab2 0x166c64aa97efd660
MERGE Data Link (20503): bad timestamp  3 3 0xc0e68096 0x04f19a52 0x000064aa94f19a52 0x166c64aa94f19a52 0x166c64aa97efd660
MERGE Data Link (20503): bad timestamp  3 3 0xc0c080e1 0x04f1a222 0x000064aa94f1a222 0x166c64aa94f1a222 0x166c64aa97efd660
MERGE Data Link (20503): bad timestamp  3 3 0xc0d18282 0x04f1a222 0x000064aa94f1a222 0x166c64aa94f1a222 0x166c64aa97efd660
MERGE Data Link (20503): bad timestamp  3 3 0xc0c38198 0x04f1a9f2 0x000064aa94f1a9f2 0x166c64aa94f1a9f2 0x166c64aa97efd660
MERGE Data Link (20503): bad timestamp  3 3 0xc0cb8187 0x04f1b1c2 0x000064aa94f1b1c2 0x166c64aa94f1b1c2 0x166c64aa97efd660
MERGE Data Link (20503): bad timestamp  3 3 0xc0cc8178 0x04f1b992 0x000064aa94f1b992 0x166c64aa94f1b992 0x166c64aa97efd660
MERGE Data Link (20503): bad timestamp  3 3 0xc0c78063 0x04f1ffe2 0x000064aa94f1ffe2 0x166c64aa94f1ffe2 0x166c64aa97efd660
MERGE Data Link (20503): bad timestamp  3 3 0xc0e980e1 0x04f1ffe2 0x000064aa94f1ffe2 0x166c64aa94f1ffe2 0x166c64aa97efd660
MERGE Data Link (20503): bad timestamp  3 3 0xc0c98129 0x04f207b2 0x000064aa94f207b2 0x166c64aa94f207b2 0x166c64aa97efd660
MERGE Data Link (20503): bad timestamp  3 3 0xc0d28107 0x04f207b2 0x000064aa94f207b2 0x166c64aa94f207b2 0x166c64aa97efd660
MERGE Data Link (20503): bad timestamp  3 3 0xc0eb80e2 0x04f207b2 0x000064aa94f207b2 0x166c64aa94f207b2 0x166c64aa97efd660

18.47 FEE64 Temperatures OK - attachment 1
      Good event statistics OK - attachment 2
      Detector bias & leakage currents OK - attachment 3
      Merger OK - 4.6M data items/s
      TapeServer OK - 14Mb/s

      No new merger error messages since 12.55 today
